RENAULT SCENIC 2008 J84 / 2.G Electrical Equipment -Battery Workshop Manual
Manufacturer: RENAULT, Model Year: 2008, Model line: SCENIC, Model: RENAULT SCENIC 2008 J84 / 2.GPages: 9, PDF Size: 0.05 MB

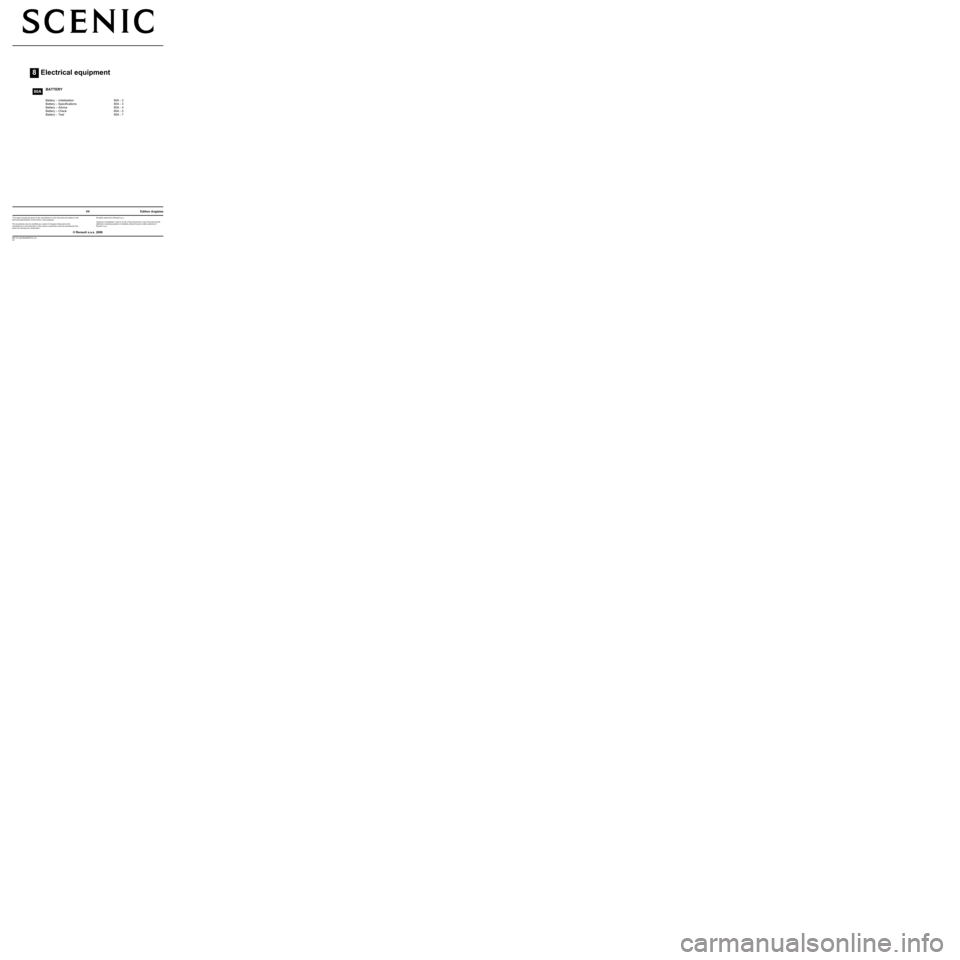

Page 1 of 9
8Electrical equipment
V4 MR-372-J84-80A000$TOC.mif
V4
80A
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the
manufacturer in the production of the various component units and accessories from
which his vehicles are constructed."
V4
All rights reserved by Renault s.a.s.
Edition Anglaise
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of
Renault s.a.s.
© Renault s.a.s. 2008
BATTERY
Battery – Initialisation 80A - 2
Battery – Specifications 80A - 3
Battery – Advice 80A - 4
Battery – Check 80A - 5
Battery – Test 80A - 7

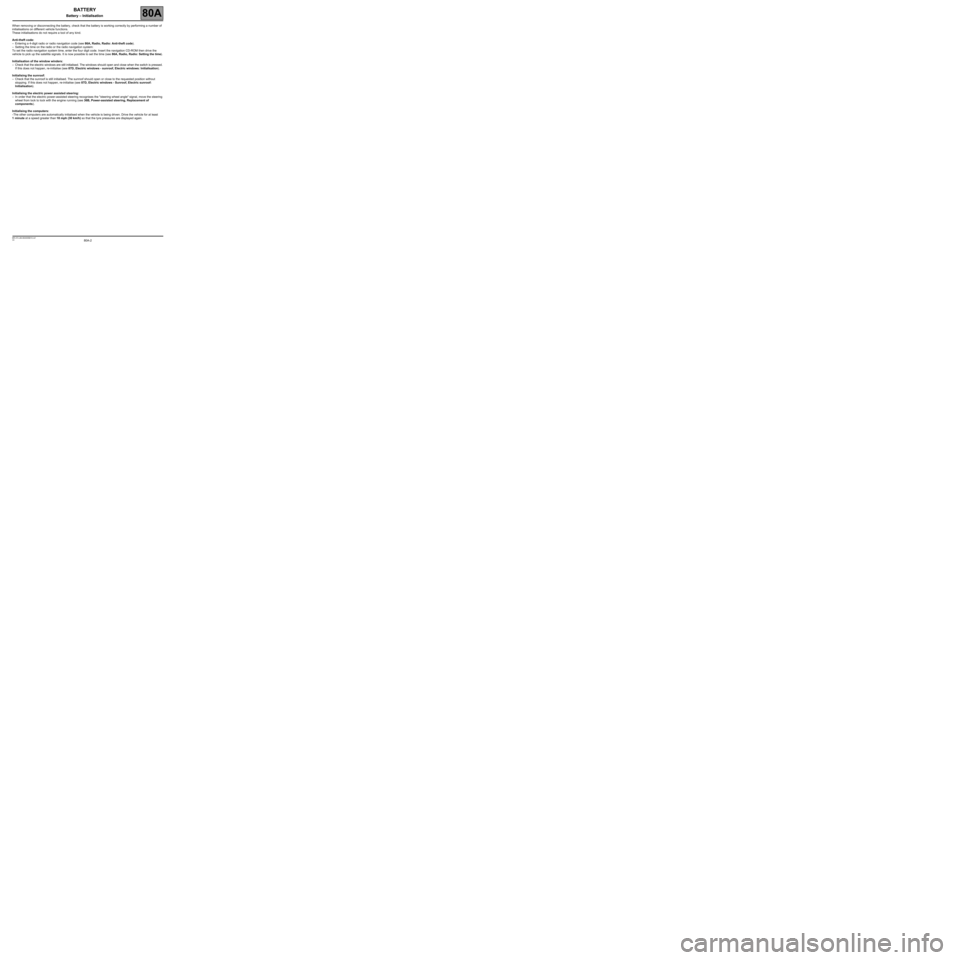

Page 2 of 9
80A-2V4 MR-372-J84-80A000$010.mif
BATTERY
Battery – Initialisation80A
When removing or disconnecting the battery, check that the battery is working correctly by performing a number of
initialisations on different vehicle functions.
These initialisations do not require a tool of any kind.
Anti-theft code:
–Entering a 4-digit radio or radio navigation code (see 86A, Radio, Radio: Anti-theft code).
–Setting the time on the radio or the radio navigation system:
To set the radio navigation system time, enter the four digit code. Insert the navigation CD-ROM then drive the
vehicle to pick up the satellite signals. It is now possible to set the time (see 86A, Radio, Radio: Setting the time).
Initialisation of the window winders:
–Check that the electric windows are still initialised. The windows should open and close when the switch is pressed.
If this does not happen, re-initialise (see 87D, Electric windows - sunroof, Electric windows: Initialisation).
Initialising the sunroof:
–Check that the sunroof is still initialised. The sunroof should open or close to the requested position without
stopping. If this does not happen, re-initialise (see 87D, Electric windows - Sunroof, Electric sunroof:
Initialisation).
Initialising the electric power assisted steering:
–In order that the electric power-assisted steering recognises the "steering wheel angle" signal, move the steering
wheel from lock to lock with the engine running (see 36B, Power-assisted steering, Replacement of
components).
Initialising the computers:
-The other computers are automatically initialised when the vehicle is being driven. Drive the vehicle for at least
1 minute at a speed greater than 18 mph (30 km/h) so that the tyre pressures are displayed again.
BATTERY
Battery – Initialisation

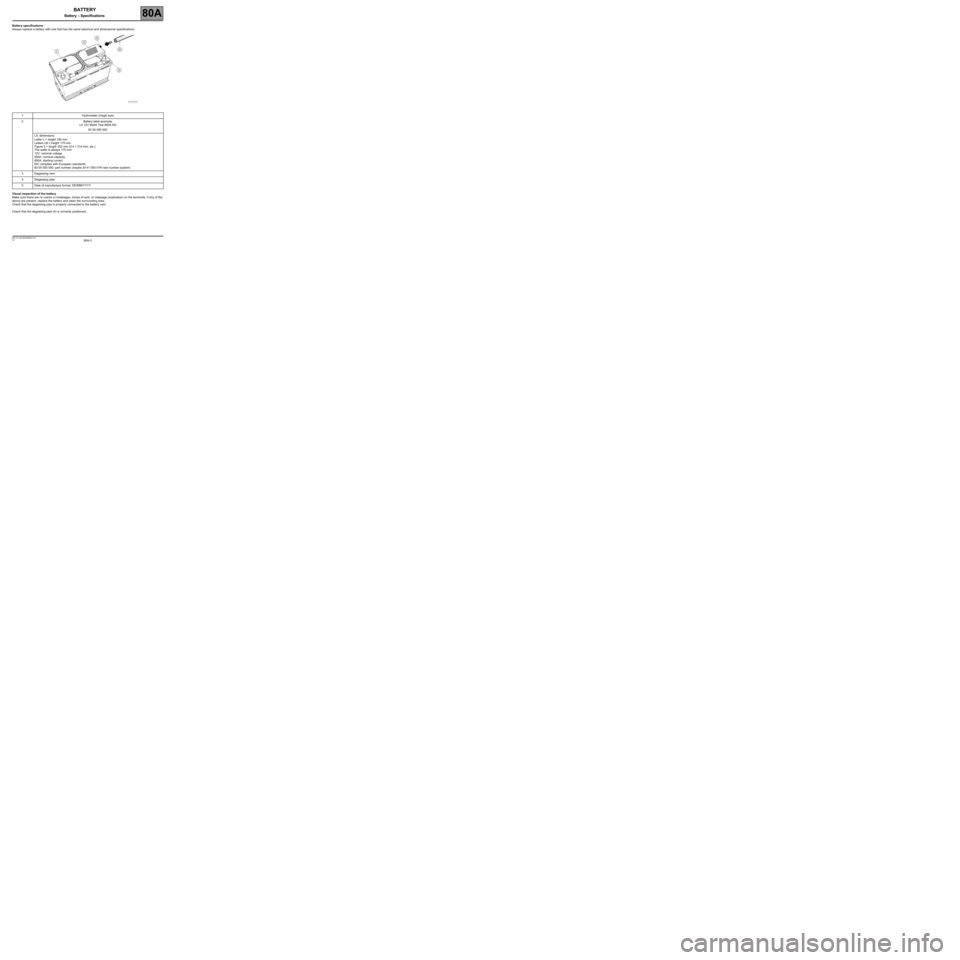

Page 3 of 9
80A-3V4 MR-372-J84-80A000$020.mif
BATTERY
Battery – Specifications80A
Battery specifications:
Always replace a battery with one that has the same electrical and dimensional specifications.
Visual inspection of the battery
Make sure there are no cracks or breakages, traces of acid, or creepage (sulphation) on the terminals. If any of the
above are present, replace the battery and clean the surrounding area.
Check that the degassing pipe is properly connected to the battery vent
Check that the degassing pipe (4) is correctly positioned.1Hydrometer (magic eye)
2Battery label example:
L5 12V 95AH Test 850A EN
82 00 000 000
L5: dimensions
Letter L = height 190 mm
Letters LB = height 175 mm
Figure 5 = length 352 mm (if 4 = 314 mm, etc.)
The width is always 175 mm
12V: nominal voltage
95Ah: nominal capacity
850A: starting current
EN: complies with European standards
82 00 000 000: part number (maybe 24 41 000 01R new number system)
3Degassing vent
4Degassing pipe
5Date of manufacture format: DD/MM/YYYY
BATTERY
Battery – Specifications
Page 4 of 9
80A-4V4 MR-372-J84-80A000$030.mif
80A
IMPORTANT
•All vehicles are equipped with low water consumption batteries. Opening the battery and topping up the electrolyte
level are PROHIBITED.
•Batteries contain sulphuric acid, which is a hazardous chemical.
•Battery charging produces hydrogen and oxygen, which are very flammable gases and thus there is a risk of
explosion.
•Any batteries with filling plugs must not be opened under any circumstances but replaced immediately with Renault
approved batteries.
Battery recharging:
When parked, vehicles consume power through their permanent consumers and through any accessories fitted as
After-Sales options. To keep battery discharging to a minimum, limit the number of times the vehicle is started,
periods with the ignition on, doors open, etc., as much as possible.
A discharged battery must be recharged using a Renault-approved battery charger (see Technical Note 6512A,
Battery charging)
Battery storage:
Even when stored off the vehicle, a battery gradually discharges, and more rapidly if the ambient temperature is
high.
In order that a battery remains operational for a long time, it must be stored at a temperature of around
15 ˚C and protected from humidity.. To retain a good level of charge, it is recommended that a battery is completely
recharged after it has been stored for 3 months.
A new battery that has been stored for more than one year must not be fitted to a vehicle.IMPORTANT
•Simultaneous recharging of several batteries in series or in parallel is forbidden.
•A battery charger used on a battery connected to a vehicle can irreparably damage the vehicle computers due
to the high voltages created when charging.
•The location of the charger must take this into account (ventilation).
•A battery charger or a booster not approved by Renault can damage the electrical components.
BATTERY
Battery – Advice
Page 5 of 9
80A-5V4 MR-372-J84-80A000$040.mif
80A
Test procedure using the MIDTRONICS tool
Test conditions
The measurement must be taken when the vehicle is stationary and the ignition is off.
If the engine has been run in the last hour, switch the battery status to test and carry out the following operations:
–engine switched off,
–switch on the main beam headlights for 2 minutes,
–switch off the main beam headlights,
–wait for 2 minutes,
–switch off the ignition.
Equipment to be used:
–Tester approved by the Service Department: MIDTRONICS MICRO R330.
–Tool available as part no.: Elé. 1593.
–Equipment available in France from the Parts Department.
–Tool available in 6 languages.
–For other countries, consult your contact in your country. Special tooling required
Elé. 1593 Battery tester
MIDTRONICS R330
WARNING
Failure to observe the procedure or poorly maintained equipment may result in incorrect measurements, which
could be:
–detrimental to the customer (the battery is not sound),
–detrimental to RENAULT (unnecessary replacement of a sound or rechargeable battery),
–detrimental to the dealership (if the battery is tested as sound or rechargeable for a part return under warranty,
the warranty reimbursement request will be cancelled).
BATTERY
Battery – Check

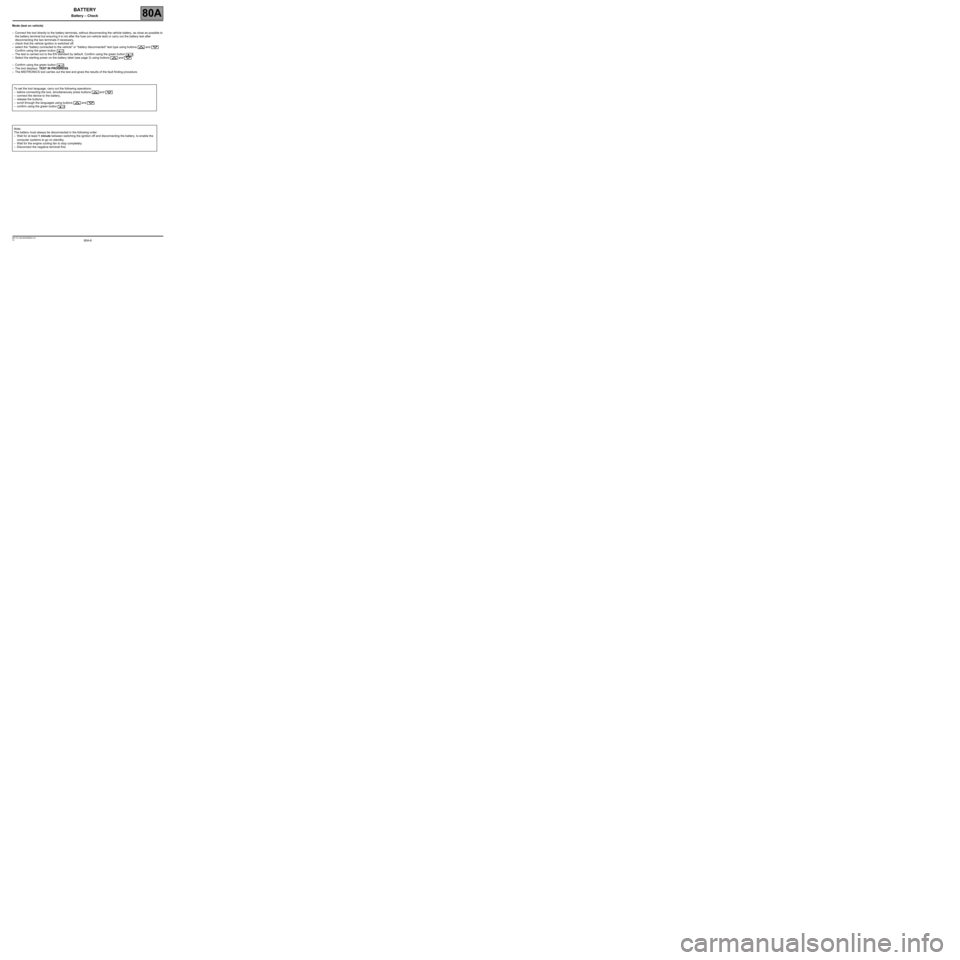

Page 6 of 9
80A-6V4 MR-372-J84-80A000$040.mif
BATTERY
Battery – Check80A
Mode (test on vehicle)
–Connect the tool directly to the battery terminals, without disconnecting the vehicle battery, as close as possible to
the battery terminal but ensuring it is not after the fuse (on-vehicle test) or carry out the battery test after
disconnecting the two terminals if necessary,
–check that the vehicle ignition is switched off,
–select the "battery connected to the vehicle" or "battery disconnected" test type using buttons and
Confirm using the green button
–The test is carried out to the EN standard by default. Confirm using the green button .
–Select the starting power on the battery label (see page 3) using buttons and .
–Confirm using the green button .
–The tool displays: TEST IN PROGRESS.
–The MIDTRONICS tool carries out the test and gives the results of the fault finding procedure.
To set the tool language, carry out the following operations:
–before connecting the tool, simultaneously press buttons and
–connect the device to the battery,
–release the buttons,
–scroll through the languages using buttons and ,
–confirm using the green button .
Note:
The battery must always be disconnected in the following order:
–Wait for at least 1 minute between switching the ignition off and disconnecting the battery, to enable the
computer systems to go on standby.
–Wait for the engine cooling fan to stop completely.
–Disconnect the negative terminal first.

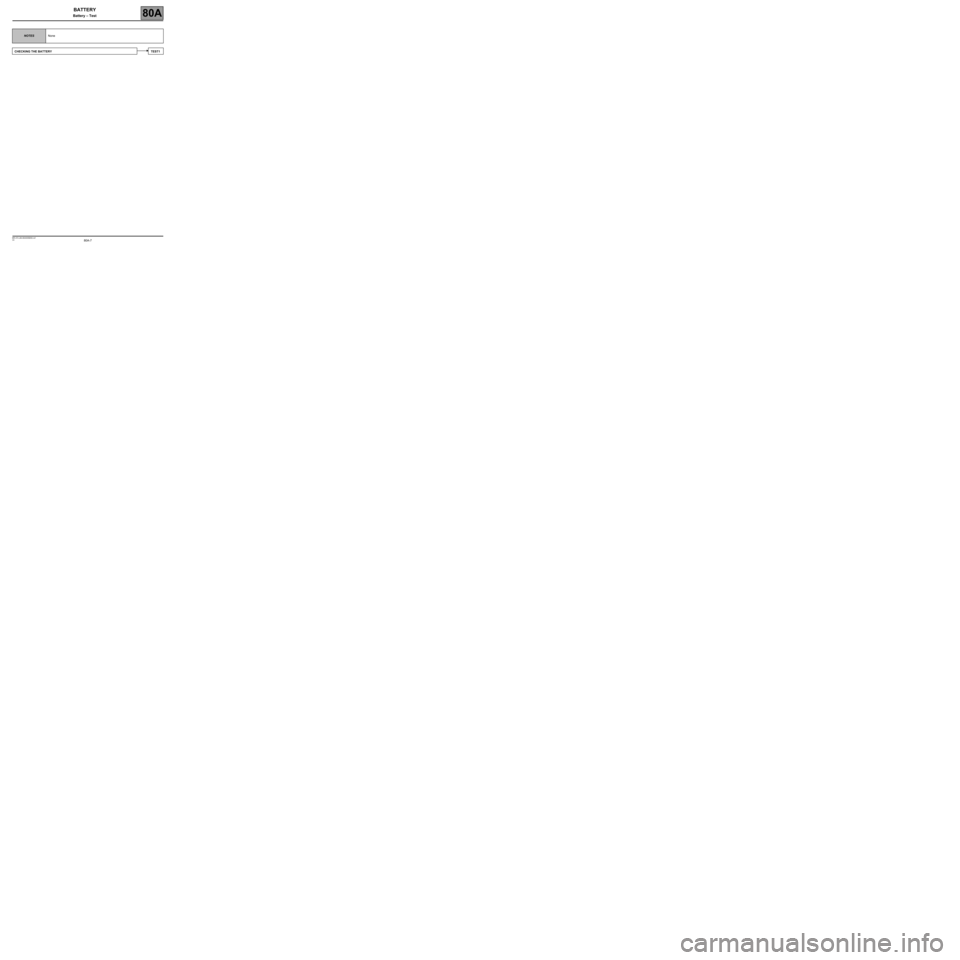

Page 7 of 9
80A-7V4 MR-372-J84-80A000$050.mif
80A
NOTESNone
CHECKING THE BATTERYTEST1
BATTERY
Battery – Test

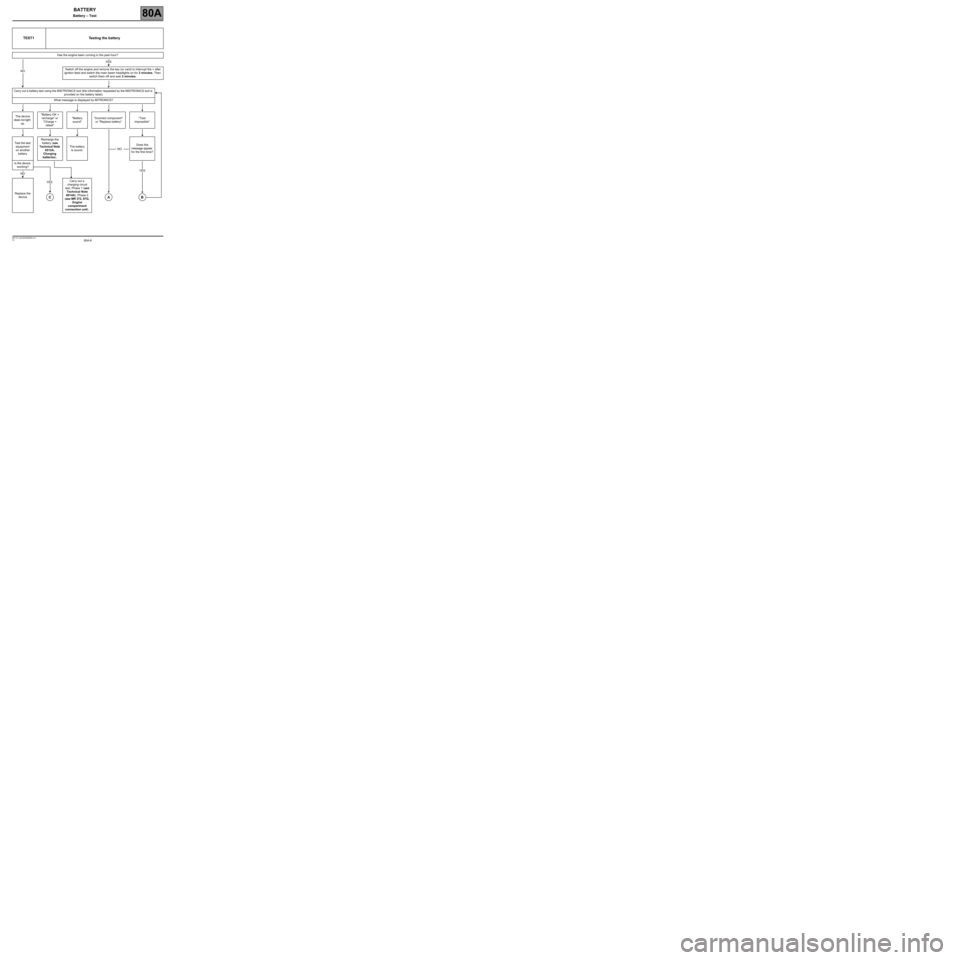

Page 8 of 9
80A-8V4 MR-372-J84-80A000$050.mif
BATTERY
Battery – Test80A
TEST1 Testing the battery
Has the engine been running in the past hour?
Switch off the engine and remove the key (or card) to interrupt the + after
ignition feed and switch the main beam headlights on for 2 minutes. Then
switch them off and wait 2 minutes.
Carry out a battery test using the MIDTRONICS tool (the information requested by the MIDTRONICS tool is
provided on the battery label).
What message is displayed by MITRONICS?
The device
does not light
up."Battery OK +
recharge" or
"Charge +
retest""Battery
sound""Incorrect component"
or "Replace battery""Test
impossible"
Test the test
equipment
on another
batteryRecharge the
battery (see
Technical Note
6512A,
Charging
batteries).The battery
is sound.Does the
message appear
for the first time?
Is the device
working?
Replace the
deviceCarry out a
charging circuit
test, Phase 1 (see
Technical Note
6014A), Phase 2
(see MR 372, 87G,
Engine
compartment
connection unit).
NO
YES
NO
YES
NO
YES
CAB

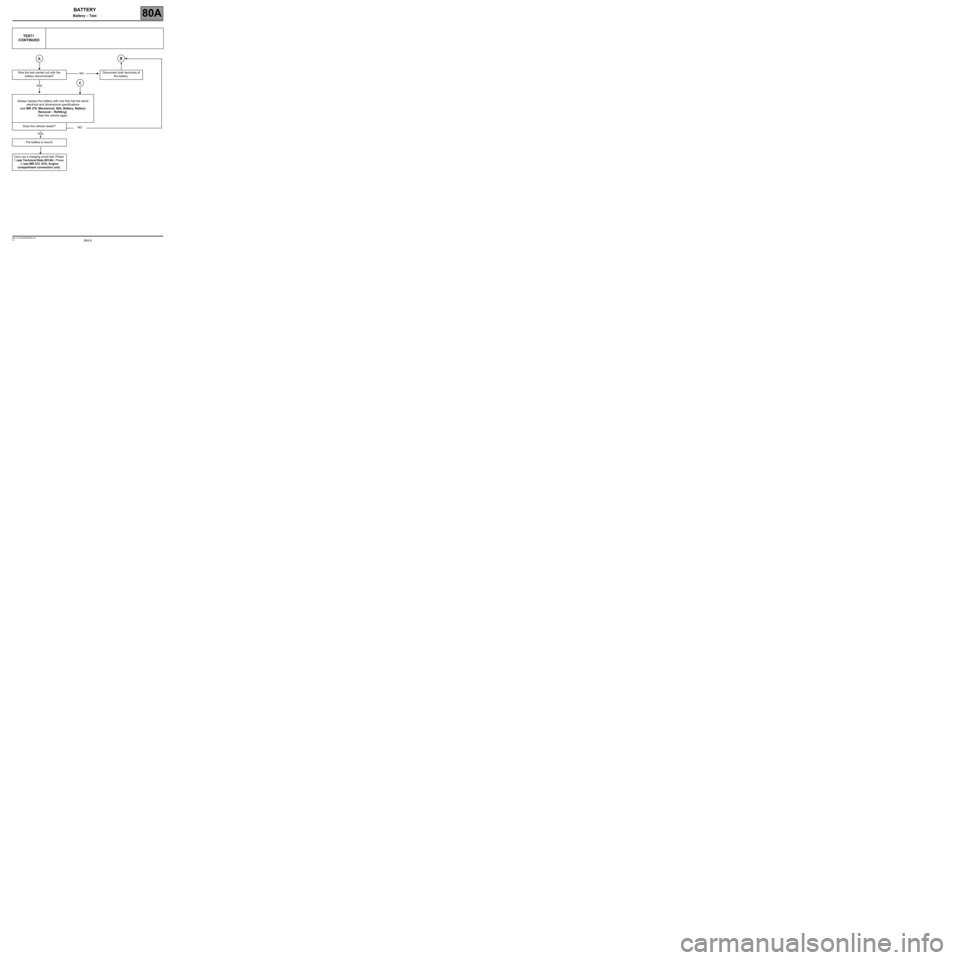

Page 9 of 9
80A-9V4 MR-372-J84-80A000$050.mif
BATTERY
Battery – Test80A
TEST1
CONTINUED
Was the test carried out with the
battery disconnected?Disconnect both terminals of
the battery.
Always replace the battery with one that has the same
electrical and dimensional specifications
(see MR 370, Mechanical, 80A, Battery, Battery:
Removal – Refitting).
Start the vehicle again.
Does the vehicle restart?
The battery is sound.
Carry out a charging circuit test, Phase
1 (see Technical Note 6014A), Phase
2 (see MR 372, 87G, Engine
compartment connection unit).
AB
NO
YESC
NO
YES
