AUTOMATIC TRANSMISSION
Fault finding – Conformity check23A
23A - 63V4 MR-372-J84-23A050$462.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
MAIN SCREEN (continued 1)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
5Brake pedalET142:Brake pedal pressedYES, if the brake pedal
is depressed
NO, if the brake pedal
is not depressedIn the event of a
fault, refer to the
interpretation of this
status.
6Brake switchET003:Brake light switch
(opening)ACTIVE, if the brake
pedal is not depressed
INACTIVE, if the brake
pedal is depressedIn the event of a
fault, refer to the
interpretation of this
status.
ET004:STOP light contact
(closure)INACTIVE, if the brake
pedal is not depressed
ACTIVE, if the brake
pedal is depressed
7Selection modeET097: Manual mode INACTIVEACTIVE, if lever is in
position M
8Sequential lever
switchET127:Lower sequential
lever switchOPEN, CLOSED, if
selector lever in
position M-
In the event of a
fault, refer to the
interpretation of this
status. ET128:Upper sequential
lever switchOPEN, CLOSED, if
selector lever in
position M+
ET155:Third gear hold
contactOPEN
9Driving modeET079:Economy modeYES, if driving is
economical
NO, if driving is 'sporty' NONE
10Gearbox oil
temperaturePR004:Gearbox oil
temperature- 40 < X < 140 ˚C In the event of a
fault, consult the
interpretation of this
parameter.

AUTOMATIC TRANSMISSION
Fault finding – Conformity check23A
23A - 69V4 MR-372-J84-23A050$462.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
SUB-FUNCTION: LEVER LOCK
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Gear lever
positionET012:Gear lever positionP if selector is in
position P
N if selector is in
position N.
R if selector is in
position R.
D if selector is in
position D.
M if selector is in
position M.
M+ if selector is in
position M+.
M- if selector is in
position M-.In the event of a
fault, refer to the
interpretation of this
status.
2Brake pedalET142:Brake pedal pressedYES, if brake pedal is
pressed
NO, if brake pedal is
not pressed In the event of a
fault, refer to the
interpretation of this
status.
ET003:Brake light switch
(open)ACTIVE, if brake
pedal is not pressed
INACTIVE, if brake
pedal is pressed In the event of a
fault, refer to the
interpretation of this
status.
ET004:Brake light switch
(closure)ACTIVE, if brake
pedal is not pressed
INACTIVE, if brake
pedal is pressedIn the event of a
fault, refer to the
interpretation of this
status.
3Selector lever
lockingET157:Gear lever unlockingYES, if brake pedal is
pressed
NO, if brake pedal is
not pressed

AUTOMATIC TRANSMISSION
Fault finding – Conformity check23A
23A - 73V4 MR-372-J84-23A050$462.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
SUB-FUNCTION: STATIONARY DECLUTCHING (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status checked
or ActionDisplay and Notes Fault finding
4Brake pedal
pressedET142:Brake pedal pressedYES, if the brake pedal
is depressed
NO, if the brake pedal
is not depressedIn the event of a
fault, refer to the
interpretation of this
status.
5Brake pedalET003:Brake light switch
(opening)OPEN, brake pedal
released.
CLOSED, brake pedal
depressedIn the event of a
fault, refer to the
interpretation of this
status.
6Brake pedalET004:Brake light switch
(closure)CLOSED, brake pedal
released.
OPEN, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.

AUTOMATIC TRANSMISSION
Fault finding – Conformity check23A
23A - 75V4 MR-372-J84-23A050$462.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
SUB-FUNCTION: CREEPING AT IDLE SPEED (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
6Standard pedal
positionPR135:Standard pedal
position% In the event of a
fault, consult the
interpretation of this
parameter.
7Brake pedalET003:Brake light
switch (opening)OPEN, brake pedal
released.
CLOSED, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
8Brake pedalET004:Brake light
switch (closure)CLOSED, brake pedal
released.
OPEN, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
9Gear engagedET013:Gear engagedR for reverse.
1P for 1
st locked.
2P for 2nd locked.
3P for 3rd locked.
4P for 4th locked.
1G for 1st slipping.
2G for 2nd slipping.
3G for 3rd slipping.
4G for 4th slipping.
1 for 1st unlocked.
2 for 2nd unlocked.
3 for 3rd unlocked.
4 for 4th unlocked.In the event of a
fault, refer to the
interpretation of this
status.

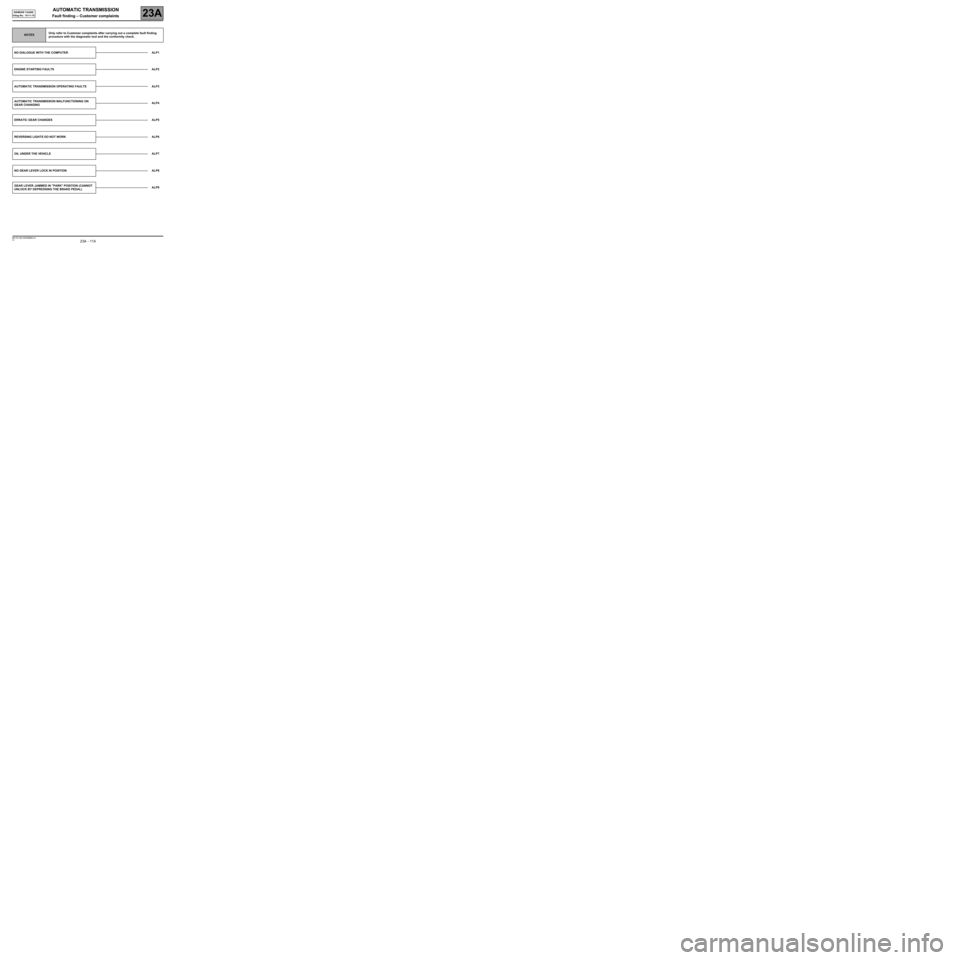

AUTOMATIC TRANSMISSION
Fault finding – Customer complaints23A
23A - 114V4 MR-372-J84-23A050$858.mif
SIEMENS TA2000
Vdiag No.: 10-11-15AUTOMATIC TRANSMISSION
Fault finding – Customer complaints
NOTESOnly refer to Customer complaints after carrying out a complete fault finding
procedure with the diagnostic tool and the conformity check.
NO DIALOGUE WITH THE COMPUTER ALP1
ENGINE STARTING FAULTSALP2
AUTOMATIC TRANSMISSION OPERATING FAULTS ALP3
AUTOMATIC TRANSMISSION MALFUNCTIONING ON
GEAR CHANGINGALP4
ERRATIC GEAR CHANGESALP5
REVERSING LIGHTS DO NOT WORK ALP6
OIL UNDER THE VEHICLEALP7
NO GEAR LEVER LOCK IN POSITION ALP8
GEAR LEVER JAMMED IN "PARK" POSITION (CANNOT
UNLOCK BY DEPRESSING THE BRAKE PEDAL)ALP9
MR-372-J84-23A050$858.mif

AUTOMATIC TRANSMISSION
23A
23A-115V4 MR-372-J84-23A050$924.mif
SIEMENS TA2000
Vdiag No.: 10-11-15AUTOMATIC TRANSMISSION
Fault finding – Fault Finding Chart
ALP1 No dialogue with the computer
NOTESNone.
Try the diagnostic tool on another vehicle.
Check:
–the connection between the diagnostic tool and the diagnostic socket (connection and cable in good condition),
–the power supply to the computer,
–the engine and passenger compartment fuses.
Check that the CLIP sensor is supplied by connections BP32, MAN and NAM of component 225, displayed when
both red indicator lights on the sensor illuminate.
Make sure that the CLIP sensor is connected to the computer's USB port.
Make sure the CLIP sensor is communicating properly with the vehicle's computers; this can be seen by the two
green diodes on the sensor lighting up.
Check the following connections on component 225:
●Connection code AP43 (+ after ignition feed).
●Connection code BP32 (+ battery).
●Connection code MAN (earth).
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
No communication on line K
Check the continuity, insulation and absence of interference resistance on line K of the diagnostic socket.
Disconnect the automatic transmission computer connector to check the insulation, continuity and the absence
of interference resistance of the following connections:
●Connection code AP4 between components 119 and 1337.
●Connection code BP42 between components 119 and 1337.
●Connection code N between components 119 and 107.
●Connection code 3HK between components 119 and 225.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
DP0TA2000_V10_ALP1/DP0TA2000_V11_ALP1/DP0TA2000_V15_ALP1
MR-372-J84-23A050$924.mif

AUTOMATIC TRANSMISSION
Fault finding – Fault Finding Chart23A
23A -121V4 MR-372-J84-23A050$924.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
ALP5 Erratic gear changes
NOTESOnly refer to Customer complaints after carrying out a complete fault finding
procedure with the diagnostic tool and the conformity check.
Carry out a road test using the diagnostic tool, making sure that status ET013 Gear engaged operates normally.
If the customer complaint occurs with the brake pedal released, check that status ET004 Brake light switch
(Closed) is NO.
If not, adjust the brake light switch and the brake pedal.
Make sure that the instrument panel display of the gear engaged matches the gear lever position.
Check the automatic transmission wiring harness (sequence solenoid valve control).
Replace it if necessary.
Check that the gear lever cable is working properly and adjust it if necessary.
Check that the multifunction switch is working correctly.
If the fault is still present, replace the multifunction switch.
Carry out fault finding on the injection system.
Check engine speed signal PR006 during a road test at a steady speed.
If the signal is wrong, replace the engine speed sensor.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
DP0TA2000_V10_ALP5/DP0TA2000_V11_ALP5/DP0TA2000_V15_ALP5
