ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - System operation87G
87G-10V7 MR-372-J84-87G050$110.mif
UPC
Vdiag No.: 48, 4C
Only on vehicles with M9R injection:
The injection computer also acts on the alternator regulation voltage. The injection computer sends the maximum
authorised power delivered by the engine, to the UPC computer via the multiplex network. If the power from the engine
is less than the power consumed by the alternator, the UPC computer will reduce the alternator voltage.
For vehicles with any injection type except M9R:
The UPC sends the alternator charge to the injection to regulate the idling speed.
c) Starter
This turns the engine over to make it start, and requires a very powerful electric current, which the battery must be
able to supply.
The computer receives the starter activation request via the multiplex network from:
–injection,
–UCH,
–the automatic gearbox.
(see ET010 Starting conditions met)
The computer controls the starter relay.
In the event of a fault with the starter, refer to section 16A, Starting - Charging, Starter.
3 - Keyless vehicle
Under the keyless vehicle function, the Protection and Switching Unit is involved in the starting sub-function. The
computer:
–receives the supply request from the passenger compartment starter via the multiplex network, as well as the clutch
pedal position,
–controls the starter relay,
–inhibits or cuts out this relay control according to a signal prohibiting starting which is sent by the injection computer
or gearbox via the multiplex network (see 87B, Passenger compartment connection unit).
4 - Air conditioning
For the operation of the air conditioning and the role of the Protection and Switching Unit in the control of this
function (see 62A, Air conditioning).
Cold loop:
The computer receives the compressor switch-on request from the injection via the multiplex network.
The computer controls the compressor clutch engagement relay.
Heating:
The computer manages the alternator charge and sends back the signal over the multiplex network.
The computer also controls the rear screen de-icing.

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming87G
87G-14V7 MR-372-J84-87G050$220.mif
UPC
Vdiag No.: 48, 4CENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
This operation is used to configure the Protection and Switching Unit to the equipment present in the vehicle.
Procedure to follow for modifying these configurations:
●Establish dialogue with the UPC.
●Select the repair mode menu.
●Select the configure menu.
●Select line VP004 Vehicle parameters.
●Select the line corresponding to the vehicle equipment from the drop-down menus.
●Confirm the configurations selected and then click on validate.
●Switch the ignition off and then back on for the configurations to be recognised by the computer.
●In the configuration reading menu, check that each configuration has been performed.
Make sure that all the vehicle's equipment is working.Equipment required
CLIP diagnostic tool
Configuration Configuration reading Name of configuration
Automatic
(the alternator is
automatically recognised
by the Protection and
Switching Unit)LC001 Type of alternator
VP004 LC008 Gearbox type
VP004 LC007 Front fog lights
VP004 LC013 Headlight washers
MR-372-J84-87G050$220.mif

ENGINE COMPARTMENT CONNECTION UNIT
87G
87G - 15V7 MR-372-J84-87G050$275.mif
UPC
Vdiag No.: 48, 4CENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Fault summary table
Summary of faults on which fault finding can be performed by the Protection and Switching Unit.
(With corresponding design office codes).
Tool fault Associated DTC Diagnostic tool title
DF006 920E COMPUTER
DF007 9211 UPC - ALTERNATOR CONNECTION
DF009 9214 + AFTER IGNITION FEED CIRCUIT (Vdiag 4C only)
DF012 9210 ALTERNATOR
DF013 920F VOLTAGE REGULATION
DF014 9217 LEFT-HAND SIDE LIGHT CIRCUIT
DF015 9218 RIGHT-HAND SIDE LIGHT CIRCUIT
DF016 9215 LEFT-HAND DIPPED HEADLIGHT CIRCUIT
DF017 9216 RIGHT-HAND DIPPED HEADLIGHT CIRCUIT
DF018 921B LEFT-HAND MAIN BEAM HEADLIGHT CIRCUIT
DF019 921C RIGHT-HAND MAIN BEAM HEADLIGHT CIRCUIT
DF020 921D FRONT FOG LIGHT CIRCUIT
DF021 9226 REVERSING LIGHT(S) CIRCUIT
DF022 921E REAR SCREEN DE-ICER CIRCUIT
DF023 921A WINDSCREEN WIPER CIRCUIT
DF024 9222 GAS COMPUTER SUPPLY
DF025 9223 ELECTRIC POWER ASSISTED STEERING/AIRBAG
SUPPLY
DF026 9224 AUTOMATIC GEARBOX SUPPLY
DF027 9225 ACCESSORIES SUPPLY
DF029 9221 INJECTION/STEERING COLUMN LOCK SUPPLY
DF030 9219 CLIMATE CONTROL COMPRESSOR SUPPLY CIRCUIT
DF031 921F HEADLIGHT WASHER SUPPLY CIRCUIT
DF032 9227 +12 V RELAY SUPPLY CIRCUIT
DF033 9229 FAN ASSEMBLY SUPPLY CIRCUIT
DF034 9212 ALTERNATOR TYPE
DF035 9213 COMPUTER SUPPLY VOLTAGE
DF036 9220 STEERING COLUMN LOCK SUPPLY CIRCUIT
MR-372-J84-87G050$275.mif

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults87G
87G-22V7 MR-372-J84-87G050$330.mif
UPC
Vdiag No.: 4C
DF009
PRESENT
OR
STORED+ APC CIRCUIT
1.DEF: Permanent low level
2.DEF: Permanent high signal
NOTESSpecial note:
This fault only applies to Vdiag 4C.
Conditions for applying the fault finding procedure to present faults:
The fault is declared present after the ignition has been switched on.
Use Wiring Diagrams Technical Note for Mégane II or Scénic II.
Check the connection and condition of the LPG electric control unit connector, component code 997.
Check for a voltage on connection AP31 to the connector for the LPG electric control unit, component code 997.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring otherwise replace the wiring.
Check the connection and condition of the multifunction switch, the reverse gear switch and the manual
gearbox neutral sensor/reversing lights, component codes 485, 155, and 1109.
Check for a voltage on connection AP11 to the connectors for the multifunction switch, the reverse gear switch
and the manual gearbox neutral sensor/reverse lights, component codes 485, 155, and 1109.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring otherwise replace the wiring.
Check the connection and condition of the passenger compartment electric control unit, component code 645.
Check for a voltage on connection APCB to the connector for the passenger compartment electric control unit,
component code 645.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring otherwise replace the wiring.
Check the connection and condition of the electric steering column lock, component code 1088.
Check for a voltage on connection AP15 to the connector for the electric steering column lock, component code
1088.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring otherwise replace the wiring.
Check the connection and condition of the airbag/pretensioner electric control unit and the electric power-
assisted steering system, component codes 756 and 1232.
Check for a voltage on connection AP44 to the connectors for the airbag/pretensioner electric control unit and
the electric power-assisted steering system connectors, component codes 756 and 1232.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring otherwise replace the wiring.
AFTER REPAIRErase the faults from the computer memory, switch the + after ignition supply off and
back on again and run another check using the diagnostic tool.
USM_V4C_DF009

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults87G
87G - 46V7 MR-372-J84-87G050$385.mif
UPC
Vdiag No.: 48, 4C ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
DF026
PRESENT
OR
STOREDAUTOMATIC GEARBOX SUPPLY
CC.0 : Short circuit to earth
CC.0
NOTESSpecial note:
To display this fault as present or stored, run command
AC016 Electrical supply circuits test.
Use Wiring Diagrams Technical Note for Mégane II or
Scénic II.
Check that UPC fuse F16 (5A) is correct.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–AP4, between components 1337 and 119.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRRun command AC016 Electrical supply circuits test.
Clear the computer fault memory, switch the + after ignition supply off and back on, and
run another check with the diagnostic tool.
USM_V48_DF026/USM_V4C_DF026
MR-372-J84-87G050$385.mif

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87G
87G-57V7 MR-372-J84-87G050$440.mif
UPC
Vdiag No.: 48, 4C
KEYLESS VEHICLE
SUB-FUNCTION: STARTING
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application conditions: engine stopped, + after ignition feed on.
FunctionParameter or Status
Check or ActionDisplay and Notes Fault finding
Reverse gearET004:Reverse gear
engagedYES
NOIn the event of a fault, refer to the
interpretation of status ET004.
Manual gearbox
lever positionET005:Manual gearbox
lever positionNOT IN NEUTRAL
NEUTRALNormal statuses.
UNAVAILABLE
INVALIDIn the event of a fault, refer to the
interpretation of status ET004.
Starting
conditions metET010:Starting
conditions metSTATUS 1
STATUS 2
STATUS 3In the event of a fault, consult the
interpretation for status ET010.
YESNormal status.
+ 12 V after
ignition feed
relay controlET003:+ 12 V after
ignition feed relay
control INACTIVE
ACTIVEIn the event of a fault, consult the
interpretation of fault DF032.

ENGINE COMPARTMENT CONNECTION UNIT

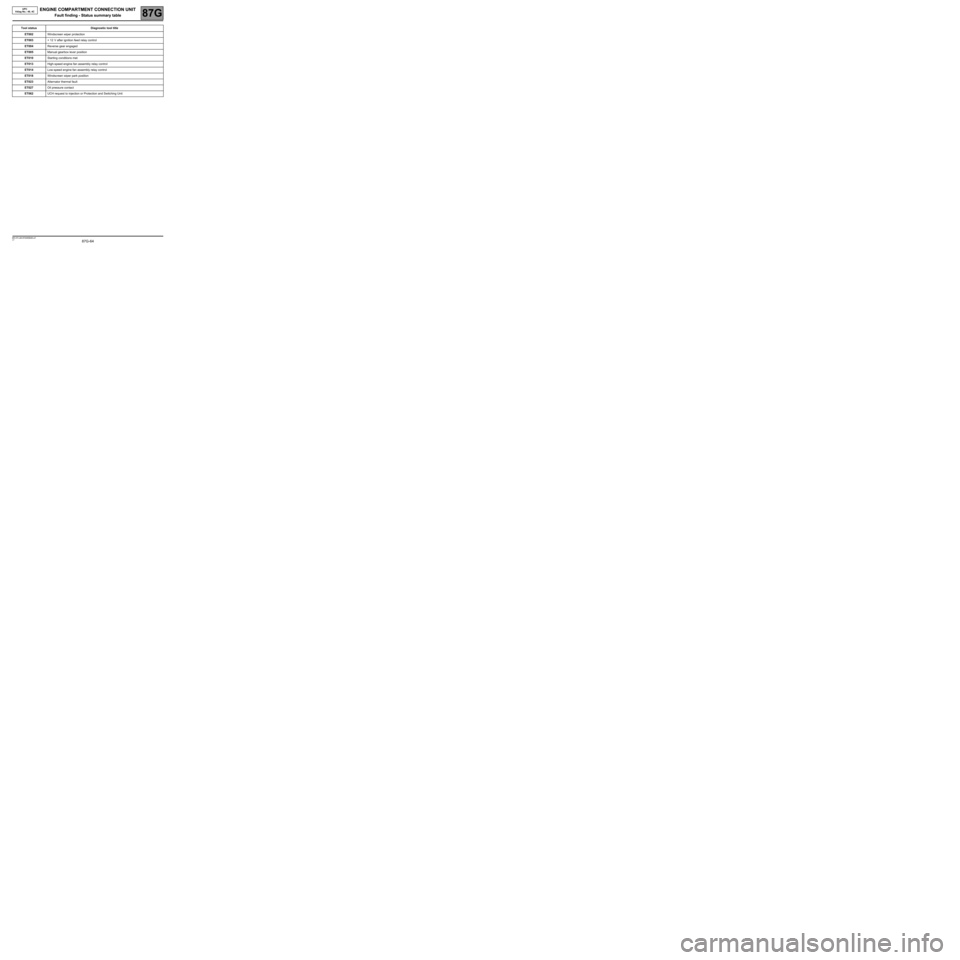

Fault finding - Status summary table87G
87G-64V7 MR-372-J84-87G050$495.mif
UPC
Vdiag No.: 48, 4CENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Status summary table
Tool status Diagnostic tool title
ET002Windscreen wiper protection
ET003+ 12 V after ignition feed relay control
ET004Reverse gear engaged
ET005Manual gearbox lever position
ET010Starting conditions met
ET013High-speed engine fan assembly relay control
ET014Low-speed engine fan assembly relay control
ET018Windscreen wiper park position
ET023Alternator thermal fault
ET027Oil pressure contact
ET062UCH request to injection or Protection and Switching Unit
MR-372-J84-87G050$495.mif

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87G
87G-66V7 MR-372-J84-87G050$550.mif
UPC
Vdiag No.: 48, 4C
ET004
REVERSE GEAR ENGAGED
NOTESSpecial notes:
Only apply the checks with the ignition switched on and when no faults are present.
Use Wiring Diagrams Technical Note for Mégane II or Scénic II.
5- and 6-speed manual gearbox
Check the condition and connection of the connector of the reverse gear switch, component code 155, the
manual gearbox neutral/reversing lights sensor, component code 1109, and UPC connector MN,
component code 1337.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the connector.
With the ignition on and reverse gear engaged, check for + 12 V on connection codes H66P and AP11 of
Protection and Switching Unit connector MN, component code 1337.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–AP11 between components 1337 and 1109,
–H66P between components 1337 and 1109.
Reverse gear engaged:
–between AP11 and H66P on component 155.
If the connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.
USM_V48_ET004 /USM_V4C_ET004

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87G
87G-67V7 MR-372-J84-87G050$550.mif
UPC
Vdiag No.: 48, 4C
ET004
CONTINUED
Automatic gearbox
Check the condition and connection of the connector of the reverse gear switch component code 155, the
multifunction switch component code 485 and the UPC connector MN component code 1337.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the connector.
With the ignition on and reverse gear engaged, check for + 12 V on connection codes H66P and AP11 of
Protection and Switching Unit connector MN, component code 1337.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–AP11 between components 1337 and 485,
–H66P between components 1337 and 485.
If the connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.

ENGINE COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87G
87G-68V7 MR-372-J84-87G050$550.mif
UPC
Vdiag No.: 48, 4C
ET010
STARTING CONDITIONS MET
NOTESSpecial notes:
Apply the checks if the status is at STATUS 1, STATUS 2 or STATUS 3 or YES, with
the ignition on.
STATUS 1
The UCH is preventing the Protection and Switching Unit from activating the starter.
Run fault finding on this computer (see 87B, Passenger compartment connection unit, UCH Vdiag No.: 44, 48,
4C, 4D, 4F, 50).
STATUS 2
The injection is preventing the Protection and Switching Unit from running the starter.
Run fault finding on this computer (see 13B, Diesel injection and 17B, Petrol injection).
STATUS 3
The automatic gearbox computer is preventing the Protection and Switching Unit from running the starter.
Make sure that the selector lever is in position P or N.
Run fault finding on this computer (see 23A, Automatic gearbox).
YES
If the conditions are met and the starter does not operate, see 16A, Starting - Charging, Starter.
If the fault is still present, contact your Techline.
AFTER REPAIRRepeat the conformity check from the start.
USM_V48_ET010 /USM_V4C_ET010
