RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF057
PRESENT
OR
STORED
DISC ERROR
1.DEF: Disc cannot be read
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
–a CD is played in the LPN* radio navigation computer player.
Special notes:
The Error CD message is displayed on the screen.
If the CD is an audio CD, no sound comes from the system.
If the CD is a cartographic map CD, it cannot be loaded.
Insert an original audio CD in good condition. Increase the volume. If the CD cannot be read, replace the radio
(see MR 370 Scénic II, 405 Espace IV ph2, 408 Trafic II ph2 or 417 Kangoo 2 Mechanical, 83C, On-board
telematics system, Navigation computer: Removal - Refitting).
If the original audio CD in good condition is read, clean the customer CD and try to read it again.
Replace the CD if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF057

86A-35
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF059
PRESENT
OR
STORED
SCREEN
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
Replace the LPN* radio navigation screen (see MR 370 Scénic II, 405 Espace IV ph2, 408 Trafic II ph2 or 417
Kangoo 2 Mechanical, 83C, On-board telematics system, Navigation screen: Removal - Refitting).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF059

86A-36
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF060
PRESENT
OR
STOREDNO DISPLAY MULTIPLEX SIGNAL
1.DEF: No communication with display
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Check the condition of the multimedia system display supply fuse.
Replace the fuse if not correct.
Look for any damage to the wiring harness and check the condition and connection of the connector for
component 1127.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V supply between the following connections:
–Trafic II ph2: between connections BP26 and MAN of component 1127,
–Kangoo 2: between connections BP26 and MAN of component 1127,
–Espace IV ph2: between connections BP3A and NC of component 1127,
–Scénic II ph2: between connections BCP3 and MAN of component 1127.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF060

86A-38
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF061
PRESENT
OR
STORED
SUPPLY
1.DEF: Undervoltage
2.DEF: Overvoltage
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Test the battery and run fault finding on the charging circuit (see Technical Note 6014A, Checking the charging
circuit).
Check the conformity of the LPN* radio navigation computer supply fuse.
Replace the fuse if not correct.
Check the conformity of the earth on the following connection:
–Espace IV ph2: connection code MV of component 261.
–Trafic II ph2: connection code MT of component 261.
–Kangoo 2: connection code MT of component 261.
–Scénic II ph2: connection code MT of component 261.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for + 12 V on the following connection:
–Espace IV ph2: connection code BCP4 of component 261.
–Trafic II ph2: connection code BP26 of component 261.
–Kangoo 2: connection code BP26 of component 261.
–Scénic II ph2: connection code BCP3 of component 261.
If this is not correct, check the insulation, continuity and the absence of interference resistance on the
following connection:
–Espace IV ph2: connection code BCP4 between components 710 and 261.
–Trafic II ph2: connection code BP26 between component 261 and the component supplying the LPN*
radio navigation computer
–Kangoo 2: connection code BP26 between components 260 and 261.
–Scénic II ph2: connection code BCP3 between components 260 and 261.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF061

86A-39
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF062
PRESENT
OR
STOREDSUPPLY
1.DEF: No communication with the CD changer
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
–a CD is played in the CD changer.
Special note:
Only apply the fault finding procedure if the vehicle has a CD changer.
Use the wiring diagrams Technical Note for Scénic II ph2.
Look for any damage to the wiring harness and check the condition and connection of the connector of
components 261 and 1272.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Measure the voltage on connection 34BC of component 261.
If no voltage is present, contact the Techline.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–connection code 34BC between components 261 and 1272.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, replace the CD changer.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF062

86A-40
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF064
PRESENT
OR
STOREDACTIVATION SIGNAL
CC.0: Short circuit to earth
CO.1: Open circuit or short circuit to + 12 V
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
–a CD is played in the CD changer.
Use the wiring diagrams Technical Note for Scénic II ph2.
Look for any damage to the wiring harness and check the condition and connection of the connector of
components 261 and 1272.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–connection code 34BD between components 261 and 1272.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the CD changer.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF064

86A-41
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A

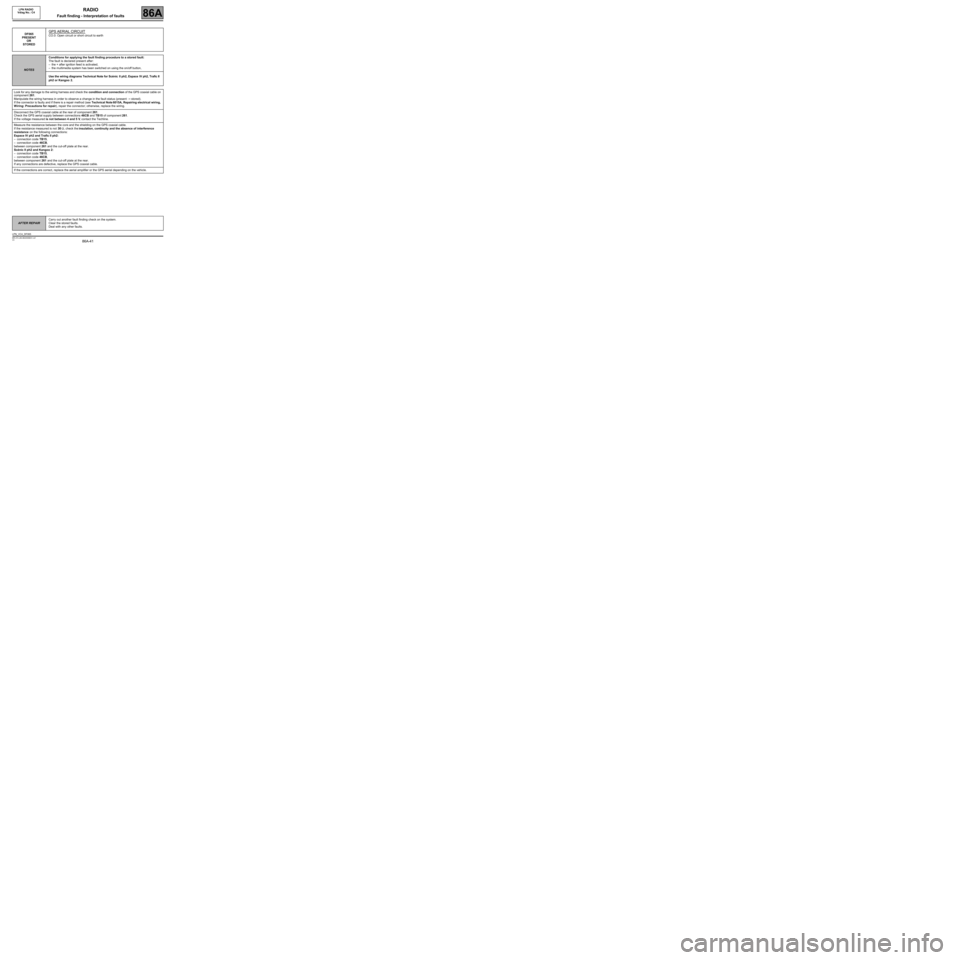

DF065
PRESENT
OR
STOREDGPS AERIAL CIRCUIT
CO.0: Open circuit or short circuit to earth
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Look for any damage to the wiring harness and check the condition and connection of the GPS coaxial cable on
component 261.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Disconnect the GPS coaxial cable at the rear of component 261.
Check the GPS aerial supply between connections 46CB and TB15 of component 261.
If the voltage measured is not between 4 and 5 V, contact the Techline.
Measure the resistance between the core and the shielding on the GPS coaxial cable.
If the resistance measured is not 30 Ω, check the insulation, continuity and the absence of interference
resistance on the following connections:
Espace IV ph2 and Trafic II ph2:
–connection code TB15,
–connection code 46CB,
between component 261 and the cut-off plate at the rear.
Scénic II ph2 and Kangoo 2:
–connection code TB15,
–connection code 46CB,
between component 261 and the cut-off plate at the rear.
If any connections are defective, replace the GPS coaxial cable.
If the connections are correct, replace the aerial amplifier or the GPS aerial depending on the vehicle.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF065

86A-42
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF066
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF066

86A-43
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF067
PRESENT
OR
STORED
COMPUTER
1.DEF: Disc cannot be read
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
–Insert a CD into the LPN* radio navigation computer,
–wait for 1 minute,
–eject the CD by pressing the eject button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF067

86A-44
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF068
DF069
PRESENT
OR
STORED
COMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
–Insert a CD into the LPN* radio navigation computer,
–wait for 1 minute,
–eject the CD by pressing the eject button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF068 / LPN_VC4_DF069
