PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - System operation
87B
87B-32
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - System operation
87B
87B-32V9 MR-372-J84-87B000$086.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
1.4.1.5 The locking switches built into the door handles and the tailgate badge (hands-free vehicles):
These switches are used to lock the opening elements. They are not removable, except for the tailgate switch which
is separate from the badge. When a switch is pressed, a UCH track is connected to earth, informing it of a vehicle
locking request. The access aerials are then activated.
The grouping of these switches is shown in the diagram below:
Driver's side Passenger side
Locking switch Locking switch
Locking switch Locking switch
Boot lid switch

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault summary table
87B
87B-70
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault summary table
87B
87B-70V9 MR-372-J84-87B000$258.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
Tool fault Diagnostic tool title Vdiag
DF023Driver's side front external aerial circuit
44, 48, 4C, 4D, 4F, 50 DF024Passenger side front external aerial circuit
DF025Driver's side rear external aerial circuit
DF026Passenger side rear door external aerial circuit
DF027External temperature sensor circuit
DF029Steering lock circuit
DF030Anti-locking line
DF031One-touch window connection
DF032Tailgate external aerial
DF033Driver-side external aerial(s)
DF034Passenger-side external aerial(s)
DF035Internal aerial circuit
DF072Child safety lock circuit
4D, 4F, 50 DF073Right-hand door child safety lock circuit
DF074Left-hand door child safety lock circuit
DF075Timed supply circuit
DF147Steering column lock safety circuit44, 48, 4C, 4D, 4F, 50
DF210Rear access aerial configuration50
DF319Front left-hand wheel pressure
44, 48, 4C, 4D, 4F, 50 DF320Front right-hand wheel pressure
DF321Rear right-hand wheel pressure
DF322Rear left-hand wheel pressure

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-119
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-119V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 1):
*lckg: Locking
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET056:Rear driver side
optical sensorACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of status ET056.
ET057:Passenger side
front/rear optical
sensorACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of status ET057.
ET058:Lckg* button on
driver's side
handles DEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET058.
ET059:Lckg* buttons on
passenger's side
handlesDEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET059.
ET060:Tailgate locking
buttonDEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET060.
ET086:Electric child
safety lockACTIVE
INACTIVESignal interpreted if
vehicle configured WITH
Child safety lock.
ET053:Driver's doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET053.
ET042:Passenger doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET042.
ET194:Passenger's
door or bonnetOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET042.
ET051:Rear left-hand
doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET051.
ET052:Rear right-hand
doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET052.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -120
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -120V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 2)
*CPE: Electric central door locking
SR.*: Sunroof
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET061:Open tailgate
requestPRESENT = Tailgate
opening button pressed.
ABSENT = Button not
pressed.In the event of a fault, refer
to the interpretation of
status ET061.
ET050:Tailgate/BootOPEN
CLOSED In the event of a fault,
consult the interpretation
of status ET050.
ET062:Open rear
screen requestABSENT
PRESENTNone
ET041:Opening rear
screenOPEN
CLOSED None
ET044:CPE* buttonPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET044.
ET233:Child safety lock
switchPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET233.
ET230:Child safety lockACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of fault DF072.
ET160:Rear right-hand
door Child safety
lockACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET160.
ET159:Rear left-hand
door child safety
lockACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET159.
ET087:One-touch
window control/
SR.*
authorisation ACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET087.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -121
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -121V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 3)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET068:Most recently locked
byAUTOMATIC = automatic re-
locking if unlocked using the
card and the doors are not
used within 2 minutes of
unlocking.
CPE* = locking by pressing
the button on the centre
console
HANDS-FREE = locking via
door or tailgate handle switch
RAID* FUNCTION = Renault
Anti-Intruder Device.
Operates from around 3 mph
(5 km/h).
CARD = locking with the
DIAGNOSTIC card = Locking
by actuator AC004 Central
door locking
LONG CPE* = locking by
pressing and holding the
button on the centre console In the event of a fault,
refer to the
interpretation of status
ET068.
ET069:Most recently
unlocked by HANDS-FREE = optical
sensors
CPE* = electric door locking
button
CARD = with the card
FAULT FINDING = AC005
IMPACT INFO = info after
impact
AIRBAG = unlocking by the
AIRBAG computer after an
accidentIf status = Airbag,
carry out fault finding
on the Airbag
computer (see 88C,
Airbag and
pretensioners). In the
event of a fault,
consult the
interpretation of status
ET069.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Status summary table
87B
87B -140
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Status summary table
87B
87B -140V9 MR-372-J84-87B000$430.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
*RAID: Renault Anti-Intruder Device
*CPE: Electric central door locking
*Lckg: Locking Tool status Diagnostic tool title Vdiag
ET041Opening rear screenV48, V4C, V4D,
V4F, V50
ET042Passenger door V44, V48, V4C,
V4D, V4F, V50
ET043RAID* function authorisation by CPE*
V44, V48, V4C,
V4D, V4F, V50 ET044CPE* button
ET045RF signal received
ET046Engine immobiliser
ET047Brake pedal position
ET048Clutch pedal position
ET050Tailgate/Boot
ET051Rear left-hand door
ET052Rear right-hand door
ET053Driver's door
ET054Optical sensors supplied
ET055Front driver side optical sensor
ET056Rear driver side optical sensor
ET057Passenger side front/rear optical sensor
ET058Lckg* button on driver's side handles
ET059Lckg* buttons on passenger's side handles
ET060Tailgate locking button
ET061Open tailgate request
ET062Open rear screen requestV48, V4C, V4D,
V4F, V50

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87B
87B -172
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
87B
87B -172V9 MR-372-J84-87B000$473.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET050
TAILGATE/BOOT
NOTESThere must be no present or stored faults.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the PE1 connector of the UCH (tabs bent, broken, oxidised etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the boot lock connector (bent, broken, oxidised tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 87T between components 645 and 1322.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
wiring: precautions for repair), repair the wiring, otherwise replace it.
Check:
The insulation of component 1332 on connections 87T and MZ (tailgate lock contact in rest position).
The continuity of component 1332 on connections 87T and MZ (tailgate lock contact engaged).
Replace the lock if it is not correct.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET050/UCH_V48_ET050/ UCH_V4C_ET050/
UCH_V4D_ET050 /UCH_V4F_ET050/UCH_V50_ET050

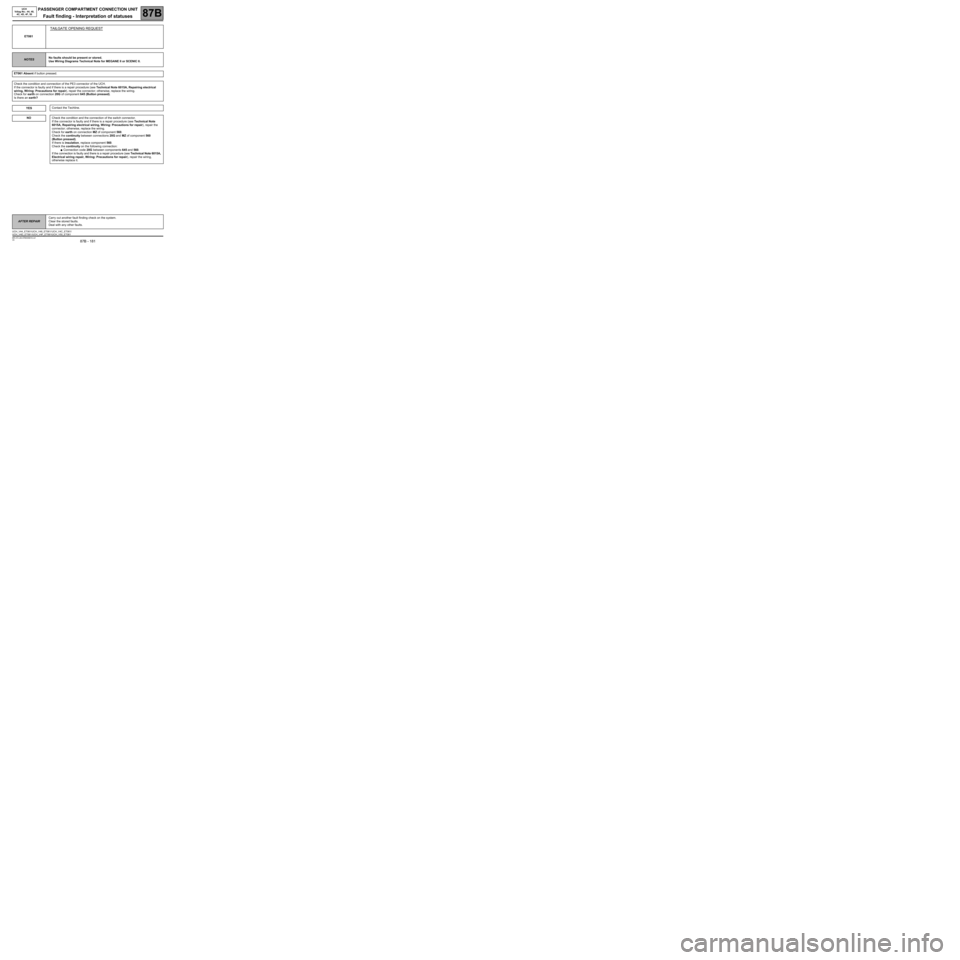

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 180
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 180V9 MR-372-J84-87B000$516.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET060
LOCKING BUTTON ON TAILGATE
NOTESThere must be no faults present.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the transparent connector of the boot locking button (tabs crushed, broken,
oxidised, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, oxidised etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for an earth on connection MZ of component 1409.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 26AR between components 645 and 1409.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation of the following connections (tailgate button in Released position) and the continuity of the
following connections (tailgate button in Pressed position):
●Connection code 26AR,
●Connection code MZ of component 1409.
Replace the button if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET060/UCH_V48_ET060/ UCH_V4C_ET060/
UCH_V4D_ET060 /UCH_V4F_ET060/UCH_V50_ET060

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 181V9 MR-372-J84-87B000$516.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET061
TAILGATE OPENING REQUEST
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET061 Absent if button pressed.
Check the condition and connection of the PE3 connector of the UCH.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on connection 20G of component 645 (Button pressed).
Is there an earth?
YES
NO
Contact the Techline.
Check the condition and the connection of the switch connector.
If the connector is faulty and if there is a repair procedure (see Technical Note
6015A, Repairing electrical wiring, Wiring: Precautions for repair), repair the
connector; otherwise, replace the wiring.
Check for earth on connection MZ of component 560.
Check the continuity between connections 20G and MZ of component 560
(Button pressed).
If there is insulation, replace component 560.
Check the continuity on the following connection:
●Connection code 20G between components 645 and 560.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace it.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET061/UCH_V48_ET061/ UCH_V4C_ET061/
UCH_V4D_ET061 /UCH_V4F_ET061/UCH_V50_ET061

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -296
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Customer complaints
87B
87B -296V9 MR-372-J84-87B000$860.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
*RAID: Renault Anti-Intruder DeviceOPENING ELEMENTS
NO SUNROOF OPENING AND CLOSING ALP24
NO SUNROOF OPENING POSITION 1, 2 or 3 ALP25
THE SUNROOF IS DIFFICULT TO CLOSE OR THE ANTI-PINCH IS
TRIGGERED WITHOUT ANY APPARENT OBSTACLEALP26
FAULT LOCKING/UNLOCKING USING CARD BUTTON ALP27
TAILGATE LOCKING/UNLOCKING FAULT VIA CARD BUTTON ALP28
BOOT OPENING FAULT
(NOT HANDS-FREE)ALP29
REAR SCREEN OPENING FAULT
(NOT HANDS-FREE)ALP30
FUEL TANK FLAP LOCKING / UNLOCKING FAULT ALP31
UNLOCKING FAULT IN HANDS-FREE MODE ALP32
LOCKING FAULT IN HANDS-FREE MODE ALP33
HANDS-FREE BOOT UNLOCKING FAULT ALP34
FAULT OPENING THE REAR SCREEN IN HANDS-FREE MODE ALP35
FAULT LOCKING/UNLOCKING ONE OR MORE DOORS ALP36
RENAULT ANTI-INTRUDER DEVICE OPERATION FAULT (RAID*) ALP37
WINDOWS FAIL TO CLOSE AFTER TWO ATTEMPTS TO LOCK ALP38
