RENAULT SCENIC 2009 J84 / 2.G Engine And Peripherals EDC16 Workshop Manual

DIESEL INJECTION
Fault finding – Status summary table13B
13B - 171V3 MR-372-J84-13B250$585.mif
EDC16
PROGRAM NO.: C1
Vdiag No.: 51DIESEL INJECTION
Fault finding – Status summary table
Tool status Diagnostic tool title
ET001+ After ignition computer feed
ET003Engine immobiliser
ET004Air conditioning authorisation
ET007Preheating unit control
ET014Monitor cooling fan 1
ET015Monitor cooling fan 2
ET021High speed fan assembly request
ET022Low speed fan assembly request
ET038Engine
ET042Cruise control/speed limiter
ET076Starting
ET077Impact detected
ET079Air conditioning present
ET088Compressor actuation request
ET104Injector code use
ET111Set number of passenger compartment heating resistors (RCH)
ET112Passenger compartment heating resistor cut-off
ET123Brake contact signal no. 2
ET233Clutch pedal
ET238Synchronisation
ET341Immobiliser code programmed
ET405Clutch pedal switch
ET415Deactivation of cruise control/speed limiter
ET589Electric coolant pump control (turbocharger)
ET651EGR programming cut-off
ET703Cruise control/speed limiter buttons
ET704Brake switch no. 1
ET705Brake switch no. 2
MR-372-J84-13B250$585.mif

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 172V3 MR-372-J84-13B250$630.mif
EDC16
PROGRAM NO.: C1
Vdiag No.: 51DIESEL INJECTION
Fault finding – Interpretation of statuses
ET001
COMPUTER + AFTER IGNITION FEED
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
ABSENT
NOTESIgnition on
Check the condition and conformity of supply fuse F5D (5A) of the Protection and Switching Unit.
Repair if necessary.
Check for an earth on the following connections:
Injection computer black, 32-track connector A,
Track G4Battery earth
Injection computer black 32-track connector A,
Track H4Battery earth
Injection computer black 32-track connector A,
Track H1Battery earth
Repair if necessary.
Check for + 12 V on track D1 of connector A of the injection computer.
If there is no voltage, check the continuity and insulation to earth of the following connection:
Injection computer black 32-track connector A,
track D1Track 1 of the UPC black connector
Repair if necessary.
PRESENT
NOTESIgnition on
Check that there is not a + 12 V with ignition switched off on track D1 of connector A of the injection computer.
Repair if necessary.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V51_ET001
MR-372-J84-13B250$630.mif

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 173V3 MR-372-J84-13B250$630.mif
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET003
ENGINE IMMOBILISER
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
ACTIVE
INACTIVE
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET003
(See 87B Passenger compartment connection unit).
(See 87B Passenger compartment connection unit).

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 174V3 MR-372-J84-13B250$630.mif
NO
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET004
AC AUTHORISED
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
YES
The air conditioning authorisation only changes to YES if:
–the air conditioning request has been made by the driver (air conditioning switch in
AC or AUTO position with minimum ventilation),
–the engine is not under full load,
–the air conditioning system is not faulty.
Status ET004 remains at NO under the following conditions:
–Vehicle stopped with the ignition on,
–faults present in the air conditioning circuit,
–no air conditioning request made by the driver,
–engine under full load.
If status ET004 remains NO then the air conditioning should be authorised; check:
–that the air conditioning compressor is activated correctly,
–the air conditioning system supply fuses,
–the presence of refrigerant in the air conditioning circuit,
–that the refrigerant fluid pressure value is consistent at idle speed.
If the fault is still present, check the climate control computer faults (see 62C, Air
conditioning).
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET004

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 175V3 MR-372-J84-13B250$630.mif
NO
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET007
PREHEATING UNIT CONTROL
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
YES
When the vehicle is started from cold, the injection computer controls the pre-
postheating unit so that the vehicle can be started.
Status ET007 becomes YES a few seconds after the ignition is switched on and during
pre/postheating.
If the vehicle does not start and status ET007 becomes YES, check:
–the F2 (70A) supply fuse on the preheating unit, located on the power supply fuse
plate in the engine connection unit, below the Protection and Switching Unit,
–the resistance of the heater plugs.
Replace any plug whose resistance is not below 2 Ω.
If the vehicle starts and status ET007 remains YES during the engine operating phase,
refer to the interpretation of faults:
–DF017 Preheating relay control circuit.
–DF025 Preheating unit diagnostic connection.
After the engine is started and the preheating phase, the injection computer should stop
the pre-postheating unit operating.
Status ET007 should become NO.
In the event that the vehicle does not start and status ET007 remains NO, check the
continuity and absence of interference resistance of the following connections:
Injection computer Track A4 grey
32-track connector CTrack 9 preheating unit
Injection computer Track E2 grey
32-track connector CTrack 8 preheating unit
Repair if necessary.
If the fault is still present, refer to the interpretation of faults:
–DF017 Preheating relay control circuit.
–DF025 Preheating unit diagnostic connection.
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET007

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 176V3 MR-372-J84-13B250$630.mif
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET014
CHECK COOLING FAN 1
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
NOTE:
Status ET014 test and status ET022 GMV1 low speed request change their status at the same time.
RUNNING
The low-speed engine fan unit is supplied in three scenarios:
–the engine coolant temperature is above 89 ˚C;
–the air conditioning is operating
–the injection computer has system faults that could lead to the engine overheating.
When the low-speed engine fan is supplied:
–status ET014 GMV 1 test becomes RUNNING status ET022 Low speed GMV
request becomes ACTIVE.
If the low speed GMV does not work (see 87G, engine compartment connection unit).
The low-speed engine fan assembly stops when:
–the engine coolant temperature is below 89 ˚C;
–the air conditioning is not switched on by the driver.
STOPPED
IMPORTANTWARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is faulty, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET014

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 177V3 MR-372-J84-13B250$630.mif
STOPPED
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET015
CHECK COOLING FAN 2
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
NOTE:
Status ET015 GMV 2 test and status ET021 High speed GMV request change their status at the same time.
RUNNING
The engine fan assembly can be supplied when:
–the engine coolant temperature is above 99 ˚C.
–the injection computer has system faults that could lead to the engine overheating.
When the high speed fan is supplied:
–status ET015 GMV 2 test becomes RUNNING and status ET021 High speed GMV
request becomes ACTIVE.
The high-speed engine fan assembly stops when:
–the engine coolant temperature is below 99 ˚C;
IMPORTANTWARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is faulty, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET015

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 178V3 MR-372-J84-13B250$630.mif
INACTIVE
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET021
HIGH-SPEED FAN REQUEST
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
NOTE:
Status ET021 High speed GMV request and status ET015 GMV 2 test change their status at the same time.
ACTIVE
The injection computer requests the activation of the high speed GMV when:
–the engine coolant temperature is above 99 ˚C.
–the injection computer has system faults that could lead to the engine overheating.
When the high speed fan is supplied:
–status ET021 High speed GMV request becomes RUNNING and status ET015
GMV 2 test becomes ACTIVE.
The high-speed engine fan assembly stops when:
–the engine coolant temperature is below 99 ˚C;
–no fault which could cause engine overheating is present in the injection
system.
IMPORTANTWARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is faulty, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET021

DIESEL INJECTION
Fault finding – Interpretation of statuses13B
13B - 179V3 MR-372-J84-13B250$630.mif
INACTIVE
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET022
LOW SPEED GMV CONTROL
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
NOTE:
Status ET022 Low speed GMV request and status ET014 GMV 1 test change their status at the same time.
ACTIVE
The injection computer requests the activation of the low speed GMV when:
–the engine coolant temperature is above 89 ˚C;
–the injection computer has system faults that could lead to the engine overheating,
–the air conditioning is switched on by the driver.
When the high speed fan is supplied:
–status ET022 Low speed GMV request becomes ACTIVE and status ET014 GMV
1 test becomes RUNNING.
The low-speed engine fan assembly stops when:
–the engine coolant temperature is below 89 ˚C;
–no fault which could cause engine overheating is present in the injection
system.
–the air conditioning is not switched on by the driver.
IMPORTANTWARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is faulty, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET022

DIESEL INJECTION
Fault finding – Interpretation of statuses13B

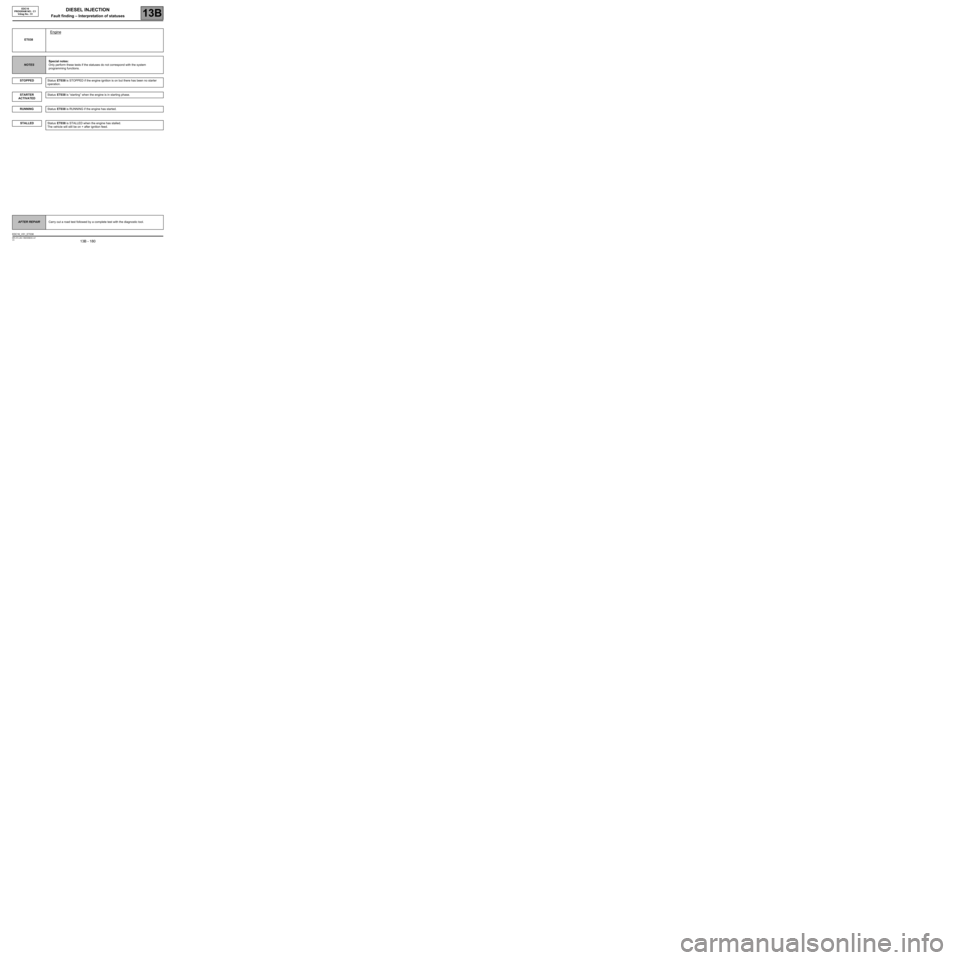

13B - 180V3 MR-372-J84-13B250$630.mif
EDC16
PROGRAM NO.: C1
Vdiag No.: 51
ET038
Engine
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
STOPPED
Status ET038 is STOPPED if the engine ignition is on but there has been no starter
operation.
Status ET038 is “starting” when the engine is in starting phase.
Status ET038 is RUNNING if the engine has started.
Status ET038 is STALLED when the engine has stalled.
The vehicle will still be on + after ignition feed.
STARTER
ACTIVATED
RUNNING
STALLED
AFTER REPAIRCarry out a road test followed by a complete test with the diagnostic tool.
EDC16_V51_ET038
