RENAULT SCENIC 2009 J84 / 2.G Engine And Peripherals EDC16 Repair Manual

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-61V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51DIESEL INJECTION
Fault finding – Interpretation of faults
DF039
PRESENT
OR
STOREDINLET AIR TEMPERATURE SENSOR CIRCUIT
CO.1 : Short circuit or open circuit to + 12 V
CC.0 : Short circuit to earth
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after one attempt to start the engine, or with the engine
running.
Special notes:
If the fault is present:
–the air temperature value enters defect mode, i.e. PR059 Inlet air temperature =
20˚C.
–the EGR function is inhibited,
–the level 2 warning light is lit.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
CO.1
NOTESNone
Check the air flowmeter connections.
Check the injection computer connections.
Repair if necessary.
Check the continuity of the following connection:
Injection supply relay mounting Track 5 track 4 air flow sensor connector
Repair if necessary.
Check the continuity and insulation against + 12 V of the following connections:
Injection computer brown 48-track connector B,
track G2Track 1 air flowmeter connector
Injection computer brown 48-track connector B, track E2 Track 2 air flowmeter connector
Injection computer brown 48-track connector B, track B4 Track 3 air flowmeter connector
Injection computer brown 48-track connector B, track L4 Track 6 air flow sensor connector
Repair if necessary.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF039

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-62V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF039
CONTINUED
Measure the air temperature sensor resistance between tracks 1 and 2 of the air flow sensor.
Replace the air flowmeter if the resistance displayed is not:
3714 ± 161 Ω at 10˚C
2448 ± 96 Ω at 20˚C
1671 ± 59 Ω at 30˚C
CC.0
NOTESNone
Check the air flowmeter connections.
Check the injection computer connections.
Repair if necessary.
Check the continuity and insulation against earth of the connection between:
Injection computer brown 48-track connector B, track G2 Track 1 air flowmeter connector
Injection computer brown 48-track connector B, track E2 Track 2 air flowmeter connector
Injection computer brown 48-track connector B, track B4 Track 3 air flowmeter connector
Injection supply relay mounting Track 5 track 4 air flow sensor connector
Repair if necessary.
Measure the air temperature sensor resistance between tracks 1 and 2 of the air flow sensor.
Replace the air flowmeter if the resistance is not approximately:
3714 ± 161 Ω at 10˚C
2448 ± 96 Ω at 20˚C
1671 ± 59 Ω at 30˚C
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-63V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF040
PRESENT
OR
STOREDCYLINDER 1 INJECTOR CIRCUIT
CC.1 : Short circuit to + 12 V
CO : Open circuit
CC : Short circuit
1.DEF : Injector control
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine has been started.
Special notes:
If CC.1, CC, or 1.DEF is present, the level 2 warning light is lit.
If CO is present the level 1 warning light is lit.
If CO is still present, the OBD warning light will come on after three consecutive driving
cycles (starting + 5 seconds + switching off the ignition and waiting for 1 minute).
If the fault is present, the injection on cylinder 1 is disabled.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This test enables the condition and the conformity of the engine wiring harness to be checked.
CC.1
CO
CC
1.DEF
NOTESNone
Check the connections on injector no 1.
Check the injection computer connections.
Repair if necessary.
Disconnect injector no. 1.
Measure the resistance of injector no. 1 between tracks 1 and 2.
Replace the injector if it has a short circuit (R = 0 Ω) or open circuit (infinite resistance measurement).
Otherwise reconnect injector no. 1.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF040

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-64V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF040
CONTINUED
Check the continuity and absence of interference resistance of the following connections:
Injection computer grey 32-track connector C track G3 Track 2 injector no. 1
Injection computer grey 32-track connector C, track H1 Track 1 injector no. 1
If the fault is still present: apply test 8: POOR INJECTOR OPERATION.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-65V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF041
PRESENT
OR
STOREDCYLINDER 2 INJECTOR CIRCUIT
CC.1 : Short circuit to + 12 V
CO : Open circuit
CC : Short circuit
1.DEF : Injector control
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine has been started.
Special notes:
If CC.1, CC, or 1.DEF is present, the level 2 warning light is lit.
If CO is present the level 1 warning light is lit.
If CO is still present, the OBD warning light will come on after three consecutive driving
cycles (starting + 5 seconds + switching off the ignition and waiting for 1 minute).
If the fault is present, the injection on cylinder 2 is disabled.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This test enables the condition and the conformity of the engine wiring harness to be checked.
CC.1
CO
CC
1.DEF
NOTESNone
Check the connections on injector no. 2.
Check the injection computer connections.
Repair if necessary.
Disconnect injector no. 2.
Measure the resistance of injector no. 2 between tracks 1 and 2.
Replace the injector if it has a short circuit (R = 0 Ω) or open circuit (infinite resistance measurement).
Otherwise reconnect injector no. 2.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF041

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-66V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF041
CONTINUED
Check the continuity and absence of interference resistance of the following connections:
Injection computer grey 32-track connector C track G4 Track 2 injector no. 2
Injection computer grey 32-track connector C, track G2 Track 1 injector no. 2
If the fault is still present: apply test 8: POOR INJECTOR OPERATION.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

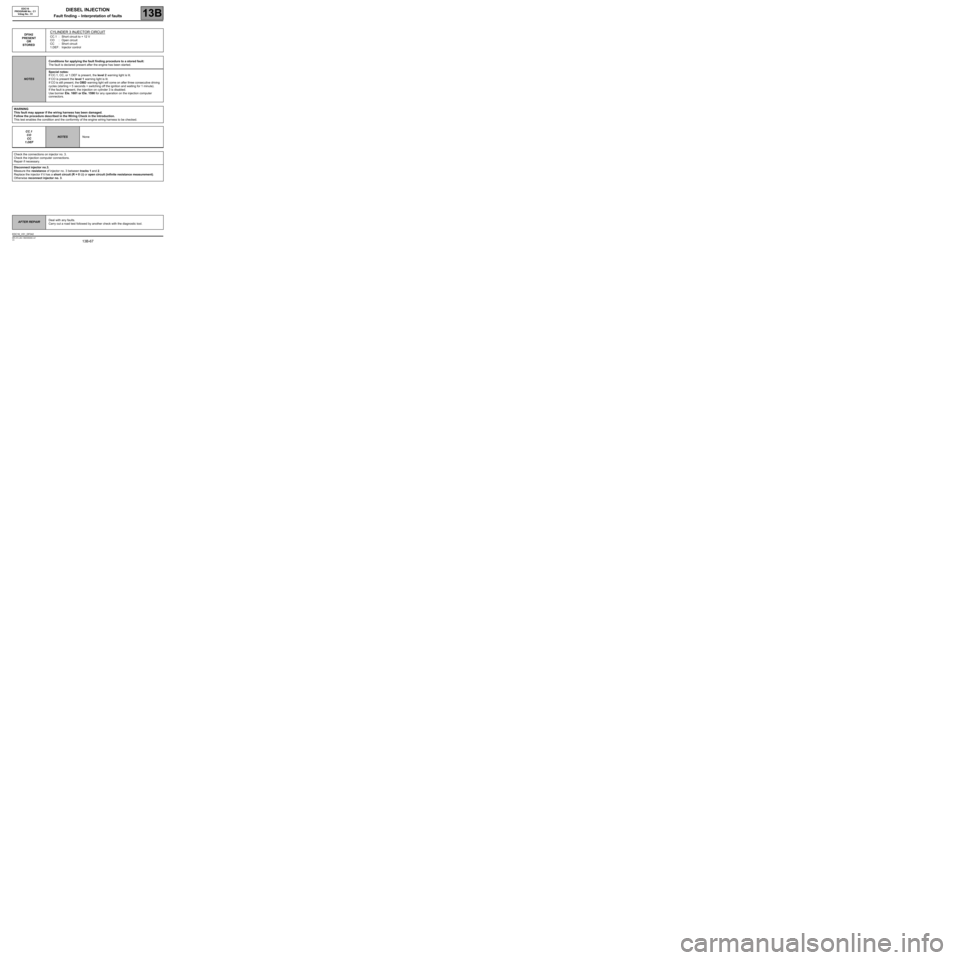

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-67V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF042
PRESENT
OR
STOREDCYLINDER 3 INJECTOR CIRCUIT
CC.1 : Short circuit to + 12 V
CO : Open circuit
CC : Short circuit
1.DEF : Injector control
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine has been started.
Special notes:
If CC.1, CC, or 1.DEF is present, the level 2 warning light is lit.
If CO is present the level 1 warning light is lit.
If CO is still present, the OBD warning light will come on after three consecutive driving
cycles (starting + 5 seconds + switching off the ignition and waiting for 1 minute).
If the fault is present, the injection on cylinder 3 is disabled.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This test enables the condition and the conformity of the engine wiring harness to be checked.
CC.1
CO
CC
1.DEF
NOTESNone
Check the connections on injector no. 3.
Check the injection computer connections.
Repair if necessary.
Disconnect injector no.3.
Measure the resistance of injector no. 3 between tracks 1 and 2.
Replace the injector if it has a short circuit (R = 0 Ω) or open circuit (infinite resistance measurement).
Otherwise reconnect injector no. 3.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF042

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-68V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF042
CONTINUED
Check the continuity and absence of interference resistance of the following connections:
Injection computer grey 32-track connector C, track H4 Track 2 injector no. 3
Injection computer grey 32-track connector C, track H2 Track 1 injector no. 3
If the fault is still present: apply test 8: POOR INJECTOR OPERATION.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-69V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF043
PRESENT
OR
STOREDCYLINDER 4 INJECTOR CIRCUIT
CC.1 : Short circuit to + 12 V
CO : Open circuit
CC : Short circuit
1.DEF : Injector control
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine has been started.
Special notes:
If CC.1, CC, or 1.DEF is present, the level 2 warning light is lit.
If CO is present the level 1 warning light is lit.
If CO is still present, the OBD warning light will come on after three consecutive driving
cycles (starting + 5 seconds + switching off the ignition and waiting for 1 minute).
If the fault is present, the injection on cylinder 4 is disabled.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This test enables the condition and the conformity of the engine wiring harness to be checked.
CC.1
CO
CC
1.DEF
NOTESNone
Check the connections on injector no 4.
Check the injection computer connections.
Repair if necessary.
Disconnect injector no. 4.
Measure the resistance of injector no. 4 between tracks 1 and 2.
Replace the injector if it has a short circuit (R = 0 Ω) or open circuit (infinite resistance measurement).
Otherwise reconnect injector no. 4.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF043

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-70V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF043
CONTINUED
Check the continuity and absence of interference resistance of the following connections:
Injection computer grey 32-track connector C, track H3 Track 2 injector no. 4
Injection computer grey 32-track connector C, track G1 Track 1 injector no. 4
If the fault is still present: apply test 8: POOR INJECTOR OPERATION.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
