RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-61
MR-372-J84-88C100$472.mif
V5
AIRBAG RC5
Vdiag: 14AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults88C
DF082
CONTINUED 1
NO
Check the seat connector connections (tracks A7 an

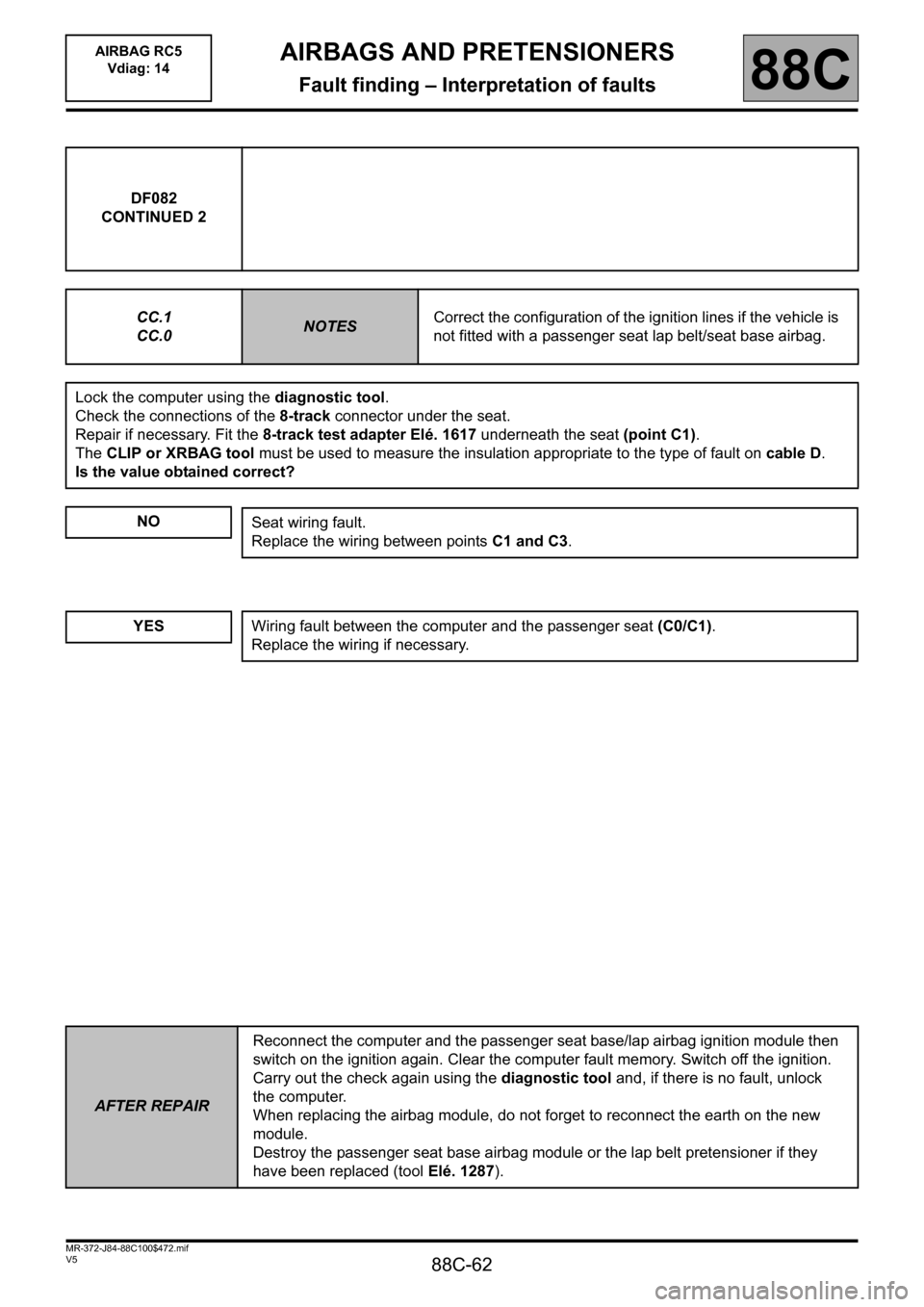

Page 62 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-62
MR-372-J84-88C100$472.mif
V5
AIRBAG RC5
Vdiag: 14AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults88C
DF082
CONTINUED 2
CC.1
CC.0
NOTESCorrect the configuration of the ignit

Page 63 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-63
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF091
PRESENT
OR
STORED
AIRBAG LOCKING SWITCH CIRCUIT
CO: Open circui

Page 64 of 88

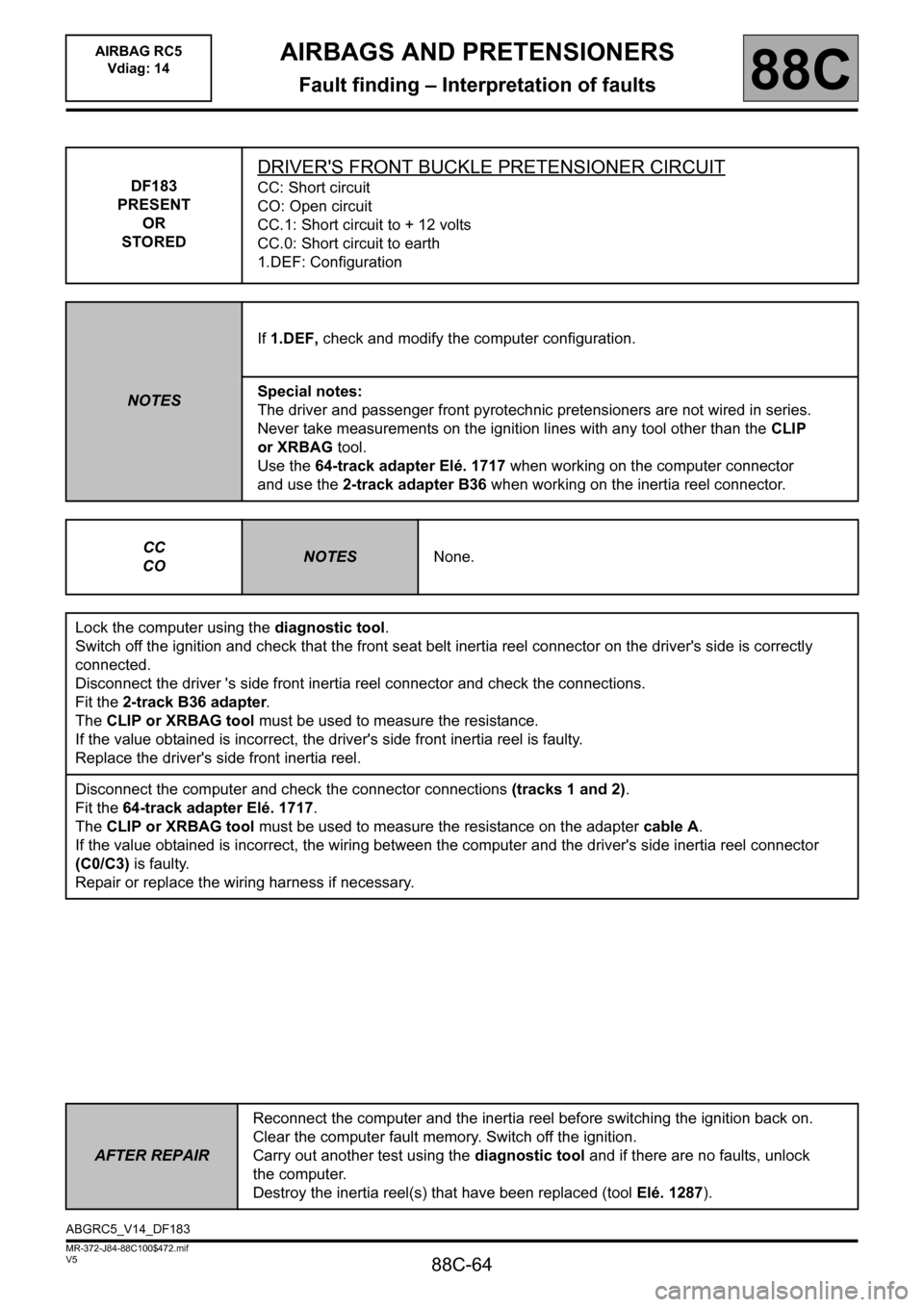

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-64
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF183
PRESENT
OR
STORED
DRIVERS FRONT BUCKLE PRETENSIONER CIRCUIT
CC

Page 65 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-65
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF183
CONTINUED
CC.0
CC.1
NOTESNone.
Lock the computer using the diag

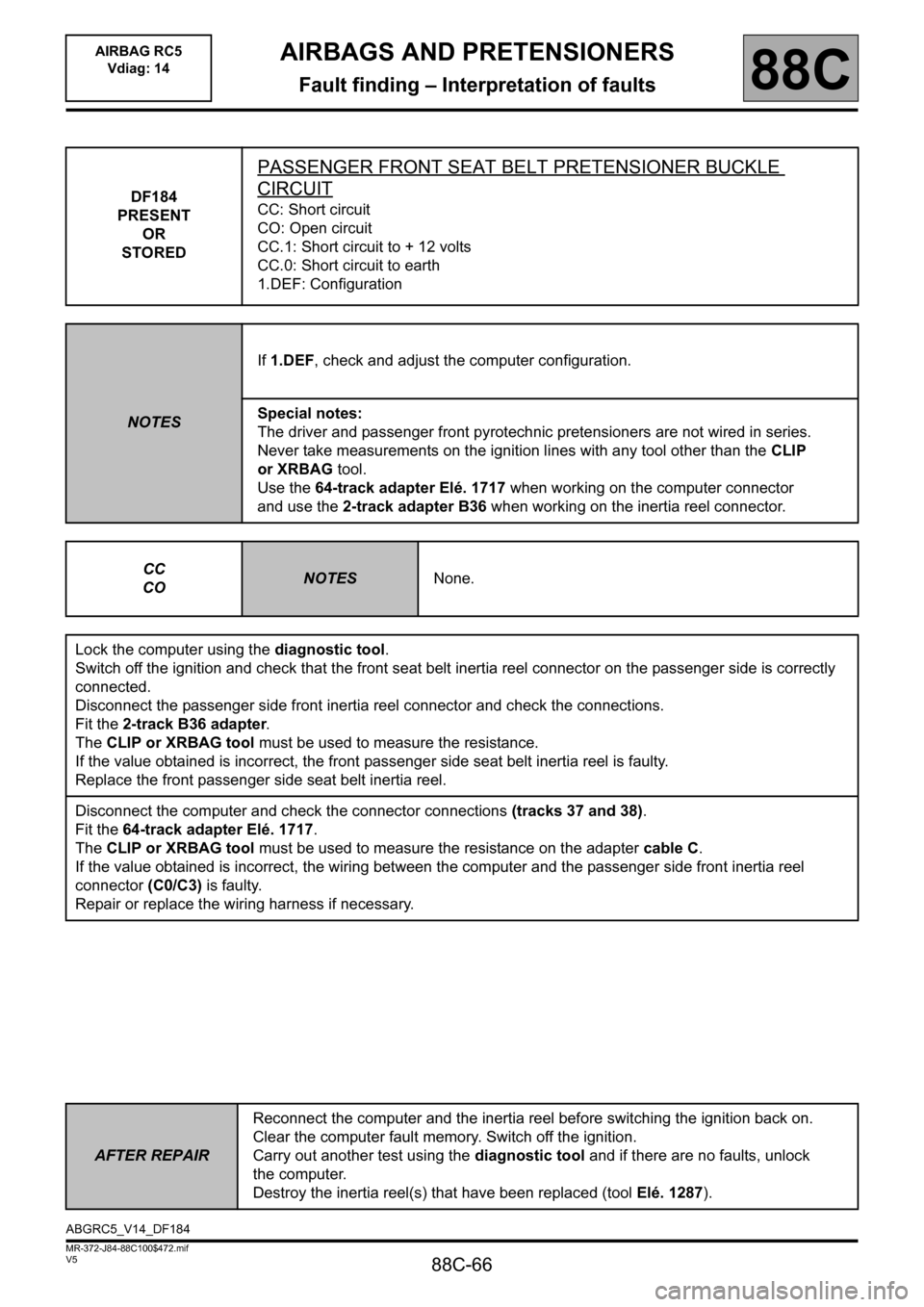

Page 66 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-66
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF184
PRESENT
OR
STORED
PASSENGER FRONT SEAT BELT PRETENSIONER BUCKLE

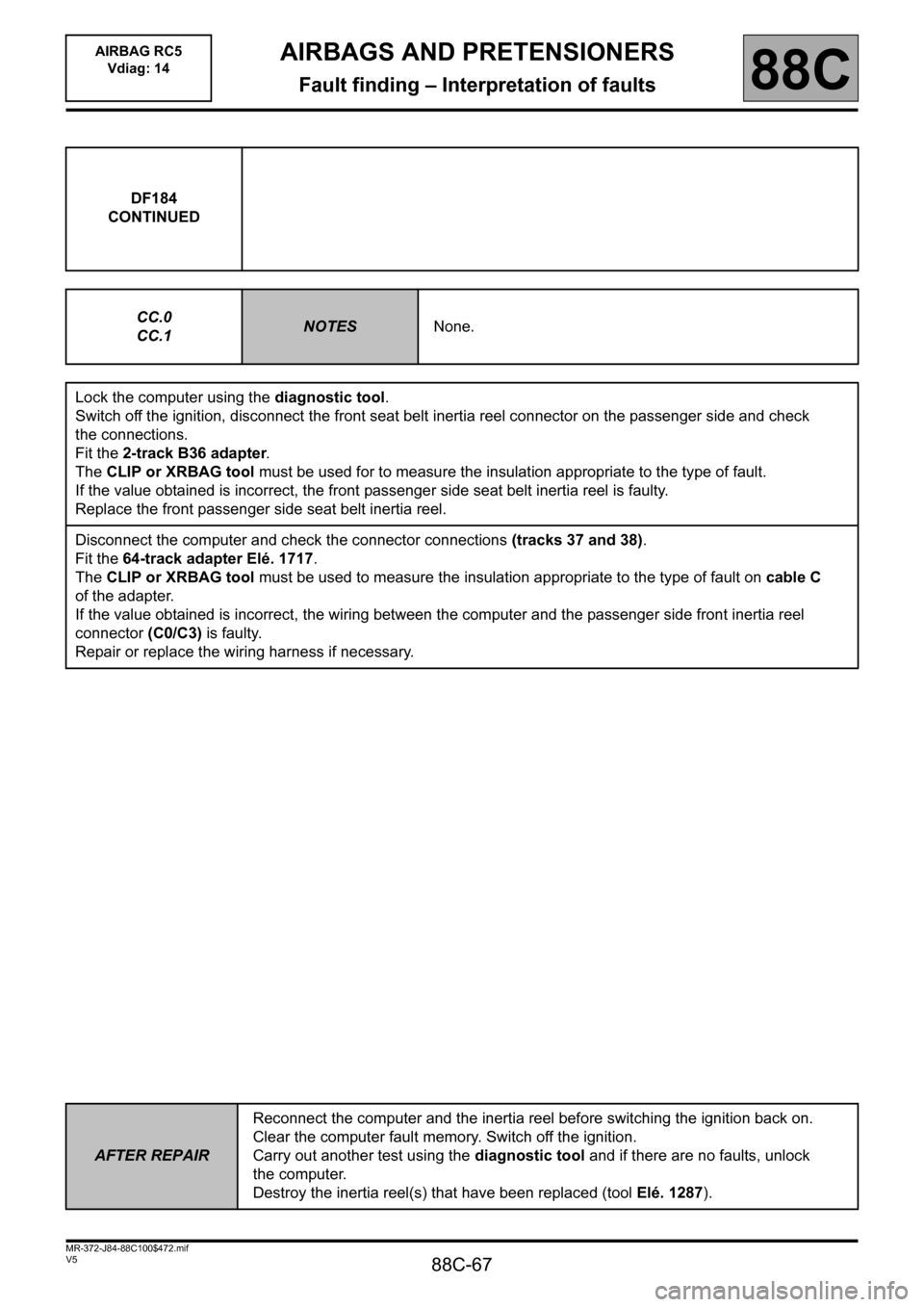

Page 67 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-67
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF184
CONTINUED
CC.0
CC.1
NOTESNone.
Lock the computer using the diag

Page 68 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-68
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF177
PRESENT
OR
STORED
DRIVERS SIDE REAR INERTIA REEL CIRCUIT
CC: S

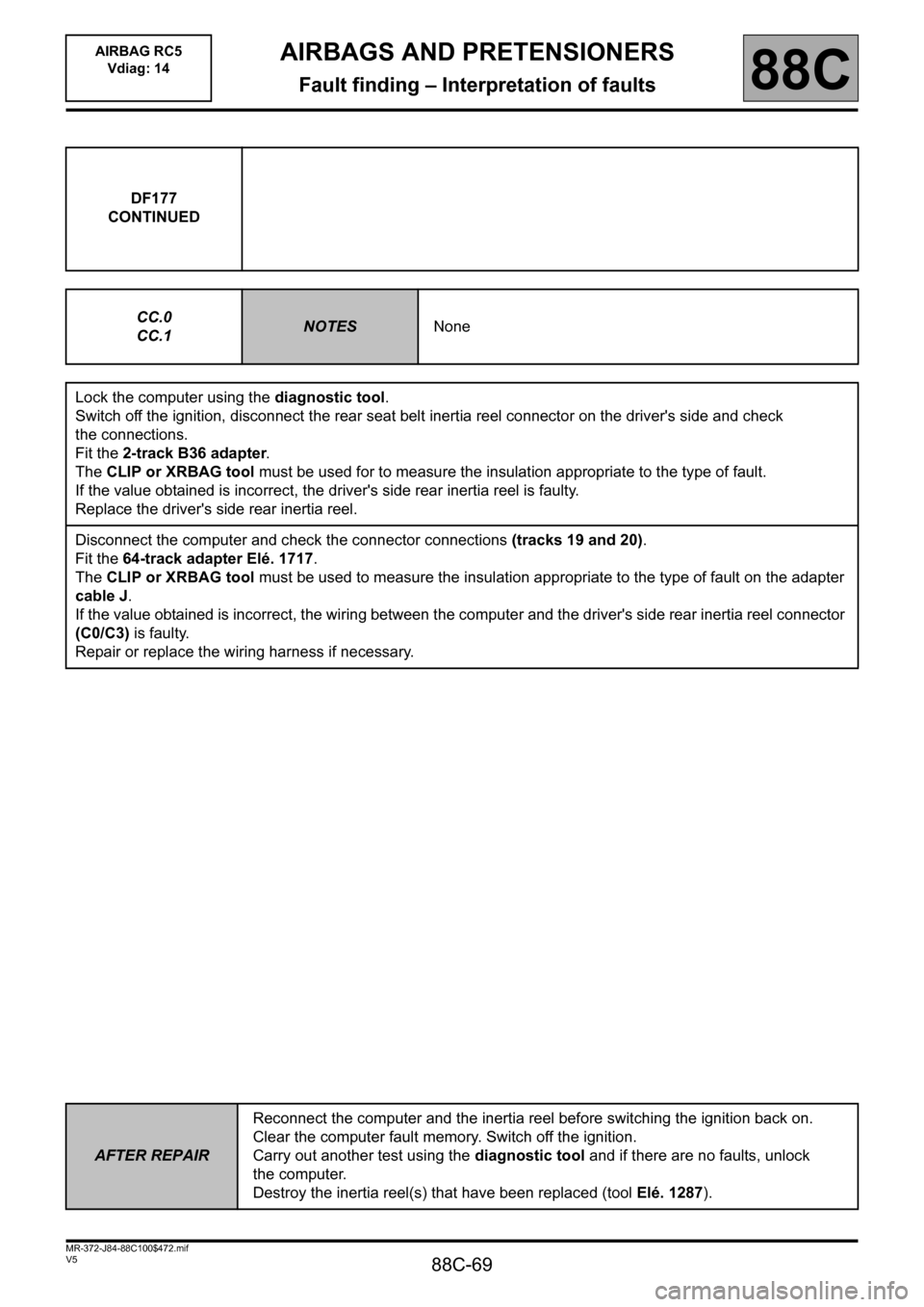

Page 69 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-69
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF177
CONTINUED
CC.0
CC.1
NOTESNone
Lock the computer using the diagn

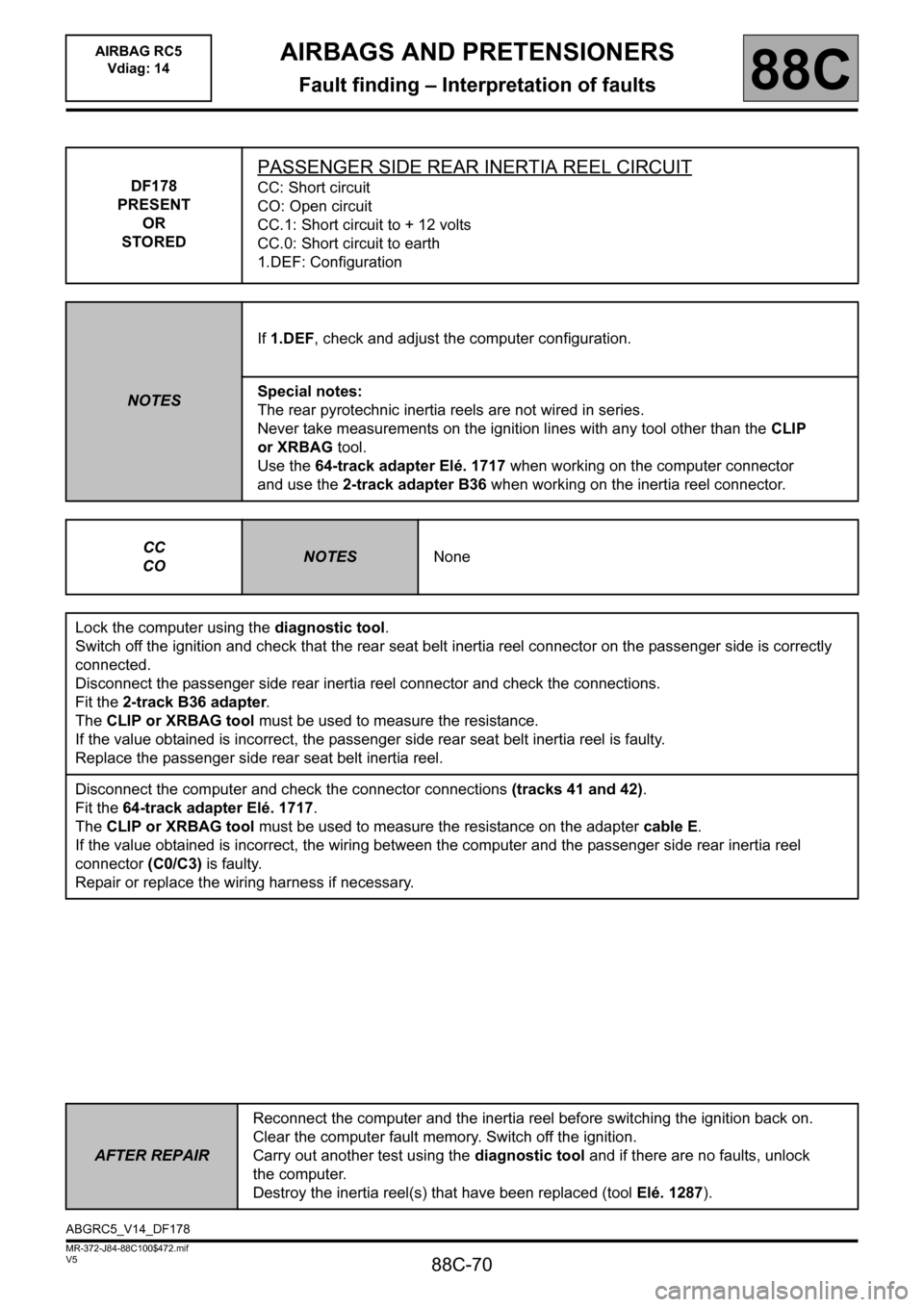

Page 70 of 88

RENAULT SCENIC 2011 J95 / 3.G Air Bag RC5 - Seat Belt Pretensioners Repair Manual 88C-70
MR-372-J84-88C100$472.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF178
PRESENT
OR
STORED
PASSENGER SIDE REAR INERTIA REEL CIRCUIT
CC:
