88C-81
MR-372-J84-88C100$531.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF273
PRESENT
OR
STOREDINSTRUMENT PANEL
NOTESNone.
Apply the multiplex network fault finding procedure (see88B, Multiplexing).
Test the instrument panel (see 83A, Instrument panel).
AFTER REPAIRClear the computer fault memory. Switch off the ignition.
Carry out another check using the diagnostic tool.
ABGRC5_V14_DF273

88C-82
MR-372-J84-88C100$531.mif
V5
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of faults
AIRBAG RC5
Vdiag: 14
88C
DF282
PRESENT
OR
STOREDINJECTION MULTIPLEX SIGNAL ABSENT
NOTESNone.
Apply the multiplex network fault finding procedure (see88B, Multiplexing).
Test the injection system (see 17B, Petrol injection or 13B, Diesel injection).
AFTER REPAIRClear the computer fault memory. Switch off the ignition.
Carry out another check using the diagnostic tool.
ABGRC5_V14_DF282

88C-83
MR-372-J84-88C100$590.mif
V5
88C
AIRBAGS AND PRETENSIONERS
Fault finding – Conformity check
NOTESOnly carry out this conformity check after having carried out a complete check using
the diagnostic tool.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
Dialogue
diagnostic tool-Airbag RC5 P1/P2Consult ALP1
Computer
conformityLC034 Type of vehicleCheck that the computer
configuration corresponds to
the vehicle.CF215 Vehicle type
Computer/Ignition
lines configurationUsing the READ
CONFIGURATION
commandsCheck that the computer
configurations match
the actual equipment fitted to
the vehicle.Using the commands SC005
Configuration of system
components
Operation of
the warning light.
Computer
initialisation check.Ignition onThe warning light illuminates
for 3 seconds when
the ignition is switched on.None
ABGRC5_V14_CCONF
AIRBAG RC5
Vdiag: 14

88C-84
MR-372-J84-88C100$649.mif
V5
88C
AIRBAGS AND PRETENSIONERS

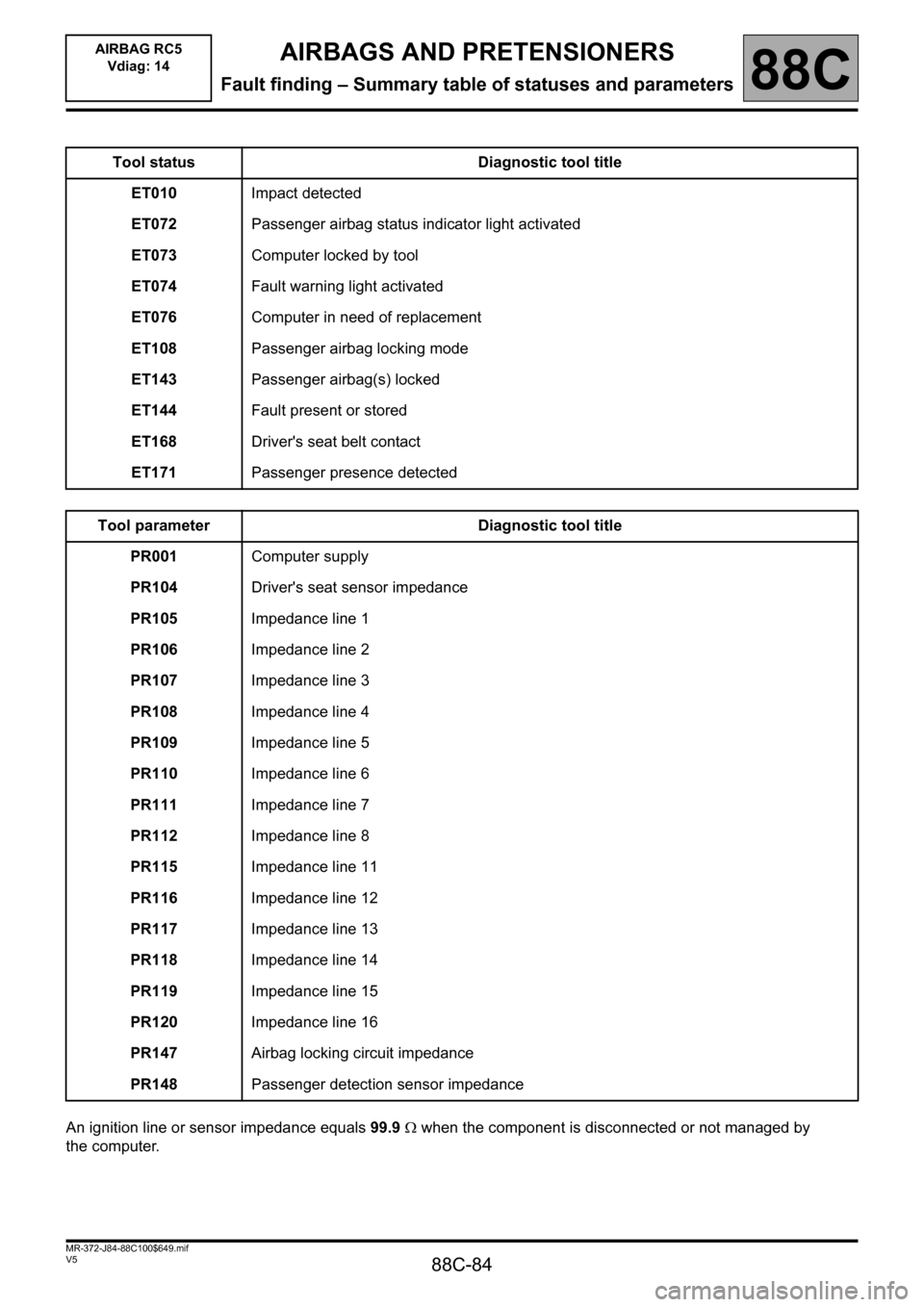

Fault finding – Summary table of statuses and parameters
An ignition line or sensor impedance equals 99.9Ω when the component is disconnected or not managed by
the computer.Tool status Diagnostic tool title
ET010Impact detected
ET072Passenger airbag status indicator light activated
ET073Computer locked by tool
ET074Fault warning light activated
ET076Computer in need of replacement
ET108Passenger airbag locking mode
ET143Passenger airbag(s) locked
ET144Fault present or stored
ET168Driver's seat belt contact
ET171Passenger presence detected
Tool parameter Diagnostic tool title
PR001Computer supply
PR104Driver's seat sensor impedance
PR105Impedance line 1
PR106Impedance line 2
PR107Impedance line 3
PR108Impedance line 4
PR109Impedance line 5
PR110Impedance line 6
PR111Impedance line 7
PR112Impedance line 8
PR115Impedance line 11
PR116Impedance line 12
PR117Impedance line 13
PR118Impedance line 14
PR119Impedance line 15
PR120Impedance line 16
PR147Airbag locking circuit impedance
PR148Passenger detection sensor impedance
AIRBAG RC5
Vdiag: 14

88C-85
MR-372-J84-88C100$708.mif
V5
88C
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of statuses
–ET010:Impact detected.
This status indicates that an impact was detected by the computer.
–ET072:Passenger airbag status indicator light activated.
This status permits a check on the request by the computer for the passenger airbag indicator
light to be lit.
–ET073:Computer locked by tool.
This status indicates that the computer has been locked by the diagnostic tool.
–ET074:Fault warning light activated.
This status permits a check on the request by the computer for the fault warning light to be lit.
–ET076:Computer in need of replacement.
This status indicates whether the computer should be replaced.
–ET108:Passenger airbag locking mode.
This status signals whether the vehicle is fitted with a passenger airbag locking switch.
–ET143:Passenger airbag(s) locked.
This status indicates the passenger trigger line locking (passenger front airbag, passenger front
chest airbag and passenger lap pretensioner).
–ET144:Fault present or stored.
This status indicates if the computer has detected a present or a stored fault.
–ET168:Driver's seat belt contact.
This status is used to check whether the driver buckle switch is working properly.
–ET171:Passenger presence detected.
This status indicates if a passenger has been detected on the front passenger seat.
AIRBAG RC5
Vdiag: 14

88C-86
MR-372-J84-88C100$767.mif
V5
88C
AIRBAGS AND PRETENSIONERS
Fault finding – Interpretation of parameters
–PR001:Computer supply.
This parameter specifies the supply voltage of the computer.
–PR104:Driver's seat sensor impedance.
–PR105:Impedance line 1 (Driver's front air bag circuit 1).
–PR106:Impedance line 2 (Driver's front air bag circuit 2).
–PR107:Impedance line 3 (Passenger front airbag circuit 1).
–PR108:Impedance line 4 (Passenger front airbag circuit 2).
–PR109:Impedance line 5 (Driver's front chest-level side airbag).
–PR110:Impedance line 6 (Driver's side curtain airbag).
– P R 111 :Impedance line 7 (Passenger front chest-level side airbag).
–PR112:Impedance line 8 (Curtain side airbag on passenger side).
–PR113:Impedance line 9 (Driver's rear chest-level airbag).
–PR114:Impedance line 10 (Passenger rear chest-level airbag).
–PR115:Line 11 impedance (Driver's rear seat belt inertia reel).
–PR116:Line 12 impedance (Passenger rear seat belt inertia reel).
–PR117:Line 13 impedance (Driver's seat lap belt/seat base airbag).
–PR118:Line 14 impedance (Passenger lap belt/seat base airbag).
–PR119:Line 15 resistance (Seat belt pretensioner buckle driver's side).
–PR120:Line 16 resistance (Seat belt pretensioner buckle passenger side).
These parameters indicate the impedance in ohms on trigger lines.
–PR147:Airbag locking circuit impedance.
This parameter indicates impedance of the passenger airbags locking switch, in ohms.
–PR148:Passenger detection sensor impedance.
This parameter indicates the impedance in ohms of the passenger detection sensor.
AIRBAG RC5
Vdiag: 14

88C-87
MR-372-J84-88C100$826.mif
V5
88C
AIRBAGS AND PRETENSIONERS
Fault finding – Customer complaints
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
ABSENCE OF DIALOGUE WITH THE AIR BAG COMPUTER ALP 1
AIRBAG RC5
Vdiag: 14

88C-88
MR-372-J84-88C100$885.mif
V5
88C
AIRBAGS AND PRETENSIONERS
Fault finding – Fault Finding Chart
ALP 1 No communication with the airbag computer
NOTESSpecial note:
See Introduction/Procedure section to activate the forced + after ignition feed to
run fault finding on a computer.
Try to establish dialogue with a computer on another vehicle to check that the diagnostic tool is not faulty.
If the diagnostic tool is not the cause and communication cannot be established with any other computer on
the same vehicle, it is possible that another computer is disrupting the multiplex network.
Proceed by successive disconnections to locate the computer at fault.
check the battery voltage and carry out the operations required to obtain a correct voltage.
(10.5V < U battery < 16V)
Check the presence and condition of the airbag computer supply fuse.
Check that the computer connector is properly connected and check the condition of its connections.
Check that the supply to the computer is correct:
– Disconnect the airbag computer and fit the 22-track adapter Elé. 1685.
– Check and ensure the presence of + after ignition feed between the terminals marked earth and + after ignition
feed.
Check that the power supply to the diagnostic socket is correct:
–+ Before ignition on track 16.
– + after ignition en track 1.
–Earth on tracks 4 and 5.
Check using the 22-track adapter Elé. 1685. Check the continuity and insulation of the lines of the airbag
computer/diagnostic socket connection between:
Bornier track CAN H
Bornier track CAN LTrack 6 of the diagnostic socket
Track 14 of the diagnostic socket
If dialogue has still not been established after these checks, contact Techline.
AFTER REPAIRWhen communication is established, deal with any faults indicated.
ABGRC5_V14_ALP01
