13B-118
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF226
PRESENT
OR
STORED
DAMPER VALVE CIRCUIT
CC.1:Short circuit to + 12 V
CC.0: Short circuit to earth
CO: Open circuit
CC: Short circuit
1.DEF: Internal electronic fault
2.DEF: External fault finding
3.DEF: Values outside tolerances
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
– the engine is started,
– a road test,
– actuator command AC012 Damper valve;
– the ignition is switched off for 1 minute.
Special notes:
If the fault is present:
– it is difficult or even impossible to start the vehicle,
– the engine stops noisily,
– the level 1 warning light is illuminated.
Use bornier Elé.1681 or Elé.1590 for any operation on the injection computer
connectors.
Priorities when dealing with a number of faults:
Deal with fault DF046 "Battery voltage" first if it is present or stored.
IMPORTANT
This fault can result in a rapid and significant fouling of the particle filter.
CC.1
NOTESAfter any work is carried out on the damper valve, run SC036
Reinitialise programming and select Damper valve, then
switch off the ignition and wait 1 minute.
Check the damper valve connections.
Check the injection computer connections.
Repair if necessary.
Check the continuity and insulation from + 12 V of the following connections:
– connection code NT (Laguna II) or N (Scénic II and Mégane II) between component 1461 and chassis earth
NT or N.
– connection code 3VN,
– connection code 3VM.
between components 120 and 1461.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the damper valve.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF226/EDC16_V58_DF226/EDC16_V5C_DF226/EDC16_V18_DF226/EDC16_V1C_DF226/EDC16_V20_DF226

13B-129
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF276
PRESENT
INJECTOR CODE PROGRAMMING
1.DEF: Internal electronic fault when writing
2.DEF: No code stored
NOTESCondition for applying fault finding ONLY to a present fault:
The fault is declared present after:
– reprogramming the injection computer,
– replacing and programming the injection computer.
Special notes:
If the fault is present:
– the engine speed is limited,
– the level 1 warning light is illuminated.
1.DEF
NOTESNone
Enter the injector codes using command SC002 Enter injector codes (see Interpretation of commands).
If the fault is still present after switching off the ignition, waiting 1 minute and then re-establishing dialogue.
Refer to the interpretation of command SC002 Enter injector codes.
If the fault is still present, contact the Techline.
Otherwise clear the fault memory using RZ007 Fault memory.
2.DEF
NOTESThis fault appears on any blank computer (new or recently
reprogrammed)
WARNING
A computer without the IMA option can be replaced by a computer with this option. The codes are not
saved during command SC003 Save computer data.
In this case, status ET104 “Use of injector codes” becomes “YES”, fault DF276 is present and the engine
operates in defect mode.
Program the injector codes using command SC002 Enter injector codes (see Interpretation of commands).
If the fault is still present after switching off the ignition, waiting 1 minute and then re-establishing dialogue, refer
to interpretation of command SC002 Enter injector codes.
If the fault is still present, contact the Techline.
Otherwise clear the fault memory using RZ007 Fault memory.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF276/EDC16_V58_DF276/EDC16_V5C_DF276/EDC16_V18_DF276/EDC16_V1C_DF276/EDC16_V20_DF276

13B-130
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF308
PRESENT
OR
STOREDCLOGGED PARTICLE FILTER
1.DEF: Maximum limit
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
– particle filter regeneration is inhibited,
– the EGR function is inhibited,
– the vehicle performance is reduced,
– the level 1 warning light is illuminated and a warning message or a special particle
filter warning light is displayed on the instrument panel.
Use bornier Ele. 1681 for all operations on the engine management computer
connector.
Priorities when dealing with a number of faults:
Firstly, deal with the following faults:
– DF315 Particle filter differential pressure sensor if it is present.
– DF308 if DF315 is stored.
– DF226 Damper valve circuit if it is present or stored.
– DF272 EGR valve control circuit if it is present or stored.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF308/EDC16_V58_DF308/EDC16_V5C_DF308/EDC16_V18_DF308/EDC16_V1C_DF308/EDC16_V20_DF308

13B-136
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B

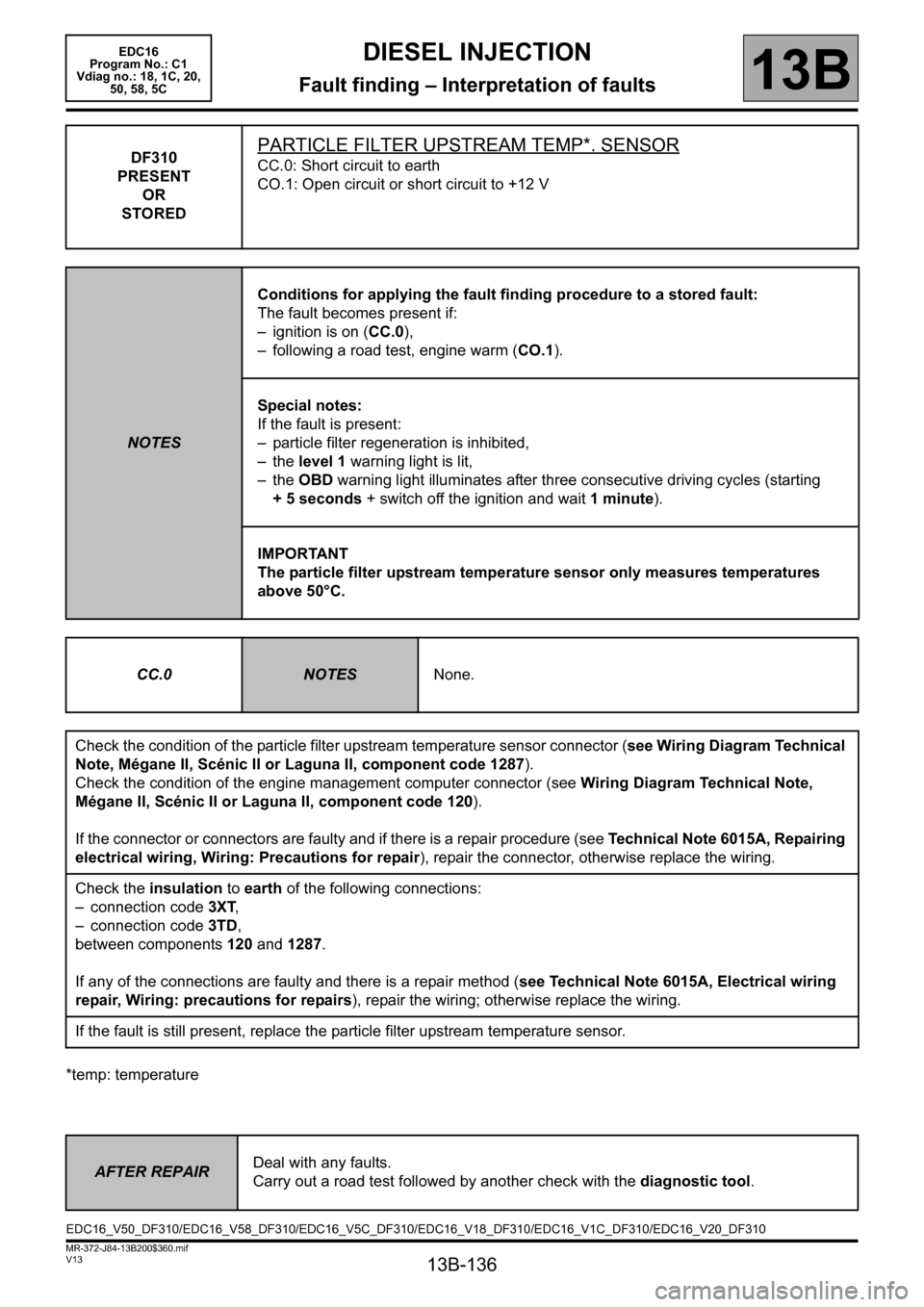

*temp: temperatureDF310
PRESENT
OR
STORED
PARTICLE FILTER UPSTREAM TEMP*. SENSOR
CC.0: Short circuit to earth
CO.1: Open circuit or short circuit to +12 V
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault becomes present if:
– ignition is on (CC.0),
– following a road test, engine warm (CO.1).
Special notes:
If the fault is present:
– particle filter regeneration is inhibited,
– the level 1 warning light is lit,
– the OBD warning light illuminates after three consecutive driving cycles (starting
+ 5 seconds + switch off the ignition and wait 1 minute).
IMPORTANT
The particle filter upstream temperature sensor only measures temperatures
above 50°C.
CC.0
NOTESNone.
Check the condition of the particle filter upstream temperature sensor connector (see Wiring Diagram Technical
Note, Mégane II, Scénic II or Laguna II, component code 1287).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Mégane II, Scénic II or Laguna II, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation to earth of the following connections:
– connection code3XT,
– connection code3TD,
between components 120 and 1287.
If any of the connections are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: precautions for repairs), repair the wiring; otherwise replace the wiring.
If the fault is still present, replace the particle filter upstream temperature sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF310/EDC16_V58_DF310/EDC16_V5C_DF310/EDC16_V18_DF310/EDC16_V1C_DF310/EDC16_V20_DF310

13B-138
MR-372-J84-13B200$360.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of faults
*diff.: differential
*temp.: temperatureDF311
PRESENT
OR
STORED
FAILED REGENERATIONS LIMIT EXCEEDED
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
– the level 1 warning light is lit,
– particle filter regenerations when driving are inhibited.
Use bornier Ele. 1681 for all operations on the engine management computer
connector.
Priorities when dealing with a number of faults:
Firstly, deal with the following faults:
– DF308 Particle filter clogged if it is present or stored,
– DF226 Damper valve circuit if it is present or stored,
– DF272 EGR valve control circuit if it is present or stored.
The fault appears after a certain number of failed regeneration attempts while driving (between 10 and 12
for MEGANE II and SCENIC II; between 6 and 8 for LAGUNA II).
–Run TEST 2 Air path at the turbocharger.
Check that there are no leaks or blockages in the exhaust pipe,
Repair if necessary
– Carry out an After-Sales regeneration.
– Follow the procedure for command SC017 Particle filter regeneration (see Interpretation of commands).
Carry out an oil change if the particle filter is replaced.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V58_DF311/EDC16_V5C_DF311/ EDC16_V1C_DF311/EDC16_V20_DF311EDC16
Program No.: C1
Vdiag No.: 1C, 20,
58, 5C

13B-139
MR-372-J84-13B200$360.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of faults
DF312
PRESENT
OR
STOREDSPEED REQUEST
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
– a warning message or a special particle filter warning light is displayed on the
instrument panel,
– A specific kind of driving is required to bring about regeneration of the
particle filter when driving.
Use bornier Ele. 1681 for all operations on the engine management computer
connector.
Priorities when dealing with a number of faults:
Firstly, deal with the following faults:
–DF308 Particle filter clogged if it is present or stored,
–DF311 Number of failed regenerations exceeded if it is present or stored,
– DF226 Damper valve circuit if it is present or stored,
–DF272 EGR valve control circuit if it is present or stored.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF312/EDC16_V58_DF312/EDC16_V5C_DF312/EDC16_V18_DF312/EDC16_V1C_DF312/EDC16_V20_DF312EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C

13B-142
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF312
CONTINUED 3
PA R T B
1 NO particle filter regeneration.
2 On the repair order, note the parameter and the status that correspond to the last failure:
– Mileage of the last DF312.
– Mileage of the last failures.
– Engine statuses of the last failures.
E.g.: PR787 = 2794 miles (4657 km); PR801 = 2760 miles (4600 km); engine status = STOPPED.
3 Interpretation of the values written on the order of repair by the service advisor for the customer:
Before the last time the warning light or Particle Filter message came on (appeared at the Mileage of the last
DF312), the customer had not respected the driving recommendations: the failure that occurred at the Mileage of
the last failure is due to the engine being switched off.
4 Check the weight of soot: PR383 Weight of soot in the particle filter.
If PR383
≥ 1 g. Apply the procedure for test 8 Manual clearing of the soot weight.
5 Explain to the customer the procedure to turn off the warning light, backed up by the parameters written in the
repair order: see PART D.
PA R T C
1- Carry out a regeneration in the Renault network with the approval of the Techline.
2- Change the oil and replace the oil filter if requested by a message on the diagnostic tool.
3- Run command SC036 Reinitialise programming and select After particle filter replacement.
4- Explain to the customer the procedure for regeneration when driving in order to avoid unnecessary repairs: see
PART D.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-143
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF312
CONTINUED 4
PA R T D
Procedure to switch off the Particle filter message or warning light on the instrument panel.
Certain types of driving can trigger the illumination of the particle filter warning light or message, and therefore
cause fault DF312 to appear. The customer must drive in a specific way (refer to vehicle's user manual) which
entails:
1. When the engine is warm, drive at a speed greater than 48 mph (80 km/h) for 2 minutes to trigger the
regeneration procedure.
2. Continue to drive at an average speed of 48 mph (80 km/h) until the "particle filter" message or warning light
on the instrument panel goes out. In order for the procedure to succeed, it is necessary to drive without
stopping the engine or leaving the engine running at idle speed for an extended period of time. The
regeneration time depends on the vehicle and driving conditions but should last for 20 minutes maximum.
If regeneration when driving fails (the warning light has not switched off or the service warning light has come on),
carry out a particle filter regeneration in the Renault dealership. First, check the exhaust pipe for leaks or
blockage. Repair if necessary.
Run command SC017 Particle filter regeneration (see Interpretation of commands).
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-144
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
*diff: differentialDF315
PRESENT
OR
STORED
PARTICLE FILTER DIFF.* PRESSURE SENSOR
CO: Open circuit
CO.0: Open circuit or short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: Inconsistent signal
2.DEF: Signal outside lower limit
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
– the level 1 warning light is lit,
– the OBD warning light illuminates after three consecutive driving cycles (starting
+ 5 seconds + switch off the ignition and wait 1 minute),
– the particle filter fault finding procedure is inhibited,
– particle filter regeneration is inhibited.
Priorities when dealing with a number of faults:
●DF315 if it is present.
●DF308 Particle filter clogged if DF315 is stored and DF308 is present.
●DF011 Sensor supply voltage no. 1 if it is present or stored
CC.1
NOTESNone
Check the condition of the differential pressure sensor connector (see Wiring Diagram Technical Note, Mégane
II, Scénic II or Laguna II, component code 1290).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Mégane II, Scénic II or Laguna II, component code 120).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair) repair the connector(s); otherwise, replace the wiring.
Check the insulation from + 12 V of the following connections:
– connection code3TL,
– connection code3TM,
between components 120 and 1290.
If any of the connections are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: precautions for repairs), repair the wiring; otherwise replace the wiring.
If the fault is still present, replace the differential pressure sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF315/EDC16_V58_DF315/EDC16_V5C_DF315/EDC16_V18_DF315/EDC16_V1C_DF315/EDC16_V20_DF315

13B-147
MR-372-J84-13B200$360.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF504
PRESENT
OR
STOREDAUTOMATIC TRANSMISSION
1.DEF: Multiplex line connection fault
NOTESConditions for applying the fault finding procedure to stored faults
The fault is considered present when the engine is running.
Special notes:
If the fault is present:
– the level 1 warning light is lit,
– the OBD warning light illuminates after three consecutive driving cycles (starting
+ 5 seconds + switch off the ignition and wait 1 minute).
Run a multiplex network test (see 88B, Multiplexing).
If the fault is still present, run fault finding on the Automatic transmission system (see21A, Automatic
transmission).
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF504/EDC16_V58_DF504/EDC16_V5C_DF504/EDC16_V18_DF504/EDC16_V1C_DF504/EDC16_V20_DF504
