check engine RENAULT SCENIC 2012 J95 / 3.G Engine And Peripherals EDC16CP33 Workshop Manual

13B-271V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET034
CONTINUED
YES
When the driver depresses the clutch pedal, status ET034 becomes YES until
the ignition is next switched off.
If NO appears despite the clutch pedal being depressed, carry out the following
operations:
– Remove the clutch pedal switch, check the insulation between connections M
and86D of component 675, with the switch in the rest position.
– Repeat this operation with the switch engaged and check the continuity
between the two connections.
If these 2 checks are faulty, replace the switch.
Check the condition of the clutch switch connector (see Wiring Diagram Technical
Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2,
component code 675).
Check the condition of the engine management computer connector (see Wiring
Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II
ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure
(seeTechnical Note 6015A, Repairing electrical wiring, Wiring: Precautions
for repair), repair the connector, otherwise replace the wiring.
Then check the continuity and absence of interference resistance of the
connection:
•86D between components 120 and 675.
– Check for complete earthing on connectionM of component675.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-272V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET038ENGINE
STATUS
DEFINITION+ AFTER IGNITION: This status indicates that the engine is in + after ignition feed.
RUNNING: This status indicates that the engine is running.
STOPPED: This status indicates that the engine is stopped.
Conformity check with engine stopped and ignition on.
+ APCThis status indicates that the engine is in + after ignition feed.
In the event of a fault, switch off the ignition, wait for the message to appear on the
diagnostic tool (maximum time 8 minutes): Loss of dialogue with the computer:
EDC16 CP33, check the connection of the tool and the computer supply.
If the fault is still present, contact the Techline.
Conformity check with the engine running and engine coolant temperature > 80°C
"RUNNING"This status indicates that the engine is running.
In the event of a fault, switch off the ignition, wait for the message to appear on the
diagnostic tool (maximum time 8 minutes): Loss of dialogue with the computer:
EDC16 CP33, check the connection of the tool and the computer supply,
If the fault is still present, contact the Techline.
"STOPPED"This status indicates that the engine has just cut out, without the ignition being
switched off.
EDC16CP33_V18_ET038 / EDC16CP33_V1C_ET038 / EDC16CP33_V54_ET038 / EDC16CP33_V20_ET038 / EDC16CP33_V58_ET038 /
EDC16CP33_V5C_ET038 / EDC16CP33_V24_ET038 / EDC16CP33_V04_ET038 / EDC16CP33_V08_ET038 / EDC16CP33_V44_ET038 /
EDC16CP33_V4C_ET038 / EDC16CP33_V34_ET038 / EDC16CP33_V38_ET038 / EDC16CP33_V74_ET038 / EDC16CP33_V28_ET038 /
EDC16CP33_V62_ET038 / EDC16CP33_V26_ET038 / EDC16CP33_V60_ET038
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-273V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042CRUISE CONTROL/SPEED LIMITER
STATUS
DEFINITIONNOT DETECTED: This status indicates that the cruise control or speed limiter function
is not present on the vehicle.
INACTIVE: This status indicates that the main on/off switch of the cruise control/speed
limiter is in the rest (or neutral) position.
LIMITER: This status indicates that the driver has used the main switch to select the
speed limiter.
CRUISE CONTROL: This status indicates that the driver has used the main switch to
select the cruise control.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
NOT DETECTEDThe cruise control or speed limiter function is not present on the vehicle.
INACTIVENo button has been pressed.
LIMITERThe speed limiter ON/OFF button has been pressed.
Lights the orange warning light on the instrument panel.
CRUISE
CONTROLThe cruise control ON/OFF button has been pressed.
Lights the green warning light on the instrument panel.
EDC16CP33_V18_ET042 / EDC16CP33_V1C_ET042 / EDC16CP33_V54_ET042 / EDC16CP33_V20_ET042 / EDC16CP33_V58_ET042 /
EDC16CP33_V5C_ET042 / EDC16CP33_V24_ET042 / EDC16CP33_V04_ET042 / EDC16CP33_V08_ET042 / EDC16CP33_V44_ET042 /
EDC16CP33_V4C_ET042 / EDC16CP33_V34_ET042 / EDC16CP33_V38_ET042 / EDC16CP33_V74_ET042 / EDC16CP33_V28_ET042 /
EDC16CP33_V62_ET042 / EDC16CP33_V26_ET042 / EDC16CP33_V60_ET042
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-274V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 1
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
NOT DETECTEDIf the vehicle is not fitted with cruise control/speed limiter function buttons, status
ET042 Cruise control/speed limiter is permanently NOT DETECTED. Confirmation
of the absence of the cruise control or speed limiter function on the vehicle.
If the vehicle is fitted with cruise control or speed limiter function buttons and the main
switch is in the rest (or neutral) position and after the injection computer has been
programmed or reprogrammed, then status ET042 is NOT DETECTED.
To activate the cruise control or speed limiter function, press the main switch in the
cruise control position and then in the speed limiter position.
Return to rest position
The tool displays status ET042: INACTIVE.
If not, several steps must be checked:
1. Return to the multiplex network test page on the Clip application. Repeat the
multiplex network test. Re-establish dialogue with the injection computer.
CheckET042. If ET042 is INACTIVE, the injection computer has detected the
various positions of the main switch. The cruise control/speed limiter is active.
2. If ET042 is still NOT DETECTED, check that the owner of the vehicle has not
had the cruise control/speed limiter function deactivated in the past. Contact
the Techline.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

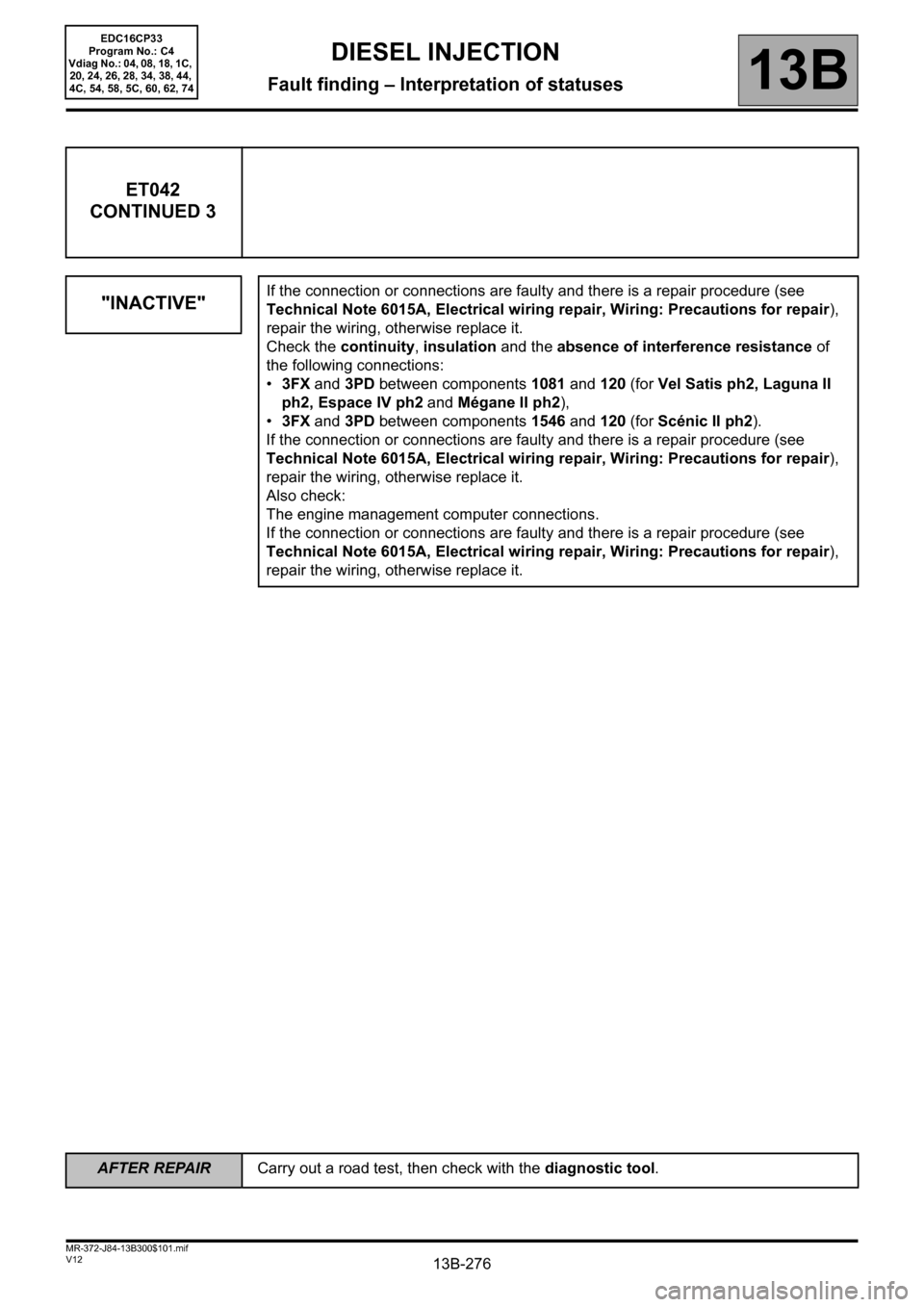

13B-276V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 3
"INACTIVE"
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Check the continuity, insulation and the absence of interference resistance of
the following connections:
•3FX and 3PD between components 1081 and 120 (for Vel Satis ph2, Laguna II
ph2, Espace IV ph2 and Mégane II ph2),
•3FX and 3PD between components 1546 and 120 (for Scénic II ph2).
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Also check:
The engine management computer connections.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-278V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 5
LIMITER
Check the continuity, insulation and the absence of interference resistance of
the following connections:
•3FX and 3PD between components 1081 and 120 (for Vel Satis ph2, Laguna II
ph2, Espace IV ph2 and Mégane II ph2)
•3FX and 3PD between components 1546 and 120 (for Scénic II ph2).
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Also check:
The engine management computer connections.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-280V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET042
CONTINUED 7
CRUISE
CONTROL
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Check the continuity, insulation and the absence of interference resistance of
the following connections:
•3FX and 3PD between components 1081 and 120 (for Vel Satis ph2, Laguna II
ph2, Espace IV ph2 and Mégane II ph2),
•3FX and 3PD between components 1546 and 120 (for Scénic II ph2).
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Also check:
The engine management computer connections.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-281V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET076STARTING
STATUS
DEFINITIONPROHIBITED: This status indicates that starting is not possible.
AUTHORISED: This status indicates that starting is possible.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
"PROHIBITED"Refer to the fault finding note for the UCH (see 87B, Passenger compartment
connection unit).
"AUTHORISED"Refer to the fault finding note for the UCH (see 87B, Passenger compartment
connection unit).
EDC16CP33_V18_ET076 / EDC16CP33_V1C_ET076 / EDC16CP33_V54_ET076 / EDC16CP33_V20_ET076 / EDC16CP33_V58_ET076 /
EDC16CP33_V5C_ET076 / EDC16CP33_V24_ET076 / EDC16CP33_V04_ET076 / EDC16CP33_V08_ET076 / EDC16CP33_V44_ET076 /
EDC16CP33_V4C_ET076 / EDC16CP33_V34_ET076 / EDC16CP33_V38_ET076 / EDC16CP33_V74_ET076 / EDC16CP33_V28_ET076 /
EDC16CP33_V62_ET076 / EDC16CP33_V26_ET076 / EDC16CP33_V60_ET076
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-282V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET077IMPACT DETECTED
STATUS
DEFINITIONNO: This status indicates that the airbag computer has not detected an impact.
YES: This status indicates that the airbag computer has detected an impact.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
This signal is transmitted by the airbag computer via the multiplex network.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
"NO"The status is usually NO as no impact has been detected.
Otherwise, check the airbag computer (see88C, Airbags and pretensioners).
"YES"If YES an impact must be present.
Otherwise, check the airbag computer (see88C, Airbags and pretensioners).
After the repair, clear the faults (even if no fault is displayed).
EDC16CP33_V18_ET077 / EDC16CP33_V1C_ET077 / EDC16CP33_V54_ET077 / EDC16CP33_V20_ET077 / EDC16CP33_V58_ET077 /
EDC16CP33_V5C_ET077 / EDC16CP33_V24_ET077 / EDC16CP33_V04_ET077 / EDC16CP33_V08_ET077 / EDC16CP33_V44_ET077 /
EDC16CP33_V4C_ET077 / EDC16CP33_V34_ET077 / EDC16CP33_V38_ET077 / EDC16CP33_V74_ET077 / EDC16CP33_V28_ET077 /
EDC16CP33_V62_ET077 / EDC16CP33_V26_ET077 / EDC16CP33_V60_ET077
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-283V12 MR-372-J84-13B300$101.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET079AIR CONDITIONING PRESENT
STATUS
DEFINITIONYES: This status indicates that air conditioning is present on the vehicle.
NO: This status indicates that air conditioning is not present on the vehicle.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
The heating and air conditioning system is present depending on the vehicle's
equipment level.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
YES or NOYES or NO, depending on the vehicle equipment.
EDC16CP33_V18_ET079 / EDC16CP33_V1C_ET079 / EDC16CP33_V54_ET079 / EDC16CP33_V20_ET079 / EDC16CP33_V58_ET079 /
EDC16CP33_V5C_ET079 / EDC16CP33_V24_ET079 / EDC16CP33_V04_ET079 / EDC16CP33_V08_ET079 / EDC16CP33_V44_ET079 /
EDC16CP33_V4C_ET079 / EDC16CP33_V34_ET079 / EDC16CP33_V38_ET079 / EDC16CP33_V74_ET079 / EDC16CP33_V28_ET079 /
EDC16CP33_V62_ET079 / EDC16CP33_V26_ET079 / EDC16CP33_V60_ET079
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
