warning RENAULT TWINGO 2009 2.G Engine And Peripherals Workshop Manual

19C-14
TANK
Fuel level sensor module: Removal - Refitting
D4F or D7F or K4M or K9K
19C
aDisconnect:
-the fuel level sensor module connector (2) ,
-the fuel pipes (3) .aDisconnect:
-the fuel level sensor module connector (4) ,
-the fuel pipe (5) . D4F or D7F or K9K
18577
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
K4M
131774
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.

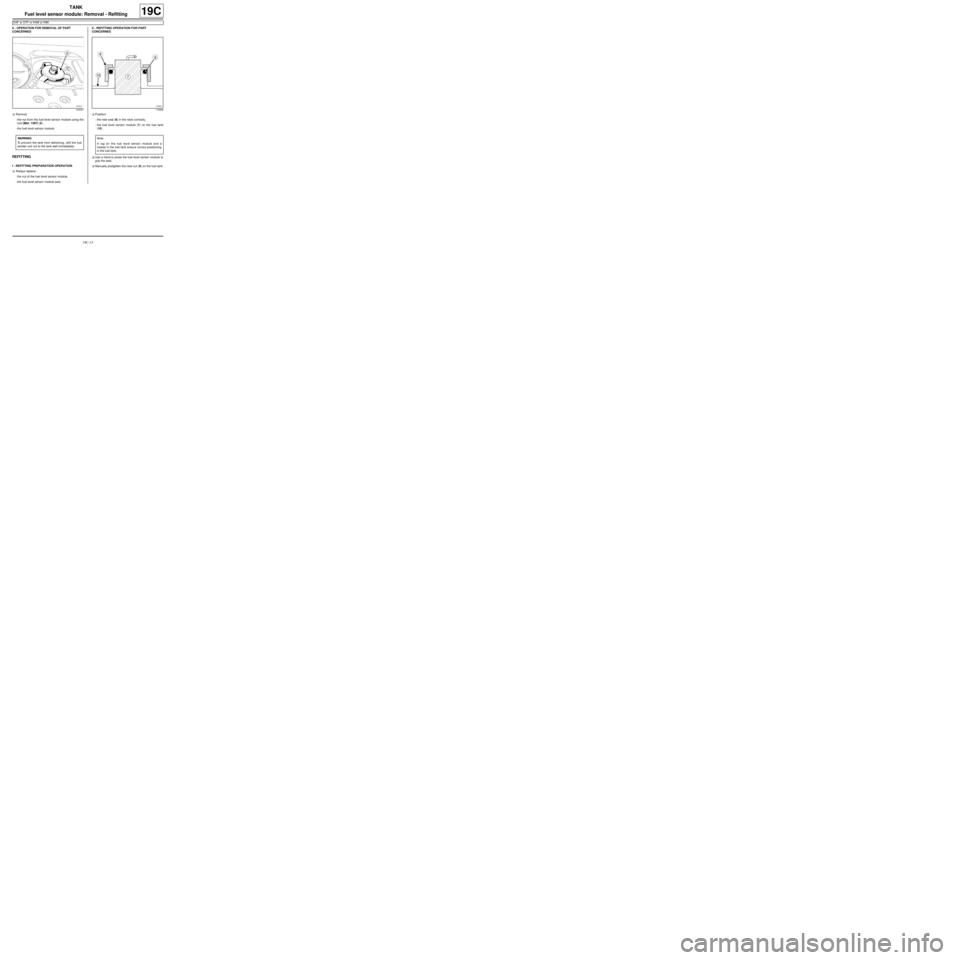

19C-15
TANK
Fuel level sensor module: Removal - Refitting
D4F or D7F or K4M or K9K
19C
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the nut from the fuel level sensor module using the
tool (Mot. 1397) (6) ,
-the fuel level sensor module.
REFITTING
I - REFITTING PREPARATION OPERATION
aAlways replace:
-the nut of the fuel level sensor module,
-the fuel level sensor module seal.II - REFITTING OPERATION FOR PART
CONCERNED
aPosition:
-the new seal (8) in the neck correctly,
-the fuel level sensor module (7) on the fuel tank
(10) .
aUse a hand to press the fuel level sensor module to
grip the seal.
aManually pretighten the new nut (9) on the fuel tank.
104547
WARNING
To prevent the tank from deforming, refit the fuel
sender unit nut to the tank well immediately.
118996
Note:
A lug on the fuel level sensor module and a
recess in the fuel tank ensure correct positioning
in the fuel tank.
