RENAULT TWINGO 2009 2.G Trim And Upholstery Repair Manual

78A-1
REAR SEAT TRIM
Rear seat base trim: Removal - Refitting
78A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove:
-the complete rear seat (see 76A, Rear seat fra-
mes and mechanisms, Complete rear seat: Re-
moval - Refitting, page 76A-1) ,
-the rear seatback trim (see 78A, Rear seat trim,
Rear seatback trim: Removal - Refitting, page
78A-4) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDrill out rivets (1) .
aRemove the front lower retaining sections.aRemove the side retaining sections (2) .
aRemove the under seat trim (3) . Special tooling required
Car. 1521Clip cr imping pliers.
120857
120858
120860

78A-2
REAR SEAT TRIM
Rear seat base trim: Removal - Refitting
78A
aRemove the retaining sections (4) .
aCut the clips (5) using a cutting tool.aUnclip the seatback tilting mechanism (6) .
aRemove:
-the rear seat belt buckle ( (see Rear seat belt buc-
kle: Removal - Refitting) ),
-the retaining sections (7) ,
-the rear seat cushion trim.
120861
120862120882
120884

78A-3
REAR SEAT TRIM
Rear seat base trim: Removal - Refitting
78A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the rear seat cushion trim,
-the retaining sections (7) ,
-the rear seat belt buckle ( (see Rear seat belt buc-
kle: Removal - Refitting) ).
aClip on the seatback tilting mechanism (6) .
aRefit:
-the clips (5) (available from the Spare Parts De-
partment) using the (Car. 1521),
-the retaining sections (4) ,
-the under seat trim (3) ,
-the side retaining sections (2) ,
-the front lower retaining sections.
aRefit the rivets (1) .
II - FINAL OPERATION.
aRefit:
-the rear seatback trim (see 78A, Rear seat trim,
Rear seatback trim: Removal - Refitting, page
78A-4) ,
-the complete rear seat (see 76A, Rear seat fra-
mes and mechanisms, Complete rear seat: Re-
moval - Refitting, page 76A-1) .

78A-4
REAR SEAT TRIM
Rear seatback trim: Removal - Refitting
78A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the complete rear seat (see 76A, Rear seat
frames and mechanisms, Complete rear seat:
Removal - Refitting, page 76A-1) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUndo the backrest zip fastener.aPartially remove the seatback cover.
aCut the clips (1) using a cutting tool.
aUnclip the headrest guides (2) .
aRemove:
-the seatback cover,
-the seatback foam. Special tooling required
Car. 1521Clip cr imping pliers.
Car. 1558Pliers for zip fasteners.
120853
120854
120855

78A-5
REAR SEAT TRIM
Rear seatback trim: Removal - Refitting
78A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the seatback foam,
-the seatback cover partially.
aClip on the headrest guides (2) .
aFit the clips (1) (available from the Spare Parts De-
partment) using the (Car. 1521).
aClose the backrest zip fastener using the (Car.
1558).
II - FINAL OPERATION.
aRefit the complete rear seat (see 76A, Rear seat
frames and mechanisms, Complete rear seat:
Removal - Refitting, page 76A-1) .

78A-6
REAR SEAT TRIM
Single unit rear bench seatback trim: Removal - Refitting78A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the rear bench seatback (see 76A, Rear
seat frames and mechanisms, Rear bench seat-
back: Removal - Refitting, page 76A-5) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aOpen the zip fasteners.
aRemove:
-the retaining sections (1) ,
-the clips (2) ,
-the « cover - foam » assembly.aCut the clips (3) using a cutting tool.
aRemove the cover from the foam.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the cover on the foam.
aFit the clips (3) (available from the Spare Parts De-
partment) using the (Car. 1521).
aRefit:
-the « cover - foam » assembly onto the rear bench
seatback frame,
-the clips (2) ,
-the retaining strips (1) .
aClose the zip fasteners .
II - FINAL OPERATION.
aRefit the rear bench seatback (see 76A, Rear seat
frames and mechanisms, Rear bench seatback:
Removal - Refitting, page 76A-5) . Special tooling required
Car. 1521Clip cr imping pliers.
120806
120807
120808

78A-7
REAR SEAT TRIM
Single unit rear bench seat base trim: Removal - Refitting78A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the rear bench seat base (see 76A, Rear
seat frames and mechanisms, Rear bench seat
base: Removal - Refitting, page 76A-6) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the bolts (1) .aUnclip the rear bench seat base trim at (2) .
aRemove the rear bench seat base trim.
aRemove:
-the rear bench seat base trim retaining sections,
-the « cover - foam » assembly. Special tooling required
Car. 1521Clip cr imping pliers.
120802
120803
120804

78A-8
REAR SEAT TRIM
Single unit rear bench seat base trim: Removal - Refitting78A
aCut the clips (3) using a cutting tool.
aRemove the cover from the foam.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the cover on the foam.
aFit the clips (3) (available from the Spare Parts De-
partment) using the (Car. 1521).
aRefit:
-the « cover - foam » assembly onto the rear bench
seat base frame,
-the rear bench seat base trim retaining sections,
-the rear bench seat base trim.
aClip on the rear bench seat base trim at (2) .
aRefit the bolts (1) .
II - FINAL OPERATION.
aRefit the rear bench seat base (see 76A, Rear seat
frames and mechanisms, Rear bench seat base:
Removal - Refitting, page 76A-6) .
120805

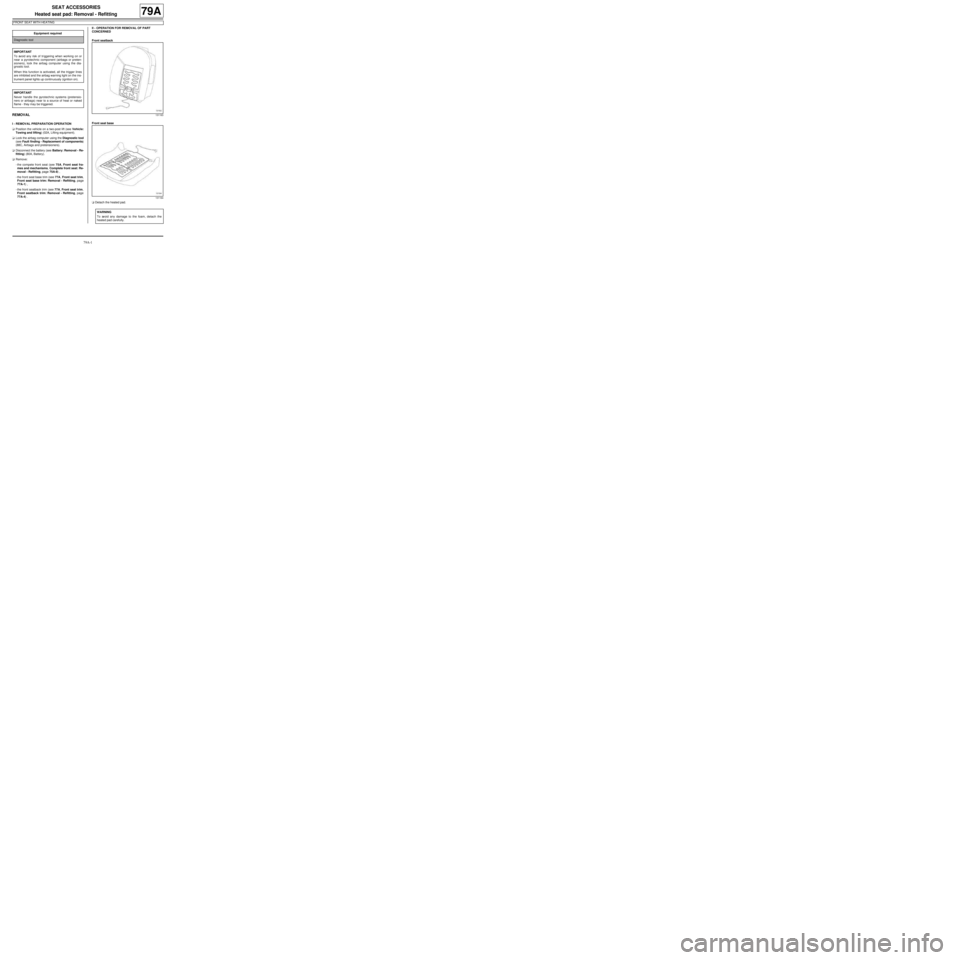

79A-1
SEAT ACCESSORIES
Heated seat pad: Removal - Refitting
FRONT SEAT WITH HEATING
79A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(88C, Airbags and pretensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aRemove:
-the compete front seat (see 75A, Front seat fra-
mes and mechanisms, Complete front seat: Re-
moval - Refitting, page 75A-8) ,
-the front seat base trim (see 77A, Front seat trim,
Front seat base trim: Removal - Refitting, page
77A-1) ,
-the front seatback trim (see 77A, Front seat trim,
Front seatback trim: Removal - Refitting, page
77A-4) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
Front seatback
Front seat base
aDetach the heated pad. Equipment required
Diagnostic tool
IMPORTANT
To avoid any risk of triggering when working on or
near a pyrotechnic component (airbags or preten-
sioners), lock the airbag computer using the dia-
gnostic tool.
When this function is activated, all the trigger lines
are inhibited and the airbag warning light on the ins-
trument panel lights up contin uously (ignition on).
IMPORTANT
Never handle the pyrotechnic systems (pretensio-
ners or airbags) near to a source of heat or naked
flame - they may be triggered.
131163
131164
WARNING
To avoid any damage to the foam, detach the
heated pad carefully.

79A-2
SEAT ACCESSORIES
Heated seat pad: Removal - Refitting
FRONT SEAT WITH HEATING
79A
REFITTING
I - REFITTING PREPARATION OPERATION
a
II - REFITTING OPERATION FOR PART
CONCERNED
aRemove the protective backing from the adhesive of
the heated pad.
aBond the heated pad.
aRefit:
-the front seat frame,
-the « foam - heated pad » assembly of the seat
base and seatback.
aConnect the connectors:
-of the heated pad,
-of the heated seat switch.
aConnect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
aCarry out a function test.
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aDisconnect the following connectors :
-of the heated seat switch,
-of the heated pad.
aRemove:
-the « foam - heated pad » assembly of the seat
base and seatback,
-the front seat frame.III - FINAL OPERATION.
aRefit:
-the front seatback trim (see 77A, Front seat trim,
Front seatback trim: Removal - Refitting, page
77A-4) ,
-the front seat base trim (see 77A, Front seat trim,
Front seat base trim: Removal - Refitting, page
77A-1) ,
-the entire front seat (see 75A, Front seat frames
and mechanisms, Complete front seat: Remo-
val - Refitting, page 75A-8) .
aConnect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (88C, Airbags and pretensioners). Note:
Check the condition of the seat base and seat-
back foam pads and replace them if necessary.
