RENAULT TWINGO 2009 2.G Trim And Upholstery User Guide

71A-8
BODY INTERNAL TRIM
Rear wheel arch trim: Removal - Refitting
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPartially remove the luggage compartment carpet.
aRemove:
-the rear parcel shelf (depending on equipment le-
vel),
-the rear parcel shelf side trim (see 71A, Body in-
ternal trim, Rear parcel shelf side trim: Removal
- Refitting, page 71A-15) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the clips (1) ,
-the wheel arch lining.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the wheel arch lining,
-the clips (1) .II - FINAL OPERATION.
aRefit:
-the rear parcel shelf side trim (see 71A, Body in-
ternal trim, Rear parcel shelf side trim: Removal
- Refitting, page 71A-15) ,
-the rear parcel shelf (depending on equipment le-
vel).
aRefit the luggage compartment carpet.
121221

71A-9
BODY INTERNAL TRIM
Windscreen pillar trim: Removal - Refitting
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPartially remove the front side door seal.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the windscreen pillar trim in the direction and
order shown.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the windscreen pillar trim.
II - FINAL OPERATION.
aRefit the front side door seal.
121716

71A-10
BODY INTERNAL TRIM

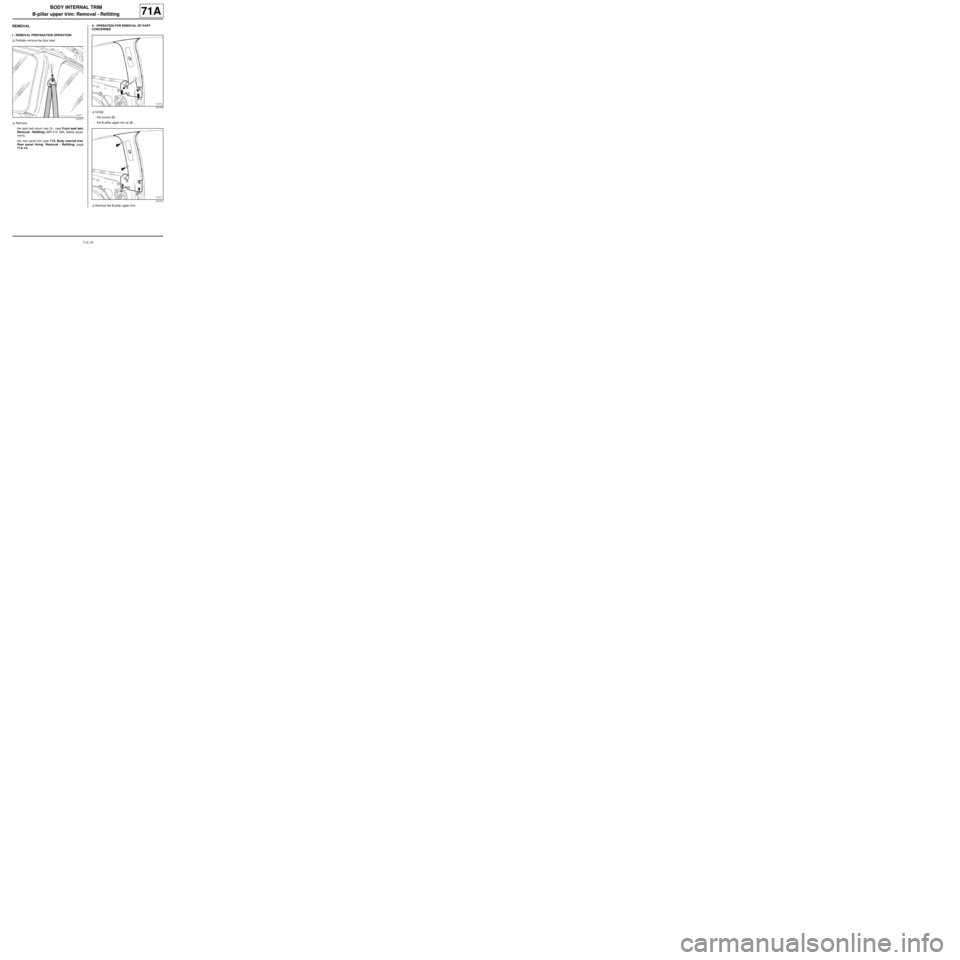

B-pillar upper trim: Removal - Refitting
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPartially remove the door seal.
aRemove:
-the seat belt return reel (1) (see Front seat belt:
Removal - Refitting) (MR 412, 59A, Safety equip-
ment),
-the rear panel trim (see 71A, Body internal trim,
Rear panel lining: Removal - Refitting, page
71A-14) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip:
-the covers (2) ,
-the B-pillar upper trim at (2) .
aRemove the B-pillar upper trim.
121071
121076
121077

71A-11
BODY INTERNAL TRIM
B-pillar upper trim: Removal - Refitting
71A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the B-pillar upper trim.
aFit the B-pillar upper trim at (2) .
II - FINAL OPERATION.
aRefit:
-the rear panel trim (see 71A, Body internal trim,
Rear panel lining: Removal - Refitting, page
71A-14) ,
-the seat belt return reel (1) (see Front seat belt:
Removal - Refitting) (MR 412, 59A, Safety equip-
ment),
-the door seal.

71A-12
BODY INTERNAL TRIM
Quarter panel trim: Removal - Refitting
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPull the rear seats down or remove the rear bench
seatback (depending on equipment level) (see 76A,
Rear seat frames and mechanisms, Rear bench
seatback: Removal - Refitting, page 76A-5) .
aRemove:
-the rear parcel shelf side trim (see 71A, Body in-
ternal trim, Rear parcel shelf side trim: Removal
- Refitting, page 71A-15) ,
-the rear panel trim (see 71A, Body internal trim,
Rear panel lining: Removal - Refitting, page
71A-14) .
aRemove the rear seat belt return reel (see Rear seat
belt: Removal - Refitting) (MR 412, 59A, Safety
equipment).aPartially remove the luggage compartment seal. (1)
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the bolt (2) .
aUnclip the rear quarter panel trim.
aRemove the rear quarter panel trim.
121065
121068
121067

71A-13
BODY INTERNAL TRIM
Quarter panel trim: Removal - Refitting
71A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the rear quarter panel lining.
aClip the rear quarter panel trim.
aRefit the bolt (2) .
II - FINAL OPERATION.
aRefit:
-the luggage compartment seal, (1)
-the rear seat belt return reel (see Rear seat belt:
Removal - Refitting) (MR 412, 59A, Safety equip-
ment),
-the rear panel trim (see 71A, Body internal trim,
Rear panel lining: Removal - Refitting, page
71A-14) ,
-the rear parcel shelf side trim (see 71A, Body in-
ternal trim, Rear parcel shelf side trim: Removal
- Refitting, page 71A-15) .
aPull the rear seats down or refit the rear bench seat-
back (depending on equipment level) (see 76A,
Rear seat frames and mechanisms, Rear bench
seatback: Removal - Refitting, page 76A-5) .

71A-14
BODY INTERNAL TRIM
Rear panel lining: Removal - Refitting
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPull the rear seats down or remove the rear bench
seatback (depending on equipment level) (see 76A,
Rear seat frames and mechanisms, Rear bench
seatback: Removal - Refitting, page 76A-5) .
aRemove the rear parcel shelf side trim (see 71A,
Body internal trim, Rear parcel shelf side trim:
Removal - Refitting, page 71A-15) .
aPartially remove the front side door seal.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the clip (1) .aRemove the bolt (2) .
aUnclip the rear panel trim.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aFit the rear panel trim.
aRefit:
-the bolt (2) ,
-the clip (1) .
II - FINAL OPERATION.
aRefit:
-the front side door seal,
-the rear parcel shelf side trim (see 71A, Body in-
ternal trim, Rear parcel shelf side trim: Removal
- Refitting, page 71A-15) .
aPull the rear seats down or refit the rear bench seat-
back (depending on equipment level) (see 76A,
Rear seat frames and mechanisms, Rear bench
seatback: Removal - Refitting, page 76A-5) .
121069
121075

71A-15
BODY INTERNAL TRIM
Rear parcel shelf side trim: Removal - Refitting
71A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aPartially remove the tailgate seal.
aRemove the bolts (1) .
aDetach the rear parcel shelf side trim.
aDisconnect the luggage compartment light.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aConnect the luggage compartment light.
aClip on the rear parcel shelf side trim.
aRefit:
-the bolts (1) ,
-the tailgate seal.
121066

71A-16
BODY INTERNAL TRIM
Rear loading trim: Removal - Refitting
G44
71A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove:
-the clips (1) ,
-the rear parcel shelf (2) ,
-the luggage compartment carpet.aTilt the front seat backrest.
aRemove:
-the bolts (3) ,
-the partition panel.
aPartially remove the tailgate seal.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the bolts (4) ,
122850
122849
122845

71A-17
BODY INTERNAL TRIM
Rear loading trim: Removal - Refitting
G44
71A
-the retaining hooks.
aRemove:
-the bolts (5) ,
-the clip (6) .
aRemove:
-the bolts (7) ,
-the rear panel trim,
-the rear floor attached to the front section (see
Raised rear floor, front section: Removal - Re-
fitting) (MR 412, 41D, Rear lower structure).REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the rear floor attached to the front section (see
Raised rear floor, front section: Removal - Re-
fitting) (MR 412, 41D, Rear lower structure),
-the rear panel trim,
-the bolts (7) ,
-the clip (6) ,
-the bolts (5) ,
-the retaining hooks,
-the bolts (4) .
II - FINAL OPERATION.
aRefit:
-the tailgate seal,
-the partition,
-the bolts (3) ,
-pull down the front seat backrest,
-the luggage compartment carpet,
-the rear parcel shelf (2) ,
-the clips (1) .
122846
122853
