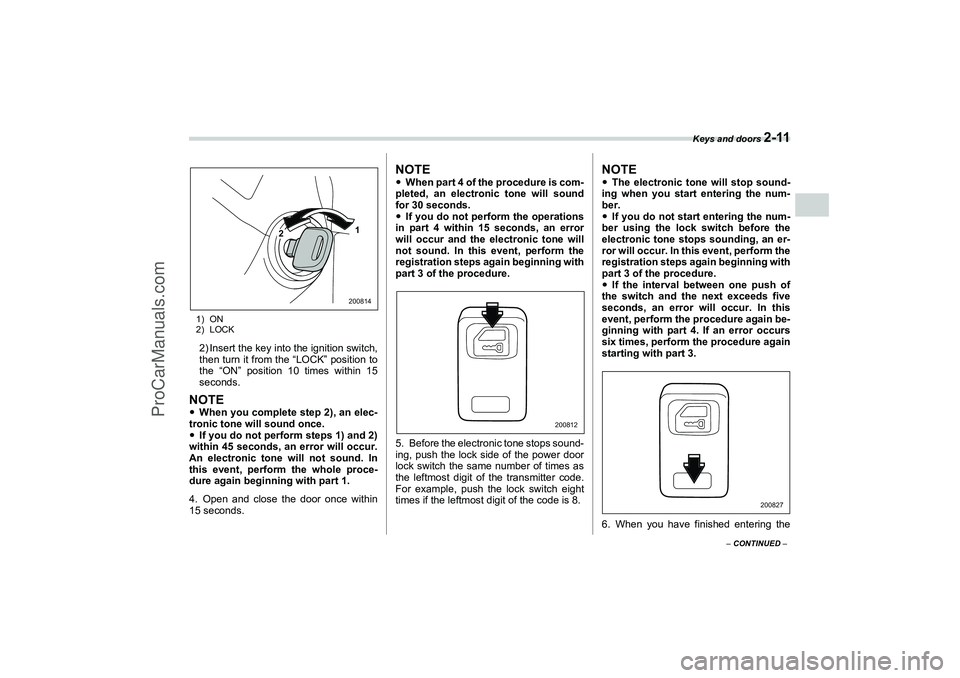

Keys and doors
2-11
2
– CONTINUED –
1) ON
2) LOCK2) Insert the key into the ignition switch,
then turn it from the “LOCK” position to
the “ON” position 10 times within 15
seconds.NOTEWhen you complete step 2), an elec-
tronic tone will sound once.
If you do not perform steps 1) and 2)
within 45 seconds, an error will occur.
An electronic tone will not sound. In
this event, perform the whole proce-
dure again beginning with part 1.
4. Open and close the door once within
15 seconds.
NOTEWhen part 4 of the procedure is com-
pleted, an electronic tone will sound
for 30 seconds.
If you do not perform the operations
in part 4 within 15 seconds, an error
will occur and the electronic tone will
not sound. In this event, perform the
registration steps again beginning with
part 3 of the procedure.
5. Before the electronic tone stops sound-
ing, push the lock side of the power door
lock switch the same number of times as
the leftmost digit of the transmitter code.
For example, push the lock switch eight
times if the leftmost digit of the code is 8.
NOTEThe electronic tone will stop sound-
ing when you start entering the num-
ber.
If you do not start entering the num-
ber using the lock switch before the
electronic tone stops sounding, an er-
ror will occur. In this event, perform the
registration steps again beginning with
part 3 of the procedure.
If the interval between one push of
the switch and the next exceeds five
seconds, an error will occur. In this
event, perform the procedure again be-
ginning with part 4. If an error occurs
six times, perform the procedure again
starting with part 3.
6. When you have finished entering the
1
2200814
200812
200827
A1910BE-A-GSAAB.book Page 11 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 92 of 322

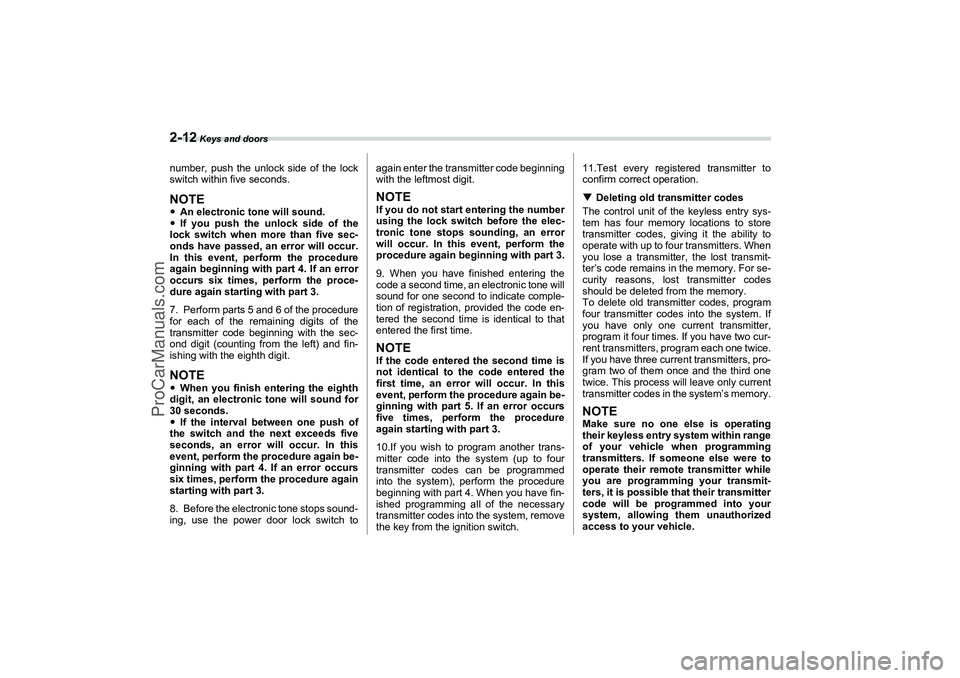

2-12
Keys and doors
number, push the unlock side of the lock
switch within five seconds. NOTEAn electronic tone will sound.
If you push the unlock side of the
lock switch when more than five sec-
onds have passed, an error will occur.
In this event, perform the procedure
again beginning with part 4. If an error
occurs six times, perform the proce-
dure again starting with part 3.
7. Perform parts 5 and 6 of the procedure
for each of the remaining digits of the
transmitter code beginning with the sec-
ond digit (counting from the left) and fin-
ishing with the eighth digit. NOTEWhen you finish entering the eighth
digit, an electronic tone will sound for
30 seconds.
If the interval between one push of
the switch and the next exceeds five
seconds, an error will occur. In this
event, perform the procedure again be-
ginning with part 4. If an error occurs
six times, perform the procedure again
starting with part 3.
8. Before the electronic tone stops sound-
ing, use the power door lock switch toagain enter the transmitter code beginning
with the leftmost digit.
NOTEIf you do not start entering the number
using the lock switch before the elec-
tronic tone stops sounding, an error
will occur. In this event, perform the
procedure again beginning with part 3.
9. When you have finished entering the
code a second time, an electronic tone will
sound for one second to indicate comple-
tion of registration, provided the code en-
tered the second time is identical to that
entered the first time.NOTEIf the code entered the second time is
not identical to the code entered the
first time, an error will occur. In this
event, perform the procedure again be-
ginning with part 5. If an error occurs
five times, perform the procedure
again starting with part 3.
10.If you wish to program another trans-
mitter code into the system (up to four
transmitter codes can be programmed
into the system), perform the procedure
beginning with part 4. When you have fin-
ished programming all of the necessary
transmitter codes into the system, remove
the key from the ignition switch.11.Test every registered transmitter to
confirm correct operation.
Deleting old transmitter codes
The control unit of the keyless entry sys-
tem has four memory locations to store
transmitter codes, giving it the ability to
operate with up to four transmitters. When
you lose a transmitter, the lost transmit-
ter’s code remains in the memory. For se-
curity reasons, lost transmitter codes
should be deleted from the memory.
To delete old transmitter codes, program
four transmitter codes into the system. If
you have only one current transmitter,
program it four times. If you have two cur-
rent transmitters, program each one twice.
If you have three current transmitters, pro-
gram two of them once and the third one
twice. This process will leave only current
transmitter codes in the system’s memory.
NOTEMake sure no one else is operating
their keyless entry system within range
of your vehicle when programming
transmitters. If someone else were to
operate their remote transmitter while
you are programming your transmit-
ters, it is possible that their transmitter
code will be programmed into your
system, allowing them unauthorized
access to your vehicle.
A1910BE-A-GSAAB.book Page 12 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 93 of 322
Keys and doors
2-13
2
– CONTINUED –

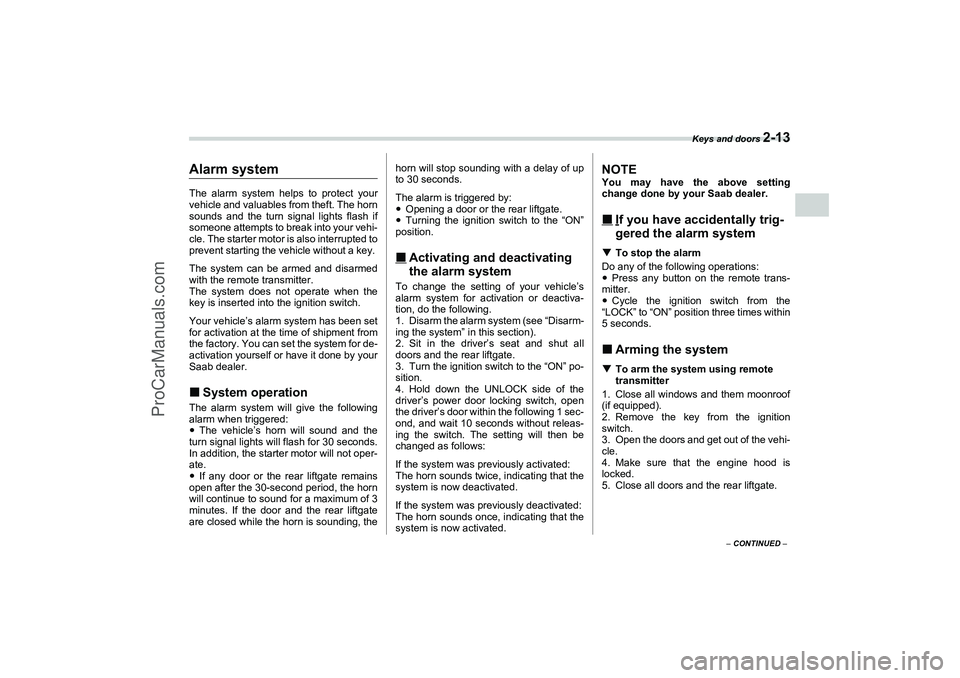

Alarm systemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the turn signal lights flash if
someone attempts to break into your vehi-
cle. The starter motor is also interrupted to
prevent starting the vehicle without a key.
The system can be armed and disarmed
with the remote transmitter.
The system does not operate when the
key is inserted into the ignition switch.
Your vehicle’s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for de-
activation yourself or have it done by your
Saab dealer.System operationThe alarm system will give the following
alarm when triggered:
The vehicle’s horn will sound and the
turn signal lights will flash for 30 seconds.
In addition, the starter motor will not oper-
ate.
If any door or the rear liftgate remains
open after the 30-second period, the horn
will continue to sound for a maximum of 3
minutes. If the door and the rear liftgate
are closed while the horn is sounding, thehorn will stop sounding with a delay of up
to 30 seconds.
The alarm is triggered by:
Opening a door or the rear liftgate.
Turning the ignition switch to the “ON”
position.
Activating and deactivating
the alarm system
To change the setting of your vehicle’s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system (see “Disarm-
ing the system” in this section).
2. Sit in the driver’s seat and shut all
doors and the rear liftgate.
3. Turn the ignition switch to the “ON” po-
sition.
4. Hold down the UNLOCK side of the
driver’s power door locking switch, open
the driver’s door within the following 1 sec-
ond, and wait 10 seconds without releas-
ing the switch. The setting will then be
changed as follows:
If the system was previously activated:
The horn sounds twice, indicating that the
system is now deactivated.
If the system was previously deactivated:
The horn sounds once, indicating that the
system is now activated.
NOTEYou may have the above setting
change done by your Saab dealer.
If you have accidentally trig-
gered the alarm system
To stop the alarm
Do any of the following operations:
Press any button on the remote trans-
mitter.
Cycle the ignition switch from the
“LOCK” to “ON” position three times within
5 seconds.Arming the systemTo arm the system using remote
transmitter
1. Close all windows and them moonroof
(if equipped).
2. Remove the key from the ignition
switch.
3. Open the doors and get out of the vehi-
cle.
4. Make sure that the engine hood is
locked.
5. Close all doors and the rear liftgate.
A1910BE-A-GSAAB.book Page 13 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

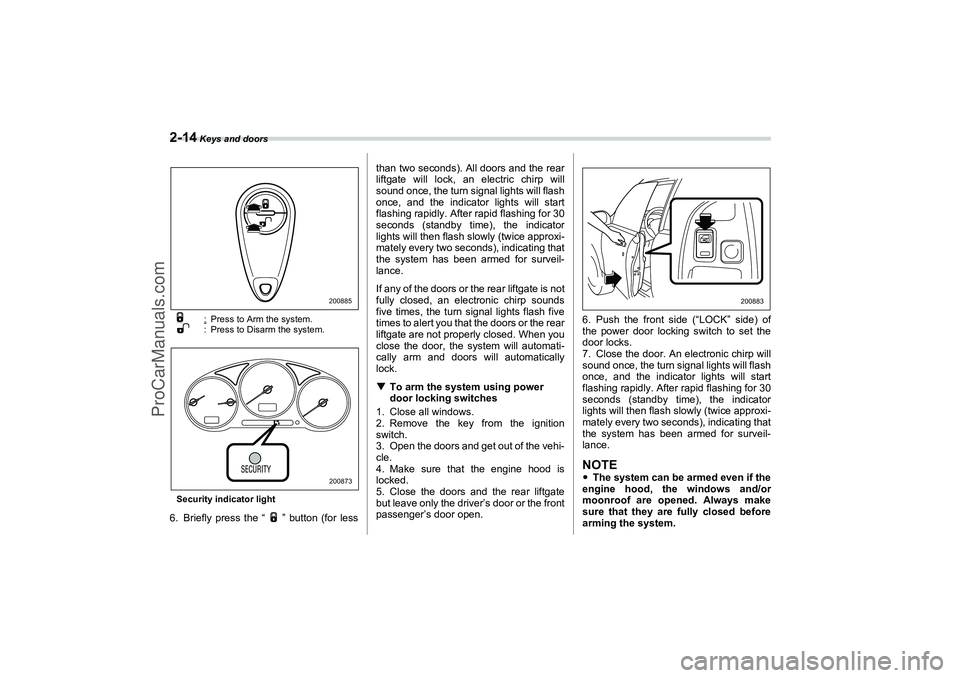

Page 94 of 322
2-14
Keys and doors:Press to Arm the system.
: Press to Disarm the system.
Security indicator light
6. Briefly press the “ ” button (for lessthan two seconds). All doors and the rear
liftgate will lock, an electric chirp will
sound once, the turn signal lights will flash
once, and the indicator lights will start
flashing rapidly. After rapid flashing for 30
seconds (standby time), the indicator
lights will then flash slowly (twice approxi-
mately every two seconds), indicating that
the system has been armed for surveil-
lance.
If any of the doors or the rear liftgate is not
fully closed, an electronic chirp sounds
five times, the turn signal lights flash five
times to alert you that the doors or the rear
liftgate are not properly closed. When you
close the door, the system will automati-
cally arm and doors will automatically
lock.
To arm the system using power
door locking switches
1. Close all windows.
2. Remove the key from the ignition
switch.
3. Open the doors and get out of the vehi-
cle.
4. Make sure that the engine hood is
locked.
5. Close the doors and the rear liftgate
but leave only the driver’s door or the front
passenger’s door open.6. Push the front side (“LOCK” side) of
the power door locking switch to set the
door locks.
7. Close the door. An electronic chirp will
sound once, the turn signal lights will flash
once, and the indicator lights will start
flashing rapidly. After rapid flashing for 30
seconds (standby time), the indicator
lights will then flash slowly (twice approxi-
mately every two seconds), indicating that
the system has been armed for surveil-
lance.
NOTEThe system can be armed even if the
engine hood, the windows and/or
moonroof are opened. Always make
sure that they are fully closed before
arming the system.
200885200873
200883
A1910BE-A-GSAAB.book Page 14 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 95 of 322
Keys and doors
2-15
2
– CONTINUED –

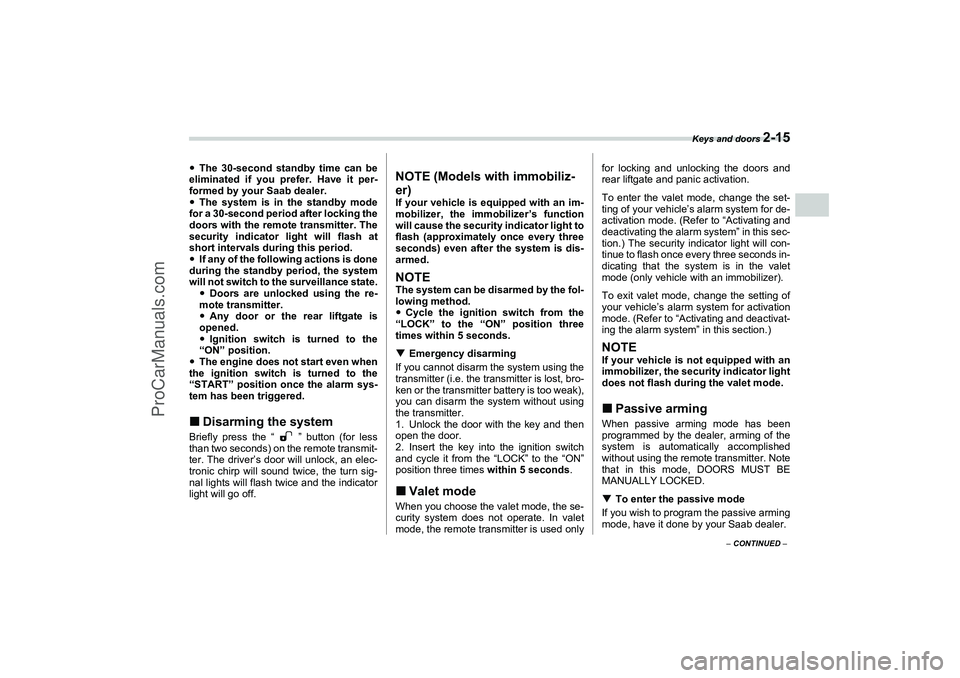

The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your Saab dealer.
The system is in the standby mode
for a 30-second period after locking the
doors with the remote transmitter. The
security indicator light will flash at
short intervals during this period.
If any of the following actions is done
during the standby period, the system
will not switch to the surveillance state.
Doors are unlocked using the re-
mote transmitter.
Any door or the rear liftgate is
opened.
Ignition switch is turned to the
“ON” position.
The engine does not start even when
the ignition switch is turned to the
“START” position once the alarm sys-
tem has been triggered.Disarming the systemBriefly press the “ ” button (for less
than two seconds) on the remote transmit-
ter. The driver’s door will unlock, an elec-
tronic chirp will sound twice, the turn sig-
nal lights will flash twice and the indicator
light will go off.
NOTE (Models with immobiliz-
er)If your vehicle is equipped with an im-
mobilizer, the immobilizer’s function
will cause the security indicator light to
flash (approximately once every three
seconds) even after the system is dis-
armed.NOTEThe system can be disarmed by the fol-
lowing method.
Cycle the ignition switch from the
“LOCK” to the “ON” position three
times within 5 seconds.
Emergency disarming
If you cannot disarm the system using the
transmitter (i.e. the transmitter is lost, bro-
ken or the transmitter battery is too weak),
you can disarm the system without using
the transmitter.
1. Unlock the door with the key and then
open the door.
2. Insert the key into the ignition switch
and cycle it from the “LOCK” to the “ON”
position three times within 5 seconds.Valet modeWhen you choose the valet mode, the se-
curity system does not operate. In valet
mode, the remote transmitter is used onlyfor locking and unlocking the doors and
rear liftgate and panic activation.
To enter the valet mode, change the set-
ting of your vehicle’s alarm system for de-
activation mode. (Refer to “Activating and
deactivating the alarm system” in this sec-
tion.) The security indicator light will con-
tinue to flash once every three seconds in-
dicating that the system is in the valet
mode (only vehicle with an immobilizer).
To exit valet mode, change the setting of
your vehicle’s alarm system for activation
mode. (Refer to “Activating and deactivat-
ing the alarm system” in this section.)
NOTEIf your vehicle is not equipped with an
immobilizer, the security indicator light
does not flash during the valet mode.Passive armingWhen passive arming mode has been
programmed by the dealer, arming of the
system is automatically accomplished
without using the remote transmitter. Note
that in this mode, DOORS MUST BE
MANUALLY LOCKED.
To enter the passive mode
If you wish to program the passive arming
mode, have it done by your Saab dealer.
A1910BE-A-GSAAB.book Page 15 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

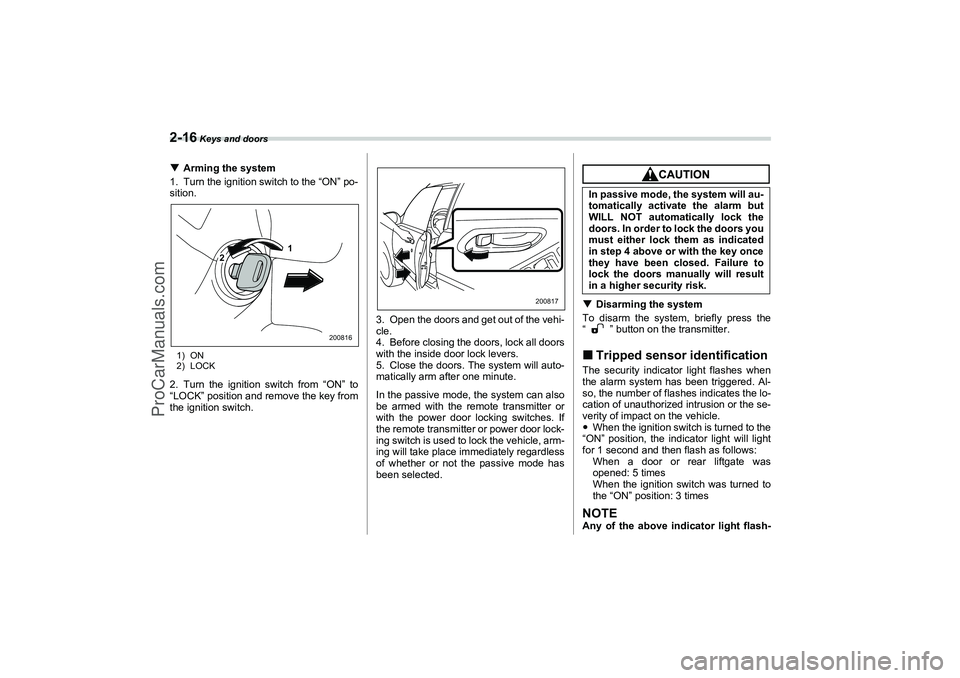

Page 96 of 322
2-16
Keys and doors
Arming the system
1. Turn the ignition switch to the “ON” po-
sition.1) ON
2) LOCK2. Turn the ignition switch from “ON” to
“LOCK” position and remove the key from
the ignition switch.3. Open the doors and get out of the vehi-
cle.
4. Before closing the doors, lock all doors
with the inside door lock levers.
5. Close the doors. The system will auto-
matically arm after one minute.
In the passive mode, the system can also
be armed with the remote transmitter or
with the power door locking switches. If
the remote transmitter or power door lock-
ing switch is used to lock the vehicle, arm-
ing will take place immediately regardless
of whether or not the passive mode has
been selected.
Disarming the system
To disarm the system, briefly press the
“ ” button on the transmitter.Tripped sensor identificationThe security indicator light flashes when
the alarm system has been triggered. Al-
so, the number of flashes indicates the lo-
cation of unauthorized intrusion or the se-
verity of impact on the vehicle.
When the ignition switch is turned to the
“ON” position, the indicator light will light
for 1 second and then flash as follows:
When a door or rear liftgate was
opened: 5 times
When the ignition switch was turned to
the “ON” position: 3 timesNOTEAny of the above indicator light flash-
1
2
200816
200817
In passive mode, the system will au-
tomatically activate the alarm but
WILL NOT automatically lock the
doors. In order to lock the doors you
must either lock them as indicated
in step 4 above or with the key once
they have been closed. Failure to
lock the doors manually will result
in a higher security risk.
A1910BE-A-GSAAB.book Page 16 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

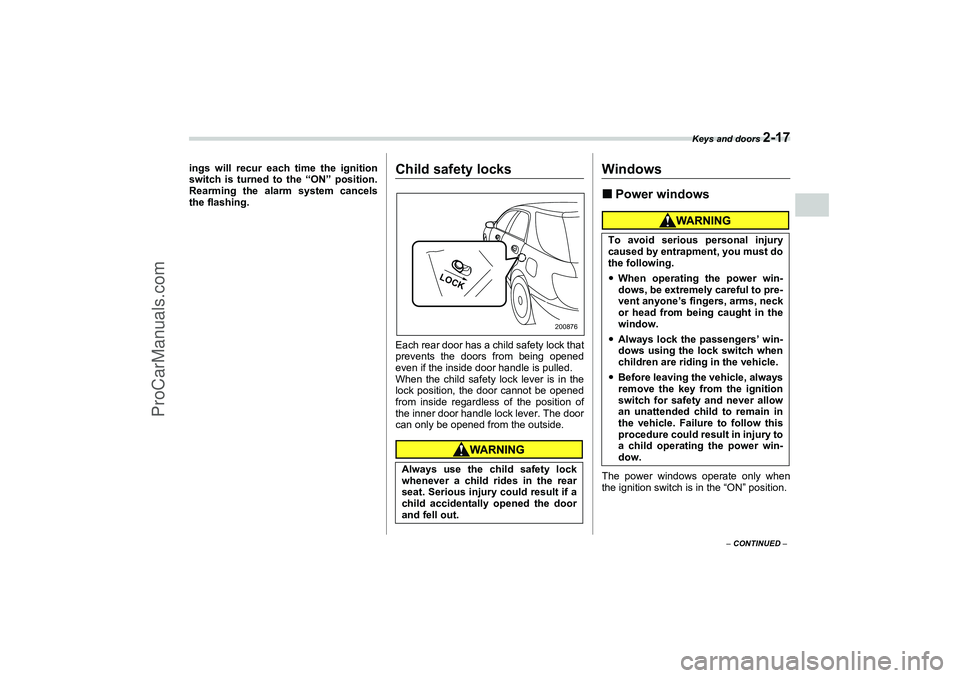

Page 97 of 322
Keys and doors
2-17
2
– CONTINUED –
ings will recur each time the ignition
switch is turned to the “ON” position.
Rearming the alarm system cancels
the flashing.
Child safety locksEach rear door has a child safety lock that
prevents the doors from being opened
even if the inside door handle is pulled.
When the child safety lock lever is in the
lock position, the door cannot be opened
from inside regardless of the position of
the inner door handle lock lever. The door
can only be opened from the outside.
WindowsPower windowsThe power windows operate only when
the ignition switch is in the “ON” position. Always use the child safety lock
whenever a child rides in the rear
seat. Serious injury could result if a
child accidentally opened the door
and fell out.
LOCK
200876
To avoid serious personal injury
caused by entrapment, you must do
the following.
When operating the power win-
dows, be extremely careful to pre-
vent anyone’s fingers, arms, neck
or head from being caught in the
window.
Always lock the passengers’ win-
dows using the lock switch when
children are riding in the vehicle.
Before leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the power win-
dow.
A1910BE-A-GSAAB.book Page 17 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

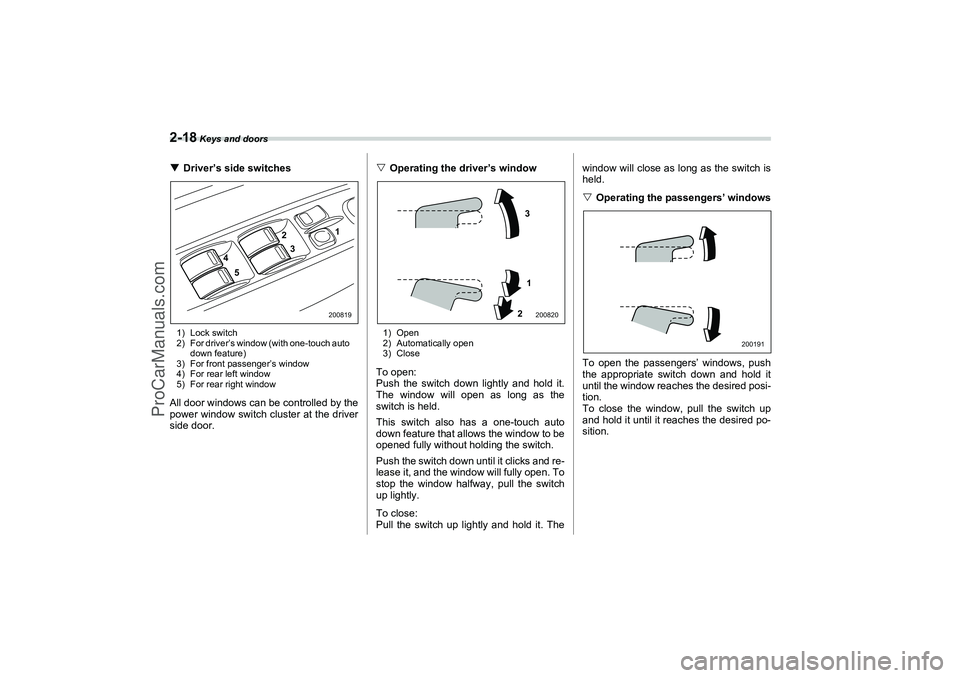

Page 98 of 322
2-18
Keys and doors
Driver’s side switches1) Lock switch
2) For driver’s window (with one-touch auto
down feature)
3) For front passenger’s window
4) For rear left window
5) For rear right windowAll door windows can be controlled by the
power window switch cluster at the driver
side door.Operating the driver’s window
1) Open
2) Automatically open
3) CloseTo open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down feature that allows the window to be
opened fully without holding the switch.
Push the switch down until it clicks and re-
lease it, and the window will fully open. To
stop the window halfway, pull the switch
up lightly.
To close:
Pull the switch up lightly and hold it. Thewindow will close as long as the switch is
held.
Operating the passengers’ windows
To open the passengers’ windows, push
the appropriate switch down and hold it
until the window reaches the desired posi-
tion.
To close the window, pull the switch up
and hold it until it reaches the desired po-
sition.
1
2
4
53200819
3
1
2200820
200191
A1910BE-A-GSAAB.book Page 18 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

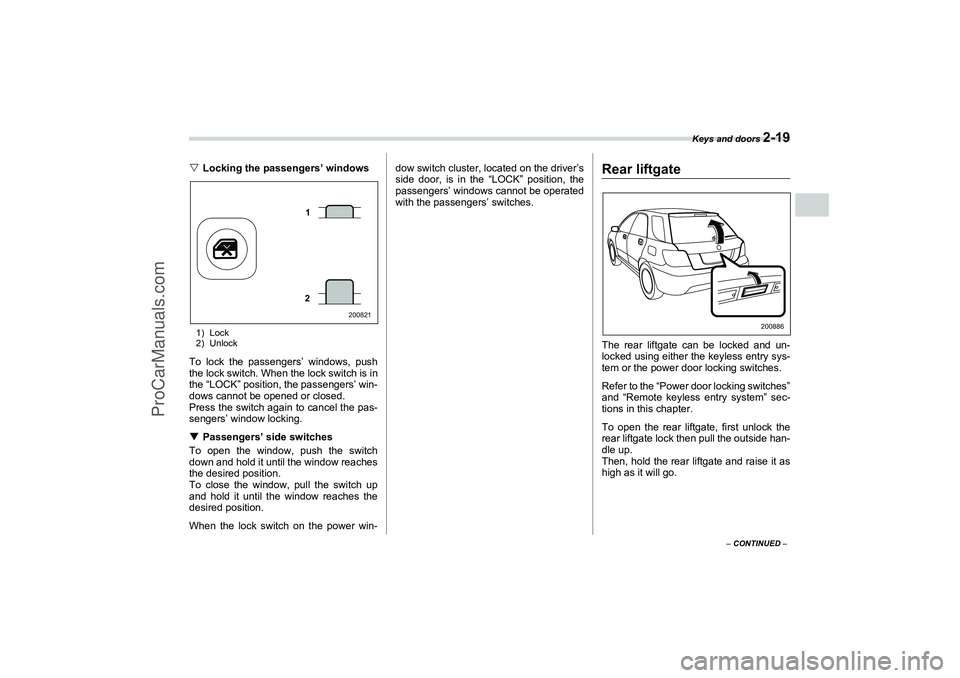

Page 99 of 322
Keys and doors
2-19
2
– CONTINUED –
Locking the passengers’ windows1) Lock
2) UnlockTo lock the passengers’ windows, push
the lock switch. When the lock switch is in
the “LOCK” position, the passengers’ win-
dows cannot be opened or closed.
Press the switch again to cancel the pas-
sengers’ window locking.
Passengers’ side switches
To open the window, push the switch
down and hold it until the window reaches
the desired position.
To close the window, pull the switch up
and hold it until the window reaches the
desired position.
When the lock switch on the power win-dow switch cluster, located on the driver’s
side door, is in the “LOCK” position, the
passengers’ windows cannot be operated
with the passengers’ switches.
Rear liftgateThe rear liftgate can be locked and un-
locked using either the keyless entry sys-
tem or the power door locking switches.
Refer to the “Power door locking switches”
and “Remote keyless entry system” sec-
tions in this chapter.
To open the rear liftgate, first unlock the
rear liftgate lock then pull the outside han-
dle up.
Then, hold the rear liftgate and raise it as
high as it will go.
1
2
200821
200886
A1910BE-A-GSAAB.book Page 19 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

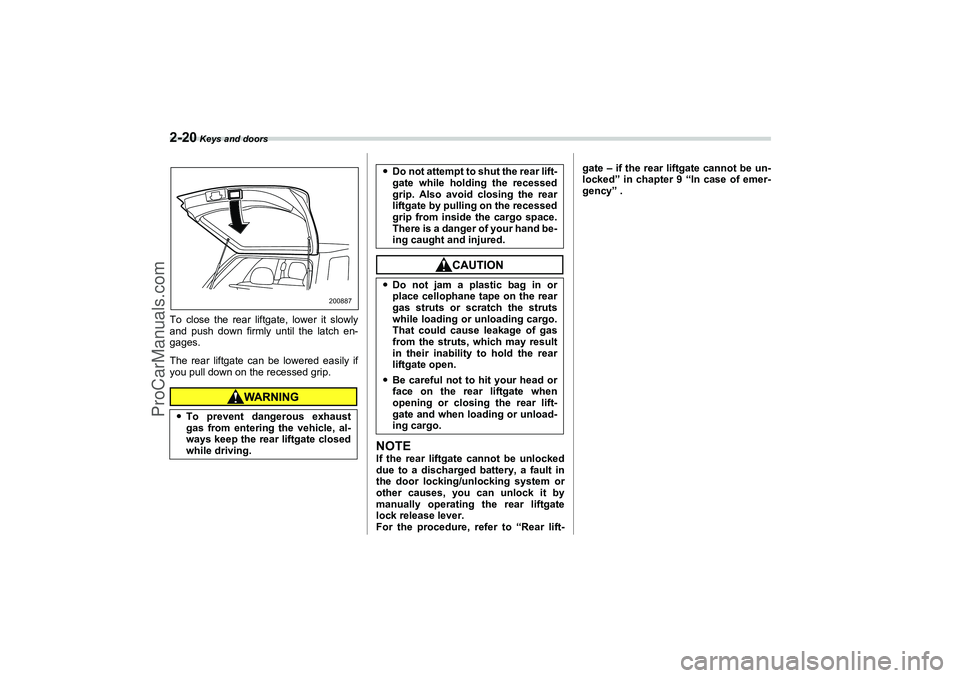

Page 100 of 322
2-20
Keys and doors
To close the rear liftgate, lower it slowly
and push down firmly until the latch en-
gages.
The rear liftgate can be lowered easily if
you pull down on the recessed grip.
NOTEIf the rear liftgate cannot be unlocked
due to a discharged battery, a fault in
the door locking/unlocking system or
other causes, you can unlock it by
manually operating the rear liftgate
lock release lever.
For the procedure, refer to “Rear lift-gate – if the rear liftgate cannot be un-
locked” in chapter 9 “In case of emer-
gency” .
To prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the rear liftgate closed
while driving.
200887
Do not attempt to shut the rear lift-
gate while holding the recessed
grip. Also avoid closing the rear
liftgate by pulling on the recessed
grip from inside the cargo space.
There is a danger of your hand be-
ing caught and injured.
Do not jam a plastic bag in or
place cellophane tape on the rear
gas struts or scratch the struts
while loading or unloading cargo.
That could cause leakage of gas
from the struts, which may result
in their inability to hold the rear
liftgate open.
Be careful not to hit your head or
face on the rear liftgate when
opening or closing the rear lift-
gate and when loading or unload-
ing cargo.
A1910BE-A-GSAAB.book Page 20 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
