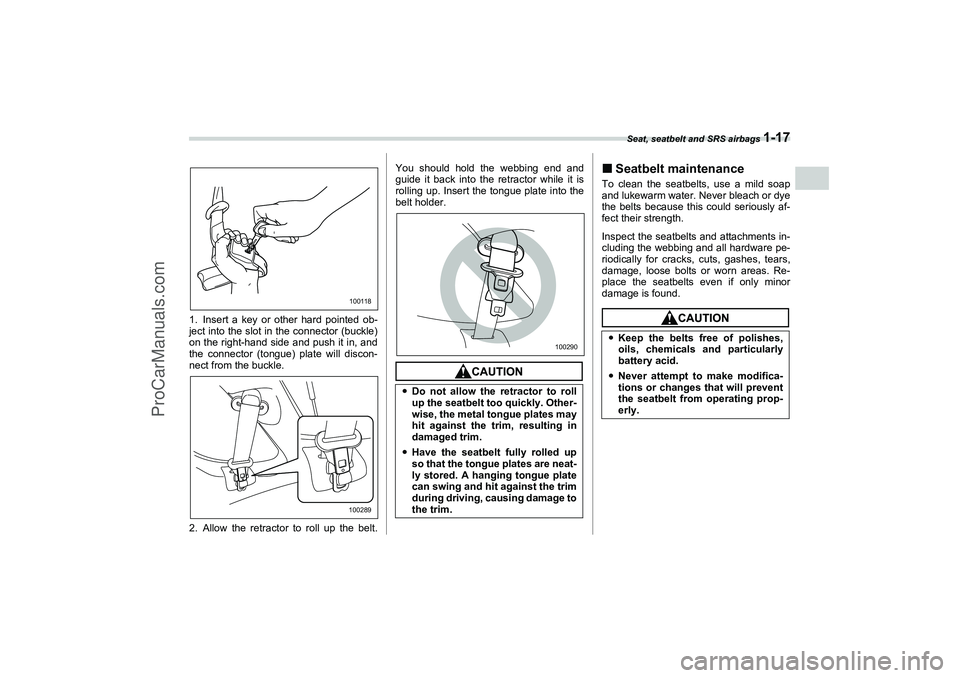

SAAB 9-2X 2006 Service Manual

Seat, seatbelt and SRS airbags
1-17
1
– CONTINUED –
1. Insert a key or other hard pointed ob-
ject into the slot in the connector (buckle)
on the right-hand side and push it in, and
the connector (tongue) plate will discon-
nect from the buckle.
2. Allow the retractor to roll up the belt.You should hold the webbing end and
guide it back into the retractor while it is
rolling up. Insert the tongue plate into the
belt holder.

Seatbelt maintenanceTo clean the seatbelts, use a mild soap
and lukewarm water. Never bleach or dye
the belts because this could seriously af-
fect their strength.
Inspect the seatbelts and attachments in-
cluding the webbing and all hardware pe-
riodically for cracks, cuts, gashes, tears,
damage, loose bolts or worn areas. Re-
place the seatbelts even if only minor
damage is found.
100118100289

Do not allow the retractor to roll
up the seatbelt too quickly. Other-
wise, the metal tongue plates may
hit against the trim, resulting in
damaged trim.

Have the seatbelt fully rolled up
so that the tongue plates are neat-
ly stored. A hanging tongue plate
can swing and hit against the trim
during driving, causing damage to
the trim.
100290

Keep the belts free of polishes,
oils, chemicals and particularly
battery acid.

Never attempt to make modifica-
tions or changes that will prevent
the seatbelt from operating prop-
erly.
A1910BE-A-GSAAB.book Page 17 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

1-18
Seat, seatbelt and SRS airbags

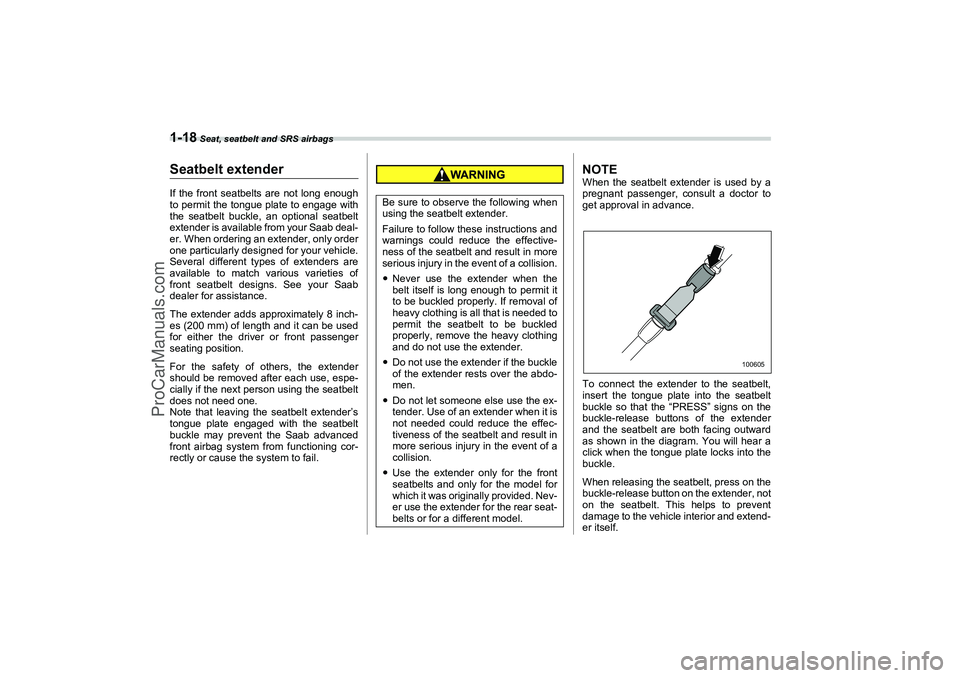

Seatbelt extenderIf the front seatbelts are not long enough
to permit the tongue plate to engage with
the seatbelt buckle, an optional seatbelt
extender is available from your Saab deal-
er. When ordering an extender, only order
one particularly designed for your vehicle.
Several different types of extenders are
available to match various varieties of
front seatbelt designs. See your Saab
dealer for assistance.
The extender adds approximately 8 inch-
es (200 mm) of length and it can be used
for either the driver or front passenger
seating position.
For the safety of others, the extender
should be removed after each use, espe-
cially if the next person using the seatbelt
does not need one.
Note that leaving the seatbelt extender’s
tongue plate engaged with the seatbelt
buckle may prevent the Saab advanced
front airbag system from functioning cor-
rectly or cause the system to fail.
NOTEWhen the seatbelt extender is used by a
pregnant passenger, consult a doctor to
get approval in advance.
To connect the extender to the seatbelt,
insert the tongue plate into the seatbelt
buckle so that the “PRESS” signs on the
buckle-release buttons of the extender
and the seatbelt are both facing outward
as shown in the diagram. You will hear a
click when the tongue plate locks into the
buckle.
When releasing the seatbelt, press on the
buckle-release button on the extender, not
on the seatbelt. This helps to prevent
damage to the vehicle interior and extend-
er itself. Be sure to observe the following when
using the seatbelt extender.
Failure to follow these instructions and
warnings could reduce the effective-
ness of the seatbelt and result in more
serious injury in the event of a collision.

Never use the extender when the
belt itself is long enough to permit it
to be buckled properly. If removal of
heavy clothing is all that is needed to
permit the seatbelt to be buckled
properly, remove the heavy clothing
and do not use the extender.

Do not use the extender if the buckle
of the extender rests over the abdo-
men.

Do not let someone else use the ex-
tender. Use of an extender when it is
not needed could reduce the effec-
tiveness of the seatbelt and result in
more serious injury in the event of a
collision.

Use the extender only for the front
seatbelts and only for the model for
which it was originally provided. Nev-
er use the extender for the rear seat-
belts or for a different model.
100605
A1910BE-A-G01SAAB.fm Page 18 Friday, September 9, 2005 1:49 PM
ProCarManuals.com

Seat, seatbelt and SRS airbags
1-19
1
– CONTINUED –

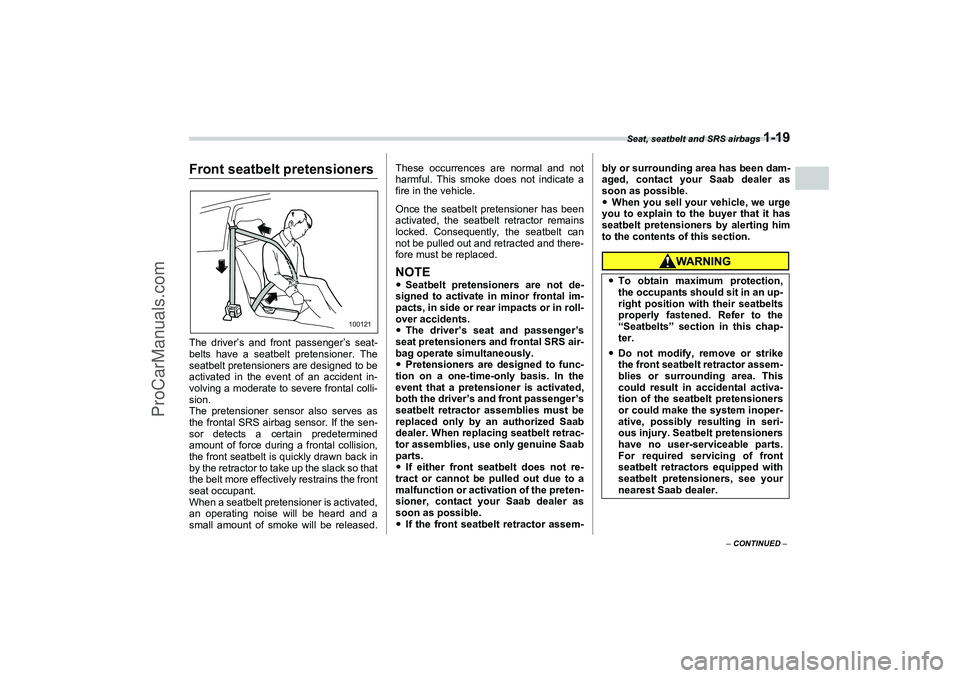

Front seatbelt pretensionersThe driver’s and front passenger’s seat-
belts have a seatbelt pretensioner. The
seatbelt pretensioners are designed to be
activated in the event of an accident in-
volving a moderate to severe frontal colli-
sion.
The pretensioner sensor also serves as
the frontal SRS airbag sensor. If the sen-
sor detects a certain predetermined
amount of force during a frontal collision,
the front seatbelt is quickly drawn back in
by the retractor to take up the slack so that
the belt more effectively restrains the front
seat occupant.
When a seatbelt pretensioner is activated,
an operating noise will be heard and a
small amount of smoke will be released.These occurrences are normal and not
harmful. This smoke does not indicate a
fire in the vehicle.
Once the seatbelt pretensioner has been
activated, the seatbelt retractor remains
locked. Consequently, the seatbelt can
not be pulled out and retracted and there-
fore must be replaced.
NOTE
Seatbelt pretensioners are not de-
signed to activate in minor frontal im-
pacts, in side or rear impacts or in roll-
over accidents.

The driver’s seat and passenger’s
seat pretensioners and frontal SRS air-
bag operate simultaneously.

Pretensioners are designed to func-
tion on a one-time-only basis. In the
event that a pretensioner is activated,
both the driver’s and front passenger’s
seatbelt retractor assemblies must be
replaced only by an authorized Saab
dealer. When replacing seatbelt retrac-
tor assemblies, use only genuine Saab
parts.

If either front seatbelt does not re-
tract or cannot be pulled out due to a
malfunction or activation of the preten-
sioner, contact your Saab dealer as
soon as possible.

If the front seatbelt retractor assem-bly or surrounding area has been dam-
aged, contact your Saab dealer as
soon as possible.

When you sell your vehicle, we urge
you to explain to the buyer that it has
seatbelt pretensioners by alerting him
to the contents of this section.
100121

To obtain maximum protection,
the occupants should sit in an up-
right position with their seatbelts
properly fastened. Refer to the
“Seatbelts” section in this chap-
ter.

Do not modify, remove or strike
the front seatbelt retractor assem-
blies or surrounding area. This
could result in accidental activa-
tion of the seatbelt pretensioners
or could make the system inoper-
ative, possibly resulting in seri-
ous injury. Seatbelt pretensioners
have no user-serviceable parts.
For required servicing of front
seatbelt retractors equipped with
seatbelt pretensioners, see your
nearest Saab dealer.
A1910BE-A-GSAAB.book Page 19 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

1-20
Seat, seatbelt and SRS airbags

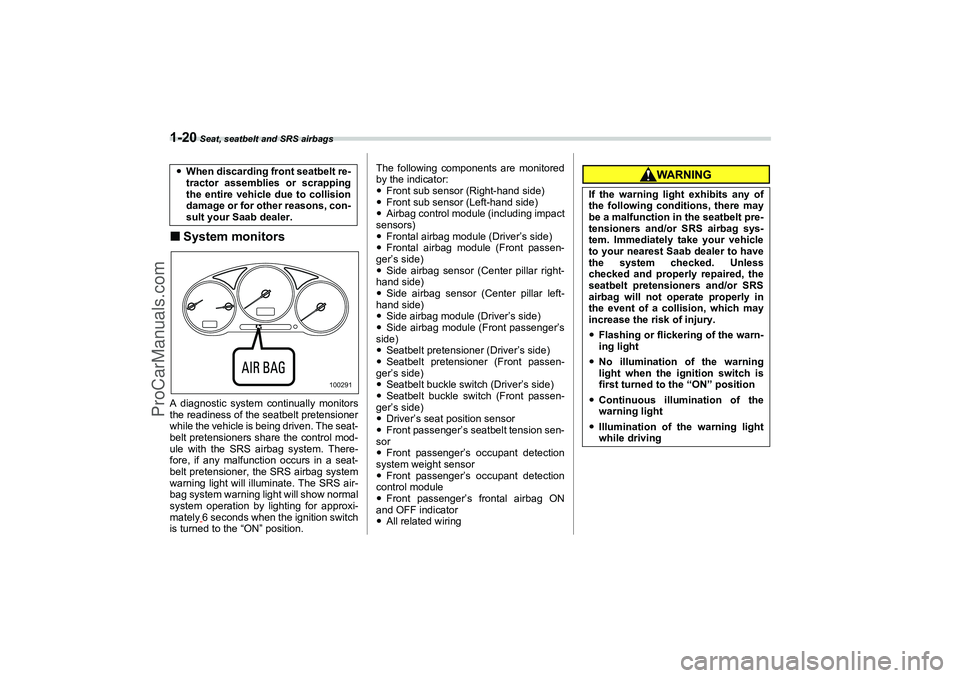

System monitorsA diagnostic system continually monitors
the readiness of the seatbelt pretensioner
while the vehicle is being driven. The seat-
belt pretensioners share the control mod-
ule with the SRS airbag system. There-
fore, if any malfunction occurs in a seat-
belt pretensioner, the SRS airbag system
warning light will illuminate. The SRS air-
bag system warning light will show normal
system operation by lighting for approxi-
mately
6 seconds when the ignition switch
is turned to the “ON” position.The following components are monitored
by the indicator:

Front sub sensor (Right-hand side)

Front sub sensor (Left-hand side)

Airbag control module (including impact
sensors)

Frontal airbag module (Driver’s side)

Frontal airbag module (Front passen-
ger’s side)

Side airbag sensor (Center pillar right-
hand side)

Side airbag sensor (Center pillar left-
hand side)

Side airbag module (Driver’s side)

Side airbag module (Front passenger’s
side)

Seatbelt pretensioner (Driver’s side)

Seatbelt pretensioner (Front passen-
ger’s side)

Seatbelt buckle switch (Driver’s side)

Seatbelt buckle switch (Front passen-
ger’s side)

Driver’s seat position sensor

Front passenger’s seatbelt tension sen-
sor

Front passenger’s occupant detection
system weight sensor

Front passenger’s occupant detection
control module

Front passenger’s frontal airbag ON
and OFF indicator

All related wiring

When discarding front seatbelt re-
tractor assemblies or scrapping
the entire vehicle due to collision
damage or for other reasons, con-
sult your Saab dealer.
100291
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt pre-
tensioners and/or SRS airbag sys-
tem. Immediately take your vehicle
to your nearest Saab dealer to have
the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.

Flashing or flickering of the warn-
ing light

No illumination of the warning
light when the ignition switch is
first turned to the “ON” position

Continuous illumination of the
warning light

Illumination of the warning light
while driving
A1910BE-A-GSAAB.book Page 20 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Seat, seatbelt and SRS airbags
1-21
1
– CONTINUED –

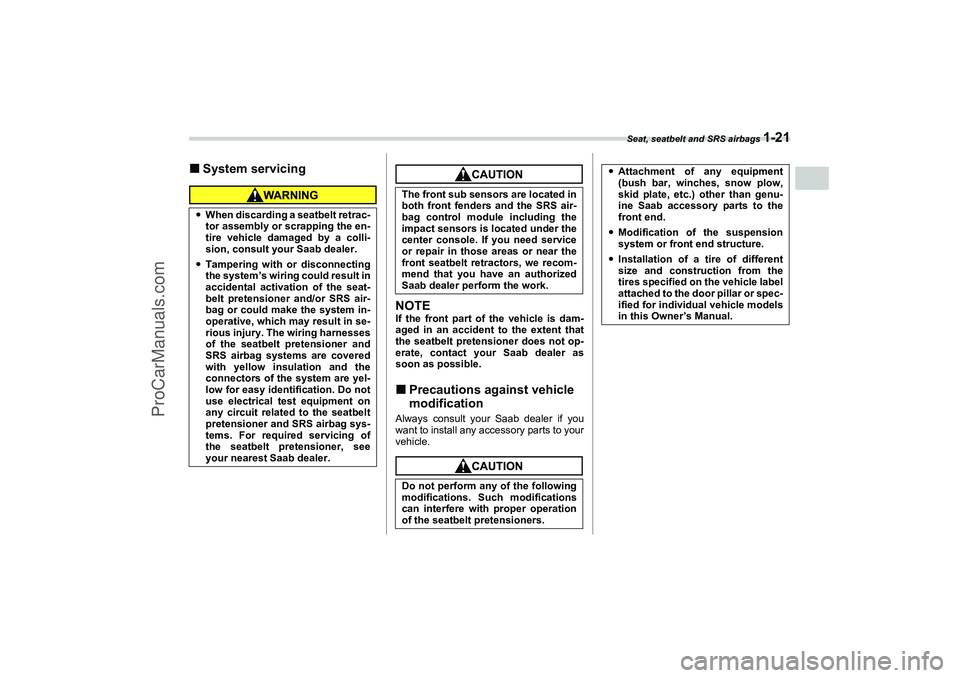

System servicing
NOTEIf the front part of the vehicle is dam-
aged in an accident to the extent that
the seatbelt pretensioner does not op-
erate, contact your Saab dealer as
soon as possible.
Precautions against vehicle
modificationAlways consult your Saab dealer if you
want to install any accessory parts to your
vehicle.

When discarding a seatbelt retrac-
tor assembly or scrapping the en-
tire vehicle damaged by a colli-
sion, consult your Saab dealer.

Tampering with or disconnecting
the system’s wiring could result in
accidental activation of the seat-
belt pretensioner and/or SRS air-
bag or could make the system in-
operative, which may result in se-
rious injury. The wiring harnesses
of the seatbelt pretensioner and
SRS airbag systems are covered
with yellow insulation and the
connectors of the system are yel-
low for easy identification. Do not
use electrical test equipment on
any circuit related to the seatbelt
pretensioner and SRS airbag sys-
tems. For required servicing of
the seatbelt pretensioner, see
your nearest Saab dealer.
The front sub sensors are located in
both front fenders and the SRS air-
bag control module including the
impact sensors is located under the
center console. If you need service
or repair in those areas or near the
front seatbelt retractors, we recom-
mend that you have an authorized
Saab dealer perform the work.
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the seatbelt pretensioners.

Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine Saab accessory parts to the
front end.

Modification of the suspension
system or front end structure.

Installation of a tire of different
size and construction from the
tires specified on the vehicle label
attached to the door pillar or spec-
ified for individual vehicle models
in this Owner’s Manual.
A1910BE-A-GSAAB.book Page 21 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

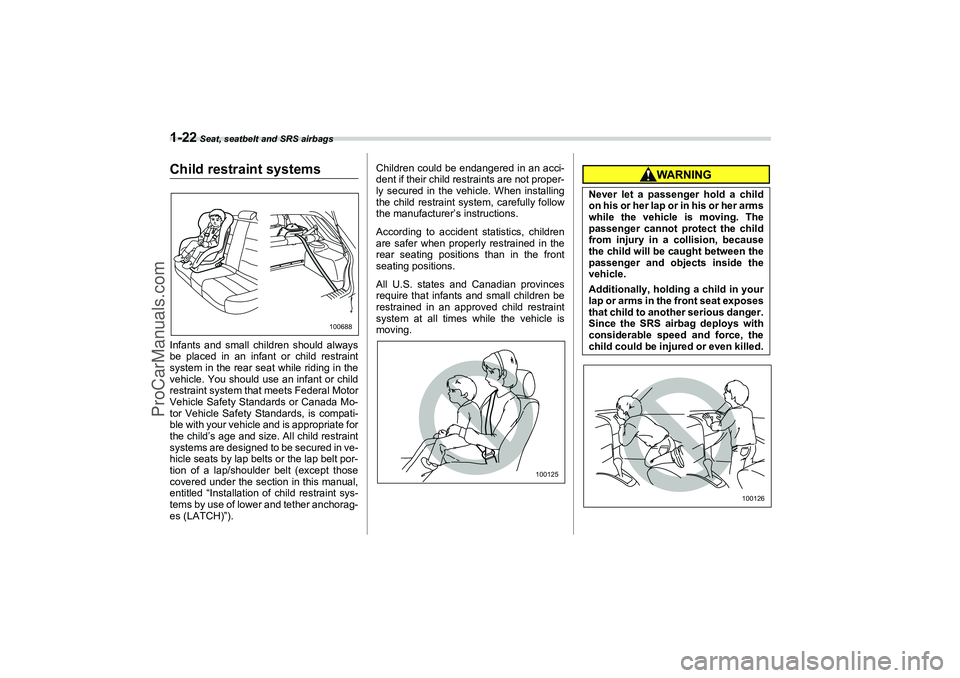

1-22
Seat, seatbelt and SRS airbags
Child restraint systemsInfants and small children should always
be placed in an infant or child restraint
system in the rear seat while riding in the
vehicle. You should use an infant or child
restraint system that meets Federal Motor
Vehicle Safety Standards or Canada Mo-
tor Vehicle Safety Standards, is compati-
ble with your vehicle and is appropriate for
the child’s age and size. All child restraint
systems are designed to be secured in ve-
hicle seats by lap belts or the lap belt por-
tion of a lap/shoulder belt (except those
covered under the section in this manual,
entitled “Installation of child restraint sys-
tems by use of lower and tether anchorag-
es (LATCH)”).Children could be endangered in an acci-
dent if their child restraints are not proper-
ly secured in the vehicle. When installing
the child restraint system, carefully follow
the manufacturer’s instructions.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front
seating positions.
All U.S. states and Canadian provinces
require that infants and small children be
restrained in an approved child restraint
system at all times while the vehicle is
moving.
100688
100125
Never let a passenger hold a child
on his or her lap or in his or her arms
while the vehicle is moving. The
passenger cannot protect the child
from injury in a collision, because
the child will be caught between the
passenger and objects inside the
vehicle.
Additionally, holding a child in your
lap or arms in the front seat exposes
that child to another serious danger.
Since the SRS airbag deploys with
considerable speed and force, the
child could be injured or even killed.
100126
A1910BE-A-GSAAB.book Page 22 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

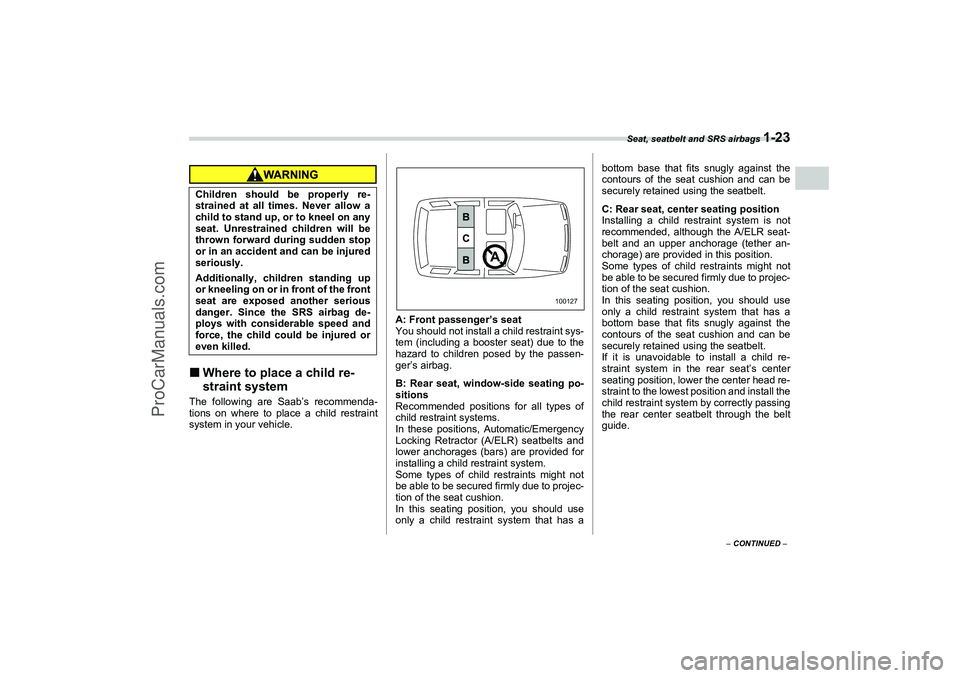

Seat, seatbelt and SRS airbags
1-23
1
– CONTINUED –

Where to place a child re-
straint systemThe following are Saab’s recommenda-
tions on where to place a child restraint
system in your vehicle.A: Front passenger’s seat
You should not install a child restraint sys-
tem (including a booster seat) due to the
hazard to children posed by the passen-
ger’s airbag.
B: Rear seat, window-side seating po-
sitions
Recommended positions for all types of
child restraint systems.
In these positions, Automatic/Emergency
Locking Retractor (A/ELR) seatbelts and
lower anchorages (bars) are provided for
installing a child restraint system.
Some types of child restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restraint system that has abottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
C: Rear seat, center seating position
Installing a child restraint system is not
recommended, although the A/ELR seat-
belt and an upper anchorage (tether an-
chorage) are provided in this position.
Some types of child restraints might not
be able to be secured firmly due to projec-
tion of the seat cushion.
In this seating position, you should use
only a child restraint system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt.
If it is unavoidable to install a child re-
straint system in the rear seat’s center
seating position, lower the center head re-
straint to the lowest position and install the
child restraint system by correctly passing
the rear center seatbelt through the belt
guide. Children should be properly re-
strained at all times. Never allow a
child to stand up, or to kneel on any
seat. Unrestrained children will be
thrown forward during sudden stop
or in an accident and can be injured
seriously.
Additionally, children standing up
or kneeling on or in front of the front
seat are exposed another serious
danger. Since the SRS airbag de-
ploys with considerable speed and
force, the child could be injured or
even killed.
100127
A1910BE-A-GSAAB.book Page 23 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

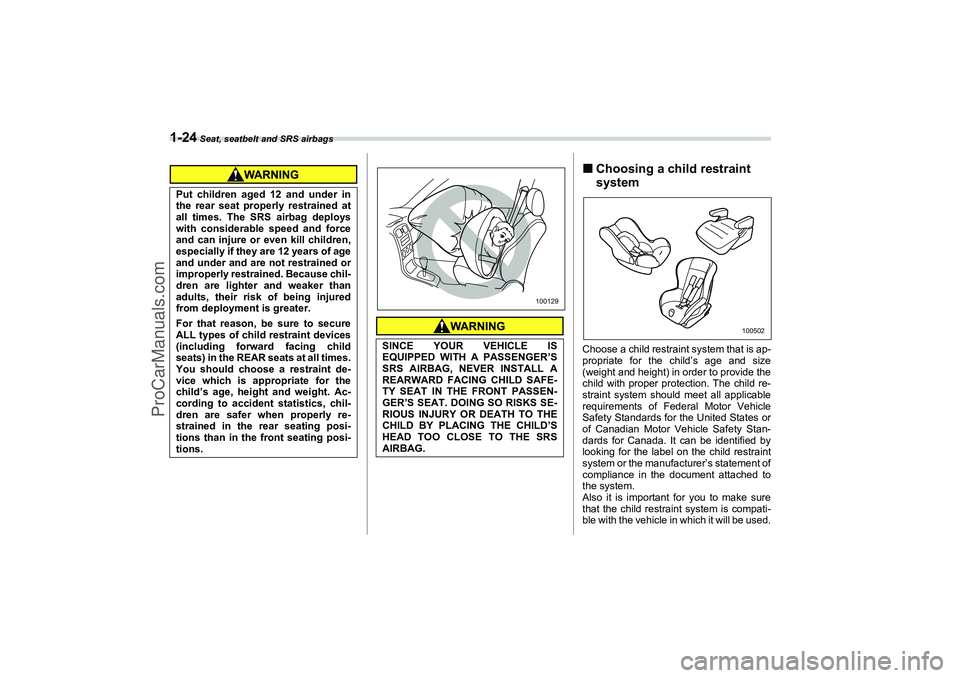

1-24
Seat, seatbelt and SRS airbags

Choosing a child restraint
systemChoose a child restraint system that is ap-
propriate for the child’s age and size
(weight and height) in order to provide the
child with proper protection. The child re-
straint system should meet all applicable
requirements of Federal Motor Vehicle
Safety Standards for the United States or
of Canadian Motor Vehicle Safety Stan-
dards for Canada. It can be identified by
looking for the label on the child restraint
system or the manufacturer’s statement of
compliance in the document attached to
the system.
Also it is important for you to make sure
that the child restraint system is compati-
ble with the vehicle in which it will be used. Put children aged 12 and under in
the rear seat properly restrained at
all times. The SRS airbag deploys
with considerable speed and force
and can injure or even kill children,
especially if they are 12 years of age
and under and are not restrained or
improperly restrained. Because chil-
dren are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
For that reason, be sure to secure
ALL types of child restraint devices
(including forward facing child
seats) in the REAR seats at all times.
You should choose a restraint de-
vice which is appropriate for the
child’s age, height and weight. Ac-
cording to accident statistics, chil-
dren are safer when properly re-
strained in the rear seating posi-
tions than in the front seating posi-
tions.
SINCE YOUR VEHICLE IS
EQUIPPED WITH A PASSENGER’S
SRS AIRBAG, NEVER INSTALL A
REARWARD FACING CHILD SAFE-
TY SEAT IN THE FRONT PASSEN-
GER’S SEAT. DOING SO RISKS SE-
RIOUS INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG.
100129
100502
A1910BE-A-GSAAB.book Page 24 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

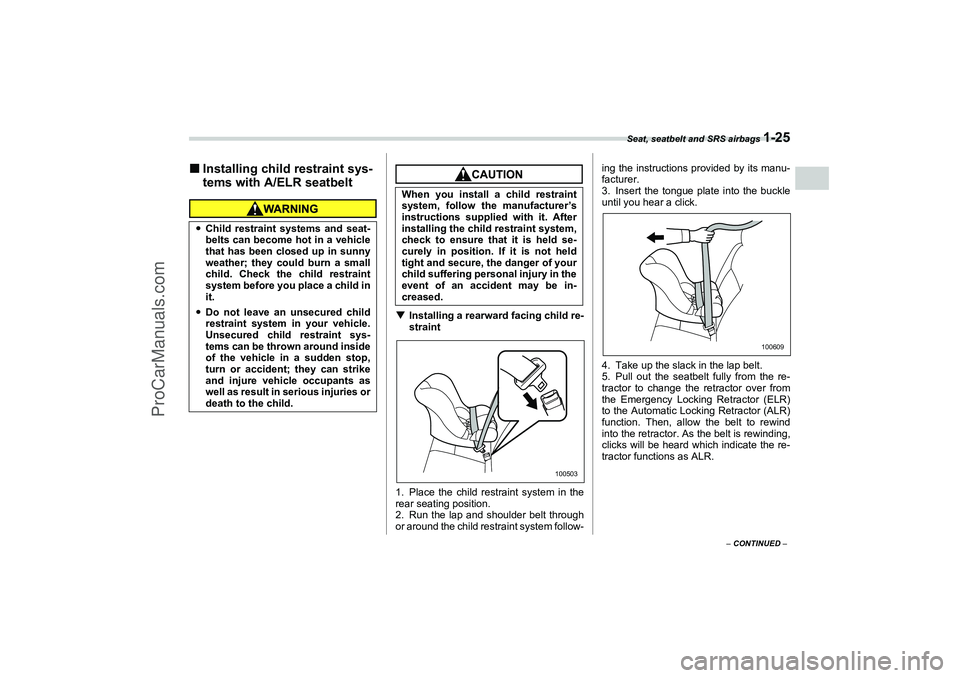

Seat, seatbelt and SRS airbags
1-25
1
– CONTINUED –

Installing child restraint sys-
tems with A/ELR seatbelt

Installing a rearward facing child re-
straint
1. Place the child restraint system in the
rear seating position.
2. Run the lap and shoulder belt through
or around the child restraint system follow-ing the instructions provided by its manu-
facturer.
3. Insert the tongue plate into the buckle
until you hear a click.
4. Take up the slack in the lap belt.
5. Pull out the seatbelt fully from the re-
tractor to change the retractor over from
the Emergency Locking Retractor (ELR)
to the Automatic Locking Retractor (ALR)
function. Then, allow the belt to rewind
into the retractor. As the belt is rewinding,
clicks will be heard which indicate the re-
tractor functions as ALR.
Child restraint systems and seat-
belts can become hot in a vehicle
that has been closed up in sunny
weather; they could burn a small
child. Check the child restraint
system before you place a child in
it.

Do not leave an unsecured child
restraint system in your vehicle.
Unsecured child restraint sys-
tems can be thrown around inside
of the vehicle in a sudden stop,
turn or accident; they can strike
and injure vehicle occupants as
well as result in serious injuries or
death to the child.When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held se-
curely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in-
creased.
100503
100609
A1910BE-A-GSAAB.book Page 25 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

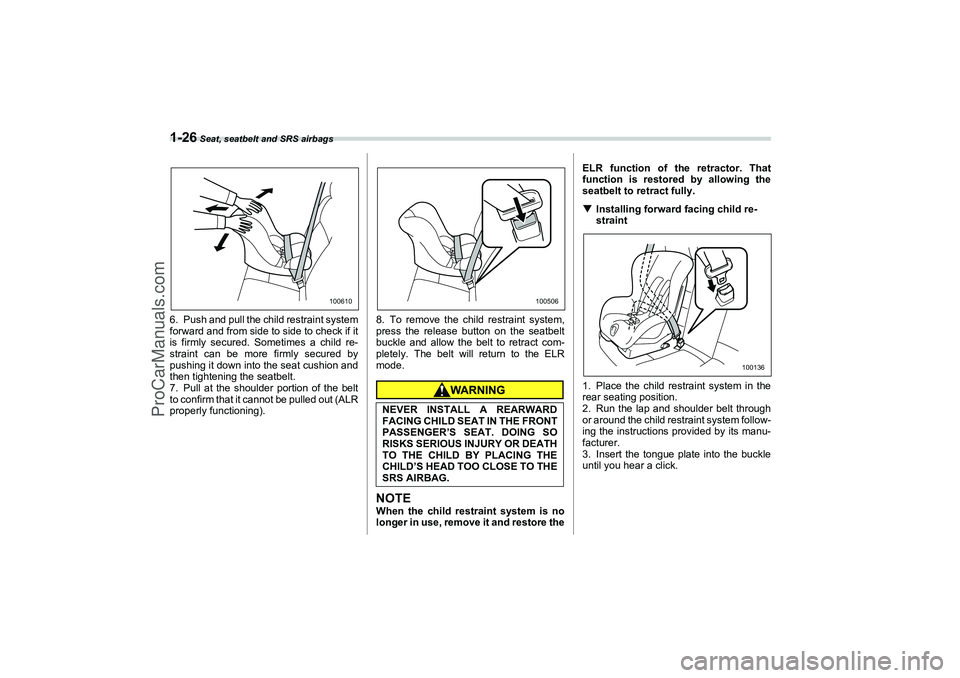

1-26
Seat, seatbelt and SRS airbags
6. Push and pull the child restraint system
forward and from side to side to check if it
is firmly secured. Sometimes a child re-
straint can be more firmly secured by
pushing it down into the seat cushion and
then tightening the seatbelt.
7. Pull at the shoulder portion of the belt
to confirm that it cannot be pulled out (ALR
properly functioning).8. To remove the child restraint system,
press the release button on the seatbelt
buckle and allow the belt to retract com-
pletely. The belt will return to the ELR
mode.
NOTEWhen the child restraint system is no
longer in use, remove it and restore theELR function of the retractor. That
function is restored by allowing the
seatbelt to retract fully.

Installing forward facing child re-
straint
1. Place the child restraint system in the
rear seating position.
2. Run the lap and shoulder belt through
or around the child restraint system follow-
ing the instructions provided by its manu-
facturer.
3. Insert the tongue plate into the buckle
until you hear a click.
100610
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT
PASSENGER’S SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH
TO THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
100506
100136
A1910BE-A-GSAAB.book Page 26 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
