SAAB 9-3 2003 Owners Manual

91 Instruments and controls
Formation of ice and mist in extreme weather conditionsIt is only in the most extreme conditions that icing and misting of
window glass are likely to be a problem, such as in torrential rain or
severe cold coupled with high relative humidity, or when passengers
are perspiring heavily or wearing wet clothes. The following mea-
sures are recommended if such problems should occur:
1 Select and set the temperature to 70°F (21°C)
2 Select . If this is not enough...
3 Increase the fan speed. If this is not enough...
4 Select a higher temperature.
Windshield – panel – floor (front and rear)
ProCarManuals.com

92 Instruments and controlsCalibrationCalibration is performed automatically
every fifth time the car is started after having
been switched off for more than 2 hours.ProgrammingA number of functions can be customized
under Profiler (see page 93). Further cus-
tomizations can be made at a Saab dealer.The seat cushions and backrests of the front
seats are heated.
Heating is thermostatically controlled.
Heating is controlled manually but can also
be automatic. Refer to Profiler on page 93.
Three heating levels are available. Pressing
the button once will turn the heating on at full
power. Press the button again to reduce the
heating.
 One press of the button - the thermostat
cuts out at 107°F (+42°C) .
 Two presses of the button - the thermostat
cuts out at 98°F (+37°C) .
 Three presses of the button - the thermo-
stat cuts out at 91°F (+33°C) .
 Four presses of the button - switches the
seat heating off.
Electric heating, front
seats (option)
ProCarManuals.com

93 Instruments and controls

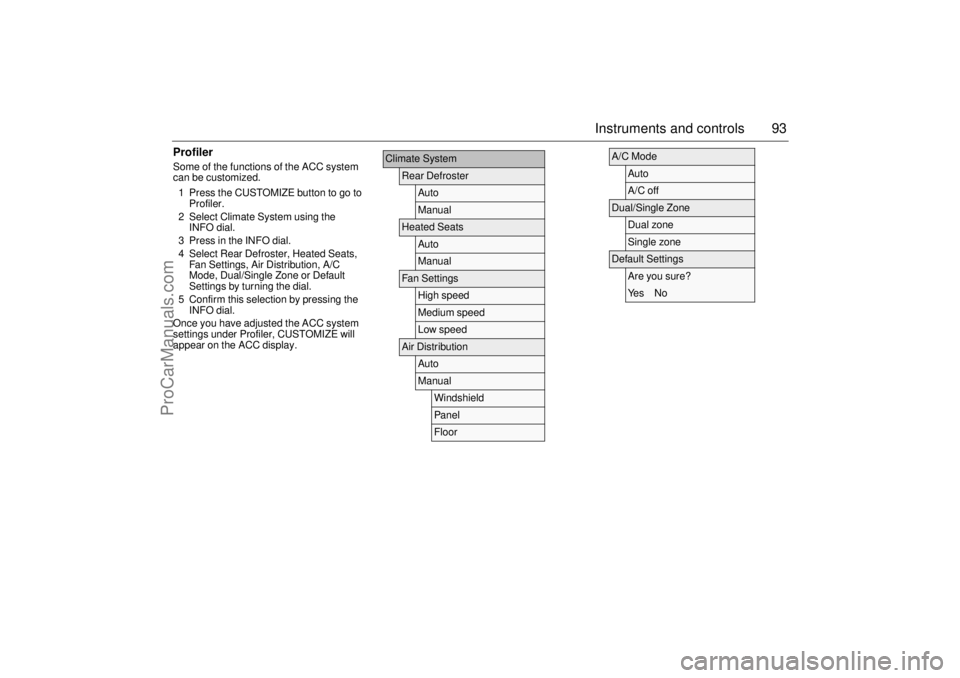

ProfilerSome of the functions of the ACC system
can be customized.
1 Press the CUSTOMIZE button to go to
Profiler.
2 Select Climate System using the
INFO dial.
3 Press in the INFO dial.
4 Select Rear Defroster, Heated Seats,
Fan Settings, Air Distribution, A/C
Mode, Dual/Single Zone or Default
Settings by turning the dial.
5 Confirm this selection by pressing the
INFO dial.
Once you have adjusted the ACC system
settings under Profiler, CUSTOMIZE will
appear on the ACC display.
Climate System
Rear Defroster
AutoManual
Heated Seats
AutoManual
Fan Settings
High speedMedium speedLow speed
Air Distribution
AutoManual
WindshieldPanelFloor
A/C Mode
AutoA/C off
Dual/Single Zone
Dual zoneSingle zone
Default Settings
Are you sure?Ye s N o
ProCarManuals.com

94 Instruments and controlsExplanation of how the ACC system can be
customized under Profiler.
Rear Defroster
Auto:
The rear window and door mirror
heating is controlled automatically.
This is one of the Default Settings.
Manual:
The rear window and door mirror
heating is switched on with
the button on ACC panel.
Heated Seats
Auto:
The front seat heating is controlled
automatically.
Select the level by repeatedly
pressing the appropriate button on
the ACC panel: 2 arrows on symbol
= standard; 3 arrows = high; 1 arrow
= low. The selected heating setting
is saved when the engine is
switched off. Note: The symbol on
the ACC panel goes out if the heat-
ing is turned off automatically by the
system.
Manual:
See Electric heating, front seats
(option) on page 92
.
This is one of the Default Settings.
Fan Settings
High speed:
This selection give a slightly higher
fan speed than Medium speed
though with continued automatic
regulation.
Medium speed:
Normal automatic fan speed. This is
one of the Default Settings.
Low speed:
This selection give a slightly lower
fan speed than Medium speed
though with continued automatic
regulation.
Air Distribution
Auto:
The ACC system adapts air tem-
perature and distribution to the pre-
vailing conditions. This is one of the
Default Settings
.
Manual:
Windshield:
The ACC system directs almost
all air to the windshield.
Panel:
The ACC system directs almost
all air to air vents in the fascia.
Floor:
The ACC system directs almost
all air to the floor.
ProCarManuals.com

95 Instruments and controls
A/C Mode
Auto:
Automatic engagement and disen-
gagement of the A/C. This is one of
the Default Settings.
A/C off:
A/C compressor OFF (see also
page 87). The A/C compressor can
be activated temporarily by press-
ing the AC or AUTO button while on
the road and if the outside tempera-
ture is above 41°F (+5°C). The A/C
will be off the next time the engine is
started.
Dual/Single Zone
Dual zone:
Individual temperature setting for
each zone (see page 85). The sys-
tem saves the settings when the
engine is switched off. This is one of
the Default Settings.
Single zone:
Common temperature setting when
the engine is started. If the temper-
ature setting for the passenger zone
is changed, the system will switch to
Dual zone control. Single zone con-
trol will return the next time the
engine is started.
ProCarManuals.com

96 Instruments and controls(This page has been left blank).
ProCarManuals.com

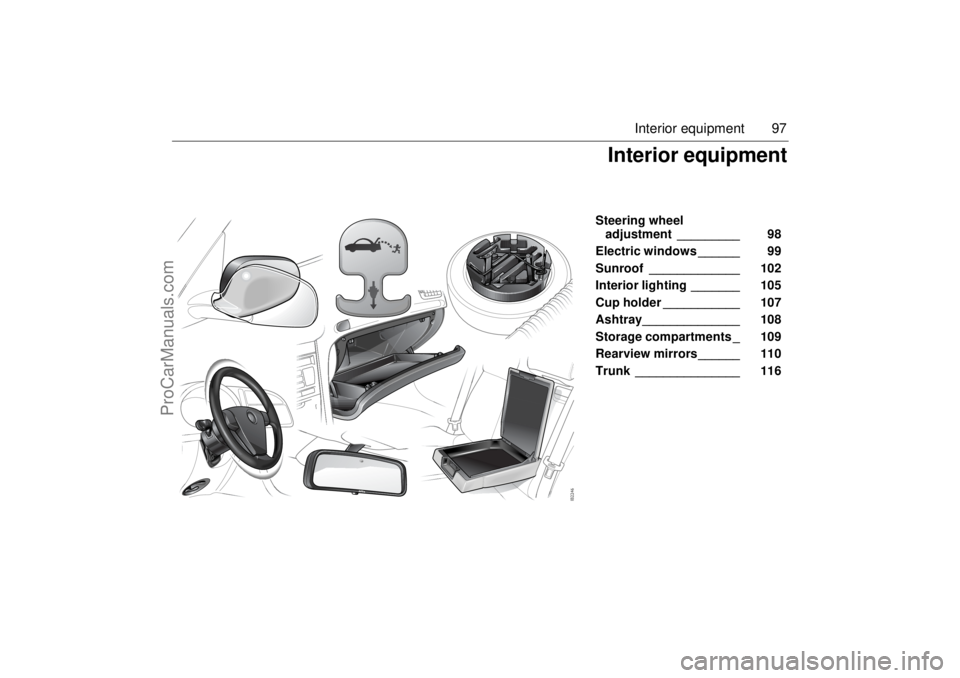

97 Interior equipment
Steering wheel
adjustment _________ 98
Electric windows ______ 99
Sunroof _____________ 102
Interior lighting _______ 105
Cup holder ___________ 107
Ashtray______________ 108
Storage compartments _ 109
Rearview mirrors______ 110
Trunk _______________ 116
Interior equipment
ProCarManuals.com

98 Interior equipmentSteering wheel
adjustmentThe height and reach of the steering wheel
can be adjusted.
There is a release lever under the steering
column.
1 Pull down the lever to release the steer-
ing wheel.
2 Adjust the position of the steering wheel.
3 Raise the lever to the locked position to
lock the steering wheel in position.
When returning the release lever to its
locked position, you may need to adjust the
position of the steering wheel slightly to
allow the lock mechanism to engage cor-
rectly.
Steering wheel lock, see page 123.
Horn signalActivate the horn by pressing one of the
three areas shown above on the steering
wheel pad.
WARNING
Only adjust the steering wheel while the
car is stationary so that you are not
distracted from the traffic.
Lever for steering wheel adjustment
ProCarManuals.com

99 Interior equipment
Electric windowsThe electric windows are operated by
means of switches in the door armrests.
For the electric windows to work, the remote
control must be in the ON position in the
ignition switch.
At the end of a journey and having removed
the remote control, you can still operate the
windows, so long as neither of the front
doors has been opened.
Windows having the automatic closing func-
tion (option) can be operated as long as the
car is unlocked and until 20 minutes has passed since the remote control was
removed from the ignition switch.
To openPress down the front edge of the button one
step.
The window will stop when it is fully open or
when the button is released.
Automatic opening: Press the button all
the way down and release it.Comfort opening (option)Comfort opening is the remote opening of
windows and the sunroof.
Press and hold the unlocking button on the
remote control until the windows and sun-
roof start to open (approx. 2 s).
WARNING
Bear in mind the pinch hazard when clos-
ing the side windows. Risk of serious or
fatal injuries!
•Always remove the remote control
from the ignition switch and open one
of the front doors when you leave the
car to prevent personal injury caused
by the activation of the electric
windows, for example, due to children
playing.
 The person operating the electric
window is responsible for ensuring
that no one, especially a child, has
their head, hands or fingers in the
window openings, before raising the
window.
Window switches
Window switch in rear door
ProCarManuals.com

100 Interior equipmentTo closeRaise the front edge of the button one step.
The window will stop when it is fully closed
or when the button is released.
Automatic closing (option): Raise the
button all the way and release it. If the
window does not close automatically, refer
to Calibration on page 101.
Comfort closing (option)Comfort closing is the remote closing of
open windows and the sunroof, and the
retracting of electrically retractable door
mirrors.
Press and hold the locking button on the
remote control until the windows are closed
and door mirrors retracted (takes roughly
2 s). The doors must be shut.
Confirmation that closing has finished is
provided by the direction indicators, which
flash once. No confirmation indicates that
closing was not possible. This may be due
to a door being open or a window requiring
calibration.
Pinch protectionOn certain model variants, the electric win-
dows are equipped with pinch protection.
This is activated if something gets trapped
between the window pane and door frame
when the window is closed. The window will
stop and lower slightly.
WARNING
Take care when closing a window to
ensure that no one gets caught.
WARNING
Make sure no one is so close to the car
that they can be injured if comfort closing
is activated.
