SAAB 9-7X 2009 Owners Manual

The cruise controls are
located on the end of the
turn signal/multifunction
lever.
R(On):Turns the system on.
+ (Resume/Accelerate):Makes the vehicle accelerate
or resume to a previously set speed.
T(Set):Press this button to set the speed.
9(Off):Turns the system off.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you are
not using cruise, you might hit a button and go
into cruise when you do not want to. You could be
startled and even lose control. Keep the cruise
control switch off until you want to use cruise
control.
1. Move the cruise control switch to
R.
2. Get up to the desired speed.
3. Press
Tat the end of the lever and release it.
4. Take your foot off the accelerator pedal.
Some vehicles have a
cruise light on the
instrument panel cluster
that comes on when
the cruise control is
engaged.
3-11
ProCarManuals.com

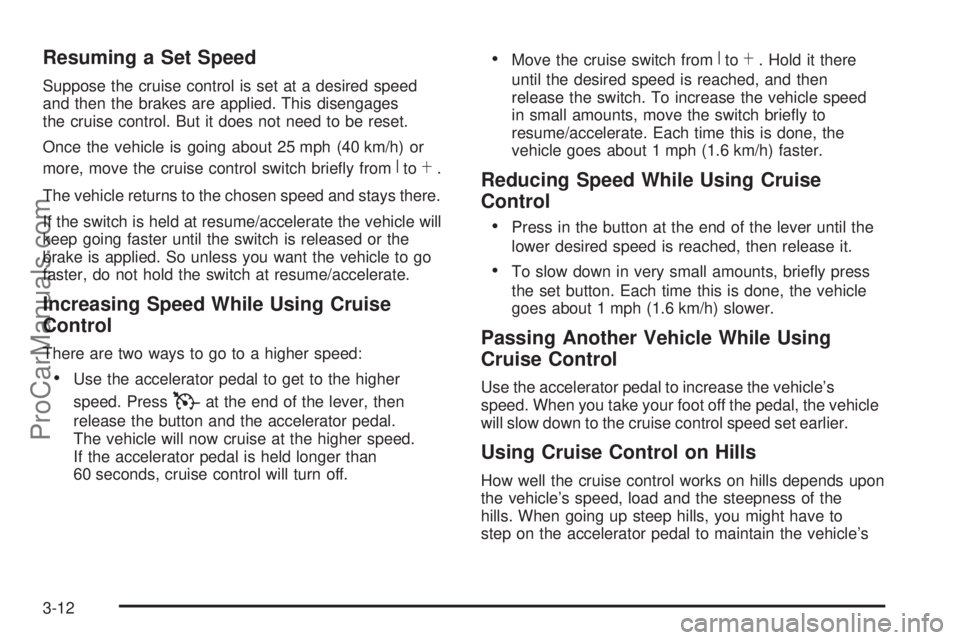

Resuming a Set Speed
Suppose the cruise control is set at a desired speed
and then the brakes are applied. This disengages
the cruise control. But it does not need to be reset.
Once the vehicle is going about 25 mph (40 km/h) or
more, move the cruise control switch briey from
RtoS.
The vehicle returns to the chosen speed and stays there.
If the switch is held at resume/accelerate the vehicle will
keep going faster until the switch is released or the
brake is applied. So unless you want the vehicle to go
faster, do not hold the switch at resume/accelerate.
Increasing Speed While Using Cruise
Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher
speed. Press
Tat the end of the lever, then
release the button and the accelerator pedal.
The vehicle will now cruise at the higher speed.
If the accelerator pedal is held longer than
60 seconds, cruise control will turn off.
Move the cruise switch fromRtoS. Hold it there
until the desired speed is reached, and then
release the switch. To increase the vehicle speed
in small amounts, move the switch briey to
resume/accelerate. Each time this is done, the
vehicle goes about 1 mph (1.6 km/h) faster.
Reducing Speed While Using Cruise
Control

Press in the button at the end of the lever until the
lower desired speed is reached, then release it.
To slow down in very small amounts, briey press
the set button. Each time this is done, the vehicle
goes about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase the vehicle’s
speed. When you take your foot off the pedal, the vehicle
will slow down to the cruise control speed set earlier.
Using Cruise Control on Hills
How well the cruise control works on hills depends upon
the vehicle’s speed, load and the steepness of the
hills. When going up steep hills, you might have to
step on the accelerator pedal to maintain the vehicle’s
3-12
ProCarManuals.com

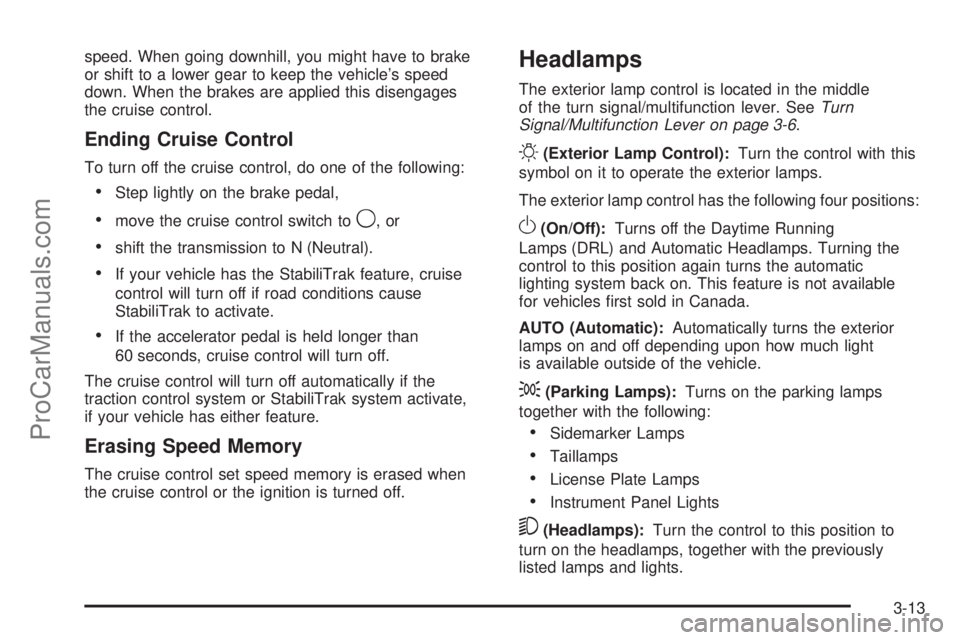

speed. When going downhill, you might have to brake
or shift to a lower gear to keep the vehicle’s speed
down. When the brakes are applied this disengages
the cruise control.
Ending Cruise Control
To turn off the cruise control, do one of the following:
Step lightly on the brake pedal,
move the cruise control switch to9,or
shift the transmission to N (Neutral).
If your vehicle has the StabiliTrak feature, cruise
control will turn off if road conditions cause
StabiliTrak to activate.
If the accelerator pedal is held longer than
60 seconds, cruise control will turn off.
The cruise control will turn off automatically if the
traction control system or StabiliTrak system activate,
if your vehicle has either feature.
Erasing Speed Memory
The cruise control set speed memory is erased when
the cruise control or the ignition is turned off.
Headlamps
The exterior lamp control is located in the middle
of the turn signal/multifunction lever. SeeTurn
Signal/Multifunction Lever on page 3-6.
O(Exterior Lamp Control):Turn the control with this
symbol on it to operate the exterior lamps.
The exterior lamp control has the following four positions:
O(On/Off):Turns off the Daytime Running
Lamps (DRL) and Automatic Headlamps. Turning the
control to this position again turns the automatic
lighting system back on. This feature is not available
for vehicles rst sold in Canada.
AUTO (Automatic):Automatically turns the exterior
lamps on and off depending upon how much light
is available outside of the vehicle.
;(Parking Lamps):Turns on the parking lamps
together with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
5(Headlamps):Turn the control to this position to
turn on the headlamps, together with the previously
listed lamps and lights.
3-13
ProCarManuals.com

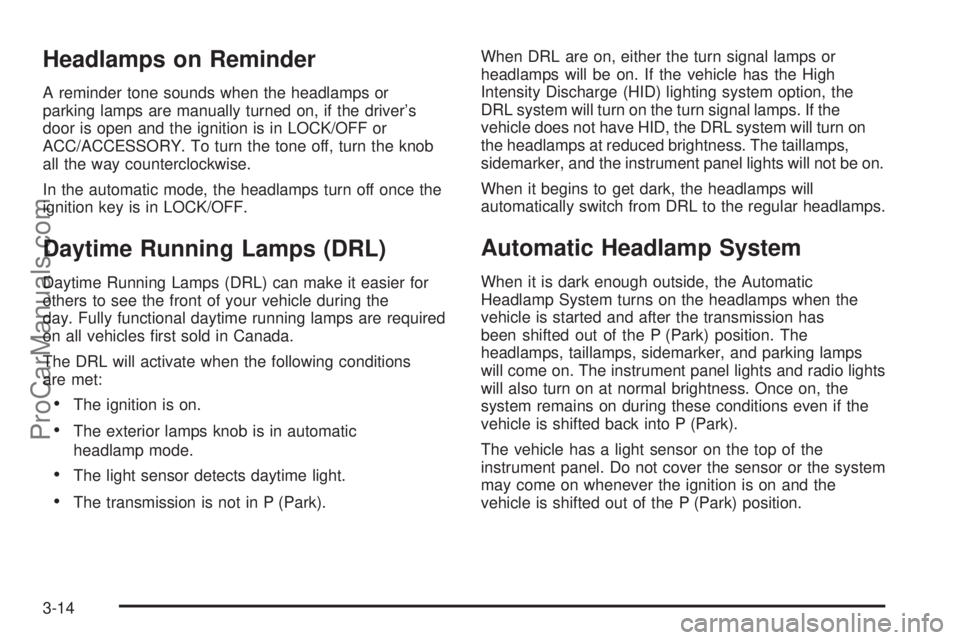

Headlamps on Reminder
A reminder tone sounds when the headlamps or
parking lamps are manually turned on, if the driver’s
door is open and the ignition is in LOCK/OFF or
ACC/ACCESSORY. To turn the tone off, turn the knob
all the way counterclockwise.
In the automatic mode, the headlamps turn off once the
ignition key is in LOCK/OFF.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. Fully functional daytime running lamps are required
on all vehicles rst sold in Canada.
The DRL will activate when the following conditions
are met:
The ignition is on.
The exterior lamps knob is in automatic
headlamp mode.
The light sensor detects daytime light.
The transmission is not in P (Park).When DRL are on, either the turn signal lamps or
headlamps will be on. If the vehicle has the High
Intensity Discharge (HID) lighting system option, the
DRL system will turn on the turn signal lamps. If the
vehicle does not have HID, the DRL system will turn on
the headlamps at reduced brightness. The taillamps,
sidemarker, and the instrument panel lights will not be on.
When it begins to get dark, the headlamps will
automatically switch from DRL to the regular headlamps.
Automatic Headlamp System
When it is dark enough outside, the Automatic
Headlamp System turns on the headlamps when the
vehicle is started and after the transmission has
been shifted out of the P (Park) position. The
headlamps, taillamps, sidemarker, and parking lamps
will come on. The instrument panel lights and radio lights
will also turn on at normal brightness. Once on, the
system remains on during these conditions even if the
vehicle is shifted back into P (Park).
The vehicle has a light sensor on the top of the
instrument panel. Do not cover the sensor or the system
may come on whenever the ignition is on and the
vehicle is shifted out of the P (Park) position.
3-14
ProCarManuals.com

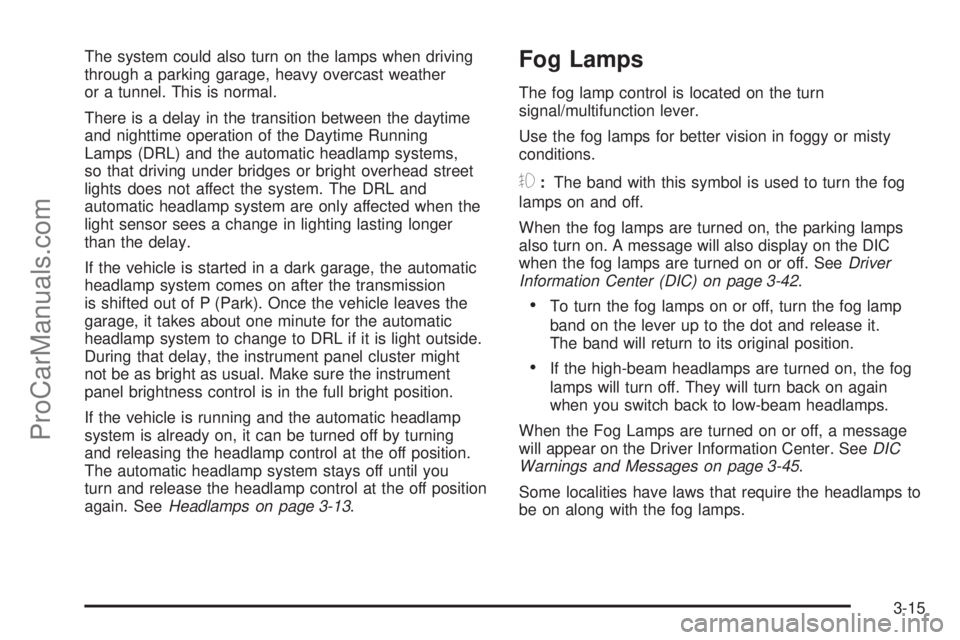

The system could also turn on the lamps when driving
through a parking garage, heavy overcast weather
or a tunnel. This is normal.
There is a delay in the transition between the daytime
and nighttime operation of the Daytime Running
Lamps (DRL) and the automatic headlamp systems,
so that driving under bridges or bright overhead street
lights does not affect the system. The DRL and
automatic headlamp system are only affected when the
light sensor sees a change in lighting lasting longer
than the delay.
If the vehicle is started in a dark garage, the automatic
headlamp system comes on after the transmission
is shifted out of P (Park). Once the vehicle leaves the
garage, it takes about one minute for the automatic
headlamp system to change to DRL if it is light outside.
During that delay, the instrument panel cluster might
not be as bright as usual. Make sure the instrument
panel brightness control is in the full bright position.
If the vehicle is running and the automatic headlamp
system is already on, it can be turned off by turning
and releasing the headlamp control at the off position.
The automatic headlamp system stays off until you
turn and release the headlamp control at the off position
again. SeeHeadlamps on page 3-13.Fog Lamps
The fog lamp control is located on the turn
signal/multifunction lever.
Use the fog lamps for better vision in foggy or misty
conditions.
#:The band with this symbol is used to turn the fog
lamps on and off.
When the fog lamps are turned on, the parking lamps
also turn on. A message will also display on the DIC
when the fog lamps are turned on or off. SeeDriver
Information Center (DIC) on page 3-42.
To turn the fog lamps on or off, turn the fog lamp
band on the lever up to the dot and release it.
The band will return to its original position.
If the high-beam headlamps are turned on, the fog
lamps will turn off. They will turn back on again
when you switch back to low-beam headlamps.
When the Fog Lamps are turned on or off, a message
will appear on the Driver Information Center. SeeDIC
Warnings and Messages on page 3-45.
Some localities have laws that require the headlamps to
be on along with the fog lamps.
3-15
ProCarManuals.com

Instrument Panel Brightness
Turn the knob clockwise
or counterclockwise to
brighten or dim the
interior lights.
To turn on the dome lamps, turn the knob completely
clockwise as far as it will go. The dome lamps stay
on until they are turned off.
Dome Lamps
The dome lamps automatically come on when a door is
opened, unless the dome lamp override button is
pressed in.
The lamps can also be turned on and off by turning the
instrument panel brightness control clockwise to the
farthest position.
Dome Lamp Override
The dome lamp override button is located to the left of
the steering column on the instrument panel.
E:Press to turn the dome lamps off. The dome lamps
will remain off when a door is open. This overrides
the illuminated entry feature unless the remote keyless
entry transmitter is used to unlock the vehicle.
To return the lamps to automatic operation, press
E
again. The dome lamps will come on when any
door is opened.
Entry Lighting
The vehicle has entry lighting.
When any door is opened, the dome lamps come on
as long as the dome override lamp override button is not
pressed in. When all the doors are closed, the lamps
stay on for a short period of time and then turn off
automatically. If you use the Remote Keyless Entry
(RKE) transmitter to unlock the vehicle, the interior
lamps come on for a short time whether or not the dome
lamp override is on.
3-16
ProCarManuals.com

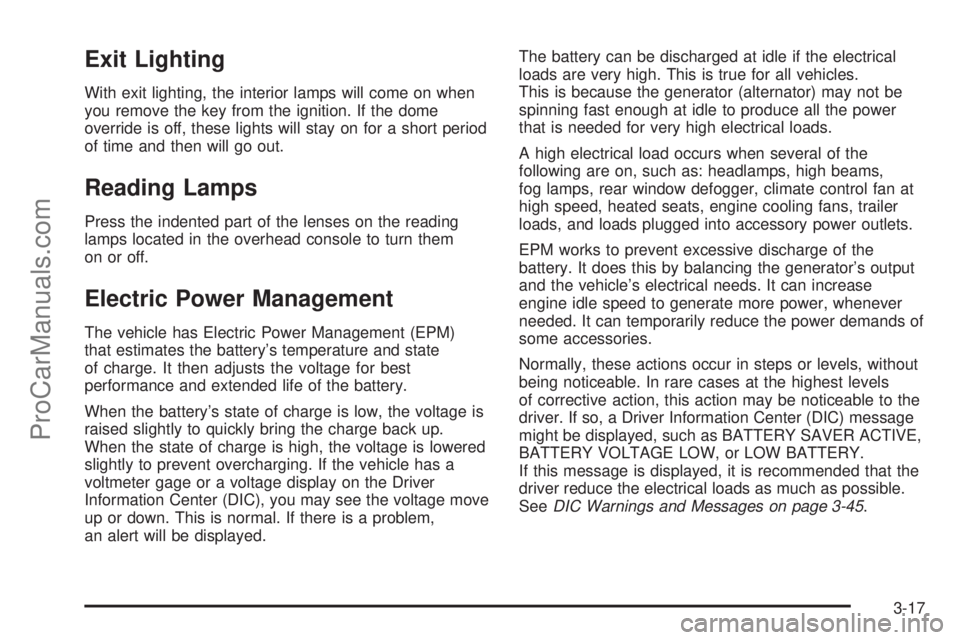

Exit Lighting
With exit lighting, the interior lamps will come on when
you remove the key from the ignition. If the dome
override is off, these lights will stay on for a short period
of time and then will go out.
Reading Lamps
Press the indented part of the lenses on the reading
lamps located in the overhead console to turn them
on or off.
Electric Power Management
The vehicle has Electric Power Management (EPM)
that estimates the battery’s temperature and state
of charge. It then adjusts the voltage for best
performance and extended life of the battery.
When the battery’s state of charge is low, the voltage is
raised slightly to quickly bring the charge back up.
When the state of charge is high, the voltage is lowered
slightly to prevent overcharging. If the vehicle has a
voltmeter gage or a voltage display on the Driver
Information Center (DIC), you may see the voltage move
up or down. This is normal. If there is a problem,
an alert will be displayed.The battery can be discharged at idle if the electrical
loads are very high. This is true for all vehicles.
This is because the generator (alternator) may not be
spinning fast enough at idle to produce all the power
that is needed for very high electrical loads.
A high electrical load occurs when several of the
following are on, such as: headlamps, high beams,
fog lamps, rear window defogger, climate control fan at
high speed, heated seats, engine cooling fans, trailer
loads, and loads plugged into accessory power outlets.
EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s output
and the vehicle’s electrical needs. It can increase
engine idle speed to generate more power, whenever
needed. It can temporarily reduce the power demands of
some accessories.
Normally, these actions occur in steps or levels, without
being noticeable. In rare cases at the highest levels
of corrective action, this action may be noticeable to the
driver. If so, a Driver Information Center (DIC) message
might be displayed, such as BATTERY SAVER ACTIVE,
BATTERY VOLTAGE LOW, or LOW BATTERY.
If this message is displayed, it is recommended that the
driver reduce the electrical loads as much as possible.
SeeDIC Warnings and Messages on page 3-45.
3-17
ProCarManuals.com

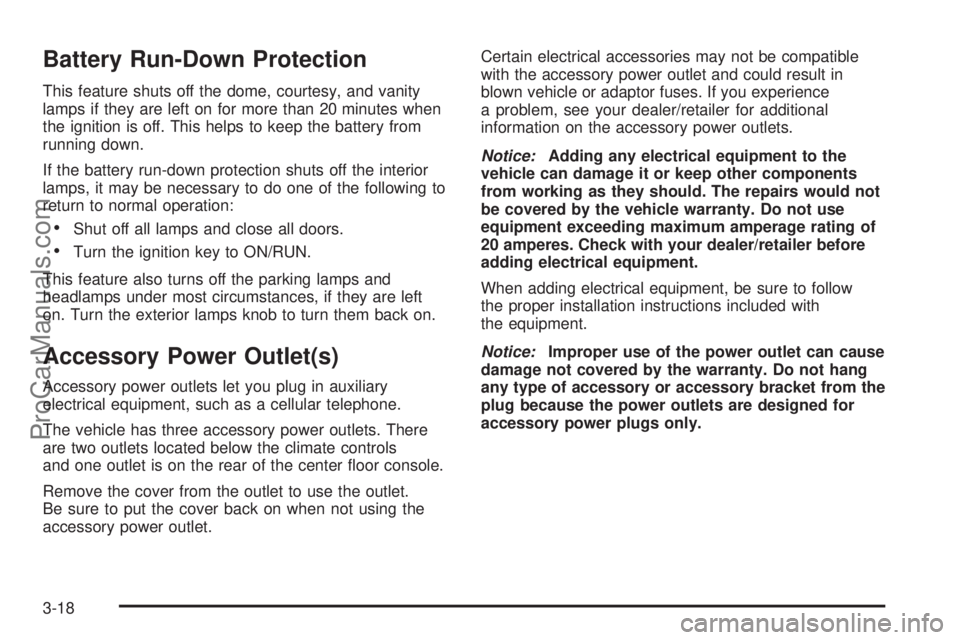

Battery Run-Down Protection
This feature shuts off the dome, courtesy, and vanity
lamps if they are left on for more than 20 minutes when
the ignition is off. This helps to keep the battery from
running down.
If the battery run-down protection shuts off the interior
lamps, it may be necessary to do one of the following to
return to normal operation:
Shut off all lamps and close all doors.
Turn the ignition key to ON/RUN.
This feature also turns off the parking lamps and
headlamps under most circumstances, if they are left
on. Turn the exterior lamps knob to turn them back on.
Accessory Power Outlet(s)
Accessory power outlets let you plug in auxiliary
electrical equipment, such as a cellular telephone.
The vehicle has three accessory power outlets. There
are two outlets located below the climate controls
and one outlet is on the rear of the center oor console.
Remove the cover from the outlet to use the outlet.
Be sure to put the cover back on when not using the
accessory power outlet.Certain electrical accessories may not be compatible
with the accessory power outlet and could result in
blown vehicle or adaptor fuses. If you experience
a problem, see your dealer/retailer for additional
information on the accessory power outlets.
Notice:Adding any electrical equipment to the
vehicle can damage it or keep other components
from working as they should. The repairs would not
be covered by the vehicle warranty. Do not use
equipment exceeding maximum amperage rating of
20 amperes. Check with your dealer/retailer before
adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
Notice:Improper use of the power outlet can cause
damage not covered by the warranty. Do not hang
any type of accessory or accessory bracket from the
plug because the power outlets are designed for
accessory power plugs only.
3-18
ProCarManuals.com

Climate Controls
Dual Automatic Climate Control
System
With this system the heating, cooling and ventilation can
be controlled on the vehicle. When the vehicle is rst
started and the climate control system is on, or if
the climate control system has been turned on, the
display shows the driver’s temperature setting for
ve seconds. Then it shows the outside temperature.
A. Driver and Passenger
Side Temperature
Controls
B. Fan ControlC. Display
D. AUTO
E. Power ButtonF. Recirculation
G. Air Conditioning
H. DefrostI. Air Delivery
Mode Control
J. Rear Window Defogger
Outside Air Temperature Display
A new outside temperature reading is displayed if the
vehicle has been off for more than three hours.
If the vehicle has been off for less than three hours,
the old temperature reading may be displayed because
underhood heat is affecting the true outside temperature.
Underhood heat can also affect the outside temperature
while the engine is running. It may also take several
minutes of driving before the display updates to
the actual outside temperature.
3-19
ProCarManuals.com

Automatic Operation
AUTO (Automatic):When automatic operation is
active, the system controls the air delivery mode,
fan speed, and temperature inside the vehicle.
Use the steps below to place the entire system in
automatic mode:
1. Press AUTO.
When AUTO is selected, the air conditioning and
air inlet are automatically controlled. The air
conditioning compressor will run continuously when
the outside temperature is over approximately
40°F (4°C). The air inlet will normally be set
to outside air. If it is hot outside, the air inlet
automatically changes to recirculate inside air to
help quickly cool down the vehicle.
2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 72°F (22°C)
temperature setting and allow about 20 minutes
for the system to adjust. Turn the driver or
passenger side temperature knob to adjust the
temperature setting as necessary. If a temperature
setting of 60°F (15°C) is chosen, the system will
remain at the maximum cooling setting. If a
temperature setting of 90°F (32°C) is chosen, the
system remains at the maximum heat setting.
Choosing either maximum setting may not cause
the vehicle to heat or cool any faster.
Manual Operation
9(Off):Press to turn off the entire climate control
system. Outside air still enters the vehicle, and will be
directed to the oor. The system turns on by pressing
either AUTO, air delivery mode, fan control, or by
adjusting either temperature knob.
Driver’s Side Temperature Knob:Turn clockwise
or counterclockwise to increase or decrease the
temperature on the driver side of the vehicle.
The display will show the temperature setting
decreasing or increasing and an arrow pointing toward
the driver. This knob can also adjust the passenger
side temperature setting if the two are linked.
Passenger Side Temperature Knob:Turn clockwise
or counterclockwise to increase or decrease the
temperature on the passenger side of the vehicle.
The display will show the temperature setting decreasing
or increasing and an arrow pointing toward the
passenger. The passenger temperature setting can be
set to match and link to the driver’s temperature
setting by pressing and holding the AUTO button for
three seconds. When adjusting the driver side
temperature setting, the passenger side temperature
setting will follow and both arrows will appear on
the display. The passenger side temperature setting
also resets and re-links to the driver side temperature
setting if the vehicle has been off for more than
three hours.
3-20
ProCarManuals.com
