SATURN OUTLOOK 2009 Owners Manual

Seats and Restraint
System............................... 1-1
Head Restraints
.............. 1-2
Front Seats
.................... 1-3
Rear Seats
.................... 1-9
Safety Belts
..................1-14
Child Restraints
.............1-28
Airbag System
..............1-47
Restraint System
Check
......................1-61
Features and Controls...... 2-1
Keys
............................. 2-2
Doors and Locks
............ 2-8
Windows
......................2-14
Theft-Deterrent
Systems
...................2-16
Starting and Operating
Your Vehicle
.............2-20
Mirrors
.........................2-31
Object Detection
Systems
...................2-34
OnStar
®System
............2-42Universal Home Remote
System
.....................2-45
Storage Areas
...............2-50
Sunroof
........................2-54
Instrument Panel............... 3-1
Instrument Panel
Overview
.................... 3-4
Climate Controls
............3-19
Warning Lights, Gages,
and Indicators
............3-30
Driver Information
Center (DIC)
.............3-44
Audio System(s)
............3-74
Driving Your Vehicle......... 4-1
Your Driving, the Road,
and the Vehicle
........... 4-1
Towing
........................4-22
Service and
Appearance Care............... 5-1
Service
.......................... 5-3
Fuel
.............................. 5-5
Checking Things Under
the Hood
..................5-10All-Wheel Drive
.............5-35
Headlamp Aiming
..........5-35
Bulb Replacement
.........5-35
Windshield Wiper Blade
Replacement
.............5-38
Tires
...........................5-39
Appearance Care
..........5-84
Vehicle Identication
......5-91
Electrical System
...........5-91
Capacities and
Specications
............5-98
Maintenance Schedule...... 6-1
Maintenance Schedule
..... 6-1
Customer Assistance
Information........................ 7-1
Customer Assistance and
Information
................. 7-1
Reporting Safety
Defects
.....................7-14
Vehicle Data Recording
and Privacy
...............7-16
Index................................... i-1
2009 Saturn OUTLOOK Owner ManualM
ProCarManuals.com

SATURN, the SATURN Emblem,
and the name OUTLOOK are
registered trademarks of Saturn
Corporation. GENERAL MOTORS
and GM are registered trademarks
of General Motors Corporation.
This manual includes the latest
information at the time it was
printed. Saturn reserves the right to
make changes after that time
without further notice.
This manual describes features that
may or may not be on your
specic vehicle.Read this manual from beginning to
end to learn about the vehicle’s
features and controls. Pictures,
symbols, and words work together
to explain vehicle operation.
Keep this manual in the vehicle for
quick reference.
Canadian Owners
A French language copy of this
manual can be obtained from your
dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès de
concessionnaire ou à l’adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Index
To quickly locate information about
the vehicle, use the index in the
back of the manual. It is an
alphabetical list of what is in the
manual and the page number where
it can be found.
ii Preface
Litho in U.S.A.
Part No. 15919281 B Second Printing©2008 General Motors Corporation. All Rights Reserved.
ProCarManuals.com

Safety Warnings and
Symbols
A circle with a slash through it is a
safety symbol which means “Do
Not,” “Do not do this” or “Do not let
this happen.”
A box with the word CAUTION is
used to tell about things that
could hurt you or others if you were
to ignore the warning.
{CAUTION
These mean there is something
that could hurt you or other people.
Cautions tell what the hazard is and
what to do to avoid or reduce the
hazard. Read these cautions.
A notice tells about something that
can damage the vehicle.
Notice:These mean there is
something that could damage
your vehicle.
Many times, this damage would not
be covered by the vehicle’s
warranty, and it could be costly. The
notice tells what to do to help
avoid the damage.
There are also warning labels on
the vehicle which use the same
words, CAUTION or Notice.
Vehicle Symbols
The vehicle has components and
labels that use symbols instead
of text. Symbols are shown along
with the text describing the operation
or information relating to a specic
component, control, message,
gage, or indicator.
M:This symbol is shown when
you need to see your owner manual
for additional instructions or
information.
*:This symbol is shown when
you need to see a service manual
for additional instructions or
information.
Preface iii
ProCarManuals.com

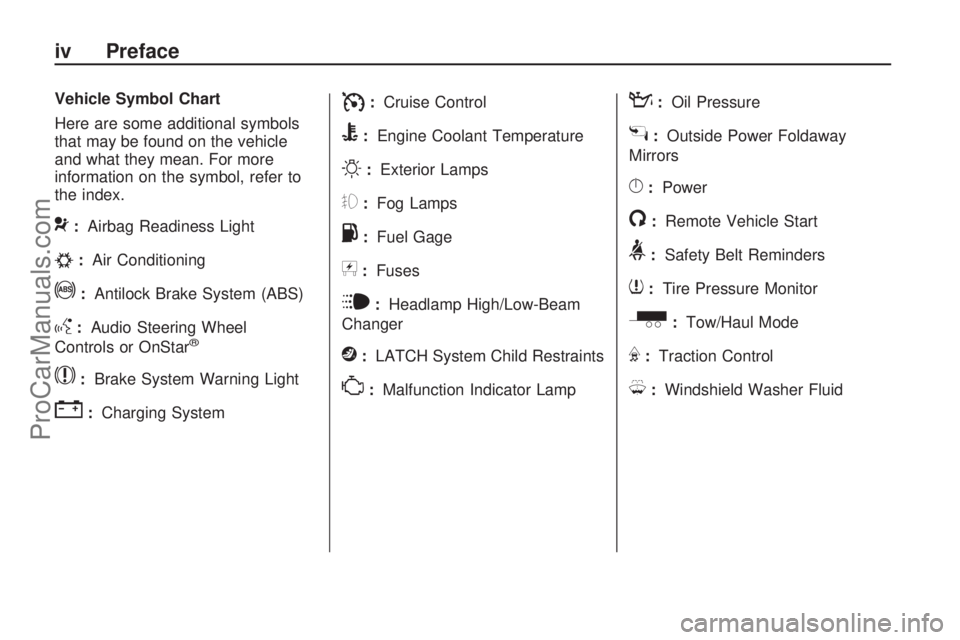

Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel
Controls or OnStar®
$:Brake System Warning Light
":Charging System
I:Cruise Control
B:Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.:Fuel Gage
+:Fuses
i:Headlamp High/Low-Beam
Changer
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
g:Outside Power Foldaway
Mirrors
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
_:Tow/Haul Mode
F:Traction Control
M:Windshield Washer Fluid
iv Preface
ProCarManuals.com

Seats and
Restraint System
Head RestraintsHead Restraints....................1-2
Front SeatsManual Seats.......................1-3
Seat Height Adjuster..............1-3
Power Seats.........................1-4
Manual Lumbar.....................1-4
Power Lumbar......................1-5
Heated Seats.......................1-5
Memory Seat and Mirrors.......1-6
Reclining Seatbacks..............1-8
Rear SeatsRear Seat Operation..............1-9
Third Row Seats.................1-12
Safety BeltsSafety Belts: They Are for
Everyone..........................1-14
How to Wear Safety Belts
Properly............................1-18
Lap-Shoulder Belt................1-23
Safety Belt Use During
Pregnancy........................1-28
Safety Belt Extender............1-28
Child RestraintsOlder Children.....................1-28
Infants and Young Children. . . .1-30
Child Restraint Systems........1-33
Where to Put the Restraint.....1-35
Lower Anchors and Tethers
for Children (LATCH)..........1-37
Securing a Child Restraint
in a Rear Seat Position......1-43
Securing a Child Restraint
in the Right Front Seat
Position............................1-45
Airbag SystemAirbag System....................1-47
Where Are the Airbags?.......1-49
When Should an Airbag
Inate?.............................1-51
What Makes an Airbag
Inate?.............................1-52
How Does an Airbag
Restrain?..........................1-53
What Will You See After
an Airbag Inates?.............1-53
Passenger Sensing
System.............................1-55
Servicing Your
Airbag-Equipped Vehicle.....1-60
Adding Equipment to Your
Airbag-Equipped Vehicle.....1-60
Restraint System CheckChecking the Restraint
Systems...........................1-61
Replacing Restraint System
Parts After a Crash............1-62
Seats and Restraint System 1-1
ProCarManuals.com

Head Restraints
The vehicle’s front seats have
adjustable head restraints in all
outboard seating positions.
{CAUTION
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/spinal
injury in a crash. Do not drive
until the head restraints for all
occupants are installed and
adjusted properly.Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant’s
head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up to raise it.
To lower the head restraint, press
the release button, located on
the head restraint post on the top of
the seatback, while you push the
head restraint down.
Push down on the head restraint
after the button is released to make
sure that it is locked in place.
1-2 Seats and Restraint System
ProCarManuals.com

Front Seats
Manual Seats
{CAUTION
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.A. Manual Seat Adjustment Bar
B. Driver Seat Height Adjuster. See
Seat Height Adjuster on
page 1-3.
C. Manual Reclining Seatback
Lever. SeeReclining Seatbacks
on page 1-8.
If the vehicle has a manual bucket
seat you can adjust the seat
forward or rearward with the bar
located under the front of the seat
cushion.Lift the bar to unlock the seat. Slide
the seat to where you want it
and release the bar. Try to move
the seat with your body to be
sure the seat is locked in place.Seat Height Adjuster
If the vehicle has a manual driver
seat height adjuster, it is located on
the outboard side of the seat. See
Manual Seats on page 1-3for more
information. To raise the seat, move
the lever upward repeatedly until the
seat is at the desired height. To lower
the seat, move the lever downward
repeatedly until the seat is at the
desired height.
Seats and Restraint System 1-3
ProCarManuals.com

Power Seats
A. Power Seat Adjustment Control
B.Reclining Seatbacks on
page 1-8.
C.Power Lumbar on page 1-5.
If the vehicle has power seats, the
controls are located on the
outboard side of the seats.Move the seat forward or rearward
by sliding the power seat adjustment
control (A) forward or rearward.
The vehicle may have additional
features to adjust the power seat:
Raise or lower the entire
seat by moving the power
seat adjustment control (A)
up or down.
Raise or lower the front part of the
seat cushion by moving the front
of the control up or down.
Raise or lower the rear part of the
seat cushion by moving the rear
of the control up or down.
The vehicle may have a memory
function which allows seat settings
to be saved and recalled. See
Memory Seat and Mirrors on
page 1-6for more information.
Manual Lumbar
If the vehicle has this feature, the
handle is located on the inboard side
of the seatback. SeeManual
Seats on page 1-3for more
information.
Turn the handle rearward to
decrease lumbar support. Turn the
handle forward to increase lumbar
support.
The lumbar support may need to be
adjusted when changing the
seating position. Driver Seat with Power Seat
Control, Power Recline, and
Power Lumbar shown
1-4 Seats and Restraint System
ProCarManuals.com

Power Lumbar
If the seats have power lumbar, the
controls used to operate this feature
are located on the outboard side of
the seats. See “Power Lumbar”
underPower Seats on page 1-4for
more information.
To increase or decrease lumbar
support, press and hold the front or
rear of the control (C).
Release the control when the
seatback reaches the desired level
of lumbar support.
The lumbar support may need to be
adjusted when changing the
seating position.
Heated Seats
On vehicles with heated front seats,
the controls are located on the
center console. To operate
the heated seats the engine must
be running.
I(Heated Seatback):Press to
turn on the heated seatback.
J(Heated Seat and Seatback):
Press to turn on or off the
heated seat and seatback.
The light on the button will come on
to indicate that the feature is on.
Each time the button is pressed, the
temperature settings change from
high, to medium, to low, to off.
Indicator lights above the button
will show the level of heat selected:
three for high, two for medium, and
one for low.The passenger seat may take
longer to heat up.
If the vehicle has remote vehicle
start and is started using the remote
keyless entry transmitter, the front
heated seats will be turned on to the
high setting if it is cold outside.
See “Remote Vehicle Start” under
Remote Keyless Entry (RKE)
System Operation on page 2-4.
When the ignition is turned on, the
heated seat feature will turn off.
To turn the heated seat feature back
on, press the desired button.
Seats and Restraint System 1-5
ProCarManuals.com

Memory Seat and Mirrors
On vehicles with the memory
package, the controls for this feature
are located on the driver door
panel. The controls are used to
program and recall memory settings
for the driver seat and outside
mirrors.To save positions in memory:
1. Adjust the driver seat, including
the seatback recliner and both
outside mirrors to a comfortable
position.
SeeOutside Power Mirrors on
page 2-32for more information.
Not all mirrors will have the
ability to save and recall
the mirror positions.
2. Press and hold button 1 until two
beeps let you know that the
position has been stored.
A second seating and mirror
position can be programmed by
repeating the above steps and
pressing button 2.To recall the memory positions, the
vehicle must be in P (Park). Press
and release either button 1 or
button 2 corresponding to the
desired driving position. The seat
and outside mirrors will move to the
position previously stored. You will
hear a single beep.
Using the RKE transmitter to enter
the vehicle, with the remote recall
memory feature on, causes
automatic seat and mirror
adjustment. There is no adjustment
when the position has not been
changed by another seating position
or the easy exit feature. See
“MEMORY SEAT RECALL” under
DIC Vehicle Customization (With DIC
Buttons) on page 3-65for more
information.
1-6 Seats and Restraint System
ProCarManuals.com
