SATURN OUTLOOK 2009 Service Manual

Lower Anchors and
Tethers for Children
(LATCH)
The LATCH system holds a child
restraint during driving or in a crash.
This system is designed to make
installation of a child restraint easier.
The LATCH system uses anchors
in the vehicle and attachments
on the child restraint that are made
for use with the LATCH system.
Make sure that a LATCH-compatible
child restraint is properly installed
using the anchors, or use the
vehicle’s safety belts to secure the
restraint, following the instructions
that came with that restraint,
and also the instructions in this
manual. When installing a
child restraint with a top tether, you
must also use either the lower
anchors or the safety belts to
properly secure the child restraint. A
child restraint must never be
attached using only the top tether
and anchor.In order to use the LATCH system
in your vehicle, you need a child
restraint that has LATCH
attachments. The child restraint
manufacturer will provide you with
instructions on how to use the
child restraint and its attachments.
The following explains how to attach
a child restraint with these
attachments in your vehicle.
Not all vehicle seating positions or
child restraints have lower anchors
and attachments or top tether
anchors and attachments.
Lower Anchors
Lower anchors (A) are metal bars
built into the vehicle. There are
two lower anchors for each LATCHseating position that will
accommodate a child restraint with
lower attachments (B).
Top Tether Anchor
A top tether (A, C) anchors the top
of the child restraint to the
vehicle. A top tether anchor is built
into the vehicle. The top tether
attachment (B) on the child restraint
connects to the top tether anchor
in the vehicle in order to reduce the
forward movement and rotation
of the child restraint during driving
or in a crash.
Seats and Restraint System 1-37
ProCarManuals.com

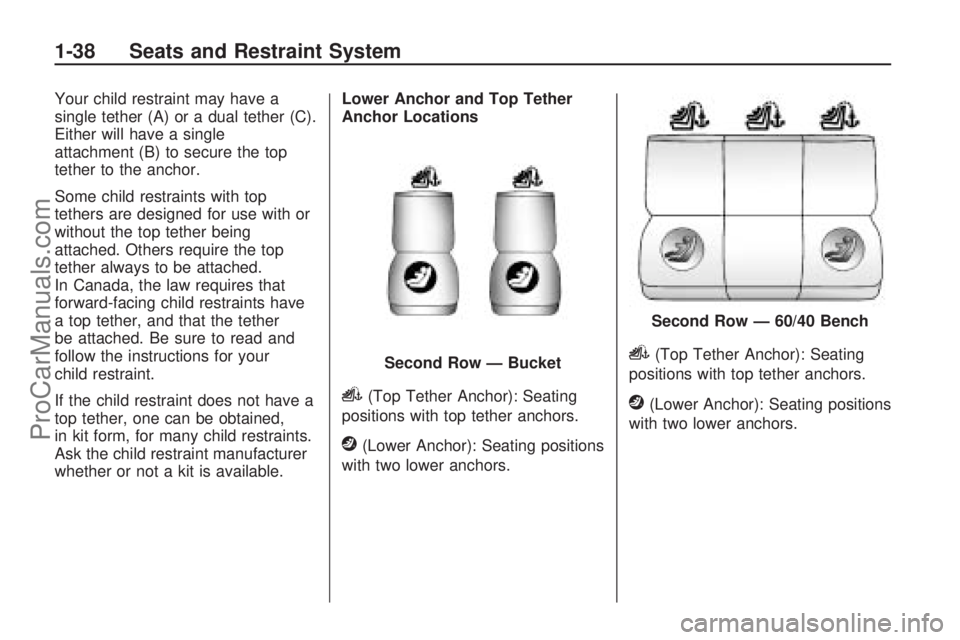

Your child restraint may have a
single tether (A) or a dual tether (C).
Either will have a single
attachment (B) to secure the top
tether to the anchor.
Some child restraints with top
tethers are designed for use with or
without the top tether being
attached. Others require the top
tether always to be attached.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached. Be sure to read and
follow the instructions for your
child restraint.
If the child restraint does not have a
top tether, one can be obtained,
in kit form, for many child restraints.
Ask the child restraint manufacturer
whether or not a kit is available.Lower Anchor and Top Tether
Anchor Locations
i(Top Tether Anchor): Seating
positions with top tether anchors.
j(Lower Anchor): Seating positions
with two lower anchors.
i(Top Tether Anchor): Seating
positions with top tether anchors.
j(Lower Anchor): Seating positions
with two lower anchors. Second Row — Bucket
Second Row — 60/40 Bench
1-38 Seats and Restraint System
ProCarManuals.com

i(Top Tether Anchor): Seating
positions with top tether anchors.
To assist you in locating the lower
anchors, each second row
anchor position has a label, near
the crease between the seatback
and the seat cushion.To assist you in locating the top
tether anchors, the top tether anchor
symbol is located on the cover or
near the anchor.The top tether anchors are located at
the bottom rear of the seatback for
each seating position in the second
row. Open the cover to access the
anchors. Be sure to use an anchor
located on the same side of the
vehicle as the seating position where
the child restraint will be placed.
The third row has one top tether
anchor located at the bottom rear of
the center seatback. This anchor
should be used for the center seating
position only. Never install two top
tethers using the same top tether
anchor. Third Row
Second Row — Bucket Shown,
Bench Similar
Third Row Seat
Seats and Restraint System 1-39
ProCarManuals.com

Do not secure a child restraint in a
position without a top tether
anchor if a national or local law
requires that the top tether be
attached, or if the instructions that
come with the child restraint say that
the top tether must be attached.
Accident statistics show that children
are safer if they are restrained in
the rear rather than the front
seat. SeeWhere to Put the Restraint
on page 1-35for additional
information.Securing a Child Restraint
Designed for the LATCH System
{CAUTION
If a LATCH-type child restraint is
not attached to anchors, the child
restraint will not be able to protect
the child correctly. In a crash, the
child could be seriously injured or
killed. Install a LATCH-type child
restraint properly using the
anchors, or use the vehicle’s
safety belts to secure the restraint,
following the instructions that came
with the child restraint and the
instructions in this manual.
{CAUTION
Do not attach more than one child
restraint to a single anchor.
Attaching more than one child
restraint to a single anchor could
(Continued)
CAUTION (Continued)
cause the anchor or attachment to
come loose or even break during
a crash. A child or others could
be injured. To reduce the risk of
serious or fatal injuries during a
crash, attach only one child
restraint per anchor.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Buckle any unused safety
belts behind the child restraint so
children cannot reach them. Pull
the shoulder belt all the way out
of the retractor to set the lock, if
your vehicle has one, after the
child restraint has been installed.
1-40 Seats and Restraint System
ProCarManuals.com

Notice:Do not let the LATCH
attachments rub against the
vehicle’s safety belts. This may
damage these parts. If necessary,
move buckled safety belts to avoid
rubbing the LATCH attachments.
Do not fold the empty rear seat
with a safety belt buckled. This
could damage the safety belt or
the seat. Unbuckle and return the
safety belt to its stowed position,
before folding the seat.
1. Attach and tighten the lower
attachments to the lower anchors.
If the child restraint does not have
lower attachments or the desired
seating position does not have
lower anchors, secure the child
restraint with the top tether and
the safety belts. Refer to your
child restraint manufacturer
instructions and the instructions in
this manual.
1.1. Find the lower anchors
for the desired seating
position.1.2. Recline the seatback to the
full reclined position.
Make sure the second row
bench seatbacks are aligned
at the same angle before
placing the child restraint on
the seat. Make sure the third
row bench seatbacks are
both upright before placing
the child restraint on
the seat.
1.3. Put the child restraint on
the seat.
1.4. Attach and tighten the lower
attachments on the child
restraint to the lower
anchors.
2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor, if the vehicle has one.Refer to the child restraint
instructions and the following
steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered,
ip open the cover to
expose the anchor.
2.3. Route, attach and tighten
the top tether according to
your child restraint
instructions and the
following instructions:
If the position you are using
does not have a headrest or
head restraint and you are
using a single tether, route
the tether over the seatback.
Seats and Restraint System 1-41
ProCarManuals.com

If the position you are using
does not have a headrest
or head restraint and
you are using a dual tether,
route the tether over the
seatback.If the position you are using
has a xed headrest or
head restraint and you are
using a dual tether,
route the tether around the
headrest or head restraint.If the position you are using
has a xed headrest or
head restraint and you are
using a single tether,
route the tether over the
headrest or head restraint.
3. Push and pull the child restraint
in different directions to be sure
it is secure.
1-42 Seats and Restraint System
ProCarManuals.com

Securing a Child
Restraint in a Rear Seat
Position
When securing a child restraint in a
rear seating position, study the
instructions that came with the child
restraint to make sure it is
compatible with this vehicle.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-37for how and where to
install the child restraint using
LATCH. If a child restraint is secured
in the vehicle using a safety belt
and it uses a top tether, seeLower
Anchors and Tethers for Children
(LATCH) on page 1-37for top tether
anchor locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with
the child restraint say that the top
strap must be anchored.In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
If the child restraint does not have
the LATCH system, you will be using
the safety belt to secure the child
restraint in this position. Be sure to
follow the instructions that came
with the child restraint. Secure the
child in the child restraint when
and as the instructions say.
If more than one child restraint
needs to be installed in the
rear seat, be sure to readWhere to
Put the Restraint on page 1-35.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and
run the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.3. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
Seats and Restraint System 1-43
ProCarManuals.com

4. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.5. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt and feed the shoulder
belt back into the retractor. When
installing a forward-facing child
restraint, it may be helpful to use
your knee to push down on
the child restraint as you tighten
the belt.6. If the child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether. SeeLower Anchors and
Tethers for Children (LATCH)
on page 1-37for more
information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
1-44 Seats and Restraint System
ProCarManuals.com

Securing a Child
Restraint in the Right
Front Seat Position
The vehicle has airbags. A rear seat
is a safer place to secure a
forward-facing child restraint. See
Where to Put the Restraint on
page 1-35.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal airbag and
seat-mounted side impact airbag
under certain conditions. See
Passenger Sensing System on
page 1-55andPassenger Airbag
Status Indicator on page 3-34
for more information, including
important safety information.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag inates. This is because the
back of the rear-facing child
restraint would be very close to the
inating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if the
right front passenger airbag
inates and the passenger seat is
in a forward position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
(Continued)
CAUTION (Continued)
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.
SeePassenger Sensing System
on page 1-55for additional
information.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-37for how and where to
install the child restraint using
LATCH. If a child restraint is secured
using a safety belt and it uses a
top tether, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-37for top tether anchor
locations.
Seats and Restraint System 1-45
ProCarManuals.com

Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with
the child restraint say that the top
strap must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
You will be using the lap-shoulder
belt to secure the child restraint in
this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the
right front passenger frontal
airbag and seat-mounted side
impact airbag, the off indicator on
the passenger airbag status
indicator should light and stay litwhen the vehicle is started. See
Passenger Airbag Status
Indicator on page 3-34.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run
the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.
4. Push the latch plate into the
buckle until it clicks.Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.
1-46 Seats and Restraint System
ProCarManuals.com
