How to Check Power Steering
Fluid
To check the power steering uid:
1. Turn the key off and let the
engine compartment cool down.
2. Remove engine oil ll cap.
3. Slide engine cover rearward and
lift to remove.
4. Wipe the cap and the top of the
reservoir clean.
5. Unscrew the cap and wipe the
dipstick with a clean rag.
6. Replace the cap and completely
tighten it.
7. Remove the cap again and look
at the uid level on the dipstick.
The uid level should be somewhere
between MAX and MIN line on the
dipstick in room temperature. If the
uid is on or below MIN line, you
should add uid close to MAX Line.
What to Use
To determine what kind of uid to
use, seeRecommended Fluids and
Lubricants on page 6-12. Always
use the proper uid.
Notice:Use of the incorrect uid
may damage the vehicle and the
damages may not be covered by
the vehicle’s warranty. Always
use the correct uid listed in
Recommended Fluids and
Lubricants on page 6-12.
Windshield Washer Fluid
What to Use
When adding windshield washer
uid, be sure to read the
manufacturer’s instructions before
use. If the vehicle will be operating
in an area where the temperature
may fall below freezing, use a
uid that has sufficient protection
against freezing.
Adding Washer Fluid
When the windshield washer uid
reservoir is low, a WASHER FLUID
LOW ADD FLUID message will be
displayed on the Driver Information
Center (DIC). SeeDIC Warnings and
Messages on page 3-56for more
information.
Open the cap with the washer
symbol on it. Add washer uid
until the tank is full. SeeEngine
Compartment Overview on
page 5-12for reservoir location.
5-26 Service and Appearance Care
ProCarManuals.com

When a low tire pressure condition is
detected, the TPMS illuminates the
low tire pressure warning light
located on the instrument panel
cluster.
At the same time a message to
check the pressure in a specic tire
appears on the Driver Information
Center (DIC) display. The low tire
pressure warning light and the DIC
warning message come on at each
ignition cycle until the tires are
inated to the correct ination
pressure. Using the DIC, tire
pressure levels can be viewed by the
driver. For additional information and
details about the DIC operation and
displays seeDIC Operation and
Displays (With DIC Buttons) on
page 3-45orDIC Operation andDisplays (Without DIC Buttons) on
page 3-50andDIC Warnings and
Messages on page 3-56.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be inated
to the proper pressure.
A Tire and Loading Information
label, attached to your vehicle,
shows the size of your vehicle’s
original equipment tires and
the correct ination pressure for
your vehicle’s tires when they
are cold. SeeLoading the Vehicle
on page 4-18, for an example of the
Tire and Loading Information
label and its location on your
vehicle. Also seeInflation - Tire
Pressure on page 5-45.Your vehicle’s TPMS can warn you
about a low tire pressure condition
but it does not replace normal
tire maintenance. SeeTire
Inspection and Rotation on
page 5-52andTires on page 5-39.
Notice:Using non-approved tire
sealants could damage the Tire
Pressure Monitor System (TPMS)
sensors. TPMS sensor damage
caused by using an incorrect tire
sealant is not covered by the
vehicle warranty. Always use the
GM approved tire sealant available
through your dealer/retailer.
Factory-installed Tire Inator Kits
use a GM approved liquid tire
sealant. Using non-approved tire
sealants could damage the TPMS
sensors. SeeTire Sealant and
Compressor Kit on page 5-62for
information regarding the inator kit
materials and instructions.
Service and Appearance Care 5-49
ProCarManuals.com

TPMS Malfunction Light and
Message
The TPMS will not function properly
if one or more of the TPMS sensors
are missing or inoperable. When the
system detects a malfunction, the
low tire warning light ashes for
about one minute and then stays on
for the remainder of the ignition
cycle. A DIC warning message is
also displayed. The low tire warning
light and DIC warning message
come on at each ignition cycle until
the problem is corrected. Some of
the conditions that can cause the
malfunction light and DIC message
to come on are:
One of the road tires has been
replaced with the spare tire, if
your vehicle has one. The spare
tire does not have a TPMS
sensor. The TPMS malfunction
light and DIC message should go
off once you re-install the road tire
containing the TPMS sensor.
The TPMS sensor matching
process was started but not
completed or not completed
successfully after rotating the
vehicle’s tires. The DIC message
and TPMS malfunction light
should go off once the TPMS
sensor matching process is
performed successfully. See
“TPMS Sensor Matching Process”
later in this section.
One or more TPMS sensors
are missing or damaged. The
DIC message and the TPMS
malfunction light should go off
when the TPMS sensors are
installed and the sensor
matching process is performed
successfully. See your dealer/
retailer for service.
Replacement tires or wheels do
not match your vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for your vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 5-54.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning it
cannot detect or signal a low tire
condition. See your dealer/retailer for
service if the TPMS malfunction light
and DIC message comes on and
stays on.
5-50 Service and Appearance Care
ProCarManuals.com

TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identication code. Any time you
rotate your vehicle’s tires or replace
one or more of the TPMS sensors,
the identication codes will need to
be matched to the new tire/wheel
position. The sensors are matched
to the tire/wheel positions in the
following order: driver side front tire,
passenger side front tire, passenger
side rear tire, and driver side rear
tire using a TPMS diagnostic tool.
See your dealer/retailer for service.
The TPMS sensors can also be
matched to each tire/wheel position
by increasing or decreasing the
tire’s air pressure. If increasing the
tire’s air pressure, do not exceed
the maximum ination pressure
indicated on the tire’s sidewall.
To decrease air-pressure out of
a tire you can use the pointed end
of the valve cap, a pencil-style
air pressure gage, or a key.You have two minutes to match
the rst tire/wheel position, and
ve minutes overall to match all
four tire/wheel positions. If it takes
longer than two minutes, to match
the rst tire and wheel, or more than
ve minutes to match all four tire
and wheel positions the matching
process stops and you need to
start over.
The TPMS sensor matching process
is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to
ON/RUN with the engine off.
3. Press the Remote Keyless
Entry (RKE) transmitter’s LOCK
and UNLOCK buttons at the
same time for approximately
ve seconds. The horn sounds
twice to signal the receiver
is in relearn mode and TIRE
LEARNING ACTIVE message
displays on the DIC screen.4. Start with the driver side front tire.
5. Remove the valve cap from
the valve cap stem. Activate the
TPMS sensor by increasing or
decreasing the tire’s air pressure
for ve seconds, or until a horn
chirp sounds. The horn chirp,
which may take up to 30 seconds
to sound, conrms that the sensor
identication code has been
matched to this tire and wheel
position.
6. Proceed to the passenger
side front tire, and repeat
the procedure in Step 5.
7. Proceed to the passenger
side rear tire, and repeat
the procedure in Step 5.
Service and Appearance Care 5-51
ProCarManuals.com

8. Proceed to the driver side rear
tire, and repeat the procedure
in Step 5. The horn sounds
two times to indicate the sensor
identication code has been
matched to the driver side rear
tire, and the TPMS sensor
matching process is no longer
active. The TIRE LEARNING
ACTIVE message on the
DIC display screen goes off.
9. Turn the ignition switch to
LOCK/OFF.
10. Set all four tires to the
recommended air pressure level
as indicated on the Tire and
Loading Information label.
11. Put the valve caps back on the
valve stems.Tire Inspection and
Rotation
We recommend that you
regularly inspect the vehicle’s
tires, including the spare tire, if
the vehicle has one, for signs of
wear or damage. SeeWhen It Is
Time for New Tires on page 5-54
for more information.
Tires should be rotated every
5,000 to 8,000 miles (8 000
to 13 000 km). SeeScheduled
Maintenance on page 6-3.
The purpose of a regular tire
rotation is to achieve a uniform
wear for all tires on the vehicle.
This will ensure that the vehicle
continues to perform most like it
did when the tires were new.
Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.SeeWhen It Is Time for New
Tires on page 5-54andWheel
Replacement on page 5-59.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.
If the vehicle has a compact
spare tire, do not include it in the
tire rotation.
5-52 Service and Appearance Care
ProCarManuals.com

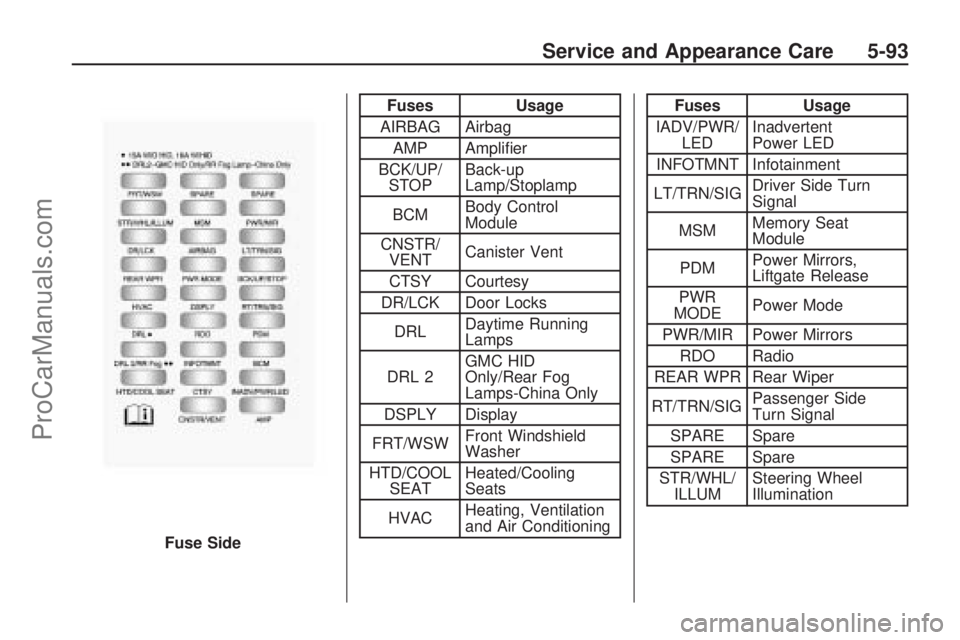

Fuses Usage
AIRBAG Airbag
AMP Amplier
BCK/UP/
STOPBack-up
Lamp/Stoplamp
BCMBody Control
Module
CNSTR/
VENTCanister Vent
CTSY Courtesy
DR/LCK Door Locks
DRLDaytime Running
Lamps
DRL 2GMC HID
Only/Rear Fog
Lamps-China Only
DSPLY Display
FRT/WSWFront Windshield
Washer
HTD/COOL
SEATHeated/Cooling
Seats
HVACHeating, Ventilation
and Air ConditioningFuses Usage
IADV/PWR/
LEDInadvertent
Power LED
INFOTMNT Infotainment
LT/TRN/SIGDriver Side Turn
Signal
MSMMemory Seat
Module
PDMPower Mirrors,
Liftgate Release
PWR
MODEPower Mode
PWR/MIR Power Mirrors
RDO Radio
REAR WPR Rear Wiper
RT/TRN/SIGPassenger Side
Turn Signal
SPARE Spare
SPARE Spare
STR/WHL/
ILLUMSteering Wheel
Illumination
Fuse Side
Service and Appearance Care 5-93
ProCarManuals.com

To purchase service information,
seeService Publications Ordering
Information on page 7-15.
Owner Checks and Services on
page 6-9tells what should be
checked, when to check it, and what
can easily be done to help keep
the vehicle in good condition.
The proper replacement parts,
uids, and lubricants to use
are listed inRecommended Fluids
and Lubricants on page 6-12
andMaintenance Replacement
Parts on page 6-14. When the
vehicle is serviced, make sure these
are used. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle. We recommend
the use of genuine parts from
your dealer/retailer.Scheduled Maintenance
When the CHANGE ENGINE
OIL SOON message displays,
service is required for the vehicle.
Have the vehicle serviced as
soon as possible within the next
600 miles (1 000 km). It is possible
that, if driving under the best
conditions, the engine oil life system
might not indicate that vehicle
service is necessary for over a year.
However, the engine oil and lter
must be changed at least once
a year and at this time the system
must be reset. Your dealer/retailer
has trained service technicians
who will perform this work using
genuine parts and reset the system.If the engine oil life system is ever
reset accidentally, service the vehicle
within 3,000 miles (5 000 km) since
the last service. Remember to reset
the oil life system whenever the oil
is changed. SeeEngine Oil Life
System on page 5-15for information
on the Engine Oil Life System and
resetting the system.
When the CHANGE ENGINE OIL
SOON message appears, certain
services, checks, and inspections
are required. Required services
are described in the following
for “MaintenanceI” and
“MaintenanceII.” Generally, it is
recommended that the rst service
be MaintenanceI, the second
service be MaintenanceII, and then
alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceIImay
be required more often.
Maintenance Schedule 6-3
ProCarManuals.com

MaintenanceI—Use
Maintenance Iif the CHANGE
ENGINE OIL SOON message
displays within 10 months since the
vehicle was purchased or
Maintenance IIwas performed. Maintenance
II—Use
Maintenance IIif the previous
service performed was
Maintenance I. Always use
Maintenance IIwhenever the message displays 10 months or
more since the last service or if the
message has not come on at all for
one year.
Scheduled Maintenance
Service
MaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 5-13. Reset oil life
system. See Engine Oil Life System on page 5-15 .An Emission Control
Service. ••
Visually check for any leaks or damage. See footnote (g). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-17 .See footnote (l). •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 5-52 and “Tire Wear Inspection” in At Least Once a Month
on page 6-10. ••
6-4 Maintenance Schedule
ProCarManuals.com

Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certied for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle’s engine, see
Engine Oil on page 5-13
.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 5-19 .
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88862806,
in Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184,
in Canada 89021186).
6-12 Maintenance Schedule
ProCarManuals.com

Driver
Seat Height Adjuster........... 1-3
Driver Information
Center (DIC)....................3-44
DIC Operation and
Displays...............3-45, 3-50
DIC Vehicle
Customization...............3-65
DIC Warnings and
Messages....................3-56
Driving
At Night..........................4-11
Before a Long Trip............4-13
Defensive.......................... 4-2
Drunk............................... 4-2
Highway Hypnosis............4-13
Hill and Mountain Roads.....4-14
In Rain and on
Wet Roads...................4-12
Loss of Control................4-10
Off-Road Recovery............. 4-9
Rocking Your Vehicle to
Get it Out ....................4-18
Winter.............................4-15
Driving for Better Fuel
Economy........................... 4-1Dual Automatic Climate
Control System.................3-22
DVD
Rear Seat Entertainment
System......................3-114
E
EDR ..................................7-16
Electrical Equipment
Add-On Equipment............5-92
Electrical System
Fuses and Circuit
Breakers......................5-92
Instrument Panel Fuse
Block...........................5-92
Power Windows and Other
Power Options..............5-92
Underhood Fuse Block......5-94
Windshield Wiper Fuses....5-92
Electronic Immobilizer
PASS-Key
®III+................2-18
Electronic Immobilizer
Operation
PASS-Key
®III+................2-18Engine
Air Cleaner/Filter...............5-17
Check and Service Engine
Soon Lamp..................3-39
Compartment Overview......5-12
Coolant...........................5-19
Coolant Heater.................2-23
Coolant
Temperature Gage.........3-38
Coolant Temperature
Warning Light...............3-38
Cooling System................5-19
Drive Belt Routing.............6-15
Exhaust...........................2-30
Oil ..................................5-13
Oil Life System.................5-15
Overheated Protection
Operating Mode............5-25
Overheating.....................5-23
Starting...........................2-22
Entry Lighting......................3-14
Event Data Recorders..........7-17
Extender, Safety Belt............1-28
Exterior Lamps....................3-11
i-4 INDEX
ProCarManuals.com
