c(Stop):Press to stop playing,
rewinding, or fast forwarding a DVD.
r(Enter):Press to select the
choices that are highlighted in
any menu.
y(Menu):Press to access the
DVD menu. The DVD menu is
different on every DVD. Use the
pushbuttons located under the
navigation arrows to navigate the
cursor through the DVD menu.
After making a selection press this
button. This button only operates
when using a DVD.
Nav (Navigate):Press to display
directional arrows for navigating
through the menus.
q(Return):Press to exit the
current active menu and return to
the previous menu. This button
operates only when a DVD is
playing and a menu is active.DVD-A (Audio) Display Buttons
Once a DVD-A is inserted, the radio
display menu shows several icons.
Press the pushbuttons located
under any desired icon during DVD
playback. See the icon list below
for more information.
The rear seat operator can
navigate the DVD-A menus and
controls through the remote control.
See “Remote Control”, underRear
Seat Entertainment (RSE) System
on page 3-114for more information.
The Video Screen does not
automatically power on when the
DVD-A is inserted into the DVD slot.
It must be manually turned on by
the rear seat occupant through
the remote control power button.
r/j(Play/Pause):Press either
the play or pause icon displayed
on the radio system, to toggle
between pausing or restarting
playback of a DVD.
If the forward arrow is showing
on display, the system is in
pause mode.
If the pause icon is showing
on display, the system is in
playback mode.
qGroupr:Press to cycle
through musical groupings on
the DVD-A disc.
Nav (Navigate):Press to display
directional arrows for navigating
through the menus.
e(Audio Stream):Press to
cycle through audio stream
formats located on the DVD-A disc.
The video screen shows the audio
stream changing.
Instrument Panel 3-89
ProCarManuals.com

Inserting a Disc
To play a disc, gently insert the
disc, with the label side up, into the
loading slot. The DVD player might
not accept some paper labeled
media. The player starts loading the
disc into the system and shows
“Loading Disc” on the radio display.
At the same time, the radio displays
a softkey menu of option(s). Some
discs automatically play the movie
while others default to the softkey
menu display, which requires the
Play, Enter, or Navigation softkeys
to be pressed; either by the softkey
on the radio or by the rear seat
passenger using the remote control.
It may take up to 30 seconds for a
DVD to begin playing.Stopping and Resuming Playback
To stop playing a DVD without
turning off the system, do one
of the following:
Presscon the remote control.
Press the pushbutton located
under the stop or the play/pause
icons displayed on the radio.
If the radio head is sourced to
something other than DVD-V,
press the DVD/CD AUX button to
make DVD-V the active source.
To resume DVD playback, do one
of the following:
Pressr/jon the remote
control.
Press the pushbutton located
under the play/pause icon
displayed on the radio.The DVD should resume play from
where it last stopped if the disc has
not been ejected and the stop button
has not been pressed twice on the
remote control. If the disc has been
ejected or the stop button has been
pressed twice on the remote control,
the disc resumes playing at the
beginning of the disc.
Ejecting a Disc
Press
ZDVD on the radio to eject
the disc. If a disc is ejected from the
radio, but not removed, the radio
reloads the disc after a short period
of time. The disc is stored in the
radio. The radio does not resume
play of the disc automatically. If the
movie is reloaded and the RSA
system is sourced to the DVD, the
player begins to play again. If loading
and reading a DVD or CD cannot be
completed, and the disc fails to eject,
press and hold
ZDVD for more
than ve seconds to force the disc
to eject.
3-90 Instrument Panel
ProCarManuals.com

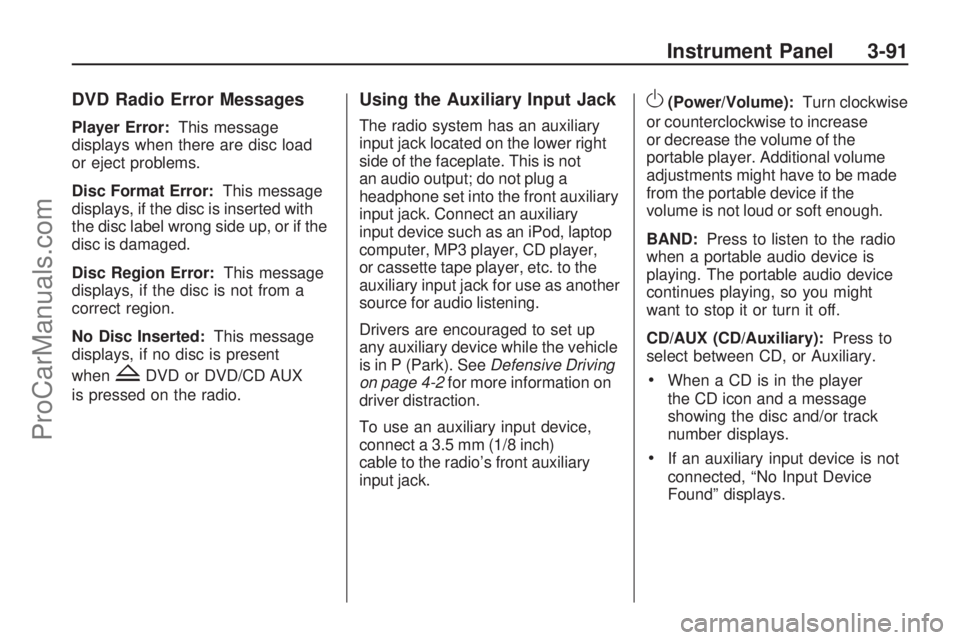

DVD Radio Error Messages
Player Error:This message
displays when there are disc load
or eject problems.
Disc Format Error:This message
displays, if the disc is inserted with
the disc label wrong side up, or if the
disc is damaged.
Disc Region Error:This message
displays, if the disc is not from a
correct region.
No Disc Inserted:This message
displays, if no disc is present
when
ZDVD or DVD/CD AUX
is pressed on the radio.
Using the Auxiliary Input Jack
The radio system has an auxiliary
input jack located on the lower right
side of the faceplate. This is not
an audio output; do not plug a
headphone set into the front auxiliary
input jack. Connect an auxiliary
input device such as an iPod, laptop
computer, MP3 player, CD player,
or cassette tape player, etc. to the
auxiliary input jack for use as another
source for audio listening.
Drivers are encouraged to set up
any auxiliary device while the vehicle
is in P (Park). SeeDefensive Driving
on page 4-2for more information on
driver distraction.
To use an auxiliary input device,
connect a 3.5 mm (1/8 inch)
cable to the radio’s front auxiliary
input jack.
O(Power/Volume):Turn clockwise
or counterclockwise to increase
or decrease the volume of the
portable player. Additional volume
adjustments might have to be made
from the portable device if the
volume is not loud or soft enough.
BAND:Press to listen to the radio
when a portable audio device is
playing. The portable audio device
continues playing, so you might
want to stop it or turn it off.
CD/AUX (CD/Auxiliary):Press to
select between CD, or Auxiliary.
When a CD is in the player
the CD icon and a message
showing the disc and/or track
number displays.
If an auxiliary input device is not
connected, “No Input Device
Found” displays.
Instrument Panel 3-91
ProCarManuals.com

DVD/CD AUX (Auxiliary):Press
to select between DVD, CD,
or Auxiliary.
If an auxiliary input device is not
connected, “No Aux Input Device”
displays.
When a disc is in either slot,
the DVD/CD text label and a
message showing the track or
chapter number displays.
If an auxiliary input device is not
connected, and a disc is in both
the DVD slot and the CD slot the
DVD/CD AUX button only cycles
between the two sources and
does not indicate “No Aux Input
Device”.
If a front auxiliary input device is
connected, the DVD/CD AUX
button cycles through all available
options.
If a disc is inserted into top DVD
slot, the rear seat operator can turn
on the video screen and use the
remote control to only navigate
the CD tracks through the remote
control.
See “Using the Auxiliary Input
Jack(s)” later in this section, or
“Audio/Video (A/V) Jacks” under,
Rear Seat Entertainment (RSE)
System on page 3-114for more
information.Using an MP3
(Radio with CD)
MP3/WMA CD-R or
CD-RW Disc
The radio plays MP3/WMA les that
were recorded on a CD-R or CD-RW
disc. The les can be recorded with
the following xed bit rates: 32 kbps,
40 kbps, 56 kbps, 64 kbps, 80 kbps,
96 kbps, 112 kbps, 128 kbps,
160 kbps, 192 kbps, 224 kbps,
256 kbps, and 320 kbps or a variable
bit rate. Song title, artist name, and
album are available for display by the
radio when recorded using ID3 tags
version 1 and 2.
3-92 Instrument Panel
ProCarManuals.com

Compressed Audio
The radio also plays discs that
contain both uncompressed CD
audio (.CDA les) and MP3/WMA
les. The radio plays both le formats
in the order in which they were
recorded to the disc.
MP3/WMA Format
Creating an MP3/WMA disc on a
personal computer:
Make sure the MP3/WMA les
are recorded on a CD-R or
CD-RW disc.
Do not mix standard audio and
MP3/WMA les on one disc.
The CD player is able to
read and play a maximum of
50 folders, 15 playlists, and a
combined total of 512 folders
and les.
Create a folder structure that
makes it easy to nd songs
while driving. Organize songs
by albums using one folder for
each album. Each folder or album
should contain 18 songs or less.
Avoid subfolders. The system can
support up to eight subfolders
deep, however, keep the total
number of folders to a minimum
in order to reduce the complexity
and confusion in trying to locate a
particular folder during playback.
Make sure playlists have a .mp3
or .wpl extension (other le
extensions might not work).
Minimize the length of the le,
folder, or playlist names. Long le,
folder, or playlist names, or a
combination of a large number
of les and folders, or playlists
could cause the player to be
unable to play up to the maximum
number of les, folders, playlists,or sessions. To play a large
number of les, folders, playlists
or sessions, minimize the length
of the le, folder, or playlist name.
Long names also take up more
space on the display, potentially
getting cut off.
Finalize the audio disc before
burning it. Trying to add music to
an existing disc could cause the
disc not to function in the player.
Change playlists by using
Scand
cTfolder buttons, thefknob, or
the SEEK arrows. An MP3/WMA
CD-R or CD-RW that was recorded
using no le folders can be played.
If a CD-R or CD-RW contains more
than the maximum of 50 folders,
15 playlists, and a combined total
of 512 folders and les, the player
accesses and navigates up to the
maximum, but all items over the
maximum are not accessible.
Instrument Panel 3-93
ProCarManuals.com

Root Directory
The root directory of the CD-R
or CD-RW is treated as a folder.
If the root directory has compressed
audio les, the directory displays
as the CD label. All les contained
directly under the root directory are
accessed prior to any root directory
folders. However, playlists (Px) are
always accessed before root folders
or les.
If a disc contains both
uncompressed CD audio (.CDA)
and MP3/WMA les, a folder
under the root directory called
CD accesses all of the CD audio
tracks on the disc.Empty Directory or Folder
If a root directory or a folder exists
somewhere in the le structure that
contains only folders/subfolders and
no compressed les directly beneath
them, the player advances to the
next folder in the le structure that
contains compressed audio les.
The empty folder does not display.
No Folder
When the CD-R or CD-RW disc
contains only compressed les,
the les are located under the
root folder. The next and previous
folder function does not display on
a CD-R or CD-RW disc that was
recorded without folders or playlists.
When the CD-R or CD-RW
disc contains only playlists and
compressed audio les, but no
folders, all les are located under
the root folder. The folder down and
up buttons search playlists (Px) rst
and then goes to the root folder.Order of Play
Tracks recorded to the CD-R or
CD-RW disc are played in the
following order:
Play begins from the rst track
in the rst playlist and continues
sequentially through all tracks in
each playlist. When the last track
of the last playlist has played, play
continues from the rst track of
the rst playlist.
Play begins from the rst track in
the rst folder and continues
sequentially through all tracks in
each folder. When the last track of
the last folder has played, play
continues from the rst track of
the rst folder.
When play enters a new folder,
the display does not automatically
show the new folder name unless
the folder mode is chosen as the
default display. The new track name
displays.
3-94 Instrument Panel
ProCarManuals.com

File System and Naming
The song name that displays is the
song name that is contained in the
ID3 tag. If the song name is not
present in the ID3 tag, then the radio
displays the le name without the
extension (such as .mp3) as the
track name.
Track names longer than
32 characters or four pages are
shortened. Parts of words on the
last page of text and the extension
of the lename does not display.
Preprogrammed Playlists
Preprogrammed playlists that
were created using WinAmp™,
MusicMatch™, or Real Jukebox™
software can be accessed, however,
they cannot be edited using the
radio. These playlists are treated
as special folders containing
compressed audio song les.Playing an MP3/WMA
Insert a CD-R or CD-RW disc
partway into the slot label side up.
The player pulls it in, and the
CD-R or CD-RW should begin
playing.
ZEJECT:Press to eject the disc.
f(Tune):Turn to select MP3/WMA
les on the CD-R or CD-RW
currently playing.
©SEEK¨:Press the left
SEEK arrow to go to the start of
the current MP3/WMA le, if more
than ten seconds have played.
Press the right SEEK arrow to go
to the next MP3/WMA le. If either
SEEK arrow is held or pressed
multiple times, the player continues
moving backward or forward through
MP3/WMA les on the CD.
Sc(Previous Folder):Press
the pushbutton positioned under
the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press
the pushbutton positioned under
the Folder label to go to the
rst track in the next folder.
sREV (Reverse):Press and
hold this button to reverse playback
quickly within an MP3/WMA le.
Sound is heard at a reduced volume.
Release this button to resume
playing the le. The elapsed time
of the le displays.
\FWD (Fast Forward):Press
and hold this button to advance
playback quickly within an MP3/
WMA le. Sound is heard at a
reduced volume. Release this
button to resume playing the le.
The elapsed time of the le displays.
Instrument Panel 3-95
ProCarManuals.com

RDM (Random):With the random
setting, MP3/WMA les on the
CD-R or CD-RW can be listened to
in random, rather than sequential
order.
To play MP3/WMA les from the
CD-R or CD-RW in random order,
press the pushbutton positioned
under the RDM label until Random
Current Disc displays. Press the
same pushbutton again to turn off
random play.
h(Music Navigator):Use
the music navigator feature to play
MP3/WMA les on the CD-R or
CD-RW in order by artist or album.
Press the pushbutton located below
the music navigator label. The player
scans the disc to sort the les by
artist and album ID3 tag information.
It could take several minutes to scan
the disc depending on the numberof MP3/WMA les recorded to the
CD-R or CD-RW disc. The radio can
begin playing while it is scanning the
disc in the background. When the
scan is nished, the CD-R or CD-RW
begins playing again.
Once the disc has scanned, the
player defaults to playing MP3/WMA
les in order by artist. The current
artist playing is shown on the second
line of the display between the
arrows. Once all songs by that artist
are played, the player moves to the
next artist in alphabetical order on
the CD-R or CD-RW and begins
playing MP3/WMA les by that artist.
To listen to MP3/WMA les by
another artist, press the pushbutton
located below either arrow button.
The player goes to the next or
previous artist in alphabetical order.
Continue pressing either button until
the desired artist is displayed.To change from playback by artist
to playback by album, press the
pushbutton located below the Sort
By label. From the sort screen, push
one of the buttons below the album
button. Press the pushbutton below
the back label to return to the main
music navigator screen. Now the
album name is displayed on the
second line between the arrows and
songs from the current album begins
to play. Once all songs from that
album are played, the player moves
to the next album in alphabetical
order on the CD-R or CD-RW and
begins playing MP3/WMA les from
that album.
To exit music navigator mode, press
the pushbutton below the Back label
to return to normal MP3/WMA
playback.
3-96 Instrument Panel
ProCarManuals.com

Using an MP3 (Radio
with CD and DVD Player)
MP3/WMA CD-R or
CD-RW Disc
Compressed Audio or Mixed
Mode Discs
The radio also plays discs that
contain both uncompressed CD
audio (.CDA les) and MP3/WMA
les depending on which slot the disc
is loaded into. By default the radio
reads only the uncompressed audio
(.CDA) and ignores the MP3/WMA
les on the DVD deck. On the CD
deck, pressing the CAT (category)
button toggles between compressed
and uncompressed audio format,
the default being the uncompressed
format (.CDA).MP3/WMA Format
To create an MP3/WMA disc on a
personal computer:
Make sure the MP3/WMA les
are recorded on a CD-R or
CD-RW disc.
Do not mix standard audio and
MP3/WMA les on one disc.
The CD player (lower slot) is
able to read and play a maximum
combination of 512 les and
folders. The DVD player (upper
slot) is able to read 255 folders,
15 playlists and 40 sessions.
Create a folder structure that
makes it easy to nd songs
while driving. Organize songs
by albums using one folder for
each album. Each folder or album
should contain 18 songs or less.
Avoid subfolders. The system can
support up to eight subfolders
deep, however, keep the total
number of folders to a minimum inorder to reduce the complexity
and confusion in trying to locate a
particular folder during playback.
Make sure playlists have a .m3u,
.wpl or .pls extension as other le
extensions might not work.
Minimize the length of the le,
folder or playlist names. Long le,
folder, or playlist names, or a
combination of a large number of
les and folders, or playlists could
cause the player to be unable to
play up to the maximum number
of les, folders, playlists, or
sessions. To play a large number
of les, folders, playlists, or
sessions, minimize the length of
the le, folder, or playlist name.
Long names also take up more
space on the display, potentially
getting cut off.
Finalize the audio disc before
burning it. Trying to add music to
an existing disc could cause the
disc not to function in the player.
Instrument Panel 3-97
ProCarManuals.com

Root Directory
The root directory of the CD-R or
CD-RW disc is treated as a folder.
If the root directory has compressed
audio les, the directory is displayed
as F1 ROOT. All les contained
directly under the root directory are
accessed prior to any root directory
folders. However, playlists (Px) are
always accessed before root folders
or les.
Empty Directory or Folder
If a root directory or a folder exists
somewhere in the le structure that
contains only folders/subfolders and
no compressed les directly beneath
them, the player advances to the
next folder in the le structure that
contains compressed audio les.
The empty folder does not display.No Folder
When the CD-R or CD-RW disc
contains only compressed les, the
les are located under the root folder.
The next and previous folder function
does not function on a CD-R or
CD-RW that was recorded without
folders or playlists. When displaying
the name of the folder the radio
displays ROOT.
When the CD-R or CD-RW disc
contains only playlists and
compressed audio les, but no
folders, all les are located under
the root folder. The folder down
and the folder up buttons search
playlists (Px) rst and then goes
to the root folder. When the radio
displays the name of the folder the
radio displays ROOT.Order of Play
Tracks recorded to the CD-R or
CD-RW disc are played in the
following order:
Play begins from the rst track
in the rst playlist and continues
sequentially through all tracks in
each playlist. When the last track
of the last playlist has played, play
continues from the rst track of
the rst playlist.
Play begins from the rst track in
the rst folder and continues
sequentially through all tracks in
each folder. When the last track of
the last folder has played, play
continues from the rst track of
the rst folder.
When play enters a new folder,
the display does not automatically
show the new folder name
unless the folder mode has been
chosen as the default display.
The new track name displays.
3-98 Instrument Panel
ProCarManuals.com
