SATURN VUE 2009 Owners Manual

FusesUsage
FAN MAIN Cooling Fan Main
REAR/WPR Rear Wiper Motor
FAN AUX Cooling Fan
AuxiliaryFuses
Usage
ECM/TCM/ SGCM Engine Control
Module/
Transmission
Control Module/
Serial Data Gateway
Communication
Module
Fuses
Usage
ECM Engine Control
Module
ENG-3 Engine 3
ENG-2 Engine 2
ENG-1 Engine 1
HYBRID BEC Not Used
RUN Run
S/ROOF Sunroof Module
HTD/SEAT Heated Seat Control
Module
BCM Body Control
Module
STRTR Starter Motor WPR Windshield Wiper
Service and Appearance Care 5-83
ProCarManuals.com

Fuses Usage
4WD/ESCMAll-Wheel Drive
System
ABSAntilock Brake
System Module
A/C CLTCHAir Conditioning
Compressor
BLWR MTR Blower Motor
AMP Amplier
HORN Horn
ABSAntilock Brake
System Module
I/P BECInstrument Panel
Bussed Electrical
CenterFuses Usage
FRT FOG Front Fog Lamps
I/P BECInstrument Panel
Bussed Electrical
Center
DRLDaytime Running
Light
T/LAMP RTRight Turn and
Parking Lamps
T/LAMP LTLeft Turn and
Parking Lamps
TRLR
T/LAMPTrailer Parking
Lamps
HDLPHILTPassenger Side
High-Beam
HeadlampFuses Usage
STOP LP Stoplamps
DEFOG Defroster Fog
HDLP
LO RTDriver Side
Low-Beam
Headlamp
HDLP
LO LTPassenger Side
Low-Beam
Headlamp
HDLP
HI RTDriver Side
High-Beam
Headlamp
OSRVM
HTROutside Rearview
Mirror Heating
5-84 Service and Appearance Care
ProCarManuals.com

Relays Usage
FAN MAIN
RLYCooling Fan Main
Relay
FAN CTRL
RLYCooling Fan Control
Relay
FAN AUX
RLYCooling Fan
Auxiliary Relay
PWR/TRN
RLYEngine Control
Module/CAM,
Canister, Injectors,
Electronic Throttle
Control Relay
STRTR
RLYStarter RelayRelays Usage
RUN RLY Run Relay
A/C CLTCH
RLYAir Conditioning
Compressor Relay
WPR SPD
RLYWindshield Wiper
Speed Relay
HORN RLY Horn Relay
WPR
CNTRL
RLYWindshield Wiper
Control Relay
T/LAMP
RLYParking Lamp RelayRelays Usage
HDLP HI
RLYHigh-Beam
Headlamp Relay
HDLP LO
RLYLow-Beam
Headlamp Relay
FRT FOG
RLYFront Foglamp
Relay
STOP LP
RLYStoplamp Relay
DEFOG
RLYDefogger Relay
Service and Appearance Care 5-85
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more information.
Engine Cooling System 2.4L L4 Engine 9.0 qt 8.5 L
3.5L V6 Engine 11.0 qt 10.4 L
3.6L V6 Engine 11.5 qt 10.9 L
Engine Oil with Filter 2.4L L4 Engine 5.0 qt 4.7 L
3.5L V6 Engine 4.0 qt 3.8 L
3.6L V6 Engine 5.5 qt 5.2 L
Fuel Tank All Wheel Drive 16.7 gal 63.0 L
Front Wheel Drive 19.2 gal 73.0 L
5-86 Service and Appearance Care
ProCarManuals.com

ApplicationCapacities
English Metric
Transmission Fluid* Four-Speed Automatic 6.9 qt 6.5 L
Six-Speed Automatic 9.5 qt 9.0 L
Wheel Nut Torque 100 ft lb 140 Y
*Transmission uid capacity is approximate. See Automatic Transmission Fluid on page 5-18for information on
checking uid level.
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN CodeTransmission Spark Plug Gap
2.4L L4 (LE5) PAutomatic 0.040 in (1.01 mm)
3.5L V6 (LZ4) NAutomatic 0.040 in (1.01 mm)
3.6L V6 (LY7) 7Automatic 0.044 in (1.1 mm)
Service and Appearance Care 5-87
ProCarManuals.com

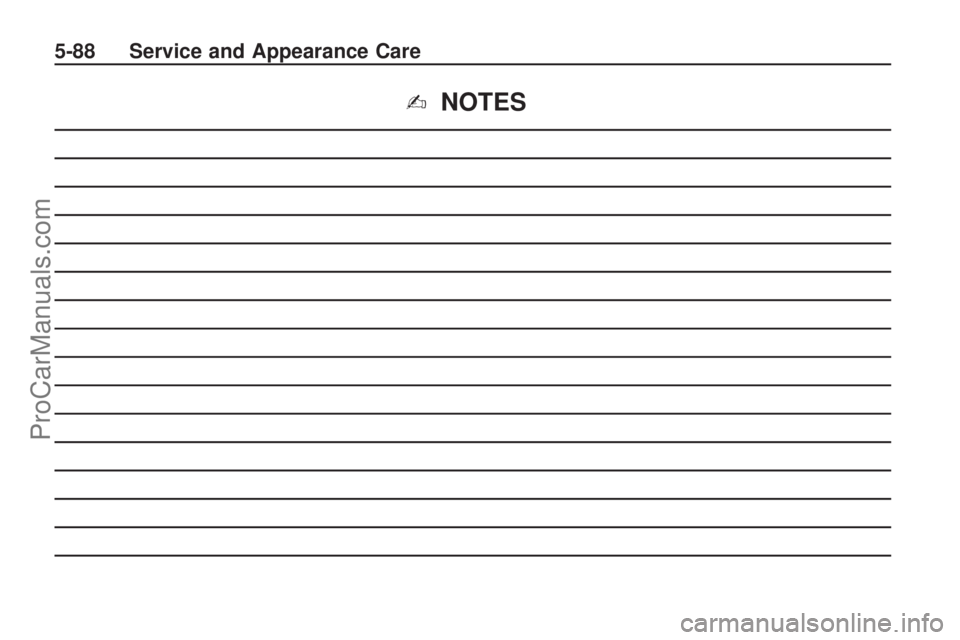

✍NOTES
5-88 Service and Appearance Care
ProCarManuals.com

Maintenance
Schedule
Maintenance ScheduleIntroduction..........................6-1
Maintenance Requirements.....6-1
Your Vehicle and the
Environment........................6-1
Using the Maintenance
Schedule............................6-2
Scheduled Maintenance.........6-3
Additional Required Services. . . .6-6
Maintenance Footnotes..........6-8
Owner Checks and
Services...........................6-10
At Each Fuel Fill.................6-10
At Least Once a Month........6-10
At Least Once a Year..........6-11
Recommended Fluids
and Lubricants...................6-13
Maintenance Replacement
Parts................................6-15
Engine Drive Belt Routing.....6-16
Maintenance Record............6-17
Maintenance
Schedule
Introduction
Important: Keep engine oil at the
proper level and change as
recommended.
Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even
affect the quality of the air we
breathe. Improper uid levels or the
wrong tire ination can increase
the level of emissions from the
vehicle. To help protect the
environment, and to keep the
vehicle in good condition, be sure to
maintain the vehicle properly.
Maintenance Schedule 6-1
ProCarManuals.com

Using the Maintenance
Schedule
We want to help keep this vehicle in
good working condition. But we
do not know exactly how you
will drive it. You might drive very
short distances only a few times a
week. Or you might drive long
distances all the time in very hot,
dusty weather. You might use
the vehicle in making deliveries. Or
you might drive it to work, to do
errands, or in many other ways.
Because of all the different
ways people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you
drive. If you have any questions on
how to keep the vehicle in good
condition, see your dealer/retailer.This schedule is for vehicles that:
carry passengers and cargo
within recommended limits on the
Tire and Loading Information
label. SeeLoading the Vehicle on
page 4-28.
are driven on reasonable road
surfaces within legal driving
limits.
are driven off-road in the
recommended manner. See
Off-Road Driving on page 4-13.
use the recommended fuel. See
Gasoline Octane on page 5-5.
The services inScheduled
Maintenance on page 6-3should be
performed when indicated. See
Additional Required Services
on page 6-6andMaintenance
Footnotes on page 6-8for further
information.
{CAUTION
Performing maintenance work on
a vehicle can be dangerous. In
trying to do some jobs, you can
be seriously injured. Do your own
maintenance work only if you
have the required know-how and
the proper tools and equipment
for the job. If you have any doubt,
see your dealer/retailer to have a
qualied technician do the work.
SeeDoing Your Own Service
Work on page 5-4.
Some maintenance services can be
complex. So, unless you are
technically qualied and have the
necessary equipment, have your
dealer/retailer do these jobs.
When you go to your dealer/retailer
for service, trained and supported
service technicians will perform
the work using genuine parts.
6-2 Maintenance Schedule
ProCarManuals.com

To purchase service information,
seeService Publications Ordering
Information on page 7-15.
Owner Checks and Services on
page 6-10tells what should
be checked, when to check it, and
what can easily be done to help
keep the vehicle in good condition.
The proper replacement parts,
uids, and lubricants to use are
listed inRecommended Fluids and
Lubricants on page 6-13and
Maintenance Replacement Parts on
page 6-15. When the vehicle is
serviced, make sure these are used.
All parts should be replaced and all
necessary repairs done before you
or anyone else drives the vehicle.
We recommend the use of genuine
parts from your dealer/retailer.Scheduled Maintenance
When the Change Engine Oil
light displays, service is required for
the vehicle. Have the vehicle
serviced as soon as possible within
the next 600 miles (1 000 km). It
is possible that, if driving under the
best conditions, the engine oil
life system may not indicate that
vehicle service is necessary for over
a year. However, the engine oil
and lter must be changed at least
once a year and at this time the
system must be reset. Your
dealer/retailer has trained service
technicians who will perform
this work using genuine parts and
reset the system.If the engine oil life system is ever
reset accidentally, service the vehicle
within 3,000 miles (5 000 km) since
the last service. Remember to reset
the oil life system whenever the oil is
changed. SeeEngine Oil Life
System on page 5-16for information
on the Engine Oil Life System and
resetting the system.
When the Change Engine Oil light
appears, certain services, checks,
and inspections are required.
Required services are described in
the following for “MaintenanceI”
and “MaintenanceII.” Generally, it is
recommended that the rst service
be MaintenanceI, the second
service be MaintenanceII, and then
alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceII
may be required more often.
Maintenance Schedule 6-3
ProCarManuals.com

MaintenanceI—Use
Maintenance Iif the Change Engine
Oil light displays within 10 months
since the vehicle was purchased or
Maintenance IIwas performed. Maintenance
II—Use
Maintenance IIif the previous
service performed was
Maintenance I. Always use Maintenance
IIwhenever the light
displays 10 months or more since
the last service or if the light has not
come on at all for one year.
Scheduled Maintenance
Service MaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 5-14. Reset oil life
system. See Engine Oil Life System on page 5-16 .An Emission Control
Service. ••
Visually check for any leaks or damage. See footnote (j). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-17 .See footnote (l). •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 5-56 and “Tire Wear Inspection” in At Least Once a Month on
page 6-10. ••
Inspect brake system. See footnote (a). ••
Check engine coolant and windshield washer uid levels and add uid as
needed. ••
6-4 Maintenance Schedule
