Seat Alhambra 2006 Owner's Manual

Unlocking and locking99
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

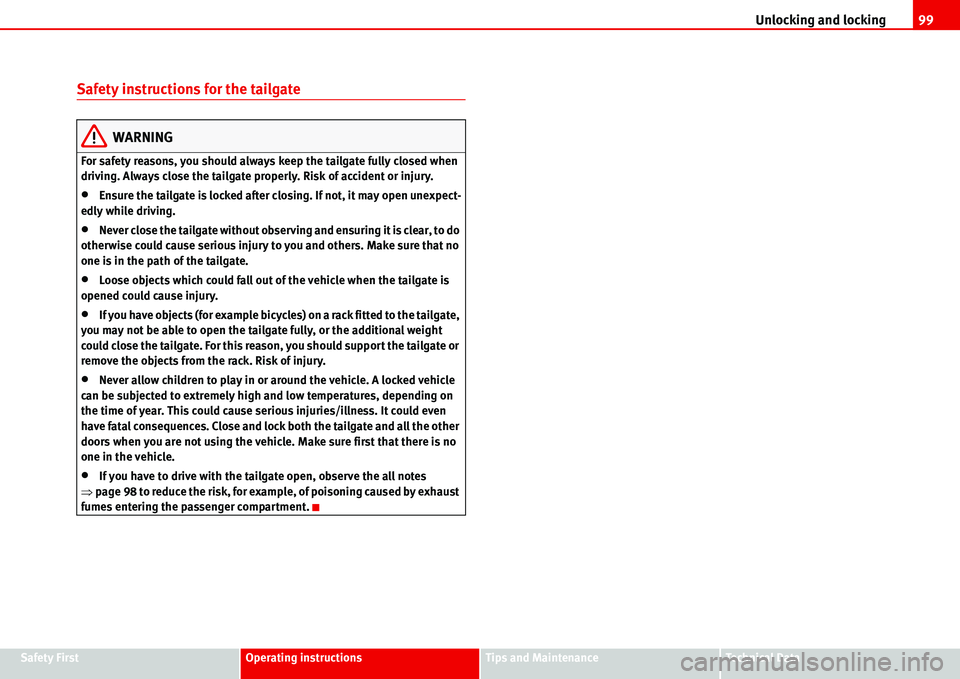

Safety instructions for the tailgate
WARNING
For safety reasons, you should always keep the tailgate fully closed when
driving. Always close the tailgate properly. Risk of accident or injury.
•Ensure the tailgate is locked after closing. If not, it may open unexpect-
edly while driving.
•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. Make sure that no
one is in the path of the tailgate.
•Loose objects which could fall out of the vehicle when the tailgate is
opened could cause injury.
•If you have objects (for example bicycles) on a rack fitted to the tailgate,
you may not be able to open the tailgate fully, or the additional weight
could close the tailgate. For this reason, you should support the tailgate or
remove the objects from the rack. Risk of injury.
•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year. This could cause serious injuries/illness. It could even
have fatal consequences. Close and lock both the tailgate and all the other
doors when you are not using the vehicle. Make sure first that there is no
one in the vehicle.
•If you have to drive with the tailgate open, observe the all notes
Ÿpage 98 to reduce the risk, for example, of poisoning caused by exhaust
fumes entering the passenger compartment.

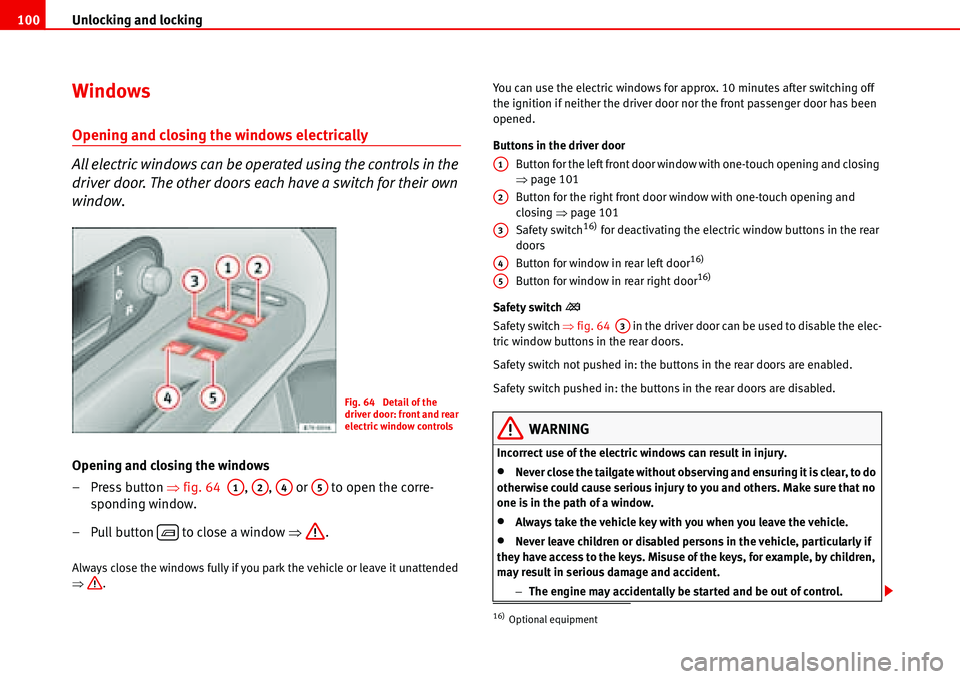

Unlocking and locking 100
Windows
Opening and closing the windows electrically
All electric windows can be operated using the controls in the
driver door. The other doors each have a switch for their own
window.
Opening and closing the windows
– Press button Ÿfig. 64 , , or to open the corre-
sponding window.
– Pull button to close a window Ÿ.
Always close the windows fully if you park the vehicle or leave it unattended
Ÿ.You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened.
Buttons in the driver door
Button for the left front door window with one-touch opening and closing
Ÿpage 101
Button for the right front door window with one-touch opening and
closing Ÿpage 101
Safety switch
16) for deactivating the electric window buttons in the rear
doors
Button for window in rear left door
16)
Button for window in rear right door16)
Safety switch 1
Safety switch Ÿfig. 64 in the driver door can be used to disable the elec-
tric window buttons in the rear doors.
Safety switch not pushed in: the buttons in the rear doors are enabled.
Safety switch pushed in: the buttons in the rear doors are disabled.
WARNING
Incorrect use of the electric windows can result in injury.
•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. Make sure that no
one is in the path of a window.
•Always take the vehicle key with you when you leave the vehicle.
•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Misuse of the keys, for example, by children,
may result in serious damage and accident.
−The engine may accidentally be started and be out of control.
Fig. 64 Detail of the
driver door: front and rear
electric window controls
A1A2A4A5
0
16)Optional equipment
A1
A2
A3
A4
A5
A3

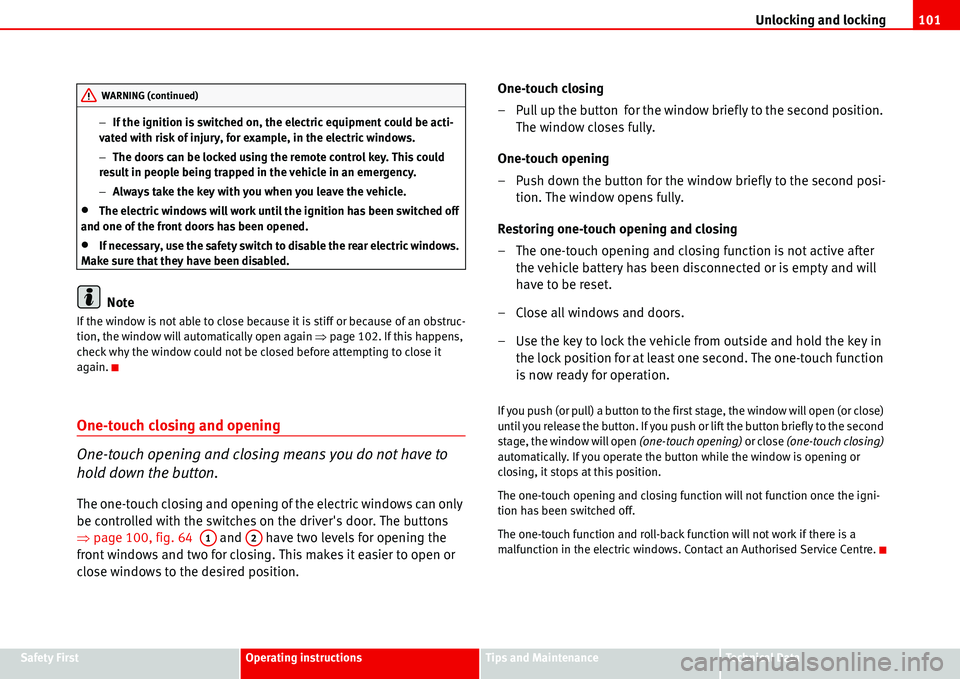

Unlocking and locking101
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a −If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
−The doors can be locked using the remote control key. This could
result in people being trapped in the vehicle in an emergency.
−Always take the key with you when you leave the vehicle.
•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.
•If necessary, use the safety switch to disable the rear electric windows.
Make sure that they have been disabled.
Note
If the window is not able to close because it is stiff or because of an obstruc-
tion, the window will automatically open again Ÿpage 102. If this happens,
check why the window could not be closed before attempting to close it
again.
One-touch closing and opening
One-touch opening and closing means you do not have to
hold down the button.
The one-touch closing and opening of the electric windows can only
be controlled with the switches on the driver's door. The buttons
Ÿpage 100, fig. 64 and have two levels for opening the
front windows and two for closing. This makes it easier to open or
close windows to the desired position.One-touch closing
– Pull up the button for the window briefly to the second position.
The window closes fully.
One-touch opening
– Push down the button for the window briefly to the second posi-
tion. The window opens fully.
Restoring one-touch opening and closing
– The one-touch opening and closing function is not active after
the vehicle battery has been disconnected or is empty and will
have to be reset.
– Close all windows and doors.
– Use the key to lock the vehicle from outside and hold the key in
the lock position for at least one second. The one-touch function
is now ready for operation.
If you push (or pull) a button to the first stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
stage, the window will open (one-touch opening) or close (one-touch closing)
automatically. If you operate the button while the window is opening or
closing, it stops at this position.
The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
WARNING (continued)
A1A2

Unlocking and locking 102
Roll-back function on electric windows
The windows have a roll-back function. This reduces the risk
of injuries when the windows are closing.
•If a window is obstructed when closing automatically, the window stops
at this point and opens immediately Ÿ.
•If this happens, check immediately (within 10 seconds) why the window
could not be closed before attempting to close it again. After 10 seconds, the
window's closing force is automatically increased.
•If the window is still obstructed, the window stops at this point.
•If there is no obvious reason why the window cannot be closed, try to
close it again within five seconds. The roll-back function is now deactivated.
The window closes with maximum force.
After 5 seconds, the window will open fully when one of the buttons is oper-
ated. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
WARNING
Incorrect use of the electric windows can result in injury.
•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
unsupervised in the vehicle.
•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.
•The roll-back function does not prevent fingers or other parts of the
body getting pinched against the window frame. Risk of accident.
Note
The roll-back function is deactivated if the windows are closed from the
outside of the vehicle using the ignition key for convenience closing
Ÿpage 105.
Convenience opening and closing
The windows can be opened and closed centrally from
outside the vehicle.
–Via radio wave remote control: Keep the unlock or locking button
on the radio wave remote control pressed Ÿ page 93. All
windows which function electrically will be either opened or
closed.
– Release the unlock or lock button to stop the window.
–Via the door lock: Hold the key in the door lock of the driver's
door in either the locking or the unlocking position until all
windows with electric function are either opened or closed.
– Release the key to interrupt this function.
WARNING (continued)

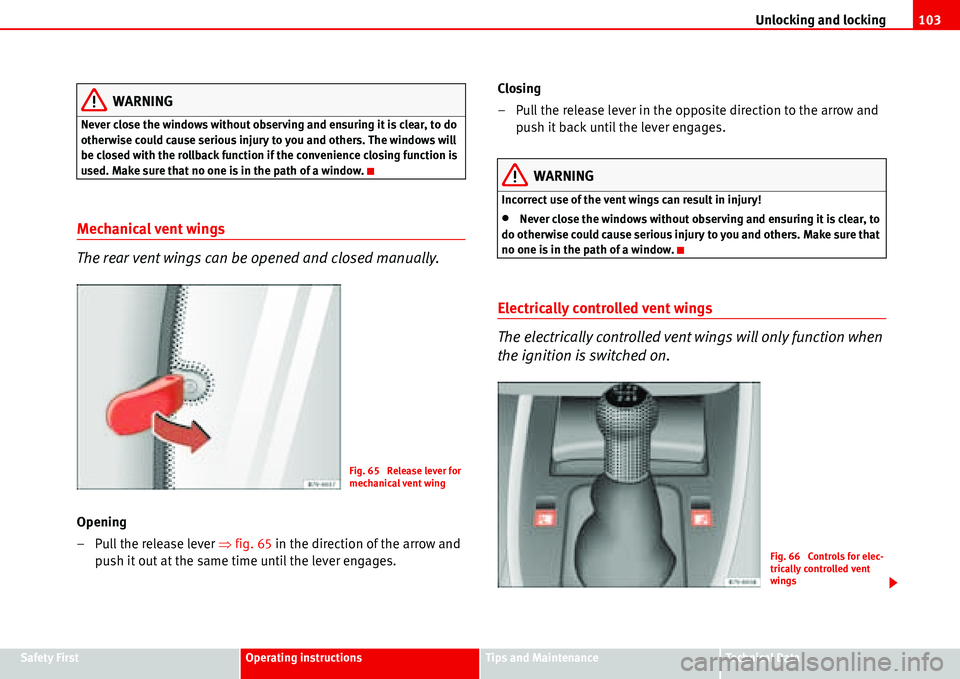

Unlocking and locking103
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
Never close the windows without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. The windows will
be closed with the rollback function if the convenience closing function is
used. Make sure that no one is in the path of a window.
Mechanical vent wings
The rear vent wings can be opened and closed manually.
Opening
– Pull the release lever Ÿfig. 65 in the direction of the arrow and
push it out at the same time until the lever engages.Closing
– Pull the release lever in the opposite direction to the arrow and
push it back until the lever engages.
WARNING
Incorrect use of the vent wings can result in injury!
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
Electrically controlled vent wings
The electrically controlled vent wings will only function when
the ignition is switched on.
Fig. 65 Release lever for
mechanical vent wing
Fig. 66 Controls for elec-
trically controlled vent
wings

Unlocking and locking 104

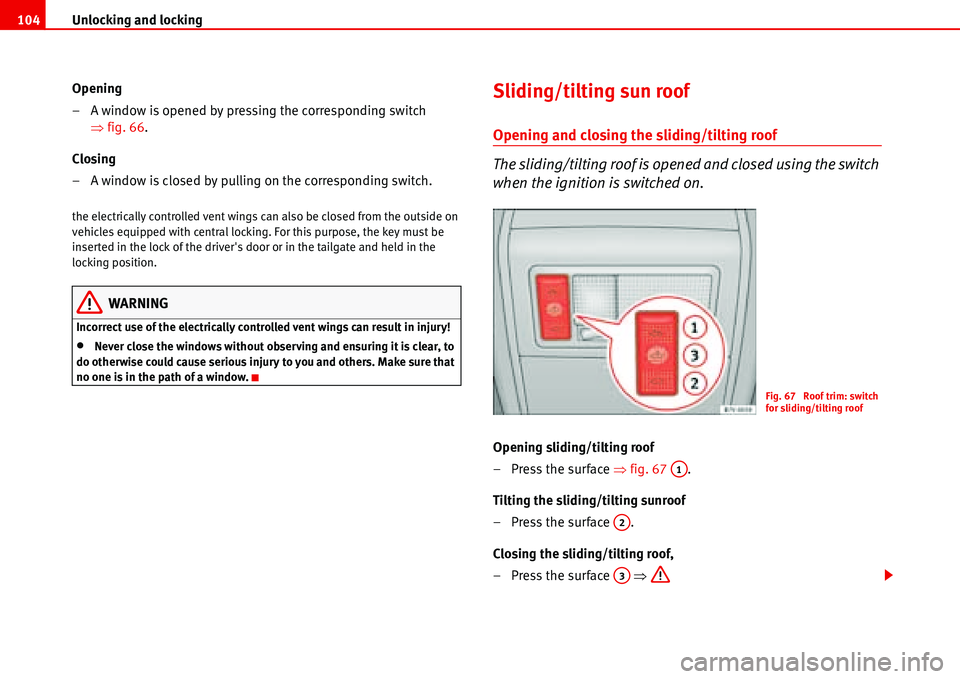

Opening
– A window is opened by pressing the corresponding switch
Ÿfig. 66.
Closing
– A window is closed by pulling on the corresponding switch.
the electrically controlled vent wings can also be closed from the outside on
vehicles equipped with central locking. For this purpose, the key must be
inserted in the lock of the driver's door or in the tailgate and held in the
locking position.
WARNING
Incorrect use of the electrically controlled vent wings can result in injury!
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
Sliding/tilting sun roof
Opening and closing the sliding/tilting roof
The sliding/tilting roof is opened and closed using the switch
when the ignition is switched on.
Opening sliding/tilting roof
–Press the surface Ÿfig. 67 .
Tilting the sliding/tilting sunroof
–Press the surface .
Closing the sliding/tilting roof,
–Press the surface Ÿ
Fig. 67 Roof trim: switch
for sliding/tilting roof
A1
A2
A3

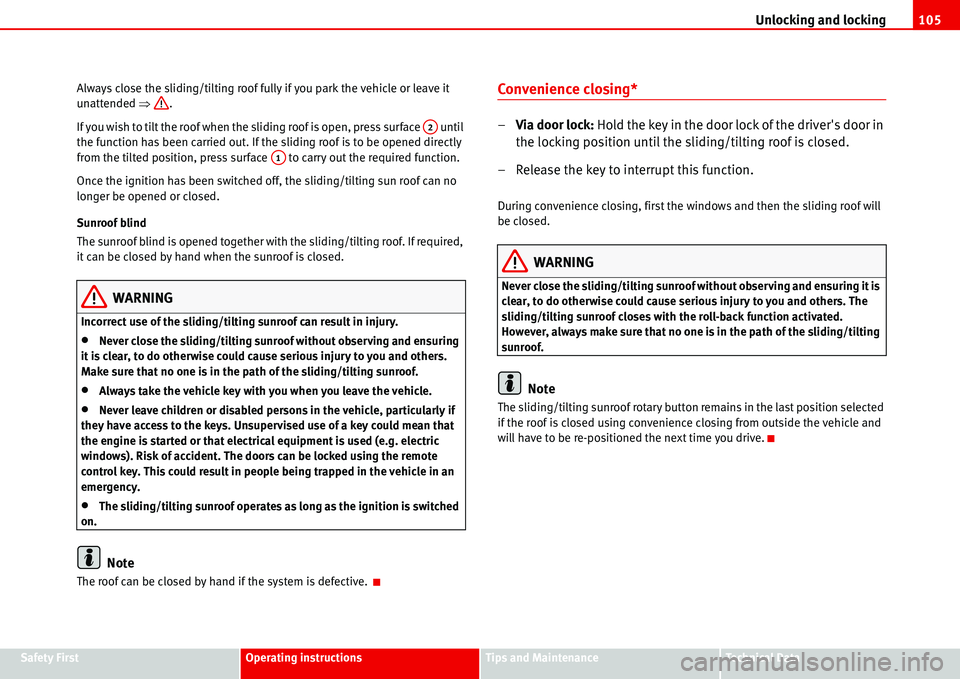

Unlocking and locking105
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Always close the sliding/tilting roof fully if you park the vehicle or leave it
unattended Ÿ.
If you wish to tilt the roof when the sliding roof is open, press surface until
the function has been carried out. If the sliding roof is to be opened directly
from the tilted position, press surface to carry out the required function.
Once the ignition has been switched off, the sliding/tilting sun roof can no
longer be opened or closed.
Sunroof blind
The sunroof blind is opened together with the sliding/tilting roof. If required,
it can be closed by hand when the sunroof is closed.
WARNING
Incorrect use of the sliding/tilting sunroof can result in injury.
•Never close the sliding/tilting sunroof without observing and ensuring
it is clear, to do otherwise could cause serious injury to you and others.
Make sure that no one is in the path of the sliding/tilting sunroof.
•Always take the vehicle key with you when you leave the vehicle.
•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
windows). Risk of accident. The doors can be locked using the remote
control key. This could result in people being trapped in the vehicle in an
emergency.
•The sliding/tilting sunroof operates as long as the ignition is switched
on.
Note
The roof can be closed by hand if the system is defective.
Convenience closing*
–Via door lock: Hold the key in the door lock of the driver's door in
the locking position until the sliding/tilting roof is closed.
– Release the key to interrupt this function.
During convenience closing, first the windows and then the sliding roof will
be closed.
WARNING
Never close the sliding/tilting sunroof without observing and ensuring it is
clear, to do otherwise could cause serious injury to you and others. The
sliding/tilting sunroof closes with the roll-back function activated.
However, always make sure that no one is in the path of the sliding/tilting
sunroof.
Note
The sliding/tilting sunroof rotary button remains in the last position selected
if the roof is closed using convenience closing from outside the vehicle and
will have to be re-positioned the next time you drive.
A2
A1

Unlocking and locking 106

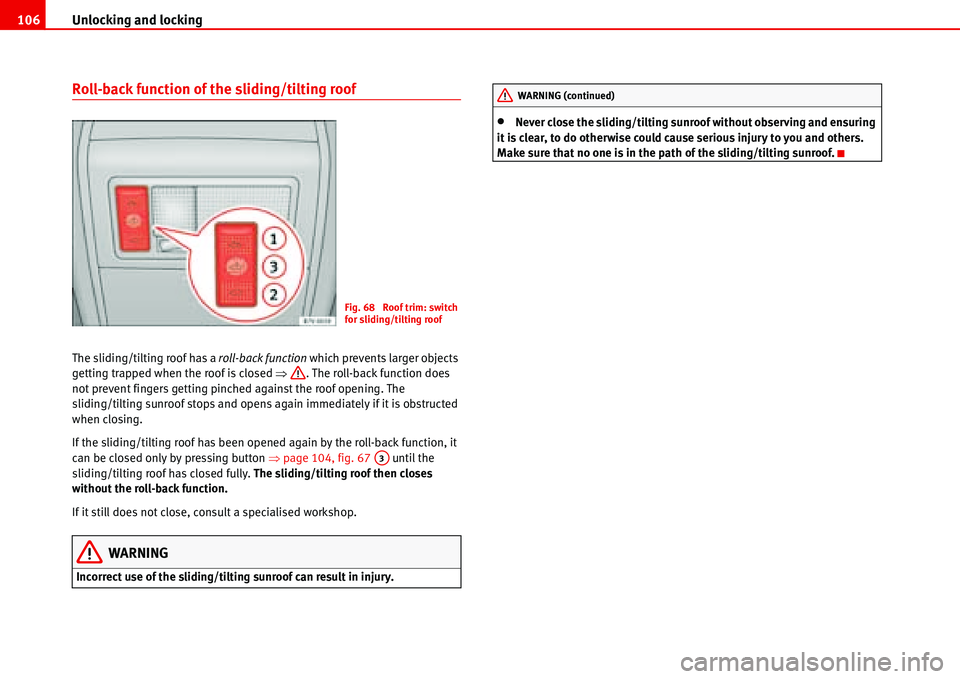

Roll-back function of the sliding/tilting roof
The sliding/tilting roof has a roll-back function which prevents larger objects
getting trapped when the roof is closed Ÿ. The roll-back function does
not prevent fingers getting pinched against the roof opening. The
sliding/tilting sunroof stops and opens again immediately if it is obstructed
when closing.
If the sliding/tilting roof has been opened again by the roll-back function, it
can be closed only by pressing button Ÿpage 104, fig. 67 until the
sliding/tilting roof has closed fully. The sliding/tilting roof then closes
without the roll-back function.
If it still does not close, consult a specialised workshop.
WARNING
Incorrect use of the sliding/tilting sunroof can result in injury.
•Never close the sliding/tilting sunroof without observing and ensuring
it is clear, to do otherwise could cause serious injury to you and others.
Make sure that no one is in the path of the sliding/tilting sunroof.
Fig. 68 Roof trim: switch
for sliding/tilting roof
A3
WARNING (continued)

Unlocking and locking107
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

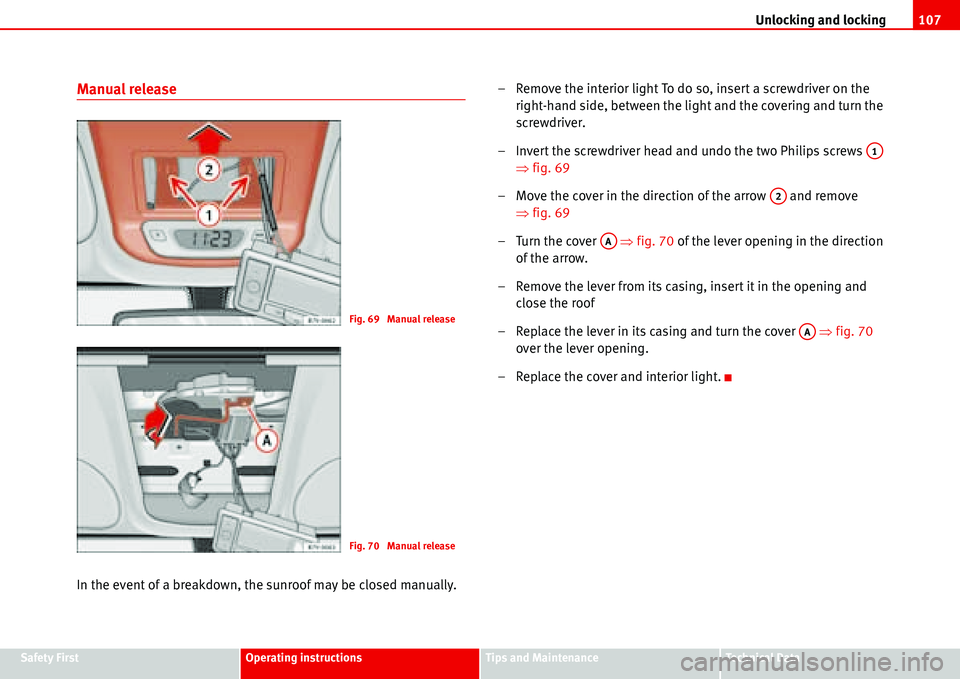

Manual release
In the event of a breakdown, the sunroof may be closed manually.– Remove the interior light To do so, insert a screwdriver on the
right-hand side, between the light and the covering and turn the
screwdriver.
– Invert the screwdriver head and undo the two Philips screws
Ÿfig. 69
– Move the cover in the direction of the arrow and remove
Ÿfig. 69
–Turn the cover Ÿfig. 70 of the lever opening in the direction
of the arrow.
– Remove the lever from its casing, insert it in the opening and
close the roof
– Replace the lever in its casing and turn the cover Ÿfig. 70
over the lever opening.
– Replace the cover and interior light.
Fig. 69 Manual release
Fig. 70 Manual release
A1
A2
AA
AA

Lights and visibility 108

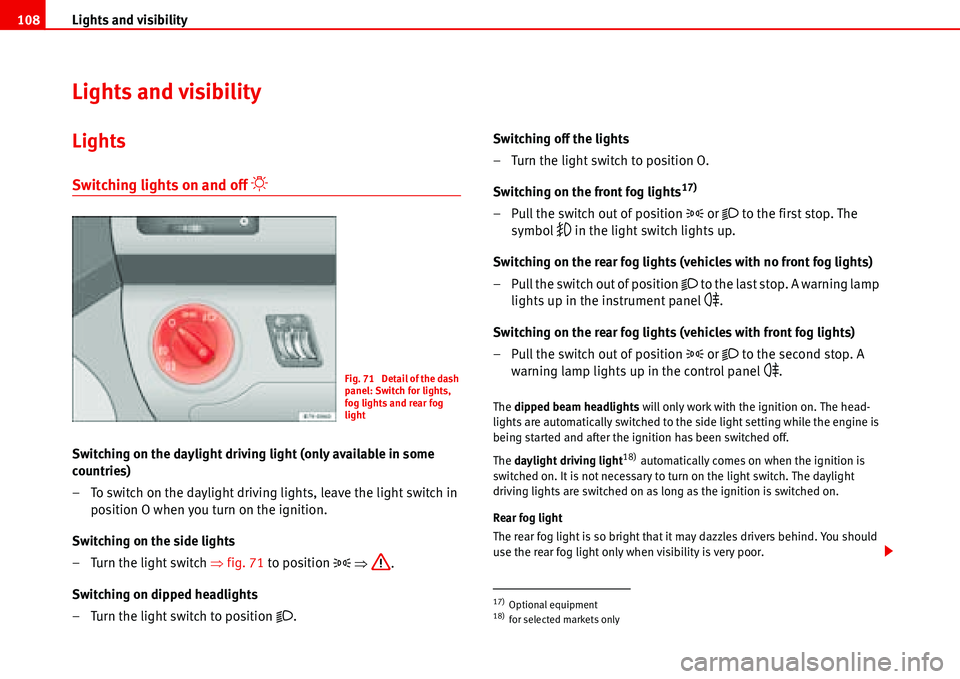

Lights and visibility
Lights
Switching lights on and off “
Switching on the daylight driving light (only available in some
countries)
– To switch on the daylight driving lights, leave the light switch in
position O when you turn on the ignition.
Switching on the side lights
– Turn the light switch Ÿfig. 71 to position
 Ÿ.
Switching on dipped headlights
– Turn the light switch to position
.Switching off the lights
– Turn the light switch to position O.
Switching on the front fog lights
17)
– Pull the switch out of position  or  to the first stop. The
symbol
in the light switch lights up.
Switching on the rear fog lights (vehicles with no front fog lights)
– Pull the switch out of position
 to the last stop. A warning lamp
lights up in the instrument panel

.
Switching on the rear fog lights (vehicles with front fog lights)
– Pull the switch out of position
 or  to the second stop. A
warning lamp lights up in the control panel

.
The dipped beam headlights will only work with the ignition on. The head-
lights are automatically switched to the side light setting while the engine is
being started and after the ignition has been switched off.
The daylight driving light
18) automatically comes on when the ignition is
switched on. It is not necessary to turn on the light switch. The daylight
driving lights are switched on as long as the ignition is switched on.
Rear fog light
The rear fog light is so bright that it may dazzles drivers behind. You should
use the rear fog light only when visibility is very poor.
Fig. 71 Detail of the dash
panel: Switch for lights,
fog lights and rear fog
light
17)Optional equipment18)for selected markets only
