Page 111 of 299

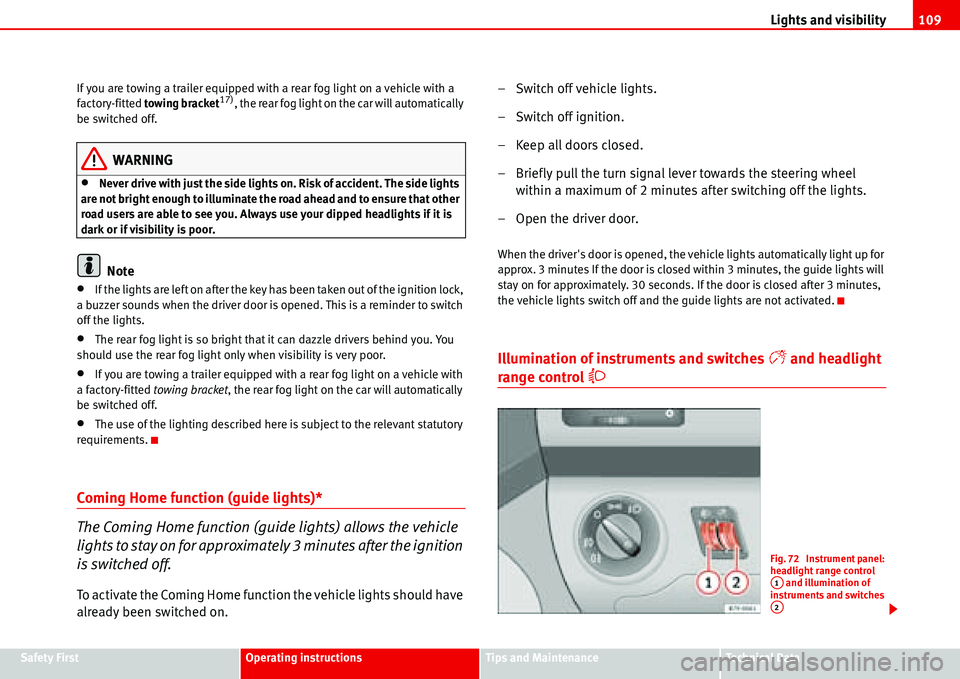

Lights and visibility109
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a If you are towing a trailer equipped with a rear fog light on a vehicle with a
factory-fitted towing bracket
17), the rear fog light on the car will automatically
be switched off.
WARNING
•Never drive with just the side lights on. Risk of accident. The side lights
are not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer sounds when the driver door is opened. This is a reminder to switch
off the lights.
•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.
•If you are towing a trailer equipped with a rear fog light on a vehicle with
a factory-fitted towing bracket, the rear fog light on the car will automatically
be switched off.
•The use of the lighting described here is subject to the relevant statutory
requirements.
Coming Home function (guide lights)*
The Coming Home function (guide lights) allows the vehicle
lights to stay on for approximately 3 minutes after the ignition
is switched off.
To activate the Coming Home function the vehicle lights should have
already been switched on.– Switch off vehicle lights.
– Switch off ignition.
– Keep all doors closed.
– Briefly pull the turn signal lever towards the steering wheel
within a maximum of 2 minutes after switching off the lights.
– Open the driver door.
When the driver's door is opened, the vehicle lights automatically light up for
approx. 3 minutes If the door is closed within 3 minutes, the guide lights will
stay on for approximately. 30 seconds. If the door is closed after 3 minutes,
the vehicle lights switch off and the guide lights are not activated.
Illumination of instruments and switches and headlight
range control
Fig. 72 Instrument panel:
headlight range control
and illumination of
instruments and switches
A1
A2

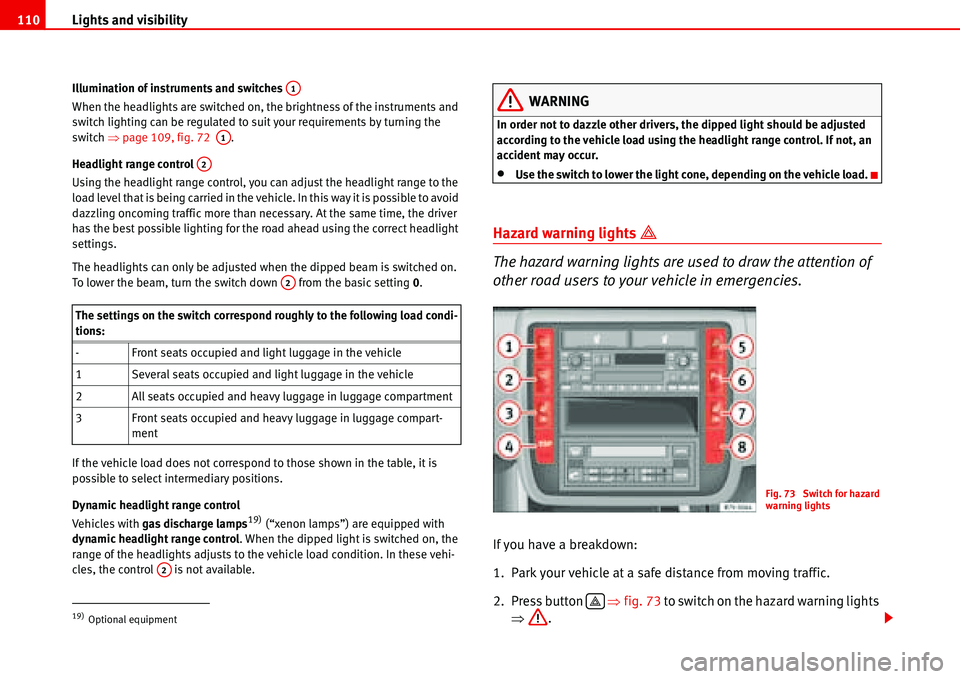

Page 112 of 299

Lights and visibility 110
Illumination of instruments and switches
When the headlights are switched on, the brightness of the instruments and
switch lighting can be regulated to suit your requirements by turning the
switch Ÿpage 109, fig. 72 .
Headlight range control
Using the headlight range control, you can adjust the headlight range to the
l o ad l ev el that is b e i ng ca r r i e d in t he ve h ic l e . In t h is way i t is p o ssi ble to a vo i d
dazzling oncoming traffic more than necessary. At the same time, the driver
has the best possible lighting for the road ahead using the correct headlight
settings.
The headlights can only be adjusted when the dipped beam is switched on.
To lower the beam, turn the switch down from the basic setting 0.
If the vehicle load does not correspond to those shown in the table, it is
possible to select intermediary positions.
Dynamic headlight range control
Vehicles with gas discharge lamps
19) (“xenon lamps”) are equipped with
dynamic headlight range control. When the dipped light is switched on, the
range of the headlights adjusts to the vehicle load condition. In these vehi-
cles, the control is not available.
WARNING
In order not to dazzle other drivers, the dipped light should be adjusted
according to the vehicle load using the headlight range control. If not, an
accident may occur.
•Use the switch to lower the light cone, depending on the vehicle load.
Hazard warning lights
The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
If you have a breakdown:
1. Park your vehicle at a safe distance from moving traffic.
2. Press button Ÿfig. 73 to switch on the hazard warning lights
Ÿ.
The settings on the switch correspond roughly to the following load condi-
tions:
- Front seats occupied and light luggage in the vehicle
1 Several seats occupied and light luggage in the vehicle
2 All seats occupied and heavy luggage in luggage compartment
3 Front seats occupied and heavy luggage in luggage compart-
ment
19)Optional equipment
A1
A1
A2
A2
A2
Fig. 73 Switch for hazard
warning lights

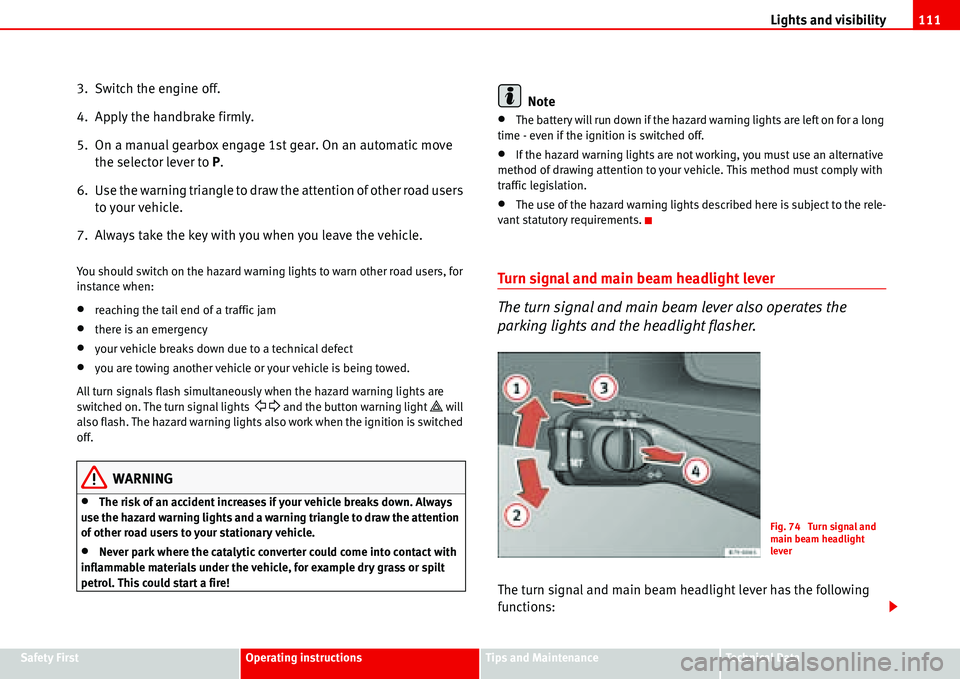

Page 113 of 299

Lights and visibility111
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
3. Switch the engine off.
4. Apply the handbrake firmly.
5. On a manual gearbox engage 1st gear. On an automatic move
the selector lever to P.
6. Use the warning triangle to draw the attention of other road users
to your vehicle.
7. Always take the key with you when you leave the vehicle.
You should switch on the hazard warning lights to warn other road users, for
instance when:
•reaching the tail end of a traffic jam
•there is an emergency
•your vehicle breaks down due to a technical defect
•you are towing another vehicle or your vehicle is being towed.
All turn signals flash simultaneously when the hazard warning lights are
switched on. The turn signal lights
and the button warning light will
also flash. The hazard warning lights also work when the ignition is switched
off.
WARNING
•The risk of an accident increases if your vehicle breaks down. Always
use the hazard warning lights and a warning triangle to draw the attention
of other road users to your stationary vehicle.
•Never park where the catalytic converter could come into contact with
inflammable materials under the vehicle, for example dry grass or spilt
petrol. This could start a fire!
Note
•The battery will run down if the hazard warning lights are left on for a long
time - even if the ignition is switched off.
•If the hazard warning lights are not working, you must use an alternative
method of drawing attention to your vehicle. This method must comply with
traffic legislation.
•The use of the hazard warning lights described here is subject to the rele-
vant statutory requirements.
Turn signal and main beam headlight lever
The turn signal and main beam lever also operates the
parking lights and the headlight flasher.
The turn signal and main beam headlight lever has the following
functions:
Fig. 74 Turn signal and
main beam headlight
lever
