Safe driving7
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Safety First
Safe driving
Brief introduction
Dear SEAT Driver
Safety first!
This chapter contains important information, advice, suggestions
and warnings that should be read and followed in the interest of
your own safety and the safety of your passengers.
WARNING
•This manual contains important information concerning the driver's
and passengers' handling of the vehicle. The other booklets in the vehicle
wallet also contain further information that you should be aware of for your
own safety and for the safety of your passengers.
•Ensure that the onboard documentation is kept in the vehicle at all
times. This is especially important when lending or selling the vehicle to
another person
Safety equipment
The safety equipment is a part of the occupant protection
system and can reduce the risk of injury during an accident.
Never “gamble” with your safety and the safety of your passengers. In the
event of an accident, the safety equipment could reduce the risk of injury. The
following list includes most of the safety equipment in your SEAT:
•optimised three-point seat belts for all seats,
•seat belt tension devices for driver and passenger,
•Belt height adjustment for the front seats and outer seats in the second
row,
•frontal airbags for driver and passenger,
•side airbags for driver and passenger,
•curtain airbags,
•ISOFIX anchorage for ISOFIX child seats in the outside seats in the second
and third rows,
•Height-adjustable head restraints and
•adjustable steering column.
The safety equipment mentioned above works together to provide you and
your passengers with the best possible protection in accident situations. But
this safety equipment cannot help you or your passengers if you or your
passengers assume an incorrect sitting position or do not properly adjust or
use this equipment.

Safe driving 8
Therefore, you have been provided with information about why this equip-
ment is so important, how it protects you, what you have to observe when
using it and how you and your passengers can achieve the greatest possible
benefit from the safety equipment fitted. This manual includes important
warnings that you and your passengers should observe in order to reduce the
risk of injury.
Safety is everyone's business!
Before every trip
The driver bears the responsibility for his passengers and the
operational worthiness of the vehicle.
For your own safety and the safety of your passengers, always note
the following points before every trip:
– Ensure that the vehicle's lights and turn signals operate flaw-
lessly.
– Check tyre pressure.
– Ensure that all windows provide a clear and good view of the
surroundings.
– Securely restrain all parcels Ÿpage 14.
– Make sure that no objects can interfere with the pedals.
– Adjust front seat, head restraint and mirrors properly for your
size.
– Instruct passengers to adjust the head restraints according to
their height.– Protect children with appropriate child seats and properly
applied seat belts Ÿpage 45.
– Assume the correct sitting position. Instruct your passengers
also to assume a proper sitting position Ÿpage 9.
– Always fasten your seat belt correctly before driving off. Instruct
your passengers also to fasten their seat belts properly
Ÿpage 17.
What affects driving safety?
Driving safety is largely determined by your driving style and
the personal behaviour of all occupants.
As driver, you are responsible for yourself and your passengers.
When your concentration or driving safety is affected, you endanger
yourself as well as others on the road Ÿ, for this reason:
– Do not allow yourself to be distracted from the traffic around you,
e.g. by passengers or telephone conversations.
– Never drive when your driving ability is impaired (e.g. by medica-
tion, alcohol, drugs).
– Observe traffic laws and speed limits.
– Always reduce your speed as appropriate for road, traffic and
weather conditions.
– When travelling long distances, take breaks regularly - at least
every two hours.

Safe driving11
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
•Adjust the front passenger seat so that there is at least 25 cm between
your breastbone and the dash panel. If you are sitting nearer than 25 cm,
the airbag system cannot protect you properly.
•If your physical constitution prevents you from maintaining the
minimum distance of 25 cm, contact a qualified workshop. The workshop
will help you decide if special specific modifications are necessary.
•Always keep your feet in the foot well when the vehicle is moving;
never rest them on the instrument panel, out the window or on the seat. An
incorrect sitting position exposes you to an increased risk of injury in the
event of a braking manoeuvre or an accident. If the airbag is triggered, you
could sustain severe injuries due to an incorrect sitting position.
•To reduce the risk of injury to the front passenger during sudden
braking manoeuvres or an accident, never travel with the backrest tilted far
back! The airbag system and seat belts can only provide optimal protection
when the backrest is in an upright position and the front passenger is
wearing his or her seat belt properly. The further the backrests are tilted to
the rear, the greater the risk of injury due to incorrect positioning of the
belt web or the incorrect sitting position!
•Adjust the head restraint properly to achieve maximum protection.
Correct sitting position for passengers in the rear seats
Passengers in the individual seats must sit up straight, keep
their feet in the footwells and wear their seat belts properly.
To reduce the risk of injury in the event of a sudden braking
manoeuvre or an accident, passengers in the individual seats must
observe the following:– The backrest of the 3-seat seat bench must be in the upright
position and securely engaged in this position.
– Adjust the head restraint so that its upper edge is at the same
level as the top of your head.
– Keep both feet in the footwell in front of the individual seat.
– Always fasten your seat belt correctly before driving off.
– Use an appropriate child restraint system when you take children
in the vehicle .
WARNING
If the passengers on the individual seats are not sitting properly, they
could sustain severe injuries.
•Adjust the head restraint properly to achieve maximum protection.
•The seat belts can only provide optimal protection when the backrests
are properly engaged in the upright position and the passengers are
wearing their seat belts properly. If passengers on the individual seats are
not sitting in an upright position, the risk of injury due to incorrect posi-
tioning of the belt web increases.
Correct sitting position for passengers in the rear seats
Passengers in the rear seats must sit up straight, keep their
feet in the foot well s and wear their seat belts properly.
To reduce the risk of injury in the event of a sudden braking
manoeuvre or an accident, passengers on the rear bench seat must
observe the following:
WARNING (continued)

Safe driving 12
– Adjust the headrest to the correct position.
– Keep both feet in the foot well in front of the rear seat.
– Fasten your seat belt correctly Ÿpage 17.
– Use an appropriate child restraint system when you take children
in the vehicle Ÿpage 45.
WARNING
•If the passengers on the rear seat are not sitting properly, they could
sustain severe injuries.
•Adjust the head restraint properly to achieve maximum protection.
•Seat belts can only provide optimal protection when backrests are in an
upright position and the passengers are wearing their seat belts properly.
If passengers on the rear seat are not sitting in an upright position, the risk
of injury due to incorrect positioning of the belt web increases.
Correct adjustment of head restraints
Properly adjusted head restraints are an important part of
occupant protection and can reduce the risk of injuries in
most accident situations.
Fig. 3 Properly adjusted
head restraint viewed
from the front
Fig. 4 Properly adjusted
head restraint viewed
from the side

Safe driving13
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Adjust the head restraint properly to achieve maximum protection.
– Adjust the head restraint so that its upper edge is at the same
level as the top of your head, or as close as possible to the same
level as the top of your head and, at the very least, at eye level
Ÿpage 12, fig. 3 and Ÿpage 12, fig. 4
WARNING
•Travelling with the head restraints removed or improperly adjusted
increases the risk of severe injuries.
•Incorrectly adjusted head restraints could result in death in the event of
a collision or accident.
•Incorrectly adjusted head restraints also increase the risk of injury
during sudden or unexpected driving or braking manoeuvres.
•The head restraints must always be adjusted according to the occu-
pant's size.
Examples of incorrect sitting positions
An incorrect sitting position can lead to severe injuries to
occupants.
Seat belts can provide optimal protection only when the belt webs
are properly positioned. Incorrect sitting positions substantially
reduce the protective function of seat belts and increase the risk of
injury due to incorrect belt web position. As the driver, you are
responsible for all vehicle occupants, especially children.
– Never permit anyone to assume an incorrect sitting position in
the vehicle while travelling Ÿ.
The following list contains examples of sitting positions that could be
dangerous for all occupants. The list is not complete, but we would like to
make you aware of this issue.
Therefore, whenever the vehicle is in motion:
•Never stand in the vehicle,
•never stand on the seats,
•never kneel on the seats,
•never tilt your backrest far to the rear,
•never lean against the dash panel,
•never lie on the rear bench,
•never sit on the front edge of a seat,
•never sit sideways,
•never lean out of a window,
•never put your feet out of a window,
•never put your feet on the dash panel,
•never put your feet on the surface of a seat,
•never travel in a foot well ,
•never travel on a seat without wearing the seat belt,
•never carry any person in the luggage compartment.
WARNING
•Every incorrect sitting position increases the risk of severe injuries.
•Sitting in an incorrect position exposes the occupants to severe injuries
if airbags deploy, striking an occupant who has assumed an incorrect
sitting position.
•Before the vehicle moves, assume the proper sitting position and main-
tain it throughout the trip. Before every trip, instruct your passengers to
assume the proper sitting position and to maintain it during the trip
Ÿpage 9, “Proper sitting position for occupants”.

Seat belts17
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Seat belts
Introduction
Always fasten seat belts before driving!
Properly worn seat belts can save lives!
In this chapter you will learn why seat belts are so important, how
they work and how to properly fasten, adjust and wear them.
– Read and observe all the information as well as the warnings in
this chapter.
WARNING
•If the seat belts are worn incorrectly or not at all, the risk of severe inju-
ries increases.
•Properly worn seat belts can reduce severe injuries in the event of
sudden braking manoeuvres or accidents. Therefore, you and your passen-
gers should always wear the seat belts properly as long as the vehicle is in
motion.
•Pregnant women or persons with physical disabilities must also use
seat belts. Like all other occupants, these persons can also sustain severe
injuries if they are not wearing their seat belts properly.
Number of seats
Vehicles with five seats
Your vehicle has five passenger places, two individual front seats and three
places on the rear seat.
The front seats and the outer rear seats are fitted with a three-point automatic
seat belt.
Vehicles with seven seats*
The vehicle has seven seats, two seats in the front, three seats in the second
row and two seats in the third row.
WARNING
•Never transport more people than there are seats available in the
vehicle.
•Every occupant in the vehicle must properly fasten and wear the seat
belt belonging to his or her seat. Children must be protected with an appro-
priate child restraint system.
Seat belt warning lamp* 4
The warning lamp acts as a reminder to the driver to fasten
the seat belt.
Before you drive:
– Always fasten your seat belt correctly before driving off.

Seat belts 18
– Instruct your passengers to fasten their seat belts properly before
driving off.
– Protect your children with child restraint systems appropriate for
the size and age of the children.
The warning lamp 4 in the combi-instrument lights up if the driver seat belt
is not fastened when the ignition is switched on. In addition, an acoustic
signal can also be heard for a couple of seconds.
The warning lamp*
4 does not go out until the driver seat belt is fastened
while the ignition is switched on.

Seat belts25
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a The following features are available to adjust the seat belt in the shoulder
region:
•Belt height adjustment for the front seats and the outer seats in the
second row,
•front seat height adjustment*.
WARNING
An incorrectly worn seat belt web can cause severe injuries in the event of
an accident.
•The shoulder part of the seat belt must lie on the centre of the shoulder,
never across the neck. The seat belt must lie flat and fit comfortably on the
torso
•The lap part of the seat belt must lie across the pelvis, never across the
stomach. The seat belt must lie flat and fit comfortably on the pelvis Pull
the belt tight if necessary to take up any slack.
•Read and observe the warnings Ÿpage 22.
Pregnant women must also fasten their seat belts properly
The best protection for the unborn child is for the mother to
wear the seat belt properly at all times during the pregnancy.
The seat belt provides maximum protection only when the belt web
is properly positioned Ÿpage 24.
– Adjust the front seat and head restraint correctly Ÿpage 9.
– Holding the latch plate, pull the belt evenly across your chest and
as low as possible over the pelvis Ÿfig. 14.
– Insert the latch plate into the buckle for the corresponding seat
and push it down until it is securely locked with an audible click
Ÿ.
– Pull the belt to ensure that the latch plate is securely engaged in
the buckle.
Fig. 14 Positioning seat
belts during pregnancy

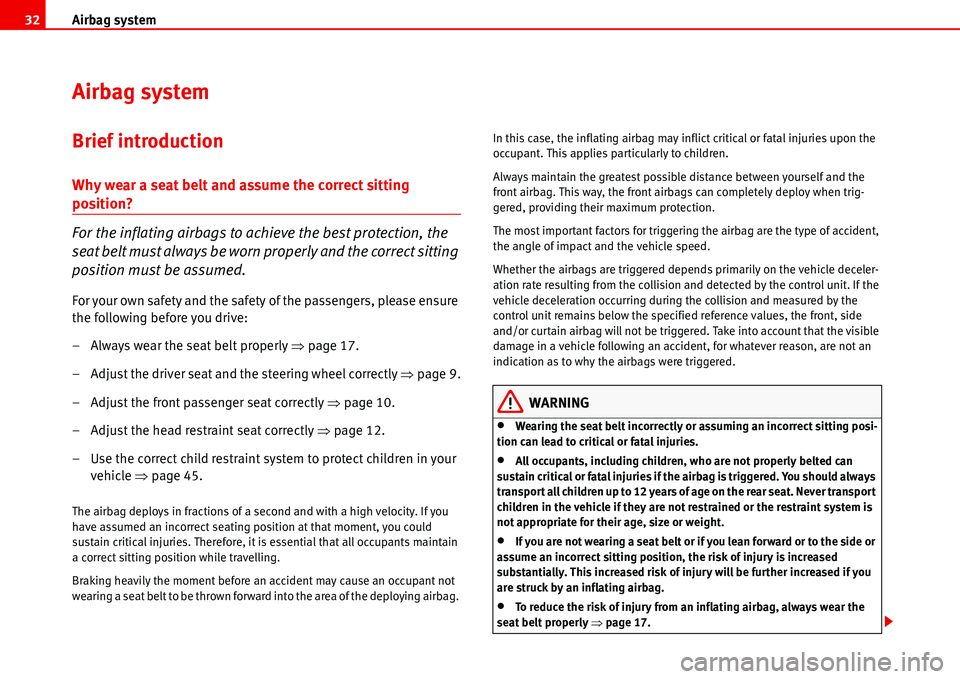

Airbag system 32
Airbag system
Brief introduction
Why wear a seat belt and assume the correct sitting
position?
For the inflating airbags to achieve the best protection, the
seat belt must always be worn properly and the correct sitting
position must be assumed.
For your own safety and the safety of the passengers, please ensure
the following before you drive:
– Always wear the seat belt properly Ÿpage 17.
– Adjust the driver seat and the steering wheel correctly Ÿpage 9.
– Adjust the front passenger seat correctly Ÿpage 10.
– Adjust the head restraint seat correctly Ÿpage 12.
– Use the correct child restraint system to protect children in your
vehicle Ÿpage 45.
The airbag deploys in fractions of a second and with a high velocity. If you
have assumed an incorrect seating position at that moment, you could
sustain critical injuries. Therefore, it is essential that all occupants maintain
a correct sitting position while travelling.
Braking heavily the moment before an accident may cause an occupant not
wearing a seat belt to be thrown forward into the area of the deploying airbag. In this case, the inflating airbag may inflict critical or fatal injuries upon the
occupant. This applies particularly to children.
Always maintain the greatest possible distance between yourself and the
front airbag. This way, the front airbags can completely deploy when trig-
gered, providing their maximum protection.
The most important factors for triggering the airbag are the type of accident,
the angle of impact and the vehicle speed.
Whether the airbags are triggered depends primarily on the vehicle deceler-
ation rate resulting from the collision and detected by the control unit. If the
vehicle deceleration occurring during the collision and measured by the
control unit remains below the specified reference values, the front, side
and/or curtain airbag will not be triggered. Take into account that the visible
damage in a vehicle following an accident, for whatever reason, are not an
indication as to why the airbags were triggered.
WARNING
•Wearing the seat belt incorrectly or assuming an incorrect sitting posi-
tion can lead to critical or fatal injuries.
•All occupants, including children, who are not properly belted can
sustain critical or fatal injuries if the airbag is triggered. You should always
transport all children up to 12 years of age on the rear seat. Never transport
children in the vehicle if they are not restrained or the restraint system is
not appropriate for their age, size or weight.
•If you are not wearing a seat belt or if you lean forward or to the side or
assume an incorrect sitting position, the risk of injury is increased
substantially. This increased risk of injury will be further increased if you
are struck by an inflating airbag.
•To reduce the risk of injury from an inflating airbag, always wear the
seat belt properly Ÿpage 17.
