Unlocking and locking83
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Central locking and locking system
Introduction
Central locking functions correctly when all the doors and the tailgate are
correctly shut. If the driver's door is open, the vehicle cannot be locked with
the key.
The battery of a vehicle left unlocked during a long period (for instance, in a
private garage) may run down and fail to start the motor.
Additional information and warnings:
xPersonal convenience settings in the SEAT information system Ÿpage 70
xVehicle key set Ÿpage 78
xSliding doors Ÿpage 92
xElectric windows Ÿpage 102
xPanorama sliding sunroof Ÿpage 106
xTo wi ng m o d e Ÿpage 260
xEmergency locking and unlocking Ÿpage 348
WARNING
The incorrect use of the central locking system may cause serious injuries.
xThe central locking system will lock all doors. A vehicle locked from the
inside can prevent any non-authorised individual from opening the doors
and accessing the vehicle. Nevertheless, in case of emergency or accident,
locked doors will complicate access to the passenger compartment to help
the passengers.
xNever leave children or disabled people alone in the vehicle. The central
locking button can be used to lock all the doors from within. Therefore,
passengers will be locked inside the vehicle. Individuals locked in the
vehicle can be exposed to very high or very low temperatures.
xDepending on the time of the year, temperatures inside a locked and
closed vehicle can be extremely high or extremely low resulting in serious
injuries and illness or even death, particularly for young children.
xNever leave individuals locked in a closed and locked vehicle. In case of
emergency, they may not be able to exit the vehicle by themselves or get
help.
WARNING (continued)
Page 96 of 413

Unlocking and locking95
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Rollback anti-trap function of the electric sliding doors
The rollback anti-trap function of the electric sliding doors can reduce the risk
of injury when opening and closing the sliding doors Ÿ.
If an object gets in the way of the sliding door while it is closing, it opens
again.
If an object gets in the way of the sliding door while it is opening, the door
stops moving.
xCheck the reason for which the sliding door does not open or close.
xTry to open or close the sliding door again.
To close the sliding door without the rollback anti-trap function
xTurn off the ignition and turn it on again.
xPress and hold the Ÿpage 94, fig. 54 button. The sliding door
closes with full force.
WARNING
Closing the electric windows without the anti-trap function can cause
serious injury.
xAlways close the sliding doors carefully.
xNobody should ever get in the way of the electric sliding doors, espe-
cially when closing without the anti-trap function.
xThe anti-trap function does not prevent fingers or other parts of the
body getting pinched against the window frame and causing injury.
Electric child safety lock
The electric child safety lock avoids opening and locking of the sliding door
and its electric windows from the inside so that children cannot accidentally
open the door while the vehicle is being driven. Using the left-hand side
Ÿfig. 55 or right-hand side button, the child safety lock is activated
on the left hand side or right-hand side respectively.
Turning on and off the electric child safety
The yellow indicator
r indicates that the function is on for the corresponding
button.
In the menu Configuration - Convenience the electric child safety function can
be configured to turn on automatically when the engine starts Ÿpage 70.
¼
FunctionNecessary operations
To switch system on:Press the button Ÿfig. 55 o .
The system switches
off:Press the button again.
Fig. 55 In the driver door:
electric child safety locks
buttons.
A1A2
A1A2
Page 111 of 413

Unlocking and locking 110
Programming the garage door remote control
Functions from up to 3 different remote controls for different products can be
transferred to the buttons on the sunshade ( for example, the electric system
for a gateway or a garage door, a house alarm or a lighting system).Before programming
xBefore programming the garage remote control, always read the instruc-
tion manual from the product manufacturer.
xAlways stop your vehicle safe distance from the system.
xWhen programming, turn on the ignition but do not start the engine.
Before programming the unit for the first time:
xPress the buttons and until the indicator above the button begins
to blink.
xRelease both buttons. This erases the factory settings. There is no need to
do this again to program the remaining buttons.
xHowever, if you hold in the buttons for more time, the factory settings will
be re-established.
Programming
xBefore programming, carry out the initial steps Ÿpage 110.
xPut your system's remote control, for example the remote to operate the
garage door, within 30 cm of the sunshade button Ÿfig. 64. If this is too far
away, you may have to repeat the procedure.
xNow, simultaneously hold in the button on your system's remote control
and the button , or until the indicator above the button blinks, first
slowly then more quickly Ÿfig. 65.
xRelease both buttons. The function from your system's remote control is
transferred to the corresponding button.
To transfer other functions to other buttons of the garage door remote control,
repeat the procedure described above with the button to be programmed.
Synchronising a remote control with a variable code
xBefore programming, carry out the initial steps Ÿpage 110.
xProgram the remote control Ÿpage 110.

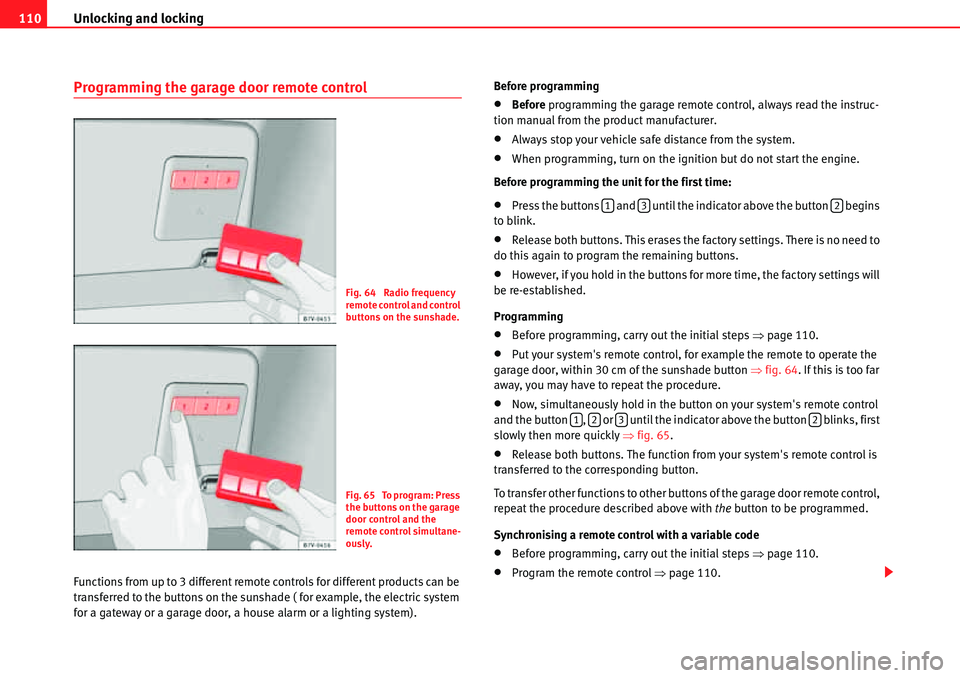

Fig. 64 Radio frequency
remote control and control
buttons on the sunshade.
Fig. 65 To program: Press
the buttons on the garage
door control and the
remote control simultane-
ously.
132
1232
Page 137 of 413

Seats and storage compartments 136
Note
Seat adjustment is stopped when the engine is started.
Adjusting the rear seats
Caution
Tilting the backrest of the second row of seats fully back could damage the
luggage compartment tray. Remove the tray before adjusting the backrest.
Caution
Objects in the luggage compartment could cause damage when moving the
rear seats forwards or backwards.

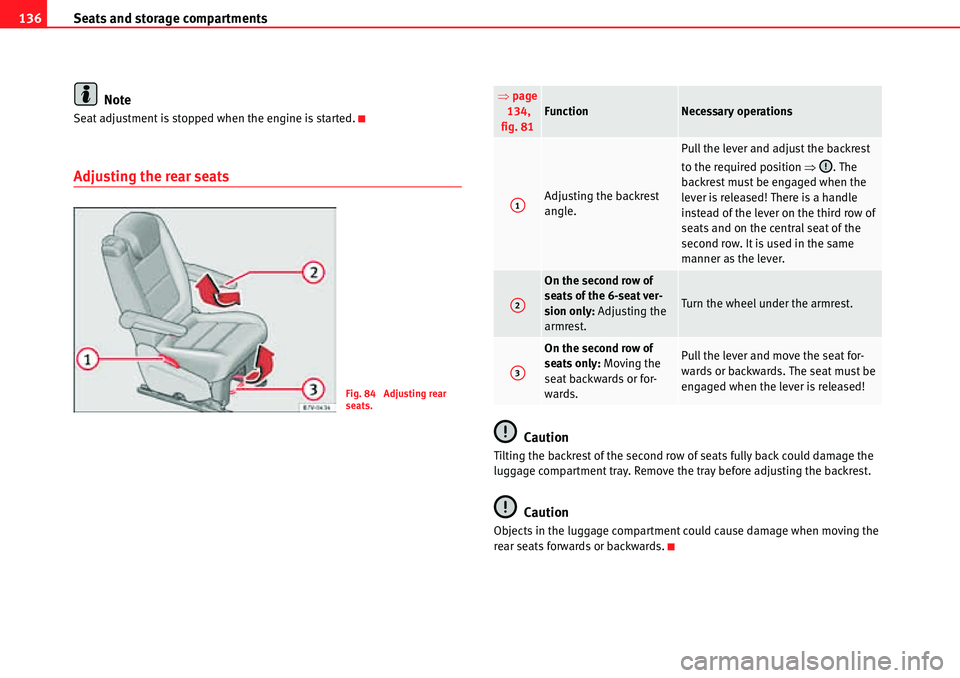

Fig. 84 Adjusting rear
seats.
Ÿpage
134,
fig. 81FunctionNecessary operations
Adjusting the backrest
angle.
Pull the lever and adjust the backrest
to the required position Ÿ. The
backrest must be engaged when the
lever is released! There is a handle
instead of the lever on the third row of
seats and on the central seat of the
second row. It is used in the same
manner as the lever.
On the second row of
seats of the 6-seat ver-
sion only: Adjusting the
armrest.
Turn the wheel under the armrest.
On the second row of
seats only: Moving the
seat backwards or for-
wards.Pull the lever and move the seat for-
wards or backwards. The seat must be
engaged when the lever is released!
A1
A2
A3
Page 176 of 413

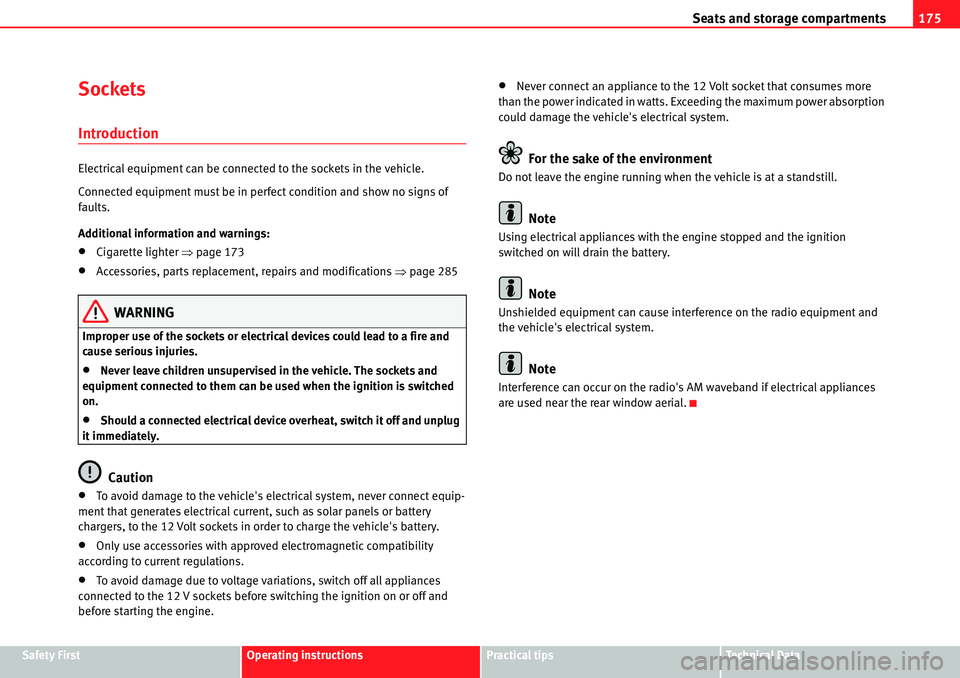

Seats and storage compartments175
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Sockets
Introduction
Electrical equipment can be connected to the sockets in the vehicle.
Connected equipment must be in perfect condition and show no signs of
faults.
Additional information and warnings:
xCigarette lighter Ÿpage 173
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Improper use of the sockets or electrical devices could lead to a fire and
cause serious injuries.
xNever leave children unsupervised in the vehicle. The sockets and
equipment connected to them can be used when the ignition is switched
on.
xShould a connected electrical device overheat, switch it off and unplug
it immediately.
Caution
xTo avoid damage to the vehicle's electrical system, never connect equip-
ment that generates electrical current, such as solar panels or battery
chargers, to the 12 Volt sockets in order to charge the vehicle's battery.
xOnly use accessories with approved electromagnetic compatibility
according to current regulations.
xTo avoid damage due to voltage variations, switch off all appliances
connected to the 12 V sockets before switching the ignition on or off and
before starting the engine.
xNever connect an appliance to the 12 Volt socket that consumes more
than the power indicated in watts. Exceeding the maximum power absorption
could damage the vehicle's electrical system.
For the sake of the environment
Do not leave the engine running when the vehicle is at a standstill.
Note
Using electrical appliances with the engine stopped and the ignition
switched on will drain the battery.
Note
Unshielded equipment can cause interference on the radio equipment and
the vehicle's electrical system.
Note
Interference can occur on the radio's AM waveband if electrical appliances
are used near the rear window aerial.
Page 177 of 413

Seats and storage compartments 176
Vehicle socketsMaximum power consumption
The maximum capacity of each socket must not be exceeded. The power
consumption is indicated on the rating plate of each appliance.
Where two or more appliances are connected at the same time, the total
rating of all the connected devices must never exceed 190 Watts Ÿ.
12 volt socket
The 12 Volt socket will only work with the ignition on.
Using electrical appliances with the engine stopped and the ignition
switched on will drain the battery. Therefore, electrical consumers connected
to the socket must only be used when the engine is running.
To prevent voltage variations from causing damage, switch off the electrical
consumer connected to the 12 Volt socket before switching the ignition on or
off and before starting the engine.
12 Volt sockets can be found in the following locations in the vehicle:
xCompartment in the centre of the centre console.
xCompartment in the front centre console.
xStorage compartment in the front central armrest.
xRear centre console Ÿfig. 126.
xAt the rear right of the luggage compartment.
230 Volt Euro socket*
The socket only works when the engine is running Ÿ.
Connecting an electrical appliance: Plug the appliance into the socket as far
as possible to unlock the built-in child safety device. The current only flows
when the child safety device is unlocked.

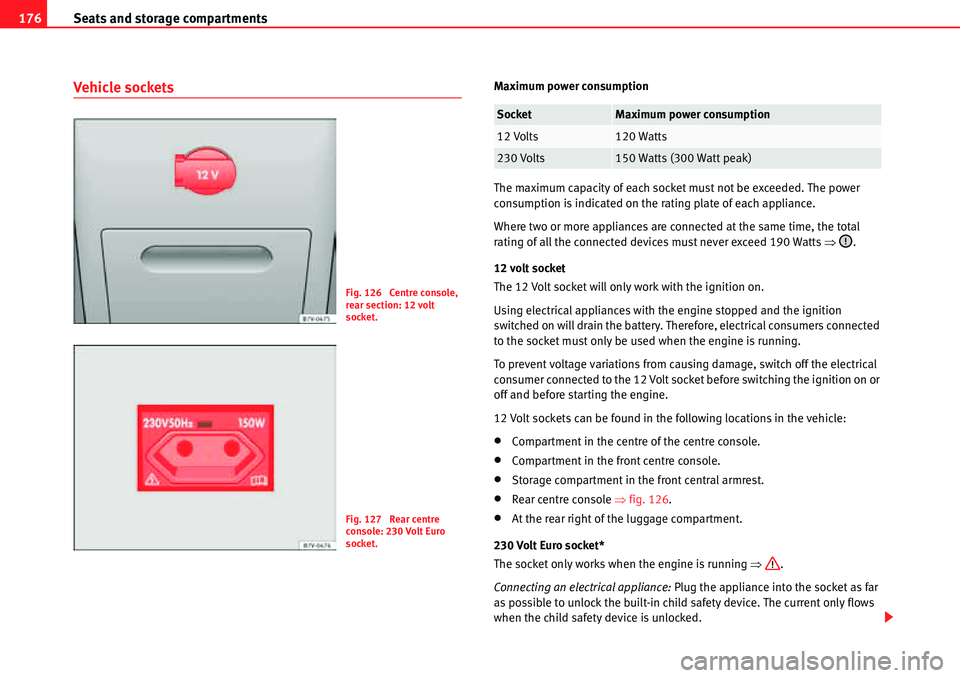

Fig. 126 Centre console,
rear section: 12 volt
socket.
Fig. 127 Rear centre
console: 230 Volt Euro
socket.
SocketMaximum power consumption
12 Volts120 Watts
230 Volts150 Watts (300 Watt peak)
Page 178 of 413

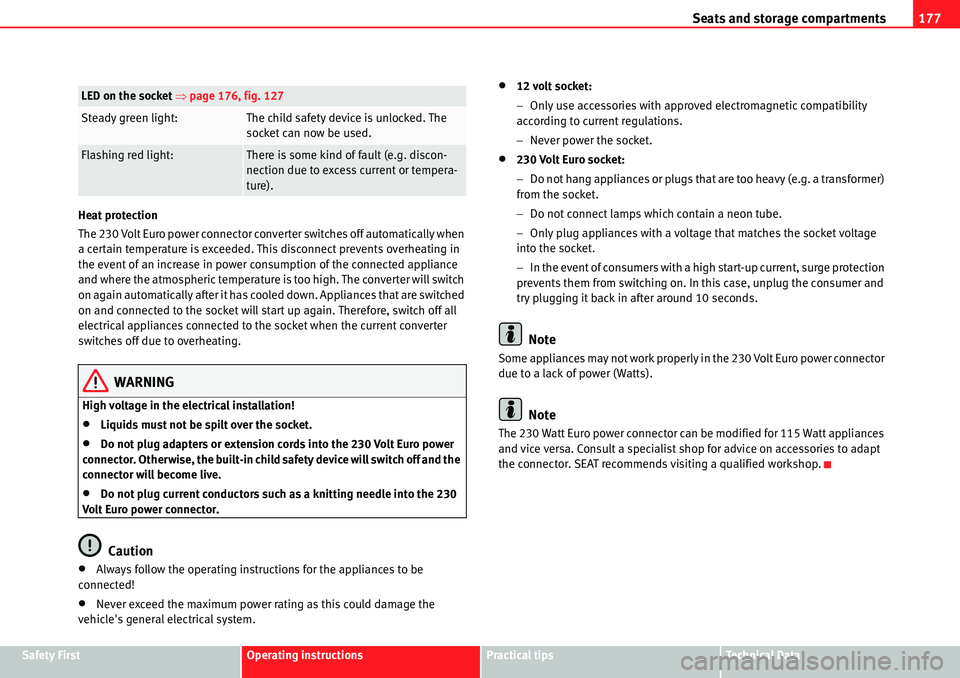

Seats and storage compartments177
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Heat protection
The 230 Volt Euro power connector converter switches off automatically when
a certain temperature is exceeded. This disconnect prevents overheating in
the event of an increase in power consumption of the connected appliance
and where the atmospheric temperature is too high. The converter will switch
on again automatically after it has cooled down. Appliances that are switched
on and connected to the socket will start up again. Therefore, switch off all
electrical appliances connected to the socket when the current converter
switches off due to overheating.
WARNING
High voltage in the electrical installation!
xLiquids must not be spilt over the socket.
xDo not plug adapters or extension cords into the 230 Volt Euro power
connector. Otherwise, the built-in child safety device will switch off and the
connector will become live.
xDo not plug current conductors such as a knitting needle into the 230
Volt Euro power connector.
Caution
xAlways follow the operating instructions for the appliances to be
connected!
xNever exceed the maximum power rating as this could damage the
vehicle's general electrical system.
x12 volt socket:
Only use accessories with approved electromagnetic compatibility
according to current regulations.
Never power the socket.
x230 Volt Euro socket:
Do not hang appliances or plugs that are too heavy (e.g. a transformer)
from the socket.
Do not connect lamps which contain a neon tube.
Only plug appliances with a voltage that matches the socket voltage
into the socket.
In the event of consumers with a high start-up current, surge protection
prevents them from switching on. In this case, unplug the consumer and
try plugging it back in after around 10 seconds.
Note
Some appliances may not work properly in the 230 Volt Euro power connector
due to a lack of power (Watts).
Note
The 230 Watt Euro power connector can be modified for 115 Watt appliances
and vice versa. Consult a specialist shop for advice on accessories to adapt
the connector. SEAT recommends visiting a qualified workshop.
LED on the socket Ÿpage 176, fig. 127
Steady green light:The child safety device is unlocked. The
socket can now be used.
Flashing red light:There is some kind of fault (e.g. discon-
nection due to excess current or tempera-
ture).
Page 193 of 413

Driving 192
Driving
Steering
Introduction
The power steering is not hydraulic but electromechanical. The advantage of
this steering system is that it disposes of hydraulic tubes, hydraulic oil, the
pump, filter and other components. The electromechanical system saves
fuel. While a hydraulic system requires oil pressure to be maintained, electro-
mechanical steering only requires energy when the steering wheel is turned.
With the power steering system, the assisted steering function automatically
adjusts according to the vehicle speed, the steering torque and the wheel
turning angle. The power steering only works when the engine is running.
Additional information and warnings:
xStart and stop the engine Ÿpage 195
xVehicle battery Ÿpage 318
xTow-starting and towing away Ÿpage 375
WARNING
If the power steering is not working then the steering wheel is much more
difficult to turn and the vehicle more difficult to control.
xThe power steering only works when the engine is running.
xNever allow the vehicle to move when the engine is switched off.
xNever remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
Control and warning lamps
lights upPossible causeSolution
D (red)Power steering faulty.The steering system should be
checked by a qualified workshop
as soon as possible.
D (yel-
low)
Power steering operation
reduced.
The steering system should be
checked by a qualified workshop
as soon as possible.
If, after restarting the engine and
driving for a short distance, the
yellow warning light no longer
comes on, it will not be neces-
sary to take the vehicle to a spe-
cialised workshop.
The vehicle battery was dis-
connected and has been
reconnected.Drive for a short distance at 15 –
20 km/h.
Page 196 of 413

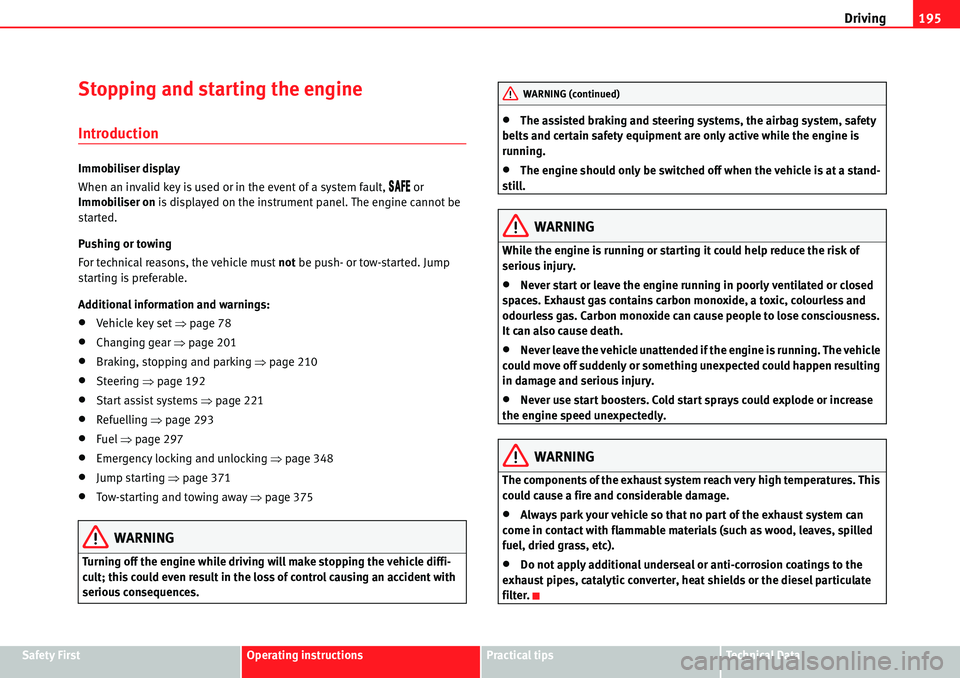

Driving195
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Stopping and starting the engine
Introduction
Immobiliser display
When an invalid key is used or in the event of a system fault,
3 ! &
