Seat Alhambra 2010 Owner's Manual

Heating, Ventilation and Air conditioning 190
Checking programming
If the timer has been switched on after switching the ignition off, the instant
on button will remain lit for around ten seconds.
WARNING
Never program the independent heating system to be activated and oper-
ated in closed, unventilated areas. The auxiliary heater fumes contain carbon dioxide, an odourless and colourless toxic gas. Carbon monoxide
can cause people to lose consciousness. It can also cause death.
User instructions
The auxiliary heater exhaust system located below the vehicle must be kept
clear of snow, mud and other objects. The exhaust fumes must not be
obstructed in any way. The exhaust fumes generated by the auxiliary heater
are removed via an exhaust pipe fitted underneath the vehicle.
On heating the vehicle interior, depending on the outside temperature the
warm air is first directed at the windscreen and then to the rest of the
passenger compartment through the air vents. If the air vents are turned
towards the windows, for example, the form of air distribution may be
affected.
Depending on the outside temperature, the temperature at which the auxil-
iary heater warms the vehicle interior may be somewhat higher if the heating
or climate control temperature control is set to maximum before switching the
heating on.
Depending on the engine, vehicles with auxiliary heater may be fitted with a
second battery in the luggage compartment that is responsible for powering
the auxiliary heater.
Cases in which the auxiliary heater will not switch on
xThe auxiliary heater requires about as much power as the dipped head-
lights. If the battery charge is low, the auxiliary heater will switch off automat-
ically or will not even switch on. This avoids problems when starting the
engine.
xThe heater will switch just once each time. The timer will also have to be
switched back on every time it is required.
Menu optionsDescription
Switching on
Switching off
The auxiliary heater can be set to come on automatically if
required. To do so, select a timer:
– The timer is displayed marked with a
y.
– Only one timer can be selected. If a timer has been
selected, Prog. ON will be displayed on the screen. If no
timer has been selected, the instrument panel screen will
display Prog. OFF.
– To modify the programmed timer, select another timer or
select the Off option.
Timer 1
Timer 2
Timer 3Three different timers (hh.mm) can later be selected using
the On option. If the auxiliary heater is to be switched on
for just a certain day of the week, select the day of the
week and the time for the auxiliary heater to come on.
DurationThe operating time may vary between 10 and 60 minutes
and can be set to 5-minute intervals.
Operating
modeSet to heat or ventilate the vehicle interior when the auxil-
iary heater is switched on.
DaySet the current day of the week.
Manufacturer's
settingsThe predefined factory values for the functions of this
menu are restored.
BackThis returns to the main menu
>
WARNING (continued)

Heating, Ventilation and Air conditioning191
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Note
Noise will be heard while the auxiliary heater is running.
Note
When the air humidity is high and the outside temperature low, the heating
system may evaporate condensation from the auxiliary heater. In this case,
steam may be released from underneath the vehicle. This is completely
normal and there is no need to suspect a fault!
Note
If the auxiliary heater runs several times over a prolonged period, the
vehicle's battery may run flat. To re-charge the battery, drive the vehicle for a
long distance. In general: drive for as much time as the auxiliary heating was
working.

Driving 192
Driving
Steering
Introduction
The power steering is not hydraulic but electromechanical. The advantage of
this steering system is that it disposes of hydraulic tubes, hydraulic oil, the
pump, filter and other components. The electromechanical system saves
fuel. While a hydraulic system requires oil pressure to be maintained, electro-
mechanical steering only requires energy when the steering wheel is turned.
With the power steering system, the assisted steering function automatically
adjusts according to the vehicle speed, the steering torque and the wheel
turning angle. The power steering only works when the engine is running.
Additional information and warnings:
xStart and stop the engine Ÿpage 195
xVehicle battery Ÿpage 318
xTow-starting and towing away Ÿpage 375
WARNING
If the power steering is not working then the steering wheel is much more
difficult to turn and the vehicle more difficult to control.
xThe power steering only works when the engine is running.
xNever allow the vehicle to move when the engine is switched off.
xNever remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
Control and warning lamps
lights upPossible causeSolution
D (red)Power steering faulty.The steering system should be
checked by a qualified workshop
as soon as possible.
D (yel-
low)
Power steering operation
reduced.
The steering system should be
checked by a qualified workshop
as soon as possible.
If, after restarting the engine and
driving for a short distance, the
yellow warning light no longer
comes on, it will not be neces-
sary to take the vehicle to a spe-
cialised workshop.
The vehicle battery was dis-
connected and has been
reconnected.Drive for a short distance at 15 –
20 km/h.

Driving193
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
Information on the steering
Steering column electronic lock
Vehicles with KESSY: The steering column locks when the driver's door is
opened and the ignition is switched off. Therefore, the vehicle should be at a
standstill and, where applicable, the selector lever in position P.
If the driver's door is opened before the ignition is switched off, the steering
column electronic lock is activated via the ignition key or the sensor built into
the door handle.
Mechanical steering lock
To prevent theft, we recommend you lock the steering before leaving the
vehicle.
Electromechanical power steering
With the power steering system, the assisted steering function automatically
adjusts according to the vehicle speed, the steering torque and the wheel
turning angle. The power steering only works when the engine is running.
You should remember that you will need considerably more power than
normal to steer the vehicle if the power steering is not working correctly or not
at all.
Counter steering assistance system
The counter steering assistance system helps the driver in critical situations.
Additional steering power helps the driver when counter steering.
flashesPossible causeSolution
D (red)Fault in the steering column
electronic lock.› Do not drive on!
Seek professional advice.
D (yel-
low)
Steering column deviation.Gently turn the steering wheel to
and fro.
Steering wheel not unlocked
or locked.
Remove the key from the ignition
and then switch the ignition
back on. Check the messages
displayed on the instrument
panel at the same time.
Do not drive on, if the steering
column remains locked after the
ignition has been switched on.
You should obtain professional
assistance.
Please engage steering lockUnlocking the steering
Parking the vehicle Ÿpage 210.Turn the steering wheel slightly to
release the steering lock.
Remove the key from the ignition.Insert the key in the ignition lock.
Turn the steering wheel slightly until
you hear the steering lock.Hold the steering wheel in this posi-
tion and switch on the ignition.

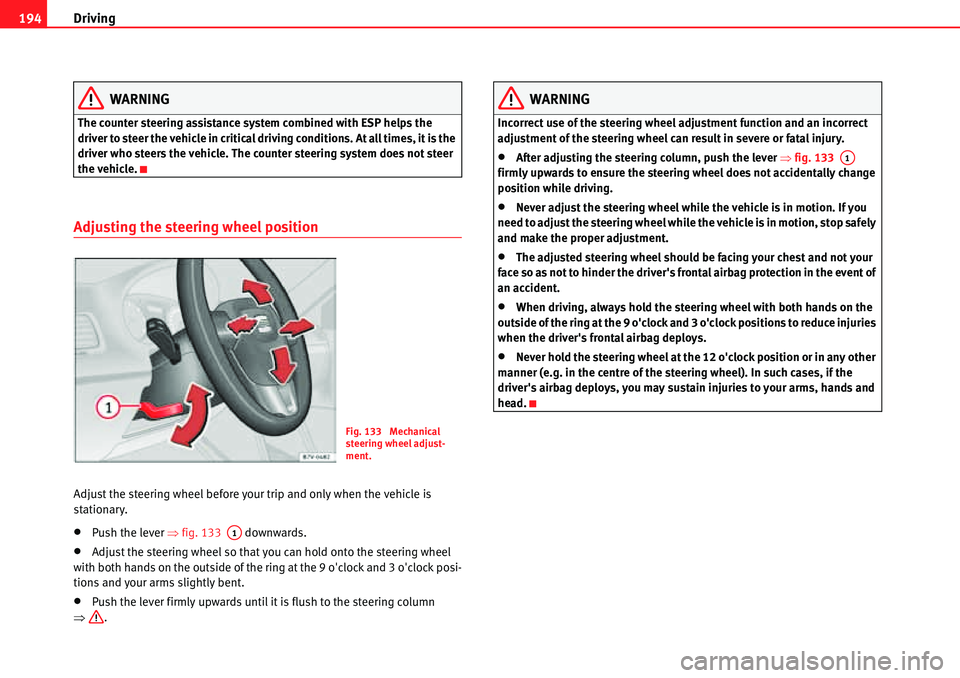

Driving 194
WARNING
The counter steering assistance system combined with ESP helps the
driver to steer the vehicle in critical driving conditions. At all times, it is the
driver who steers the vehicle. The counter steering system does not steer
the vehicle.
Adjusting the steering wheel position
Adjust the steering wheel before your trip and only when the vehicle is
stationary.
xPush the lever Ÿfig. 133 downwards.
xAdjust the steering wheel so that you can hold onto the steering wheel
with both hands on the outside of the ring at the 9 o'clock and 3 o'clock posi-
tions and your arms slightly bent.
xPush the lever firmly upwards until it is flush to the steering column
Ÿ.
WARNING
Incorrect use of the steering wheel adjustment function and an incorrect
adjustment of the steering wheel can result in severe or fatal injury.
xAfter adjusting the steering column, push the lever Ÿfig. 133
firmly upwards to ensure the steering wheel does not accidentally change
position while driving.
xNever adjust the steering wheel while the vehicle is in motion. If you
need to adjust the steering wheel while the vehicle is in motion, stop safely
and make the proper adjustment.
xThe adjusted steering wheel should be facing your chest and not your
face so as not to hinder the driver's frontal airbag protection in the event of
an accident.
xWhen driving, always hold the steering wheel with both hands on the
outside of the ring at the 9 o'clock and 3 o'clock positions to reduce injuries
when the driver's frontal airbag deploys.
xNever hold the steering wheel at the 12 o'clock position or in any other
manner (e.g. in the centre of the steering wheel). In such cases, if the
driver's airbag deploys, you may sustain injuries to your arms, hands and
head.
Fig. 133 Mechanical
steering wheel adjust-
ment.
A1
A1

Driving195
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Stopping and starting the engine
Introduction
Immobiliser display
When an invalid key is used or in the event of a system fault,
3!&% or
Immobiliser on is displayed on the instrument panel. The engine cannot be
started.
Pushing or towing
For technical reasons, the vehicle must not be push- or tow-started. Jump
starting is preferable.
Additional information and warnings:
xVehicle key set Ÿpage 78
xChanging gear Ÿpage 201
xBraking, stopping and parking Ÿpage 210
xSteering Ÿpage 192
xStart assist systems Ÿpage 221
xRefuelling Ÿpage 293
xFuel Ÿpage 297
xEmergency locking and unlocking Ÿpage 348
xJump starting Ÿpage 371
xTow-starting and towing away Ÿpage 375
WARNING
Turning off the engine while driving will make stopping the vehicle diffi-
cult; this could even result in the loss of control causing an accident with
serious consequences.
xThe assisted braking and steering systems, the airbag system, safety
belts and certain safety equipment are only active while the engine is
running.
xThe engine should only be switched off when the vehicle is at a stand-
still.
WARNING
While the engine is running or starting it could help reduce the risk of
serious injury.
xNever start or leave the engine running in poorly ventilated or closed
spaces. Exhaust gas contains carbon monoxide, a toxic, colourless and
odourless gas. Carbon monoxide can cause people to lose consciousness.
It can also cause death.
xNever leave the vehicle unattended if the engine is running. The vehicle
could move off suddenly or something unexpected could happen resulting
in damage and serious injury.
xNever use start boosters. Cold start sprays could explode or increase
the engine speed unexpectedly.
WARNING
The components of the exhaust system reach very high temperatures. This
could cause a fire and considerable damage.
xAlways park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as wood, leaves, spilled
fuel, dried grass, etc).
xDo not apply additional underseal or anti-corrosion coatings to the
exhaust pipes, catalytic converter, heat shields or the diesel particulate
filter.
WARNING (continued)

Driving 196
Ignition lock
Key not authorised for the vehicle
If a key which is not authorised for this vehicle is inserted in the ignition lock,
it can be removed as follows:
xAutomatic gearbox: the key cannot be removed from the ignition lock.
Press and release the selector lever locking button. Key can be removed from
the vehicle.
xManual gearbox: Remove the key from the ignition.
WARNING
Unsuitable or careless use of the vehicle key could result in serious injury.
xAlways take all the keys with you whenever you leave the vehicle. The
engine could accidentally be started and electrical equipment such as the
windows could accidentally be operated resulting in serious injury.
xNever leave children or disabled people alone in the car. They could be
trapped in the car in an emergency and will not be able to get themselves
to safety. For example, depending on the time of the year, temperatures
inside a locked and closed vehicle can be extremely high or extremely low
resulting in serious injuries and illness or even death, particularly for
young children.
xNever remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
Note
If the key is left in the ignition lock with the engine off for long periods, the
vehicle battery will run flat.
Fig. 134 Vehicle key positions
Car keys Ÿfig. 134
No key in the ignition lock: The steering lock may be activated.
Ignition off, all electrical components disconnected. Key can be
removed from the vehicle.
Ignition is switched on. Pre-heating of diesel engine. The steering
lock can be unlocked.
Switch on the engine. Release the key when the engine has started.
When it is released, the key returns to position .
A0
A1
A2A1

Driving197
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Note
For automatic gearbox vehicles the key can only be removed from the ignition
lock if the gear selector lever is in position P. In this case, press and release
the selector lever locking button.
Starter button*
The starter button can only be used if there is a valid key inside the vehicle.
On leaving the vehicle with the ignition switched off, the electronic lock on
the steering column is activated when the driver's door is opened
Ÿpage 192.
Switching the ignition on/off
xBriefly press the starter button once without pressing the clutch or brake
pedal Ÿ.Emergency starting function
If the system has not recognised a valid key inside the vehicle, the emergency
starter function is activated. The corresponding information text is displayed
on instrument panel. This may occur, for example, if the key battery is flat or
very low:
xPlace the key close to the steering column immediately after passing the
start button.
xThe engine starts automatically.
Emergency disconnection
If it is not possible to switch off the engine by briefly pressing the starter
button, the emergency disconnection system should be used:
xPress the starter button twice within a second or press it once for more
than two seconds Ÿ in “Stopping the engine” on page 199.
xThe engine turns off automatically.
Re-starting the engine
If, after the engine is switched off, a valid key is not detected in the vehicle,
the engine can only be started after an interval of approximately 5 seconds.
The corresponding message is displayed on the instrument panel.
After this interval, it will not be possible to start the engine without a valid key
inside the vehicle.
WARNING
Unintentional movements of the vehicle could cause serious injury.
xWhen the starter button is pressed do not press the brake or clutch
pedal as the engine will start immediately.
Fig. 135 Detailed view of
the centre console: KESSY
starter and lock system:
Starter button.

Driving 198
WARNING
Careless or incorrect use of vehicle keys may result in severe injury and
accident.
xAlways take all the keys with you whenever you leave the vehicle. Chil-
dren and other unauthorised persons could lock the vehicle, start the engine or switch on the ignition and any electrical components such as the
electric windows.
Note
In vehicles with a diesel engine and KESSY, the starting of the engine may be
delayed due to pre-heating of the engine.
Starting the engine
Complete operations only in the sequence given:
WARNING (continued)
StepVehicles without KESSYVehicles wi th KESSY
1.Press the brake pedal and keep pressed until step 5 has been completed.
1 a.In vehicles with a manual gearbox: Press the clutch pedal all the way and keep pressed until the engine starts.
2.Put the gearstick in neutral or the selector lever in position P or N.
3.
Only in vehicles with diesel engine: To preheat, turn the key in the igni-
tion lock to position Ÿpage 196, fig. 134 . A warning lamp lights
up in the control panel
D.
4.Turn the key in the ignition lock to position Ÿpage 196, fig. 134 ;
do not press the accelerator.Press the starter button Ÿpage 197, fig. 135; do not press the acceler-
ator. To start the engine, the system should detect a valid key inside
the vehicle.
5.When the engine has started, release the key in the ignition lock.When the engine starts, release the starter button.
6.If the engine does not start, stop the process and try again after one
minute.If the engine does not start, stop the process and try again after one
minute. If necessary, perform an emergency start Ÿpage 197.
7.Disconnect the electronic parking brake when you wish to start driving Ÿpage 210.
A1
A2

Driving199
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
WARNING
Never leave the vehicle unattended if the engine is running. The vehicle
could move off suddenly, especially if it is in gear, resulting in an accident
and serious injury.
WARNING
Cold start sprays could explode or cause a sudden increase in the engine
speed.
xNever use start boosters.
Caution
xAn attempt to start the engine while driving or starting the engine imme-
diately after turning it off can cause damage to the engine or starter motor.
xWhen the engine is cold, avoid high revs and heavy acceleration and do
not make the engine work hard.
xDo not push or tow start the engine. Sunburnt fuel could damage the cata-
lytic converter.
For the sake of the environment
Do not warm the engine at idle speed; start driving immediately if the visi-
bility is OK. This helps the engine reach operating temperature faster and
reduces emissions.
Note
For example, if the key battery is very worn or flat, the engine cannot be
started with the starter button. In this case, remove the ignition button from
the lock and insert the key.
Note
Electrical components with a high power consumption are switched off
temporarily when the engine starts.
Note
When the engine is started cold, there may be strong vibrations for a few
moments for technical reasons. This is quite normal, and no cause for
concern.
Note
At temperatures below +5 °C (+41 °F), smoke may be given off below the
vehicle when the additional heater is connected.
Stopping the engine
Complete operations only in the sequence given:
StepVehicles without KESSYVehicles with KESSY
1.Stopping the vehicle completely Ÿ.
2.Press the brake pedal and keep pressed until step 4 has been com-
pleted.
3.In automatic gearboxes, put the selector lever in position P.
4.Connect the electronic parking brake Ÿpage 210.
