Seat Alhambra 2011 Service Manual
Manufacturer: SEAT, Model Year: 2011, Model line: Alhambra, Model: Seat Alhambra 2011Pages: 385, PDF Size: 7.92 MB
Page 41 of 385
39

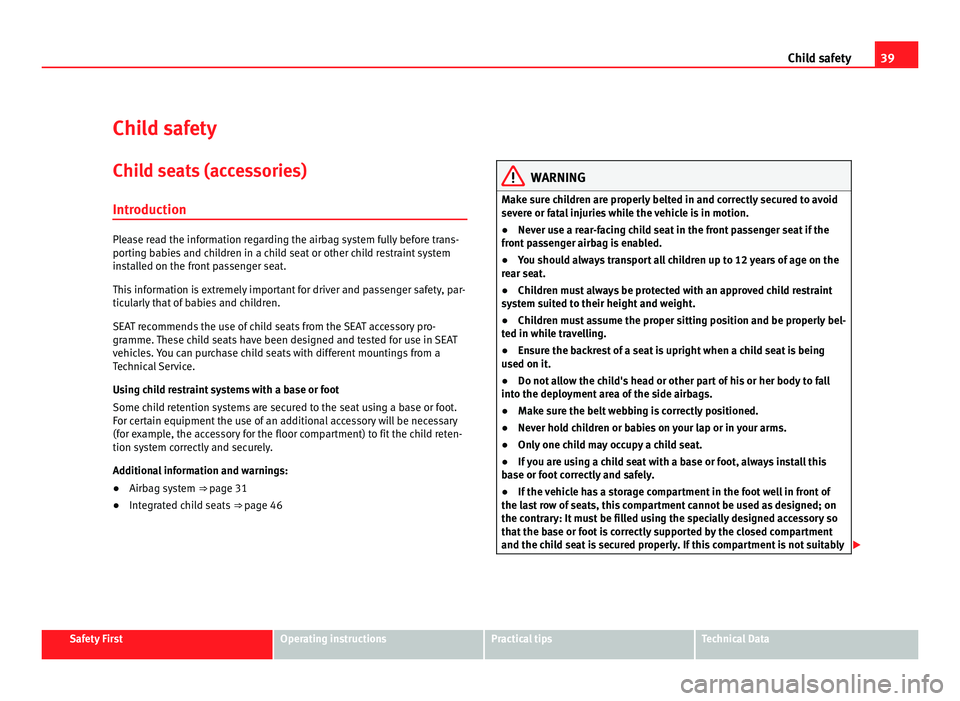

Child safety
Child safety
Child seats (accessories) Introduction Please read the information regarding the airbag system fully before trans-
portin
g b
abies and children in a child seat or other child restraint system
installed on the front passenger seat.
This information is extremely important for driver and passenger safety, par-
ticularly that of babies and children.
SEAT recommends the use of child seats from the SEAT accessory pro-
gramme. These child seats have been designed and tested for use in SEAT
vehicles. You can purchase child seats with different mountings from a
Technical Service.
Using child restraint systems with a base or foot
Some child retention systems are secured to the seat using a base or foot.
For certain equipment the use of an additional accessory will be necessary
(for example, the accessory for the floor compartment) to fit the child reten-
tion system correctly and securely.
Additional information and warnings:
● Airbag system ⇒ page 31
● Int
egrated child seats ⇒ page 46 WARNING
Make sure children are properly belted in and correctly secured to avoid
sever e or f
atal injuries while the vehicle is in motion.
● Never use a rear-facing child seat in the front passenger seat if the
front p
assenger airbag is enabled.
● You should always transport all children up to 12 years of age on the
rear se
at.
● Children must always be protected with an approved child restraint
syst
em suited to their height and weight.
● Children must assume the proper sitting position and be properly bel-
ted in whil
e travelling.
● Ensure the backrest of a seat is upright when a child seat is being
used on it.
● Do not
allow the child's head or other part of his or her body to fall
into the deplo
yment area of the side airbags.
● Make sure the belt webbing is correctly positioned.
● Never hold children or babies on your lap or in your arms.
● Only one child may occupy a child seat.
● If you are using a child seat with a base or foot, always install this
base or f
oot correctly and safely.
● If the vehicle has a storage compartment in the foot well in front of
the las
t row of seats, this compartment cannot be used as designed; on
the contrary: It must be filled using the specially designed accessory so
that the base or foot is correctly supported by the closed compartment
and the child seat is secured properly. If this compartment is not suitably Safety First Operating instructions Practical tips Technical Data
Page 42 of 385
40

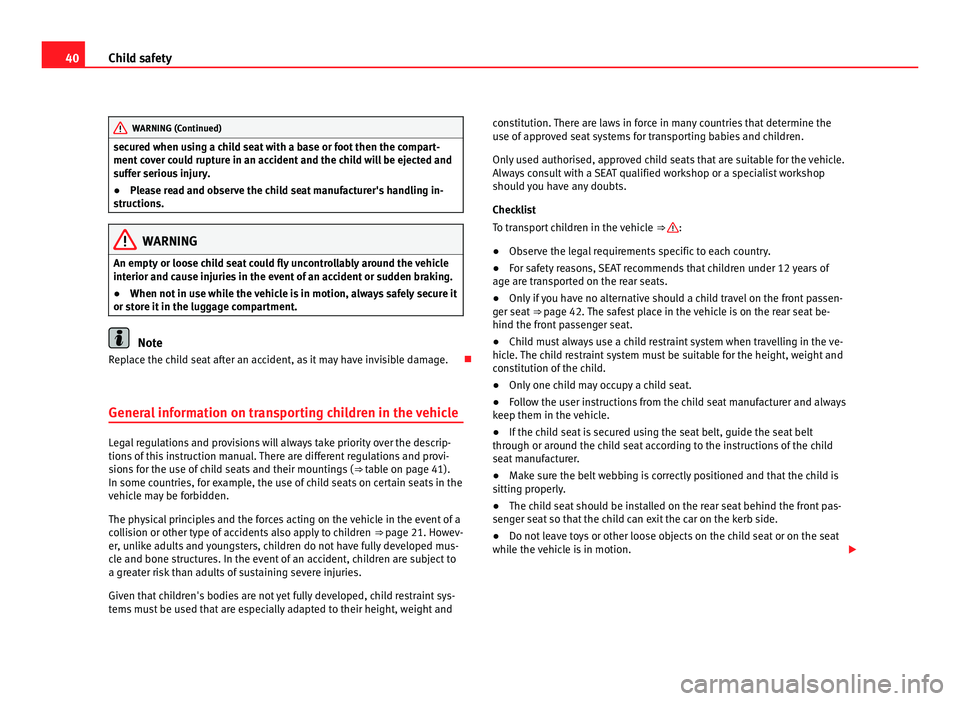

Child safety WARNING (Continued)
secured when using a child seat with a base or foot then the compart-
ment c
o
ver could rupture in an accident and the child will be ejected and
suffer serious injury.
● Please read and observe the child seat manufacturer's handling in-
structions. WARNING
An empty or loose child seat could fly uncontrollably around the vehicle
interior and c au
se injuries in the event of an accident or sudden braking.
● When not in use while the vehicle is in motion, always safely secure it
or stor
e it in the luggage compartment. Note
Replace the child seat after an accident, as it may have invisible damage.
General information on transporting children in the vehicle Legal regulations and provisions will always take priority over the descrip-
tions
of
this instruction manual. There are different regulations and provi-
sions for the use of child seats and their mountings ( ⇒ table on page 41).
In some countries, for example, the use of child seats on certain seats in the
vehicle may be forbidden.
The physical principles and the forces acting on the vehicle in the event of a
collision or other type of accidents also apply to children ⇒ page 21. Howev-
er, unlike adults and youngsters, children do not have fully developed mus-
cle and bone structures. In the event of an accident, children are subject to
a greater risk than adults of sustaining severe injuries.
Given that children's bodies are not yet fully developed, child restraint sys-
tems must be used that are especially adapted to their height, weight and constitution. There are laws in force in many countries that determine the
use of ap
proved seat systems for transporting babies and children.
Only used authorised, approved child seats that are suitable for the vehicle.
Always consult with a SEAT qualified workshop or a specialist workshop
should you have any doubts.
Checklist
To transport children in the vehicle ⇒ :
● Observe the legal requirements specific to each country.
● For safety reasons, SEAT recommends that children under 12 years of
age ar e tr
ansported on the rear seats.
● Only if you have no alternative should a child travel on the front passen-
ger seat
⇒ page 42. The safest place in the vehicle is on the rear seat be-
hind the front passenger seat.
● Child must always use a child restraint system when travelling in the ve-
hicle.
The child restraint system must be suitable for the height, weight and
constitution of the child.
● Only one child may occupy a child seat.
● Follow the user instructions from the child seat manufacturer and always
keep them in the v
ehicle.
● If the child seat is secured using the seat belt, guide the seat belt
through or arou
nd the child seat according to the instructions of the child
seat manufacturer.
● Make sure the belt webbing is correctly positioned and that the child is
sitting pr
operly.
● The child seat should be installed on the rear seat behind the front pas-
senger se
at so that the child can exit the car on the kerb side.
● Do not leave toys or other loose objects on the child seat or on the seat
while the
vehicle is in motion.
Page 43 of 385
41
Child safety

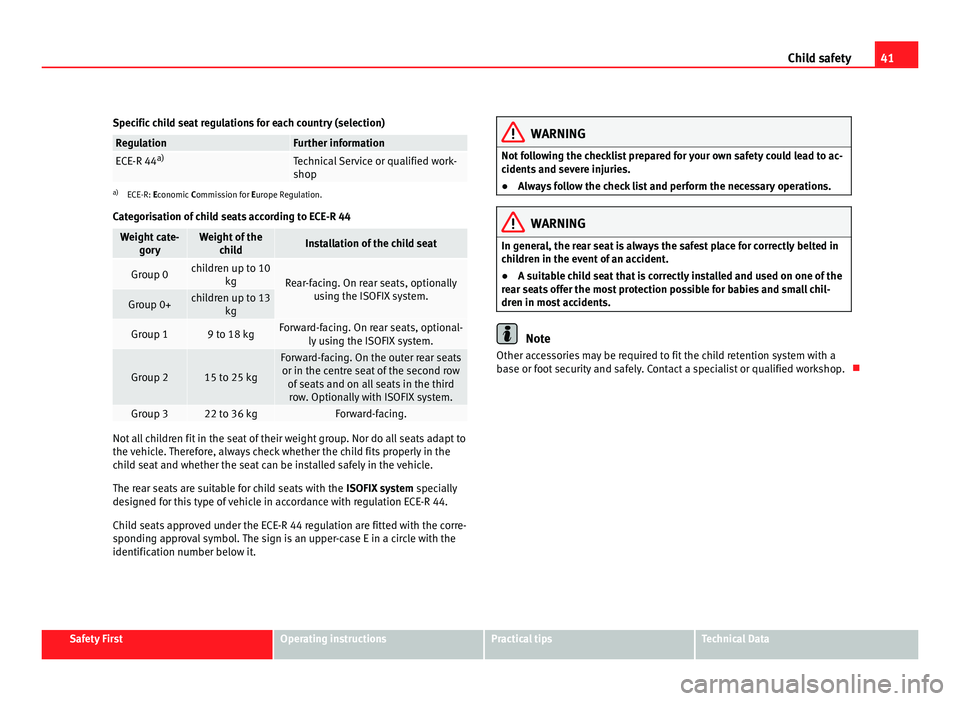

Specific child seat regulations for each country (selection) Regulation Further information
ECE-R 44
a) Technical Service or qualified work-
shop
a)
ECE-R: Economic Commi ssion for Europe Regulation.
Categorisation of child seats according to ECE-R 44 Weight cate-
gory Weight of the
chil
d Installation of the child seat
Group 0 children up to 10
kg Rear-facing. On rear seats, optionally
usin
g the ISOFIX system. Group 0+ children up to 13
kg Group 1 9 to 18 kg Forward-facing. On rear seats, optional-
ly us
ing the ISOFIX system. Group 2 15 to 25 kg Forward-facing. On the outer rear seats
or in the centr e se
at of the second row
of seats and on all seats in the third row. Optionally with ISOFIX system. Group 3 22 to 36 kg Forward-facing.
Not all children fit in the seat of their weight group. Nor do all seats adapt to
the v
ehic
le. Therefore, always check whether the child fits properly in the
child seat and whether the seat can be installed safely in the vehicle.
The rear seats are suitable for child seats with the ISOFIX system specially
designed for this type of vehicle in accordance with regulation ECE-R 44.
Child seats approved under the ECE-R 44 regulation are fitted with the corre-
sponding approval symbol. The sign is an upper-case E in a circle with the
identification number below it. WARNING
Not following the checklist prepared for your own safety could lead to ac-
cident s
and severe injuries.
● Always follow the check list and perform the necessary operations. WARNING
In general, the rear seat is always the safest place for correctly belted in
chil
dren in the event of an accident.
● A suitable child seat that is correctly installed and used on one of the
rear se
ats offer the most protection possible for babies and small chil-
dren in most accidents. Note
Other accessories may be required to fit the child retention system with a
ba se or f
oot security and safely. Contact a specialist or qualified workshop. Safety First Operating instructions Practical tips Technical Data
Page 44 of 385
42
Child safety

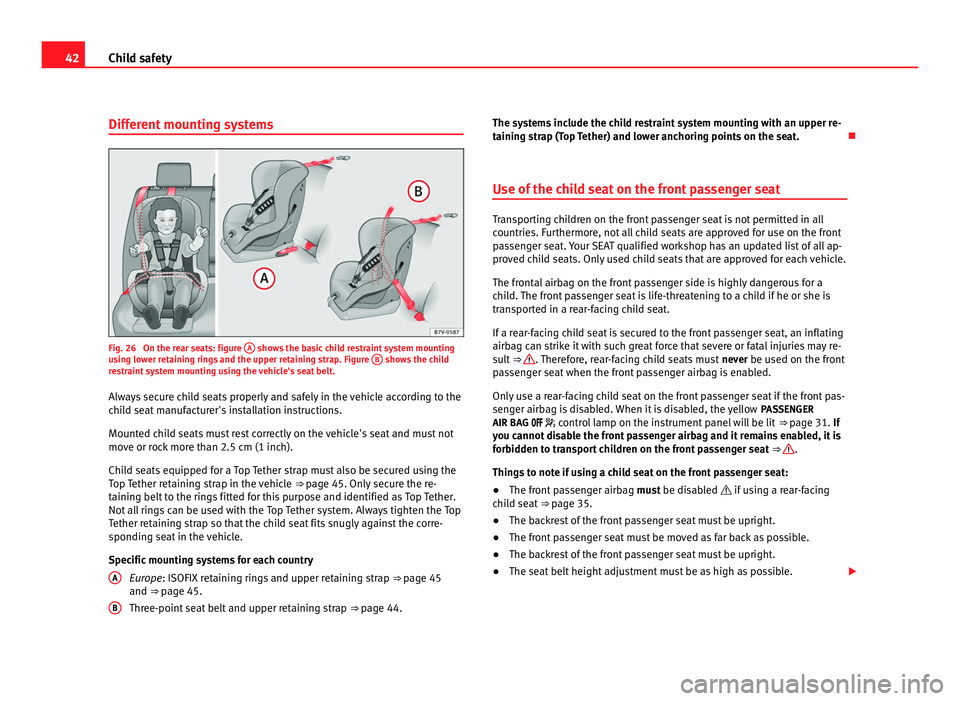

Different mounting systems Fig. 26 On the rear seats: figure
A shows the basic child restraint system mounting
us in
g lower retaining rings and the upper retaining strap. Figure B shows the child
re s
traint system mounting using the vehicle's seat belt.
Always secure child seats properly and safely in the vehicle according to the
child seat manufacturer's installation instructions.
Mounted child seats must rest correctly on the vehicle's seat and must not
move or rock more than 2.5 cm (1 inch).
Child seats equipped for a Top Tether strap must also be secured using the
Top Tether retaining strap in the vehicle ⇒ page 45. Only secure the re-
taining belt to the rings fitted for this purpose and identified as Top Tether.
Not all rings can be used with the Top Tether system. Always tighten the Top
Tether retaining strap so that the child seat fits snugly against the corre-
sponding seat in the vehicle.
Specific mounting systems for each country
Europe: ISOFIX retaining rings and upper retaining strap ⇒ page 45
and ⇒ page 45.
Three-point seat belt and upper retaining strap ⇒ page 44.
A B The systems include the child restraint system mounting with an upper re-
tainin
g s
trap (Top Tether) and lower anchoring points on the seat.
Use of the child seat on the front passenger seat Transporting children on the front passenger seat is not permitted in all
cou
ntrie
s. Furthermore, not all child seats are approved for use on the front
passenger seat. Your SEAT qualified workshop has an updated list of all ap-
proved child seats. Only used child seats that are approved for each vehicle.
The frontal airbag on the front passenger side is highly dangerous for a
child. The front passenger seat is life-threatening to a child if he or she is
transported in a rear-facing child seat.
If a rear-facing child seat is secured to the front passenger seat, an inflating
airbag can strike it with such great force that severe or fatal injuries may re-
sult ⇒ . Therefore, rear-facing child seats must
never be u
sed on the front
passenger seat when the front passenger airbag is enabled.
Only use a rear-facing child seat on the front passenger seat if the front pas-
senger airbag is disabled. When it is disabled, the yellow PASSENGER
AIR BAG control lamp on the instrument panel will be lit ⇒ page 31. If
you cannot disable the front passenger airbag and it remains enabled, it is
forbidden to transport children on the front passenger seat ⇒ .
Thing s
to note if using a child seat on the front passenger seat:
● The front passenger airbag must
be disabled if using a rear-facing
child seat ⇒ page 35.
● The backrest of the front passenger seat must be upright.
● The front passenger seat must be moved as far back as possible.
● The backrest of the front passenger seat must be upright.
● The seat belt height adjustment must be as high as possible.

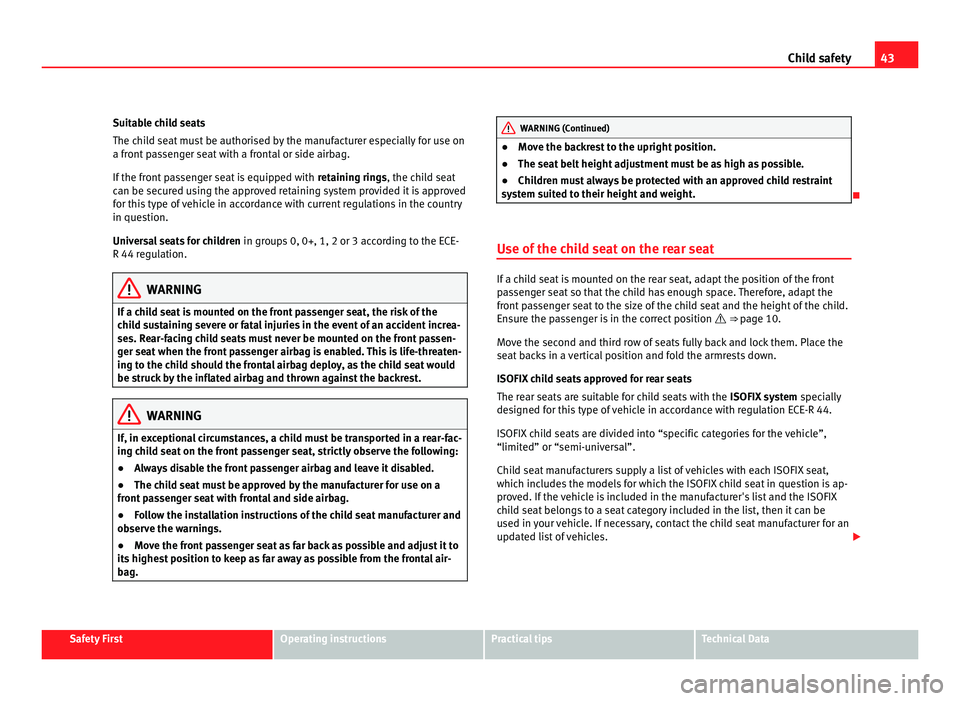

Page 45 of 385
43
Child safety
Suitable child seats
The chi l
d seat must be authorised by the manufacturer especially for use on
a front passenger seat with a frontal or side airbag.
If the front passenger seat is equipped with retaining rings, the child seat
can be secured using the approved retaining system provided it is approved
for this type of vehicle in accordance with current regulations in the country
in question.
Universal seats for children in groups 0, 0+, 1, 2 or 3 according to the ECE-
R 44 regulation. WARNING
If a child seat is mounted on the front passenger seat, the risk of the
chi l
d sustaining severe or fatal injuries in the event of an accident increa-
ses. Rear-facing child seats must never be mounted on the front passen-
ger seat when the front passenger airbag is enabled. This is life-threaten-
ing to the child should the frontal airbag deploy, as the child seat would
be struck by the inflated airbag and thrown against the backrest. WARNING
If, in exceptional circumstances, a child must be transported in a rear-fac-
ing c hi
ld seat on the front passenger seat, strictly observe the following:
● Always disable the front passenger airbag and leave it disabled.
● The child seat must be approved by the manufacturer for use on a
front p
assenger seat with frontal and side airbag.
● Follow the installation instructions of the child seat manufacturer and
obser
ve the warnings.
● Move the front passenger seat as far back as possible and adjust it to
its highe
st position to keep as far away as possible from the frontal air-
bag. WARNING (Continued)
● Move the backrest to the upright position.
● The se
at
belt height adjustment must be as high as possible.
● Children must always be protected with an approved child restraint
syst
em suited to their height and weight.
Use of the child seat on the rear seat If a child seat is mounted on the rear seat, adapt the position of the front
pa
s
senger seat so that the child has enough space. Therefore, adapt the
front passenger seat to the size of the child seat and the height of the child.
Ensure the passenger is in the correct position ⇒ page 10.
Move the second and third row of seats fully back and lock them. Place the
seat backs in a vertical position and fold the armrests down.
ISOFIX child seats approved for rear seats
The rear seats are suitable for child seats with the ISOFIX system specially
designed for this type of vehicle in accordance with regulation ECE-R 44.
ISOFIX child seats are divided into “specific categories for the vehicle”,
“limited” or “semi-universal”.
Child seat manufacturers supply a list of vehicles with each ISOFIX seat,
which includes the models for which the ISOFIX child seat in question is ap-
proved. If the vehicle is included in the manufacturer's list and the ISOFIX
child seat belongs to a seat category included in the list, then it can be
used in your vehicle. If necessary, contact the child seat manufacturer for an
updated list of vehicles. Safety First Operating instructions Practical tips Technical Data
Page 46 of 385
44

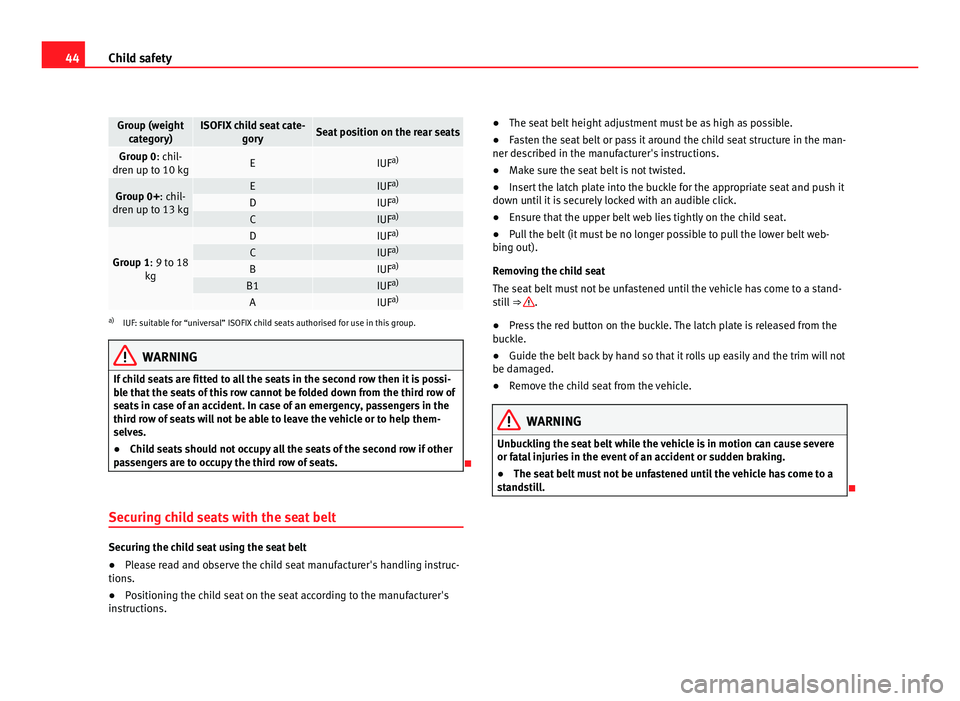

Child safety Group (weight
cat e
gory) ISOFIX child seat cate-
gory Seat position on the rear seats
Group 0: chil-
dr en up t
o 10 kg E IUF
a) Group 0+: chil-
dr en up t
o 13 kg E IUF
a) D IUF
a) C IUF
a) Group 1: 9 to 18
kg D IUF
a) C IUF
a) B IUF
a) B1 IUF
a) A IUF
a) a)
IUF: suitable for “universal” ISOFIX child seats authorised for use in this group. WARNING
If child seats are fitted to all the seats in the second row then it is possi-
bl e th
at the seats of this row cannot be folded down from the third row of
seats in case of an accident. In case of an emergency, passengers in the
third row of seats will not be able to leave the vehicle or to help them-
selves.
● Child seats should not occupy all the seats of the second row if other
pas
sengers are to occupy the third row of seats.
Securing child seats with the seat belt Securing the child seat using the seat belt
●
Please read and observe the child seat manufacturer's handling instruc-
tions.
● Po
sitioning the child seat on the seat according to the manufacturer's
instruction
s. ●
The seat belt height adjustment must be as high as possible.
● Fa
sten the seat belt or pass it around the child seat structure in the man-
ner desc
ribed in the manufacturer's instructions.
● Make sure the seat belt is not twisted.
● Insert the latch plate into the buckle for the appropriate seat and push it
down unti
l it is securely locked with an audible click.
● Ensure that the upper belt web lies tightly on the child seat.
● Pull the belt (it must be no longer possible to pull the lower belt web-
bing out).
R
emoving the child seat
The seat belt must not be unfastened until the vehicle has come to a stand-
still ⇒ .
● Press the red button on the buckle. The latch plate is released from the
buc k
le.
● Guide the belt back by hand so that it rolls up easily and the trim will not
be damag
ed.
● Remove the child seat from the vehicle. WARNING
Unbuckling the seat belt while the vehicle is in motion can cause severe
or fat a
l injuries in the event of an accident or sudden braking.
● The seat belt must not be unfastened until the vehicle has come to a
stand
still.
Page 47 of 385
45
Child safety

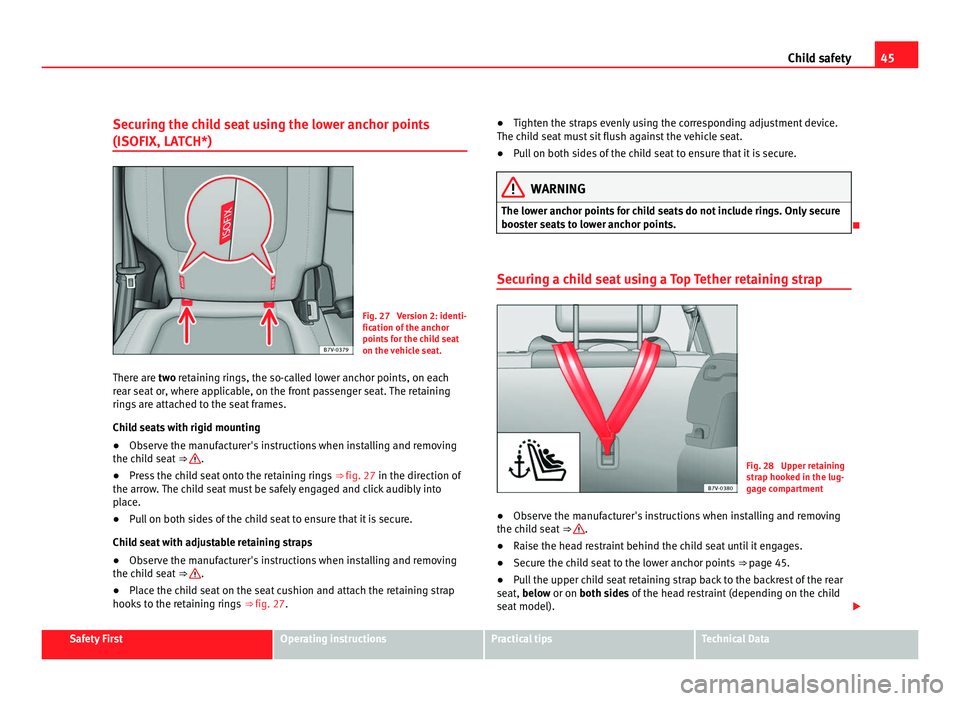

Securing the child seat using the lower anchor points
(ISOFIX, LAT CH*) Fig. 27 Version 2: identi-
fication of
the anc
hor
points for the child seat
on the vehicle seat.
There are two r
etaining rings, the so-called lower anchor points, on each
rear seat or, where applicable, on the front passenger seat. The retaining
rings are attached to the seat frames.
Child seats with rigid mounting
● Observe the manufacturer's instructions when installing and removing
the chil
d seat ⇒ .
● Press the child seat onto the retaining rings ⇒ fig. 27 in the direction of
the arr o
w. The child seat must be safely engaged and click audibly into
place.
● Pull on both sides of the child seat to ensure that it is secure.
Child se
at with adjustable retaining straps
● Observe the manufacturer's instructions when installing and removing
the chil
d seat ⇒ .
● Place the child seat on the seat cushion and attach the retaining strap
hooks t
o the retaining rings ⇒ fig. 27. ●
Tighten the straps evenly using the corresponding adjustment device.
The chi
ld seat must sit flush against the vehicle seat.
● Pull on both sides of the child seat to ensure that it is secure. WARNING
The lower anchor points for child seats do not include rings. Only secure
boos t
er seats to lower anchor points.
Securing a child seat using a Top Tether retaining strap Fig. 28 Upper retaining
str
ap hook
ed in the lug-
gage compartment
● Observe the manufacturer's instructions when installing and removing
the chil
d seat ⇒ .
● Raise the head restraint behind the child seat until it engages.
● Secure the child seat to the lower anchor points ⇒ page 45.
● P
ull the upper child seat retaining strap back to the backrest of the rear
seat, belo
w or on both sides of the head restraint (depending on the child
seat model). Safety First Operating instructions Practical tips Technical Data
Page 48 of 385
46

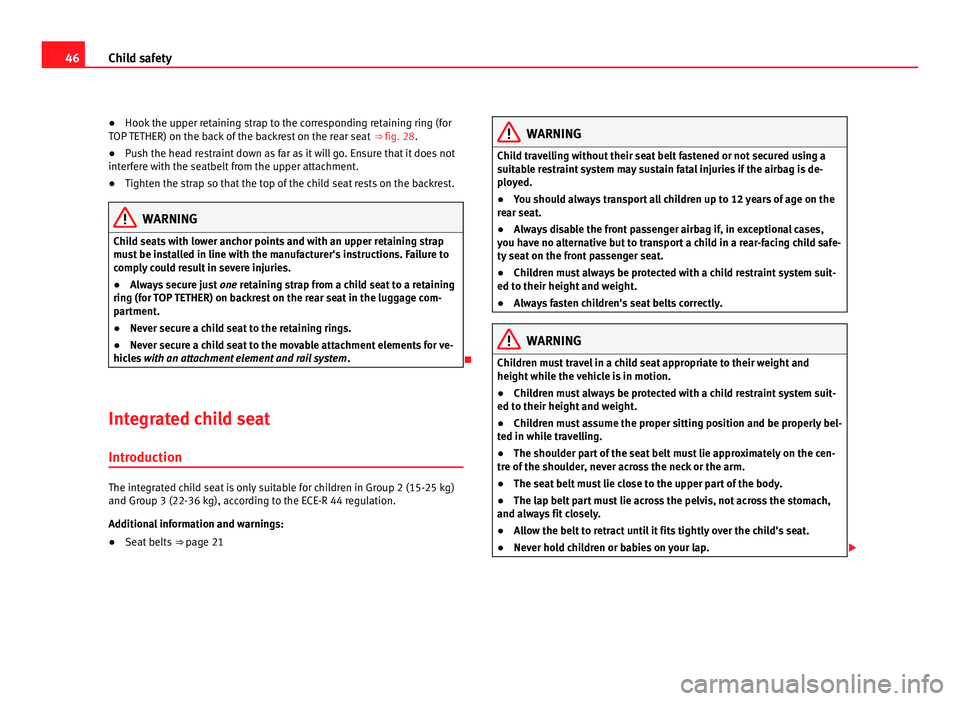

Child safety
● Hook the upper retaining strap to the corresponding retaining ring (for
T OP
TETHER) on the back of the backrest on the rear seat ⇒ fig. 28.
● Push the head restraint down as far as it will go. Ensure that it does not
interf
ere with the seatbelt from the upper attachment.
● Tighten the strap so that the top of the child seat rests on the backrest. WARNING
Child seats with lower anchor points and with an upper retaining strap
mus t
be installed in line with the manufacturer's instructions. Failure to
comply could result in severe injuries.
● Always secure just one r
etaining strap from a child seat to a retaining
ring (for TOP TETHER) on backrest on the rear seat in the luggage com-
partment.
● Never secure a child seat to the retaining rings.
● Never secure a child seat to the movable attachment elements for ve-
hicle
s with an attachment element and rail system .
Integrated child seat Introduction The integrated child seat is only suitable for children in Group 2 (15-25 kg)
and Group 3 (22-36 k
g), ac
cording to the ECE-R 44 regulation.
Additional information and warnings:
● Seat belts ⇒ pag
e 21 WARNING
Child travelling without their seat belt fastened or not secured using a
suit ab
le restraint system may sustain fatal injuries if the airbag is de-
ployed.
● You should always transport all children up to 12 years of age on the
rear se
at.
● Always disable the front passenger airbag if, in exceptional cases,
you hav
e no alternative but to transport a child in a rear-facing child safe-
ty seat on the front passenger seat.
● Children must always be protected with a child restraint system suit-
ed to their height and w
eight.
● Always fasten children's seat belts correctly. WARNING
Children must travel in a child seat appropriate to their weight and
height whi l
e the vehicle is in motion.
● Children must always be protected with a child restraint system suit-
ed to their height and w
eight.
● Children must assume the proper sitting position and be properly bel-
ted in whil
e travelling.
● The shoulder part of the seat belt must lie approximately on the cen-
tre of the shou
lder, never across the neck or the arm.
● The seat belt must lie close to the upper part of the body.
● The lap belt part must lie across the pelvis, not across the stomach,
and alwa
ys fit closely.
● Allow the belt to retract until it fits tightly over the child's seat.
● Never hold children or babies on your lap.
Page 49 of 385
47

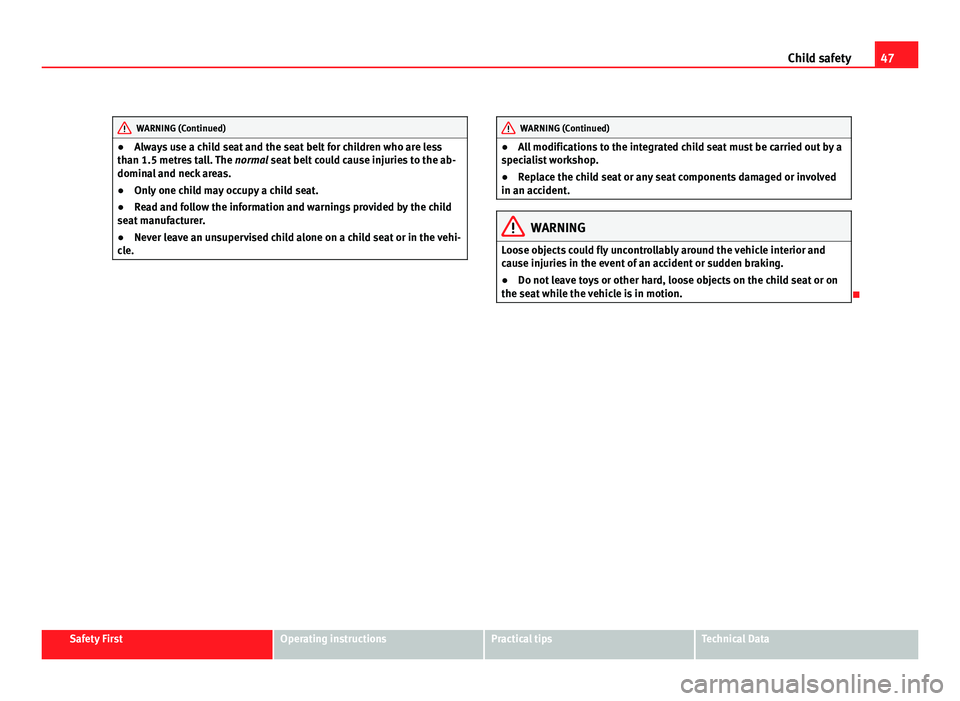

Child safety WARNING (Continued)
● Always use a child seat and the seat belt for children who are less
th an 1.5 metr
es tall. The normal seat belt could cause injuries to the ab-
dominal and neck areas.
● Only one child may occupy a child seat.
● Read and follow the information and warnings provided by the child
seat m
anufacturer.
● Never leave an unsupervised child alone on a child seat or in the vehi-
cle. WARNING (Continued)
● All modifications to the integrated child seat must be carried out by a
s pec
ialist workshop.
● Replace the child seat or any seat components damaged or involved
in an accident
. WARNING
Loose objects could fly uncontrollably around the vehicle interior and
cau se injurie
s in the event of an accident or sudden braking.
● Do not leave toys or other hard, loose objects on the child seat or on
the seat whi
le the vehicle is in motion.
Safety First Operating instructions Practical tips Technical Data
Page 50 of 385
48
Child safety

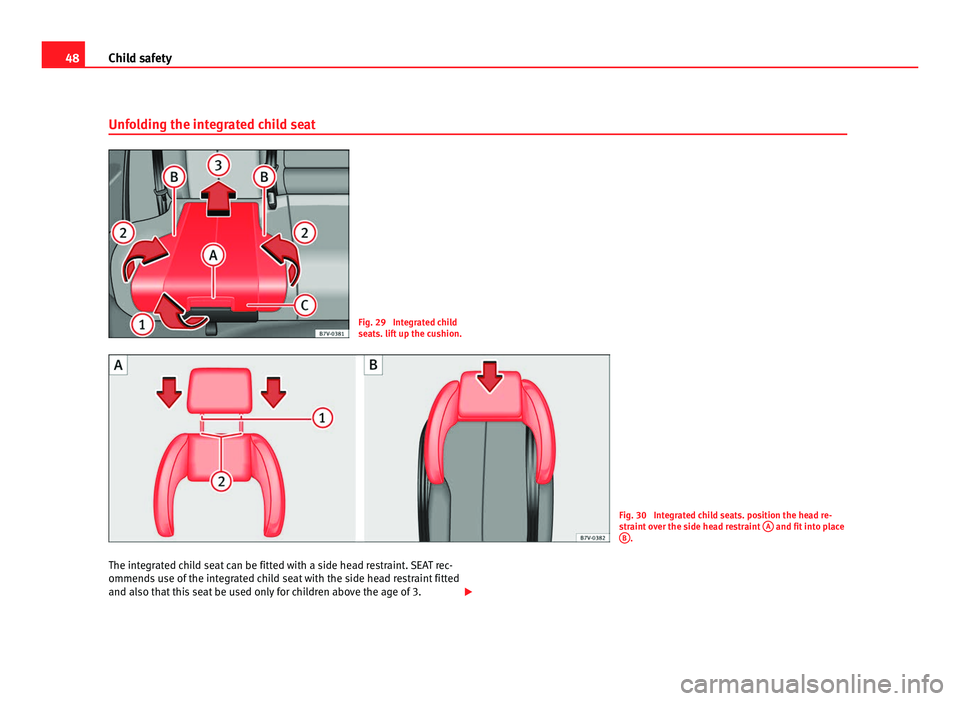

Unfolding the integrated child seat Fig. 29 Integrated child
seat
s. lif
t up the cushion. Fig. 30 Integrated child seats. position the head re-
str
aint
over the side head restraint A and fit into place
B .
The integrated child seat can be fitted with a side head restraint. SEAT rec-
ommends u
se of the integrated child seat with the side head restraint fitted
and also that this seat be used only for children above the age of 3.
