Seat Alhambra 2011 Manual Online

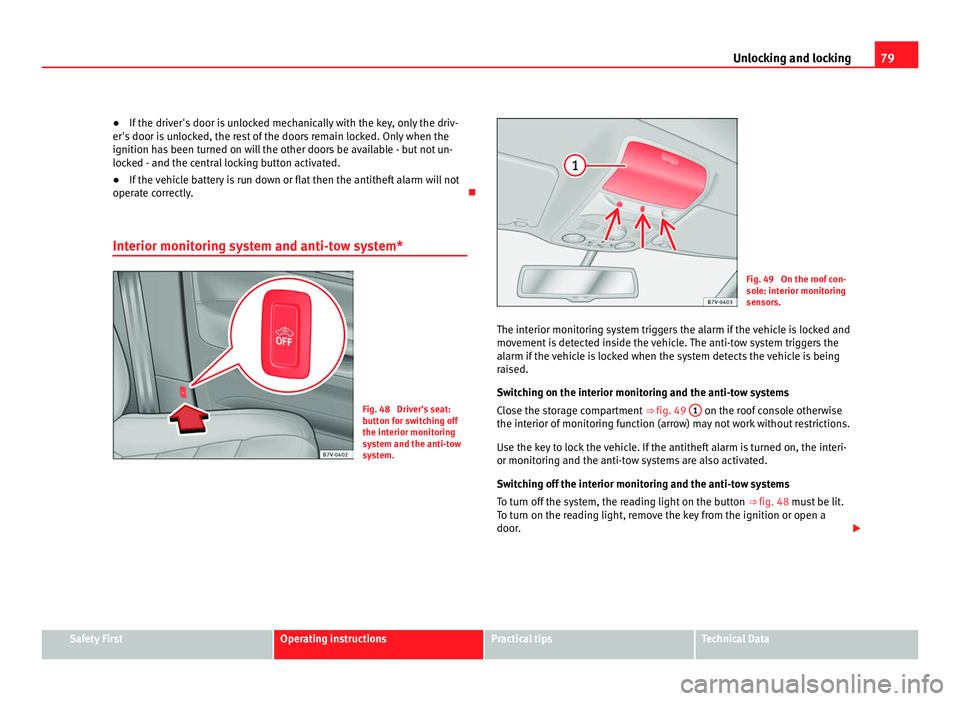

79
Unlocking and locking
● If the driver's door is unlocked mechanically with the key, only the driv-
er's door i
s unlocked, the rest of the doors remain locked. Only when the
ignition has been turned on will the other doors be available - but not un-
locked - and the central locking button activated.
● If the vehicle battery is run down or flat then the antitheft alarm will not
operate c
orrectly. 
Interior monitoring system and anti-tow system* Fig. 48 Driver's seat:
butt
on f

or switching off
the interior monitoring
system and the anti-tow
system. Fig. 49 On the roof con-
sol
e: int

erior monitoring
sensors.
The interior monitoring system triggers the alarm if the vehicle is locked and
movement
is detected inside the vehicle. The anti-tow system triggers the
alarm if the vehicle is locked when the system detects the vehicle is being
raised.
Switching on the interior monitoring and the anti-tow systems
Close the storage compartment ⇒ fig. 49 1 on the roof console otherwise
the interior of monit

oring function (arrow) may not work without restrictions.
Use the key to lock the vehicle. If the antitheft alarm is turned on, the interi-
or monitoring and the anti-tow systems are also activated.
Switching off the interior monitoring and the anti-tow systems
To turn off the system, the reading light on the button ⇒ fig. 48 must be lit.
To turn on the reading light, remove the key from the ignition or open a
door. Safety First Operating instructions Practical tips Technical Data

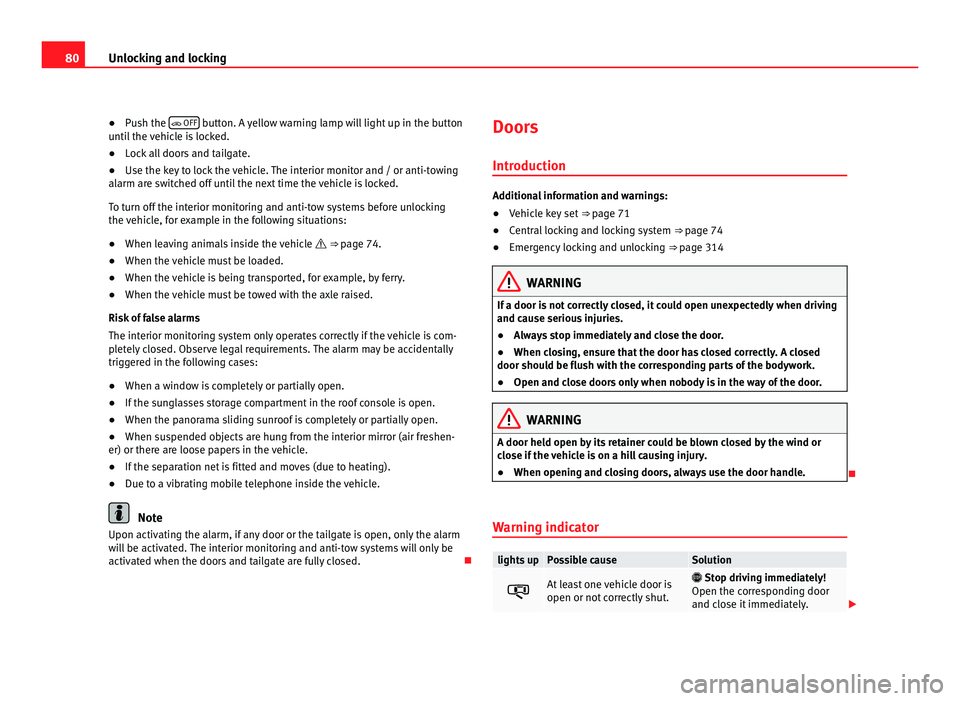

80
Unlocking and locking
● Push the 
OFF button. A yellow warning lamp will light up in the button
unti l
the vehicle is locked.
● Lock all doors and tailgate.
● Use the key to lock the vehicle. The interior monitor and / or anti-towing
alarm are sw
itched off until the next time the vehicle is locked.
To turn off the interior monitoring and anti-tow systems before unlocking
the vehicle, for example in the following situations:
● When leaving animals inside the vehicle  ⇒ page 74.
● When the

vehicle must be loaded.
● When the vehicle is being transported, for example, by ferry.
● When the vehicle must be towed with the axle raised.
Risk of
false alarms
The interior monitoring system only operates correctly if the vehicle is com-
pletely closed. Observe legal requirements. The alarm may be accidentally
triggered in the following cases:
● When a window is completely or partially open.
● If the sunglasses storage compartment in the roof console is open.
● When the panorama sliding sunroof is completely or partially open.
● When suspended objects are hung from the interior mirror (air freshen-
er) or there are loo
se papers in the vehicle.
● If the separation net is fitted and moves (due to heating).
● Due to a vibrating mobile telephone inside the vehicle. Note
Upon activating the alarm, if any door or the tailgate is open, only the alarm
wi l

l be activated. The interior monitoring and anti-tow systems will only be
activated when the doors and tailgate are fully closed. Doors
Introduction Additional information and warnings:
●
Vehicle key set ⇒ page 71
● C

entral locking and locking system ⇒ page 74
● Emer

gency locking and unlocking ⇒ page 314 WARNING
If a door is not correctly closed, it could open unexpectedly when driving
and cau se seriou

s injuries.
● Always stop immediately and close the door.
● When closing, ensure that the door has closed correctly. A closed
door should be flu
sh with the corresponding parts of the bodywork.
● Open and close doors only when nobody is in the way of the door. WARNING
A door held open by its retainer could be blown closed by the wind or
clo se if

the vehicle is on a hill causing injury.
● When opening and closing doors, always use the door handle. 
Warning indicator lights up Possible cause Solution
 At least one vehicle door is
open or not c
orr

ectly shut. 
Stop driving immediately!
Open the c orr
esponding door
and close it immediately. 

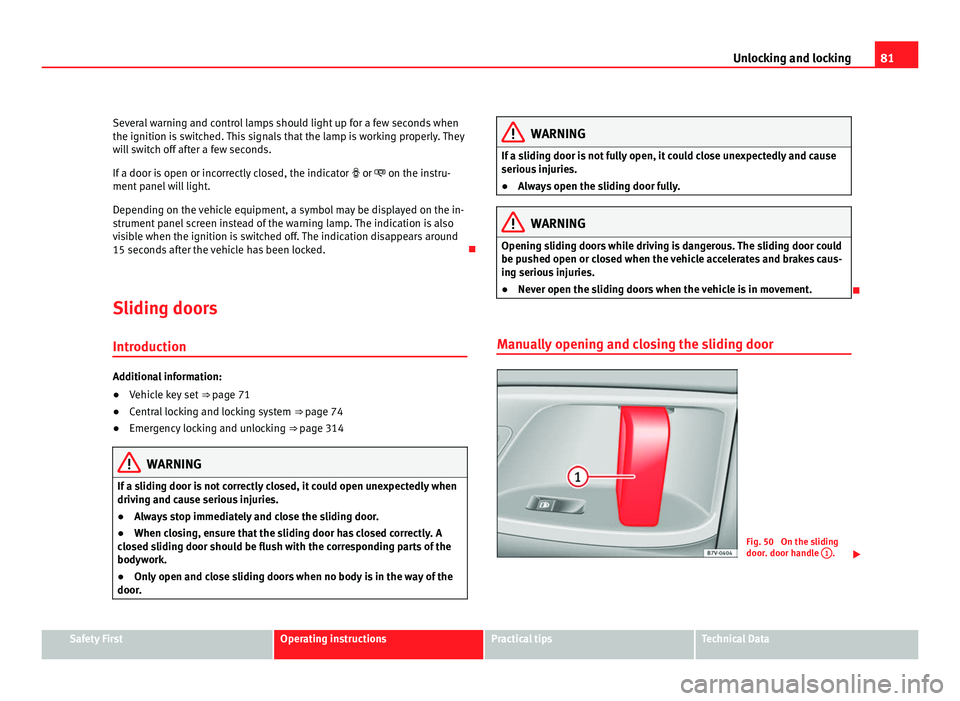

81
Unlocking and locking
Several warning and control lamps should light up for a few seconds when
the ignition is sw
itched. This signals that the lamp is working properly. They
will switch off after a few seconds.
If a door is open or incorrectly closed, the indicator  or  on the instru-
ment panel will light.
Depending on the vehicle equipment, a symbol may be displayed on the in-
strument panel screen instead of the warning lamp. The indication is also
visible when the ignition is switched off. The indication disappears around
15 seconds after the vehicle has been locked. 
Sliding doors Introduction Additional information:
●
Vehicle key set ⇒ page 71
● C

entral locking and locking system ⇒ page 74
● Emer

gency locking and unlocking ⇒ page 314WARNING
If a sliding door is not correctly closed, it could open unexpectedly when
drivin g and c

ause serious injuries.
● Always stop immediately and close the sliding door.
● When closing, ensure that the sliding door has closed correctly. A
closed s
liding door should be flush with the corresponding parts of the
bodywork.
● Only open and close sliding doors when no body is in the way of the
door. WARNING
If a sliding door is not fully open, it could close unexpectedly and cause
serious injurie

s.
● Always open the sliding door fully. WARNING
Opening sliding doors while driving is dangerous. The sliding door could
be pushed open or c
losed when the vehicle accelerates and brakes caus-
ing serious injuries.
● Never open the sliding doors when the vehicle is in movement. 
Manually opening and closing the sliding door Fig. 50 On the sliding
door. door h
andl

e 1 .
 Safety First Operating instructions Practical tips Technical Data

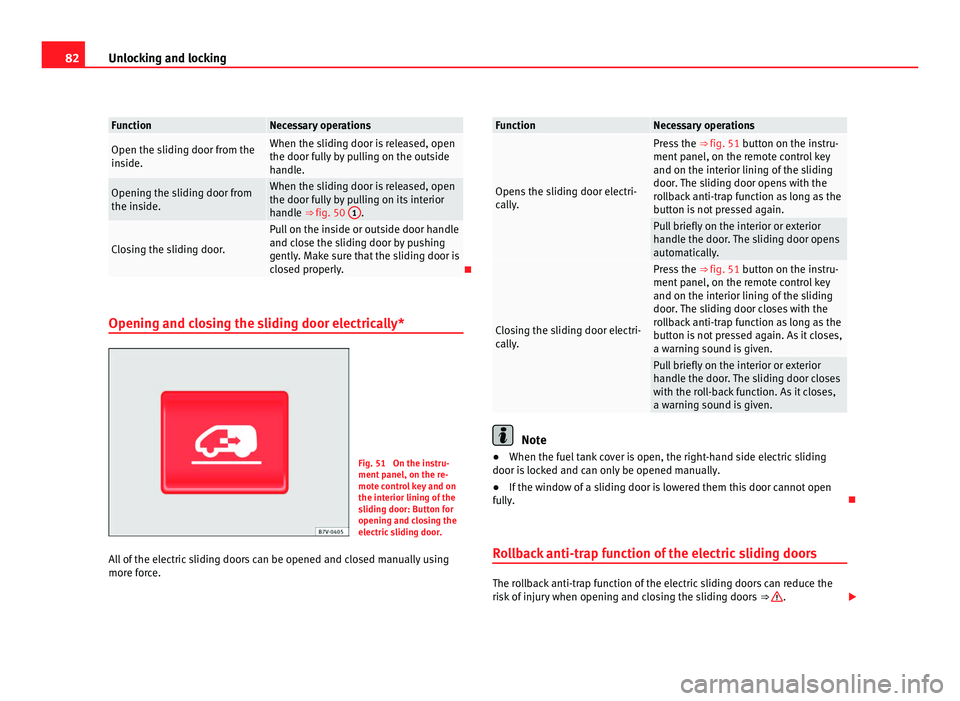

82
Unlocking and locking Function Necessary operations
Open the sliding door from the
ins
ide. When the sliding door is released, open
the door fu
l
ly by pulling on the outside
handle. Opening the sliding door from
the ins
ide. When the sliding door is released, open
the door fu
l

ly by pulling on its interior
handle ⇒ fig. 50 1 .
Closing the sliding door. Pull on the inside or outside door handle
and clo
se the s

liding door by pushing
gently. Make sure that the sliding door is
closed properly. 
Opening and closing the sliding door electrically* Fig. 51 On the instru-
ment p
anel, on the r

e-
mote control key and on
the interior lining of the
sliding door: Button for
opening and closing the
electric sliding door.
All of the electric sliding doors can be opened and closed manually using
more for
ce. Function Necessary operations
Opens the sliding door electri-
cal
ly

. Press the
⇒ fig. 51 butt on on the in
stru-
ment panel, on the remote control key
and on the interior lining of the sliding
door. The sliding door opens with the
rollback anti-trap function as long as the
button is not pressed again. Pull briefly on the interior or exterior
handl
e the door

. The sliding door opens
automatically. Closing the sliding door electri-
cal
ly

. Press the
⇒ fig. 51 butt on on the in
stru-
ment panel, on the remote control key
and on the interior lining of the sliding
door. The sliding door closes with the
rollback anti-trap function as long as the
button is not pressed again. As it closes,
a warning sound is given. Pull briefly on the interior or exterior
handl
e the door

. The sliding door closes
with the roll-back function. As it closes,
a warning sound is given. Note
● When the fuel t
ank cover is open, the right-hand side electric sliding
door is locked and can only be opened manually.
● If the window of a sliding door is lowered them this door cannot open
ful

ly. 
Rollback anti-trap function of the electric sliding doors The rollback anti-trap function of the electric sliding doors can reduce the
risk
of

injury when opening and closing the sliding doors ⇒  .


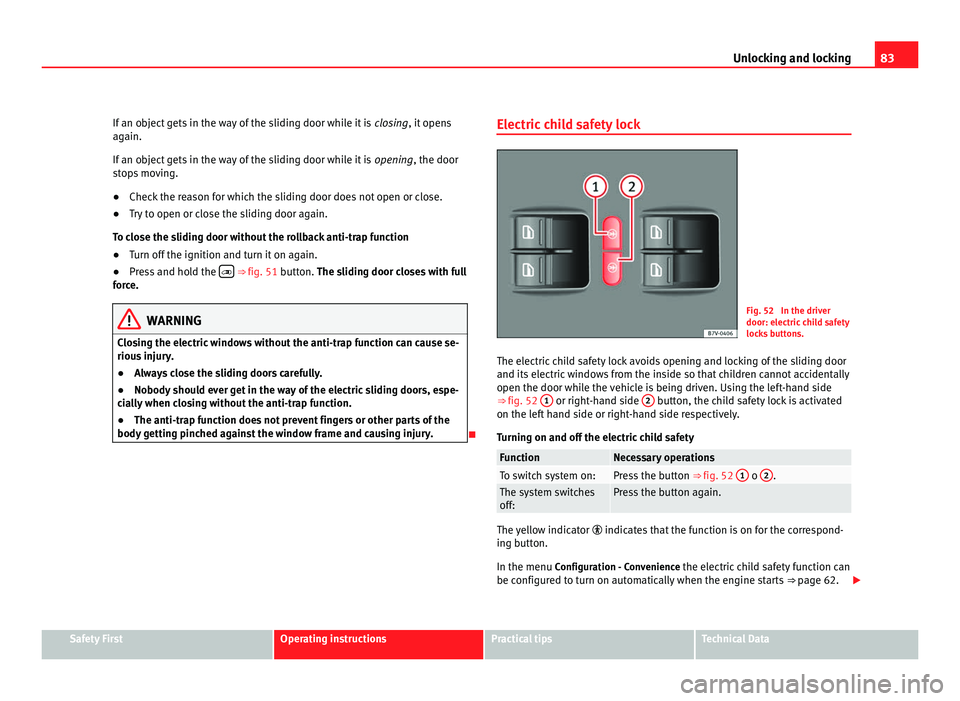

83
Unlocking and locking
If an object gets in the way of the sliding door while it is closing , it opens
again.
If an object gets in the way of the sliding door while it is opening, the door
stops moving.
● Check the reason for which the sliding door does not open or close.
● Try to open or close the sliding door again.
To clo
se the sliding door without the rollback anti-trap function
● Turn off the ignition and turn it on again.
● Press and hold the  ⇒ 
fig. 51 b
utton. The sliding door closes with full
force. WARNING
Closing the electric windows without the anti-trap function can cause se-
rious injur

y.
● Always close the sliding doors carefully.
● Nobody should ever get in the way of the electric sliding doors, espe-
cia

lly when closing without the anti-trap function.
● The anti-trap function does not prevent fingers or other parts of the
body gettin
g pinched against the window frame and causing injury. Electric child safety lock Fig. 52 In the driver
door: electric
c

hild safety
locks buttons.
The electric child safety lock avoids opening and locking of the sliding door
and its electric
windows from the inside so that children cannot accidentally
open the door while the vehicle is being driven. Using the left-hand side
⇒ fig. 52 1 or right-hand side
2 button, the child safety lock is activated
on the lef t

hand side or right-hand side respectively.
Turning on and off the electric child safety Function Necessary operations
To switch system on: Press the button
⇒ fig. 52 1 o
2 .
The system switches
off: Press the button again.
The yellow indicator
 indicate
s that the function is on for the correspond-
ing button.
In the menu Configuration - Convenience the electric child safety function can
be configured to turn on automatically when the engine starts ⇒ page 62. Safety First Operating instructions Practical tips Technical Data

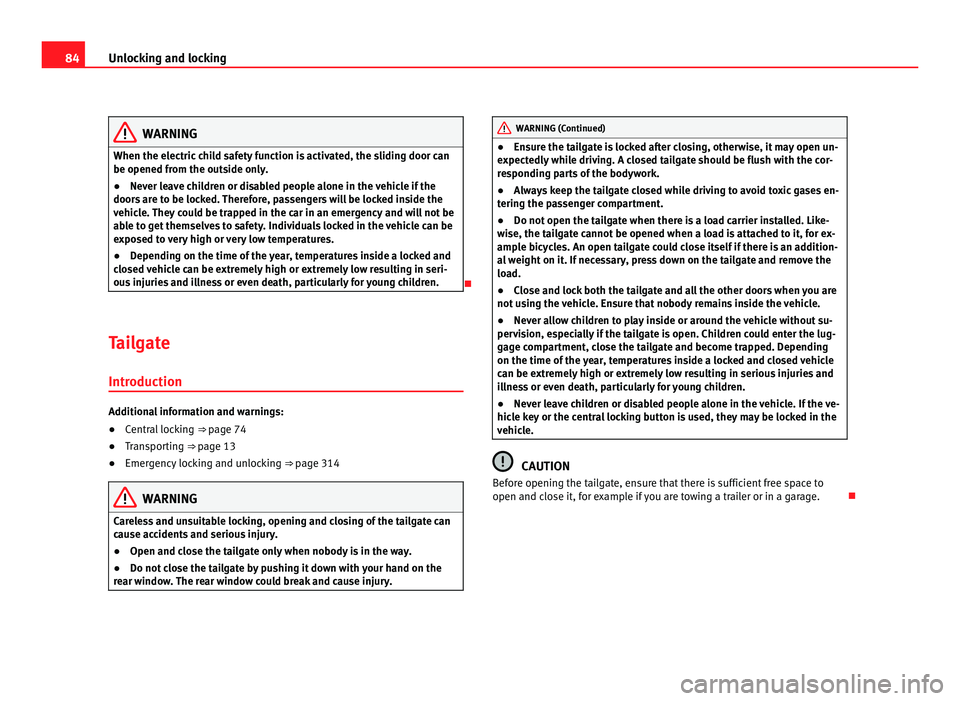

84
Unlocking and locking WARNING
When the electric child safety function is activated, the sliding door can
be opened from the out s
ide only.
● Never leave children or disabled people alone in the vehicle if the
doors ar
e to be locked. Therefore, passengers will be locked inside the
vehicle. They could be trapped in the car in an emergency and will not be
able to get themselves to safety. Individuals locked in the vehicle can be
exposed to very high or very low temperatures.
● Depending on the time of the year, temperatures inside a locked and
closed
vehicle can be extremely high or extremely low resulting in seri-
ous injuries and illness or even death, particularly for young children. 
Tailgate Introduction Additional information and warnings:
●
Central locking ⇒ page 74
● T

ransporting ⇒ page 13
● Emer

gency locking and unlocking ⇒ page 314WARNING
Careless and unsuitable locking, opening and closing of the tailgate can
cau se ac

cidents and serious injury.
● Open and close the tailgate only when nobody is in the way.
● Do not close the tailgate by pushing it down with your hand on the
rear w
indow. The rear window could break and cause injury. WARNING (Continued)
● Ensure the tailgate is locked after closing, otherwise, it may open un-
e xpect

edly while driving. A closed tailgate should be flush with the cor-
responding parts of the bodywork.
● Always keep the tailgate closed while driving to avoid toxic gases en-
tering the p
assenger compartment.
● Do not open the tailgate when there is a load carrier installed. Like-
wise, the t
ailgate cannot be opened when a load is attached to it, for ex-
ample bicycles. An open tailgate could close itself if there is an addition-
al weight on it. If necessary, press down on the tailgate and remove the
load.
● Close and lock both the tailgate and all the other doors when you are
not us
ing the vehicle. Ensure that nobody remains inside the vehicle.
● Never allow children to play inside or around the vehicle without su-
pervi
sion, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. Depending
on the time of the year, temperatures inside a locked and closed vehicle
can be extremely high or extremely low resulting in serious injuries and
illness or even death, particularly for young children.
● Never leave children or disabled people alone in the vehicle. If the ve-
hicle k
ey or the central locking button is used, they may be locked in the
vehicle. CAUTION
Before opening the tailgate, ensure that there is sufficient free space to
open and clo se it, f

or example if you are towing a trailer or in a garage. 

85

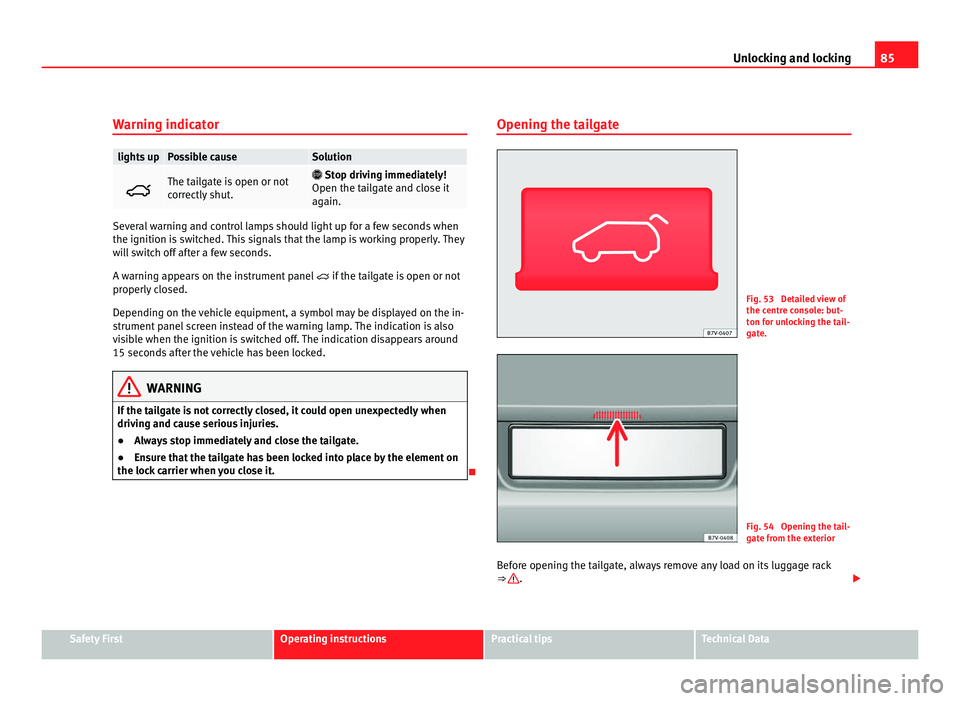

Unlocking and locking
Warning indicator lights up Possible cause Solution
 The tailgate is open or not
corr
ectly
shut. 
Stop driving immediately!
Open the t ai
lgate and close it
again. Several warning and control lamps should light up for a few seconds when
the ignition is
sw

itched. This signals that the lamp is working properly. They
will switch off after a few seconds.
A warning appears on the instrument panel  if the tailgate is open or not
properly closed.
Depending on the vehicle equipment, a symbol may be displayed on the in-
strument panel screen instead of the warning lamp. The indication is also
visible when the ignition is switched off. The indication disappears around
15 seconds after the vehicle has been locked. WARNING
If the tailgate is not correctly closed, it could open unexpectedly when
drivin g and c

ause serious injuries.
● Always stop immediately and close the tailgate.
● Ensure that the tailgate has been locked into place by the element on
the lock c
arrier when you close it. Opening the tailgate Fig. 53 Detailed view of
the centr
e c

onsole: but-
ton for unlocking the tail-
gate. Fig. 54 Opening the tail-
gat
e fr

om the exterior
Before opening the tailgate, always remove any load on its luggage rack
⇒  .
Safety First Operating instructions Practical tips Technical Data

86
Unlocking and locking

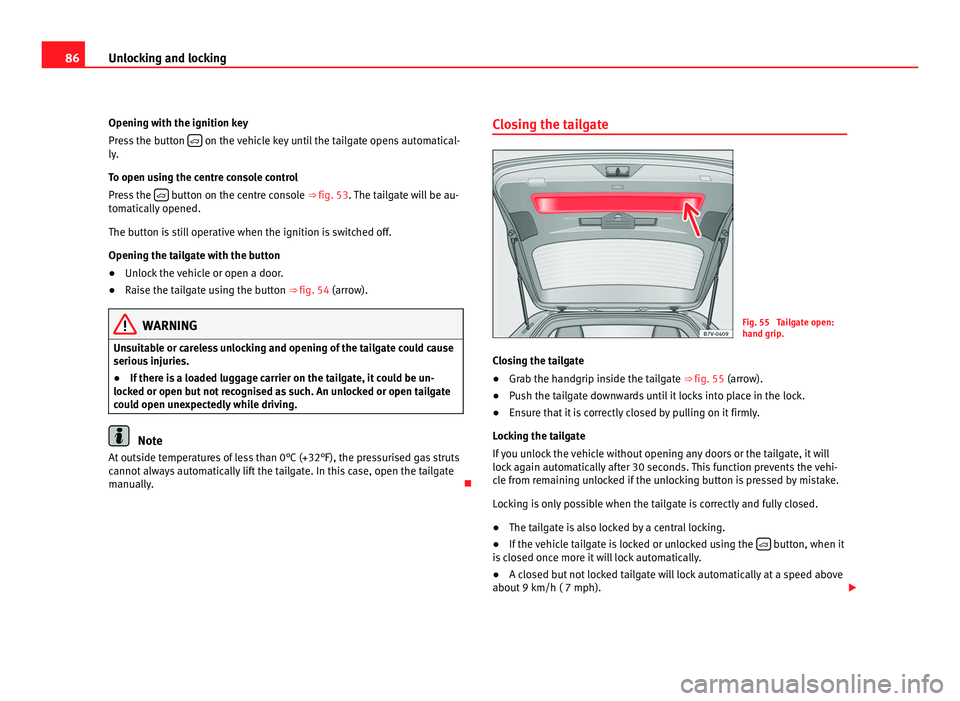

Opening with the ignition key
Pre s
s the button  on the vehicle key until the tailgate opens automatical-
ly.
T o open u

sing the centre console control
Press the  button on the centre console ⇒ fig. 53. The t
ai
lgate will be au-
tomatically opened.
The button is still operative when the ignition is switched off.
Opening the tailgate with the button
● Unlock the vehicle or open a door.
● Raise the tailgate using the button ⇒ fig. 54 (arr
ow).WARNING
Unsuitable or careless unlocking and opening of the tailgate could cause
serious injurie

s.
● If there is a loaded luggage carrier on the tailgate, it could be un-
locked or open b
ut not recognised as such. An unlocked or open tailgate
could open unexpectedly while driving. Note
At outside temperatures of less than 0°C (+32°F), the pressurised gas struts
cannot alw

ays automatically lift the tailgate. In this case, open the tailgate
manually. Closing the tailgate
Fig. 55 Tailgate open:
hand grip
.
C

losing the tailgate
● Grab the handgrip inside the tailgate ⇒ fig. 55 (arrow).
● P

ush the tailgate downwards until it locks into place in the lock.
● Ensure that it is correctly closed by pulling on it firmly.
Lock
ing the tailgate
If you unlock the vehicle without opening any doors or the tailgate, it will
lock again automatically after 30 seconds. This function prevents the vehi-
cle from remaining unlocked if the unlocking button is pressed by mistake.
Locking is only possible when the tailgate is correctly and fully closed.
● The tailgate is also locked by a central locking.
● If the vehicle tailgate is locked or unlocked using the  button, when it
is c

losed once more it will lock automatically.
● A closed but not locked tailgate will lock automatically at a speed above
about 9 km/h ( 7 mph). 

87
Unlocking and locking WARNING
Unsuitable or careless closing and locking of the tailgate could cause se-
rious injurie
s.
● Never allow children to play inside or around the vehicle without su-
pervi
sion, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. A locked ve-
hicle can be subjected to extremely high and low temperatures, depend-
ing on the time of year, thus causing serious injuries/illness and even
death. Note
Before closing the tailgate, make sure that the key has not been left inside
the boot. 

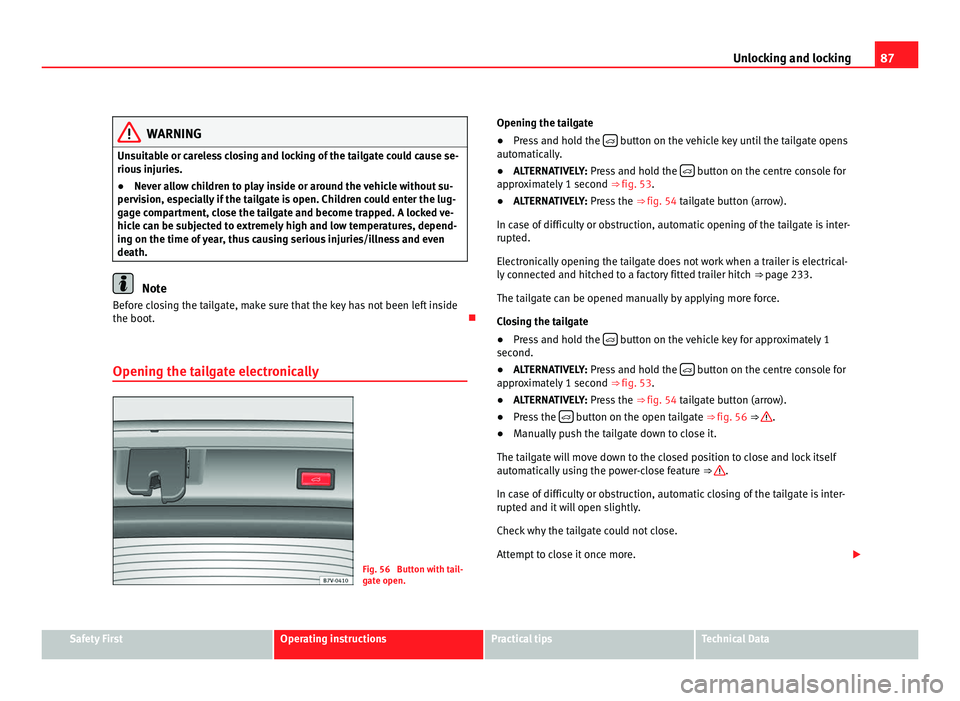

Openin g the t

ailgate electronically Fig. 56 Button with tail-
gat
e open. Openin

g the tailgate
● Press and hold the  button on the vehicle key until the tailgate opens
autom atic

ally.
● ALTERNATIVELY: Pres
s and hold the  button on the centre console for
appr o
ximately 1 second ⇒ fig. 53.
● ALTERNATIVELY: Pres
s the ⇒ fig. 54 tailgate button (arrow).
In case of difficulty or obstruction, automatic opening of the tailgate is inter-
rupted.
Electronically opening the tailgate does not work when a trailer is electrical-
ly connected and hitched to a factory fitted trailer hitch ⇒ page 233.
The tailgate can be opened manually by applying more force.
Closing the tailgate
● Press and hold the  button on the vehicle key for approximately 1
second.
● ALTERNA

TIVELY: Pres
s and hold the  button on the centre console for
appr o
ximately 1 second ⇒ fig. 53.
● ALTERNATIVELY: Pres
s the ⇒ fig. 54 tailgate button (arrow).
● Press the  button on the open tailgate ⇒ 
fig. 56
⇒  .
● Manually push the tailgate down to close it.
The tai l

gate will move down to the closed position to close and lock itself
automatically using the power-close feature ⇒  .
In ca se of

difficulty or obstruction, automatic closing of the tailgate is inter-
rupted and it will open slightly.
Check why the tailgate could not close.
Attempt to close it once more. Safety First Operating instructions Practical tips Technical Data

88
Unlocking and locking
Interrupting the opening and closing process
Tai l
gate opening and closing can be stopped by pressing one of the  but-
ton s. E

ach time one of the  buttons is pressed, the tailgate moves to its
initial po
sition.
Then, it can be opened or closed by hand. To do this, apply a little more
force.
Memorising the opening angle
The tailgate must be at least half open to memorise an opening angle.
● Stop automatic opening in the opening position required ⇒ pag
e 88.
● Hold down the button ⇒ fig. 56 w
ith the tailgate open for at least three
seconds. The opening angle is memorised.
Memorisation is confirmed by blinking of the hazard lights and a sound sig-
nal.
To be opened completely, the opening angle must be memorised once
more.
● Release the tailgate and open it to the memorised height.
● Push the tailgate all the way up. To do this, apply a little more force.
● Hold down the button ⇒ fig. 56 w
ith the tailgate open for at least three
seconds.
● The opening angle is reset to the original factory setting. WARNING
Unsuitable or careless closing and locking of the tailgate could cause se-
rious injurie

s.
● Never allow children to play inside or around the vehicle without su-
pervi
sion, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. A locked ve- WARNING (Continued)
hicle can be subjected to extremely high and low temperatures, depend-
in g on the time of


year, thus causing serious injuries/illness and even
death. WARNING
It is possible that the tailgate does not open completely or, if it is open,
clo se

s alone if a large amount of snow has built up on it or if a luggage
rack is fitted. In this case, the tailgate must be supported. CAUTION
● When using a trailer, ensure that there is sufficient space to open and
c lo

se the tailgate.
● Before opening the tailgate, any kind of equipment carrier should be re-
moved, f
or example a bicycle carrier. CAUTION
In case of repeated short-term use, the system is turned off to avoid over-
heatin g.
● When it

has cooled, it may be used once again. During this time, the
tail

gate may be manually opened or closed applying a little more effort.
● If the vehicle battery is disconnected or the fuse blows when the tailgate
is open, the t
ailgate system must be re-initialised. To do this, close the tail-
gate. Note
Before closing the tailgate, make sure that the key has not been left inside
the boot. 
