Technical features
load or the permissible total weight is excee-
ded, the drivin
g c
haracteristics of the vehicle
may change, leading to accidents, injuries

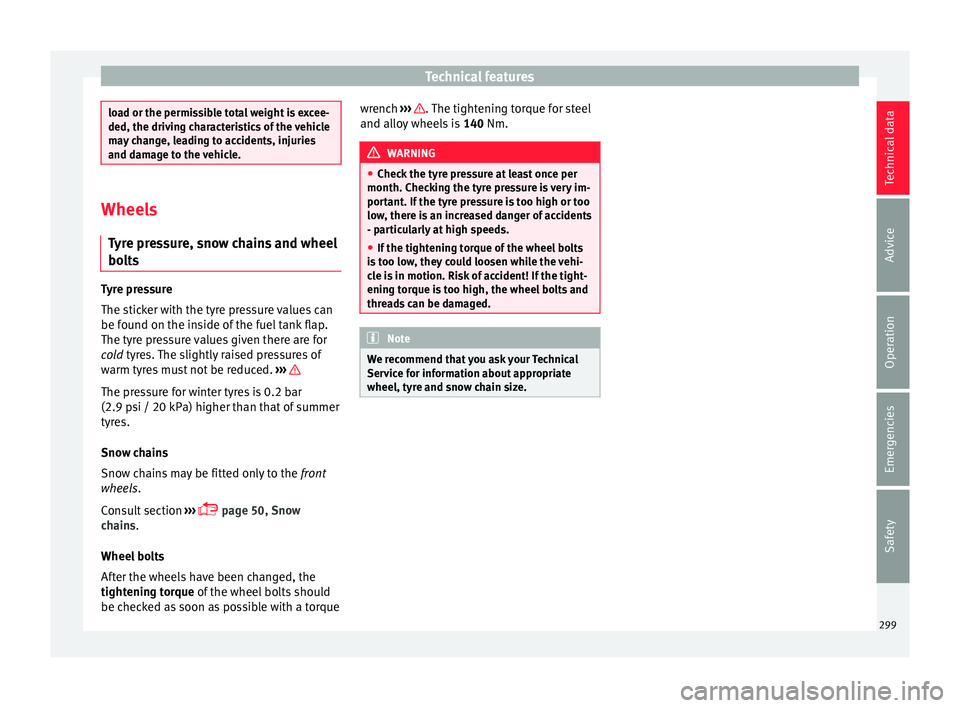

and damage to the vehicle. Wheels
Ty r

e pressure, snow chains and wheel
bolts Tyre pressure
The s
tic
k

er with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. The slightly raised pressures of
warm tyres must not be reduced. ››› The pressure for winter tyres is 0.2 bar
(2.9 p
s
i / 20 kP

a) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels.
Consult section ›››
 page 50, Snow
chains.
Wheel bolts
After the wheels have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque wrench
››› . The tightening torque for steel
and al lo
y

wheels is 140 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 299
Technical data
Advice
Operation
Emergencies
Safety

Technical data

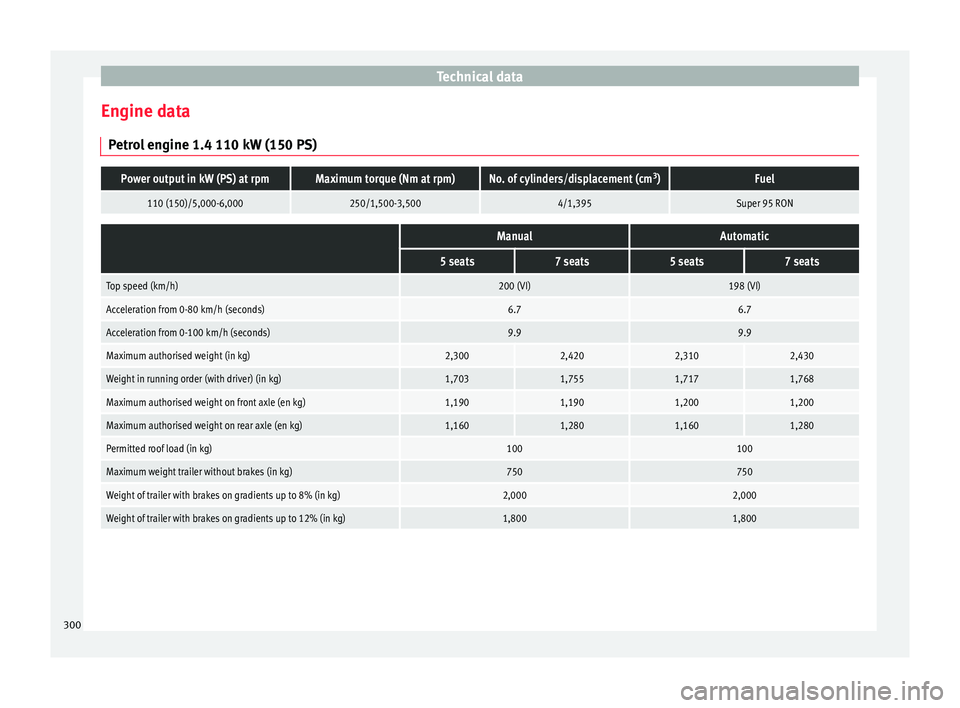

Engine data P etr
o
l engine 1.4 110 kW (150 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON
ManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)200 (VI)198 (VI)
Acceleration from 0-80 km/h (seconds)6.76.7
Acceleration from 0-100 km/h (seconds)9.99.9
Maximum authorised weight (in kg)2,3002,4202,3102,430
Weight in running order (with driver) (in kg)1,7031,7551,7171,768
Maximum authorised weight on front axle (en kg)1,1901,1901,2001,200
Maximum authorised weight on rear axle (en kg)1,1601,2801,1601,280
Permitted roof load (in kg)100100
Maximum weight trailer without brakes (in kg)750750
Weight of trailer with brakes on gradients up to 8% (in kg)2,0002,000
Weight of trailer with brakes on gradients up to 12% (in kg)1,8001,800 300

Technical features

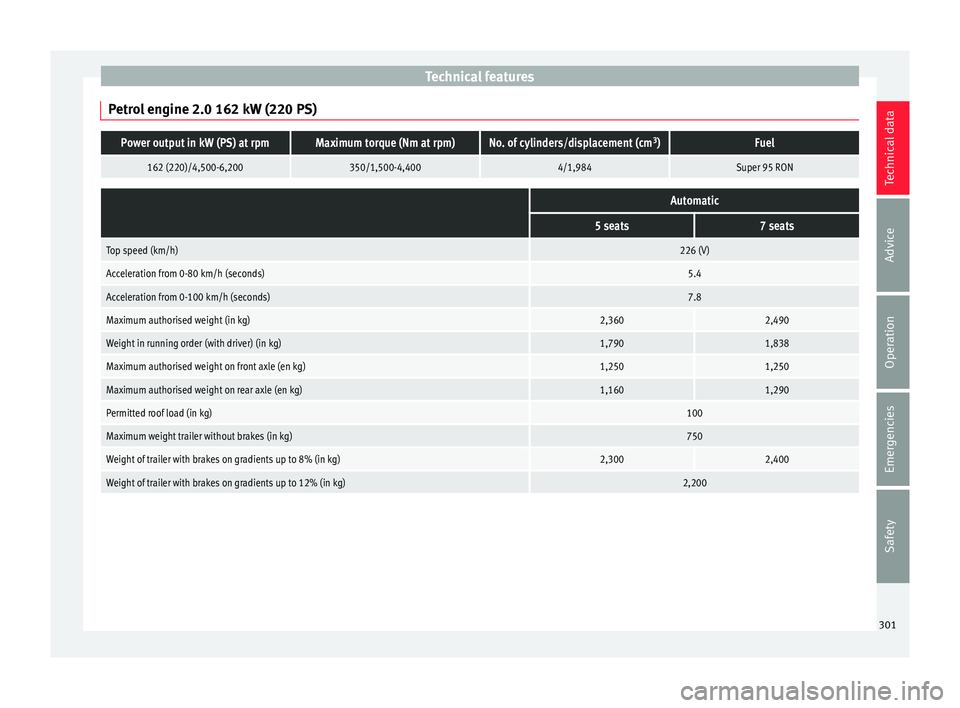

Petrol engine 2.0 162 kW (220 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
162 (220)/4,500-6,200350/1,500-4,4004/1,984Super 95 RON
Automatic
5 seats7 seats
Top speed (km/h)226 (V)
Acceleration from 0-80 km/h (seconds)5.4
Acceleration from 0-100 km/h (seconds)7.8
Maximum authorised weight (in kg)2,3602,490
Weight in running order (with driver) (in kg)1,7901,838
Maximum authorised weight on front axle (en kg)1,2501,250
Maximum authorised weight on rear axle (en kg)1,1601,290
Permitted roof load (in kg)100
Maximum weight trailer without brakes (in kg)750
Weight of trailer with brakes on gradients up to 8% (in kg)2,3002,400
Weight of trailer with brakes on gradients up to 12% (in kg)2,200 301
Technical data
Advice
Operation
Emergencies
Safety

Technical data

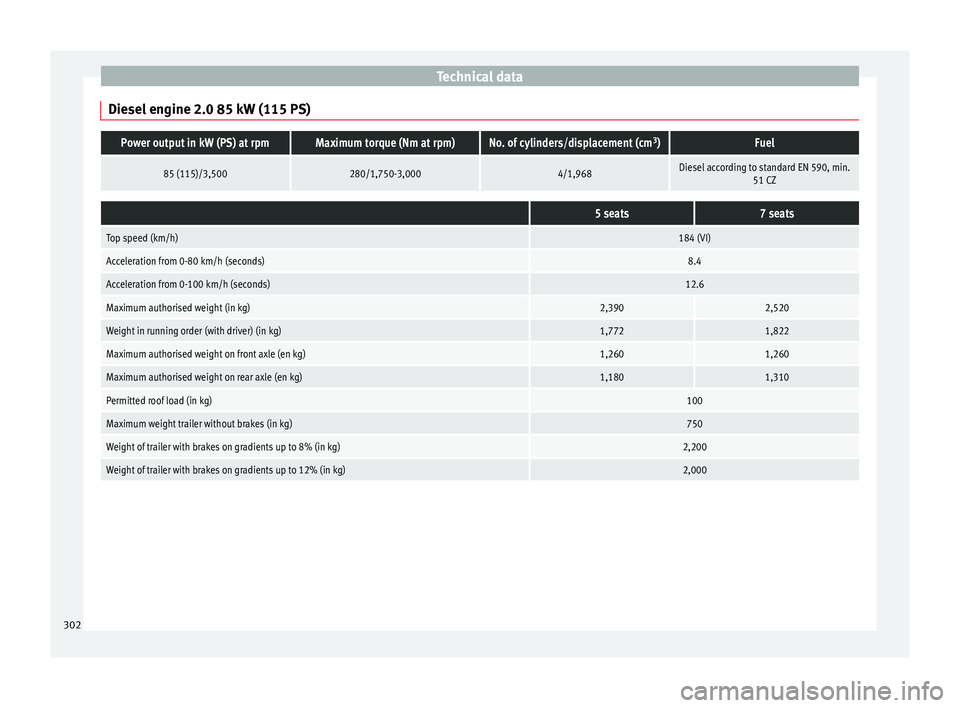

Diesel engine 2.0 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,500280/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
5 seats7 seats
Top speed (km/h)184 (VI)
Acceleration from 0-80 km/h (seconds)8.4
Acceleration from 0-100 km/h (seconds)12.6
Maximum authorised weight (in kg)2,3902,520
Weight in running order (with driver) (in kg)1,7721,822
Maximum authorised weight on front axle (en kg)1,2601,260
Maximum authorised weight on rear axle (en kg)1,1801,310
Permitted roof load (in kg)100
Maximum weight trailer without brakes (in kg)750
Weight of trailer with brakes on gradients up to 8% (in kg)2,200
Weight of trailer with brakes on gradients up to 12% (in kg)2,000302

Technical features

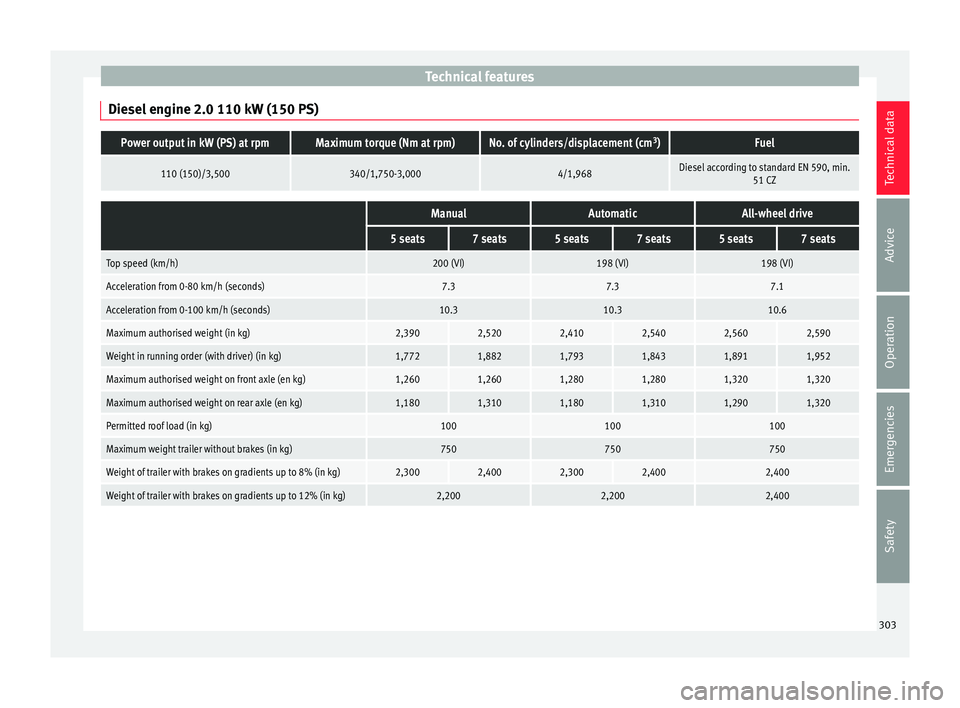

Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
ManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Top speed (km/h)200 (VI)198 (VI)198 (VI)
Acceleration from 0-80 km/h (seconds)7.37.37.1
Acceleration from 0-100 km/h (seconds)10.310.310.6
Maximum authorised weight (in kg)2,3902,5202,4102,5402,5602,590
Weight in running order (with driver) (in kg)1,7721,8821,7931,8431,8911,952
Maximum authorised weight on front axle (en kg)1,2601,2601,2801,2801,3201,320
Maximum authorised weight on rear axle (en kg)1,1801,3101,1801,3101,2901,320
Permitted roof load (in kg)100100100
Maximum weight trailer without brakes (in kg)750750750
Weight of trailer with brakes on gradients up to 8% (in kg)2,3002,4002,3002,4002,400
Weight of trailer with brakes on gradients up to 12% (in kg)2,2002,2002,400 303
Technical data
Advice
Operation
Emergencies
Safety

Technical data

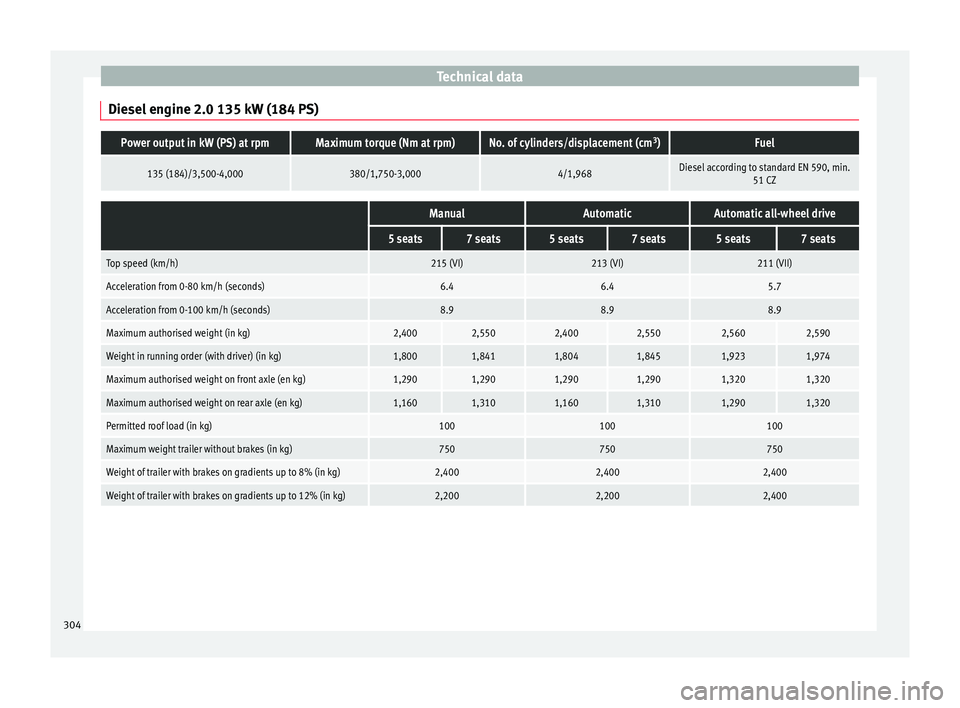

Diesel engine 2.0 135 kW (184 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
135 (184)/3,500-4,000380/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
ManualAutomaticAutomatic all-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Top speed (km/h)215 (VI)213 (VI)211 (VII)
Acceleration from 0-80 km/h (seconds)6.46.45.7
Acceleration from 0-100 km/h (seconds)8.98.98.9
Maximum authorised weight (in kg)2,4002,5502,4002,5502,5602,590
Weight in running order (with driver) (in kg)1,8001,8411,8041,8451,9231,974
Maximum authorised weight on front axle (en kg)1,2901,2901,2901,2901,3201,320
Maximum authorised weight on rear axle (en kg)1,1601,3101,1601,3101,2901,320
Permitted roof load (in kg)100100100
Maximum weight trailer without brakes (in kg)750750750
Weight of trailer with brakes on gradients up to 8% (in kg)2,4002,4002,400
Weight of trailer with brakes on gradients up to 12% (in kg)2,2002,2002,400304

Technical features

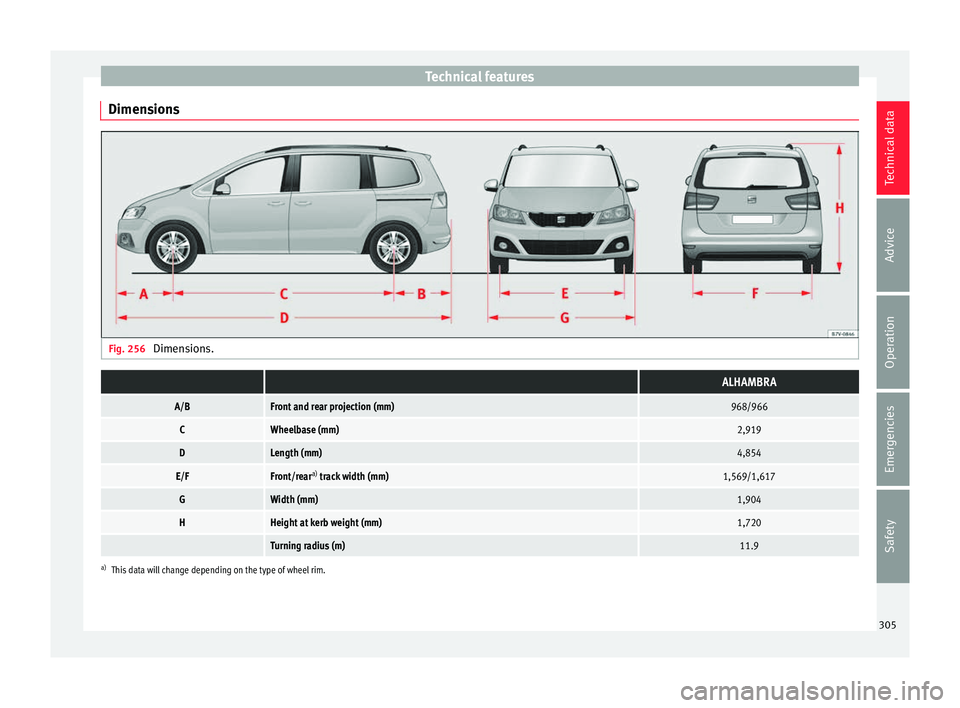

Dimensions Fig. 256
Dimensions. ALHAMBRA
A/BFront and rear projection (mm)968/966
CWheelbase (mm)2,919
DLength (mm)4,854
E/FFront/rear a)
track width (mm)1,569/1,617
GWidth (mm)1,904
HHeight at kerb weight (mm)1,720
Turning radius (m)11.9
a) This data will change depending on the type of wheel rim.
305
