Seat Altea 2005 Owner's Manual

Seats and stowage129
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

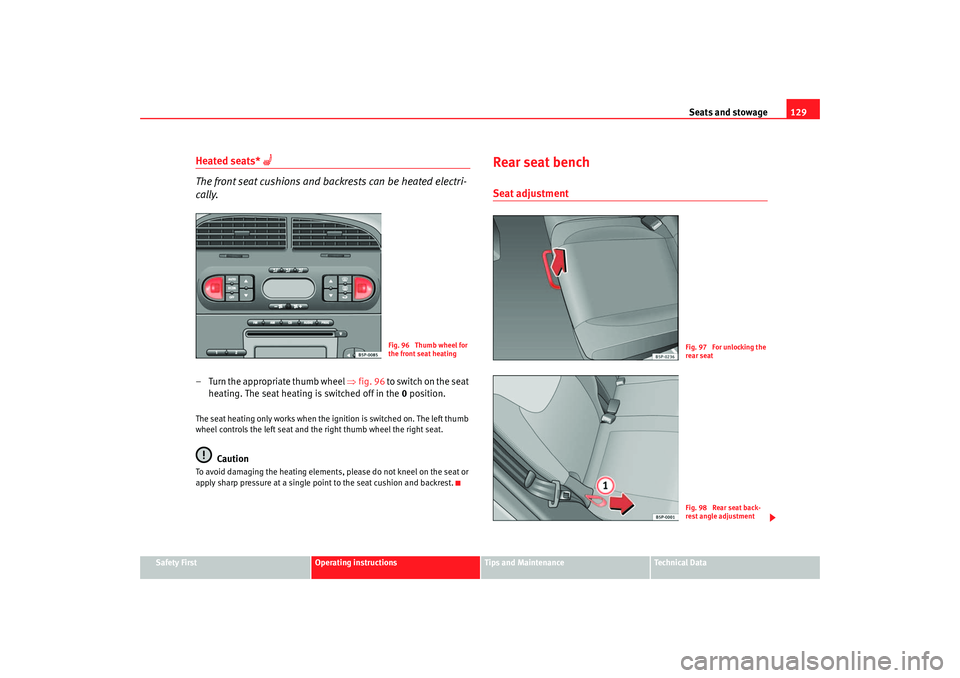

Heated seats*

The front seat cushions and backrests can be heated electri-
cally.
– Turn the appropriate thumb wheel ⇒fig. 96 to switch on the seat
heating. The seat heating is switched off in the 0 position.The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single poin t to the seat cushion and backrest.
Rear seat benchSeat adjustment
Fig. 96 Thumb wheel for
the front seat heating
Fig. 97 For unlocking the
rear seatFig. 98 Rear seat back-
rest angle adjustment
altea_ingles Seite 129 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage
130

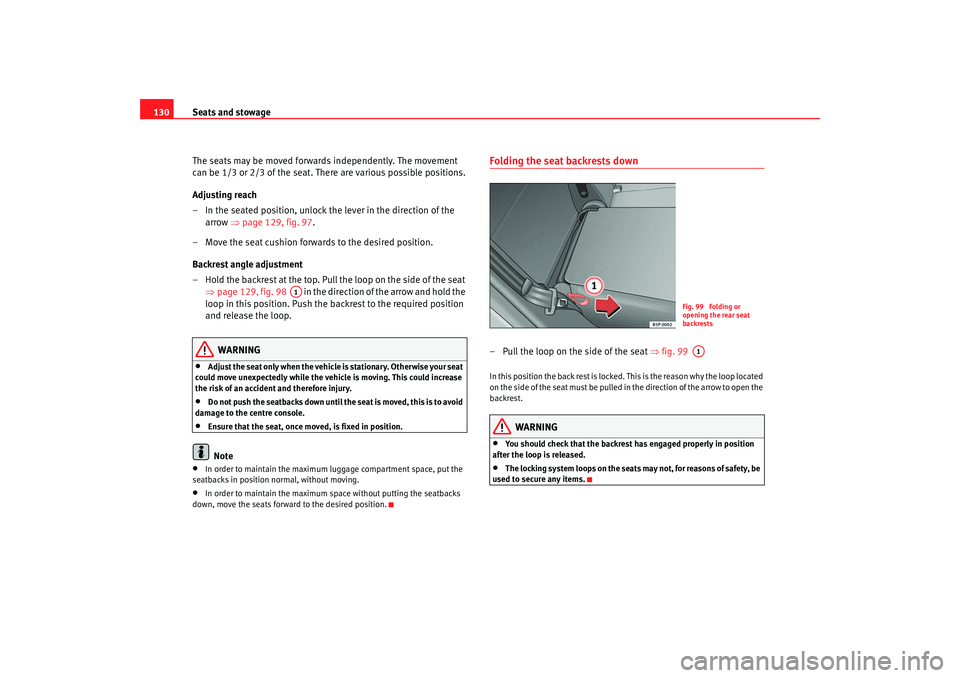

The seats may be moved forwards independently. The movement
can be 1/3 or 2/3 of the seat. There are various possible positions.
Adjusting reach
– In the seated position, unlock the lever in the direction of the arrow ⇒page 129, fig. 97 .
– Move the seat cushion forwards to the desired position.
Backrest angle adjustment
– Hold the backrest at the top. Pull the loop on the side of the seat
⇒ page 129, fig. 98 in the direction of the arrow and hold the
loop in this position. Push the backrest to the required position
and release the loop.
WARNING
•
Adjust the seat only when the vehicle is stationary. Otherwise your seat
could move unexpectedly while the vehicle is moving. This could increase
the risk of an accident and therefore injury.
•
Do not push the seatbacks down until the seat is moved, this is to avoid
damage to the centre console.
•
Ensure that the seat, once mo ved, is fixed in position.Note
•
In order to maintain the maximum luggage compartment space, put the
seatbacks in position normal, without moving.
•
In order to maintain the maximum space without putting the seatbacks
down, move the seats forward to the desired position.
Folding the seat backrests down – Pull the loop on the side of the seat ⇒fig. 99 In this position the back rest is locked. This is the reason why the loop located
on the side of the seat must be pulled in the direction of the arrow to open the
backrest.
WARNING
•
You should check that the backrest has engaged properly in position
after the loop is released.
•
The locking system loops on the seats may not, for reasons of safety, be
used to secure any items.
A1
Fig. 99 Folding or
opening the rear seat
backrestsA1
altea_ingles Seite 130 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage131
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

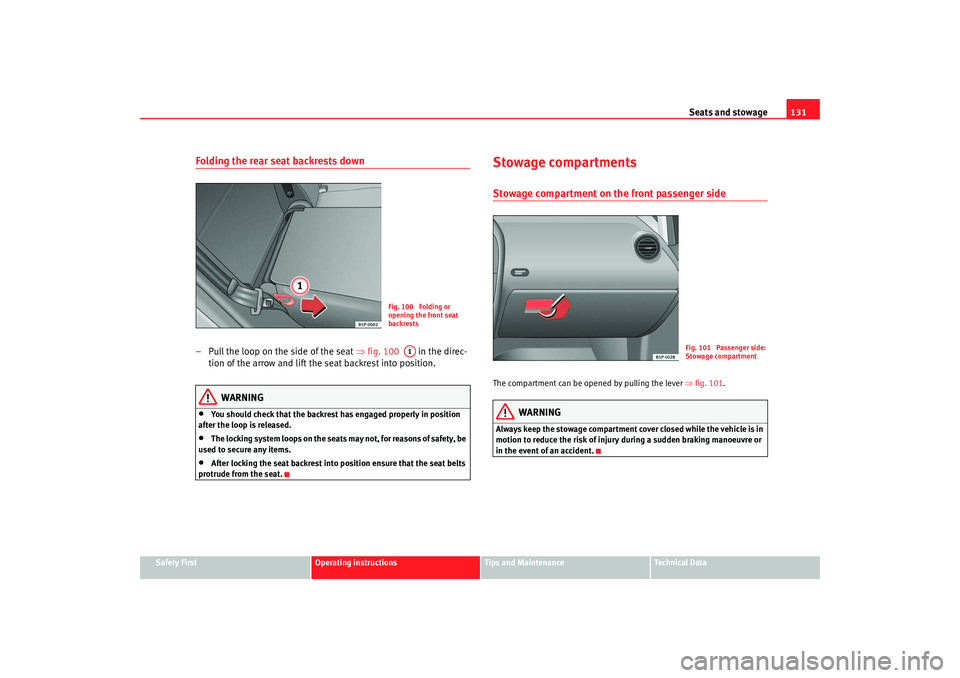

Folding the rear seat backrests down– Pull the loop on the side of the seat ⇒fig. 100 in the direc-
tion of the arrow and lift the seat backrest into position.
WARNING
•
You should check that the backrest has engaged properly in position
after the loop is released.
•
The locking system loops on the seats may not, for reasons of safety, be
used to secure any items.
•
After locking the seat backrest into position ensure that the seat belts
protrude from the seat.
Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 101 .
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.
Fig. 100 Folding or
opening the front seat
backrests
A1
Fig. 101 Passenger side:
Stowage compartment
altea_ingles Seite 131 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage

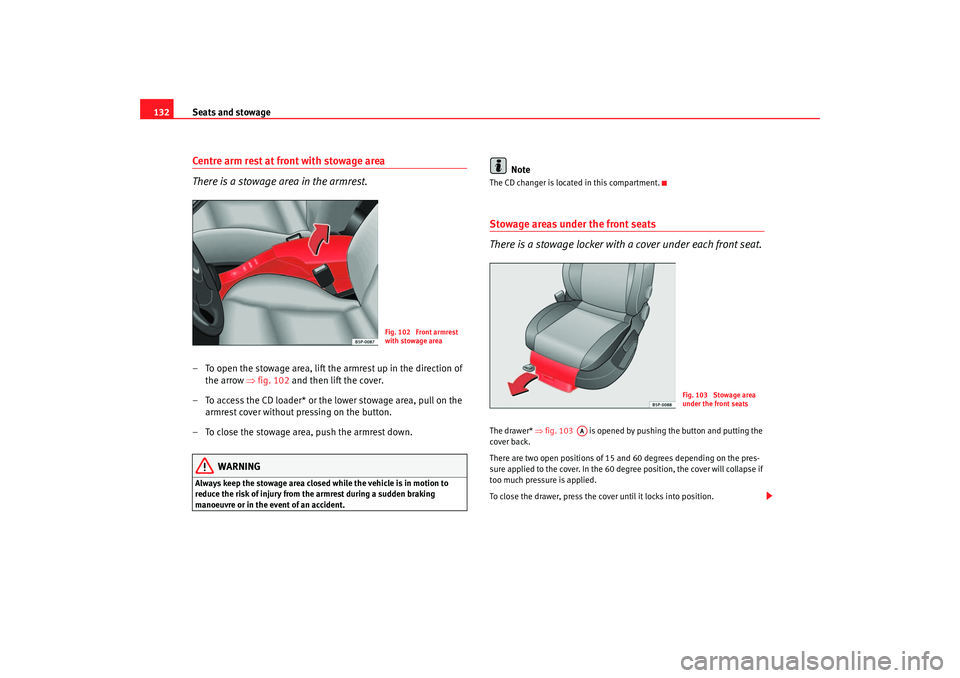

132Centre arm rest at front with stowage area
There is a stowage area in the armrest.– To open the stowage area, lift the armrest up in the direction of
the arrow ⇒fig. 102 and then lift the cover.
– To access the CD loader* or the lower stowage area, pull on the armrest cover without pressing on the button.
– To close the stowage area, push the armrest down.
WARNING
Always keep the stowage area closed while the vehicle is in motion to
reduce the risk of injury from the armrest during a sudden braking
manoeuvre or in the event of an accident.
Note
The CD changer is located in this compartment.Stowage areas under the front seats
There is a stowage locker with a cover under each front seat.The drawer* ⇒fig. 103 is opened by pushing the button and putting the
cover back.
There are two open positions of 15 and 60 degrees depending on the pres-
sure applied to the cover. In the 60 degree position, the cover will collapse if
too much pressure is applied.
To close the drawer, press the cover until it locks into position.
Fig. 102 Front armrest
with stowage area
Fig. 103 Stowage area
under the front seats
AA
altea_ingles Seite 132 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage133
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

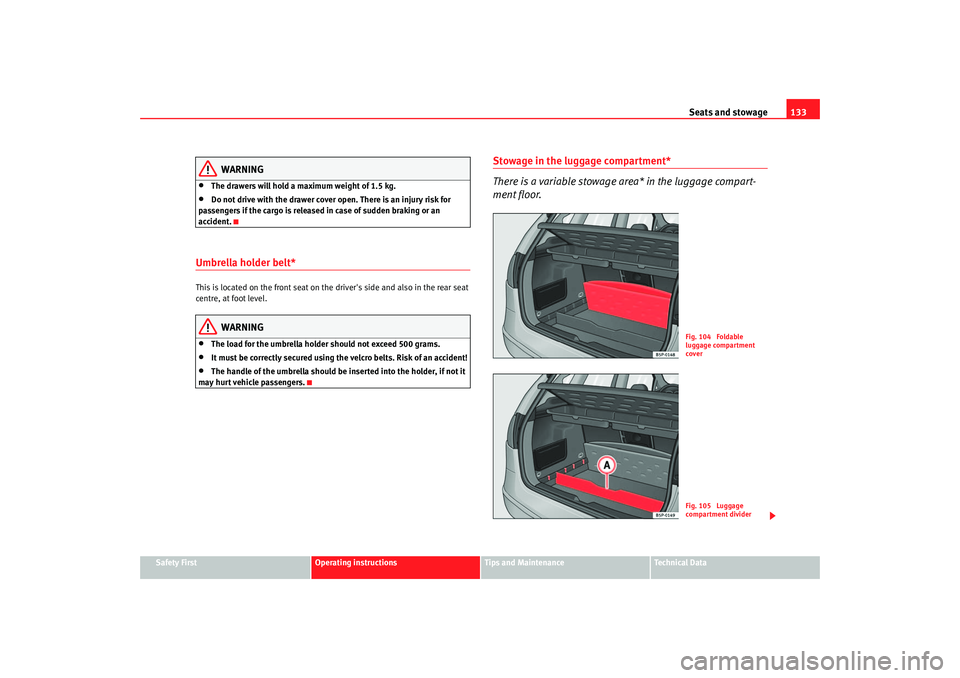

WARNING
•
The drawers will hold a maximum weight of 1.5 kg.
•
Do not drive with the drawer cover open. There is an injury risk for
passengers if the cargo is released in case of sudden braking or an
accident.
Umbrella holder belt*This is located on the front seat on the driver's side and also in the rear seat
centre, at foot level.
WARNING
•
The load for the umbrella holder should not exceed 500 grams.
•
It must be correctly secured using the velcro belts. Risk of an accident!
•
The handle of the umbrella should be inserted into the holder, if not it
may hurt vehicle passengers.
Stowage in the luggage compartment*
There is a variable stowage area* in the luggage compart-
ment floor.
Fig. 104 Foldable
luggage compartment
coverFig. 105 Luggage
compartment divider
altea_ingles Seite 133 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage
134

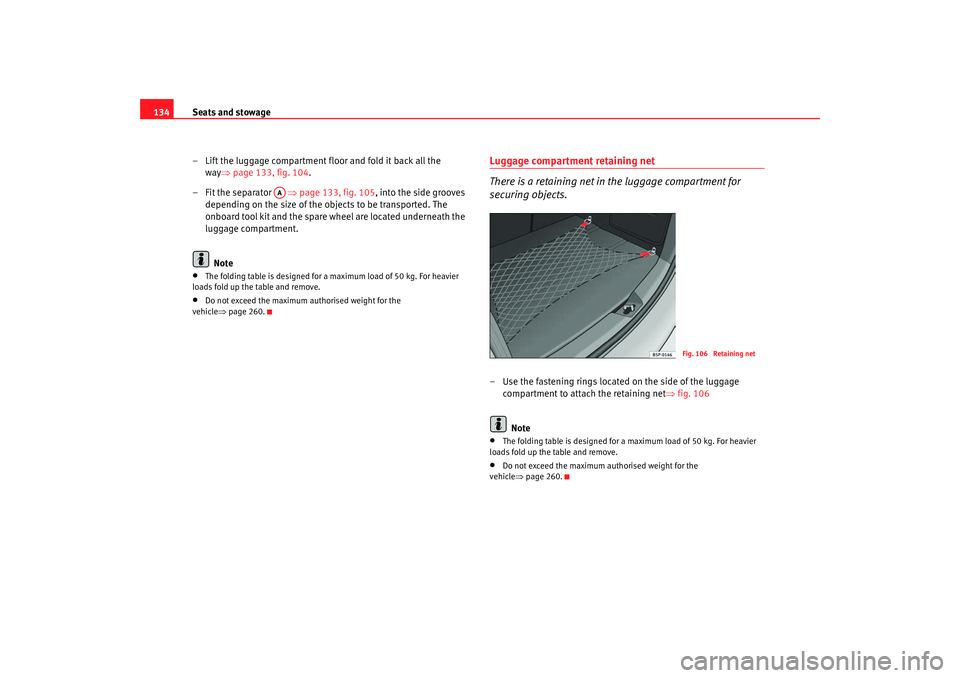

– Lift the luggage compartment floor and fold it back all the way ⇒page 133, fig. 104 .
–Fit the separator ⇒ page 133, fig. 105, into the side grooves
depending on the size of the objects to be transported. The
onboard tool kit and the spare wheel are located underneath the
luggage compartment.
Note•
The folding table is designed for a maximum load of 50 kg. For heavier
loads fold up the table and remove.
•
Do not exceed the maximum authorised weight for the
vehicle ⇒page 260.
Luggage compartment retaining net
There is a retaining net in the luggage compartment for
securing objects.– Use the fastening rings located on the side of the luggage
compartment to attach the retaining net ⇒fig. 106
Note•
The folding table is designed for a maximum load of 50 kg. For heavier
loads fold up the table and remove.
•
Do not exceed the maximum authorised weight for the
vehicle ⇒page 260.
AA
Fig. 106 Retaining net
altea_ingles Seite 134 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage135
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

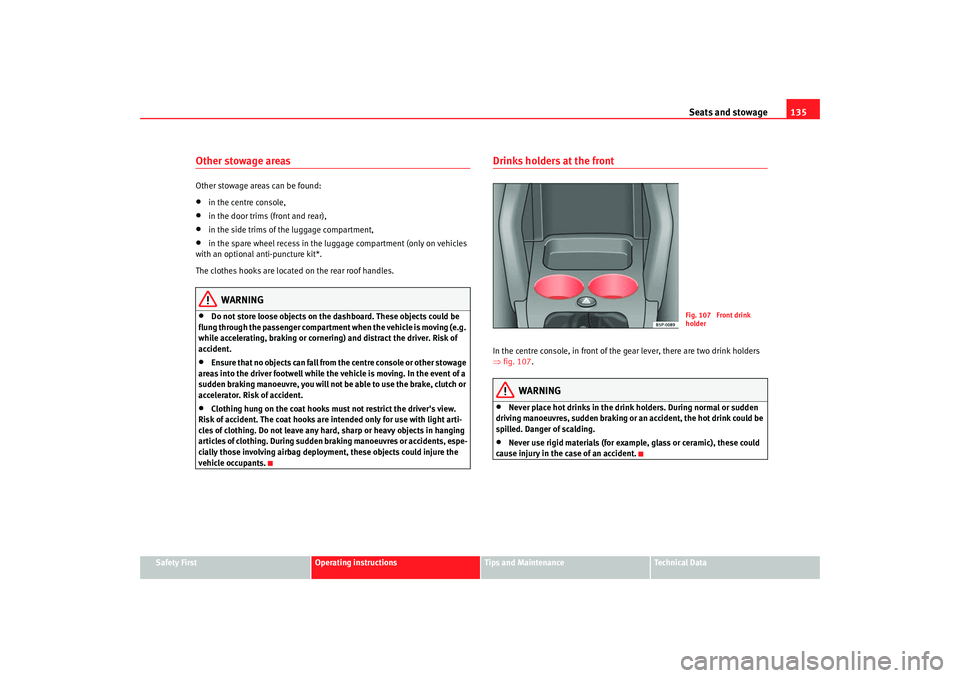

Other stowage areasOther stowage areas can be found:•
in the centre console,
•
in the door trims (front and rear),
•
in the side trims of the luggage compartment,
•
in the spare wheel recess in the luggage compartment (only on vehicles
with an optional anti-puncture kit*.
The clothes hooks are located on the rear roof handles.
WARNING
•
Do not store loose objects on the dashboard. These objects could be
flung through the passenger compartment when the vehicle is moving (e.g.
while accelerating, braking or cornerin g) and distract the driver. Risk of
accident.
•
Ensure that no objects can fall from the centre console or other stowage
areas into the driver footwell while the vehicle is moving. In the event of a
sudden braking manoeuvre, you will not be able to use the brake, clutch or
accelerator. Risk of accident.
•
Clothing hung on the coat hooks must not restrict the driver's view.
Risk of accident. The coat hooks are intended only for use with light arti-
cles of clothing. Do not leave any ha rd, sharp or heavy objects in hanging
articles of clothing. During sudden braking manoeuvres or accidents, espe-
cially those involving airbag deployment, these objects could injure the
vehicle occupants.
Drinks holders at the frontIn the centre console, in front of the gear lever, there are two drink holders
⇒ fig. 107 .
WARNING
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot dr ink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
Fig. 107 Front drink
holder
altea_ingles Seite 135 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage

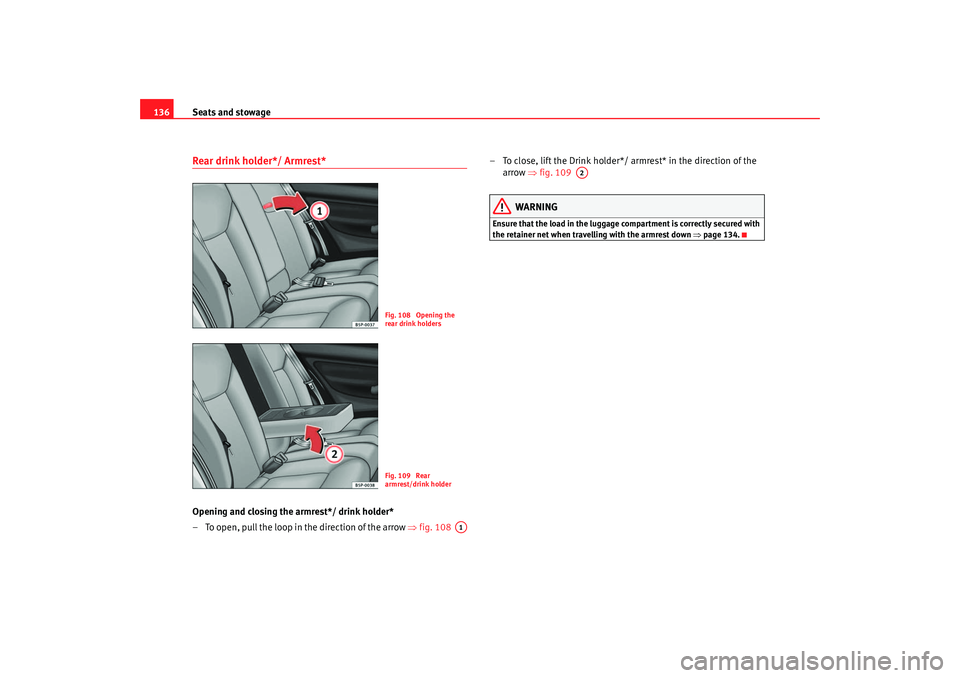

136Rear drink holder*/ Armrest*Opening and closing the armrest*/ drink holder*
– To open, pull the loop in the direction of the arrow ⇒fig. 108 – To close, lift the Drink holder*/ armrest* in the direction of the
arrow ⇒fig. 109
WARNING
Ensure that the load in the luggage compartment is correctly secured with
the retainer net when travelling with the armrest down ⇒page 134.
Fig. 108 Opening the
rear drink holdersFig. 109 Rear
armrest/drink holder
A1
A2
altea_ingles Seite 136 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage137
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

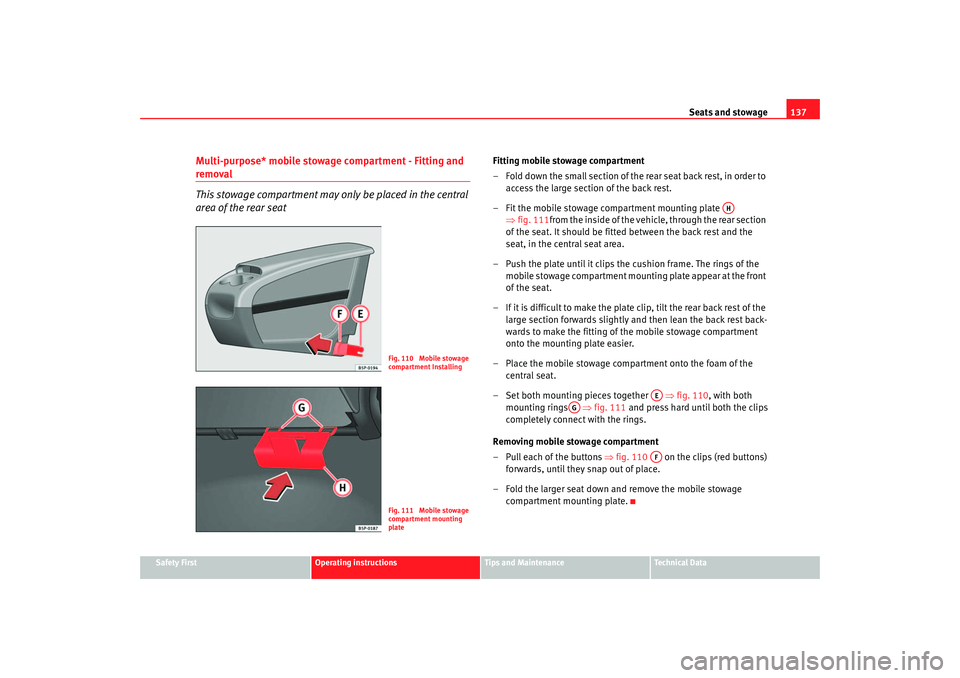

Multi-purpose* mobile stowage compartment - Fitting and removal
This stowage compartment may only be placed in the central
area of the rear seat
Fitting mobile stowage compartment
– Fold down the small section of the rear seat back rest, in order to
access the large section of the back rest.
– Fit the mobile stowage compartment mounting plate ⇒fig. 111from the inside of the vehicl e, through the rear section
of the seat. It should be fitted between the back rest and the
seat, in the central seat area.
– Push the plate until it clips the cushion frame. The rings of the mobile stowage compartment mounting plate appear at the front
of the seat.
– If it is difficult to make the plate clip, tilt the rear back rest of the large section forwards slightly and then lean the back rest back-
wards to make the fitting of the mobile stowage compartment
onto the mounting plate easier.
– Place the mobile stowage compartment onto the foam of the central seat.
– Set both mounting pieces together ⇒fig. 110, with both
mounting rings ⇒fig. 111 and press hard until both the clips
completely connect with the rings.
Removing mobile stowage compartment
– Pull each of the buttons ⇒fig. 110 on the clips (red buttons)
forwards, until they snap out of place.
– Fold the larger seat down and remove the mobile stowage compartment mounting plate.
Fig. 110 Mobile stowage
compartment InstallingFig. 111 Mobile stowage
compartment mounting
plate
AH
AE
AG
AF
altea_ingles Seite 137 Donnerstag, 19. Mai 2005 3:02 15

Seats and stowage

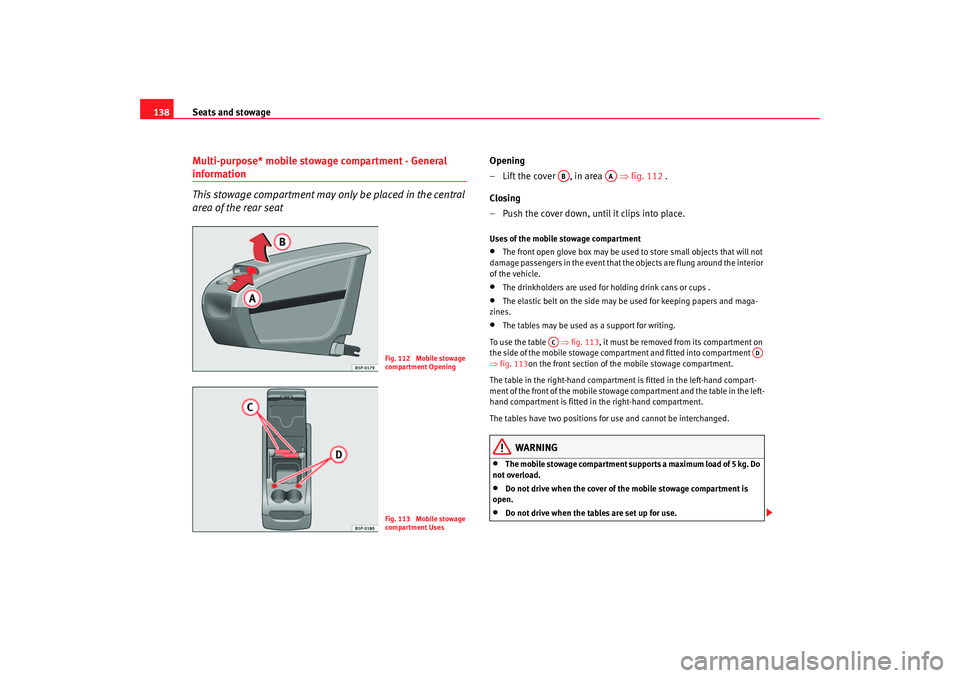

138Multi-purpose* mobile stowage compartment - General information
This stowage compartment may only be placed in the central
area of the rear seat
Opening
– Lift the cover , in area ⇒fig. 112 .
Closing
– Push the cover down, until it clips into place.Uses of the mobile stowage compartment•
The front open glove box may be used to store small objects that will not
damage passengers in the event that the objects are flung around the interior
of the vehicle.
•
The drinkholders are used for holding drink cans or cups .
•
The elastic belt on the side may be used for keeping papers and maga-
zines.
•
The tables may be used as a support for writing.
To use the table ⇒fig. 113 , it must be removed from its compartment on
the side of the mobile stowage compartment and fitted into compartment
⇒ fig. 113on the front section of the mobile stowage compartment.
The table in the right-hand compartment is fitted in the left-hand compart-
ment of the front of the mobile stowage compartment and th e table in the left-
hand compartment is fitted in the right-hand compartment.
The tables have two positions for use and cannot be interchanged.
WARNING
•
The mobile stowage compartment supports a maximum load of 5 kg. Do
not overload.
•
Do not drive when the cover of the mobile stowage compartment is
open.
•
Do not drive when the tables are set up for use.
Fig. 112 Mobile stowage
compartment OpeningFig. 113 Mobile stowage
compartment Uses
AB
AA
AC
AD
altea_ingles Seite 138 Donnerstag, 19. Mai 2005 3:02 15
