Fuses on left side of dash panelFuses
Number Consumer Amperes
1V aca n t
2V aca n t
3V aca n t
4V aca n t
5V aca n t
6V aca n t
7V aca n t
8V aca n t
9 Airbag 5
10 RSE input (roof screen) 10
11 Vacant
11 Vacant
12 Left xenon headlight 10
13 Heating controls / ESP, ASR switch / Reverse / Preinstallation of telephone / Tomtom Navigator 5
14 ABS/ESP switchboard / Engine / Headlights / Traile r switchboard / Light switch / Instrument panel 10
15 Headlight regulation switchboard / Heated wipers / Instrument lights / Diagnosis Switchboard 10
16 Right xenon headlight 10
17 Engine management 10
18 Vacant
19 Vacant
20 Park Pilot (Parking assistant) / Gear lever/ ESP switchboard 10
altea ingles.book Seite 249 Dienstag, 11. September 2007 4:39 16
Page 252 of 309

If and when
250

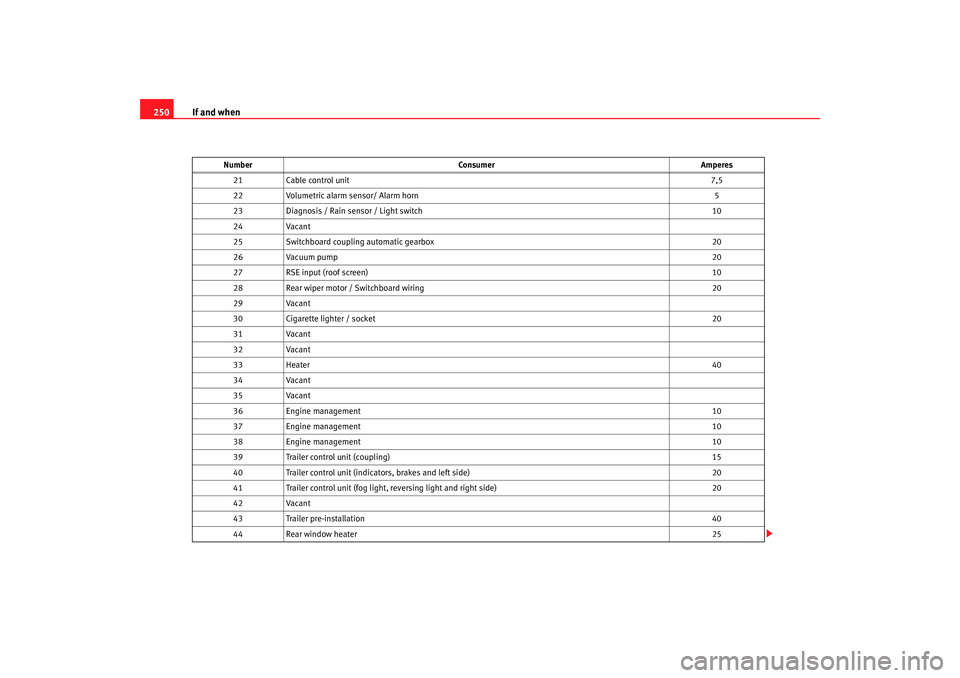

21 Cable control unit 7,5
22 Volumetric alarm sensor/ Alarm horn 5
23 Diagnosis / Rain sensor / Light switch 10
24 Vacant
25 Switchboard coupling automatic gearbox 20
26 Vacuum pump 20
27 RSE input (roof screen) 10
28 Rear wiper motor / Switchboard wiring 20
29 Vacant
30 Cigarette lighter / socket 20
31 Vacant
32 Vacant
33 Heater 40
34 Vacant
35 Vacant
36 Engine management 10
37 Engine management 10
38 Engine management 10
39 Trailer control unit (coupling) 15
40 Trailer control unit (indicat ors, brakes and left side) 20
41 Trailer control unit (fog light, reversing light and right side) 20
42 Vacant
43 Trailer pre-installation 40
44 Rear window heater 25
Number
Consumer Amperes
altea ingles.book Seite 250 Dienstag, 11. September 2007 4:39 16
Page 253 of 309

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the co rrect information for your model.

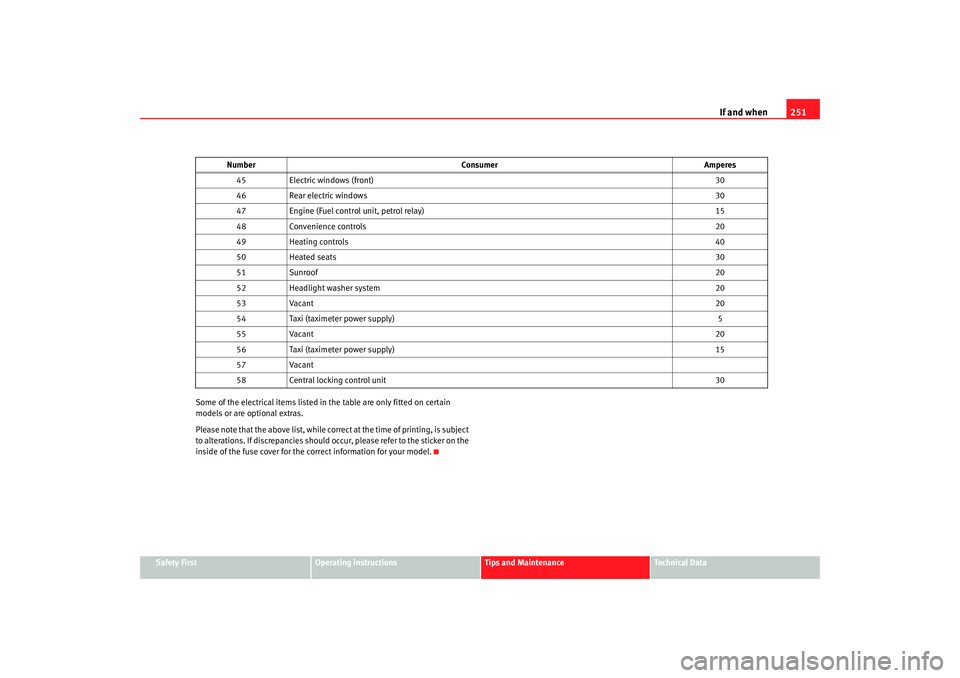

45
Electric windows (front) 30
46 Rear electric windows 30
47 Engine (Fuel control unit, petrol relay) 15
48 Convenience controls 20
49 Heating controls 40
50 Heated seats 30
51 Sunroof 20
52 Headlight washer system 20
53 Vacant 20
54 Taxi (taximeter power supply) 5
55 Vacant 20
56 Taxi (taximeter power supply) 15
57 Vacant
58 Central locking control unit 30
Number
Consumer Amperes
altea ingles.book Seite 251 Dienstag, 11. September 2007 4:39 16
Page 254 of 309

If and when
252Fuses layout, engine compartment, left partFuses
Number Consumer Amperes
1 Windscreen wipers 30
2 Steering column 5
3 Cable control unit 5
4A BS 30
5 AQ gearbox 15
6 instrument panel 5
7 Vacant
8R ad io 15
9 Telephone/TomTom Navigator 5
10 Engine management
5
Engine management 10
11 Vacant
12 Electronic control unit 5
13 Petrol injection module supply
25
Diesel injection module supply 30
14 Coil 20
15 Engine management
5
Pump relay 10
16 ABS pump 30
17 Horn 15
18 Vacant
altea ingles.book Seite 252 Dienstag, 11. September 2007 4:39 16
Page 255 of 309

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

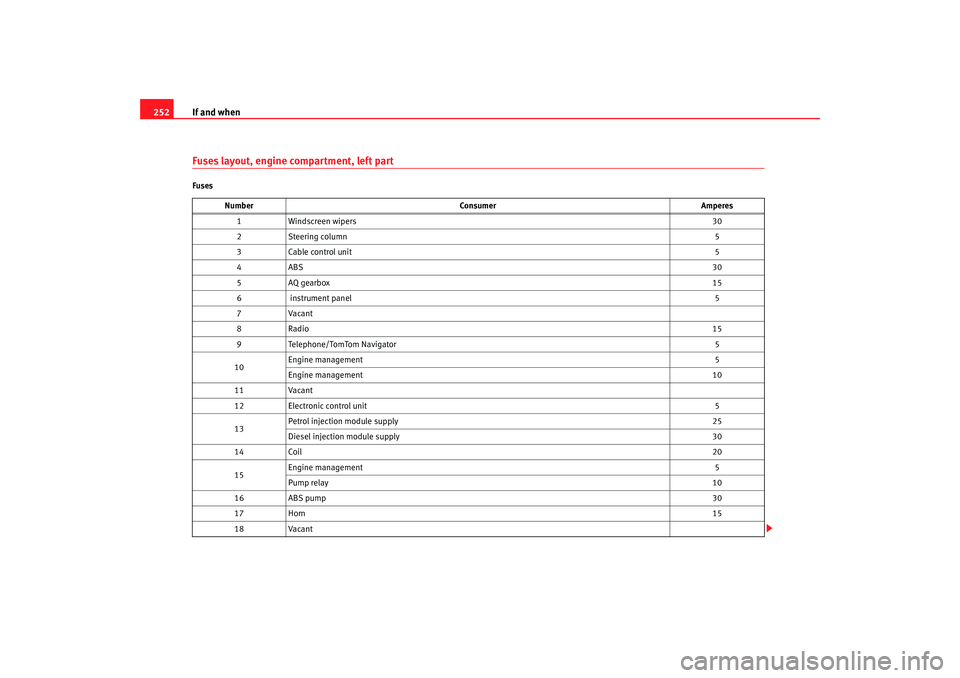

19
Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine management
5
Engine management 10
Engine management 15
24 AKF, gearbox valve 10
25 Right lighting 40
26 Left lighting 40
27 Engine management
40
Engine management 50
28 Ignition key 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 Ignition key 40
Number
Consumer Amperes
altea ingles.book Seite 253 Dienstag, 11. September 2007 4:39 16
Page 256 of 309

If and when
254Position in engine compartment: Side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while corr ect at the time of printing, is subject
to alterations.Bulb changeGeneral notesBefore changing any bulb, first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and conden sation on the mirror surface, thus
reducing efficiency. A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect
road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signals - PY21W
Number
Consumer Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering servo 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator > 500 W / Ventilator < 500 80/50
F1 PTCs (Supplementary electrical heating using air) 80
G1 PTC (Supplementary electrical heating using air) 40
H1 Central locking control unit
altea ingles.book Seite 254 Dienstag, 11. September 2007 4:39 16
Page 257 of 309

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Xenon headlights
21)/ self-adjusting*
Dipped and full beam - D1S
22)
Flashes and extra full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Upper rear light
Stop/Position - P21W
23)
Turn signals - R10W
Lower rear light
Fog light - P21W
Reverse light - P21W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the lamps except for the fog lights* and interior lamps.
Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
21)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.22)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.23)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.

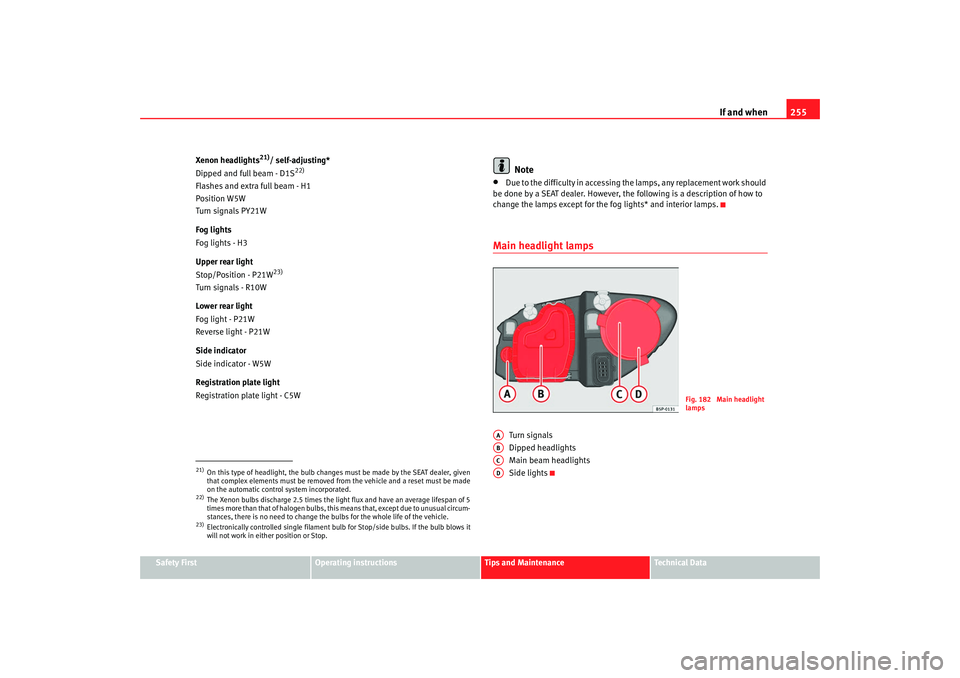

Fig. 182 Main headlight
lamps
AAABACAD
altea ingles.book Seite 255 Dienstag, 11. September 2007 4:39 16
Page 258 of 309

If and when
256Tu r n si g nal l a m ps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 183 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights–Raise the bonnet
Fig. 183 Turn signal
lamps
AA
Fig. 184 Dipped head-
lightsFig. 185 Dipped head-
lights
altea ingles.book Seite 256 Dienstag, 11. September 2007 4:39 16
Page 259 of 309

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

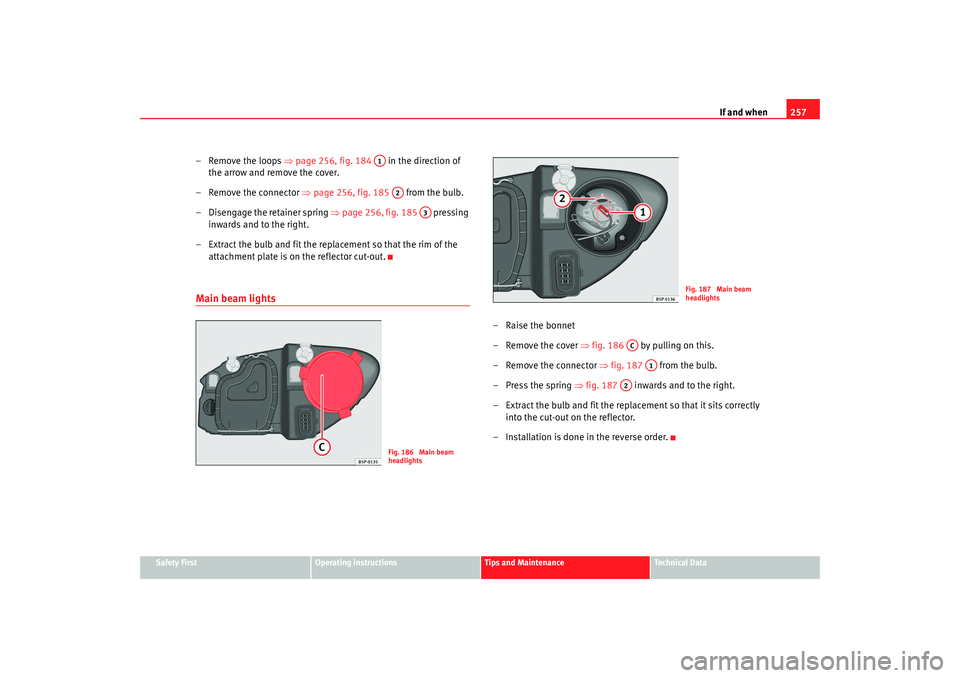

– Remove the loops ⇒page 256, fig. 184 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 256, fig. 185 from the bulb.
– Disengage the retainer spring ⇒ page 256, fig. 185 pressing
inwards and to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
– Raise the bonnet
– Remove the cover ⇒fig. 186 by pulling on this.
– Remove the connector ⇒fig. 187 from the bulb.
– Press the spring ⇒fig. 187 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 186 Main beam
headlights
Fig. 187 Main beam
headlights
AC
A1
A2
altea ingles.book Seite 257 Dienstag, 11. September 2007 4:39 16
Page 260 of 309

If and when

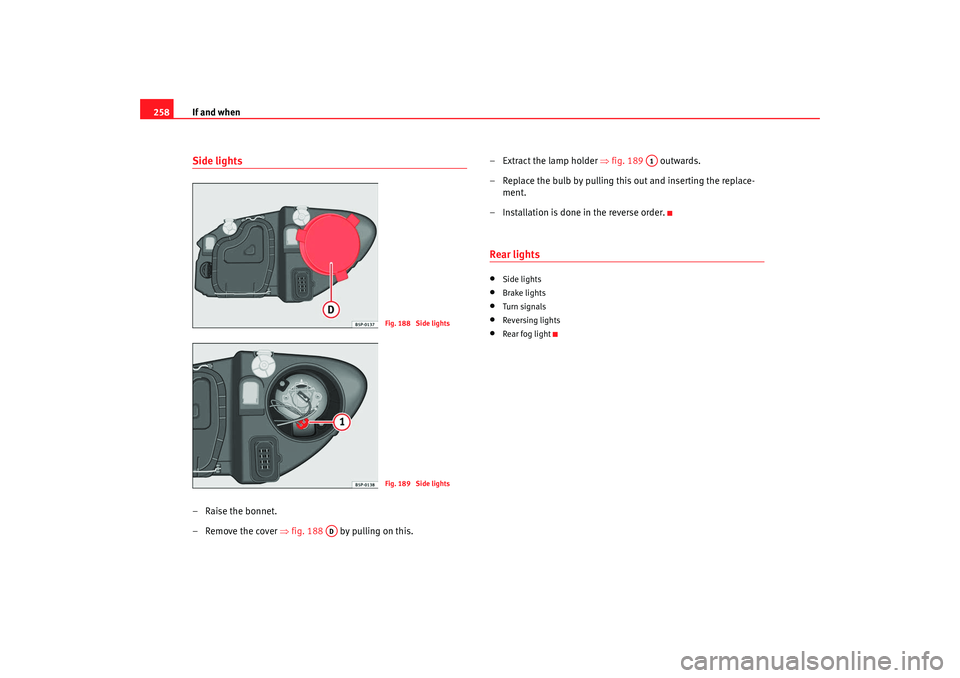

258Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 188 by pulling on this. – Extract the lamp holder
⇒fig. 189 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
Side lights
•
Brake lights
•
Turn signals
•
Reversing lights
•
Rear fog light
Fig. 188 Side lightsFig. 189 Side lights
