Seat Altea 2008 Owner's Manual

Technical data289
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 2.0l
TDI 100 kW (136 bhp)General engine data
Performance figuresWith no brakes, gradients up to 12%
750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 199
Acceleration from 0-80 km/h in sec. 7
Acceleration from 0-100 km/h in sec. 10
altea ingles.book Seite 289 Dienstag, 11. September 2007 4:39 16

Technical data

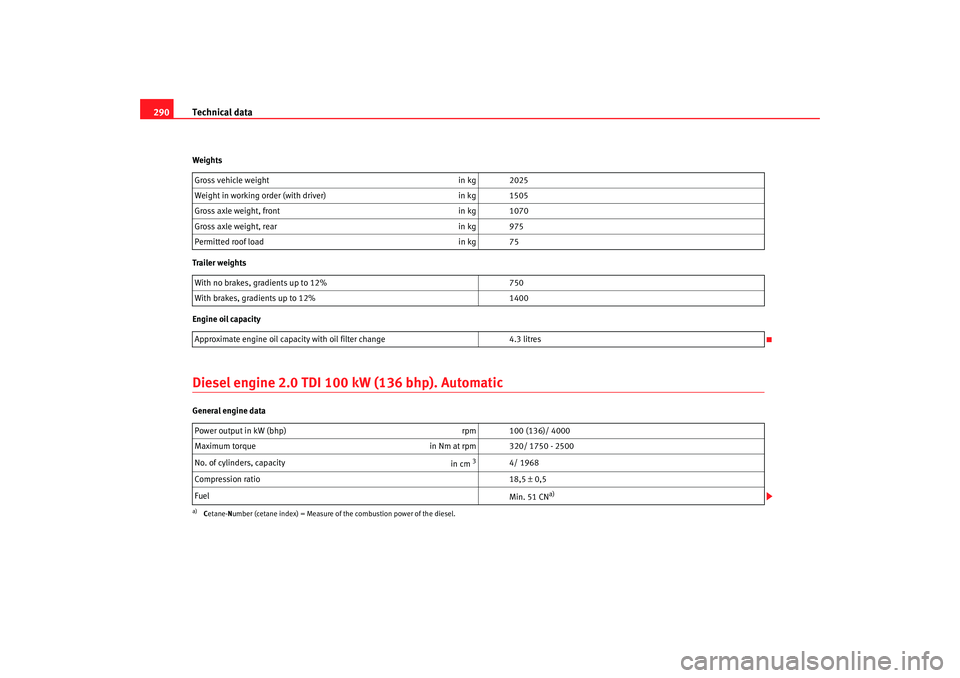

290Weights
Trailer weights
Engine oil capacityDiesel engine 2.0 TDI 100 kW (136 bhp). AutomaticGeneral engine data Gross vehicle weight
in kg 2025
Weight in working order (with driver) in kg 1505
Gross axle weight, front in kg 1070
Gross axle weight, rear in kg 975
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
altea ingles.book Seite 290 Dienstag, 11. September 2007 4:39 16

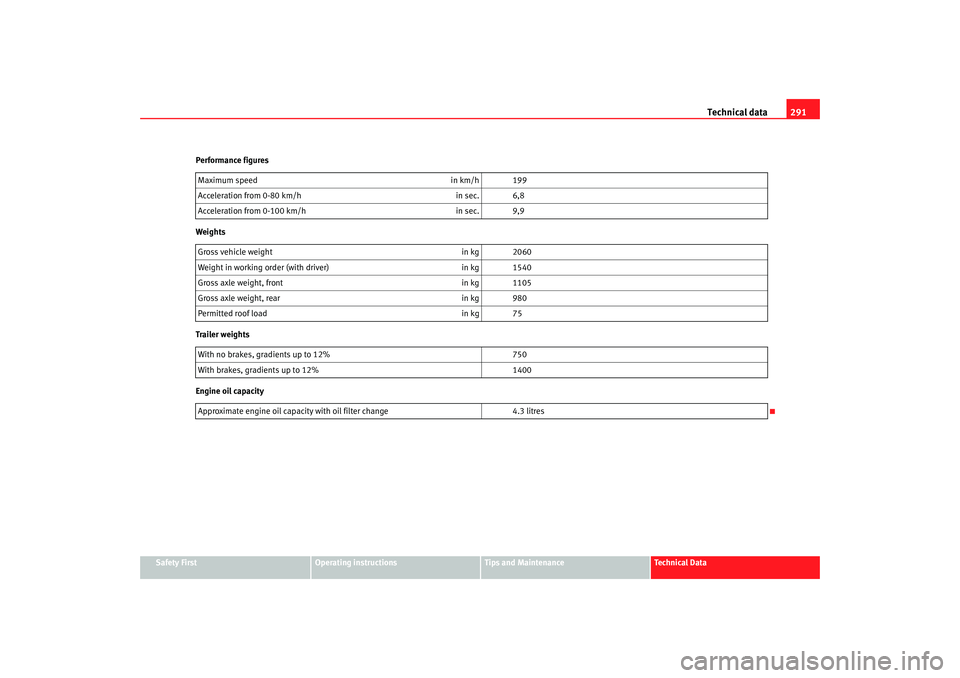

Technical data291
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 199
Acceleration from 0-80 km/h in sec. 6,8
Acceleration from 0-100 km/h in sec. 9,9
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540
Gross axle weight, front in kg 1105
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
altea ingles.book Seite 291 Dienstag, 11. September 2007 4:39 16

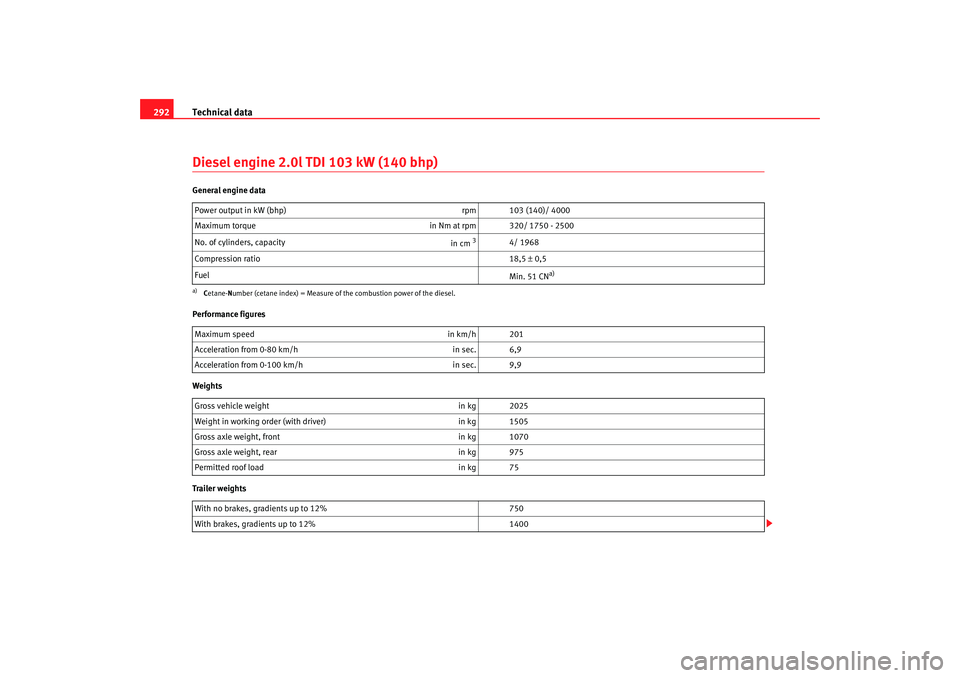

Technical data
292Diesel engine 2.0l TDI 103 kW (140 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 9,9
Gross vehicle weight in kg 2025
Weight in working order (with driver) in kg 1505
Gross axle weight, front in kg 1070
Gross axle weight, rear in kg 975
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
altea ingles.book Seite 292 Dienstag, 11. September 2007 4:39 16

Technical data293
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity
Diesel engine 2.0 TDI 103 kW (140 bhp). AutomaticGeneral engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane inde x) = Measure of the combus tion power of the diesel.Maximum speed in km/h 201
Acceleration from 0-80 km/h in sec. 6,7
Acceleration from 0-100 km/h in sec. 9,8
Gross vehicle weight in kg 2060
Weight in working order (with driver) in kg 1540
Gross axle weight, front in kg 1105
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
altea ingles.book Seite 293 Dienstag, 11. September 2007 4:39 16

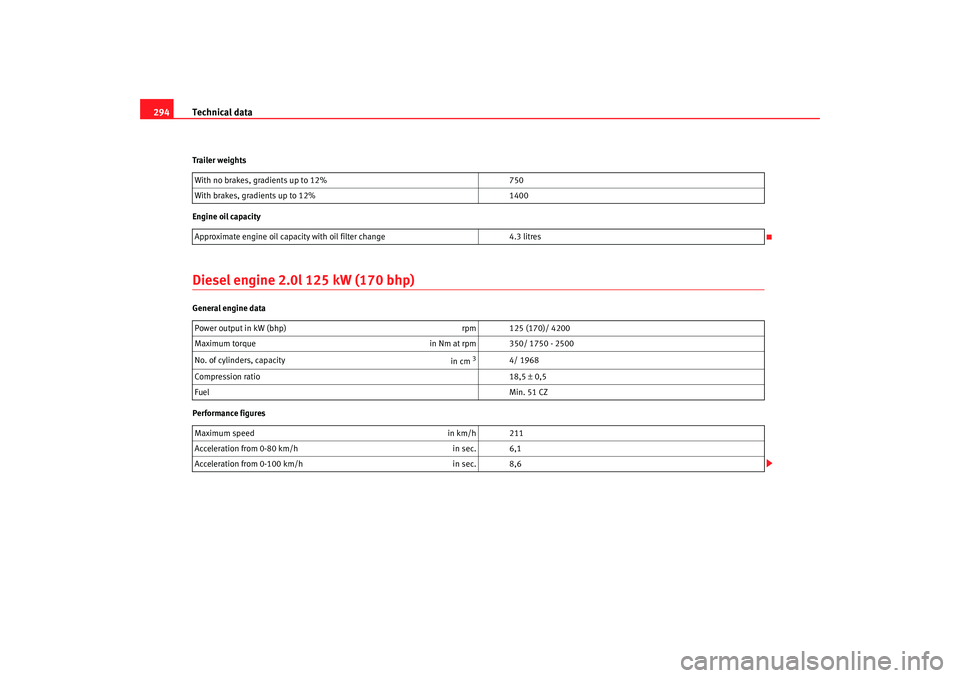

Technical data
294Trailer weights
Engine oil capacityDiesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in sec. 6,1
Acceleration from 0-100 km/h in sec. 8,6
altea ingles.book Seite 294 Dienstag, 11. September 2007 4:39 16

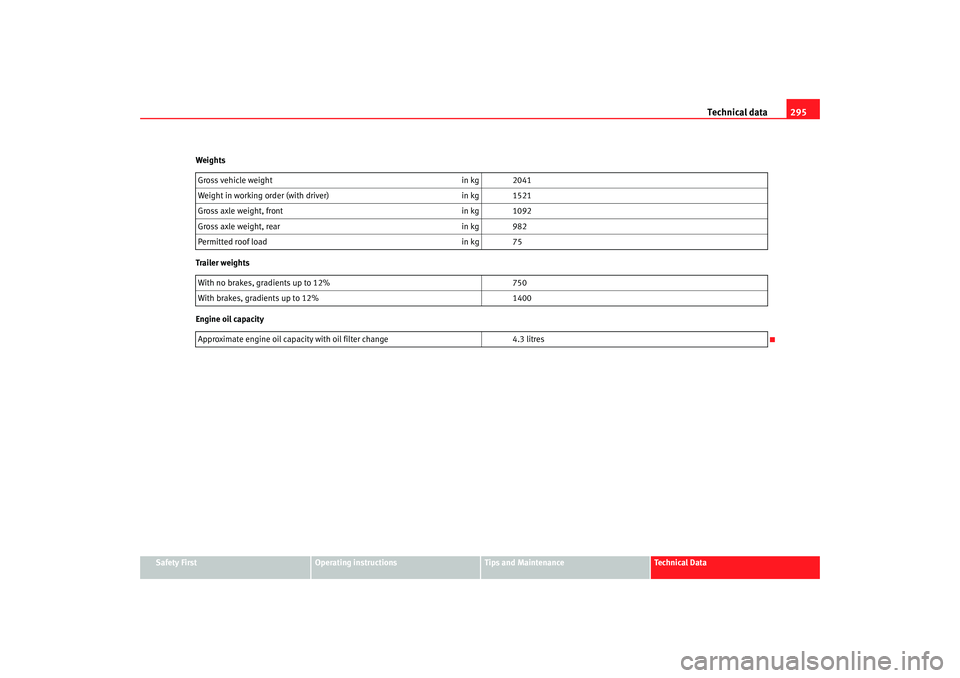

Technical data295
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Gross vehicle weight
in kg 2041
Weight in working order (with driver) in kg 1521
Gross axle weight, front in kg 1092
Gross axle weight, rear in kg 982
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
altea ingles.book Seite 295 Dienstag, 11. September 2007 4:39 16

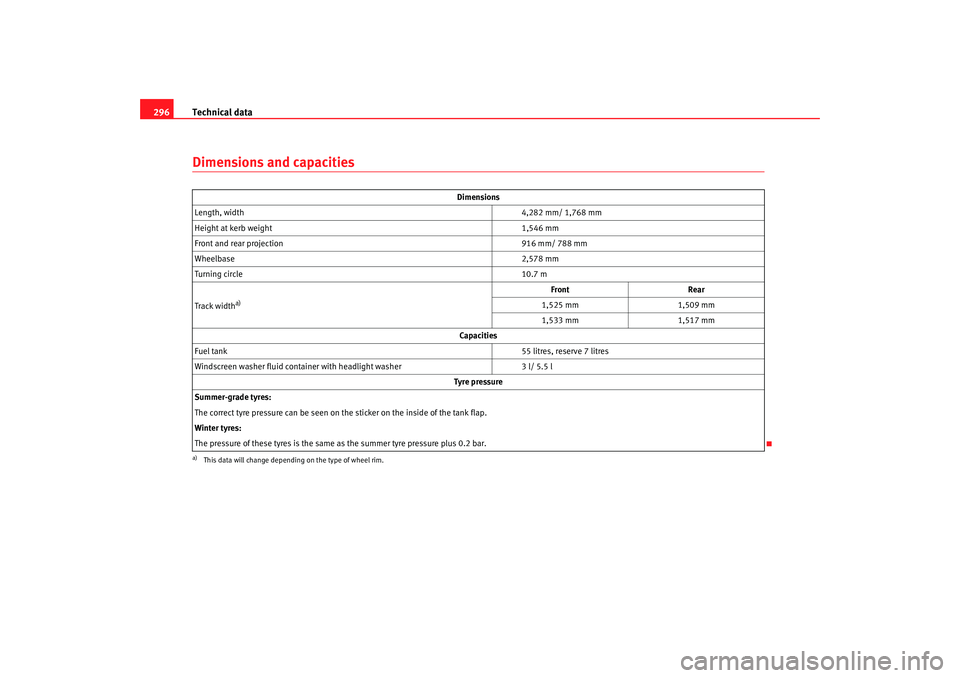

Technical data
296Dimensions and capacities
Dimensions
Length, width 4,282 mm/ 1,768 mm
Height at kerb weight 1,546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,533 mm 1,517 mm
Capacities
Fuel tank 55 litres, reserve 7 litres
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
altea ingles.book Seite 296 Dienstag, 11. September 2007 4:39 16

Index297

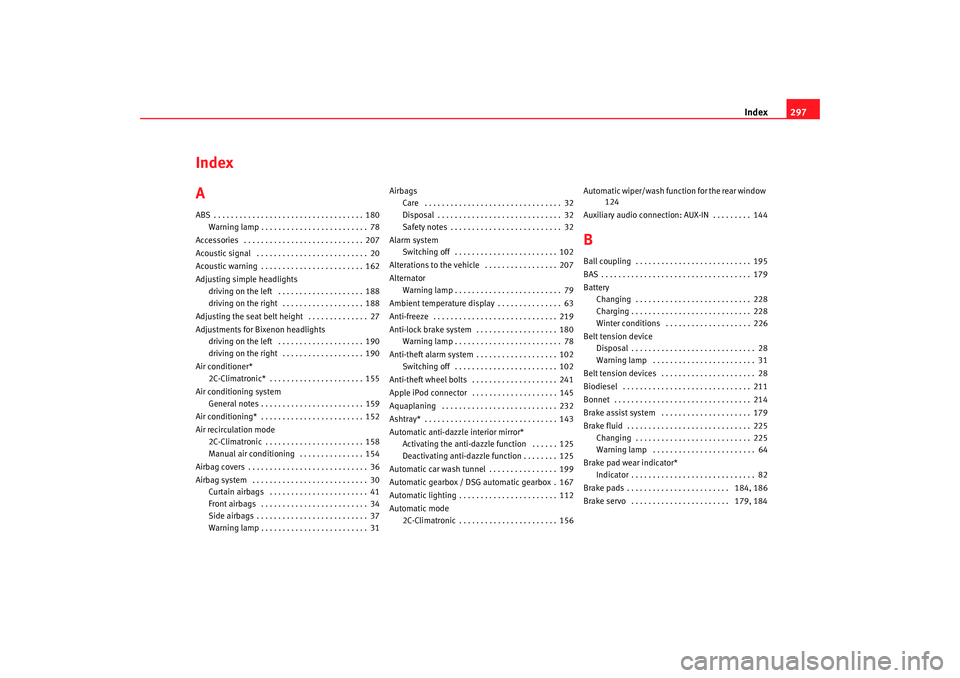

Index
