Side lights and brake lights– Open the tailgate
– Remove the bolts ⇒fig. 190 . – Remove the cover of the luggage compartment lateral panel.
– Unscrew the plastic fitting
⇒fig. 191 securing the rear light.
Inserting a screwdriver under the plastic fitting may help to
loosen it.
– Partially remove the rear light from its casing taking care not to pull on the cable.
– Remove the lamp holder connector.
– Unscrew the bolts ⇒page 260, fig. 192 from the lamp holder
and pull on this.
– Press on the lamp and rotate to the left then fit the replacement.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder. The metal contacts of the lamp holder
ends should be correctly fitted with respect to the rear light
contacts.

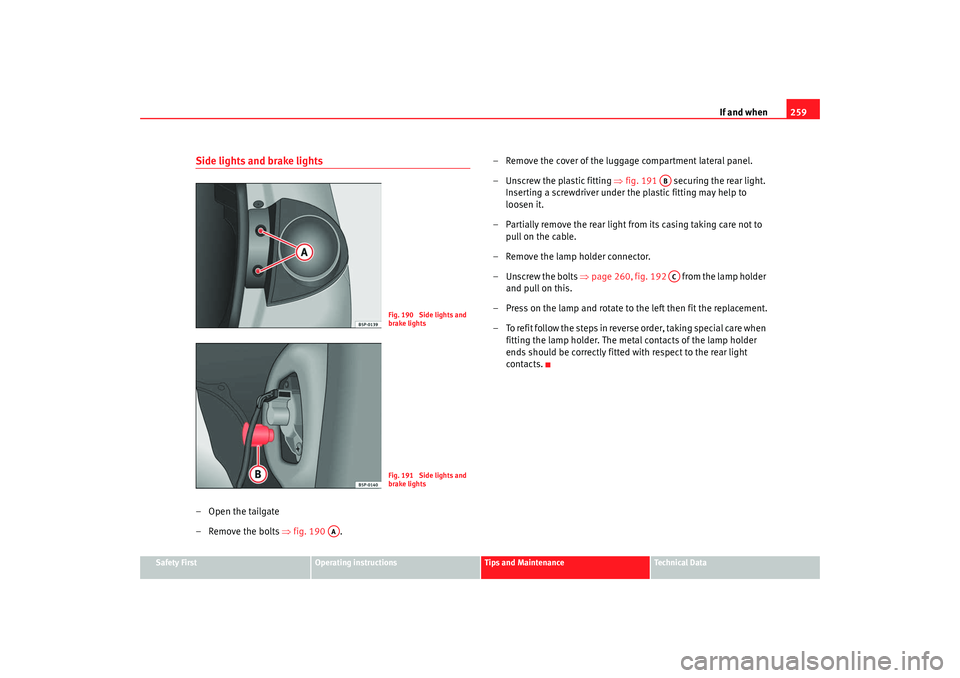

Fig. 190 Side lights and
brake lightsFig. 191 Side lights and
brake lights
AA
ABAC
altea ingles.book Seite 259 Dienstag, 11. September 2007 4:39 16
Page 262 of 309
If and when

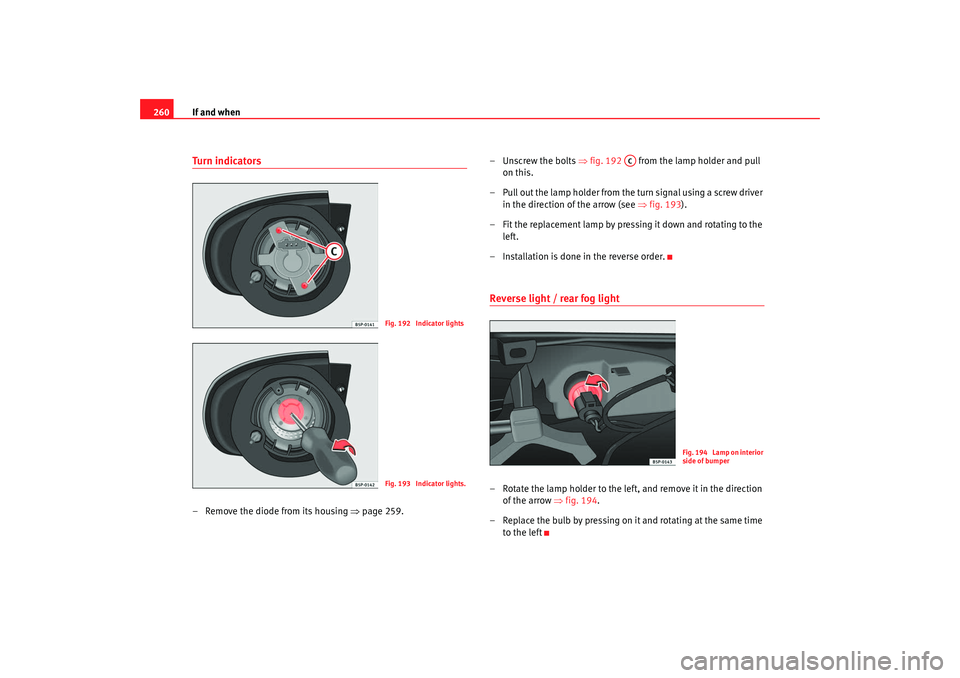

260Tu r n i n d i ca to rs– Remove the diode from its housing ⇒ page 259.– Unscrew the bolts ⇒
fig. 192 from the lamp holder and pull
on this.
– Pull out the lamp holder from the turn signal using a screw driver in the direction of the arrow (see ⇒fig. 193).
– Fit the replacement lamp by pressing it down and rotating to the left.
– Installation is done in the reverse order.
Reverse light / rear fog light– Rotate the lamp holder to the left, and remove it in the direction of the arrow ⇒fig. 194.
– Replace the bulb by pressing on it and rotating at the same time to the left
Fig. 192 Indicator lightsFig. 193 Indicator lights.
AC
Fig. 194 Lamp on interior
side of bumper
altea ingles.book Seite 260 Dienstag, 11. September 2007 4:39 16
Page 263 of 309
If and when261
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒fig. 195 , arrow .
– Insert the lamp as shown by the arrow ⇒fig. 195.
Luggage compartment lights– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver ⇒fig. 196 .

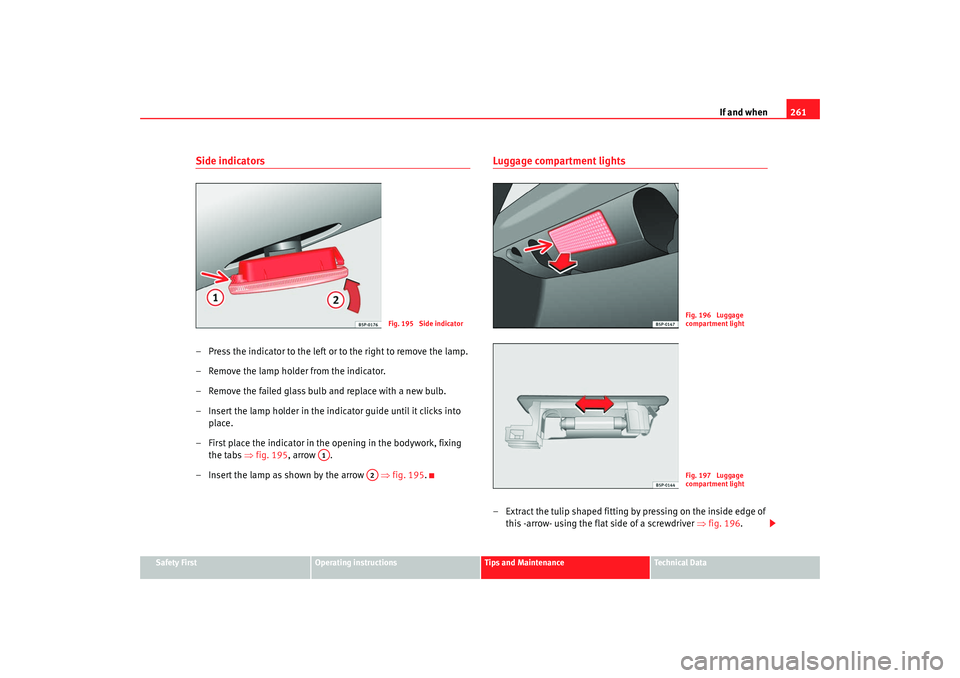

Fig. 195 Side indicator
A1
A2
Fig. 196 Luggage
compartment lightFig. 197 Luggage
compartment light
altea ingles.book Seite 261 Dienstag, 11. September 2007 4:39 16
Page 264 of 309
If and when
262
– Press the lamp sideways and remove it from its housing ⇒page 261, fig. 197 .Registration light
– Remove the tulip-shaped fitting, carefully using the flat side of
the screwdriver as a lever inserted in the crack as shown by the
arrow ⇒fig. 198.
– Remove the lamp, moving it in the direction of the arrow and outwards ⇒fig. 199 .

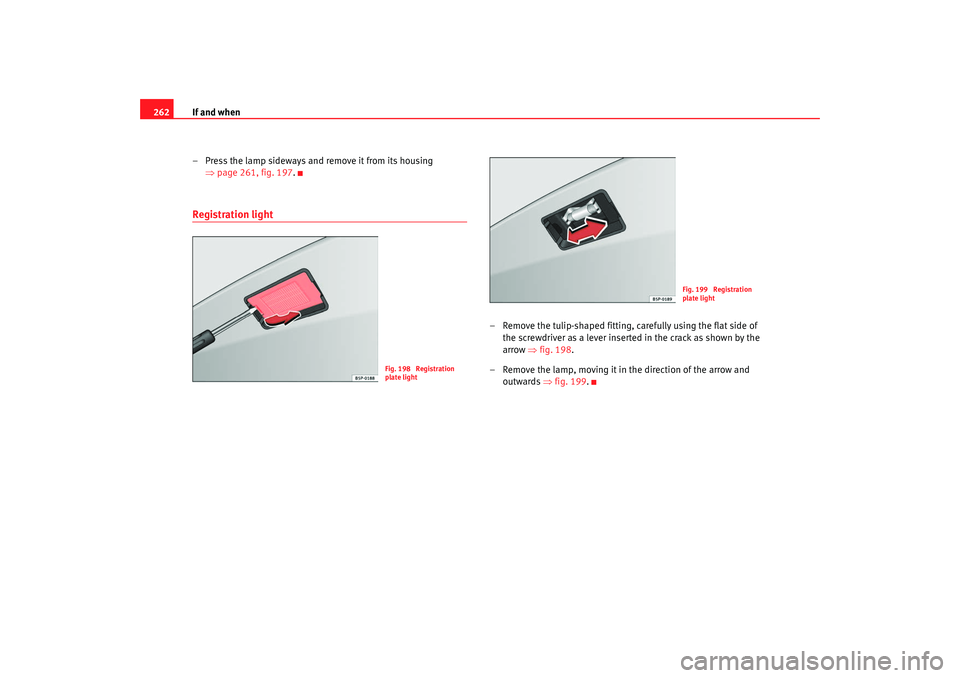

Fig. 198 Registration
plate light
Fig. 199 Registration
plate light
altea ingles.book Seite 262 Dienstag, 11. September 2007 4:39 16
Page 265 of 309
If and when263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 201. – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 201.
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each othe r, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.

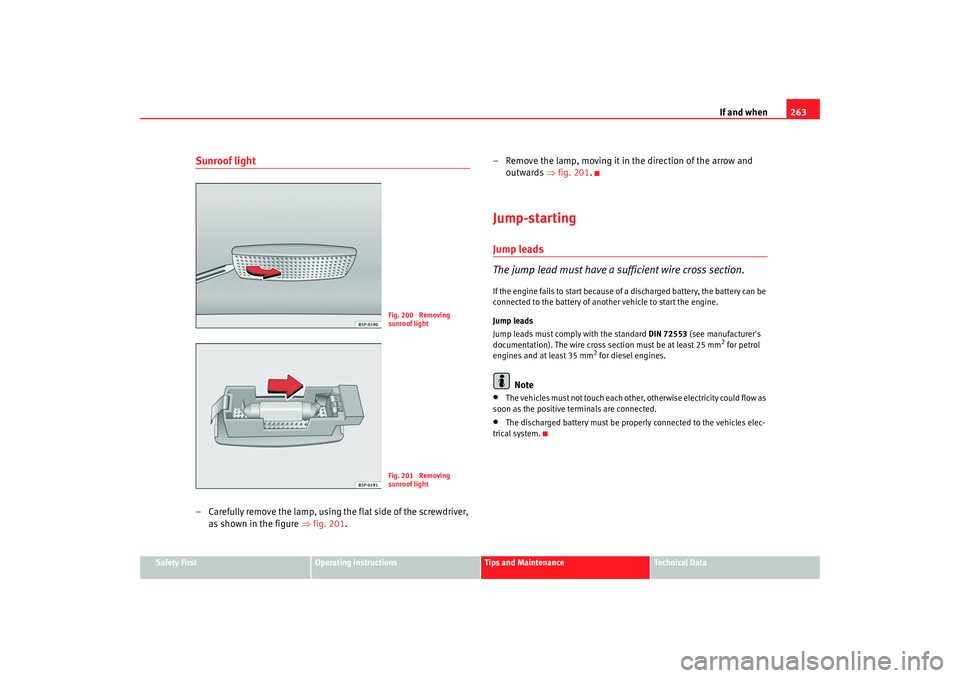

Fig. 200 Removing
sunroof lightFig. 201 Removing
sunroof light
altea ingles.book Seite 263 Dienstag, 11. September 2007 4:39 16
Page 266 of 309
If and when

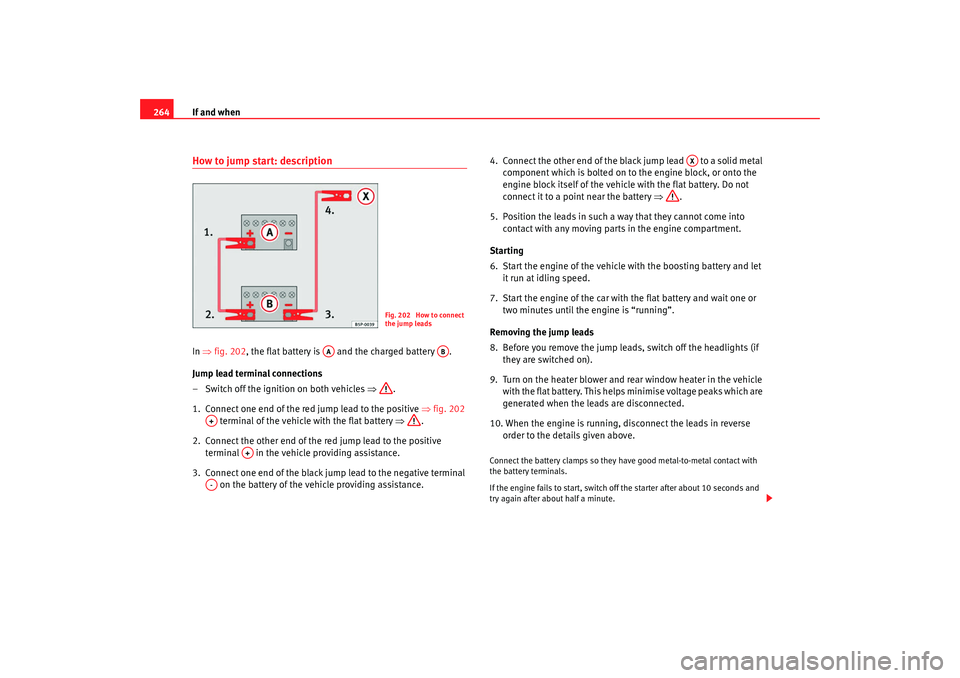

264How to jump start: descriptionIn ⇒ fig. 202, the flat battery is and the charged battery .
Jump lead terminal connections
– Switch off the ignition on both vehicles ⇒.
1. Connect one end of the red jump lead to the positive ⇒fig. 202
terminal of the vehicle with the flat battery ⇒.
2. Connect the other end of the red jump lead to the positive terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal on the battery of the vehicle providing assistance. 4. Connect the other end of the black jump lead to a solid metal
component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery ⇒.
5. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
10. When the engine is running, disconnect the leads in reverse order to the deta ils given above.
Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
Fig. 202 How to connect
the jump leads
AA
AB
A+
A+
A-
AX
altea ingles.book Seite 264 Dienstag, 11. September 2007 4:39 16
Page 267 of 309
If and when265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Please note the safety warnings referring to working in the engine
compartment ⇒page 212, “Working in the engine compartment”.
•
The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•
Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•
Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•
Observe the instructions provided by the manufacturer of the jump
leads.
•
Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•
Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•
The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•
Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•
Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
altea ingles.book Seite 265 Dienstag, 11. September 2007 4:39 16
Page 268 of 309
If and when
266To w i n g a n d t o w - s t a r t i n gTo w - s t a r t i n g
The use of jump leads is preferable to tow-starting.We recommend that you do not t o w - s t a r t yo u r v e h i c l e . J u m p - s ta r t i n g
is preferable ⇒page 263.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3
rd gear.
– Keep the clutch pressed down.
– Switch on the ignition.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
CommentsPlease observe the following points if you use a tow-rope:
Notes for the driver of the towing vehicle
– Drive slowly at first until the tow-rope is taut. Then accelerate gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, espec ially when using a tow-rope. Both
drivers should be familiar with the te chnique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
altea ingles.book Seite 266 Dienstag, 11. September 2007 4:39 16
Page 269 of 309
If and when267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Do not pull too hard with the towing vehi
cle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if th e engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not wo rk if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•
Put the selector lever into position “N”.
•
Do not drive faster than 50 km/h when towing a vehicle.
•
Do not tow further than 50 km.
•
If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•
Observe legal requirements when towing or tow-starting.
•
Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•
For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
•
If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.
•
If the vehicle has to be towed more than 50 km, the front wheels must be
raised during towing, and towing should be carried out by a qualified person.
•
The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.
•
The towing eye should always be kept in the vehicle. Please refer to the
notes on ⇒page 266, “Tow-starting”.
Trailer eyes

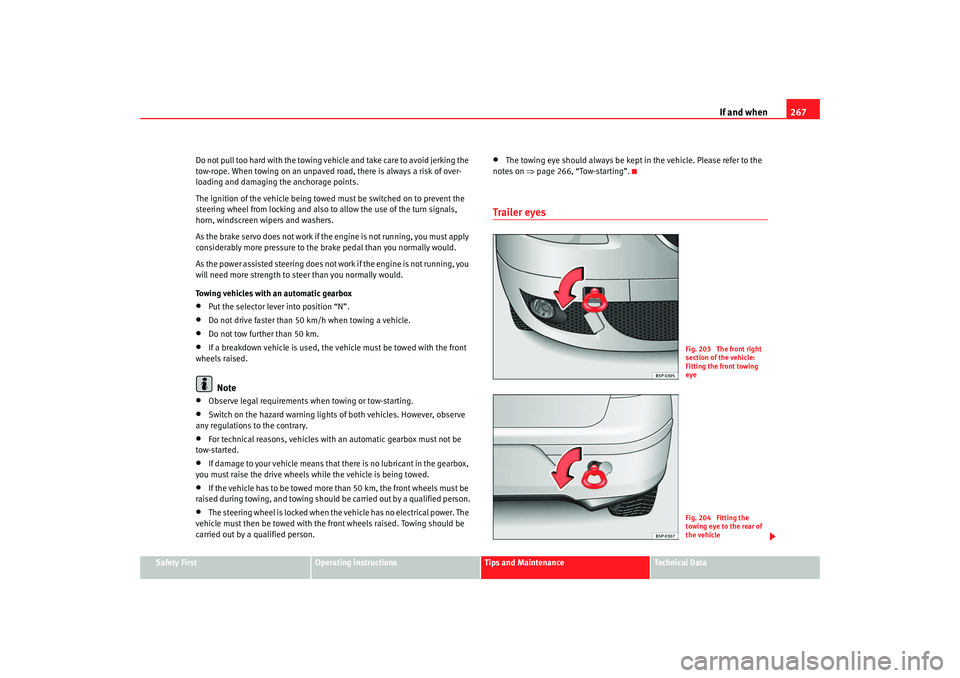

Fig. 203 The front right
section of the vehicle:
Fitting the front towing
eyeFig. 204 Fitting the
towing eye to the rear of
the vehicle
altea ingles.book Seite 267 Dienstag, 11. September 2007 4:39 16
Page 270 of 309
If and when
268
Fitting the towing eye
– Take the towing ring from the onboard tools.
– Pull the lower front cover down and leave the cover hanging on the vehicle.
– Remove the cover of the screw hole, insert a screwdriver into the lower slot and lever gently.
– Screw the towing eye as shown by arrow anti-clockwise to the
limit position in the front ⇒page 267, fig. 203 or rear
⇒ page 267, fig. 204 threaded hole.Front towing eye for trailer (FR version)
Fitting the front towing eye
– Take the towing ring from the onboard tools.
–Remove screw ⇒ fig. 205.
– Press the release lever in the direction of the arrow.
– Screw the eye to its limit to the left, in the direction of the arrow
⇒ fig. 206.
– Tighten the eye.
Note•
Observe legal requirements when towing or tow-starting.
•
Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•
For technical reasons, vehicles with an automatic gearbox must not be
tow-started.

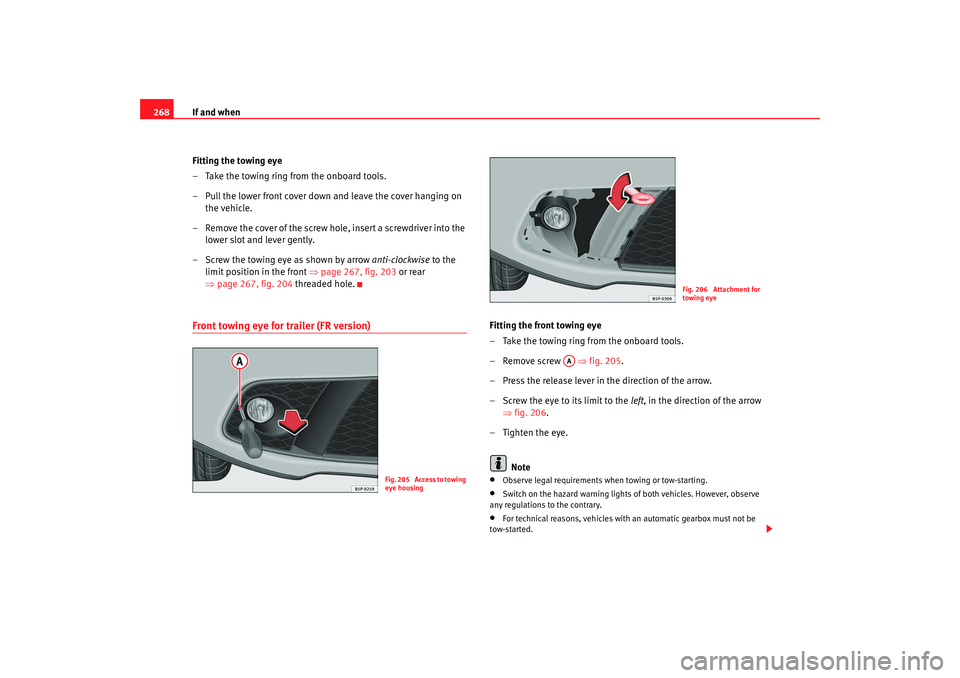

Fig. 205 Access to towing
eye housing
Fig. 206 Attachment for
towing eye
AA
altea ingles.book Seite 268 Dienstag, 11. September 2007 4:39 16
