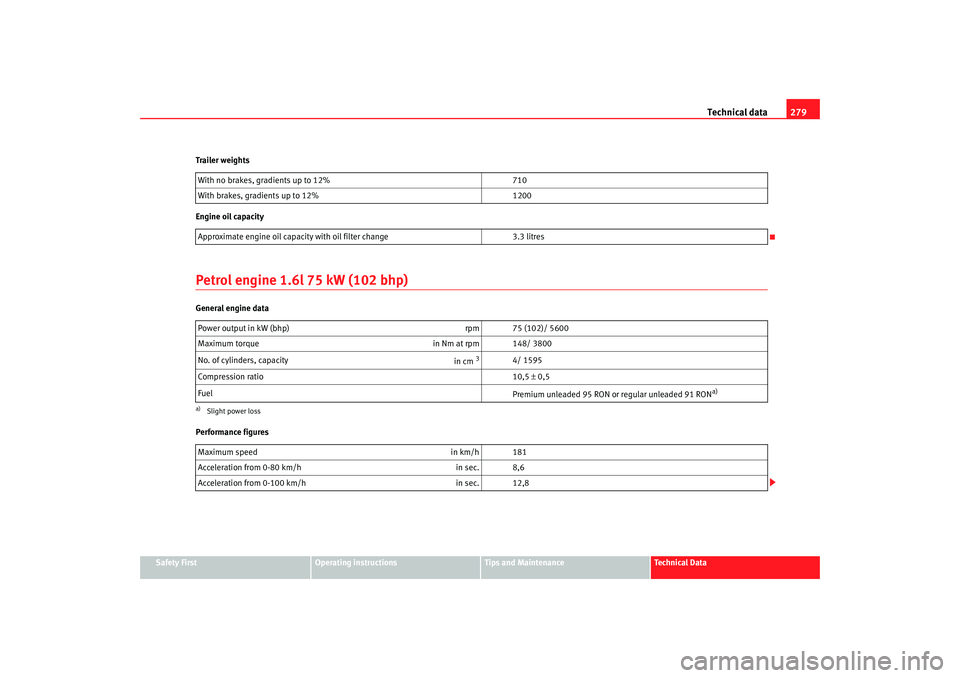

Page 281 of 309
Technical data279
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Petrol engine 1.6l 75 kW (102 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
710
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 3.3 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression ratio 10,5 ± 0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power lossMaximum speedin km/h 181
Acceleration from 0-80 km/h in sec. 8,6
Acceleration from 0-100 km/h in sec. 12,8
altea ingles.book Seite 279 Dienstag, 11. September 2007 4:39 16

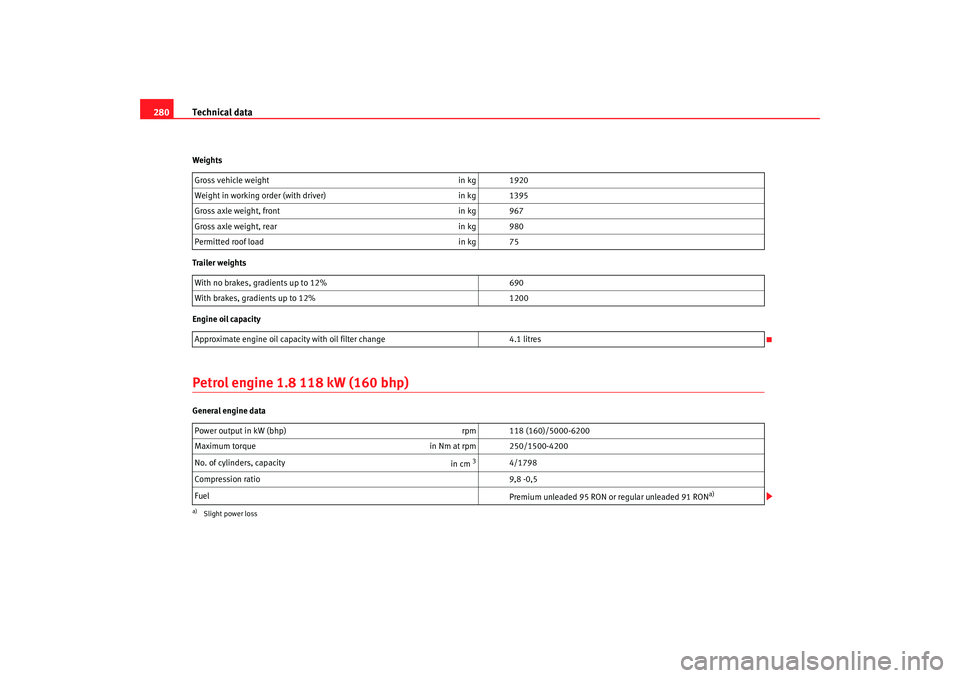

Page 282 of 309
Technical data
280Weights
Trailer weights
Engine oil capacityPetrol engine 1.8 118 kW (160 bhp)General engine data Gross vehicle weight
in kg 1920
Weight in working order (with driver) in kg 1395
Gross axle weight, front in kg 967
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (bhp) rpm 118 (160)/5000-6200
Maximum torque in Nm at rpm 250/1500-4200
No. of cylinders, capacity in cm
3
4/1798
Compression ratio 9,8 -0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power loss
altea ingles.book Seite 280 Dienstag, 11. September 2007 4:39 16

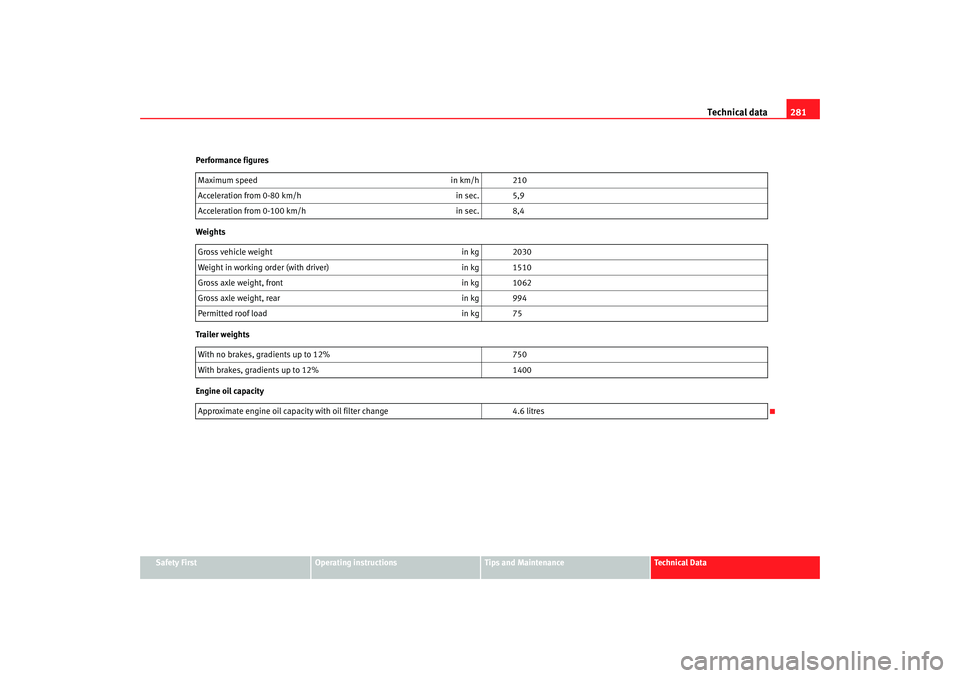

Page 283 of 309
Technical data281
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 210
Acceleration from 0-80 km/h in sec. 5,9
Acceleration from 0-100 km/h in sec. 8,4
Gross vehicle weight in kg 2030
Weight in working order (with driver) in kg 1510
Gross axle weight, front in kg 1062
Gross axle weight, rear in kg 994
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
altea ingles.book Seite 281 Dienstag, 11. September 2007 4:39 16
Page 284 of 309
Technical data

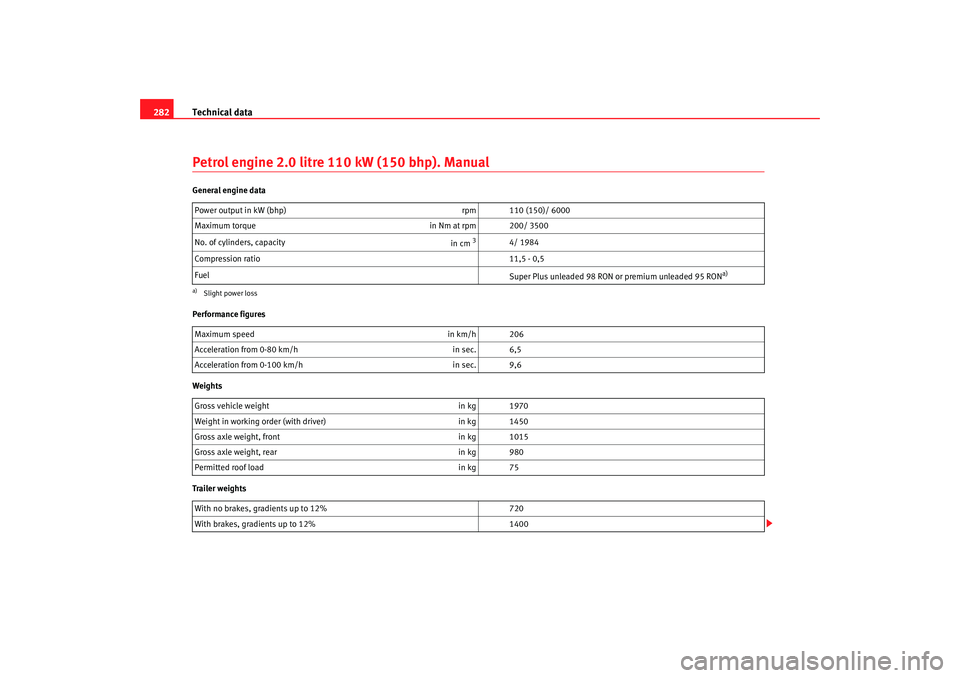

282Petrol engine 2.0 litre 110 kW (150 bhp). ManualGeneral engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression ratio 11,5 - 0,5
Fuel Super Plus unleaded 98 RON or premium unleaded 95 RON
a)
a)Slight power lossMaximum speedin km/h 206
Acceleration from 0-80 km/h in sec. 6,5
Acceleration from 0-100 km/h in sec. 9,6
Gross vehicle weight in kg 1970
Weight in working order (with driver) in kg 1450
Gross axle weight, front in kg 1015
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 720
With brakes, gradients up to 12% 1400
altea ingles.book Seite 282 Dienstag, 11. September 2007 4:39 16

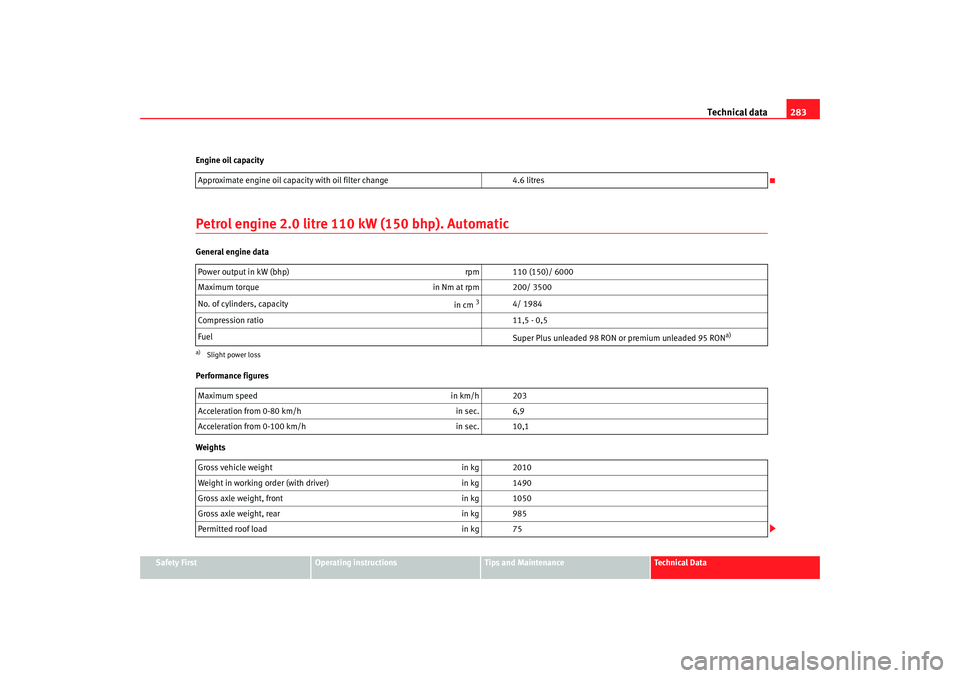

Page 285 of 309
Technical data283
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity
Petrol engine 2.0 litre 110 kW (150 bhp). AutomaticGeneral engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4.6 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression ratio 11,5 - 0,5
Fuel Super Plus unleaded 98 RON or premium unleaded 95 RON
a)
a)Slight power lossMaximum speedin km/h 203
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,1
Gross vehicle weight in kg 2010
Weight in working order (with driver) in kg 1490
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 985
Permitted roof load in kg 75
altea ingles.book Seite 283 Dienstag, 11. September 2007 4:39 16
Page 286 of 309
Technical data

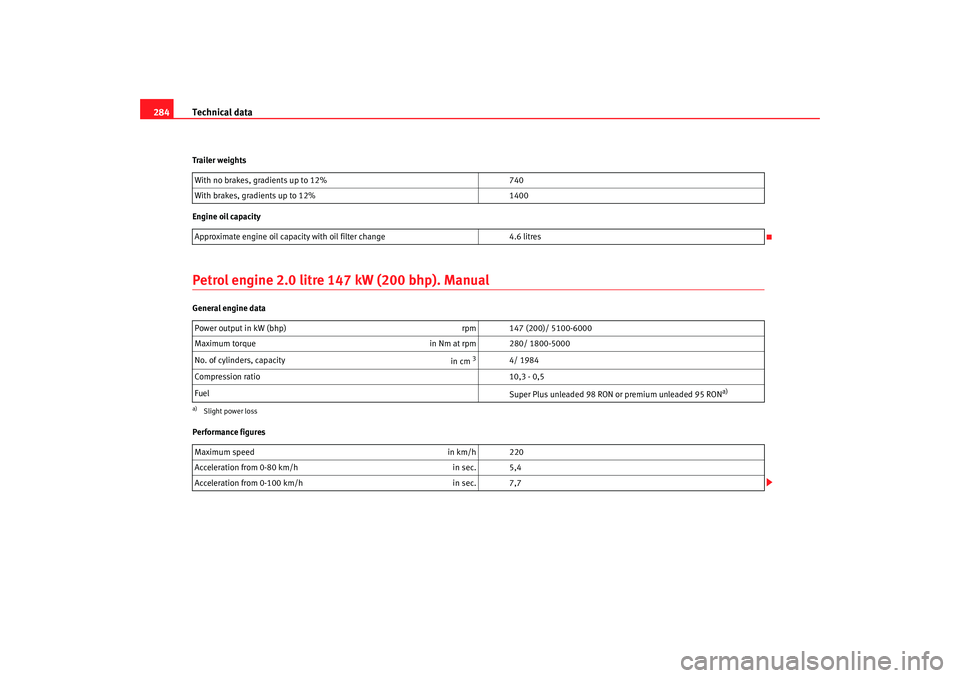

284Trailer weights
Engine oil capacityPetrol engine 2.0 litre 147 kW (200 bhp). ManualGeneral engine data
Performance figures With no brakes, gradients up to 12%
740
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (bhp) rpm 147 (200)/ 5100-6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression ratio 10,3 - 0,5
Fuel Super Plus unleaded 98 RON or premium unleaded 95 RON
a)
a)Slight power lossMaximum speedin km/h 220
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,7
altea ingles.book Seite 284 Dienstag, 11. September 2007 4:39 16

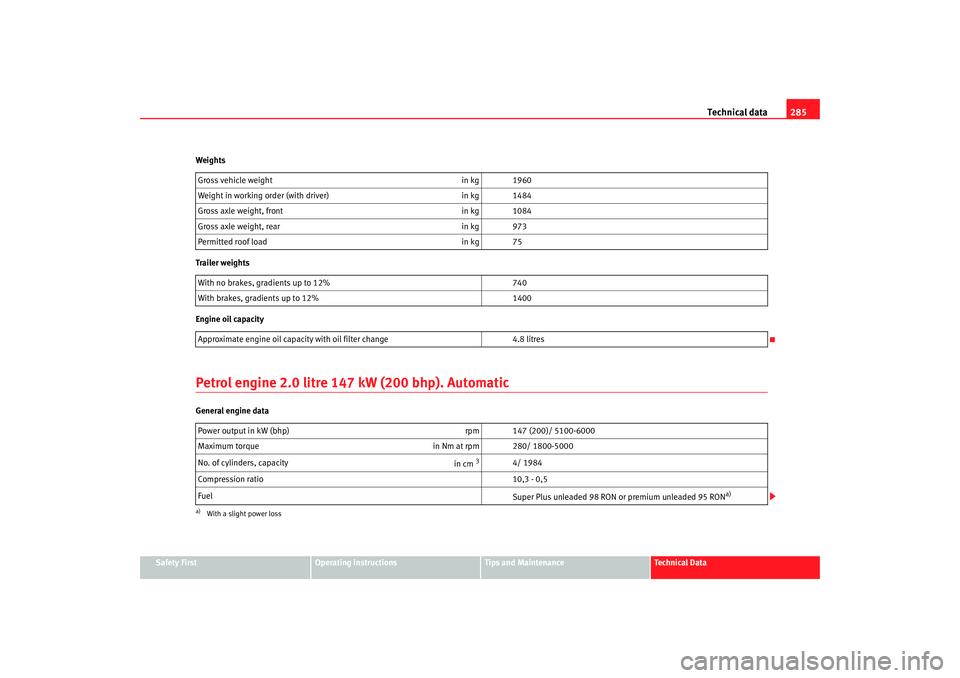

Page 287 of 309
Technical data285
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 2.0 litre 147 kW (200 bhp). AutomaticGeneral engine data
Gross vehicle weight
in kg 1960
Weight in working order (with driver) in kg 1484
Gross axle weight, front in kg 1084
Gross axle weight, rear in kg 973
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.8 litres
Power output in kW (bhp) rpm 147 (200)/ 5100-6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression ratio 10,3 - 0,5
Fuel Super Plus unleaded 98 RON or premium unleaded 95 RON
a)
a)With a slight power loss
altea ingles.book Seite 285 Dienstag, 11. September 2007 4:39 16

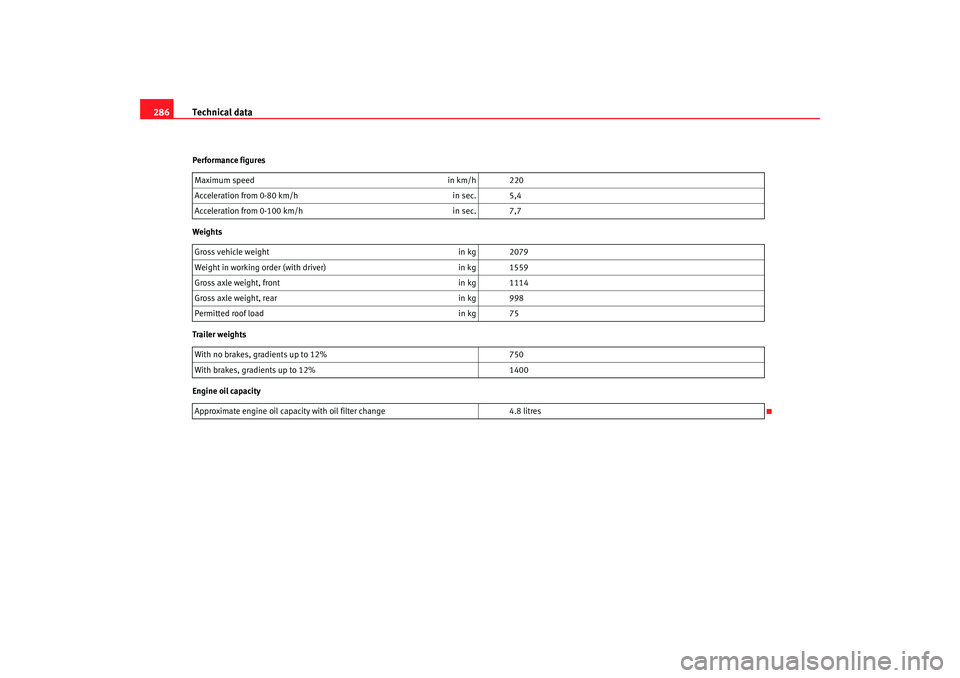

Page 288 of 309
Technical data
286Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 220
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,7
Gross vehicle weight in kg 2079
Weight in working order (with driver) in kg 1559
Gross axle weight, front in kg 1114
Gross axle weight, rear in kg 998
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.8 litres
altea ingles.book Seite 286 Dienstag, 11. September 2007 4:39 16

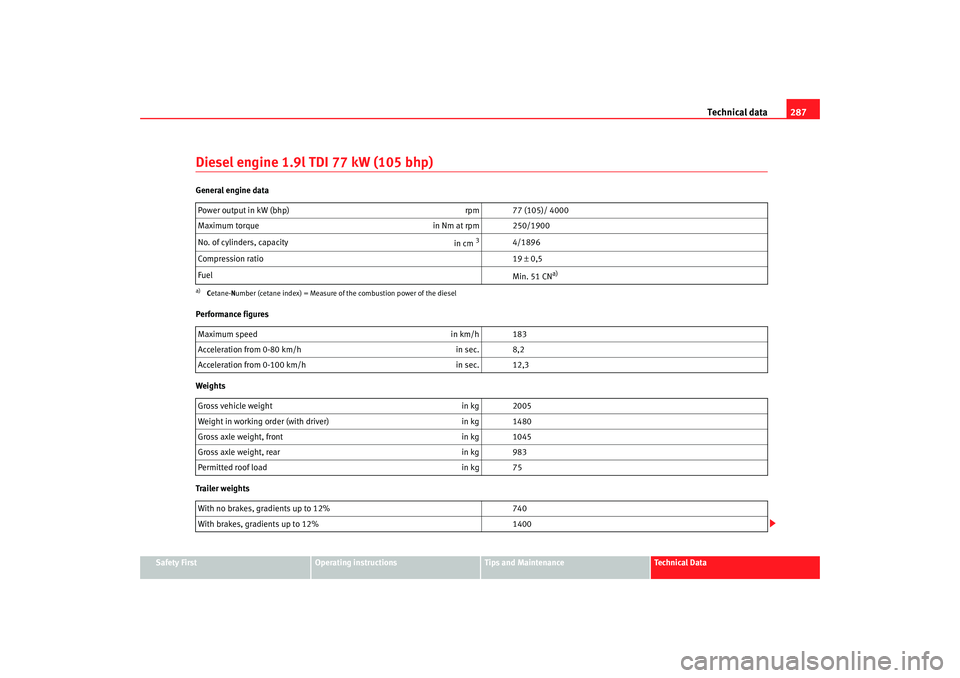

Page 289 of 309
Technical data287
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression ratio 19 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8,2
Acceleration from 0-100 km/h in sec. 12,3
Gross vehicle weight in kg 2005
Weight in working order (with driver) in kg 1480
Gross axle weight, front in kg 1045
Gross axle weight, rear in kg 983
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
altea ingles.book Seite 287 Dienstag, 11. September 2007 4:39 16

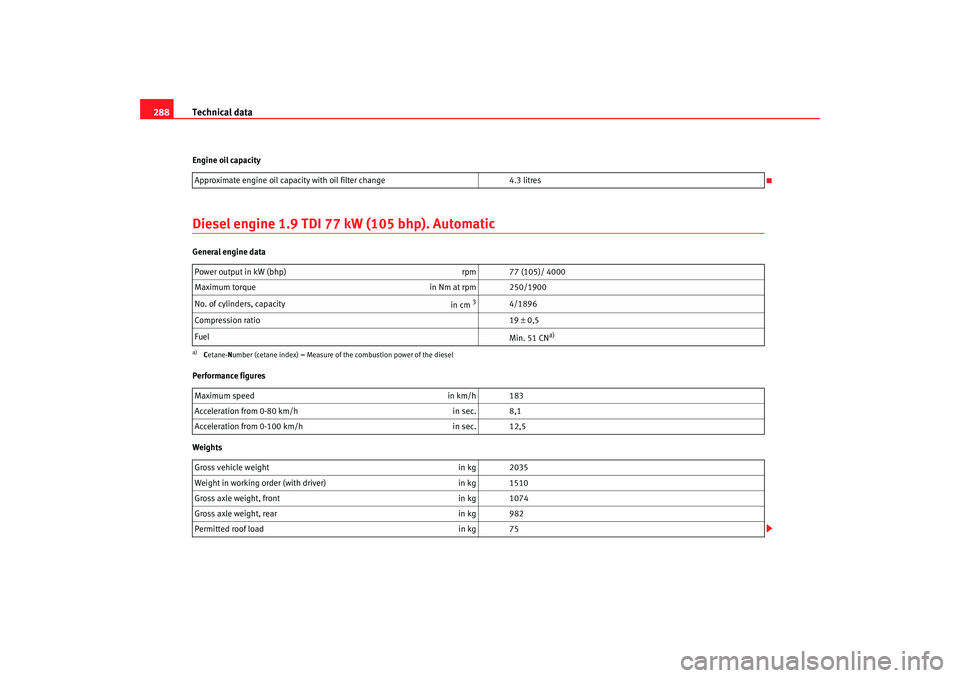

Page 290 of 309
Technical data
288Engine oil capacityDiesel engine 1.9 TDI 77 kW (105 bhp). AutomaticGeneral engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression ratio 19 ± 0,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8,1
Acceleration from 0-100 km/h in sec. 12,5
Gross vehicle weight in kg 2035
Weight in working order (with driver) in kg 1510
Gross axle weight, front in kg 1074
Gross axle weight, rear in kg 982
Permitted roof load in kg 75
altea ingles.book Seite 288 Dienstag, 11. September 2007 4:39 16
