technical data Seat Altea 2010 Owner's Manual

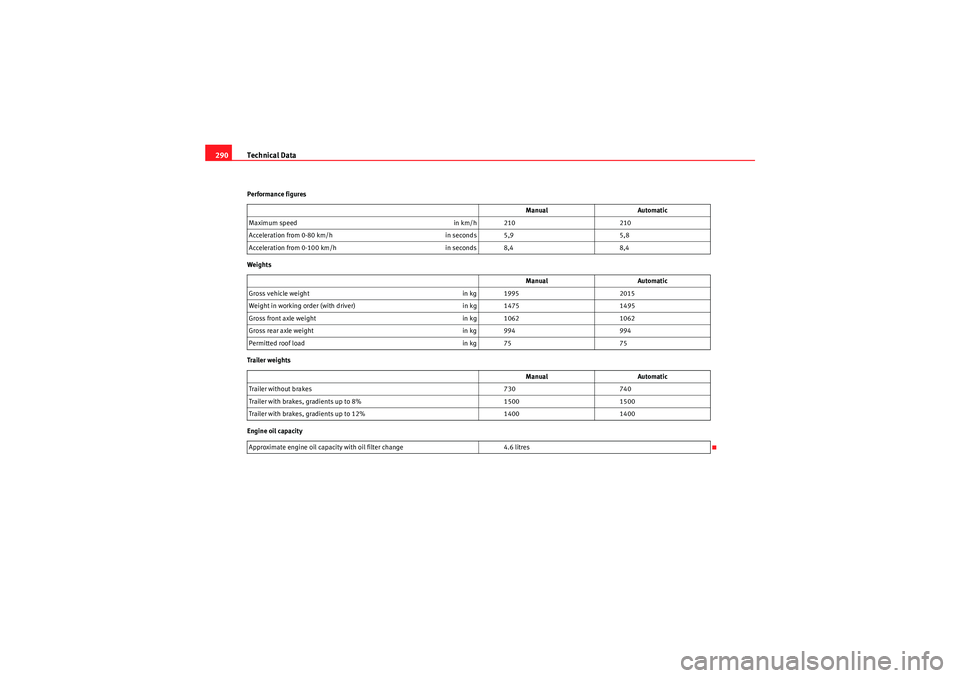

Technical Data
290Performance figures
Weights
Trailer weights
Engine oil capacity Manual
Automatic
Maximum speed in km/h 210210
Acceleration from 0-80 km/h in seconds 5,95,8
Acceleration from 0-100 km/h in seconds 8,48,4
Manual Automatic
Gross vehicle weight in kg 19952015
Weight in working order (with driver) in kg 14751495
Gross front axle weight in kg 10621062
Gross rear axle weight in kg 994994
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 730740
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.6 litres
altea_EN Seite 290 Mittwoch, 26. August 2009 6:00 18

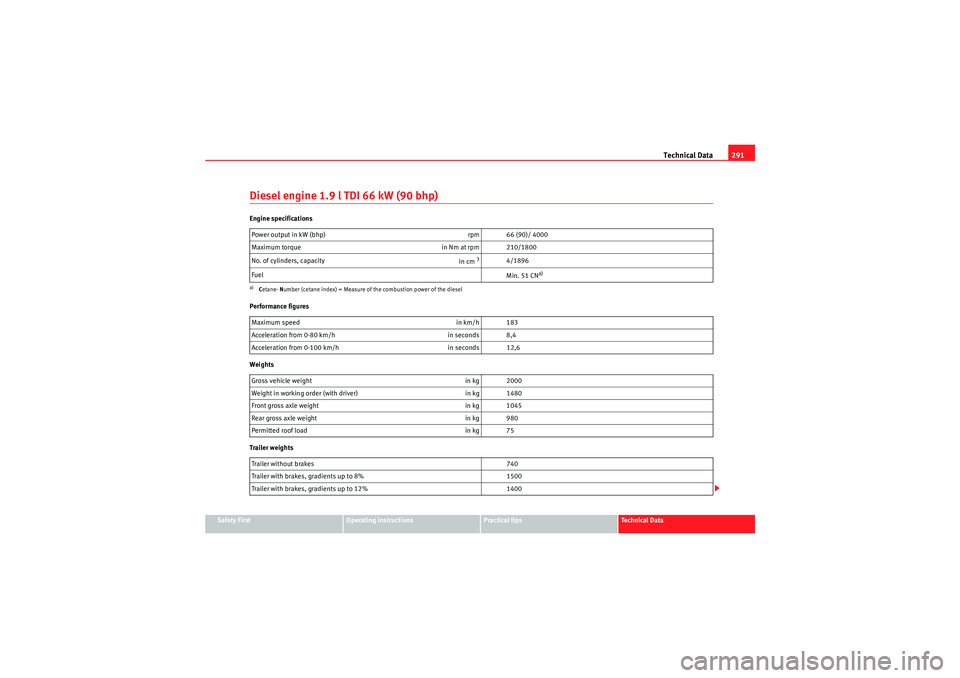

Technical Data291
Safety First
Operating instructions
Practical tips
Technical Data
Diesel engine 1.9 l TDI 66 kW (90 bhp)Engine specifications
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/1800
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in seconds 8,4
Acceleration from 0-100 km/h in seconds 12,6
Gross vehicle weight in kg 2000
Weight in working order (with driver) in kg 1480
Front gross axle weight in kg 1045
Rear gross axle weight in kg 980
Permitted roof load in kg 75
Trailer without brakes 740
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
altea_EN Seite 291 Mittwoch, 26. August 2009 6:00 18

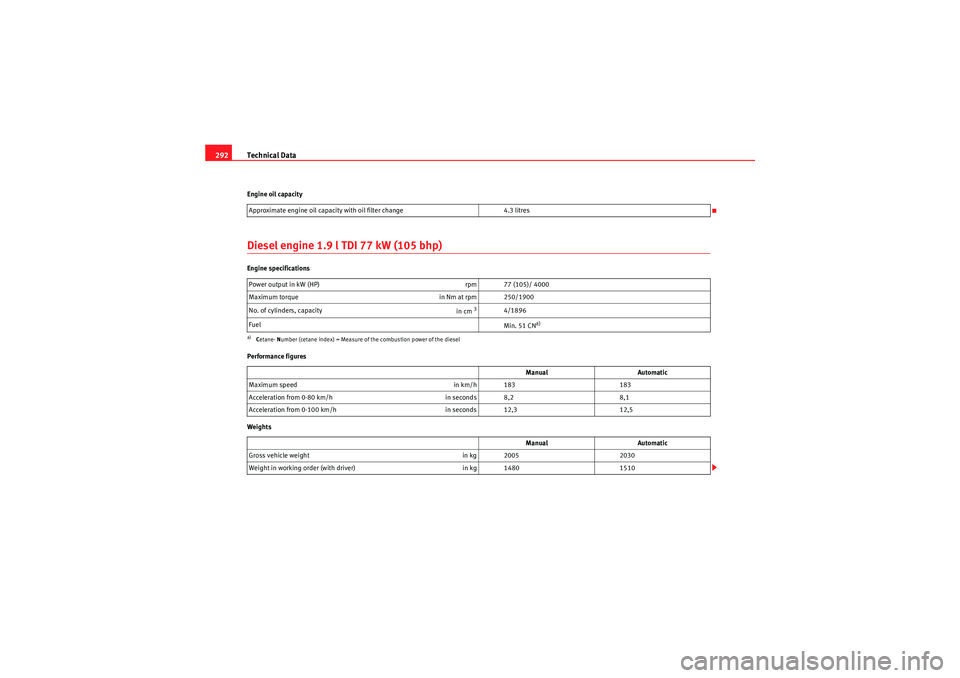

Technical Data
292Engine oil capacityDiesel engine 1.9 l TDI 77 kW (105 bhp)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (HP) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
Manual Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in seconds 8,28,1
Acceleration from 0-100 km/h in seconds 12,312,5
Manual Automatic
Gross vehicle weight in kg 20052030
Weight in working order (with driver) in kg 14801510
altea_EN Seite 292 Mittwoch, 26. August 2009 6:00 18

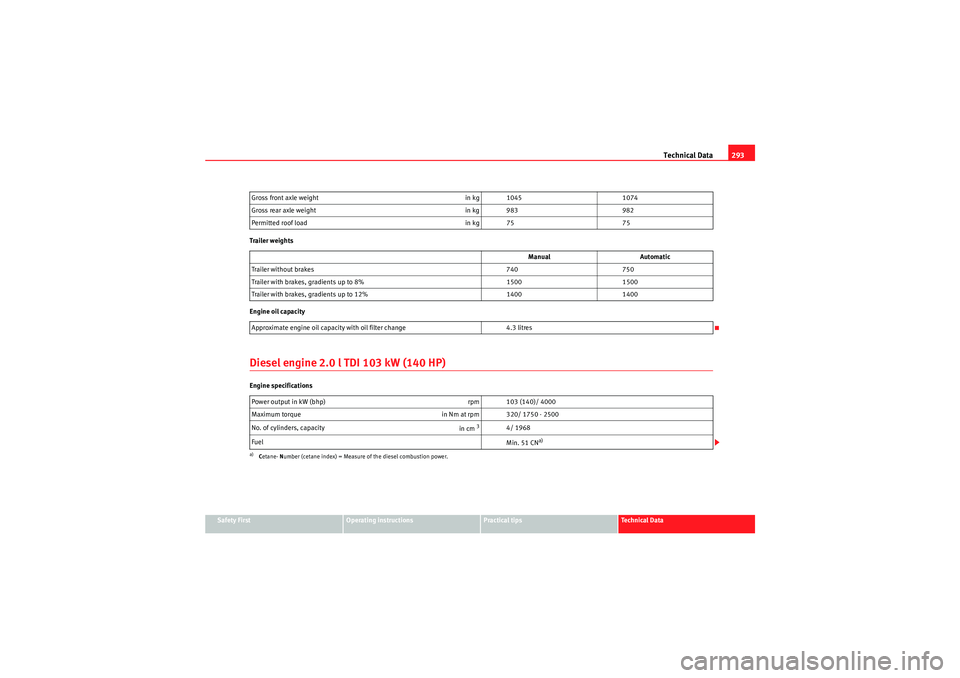

Technical Data293
Safety First
Operating instructions
Practical tips
Technical Data
Trailer weights
Engine oil capacity
Diesel engine 2.0 l TDI 103 kW (140 HP)Engine specifications
Gross front axle weight
in kg 10451074
Gross rear axle weight in kg 983982
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 740750
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
altea_EN Seite 293 Mittwoch, 26. August 2009 6:00 18

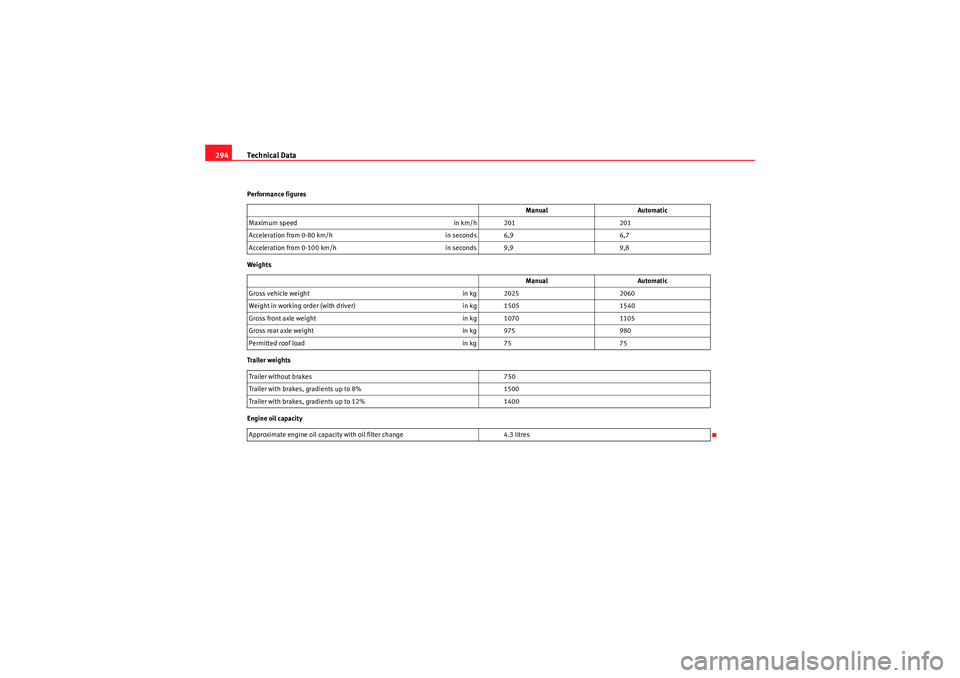

Technical Data
294Performance figures
Weights
Trailer weights
Engine oil capacity Manual
Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in seconds 6,96,7
Acceleration from 0-100 km/h in seconds 9,99,8
Manual Automatic
Gross vehicle weight in kg 20252060
Weight in working order (with driver) in kg 15051540
Gross front axle weight in kg 10701105
Gross rear axle weight in kg 975980
Permitted roof load in kg 7575
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
altea_EN Seite 294 Mittwoch, 26. August 2009 6:00 18

Technical Data295
Safety First
Operating instructions
Practical tips
Technical Data

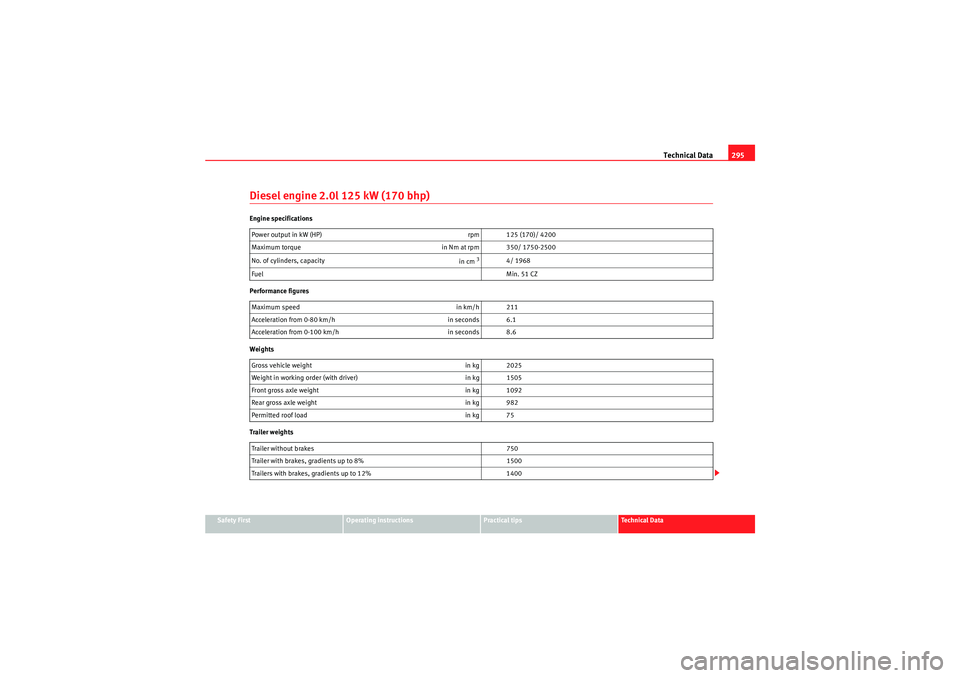

Diesel engine 2.0l 125 kW (170 bhp)Engine specifications
Performance figures
Weights
Trailer weightsPower output in kW (HP)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in seconds 6.1
Acceleration from 0-100 km/h in seconds 8.6
Gross vehicle weight in kg 2025
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1092
Rear gross axle weight in kg 982
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailers with brakes, gradients up to 12% 1400
altea_EN Seite 295 Mittwoch, 26. August 2009 6:00 18

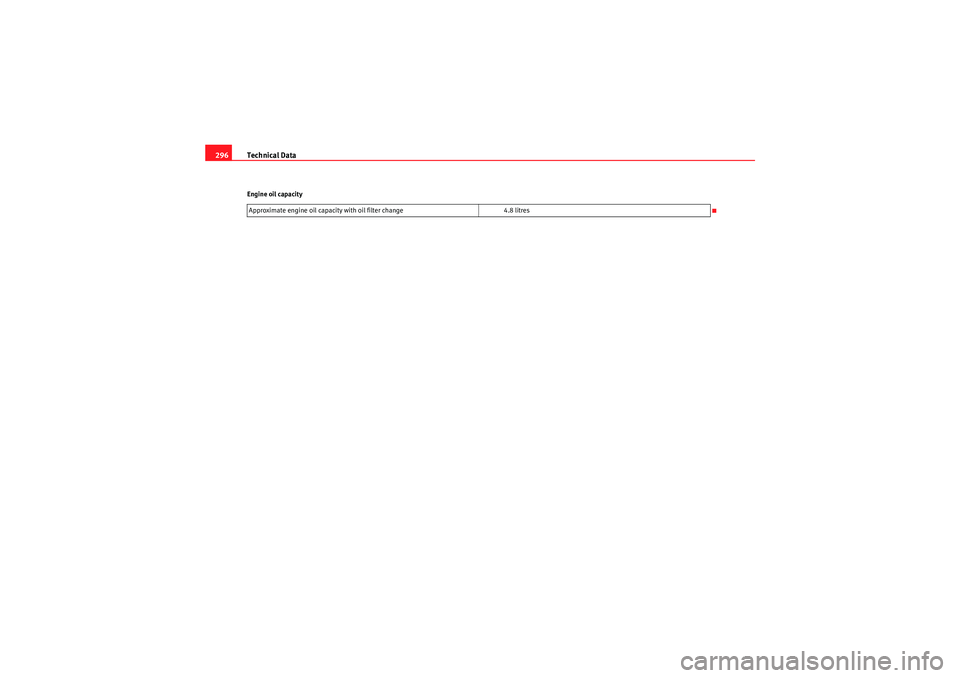

Technical Data
296Engine oil capacity
Approximate engine oil capacity with oil filter change 4.8 litres
altea_EN Seite 296 Mittwoch, 26. August 2009 6:00 18

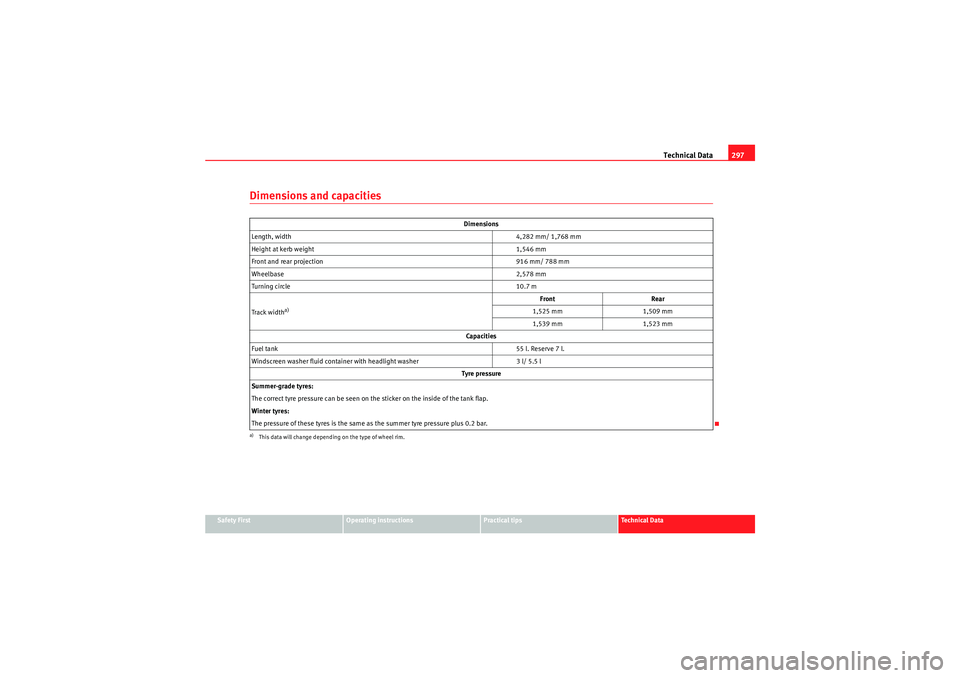

Technical Data297
Safety First
Operating instructions
Practical tips
Technical Data
Dimensions and capacities
Dimensions
Length, width 4,282 mm/ 1,768 mm
Height at kerb weight 1,546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track wi dth
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,539 mm 1,523 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
altea_EN Seite 297 Mittwoch, 26. August 2009 6:00 18

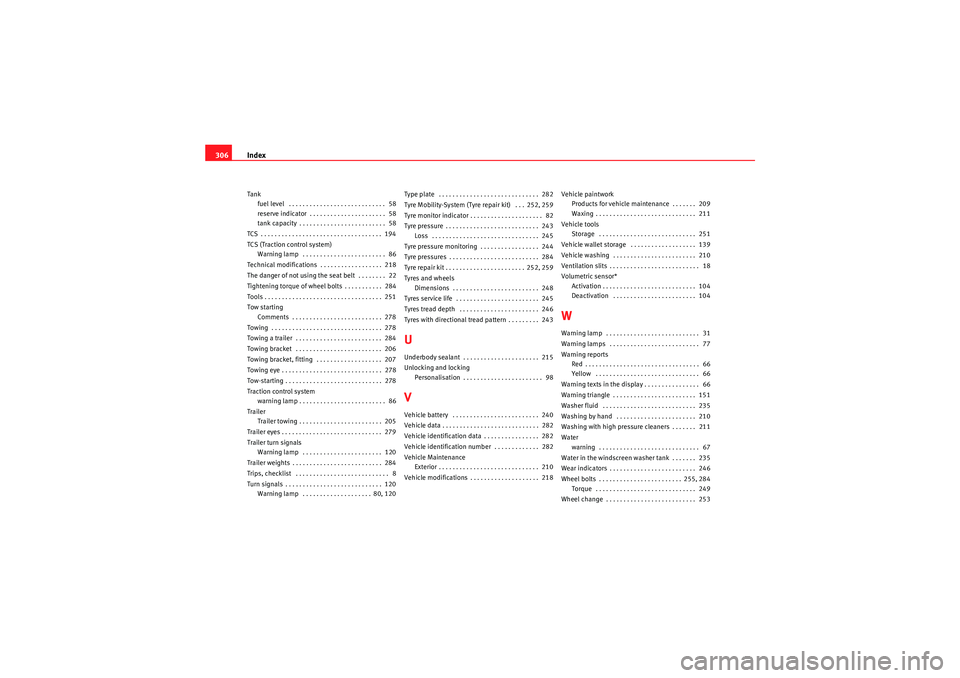

Index
306Tank
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 58
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 58
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 86
Technical modifications . . . . . . . . . . . . . . . . . . 218
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bolts . . . . . . . . . . . 284
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Tow starting Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 284
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 206
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 207
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 86
Trailer Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . 205
Trailer eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Trailer turn signals Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 120
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Warning lamp . . . . . . . . . . . . . . . . . . . . 80, 120 Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Tyre Mobility-System (Tyre repair kit) . . . 252, 259
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 82
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 244
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 252, 259
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 248
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 245
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 246
Tyres with directional tread pattern . . . . . . . . . 243
UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 215
Unlocking and locking Personalisation . . . . . . . . . . . . . . . . . . . . . . . 98VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 240
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Vehicle identification data . . . . . . . . . . . . . . . . 282
Vehicle identification number . . . . . . . . . . . . . 282
Vehicle MaintenanceExterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 218 Vehicle paintwork
Products for vehicle maintenance . . . . . . . 209
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 139
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 210
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . 104
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Warning reportsRed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Warning texts in the display . . . . . . . . . . . . . . . . 66
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 151
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 210
Washing with high pressure cleaners . . . . . . . 211
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Water in the windscreen wash er tank . . . . . . . 235
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 246
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 255, 284 Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 253
