Fuses and bulbs
Fog light bulb Fig. 114
Fog light: extracting the grille Fig. 115
Fog light: remove the bulb holder Follow the steps indicated:
Lev
er the gr
oove with a screwdriver
››› Fig. 114 (arrow). Next, unclip the clips
located on the edge of the grille, pulling
on it.
Remove the 3 screws ››› Fig. 115 1 and
r emo
v

e the fog light.
1.
2. Remove the bulb connector
2 .
T urn the b
u

lb holder 3 to the left and
p u
l

l.
Remove the bulb by pressing on it and
turning it anticlockwise at the same
time.
Replace the bulb, making sure that the
fixing guides are in the right position
and then press it and turn it clockwise.
To install the headlight go back through
the above steps in reverse.
Check that the bulb works properly.
Change the rear bulbs Rear b
ulbs (in the side panel) Fig. 116
Luggage compartment: access to the
bo lt
sec

uring the tail light unit. 3.
4.
5.
6.
7
8.
Fig. 117
Retaining tabs on reverse side of tail
light. Follow the steps indicated:
Chec k
whic

h of the bulbs is defective.
Open the rear lid.
Remove the lid, levering the flat side of
a screwdriver into the recess
››› Fig. 116 1 .
R emo
v

e the bulb connector 2 .
Un s
c

rew the light securing bolt 3 by
h and or u
s

ing a screwdriver.
Remove the light from the body, gently
pulling it toward you, and place on a
clean, smooth surface.
Remove the bulb holder unlocking the
retaining tabs ››› Fig. 117 A .
Ch an
g

e the damaged bulb.
To refit follow the steps in reverse order,
taking special care when fitting the bulb »
1.
2.
3.
4.
5.
6.
7.
8.
9.
109
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
holder. The securing tabs must click into
p l
ac
e. CAUTION
Take care when removing the rear light unit to
mak e s

ure there is no damage to the paint-
work or any of its components. Note
● Mak e s

ure you have a soft cloth ready to
place under the glass on the rear light unit, to
avoid any scratches.
● For LED lights, you can only change the turn
signa
l and reverse light bulbs. Rear lights (in the rear lid)
Fig. 118

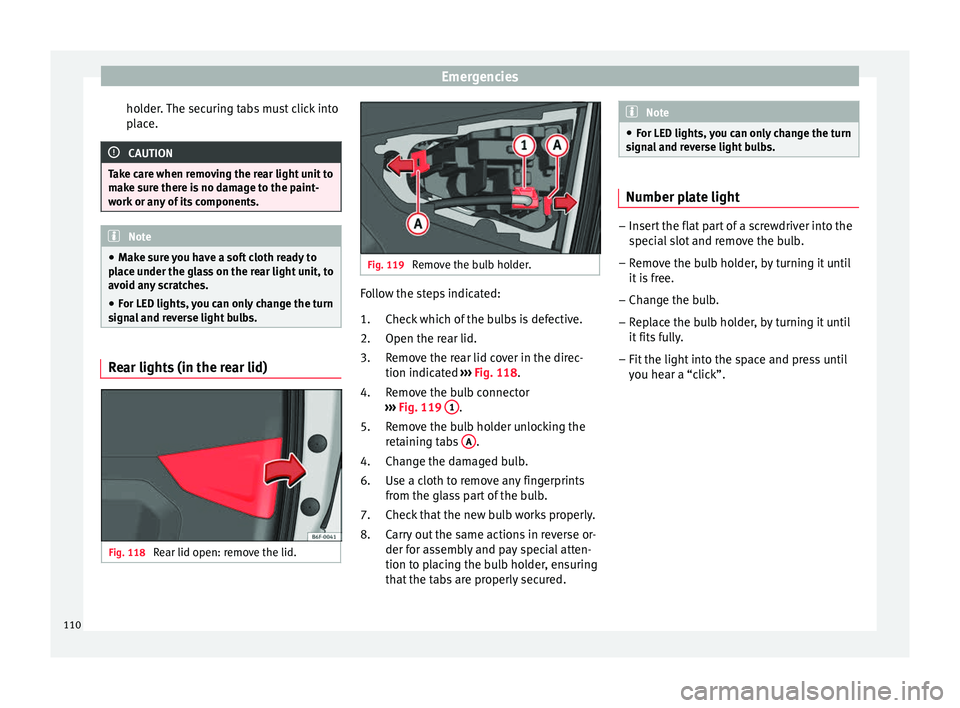

Rear lid open: remove the lid. Fig. 119
Remove the bulb holder. Follow the steps indicated:
Chec k
whic
h of the bulbs is defective.
Open the rear lid.
Remove the rear lid cover in the direc-
tion indicated ››› Fig. 118.
Remove the bulb connector
››› Fig. 119 1 .
R emo
v

e the bulb holder unlocking the
retaining tabs A .
Ch an
g

e the damaged bulb.
Use a cloth to remove any fingerprints
from the glass part of the bulb.
Check that the new bulb works properly.
Carry out the same actions in reverse or-
der for assembly and pay special atten-
tion to placing the bulb holder, ensuring
that the tabs are properly secured.
1.
2.
3.
4.
5.
4.
6.
7.
8. Note
● For LED light s,

you can only change the turn
signal and reverse light bulbs. Number plate light
–
Insert the flat part of a screwdriver into the
spec i

al slot and remove the bulb.
– Remove the bulb holder, by turning it until
it is

free.
– Change the bulb.
– Replace the bulb holder, by turning it until
it fits f

ully.
– Fit the light into the space and press until
you hear a “c

lick”.
110

Fuses and bulbs
Side turn signals Fig. 120
Turn signal integrated in the rear
v iew mirr
or The side turn signals are LEDS and are inte-
gr
at
ed in the r
ear view mirrors.
In case of failure, go to an authorised work-
shop to have it replaced.
Additional brake light Given the difficulty involved in the replace-
ment
of
thi

s light it should be done by Tech-
nical Services. Changing the interior bulbs
Interior light and fr
ont reading lights Fig. 121
Front reading light. To remove the glass
– Insert a fine screwdriver between the cas-
ing and the gl
a

ss ››› Fig. 121.
– Carefully remove the glass, levering it to
avoid pos

sible damage.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press
to one side.
As

sembly
– Proceed in the reverse order, pressing gen-
tly on the outer edg

e of the side light. –
First
fit the glass with the fastening tabs
over the frame of the switch. Next press the
front part until the two long tabs click on
the support. Note
In LED courtesy lights it is not possible to re-
pl ac

e the light sources. If the light does not
work, take the vehicle to an official Service. 111
Technical data
Advice
Operation
Emergencies
Safety

Emergencies

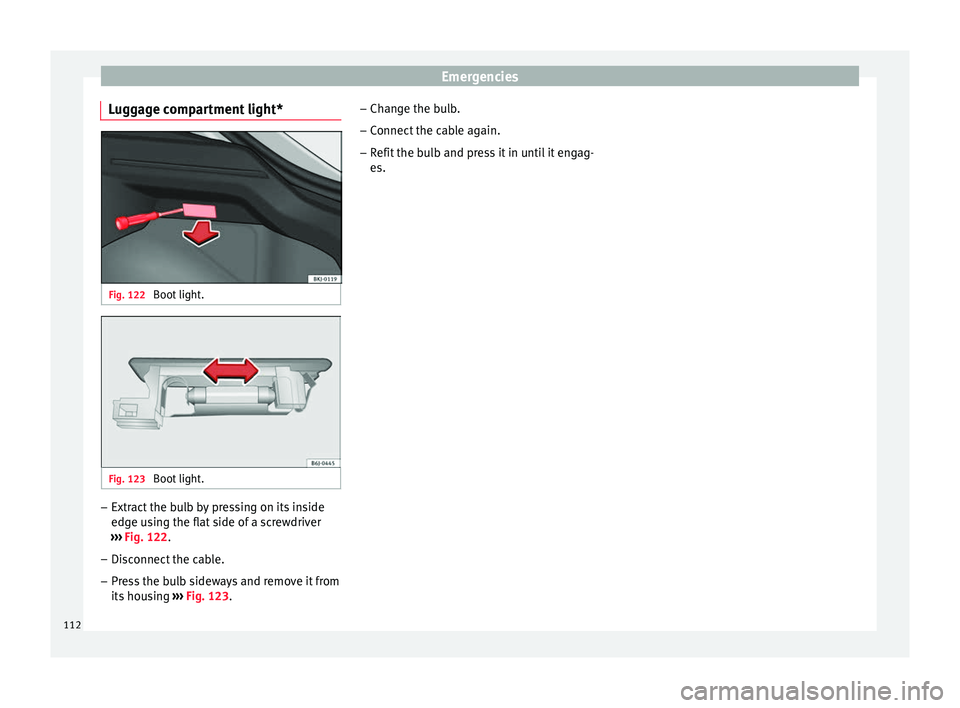

Luggage compartment light* Fig. 122
Boot light. Fig. 123
Boot light. –
Extract the bulb by pressing on its inside
edg e u
s
ing the flat side of a screwdriver
››› Fig. 122.
– Disconnect the cable.
– Press the bulb sideways and remove it from
its hous

ing ››› Fig. 123. –
Chang
e the bulb.
– Connect the cable again.
– Refit the bulb and press it in until it engag-
es.
112

Operation

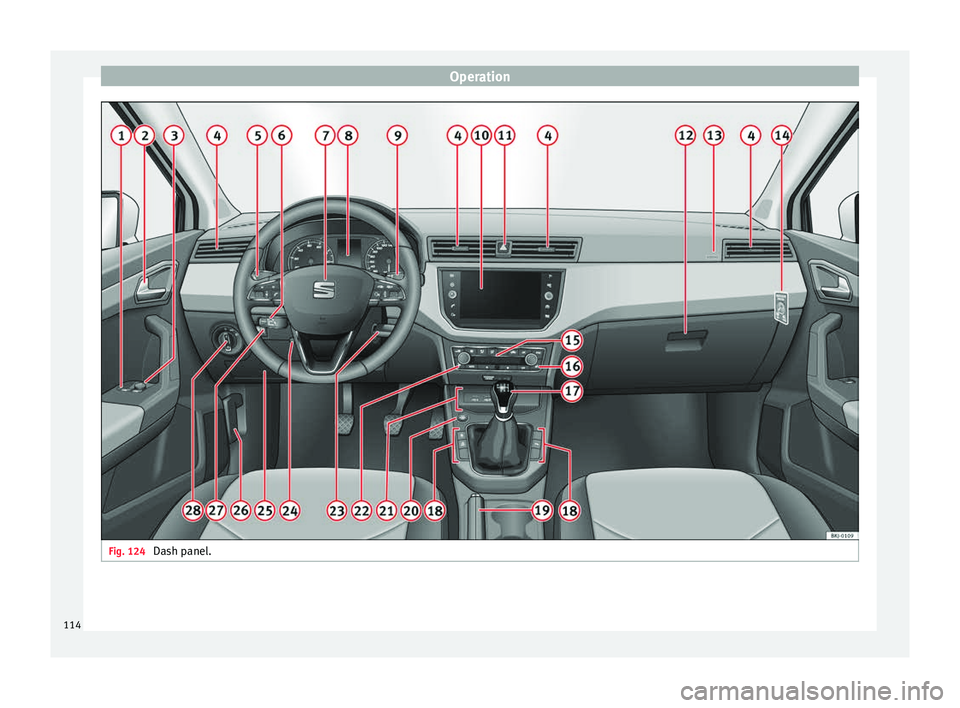

Fig. 124
Dash panel.114

Controls and displays
Operation
C ontr
o
ls and displays
General instrument panel Electric window controls
. . . . . . . . . .141
Door release lever
Contr o

l for adjusting electric exteri-
or mirrors . . . . . . . . . . . . . . . . . . . . . . . . 151
Air vents
Lev er f

or:
– Turn signals/main beam head-
lights . . . . . . . . . . . . . . . . . . . . . . . . . . 145
– Crui se c

ontrol* . . . . . . . . . . . . . . . . . 205
Depending on equipment fitted:
– Lev er f

or cruise control . . . . . . . . . .205
Steering wheel with horn and – Driver airbag . . . . . . . . . . . . . . . . . . . 86
– On-boar d c

omputer controls . . . .37
– Contro
ls for radio, telephone,
navigation and speech dialogue
system ›››
Booklet Radio
– Paddle levers for tiptronic gear-
shift (automatic gearbox) . . . . . . .190
Instrument panel and warning
lamp s:
– In

struments . . . . . . . . . . . . . . . . . . . . 117
1 2
3
4
5
6
7
8 –
Warnin
g and indic

ation lamps . . .47
Lever for:
– Winds

creen wipers and washer . .149
– Rear w
indow washer system* . . .149
– Multi-f
unction display control* . .37
Infotainment system:
Hazard w
arning lights . . . . . . . . . . . . 147
Depending on the equipment,
glove c
ompartment with: . . . . . . . . .156
– CD pla
yer* and/or SD card*
››› Booklet Radio
Passenger airbag* . . . . . . . . . . . . . . . . 21
Front passenger airbag disconnec-
tion switc
h* . . . . . . . . . . . . . . . . . . . . . . 90
Switches for: – Heating and

ventilation . . . . . . . . . 167
– Air conditionin g* . . . . . . . . . . . . . . . 169
– C

limatr
onic* . . . . . . . . . . . . . . . . . . . . 171
Front passenger seat heating con-
tro l* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Ge

ar lever
– Manual g

earbox . . . . . . . . . . . . . . . . 187
– Autom atic

gearbox . . . . . . . . . . . . . 188
Depending on the equipment, but-
ton s

for:
– Central locking* . . . . . . . . . . . . . . . . 134
– Star t

-Stop operation button . . . . .202
– SEAT Driv
e Profile . . . . . . . . . . . . . . . 229
9
10
11
12
13
14
15
16
17
18 –
Park
a

ssist system . . . . . . . . . . . . . . 232
– Tyr
e pressure monitoring* . . . . . . .287
Handbrake lever . . . . . . . . . . . . . . . . . . 179
Starter button (Keyless Access lock-
ing and ignition sys
tem) . . . . . . . . . . 176
Depending on the equipment:
– USB/AUX-IN inp

ut . . . . . . . . . . . . . . 129
– Connectivity
Box/Wireless Charg-
er* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Driver seat heating control* . . . . . . .154
Ignition lock (vehicles without Key-
les
s Access) . . . . . . . . . . . . . . . . . . . . . . 173
Steering column control lever* . . . .20
Fuse housing . . . . . . . . . . . . . . . . . . . . . 104
Bonnet release lever . . . . . . . . . . . . . .274
Headlight range control* . . . . . . . . . .148
Light switch . . . . . . . . . . . . . . . . . . . . . . 144 Note
● Some of the equipment li

sted in this sec-
tion is only fitted on certain models or are op-
tional extras.
● A separate Instructions Manual is enclosed
if the v
ehicle is equipped with a factory-fitted
radio, CD player, AUX IN connection or navi-
gation system.
● The arrangement of switches and controls
on right-hand driv
e models* may be slightly
different from the layout shown in » 19
20
21
22
23
24
25
26
27
28
115
Technical data
Advice
Operation
Emergencies
Safety

Operation
›››
page 115. However, the symbols used to
identif y
the controls are the same.116

Instruments and warning/control lamps
Instruments and warning/control lamps
In s
trument
s
General instrument panel Fig. 125
Instrument panel, on dash panel. The layout of the instruments depends upon
the model
and the en
gine.
R

ev counter (with the engine running, in
hundreds of revolutions per minute)
››› page 118.
The beginning of the red zone of the rev
counter indicates the maximum speed in
any gear after running-in and with the en-
gine hot. However, it is advisable to
1 change up a gear or move the selector
l
ev
er t
o D (or lift your foot off the acceler-
ator) before the needle reaches the red
zone ››› .
En gine c
oo

lant temperature display
››› page 120.
Displays on the screen ››› page 118.
Adjuster button and display
››› page 120.
2 3
4 Speedometer.
F
uel
g

auge ››› page 121. WARNING
Any distraction may lead to an accident, with
the risk of

injury.
● Do not operate the instrument panel con-
trol
s when driving. » 5
6
117
Technical data
Advice
Operation
Emergencies
Safety

Operation
CAUTION
● When the engine i s
cold, avoid high revs
and heavy acceleration and do not make the
engine work hard. Rev counter

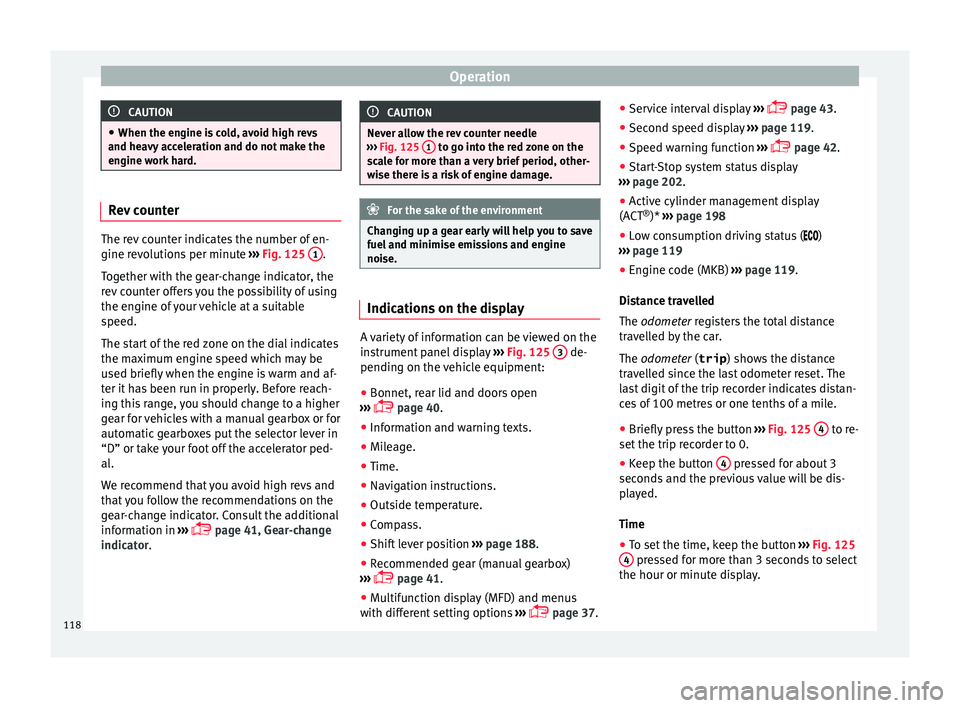

The rev counter indicates the number of en-
gine rev
o

lutions per minute ››› Fig. 125 1 .
Tog ether w
ith the gear-change indicator, the
rev counter offers you the possibility of using
the engine of your vehicle at a suitable
speed.
The start of the red zone on the dial indicates
the maximum engine speed which may be
used briefly when the engine is warm and af-
ter it has been run in properly. Before reach-
ing this range, you should change to a higher
gear for vehicles with a manual gearbox or for
automatic gearboxes put the selector lever in
“D” or take your foot off the accelerator ped-
al.
We recommend that you avoid high revs and
that you follow the recommendations on the
gear-change indicator. Consult the additional
information in ›››
 page 41, Gear-change
indicator. CAUTION
Never allow the rev counter needle
›› ›

Fig. 125 1 to go into the red zone on the
sc a
le for more than a very brief period, other-
wise there is a risk of engine damage. For the sake of the environment
Changing up a gear early will help you to save
fuel and minimi

se emissions and engine
noise. Indications on the display
A variety of information can be viewed on the
in
s
trument

panel display ›››
Fig. 125 3 de-
pendin g on the
v
ehicle equipment:
● Bonnet, rear lid and doors open
›››
 page 40.
● Information and warning texts.
● Mileage.
● Time.
● Navigation instructions.
● Outside temperature.
● Compass.
● Shift lever position ›››

page 188.
● Recommended gear (manual gearbox)
›››
 page 41.
● Multifunction display (MFD) and menus
with differ
ent setting options ›››
 page 37. ●
Servic
e interval display ›››
 page 43.
● Second speed display ›››
page 119.
● Speed warning function ›››

 page 42.
● Start-Stop system status display
›››
page 202.
● Active cylinder management display
(ACT ®
)* ››

› page 198
● Low consumption driving status ( )
›

›› page 119
● Engine code (MKB) ›››
page 119.
Distance travelled
The odometer registers the total distance
travelled by the car.
The odometer (trip ) shows the distance
travelled since the last odometer reset. The
last digit of the trip recorder indicates distan-
ces of 100 metres or one tenths of a mile.
● Briefly press the button ›››
Fig. 125 4 to re-
set the trip r
ec
order to 0.
● Keep the button 4 pressed for about 3
sec ond
s

and the previous value will be dis-
played.
Time
● To set the time, keep the button ›››
Fig. 125
4 pressed for more than 3 seconds to select
the hour or minut e dis
play.
118
