technical specifications Seat Exeo ST 2011 Owner's manual

296Technical specifications
Technical specifications
Engine specifications Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 244 Diagram for the location of the various elements Vehicle battery
Engine oil filler cap
Brake fluid reservoir
Engine oil dipstick
1
234
Coolant expansion tank
Windscreen washer fluid container
Hydraulic fluid reservoir for power steering
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in the ⇒ page 226.
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of ⇒ page 292.
Note
The layout of parts may vary depending on the engine. 
567

297
Technical specifications
Petrol engine 1.8 88 kW (120 PS)
Engine specifications Power output in kW (PS) rpm 88 (120) / 3650-6200
Maximum torque in Nm at rpm 230 / 1500-3650
No. of cylinders/capacity in cm3
4 / 1798
Fuel Super 95 RON a)
/ Super 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 196
Acceleration from 0-80 km/h in sec. 7.3
Acceleration from 0-100 km/h in sec. 11.1
Weights
Gross vehicle weight in kg 2040
Weight in running order (with driver) in kg 1555
Gross front axle weight in kg 1075
Gross rear axle weight in kg 1090
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.6 litres

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

298Technical specifications
Petrol engine 1.8 118 kW (160 PS)
Engine specifications
Power output in kW (PS) rpm 118 (160) / 4500-6200
Maximum torque in Nm at rpm 250 / 1500-4500
No. of cylinders/capacity in cm3
4 / 1798
Fuel Super 95 RON a)
/ Super 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 218
Acceleration from 0-80 km/h in sec. 6.1
Acceleration from 0-100 km/h in sec. 8.9
Weights
Gross vehicle weight in kg 2040
Weight in running order (with driver) in kg 1555
Gross front axle weight in kg 1075
Gross rear axle weight in kg 1090
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.6 litres


299
Technical specifications
Petrol engine 2.0 147 kW (200 PS)
Engine specifications Power output in kW (PS) rpm 147 (200) / 5100-6000
Maximum torque in Nm at rpm 280 / 1800-5000
No. of cylinders/capacity in cm3
4 / 1984
Fuel Super 98 RON a)
/Super 95 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance ManualAutomatic
Maximum speed in km/h 235 230
Acceleration from 0-80 km/h in sec. 5.6 5.4
Acceleration from 0-100 km/h in sec. 7.6 7.6
Weights
Manual Automatic
Gross vehicle weight in kg 2050 2075
Weight in running order (with driver) in kg 1565 1590
Gross front axle weight in kg 1090 1115
Gross rear axle weight in kg 1090 1090
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 750 750
Trailer with brakes, gradients up to 8% in kg 1600 1700
Trailer with brakes, gradients up to 12% in kg 1400 1500
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

300Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.5 litres

Petrol engine 2.0 155 kW (211 PS)
Engine specifications Power output in kW (PS) rpm 155 (211) / 4600-6000
Maximum torque in Nm at rpm 320 / 1500-4600
No. of cylinders/capacity in cm3
4 / 1984
Fuel Super 95 RON a)
/ Super 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 239
Acceleration from 0-80 km/h in sec. 5.4
Acceleration from 0-100 km/h in sec. 7.3
Weights
Gross vehicle weight in kg 2050
Weight in running order (with driver) in kg 1565
Gross front axle weight in kg 1090
Gross rear axle weight in kg 1135
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1700
Trailer with brakes, gradients up to 12% in kg 1500 

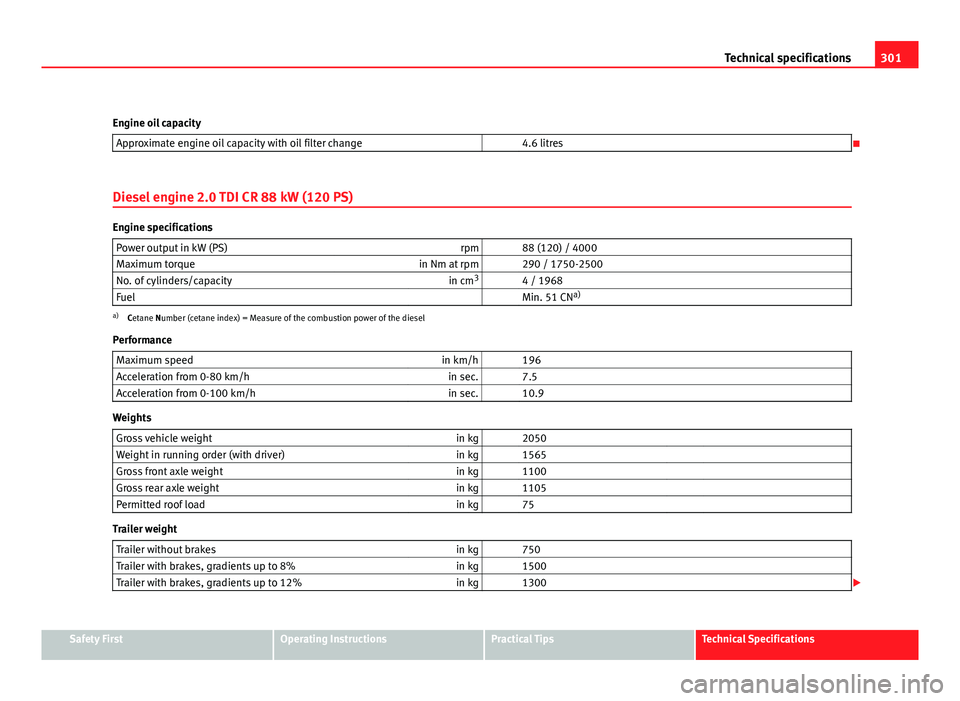

301
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.6 litres

Diesel engine 2.0 TDI CR 88 kW (120 PS)
Engine specifications Power output in kW (PS) rpm 88 (120) / 4000
Maximum torque in Nm at rpm 290 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 196
Acceleration from 0-80 km/h in sec. 7.5
Acceleration from 0-100 km/h in sec. 10.9
Weights
Gross vehicle weight in kg 2050
Weight in running order (with driver) in kg 1565
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1105
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

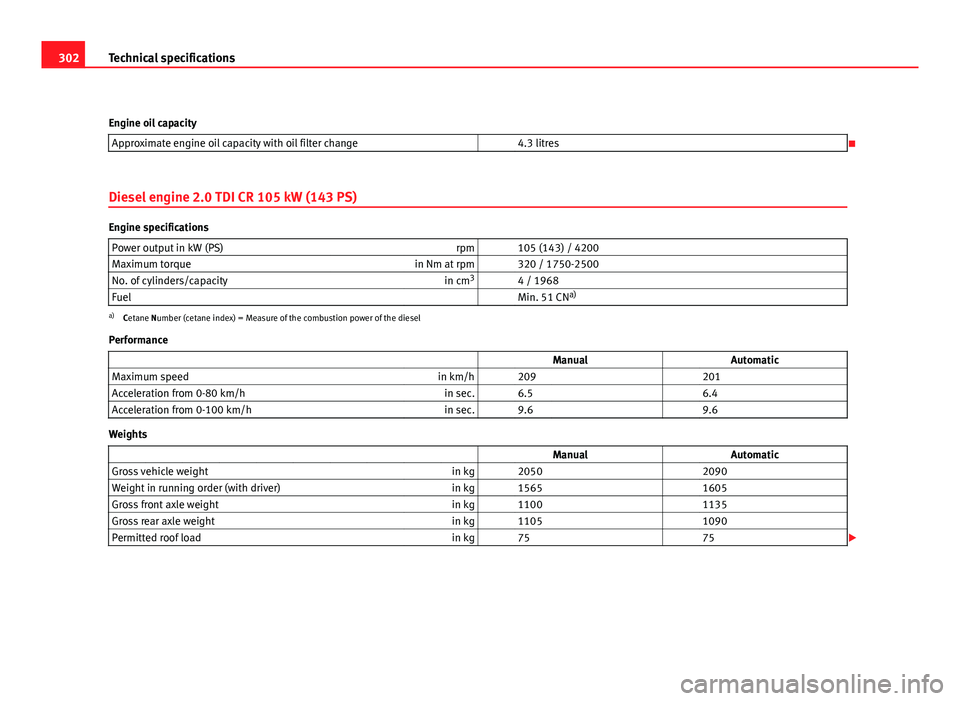

302Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.3 litres

Diesel engine 2.0 TDI CR 105 kW (143 PS)
Engine specifications Power output in kW (PS) rpm 105 (143) / 4200
Maximum torque in Nm at rpm 320 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance ManualAutomatic
Maximum speed in km/h 209 201
Acceleration from 0-80 km/h in sec. 6.5 6.4
Acceleration from 0-100 km/h in sec. 9.6 9.6
Weights
Manual Automatic
Gross vehicle weight in kg 2050 2090
Weight in running order (with driver) in kg 1565 1605
Gross front axle weight in kg 1100 1135
Gross rear axle weight in kg 1105 1090
Permitted roof load in kg 75 75

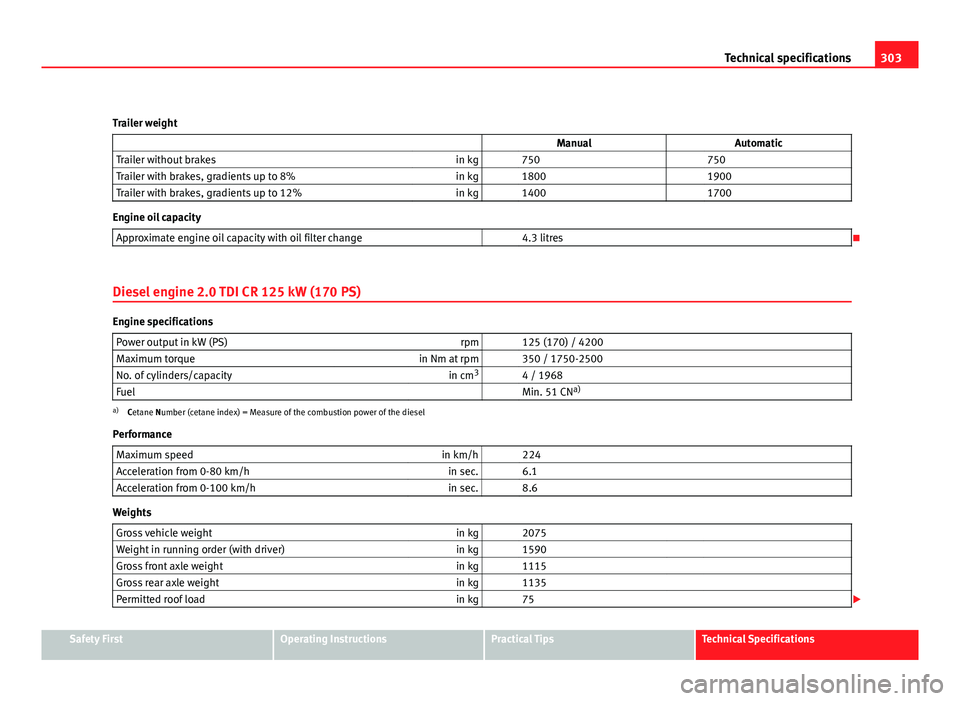

303
Technical specifications
Trailer weight ManualAutomatic
Trailer without brakes in kg 750 750
Trailer with brakes, gradients up to 8% in kg 1800 1900
Trailer with brakes, gradients up to 12% in kg 1400 1700
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres

Diesel engine 2.0 TDI CR 125 kW (170 PS)
Engine specifications Power output in kW (PS) rpm 125 (170) / 4200
Maximum torque in Nm at rpm 350 / 1750-2500
No. of cylinders/capacity in cm3
4 / 1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 224
Acceleration from 0-80 km/h in sec. 6.1
Acceleration from 0-100 km/h in sec. 8.6
Weights
Gross vehicle weight in kg 2075
Weight in running order (with driver) in kg 1590
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1135
Permitted roof load in kg 75 

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

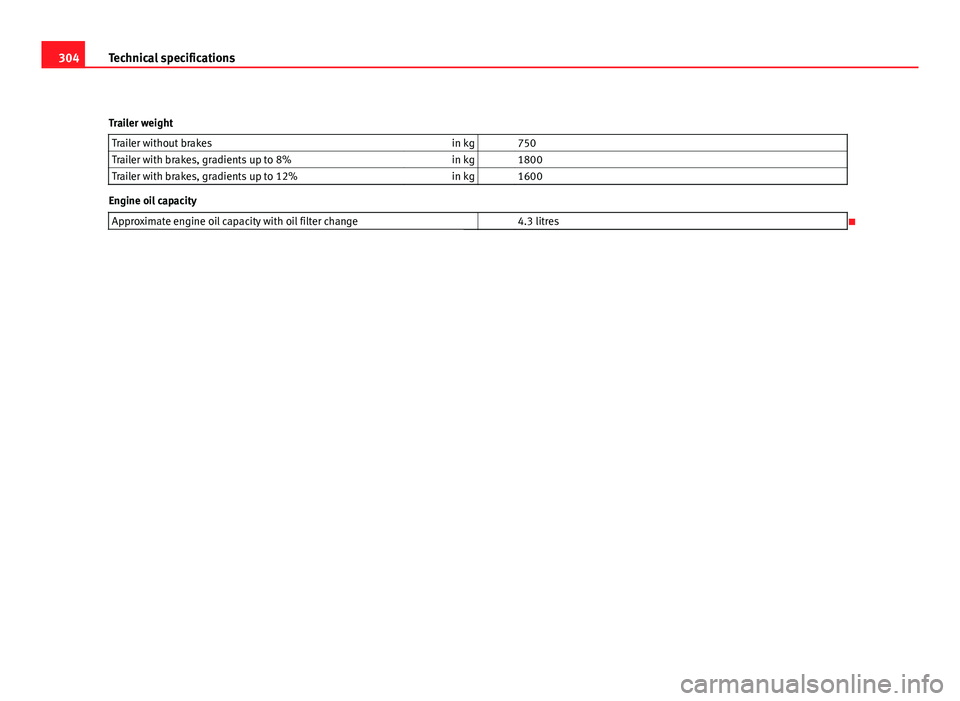

304Technical specifications
Trailer weight Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1800
Trailer with brakes, gradients up to 12% in kg 1600
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres


305
Technical specifications
Dimensions and capacities
Dimensions
Length, width 4661-4741a)
mm/ 1772 mm
Height at kerb weight 1454 mm with roof bars
Front and rear projection 976 mm/ 1048-1123a)
mm
Wheelbase 2642 mm
Turning circle 11.2 m
Track width b) Front
Rear
1522 mm 1523 mm
Capacities
Fuel tank 70 l. Reserve 10 l.
Windscreen washer fluid container with headlight washer 4.8 l.
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) With towing eye.
b) This data will change depending on the type of wheel rim. 
