Seat Ibiza 5D 2008 Owner's manual

If and when219
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

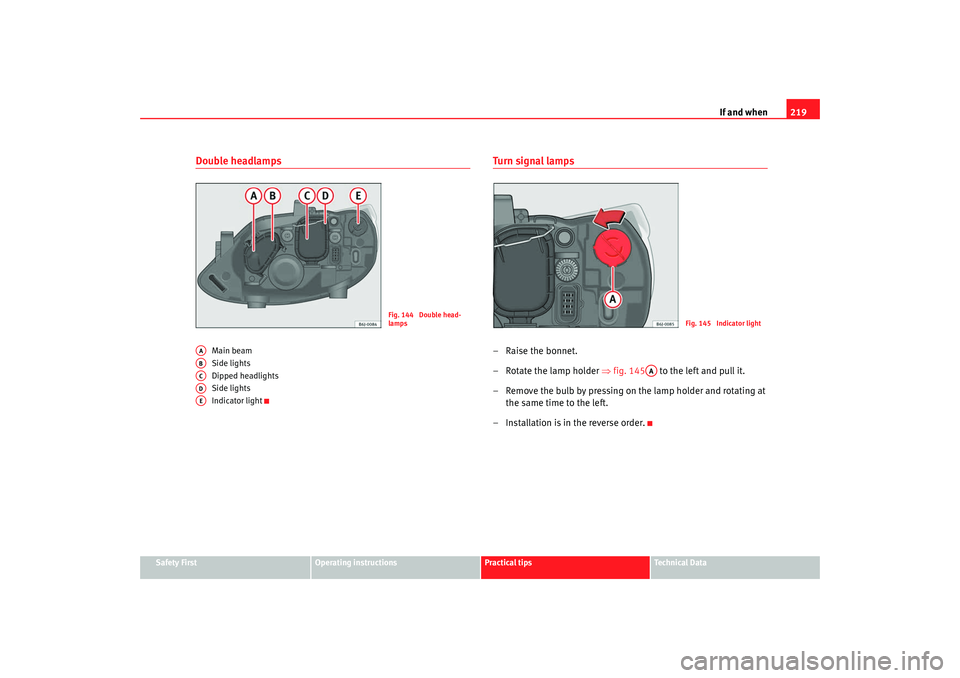

Double headlamps
Main beam
Side lights
Dipped headlights
Side lights
Indicator light
Tu r n si g nal la m ps– Raise the bonnet.
– Rotate the lamp holder ⇒ fig. 145 to the left and pull it.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Fig. 144 Double head-
lamps
AAABACADAE
Fig. 145 Indicator light
AA
Ibiza250_angles Seite 219 Dienstag, 5. August 2008 1:11 13

If and when

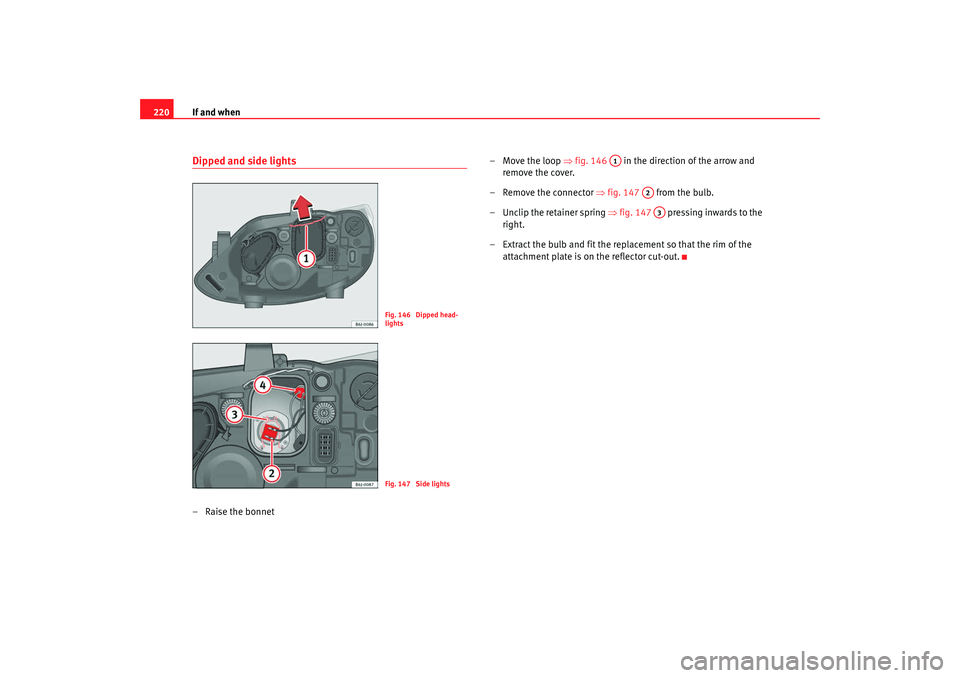

220Dipped and side lights– Raise the bonnet – Move the loop
⇒fig. 146 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 147 from the bulb.
– Unclip the retainer spring ⇒fig. 147 pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 146 Dipped head-
lightsFig. 147 Side lights
A1
A2A3
Ibiza250_angles Seite 220 Dienstag, 5. August 2008 1:11 13

If and when221
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

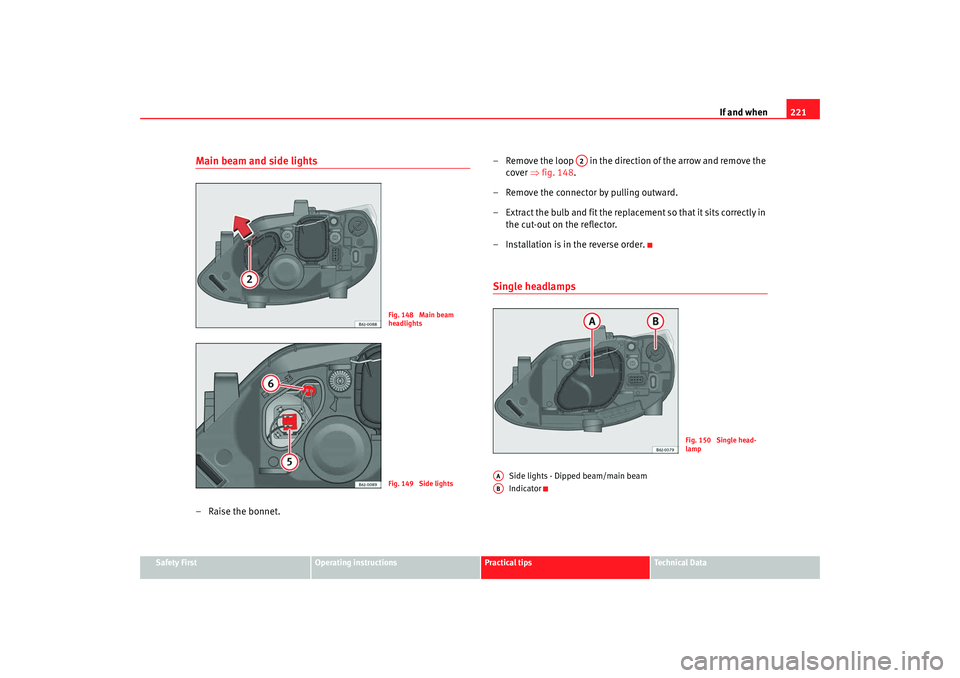

Main beam and side lights–Raise the bonnet. – Remove the loop in the direction of the arrow and remove the
cover ⇒fig. 148.
– Remove the connector by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly in the cut-out on the reflector.
– Installation is in the reverse order.
Single headlamps
Side lights - Dipped beam/main beam
Indicator
Fig. 148 Main beam
headlightsFig. 149 Side lights
A2
Fig. 150 Single head-
lamp
AAAB
Ibiza250_angles Seite 221 Dienstag, 5. August 2008 1:11 13

If and when

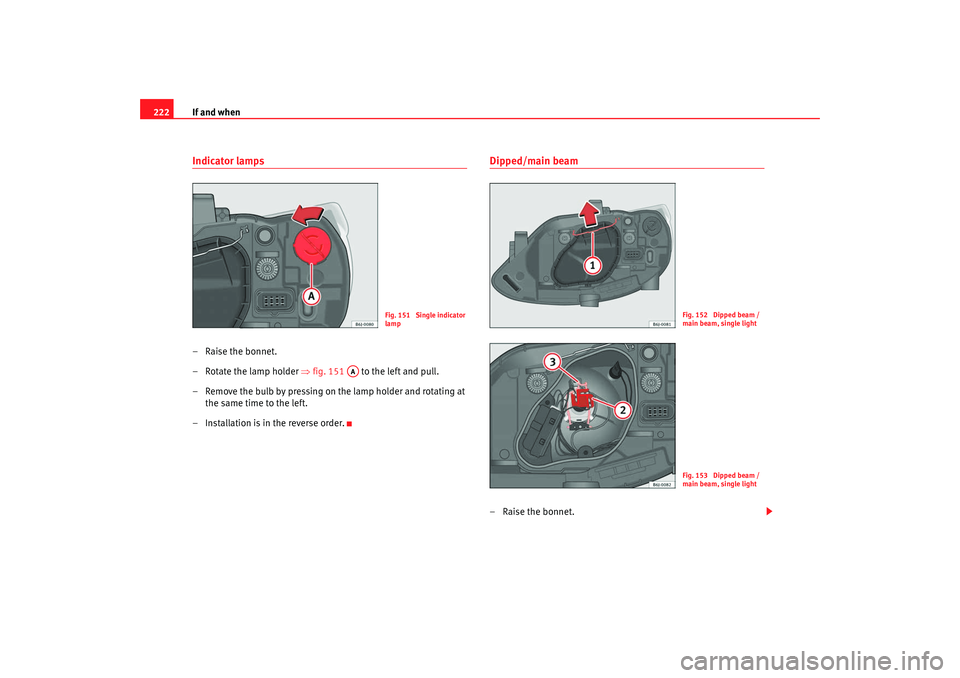

222Indicator lamps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 151 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Dipped/main beam–Raise the bonnet.
Fig. 151 Single indicator
lamp
AA
Fig. 152 Dipped beam /
main beam, single lightFig. 153 Dipped beam /
main beam, single light
Ibiza250_angles Seite 222 Dienstag, 5. August 2008 1:11 13

If and when223
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

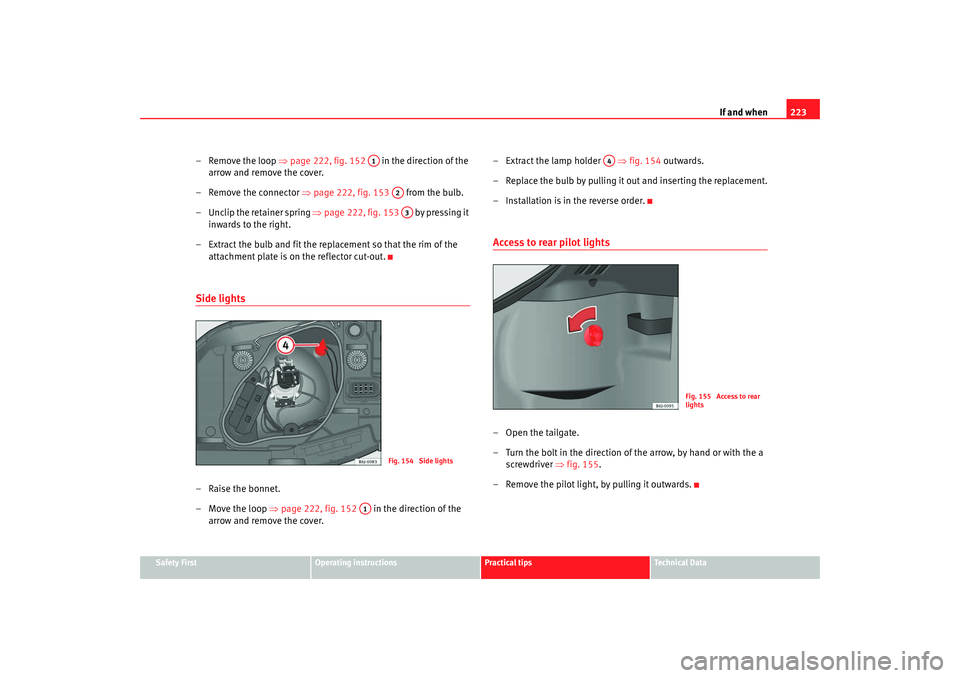

– Remove the loop ⇒page 222, fig. 152 in the direction of the
arrow and remove the cover.
– Remove the connector ⇒page 222, fig. 153 from the bulb.
–Unclip the retainer spring ⇒ page 222, fig. 153 by pressing it
inwards to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Side lights –Raise the bonnet.
– Move the loop ⇒page 222, fig. 152 in the direction of the
arrow and remove the cover. – Extract the lamp holder
⇒fig. 154 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is in the reverse order.
Access to rear pilot lights–Open the tailgate.
– Turn the bolt in the direction of the arrow, by hand or with the a screwdriver ⇒ fig. 155.
– Remove the pilot light, by pulling it outwards.
A1
A2A3
Fig. 154 Side lights
A1
A4
Fig. 155 Access to rear
lights
Ibiza250_angles Seite 223 Dienstag, 5. August 2008 1:11 13

If and when

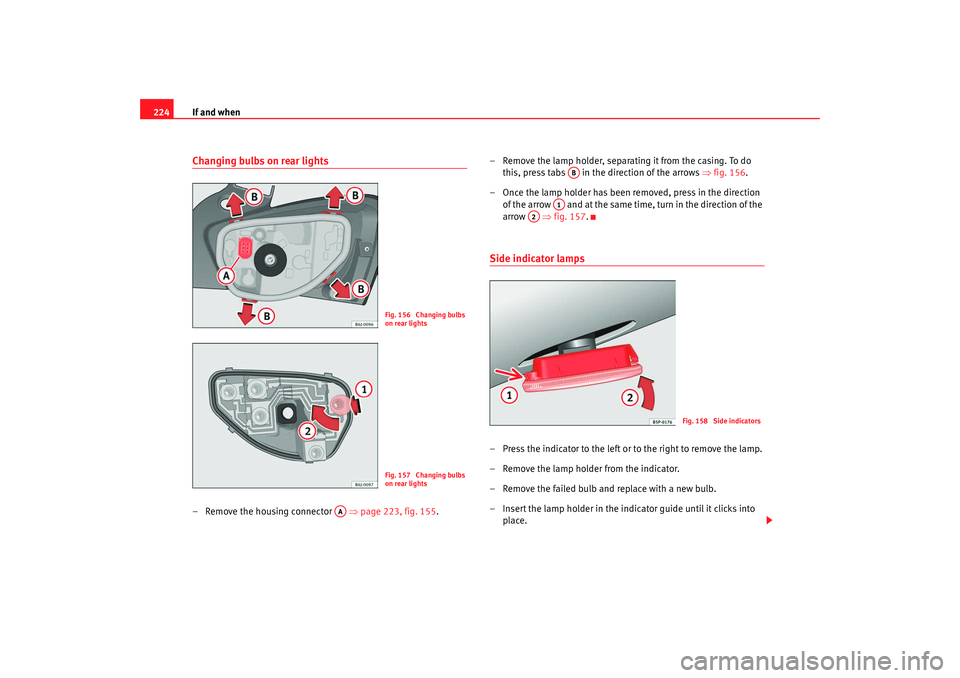

224Changing bulbs on rear lights– Remove the housing connector ⇒page 223, fig. 155 .– Remove the lamp holder, separating it from the casing. To do
this, press tabs in the direction of the arrows ⇒ fig. 156.
– Once the lamp holder has been removed, press in the direction of the arrow and at the same time, turn in the direction of the
arrow ⇒fig. 157 .
Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into place.
Fig. 156 Changing bulbs
on rear lightsFig. 157 Changing bulbs
on rear lights
AA
AB
A1
A2
Fig. 158 Side indicators
Ibiza250_angles Seite 224 Dienstag, 5. August 2008 1:11 13

If and when225
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

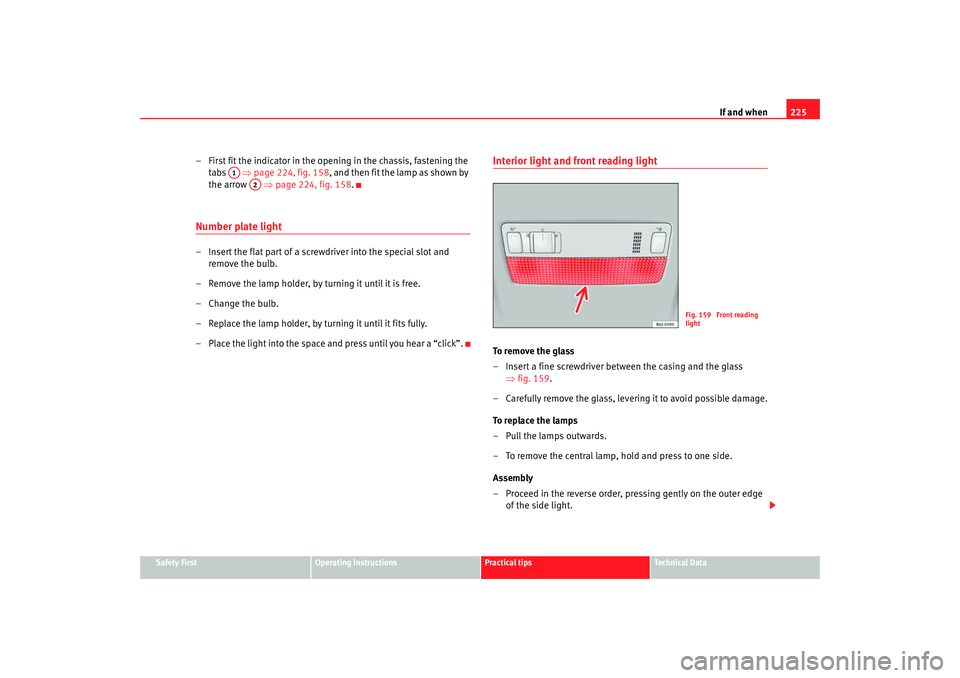

– First fit the indicator in the opening in the chassis, fastening the
tabs ⇒page 224, fig. 158, and then fit the lamp as shown by
the arrow ⇒page 224, fig. 158 .Number plate light– Insert the flat part of a screwdriver into the special slot and
remove the bulb.
– Remove the lamp holder, by turning it until it is free.
– Change the bulb.
– Replace the lamp holder, by turning it until it fits fully.
– Place the light into the space and press until you hear a “click”.
Interior light and front reading light To r e m o v e t h e g l a s s
– Insert a fine screwdriver between the casing and the glass ⇒fig. 159.
– Carefully remove the glass, levering it to avoid possible damage.
To replace the lamps
– Pull the lamps outwards.
– To remove the central lamp, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge of the side light.
A1
A2
Fig. 159 Front reading
light
Ibiza250_angles Seite 225 Dienstag, 5. August 2008 1:11 13

If and when
226

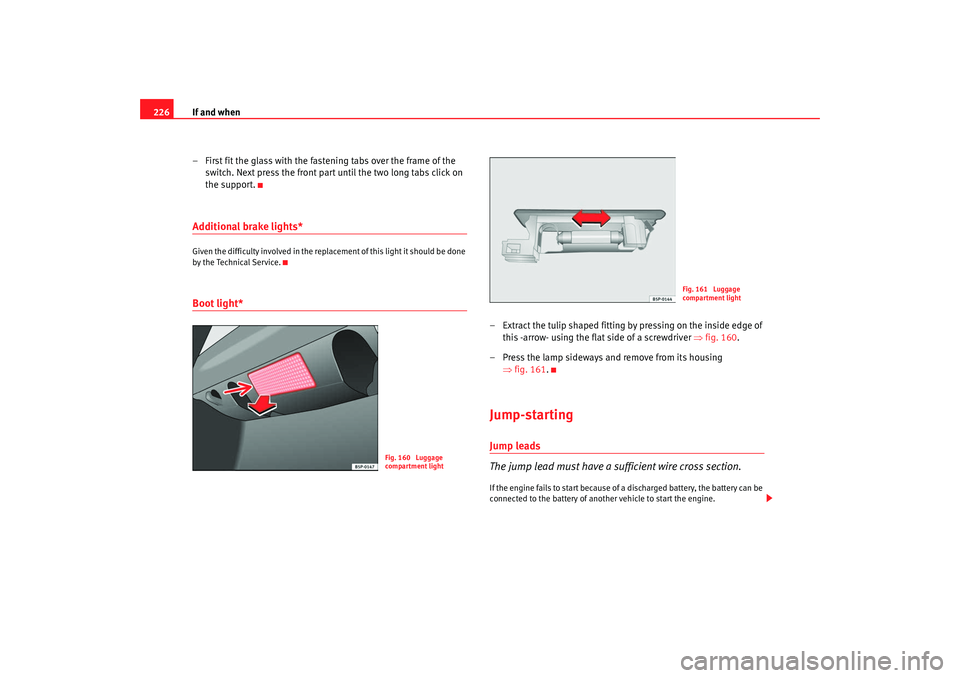

– First fit the glass with the fastening tabs over the frame of the switch. Next press the front part until the two long tabs click on
the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Boot light*
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒ fig. 160.
– Press the lamp sideways and remove from its housing ⇒fig. 161.Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of anot her vehicle to start the engine.
Fig. 160 Luggage
compartment light
Fig. 161 Luggage
compartment light
Ibiza250_angles Seite 226 Dienstag, 5. August 2008 1:11 13

If and when227
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

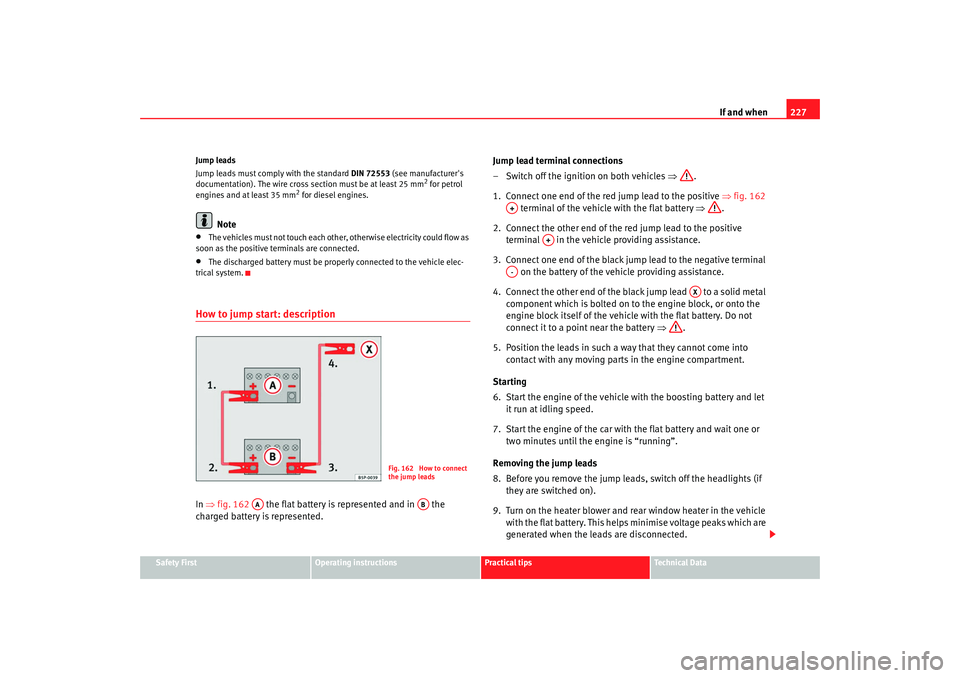

Jump leads
Jump leads must comply with the standard
DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicle elec-
trical system.
How to jump start: descriptionIn ⇒ fig. 162 the flat battery is represented and in the
charged battery is represented. Jump lead terminal connections
– Switch off the ignition on both vehicles
⇒.
1. Connect one end of the red jump lead to the positive ⇒fig. 162
terminal of the vehicle with the flat battery ⇒.
2. Connect the other end of the red jump lead to the positive terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal on the battery of the vehicle providing assistance.
4. Connect the other end of the black jump lead to a solid metal component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery ⇒.
5. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let
it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
Fig. 162 How to connect
the jump leads
AA
AB
A+
A+
A-
AX
Ibiza250_angles Seite 227 Dienstag, 5. August 2008 1:11 13

If and when
228

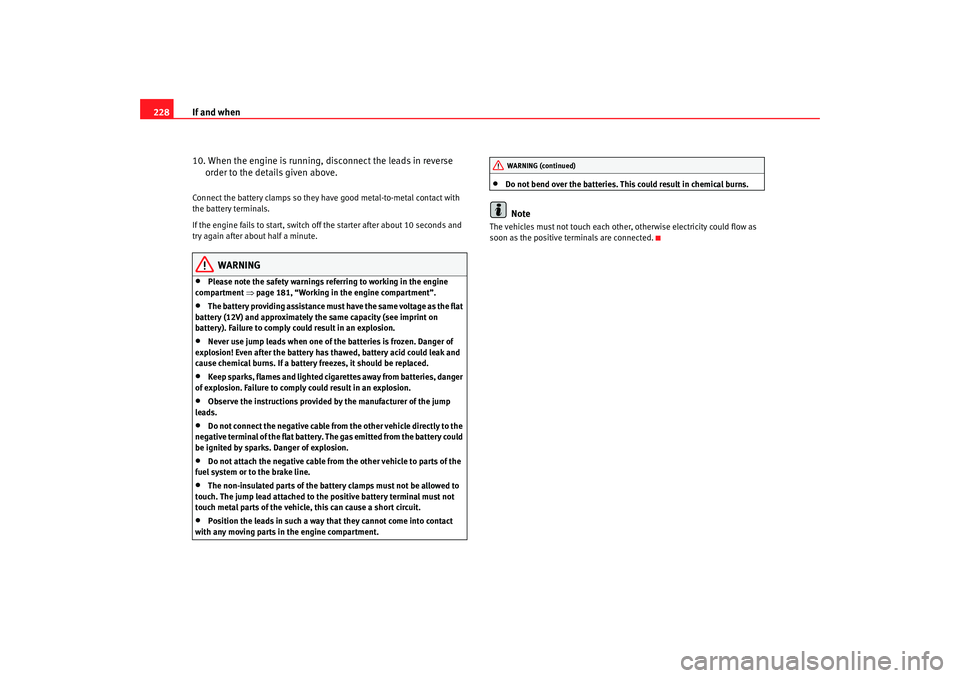

10. When the engine is running, disconnect the leads in reverse order to the details given above.Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
WARNING
•
Please note the safety warnings referring to working in the engine
compartment ⇒page 181, “Working in the engine compartment”.
•
The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•
Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•
Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•
Observe the instructions provided by the manufacturer of the jump
leads.
•
Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•
Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•
The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead atta ched to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•
Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•
Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
WARNING (continued)
