technical specifications Seat Ibiza 5D 2014 Owner's manual

Technical specifications

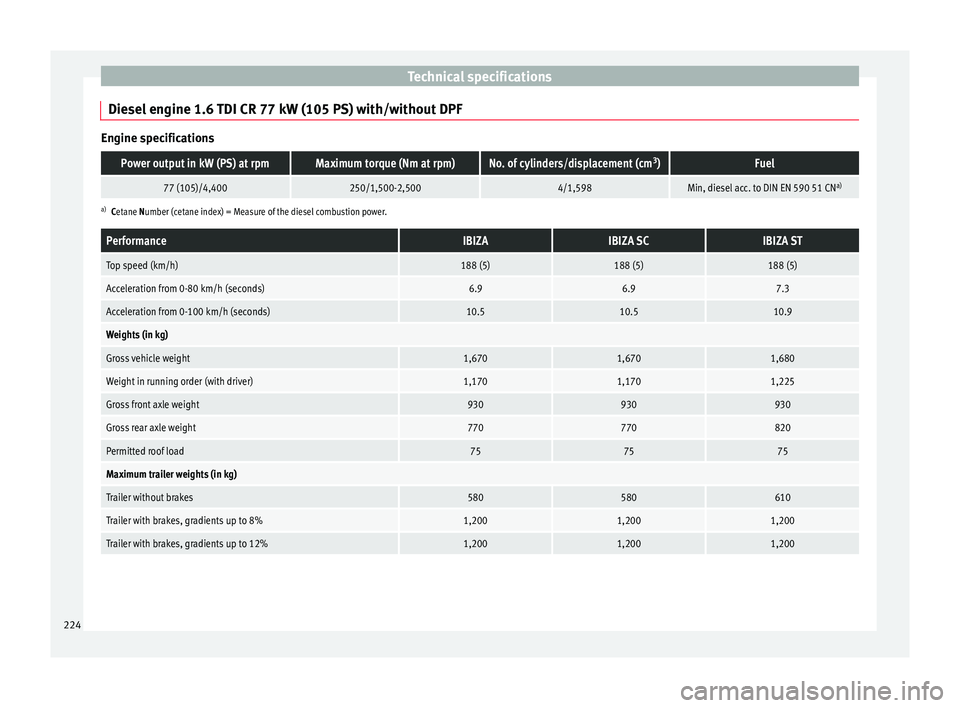

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
77 (105)/4,400250/1,500-2,5004/1,598Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)188 (5)188 (5)188 (5)
Acceleration from 0-80 km/h (seconds)6.96.97.3
Acceleration from 0-100 km/h (seconds)10.510.510.9
Weights (in kg)
Gross vehicle weight1,6701,6701,680
Weight in running order (with driver)1,1701,1701,225
Gross front axle weight930930930
Gross rear axle weight770770820
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes580580610
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200 224

Technical features

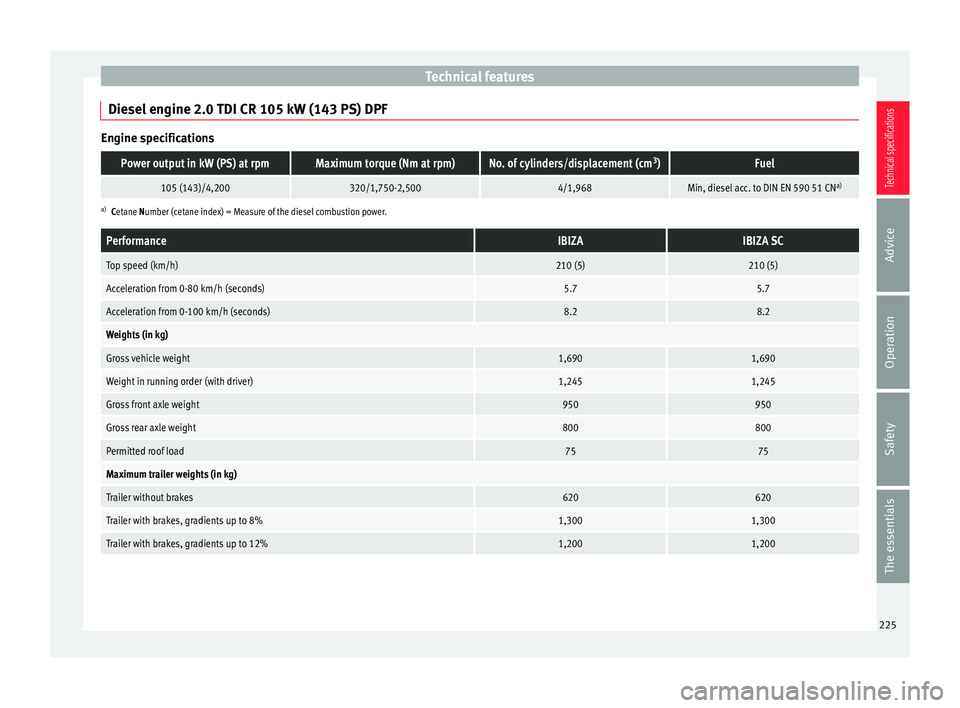

Diesel engine 2.0 TDI CR 105 kW (143 PS) DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
105 (143)/4,200320/1,750-2,5004/1,968Min, diesel acc. to DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceIBIZAIBIZA SC
Top speed (km/h)210 (5)210 (5)
Acceleration from 0-80 km/h (seconds)5.75.7
Acceleration from 0-100 km/h (seconds)8.28.2
Weights (in kg)
Gross vehicle weight1,6901,690
Weight in running order (with driver)1,2451,245
Gross front axle weight950950
Gross rear axle weight800800
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes620620
Trailer with brakes, gradients up to 8%1,3001,300
Trailer with brakes, gradients up to 12%1,2001,200 225
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications

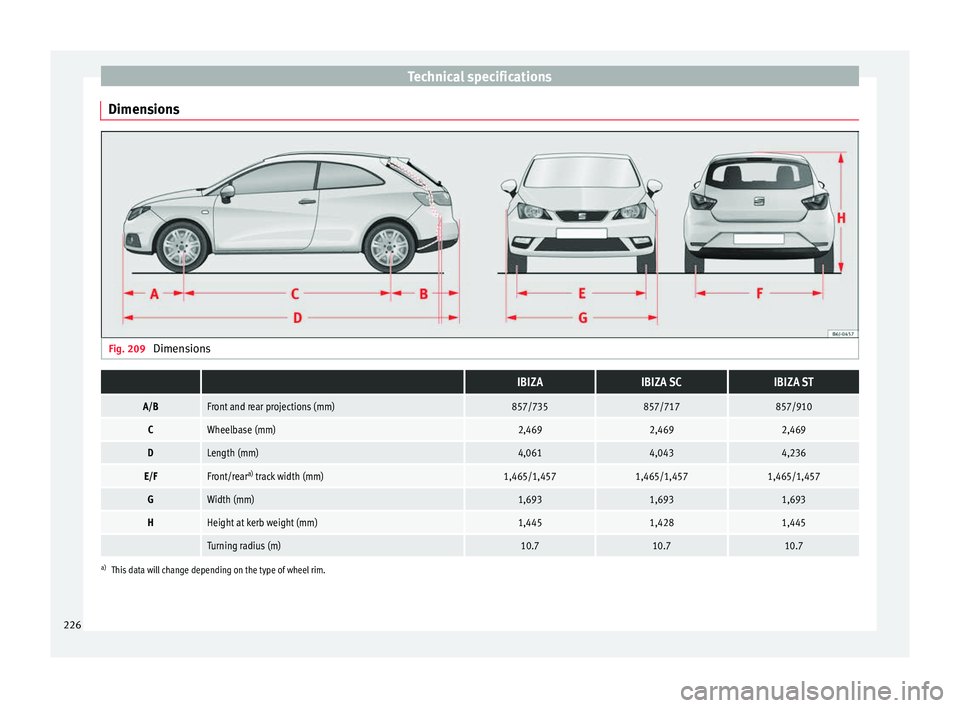

Dimensions Fig. 209
Dimensions IBIZAIBIZA SCIBIZA ST
A/BFront and rear projections (mm)857/735857/717857/910
CWheelbase (mm)2,4692,4692,469
DLength (mm)4,0614,0434,236
E/FFront/rear a)
track width (mm)1,465/1,4571,465/1,4571,465/1,457
GWidth (mm)1,6931,6931,693
HHeight at kerb weight (mm)1,4451,4281,445
Turning radius (m)10.710.710.7
a) This data will change depending on the type of wheel rim.
226

Technical features

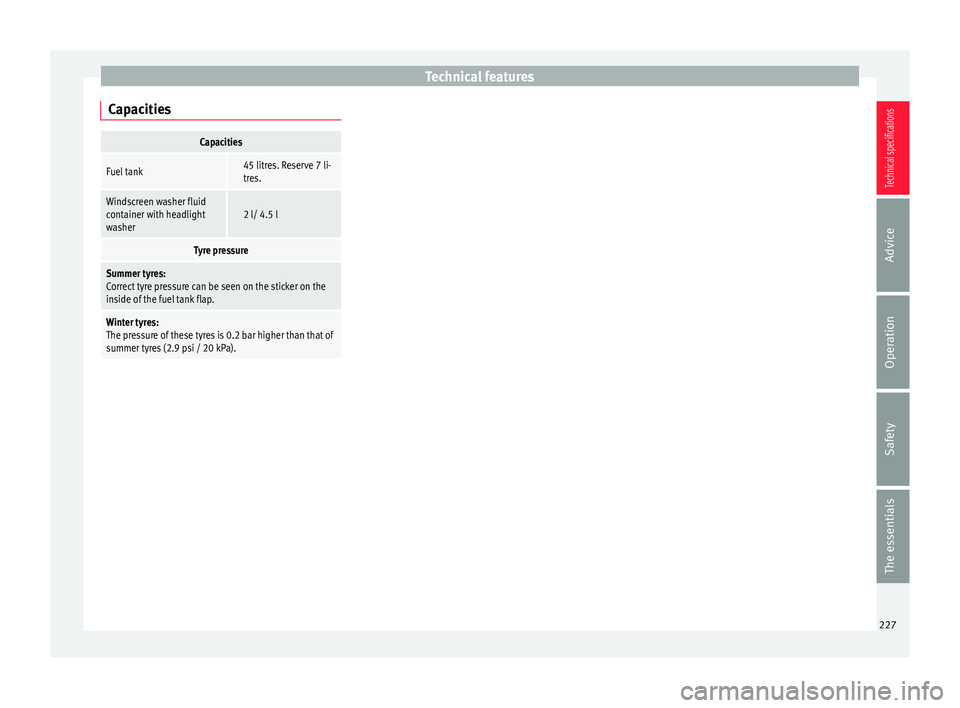

CapacitiesCapacities
Fuel tank 45 litres. Reserve 7 li-
tres.
Windscreen washer fluid
container with headlight
washer 2 l/ 4.5 l
Tyre pressure
Summer tyres:
Correct tyre pressure can be seen on the sticker on the
inside of the fuel tank flap.
Winter tyres:
The pressure of these tyres is 0.2 bar higher than that of
summer tyres (2.9 psi / 20 kPa). 227
