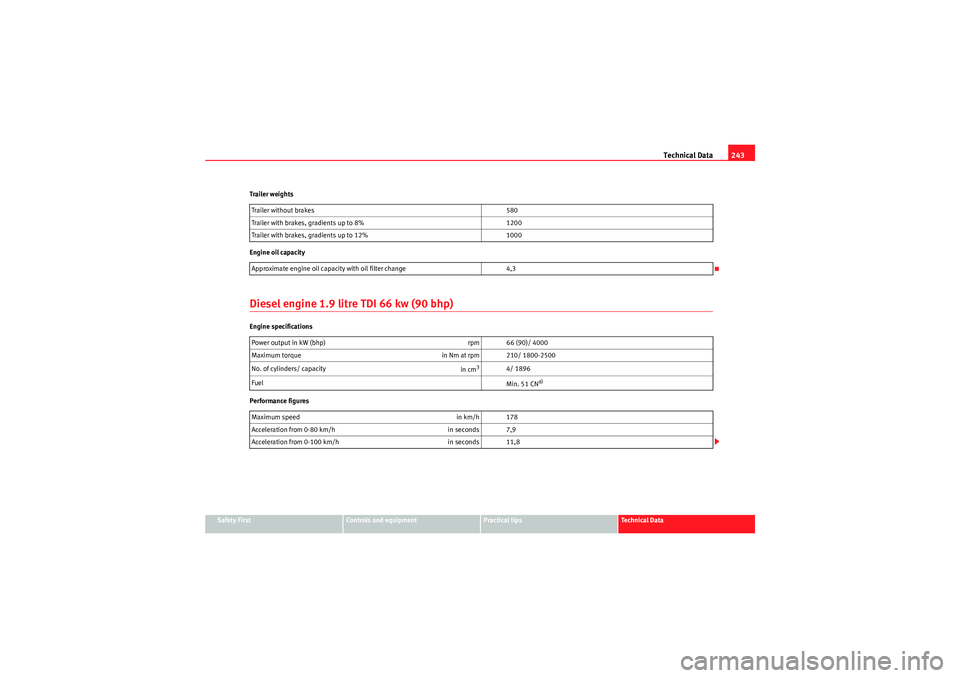

technical data Seat Ibiza SC 2009 Owner's manual

Technical Data243
Safety First
Controls and equipment
Practical tips
Technical Data
Trailer weights
Engine oil capacity
Diesel engine 1.9 litre TDI 66 kw (90 bhp)Engine specifications
Performance figures
Trailer without brakes
580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4,3
Power output in kW (bhp) rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/ 1800-2500
No. of cylinders/ capacity in cm
3
4/ 1896
Fuel Min. 51 CN
a)
Maximum speedin km/h 178
Acceleration from 0-80 km/h in seconds 7,9
Acceleration from 0-100 km/h in seconds 11,8
IbizaSC_EN.book Seite 243 Mittwoch, 16. September 2009 12:11 12

Technical Data
244Weights
Trailer weights
Engine oil capacityDiesel engine 1.9l TDI 77 kW (105 bhp) Engine specifications Gross vehicle weight
in kg 1601
Weight in working order (with driver) in kg 1175
Gross front axle weight in kg 935
Gross rear axle weight in kg 760
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 240/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
IbizaSC_EN.book Seite 244 Mittwoch, 16. September 2009 12:11 12

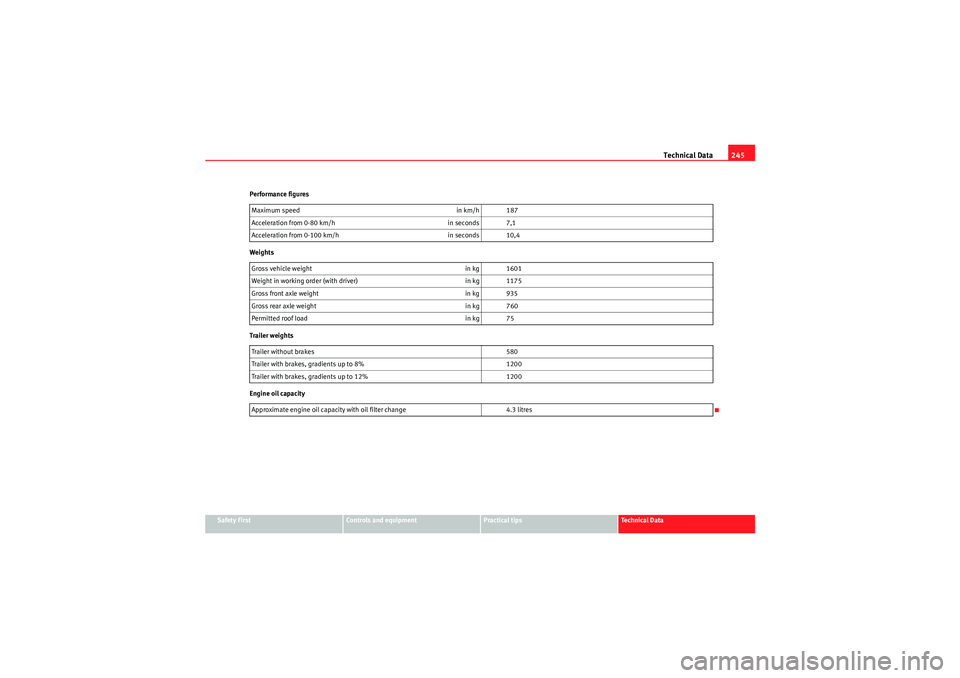

Technical Data245
Safety First
Controls and equipment
Practical tips
Technical Data
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 187
Acceleration from 0-80 km/h in seconds 7,1
Acceleration from 0-100 km/h in seconds 10,4
Gross vehicle weight in kg 1601
Weight in working order (with driver) in kg 1175
Gross front axle weight in kg 935
Gross rear axle weight in kg 760
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
IbizaSC_EN.book Seite 245 Mittwoch, 16. September 2009 12:11 12

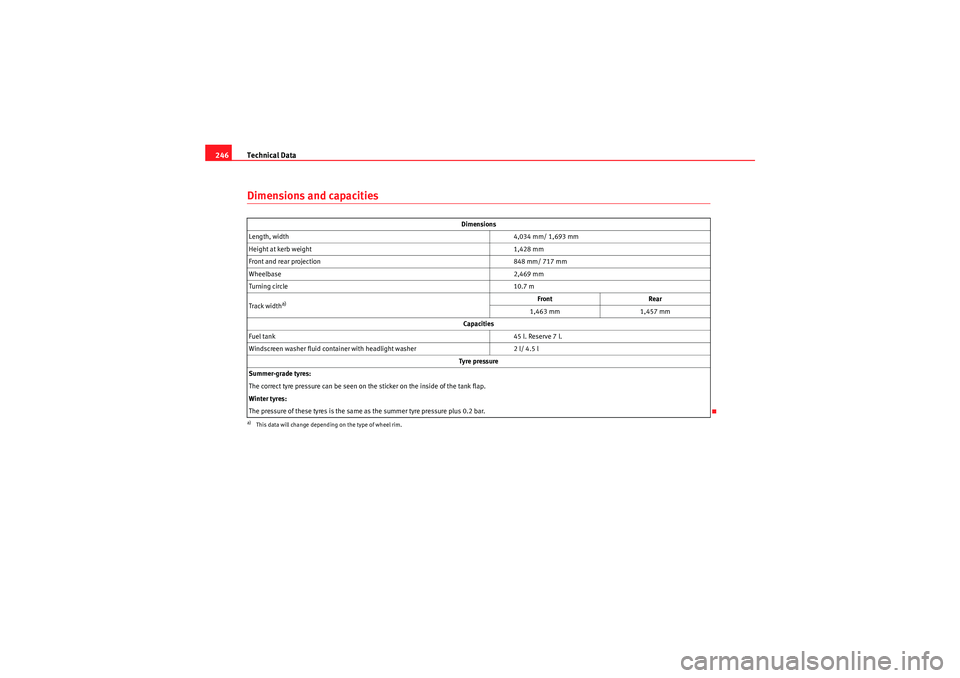

Technical Data
246Dimensions and capacities
Dimensions
Length, width 4,034 mm/ 1,693 mm
Height at kerb weight 1,428 mm
Front and rear projection 848 mm/ 717 mm
Wheelbase 2,469 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,463 mm 1,457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Ty re p re ss u re
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
IbizaSC_EN.book Seite 246 Mittwoch, 16. September 2009 12:11 12

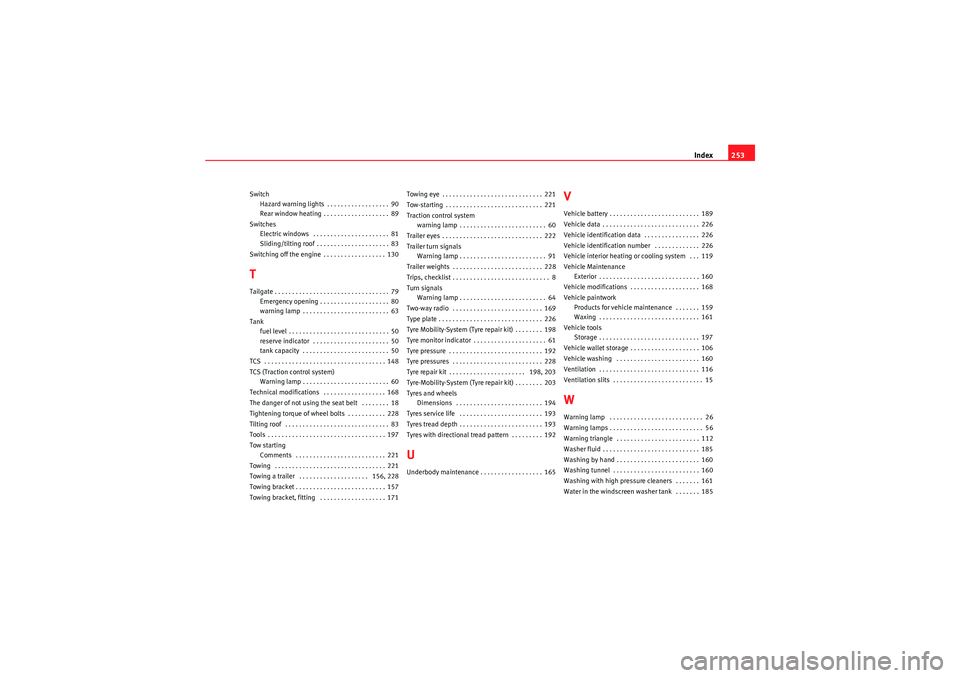

Index253
Switch
Hazard warning lights . . . . . . . . . . . . . . . . . . 90
Rear window heating . . . . . . . . . . . . . . . . . . . 89
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . . 81
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 83
Switching off the engine . . . . . . . . . . . . . . . . . . 130TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Emergency opening . . . . . . . . . . . . . . . . . . . . 80
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 63
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 50
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 50
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 60
Technical modifications . . . . . . . . . . . . . . . . . . 168
The danger of not using the seat belt . . . . . . . . 18
Tightening torque of wheel bolts . . . . . . . . . . . 228
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Tow starting Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Towing a trailer . . . . . . . . . . . . . . . . . . . . 156, 228
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 171 Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Traction control system
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 60
Trailer eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Trailer turn signals Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 91
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyre Mobility-System (Tyre repair kit) . . . . . . . . 198
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 61
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . 198, 203
Tyre-Mobility-System (Tyre repair kit) . . . . . . . . 203
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 194
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 193
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 193
Tyres with directional tread pattern . . . . . . . . . 192
UUnderbody maintenance . . . . . . . . . . . . . . . . . . 165
VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Vehicle identification data . . . . . . . . . . . . . . . . 226
Vehicle identification number . . . . . . . . . . . . . 226
Vehicle interior heating or cooling system . . . 119
Vehicle Maintenance Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 168
Vehicle paintwork Products for vehicle maintenance . . . . . . . 159
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . . 106
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 160
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 15WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 112
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 160
Washing tunnel . . . . . . . . . . . . . . . . . . . . . . . . . 160
Washing with high pressure cleaners . . . . . . . 161
Water in the windscreen washer tank . . . . . . . 185
