Unlocking and locking89
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Roll-back function of the panorama/ tilting sunroof*The panorama/ tilting sunroof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched against the roof opening. The tilting
sunroof stops and opens again immediately if it is obstructed when closing.Operation in case of breakdown
In case of a breakdown, the sunroof may be closed manually.– Remove the plastic cover by inserting a screwdriver into the rear section.
– Insert an Allen key (4 mm) into th e opening as far as possible and
close the sunroof.
Fig. 50 Emergency opera-
tion of the panorama/
tilting sunroof
IbizaSC_EN.book Seite 89 Donnerstag, 2. September 2010 6:10 18

Lights and visibility

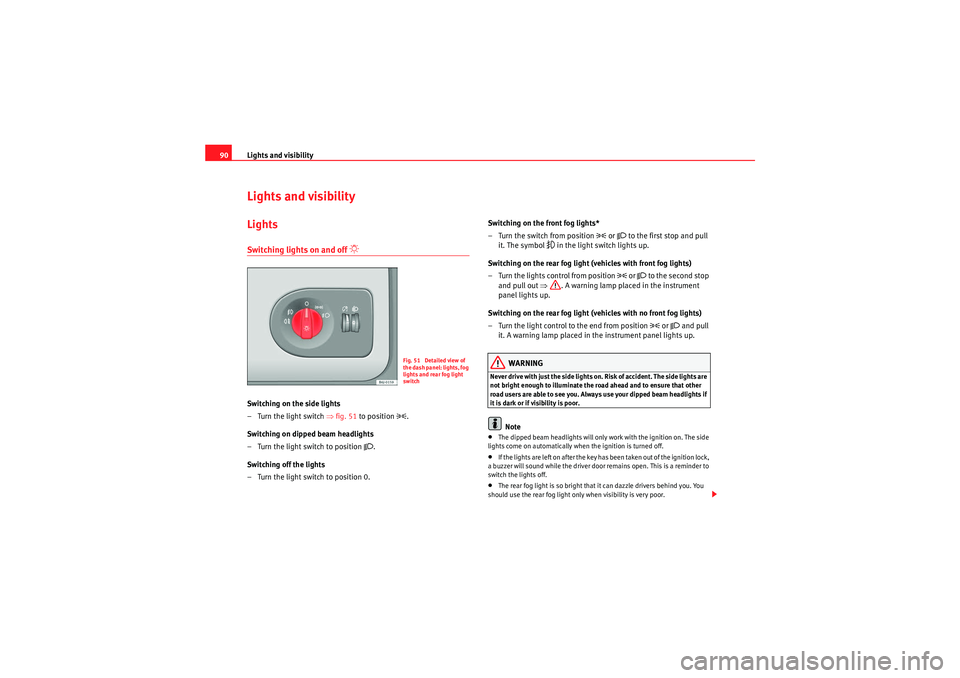

90Lights and visibilityLightsSwitching lights on and off
“
Switching on the side lights
–Turn the light switch ⇒ fig. 51 to position
.
Switching on dipped beam headlights
– Turn the light switch to position
.
Switching off the lights
– Turn the light switch to position 0. Switching on the front fog lights*
– Turn the switch from position
 or  to the first stop and pull
it. The symbol
in the light switch lights up.
Switching on the rear fog light (vehicles with front fog lights)
– Turn the lights control from position
 or  to the second stop
and pull out ⇒ . A warning lamp placed in the instrument
panel lights up.
Switching on the rear fog light (vehicles with no front fog lights)
– Turn the light control to the end from position  or  and pull
it. A warning lamp placed in th e instrument panel lights up.
WARNING
Never drive with just the side lights on. Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped beam headlights if
it is dark or if visibility is poor.
Note
•The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer will sound while the driver door remains open. This is a reminder to
switch the lights off.•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.
Fig. 51 Detailed view of
the dash panel: lights, fog
lights and rear fog light
switch
IbizaSC_EN.book Seite 90 Donnerstag, 2. September 2010 6:10 18

Lights and visibility91
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•The use of the lighting described here is subject to the relevant statutory
requirements.Automatic lighting*Activation
– Rotate the switch to the position “Auto”, this indication will light up.
Deactivation
– Turn the light switch to 0.Automatic lighting
If automatic headlight control is switched on, dipped beam headlights are
automatically switched on by a photosensor if you drive into a tunnel, for
example.
WARNING
•Even if the automatic headlight control is switched on, the dipped
headlights will not be switched on with fog. Therefore, the dipped beam
must be switched on manually.Note
•For those vehicles with the automatic headlight system, when the key is
removed from the ignition, the acoustic signal will only sound if the light
knob is in position
 or .
•If the daylight driving automatic light function is switched on, the fog
lights or rear fog light cannot be switched on in addition.•The use of the lighting described here is subject to the relevant statutory
requirements.•Do not put stickers on the windscreen in front of the sensor. This may
cause disruptions or faults in the automatic lighting system.•The rain sensor switches on the dipped beam headlights when the wind-
screen wipers have been operating continuously for a few seconds and it
s wi tch e s t h e l i g h t s o f f w h e n t h e co n t i n u o u s o r i n t e r va l wi p e is s wi t ch e d o f f f o r
some minutes.
Fig. 52 Automatic
lighting
IbizaSC_EN.book Seite 91 Donnerstag, 2. September 2010 6:10 18

Lights and visibility

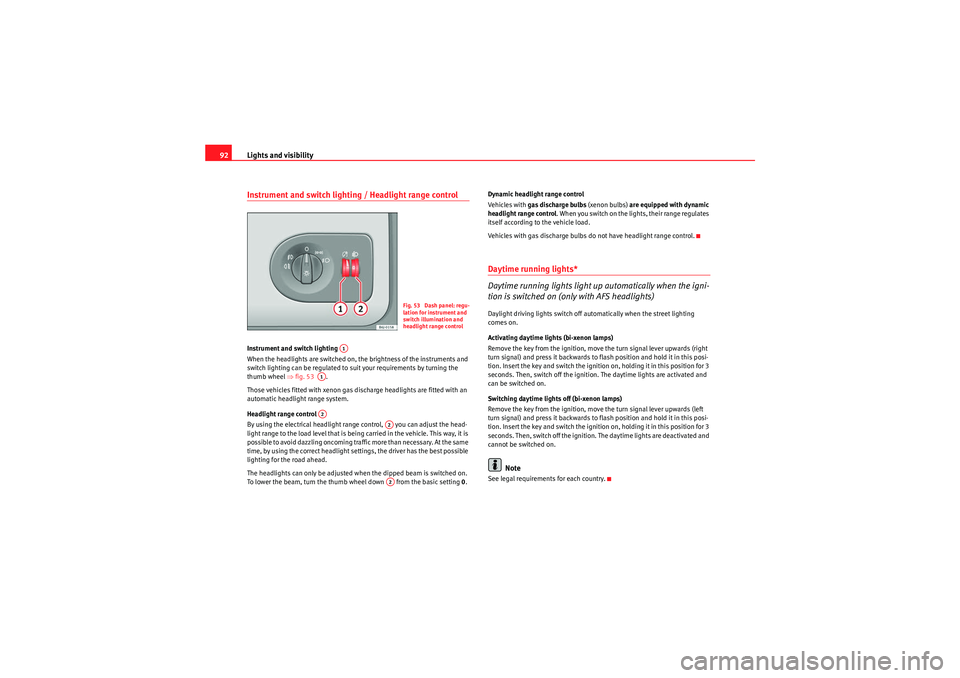

92Instrument and switch lighting / Headlight range controlInstrument and switch lighting
When the headlights are switched on, the brightness of the instruments and
switch lighting can be regulated to suit your requirements by turning the
thumb wheel ⇒fig. 53 .
Those vehicles fitted with xenon gas discharge headlights are fitted with an
automatic headlight range system.
Headlight range control
By using the electrical headlight range control, you can adjust the head-
light range to the load level that is being carried in the vehicle. This way, it is
possible to avoid dazzling oncoming traffic more than necessary. At the same
time, by using the correct headlight settings, the driver has the best possible
lighting for the road ahead.
The headlights can only be adjusted when the dipped beam is switched on.
To lower the beam, turn the thumb wheel down from the basic setting 0 .Dynamic headlight range control
Ve hi cle s wi th gas discharge bulbs
(xenon bulbs) are equipped with dynamic
headlight range control . When you switch on the lights, their range regulates
itself according to the vehicle load.
Vehicles with gas discharge bulbs do not have headlight range control.
Daytime running lights*
Daytime running lights light up automatically when the igni-
tion is switched on (only with AFS headlights)Daylight driving lights switch off automatically when the street lighting
comes on.
Activating daytime lights (bi-xenon lamps)
Remove the key from the ignition, move the turn signal lever upwards (right
turn signal) and press it backwards to flash position and hold it in this posi-
tion. Insert the key and switch the ignition on, holding it in this position for 3
seconds. Then, switch off the ignition. The daytime lights are activated and
can be switched on.
Switching daytime lights off (bi-xenon lamps)
Remove the key from the ignition, move the turn signal lever upwards (left
turn signal) and press it backwards to flash position and hold it in this posi-
tion. Insert the key and switch the ignition on, holding it in this position for 3
seconds. Then, switch off the ignition. The daytime lights are deactivated and
cannot be switched on.
Note
See legal requirements for each country.
Fig. 53 Dash panel: regu-
lation for instrument and
switch illumination and
headlight range control
A1
A1A2
A2A2
IbizaSC_EN.book Seite 92 Donnerstag, 2. September 2010 6:10 18

Lights and visibility93
Safety First
Operating Instructions
Practical Tips
Technical Specifications

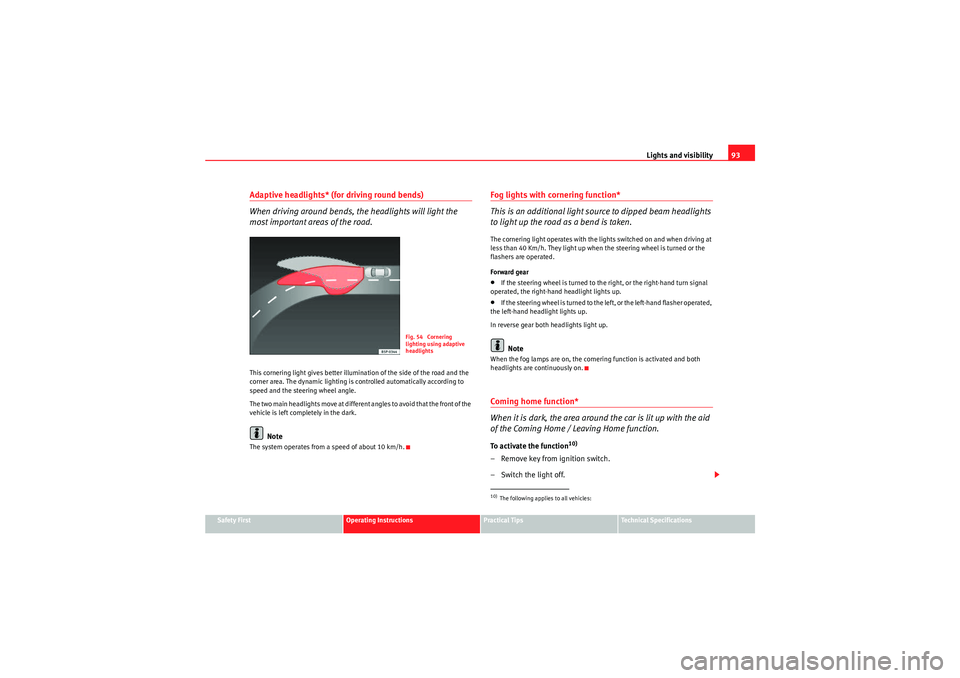

Adaptive headlights* (for driving round bends)
When driving around bends, the headlights will light the
most important areas of the road.This cornering light gives better illumination of the side of the road and the
corner area. The dynamic lighting is controlled automatically according to
speed and the steering wheel angle.
The two main headlights move at different angles to avoid that the front of the
vehicle is left completely in the dark.
Note
The system operates from a speed of about 10 km/h.
Fog lights with cornering function*
This is an additional light source to dipped beam headlights
to light up the road as a bend is taken.The cornering light operates with the lights switched on and when driving at
less than 40 Km/h. They light up when the steering wheel is turned or the
flashers are operated.
Forward gear•If the steering wheel is turned to the right, or the right-hand turn signal
operated, the right-hand headlight lights up.•If the steering wheel is turned to the left, or the left-hand flasher operated,
the left-hand headlight lights up.
In reverse gear both headlights light up.Note
When the fog lamps are on, the cornering function is activated and both
headlights are continuously on.Coming home function*
When it is dark, the area around the car is lit up with the aid
of the Coming Home / Leaving Home function.To activate the function
10)
– Remove key from ignition switch.
– Switch the light off.
Fig. 54 Cornering
lighting using adaptive
headlights
10)The following applies to all vehicles:
IbizaSC_EN.book Seite 93 Donnerstag, 2. September 2010 6:10 18

Lights and visibility
94

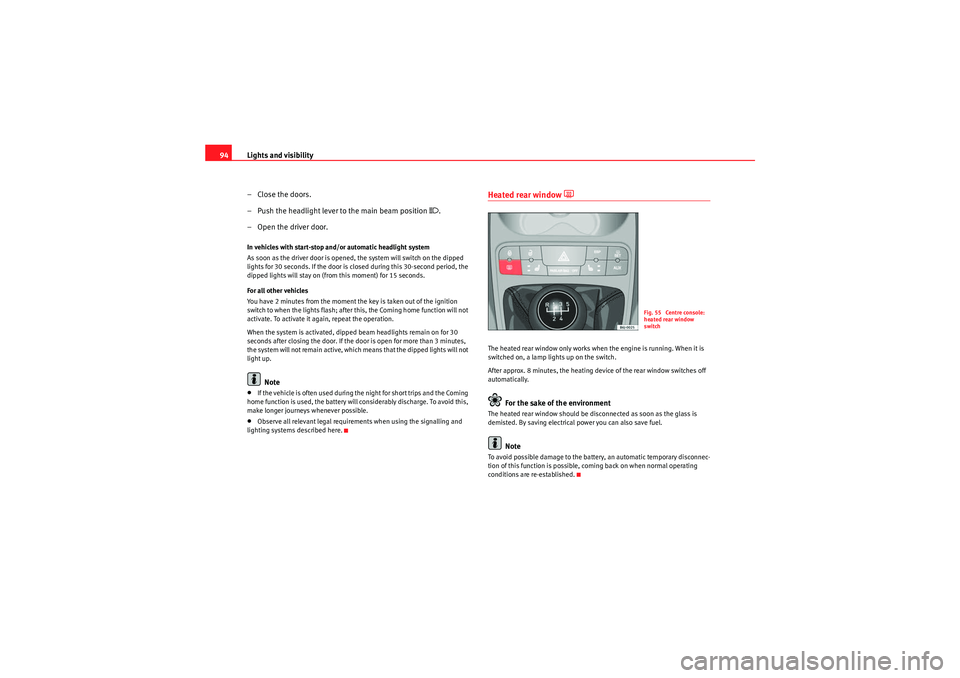

– Close the doors.
– Push the headlight lever to the main beam position
.
– Open the driver door.
In vehicles with start-stop and/or automatic headlight system
As soon as the driver door is opened, the system will switch on the dipped
lights for 30 seconds. If the door is closed during this 30-second period, the
dipped lights will stay on (from this moment) for 15 seconds.
For all other vehicles
You have 2 minutes from the moment the key is taken out of the ignition
switch to when the lights flash; after this, the Coming home function will not
activate. To activate it again, repeat the operation.
When the system is activated, dipped beam headlights remain on for 30
seconds after closing the door. If the door is open for more than 3 minutes,
the system will not remain active, which means that the dipped lights will not
light up.
Note
•If the vehicle is often used during the night for short trips and the Coming
home function is used, the battery will considerably discharge. To avoid this,
make longer journeys whenever possible.•Observe all relevant legal requirements when using the signalling and
lighting systems described here.
Heated rear window
=
The heated rear window only works when the engine is running. When it is
switched on, a lamp lights up on the switch.
After approx. 8 minutes, the heating device of the rear window switches off
automatically.
For the sake of the environment
The heated rear window should be disconnected as soon as the glass is
demisted. By saving electrical power you can also save fuel.
Note
To avoid possible damage to the battery, an automatic temporary disconnec-
tion of this function is possible, coming back on when normal operating
conditions are re-established.
Fig. 55 Centre console:
heated rear window
switch
IbizaSC_EN.book Seite 94 Donnerstag, 2. September 2010 6:10 18

Lights and visibility95
Safety First
Operating Instructions
Practical Tips
Technical Specifications

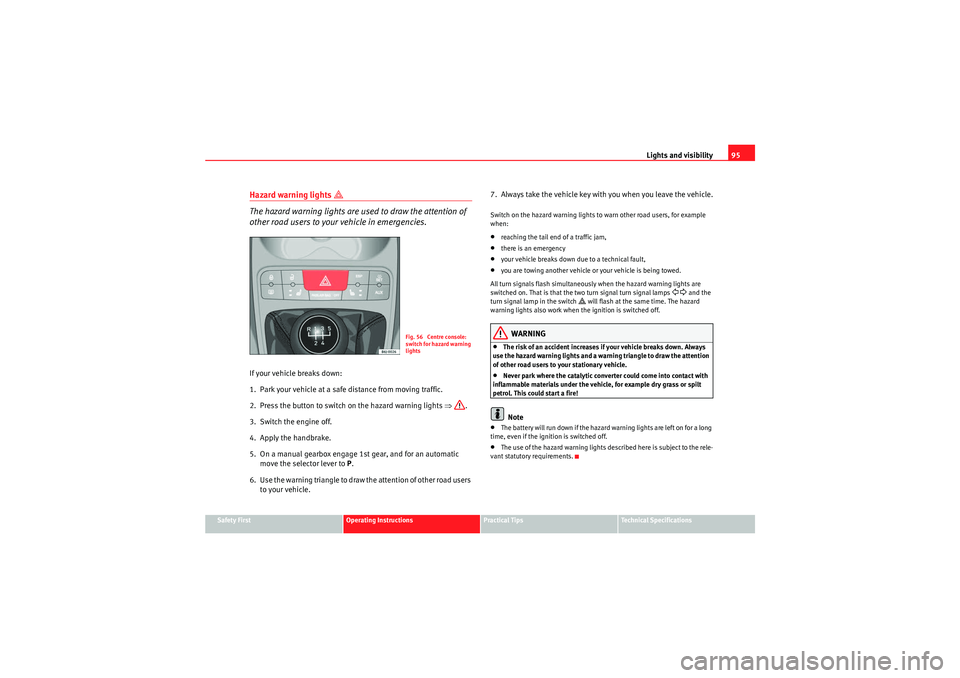

Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
If your vehicle breaks down:
1. Park your vehicle at a safe distance from moving traffic.
2. Press the button to switch on the hazard warning lights ⇒.
3. Switch the engine off.
4. Apply the handbrake.
5. On a manual gearbox engage 1st gear, and for an automatic move the selector lever to P.
6. Use the warning triangle to draw the attention of other road users to your vehicle. 7. Always take the vehicle key with you when you leave the vehicle.
Switch on the hazard warning lights to warn other road users, for example
when:•reaching the tail end of a traffic jam,•there is an emergency•your vehicle breaks down due to a technical fault,•you are towing another vehicle or your vehicle is being towed.
All turn signals flash simultaneously when the hazard warning lights are
switched on. That is that the two turn signal turn signal lamps

and the
turn signal lamp in the switch
 will flash at the same time. The hazard
warning lights also work when the ignition is switched off.
WARNING
•The risk of an accident increases if your vehicle breaks down. Always
use the hazard warning lights and a warning triangle to draw the attention
of other road users to your stationary vehicle.•Never park where the catalytic converter could come into contact with
inflammable materials under the vehicle, for example dry grass or spilt
petrol. This could start a fire!Note
•The battery will run down if the hazard warning lights are left on for a long
time, even if the ignition is switched off.•The use of the hazard warning lights described here is subject to the rele-
vant statutory requirements.
Fig. 56 Centre console:
switch for hazard warning
lights
IbizaSC_EN.book Seite 95 Donnerstag, 2. September 2010 6:10 18

Lights and visibility
96Turn signal and main beam headlight lever
The turn signal and main beam lever also operates the
parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Switching on the turn signals
– Move the lever all the way up ⇒fig. 57 to indicate right , and
all the way down to indicate left .
Signalling a lane change
– Push the lever up or down to the point where you incur resistance and then release it. The turn signal will flash several
times. The corresponding indi cator lamp will also flash. Switching main beam on and off
– Turn the light switch to position
.
–Press the lever forward ⇒fig. 57 to switch on the main
beams.
– Pull the lever back towards you to switch the main beam head- lights off again.
Headlight flashers
– Pull the lever towards the steering wheel to operate the flasher.
Switching on parking lights
– Switch the ignition off and remove the key from the lock.
– Move the lever up or down to turn the right or left-hand parking lights on, respectively.
WARNING
The main beam can dazzle other drivers. Risk of accident! Never use the
main beam headlights or the headlight flasher if they could dazzle other
drivers.
Note
• The turn signals only work when the ignition is switched on. The corre-
sponding warning lamp
 or
flashes in the instrument panel. The warning
lamp
 flashes when the turn signals are operated, provided a trailer is
correctly attached and connected to the vehicle. If a turn signal bulb is defec-
tive, the warning lamp flashes at double sp eed. If the trailer turn signal bulbs
are damaged, warning lamp
 does not light up. Change the bulb.
Fig. 57 Turn signal and
main beam headlight
lever
A1
A2A1
A2
A4
A3
IbizaSC_EN.book Seite 96 Donnerstag, 2. September 2010 6:10 18

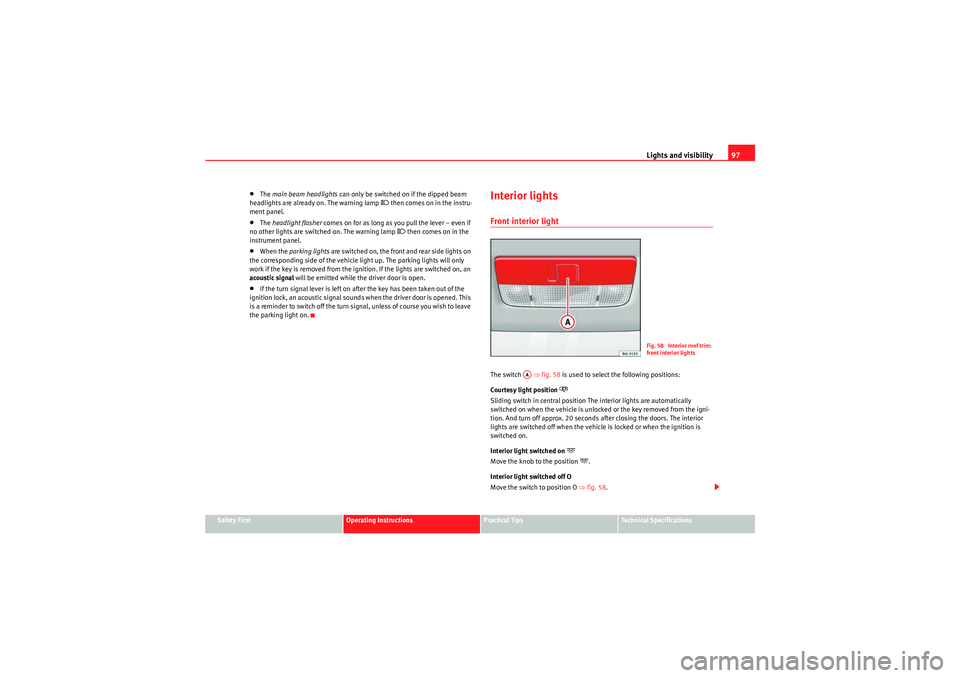

Lights and visibility97
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•The main beam headlights can only be switched on if the dipped beam
headlights are already on. The warning lamp
 then comes on in the instru-
ment panel.
•The headlight flasher comes on for as long as you pull the lever – even if
no other lights are switched on. The warning lamp
 then comes on in the
instrument panel.
•When the parking lights are switched on, the front and rear side lights on
the corresponding side of the vehicle light up. The parking lights will only
work if the key is removed from the ignition. If the lights are switched on, an
acoustic signal will be emitted while the driver door is open.•If the turn signal lever is left on after the key has been taken out of the
ignition lock, an acoustic signal sounds when the driver door is opened. This
is a reminder to switch off the turn signal, unless of course you wish to leave
the parking light on.
Interior lightsFront interior light The switch ⇒fig. 58 is used to select the following positions:
Courtesy light position
o
Sliding switch in central position The interior lights are automatically
switched on when the vehicle is unlocked or the key removed from the igni-
tion. And turn off approx. 20 seconds after closing the doors. The interior
lights are switched off when the vehicle is locked or when the ignition is
switched on.
Interior light switched on

Move the knob to the position
.
Interior light switched off O
Move the switch to position O ⇒fig. 58 .
Fig. 58 Interior roof trim:
front interior lights
AA
IbizaSC_EN.book Seite 97 Donnerstag, 2. September 2010 6:10 18

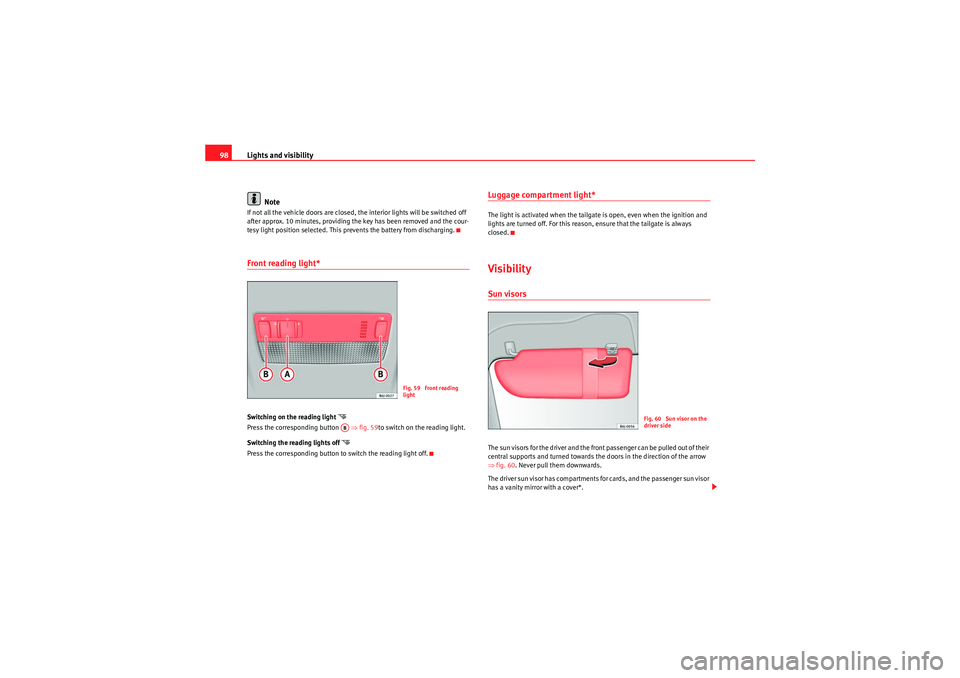

Lights and visibility
98
NoteIf not all the vehicle doors are closed, the interior lights will be switched off
after approx. 10 minutes, providing the key has been removed and the cour-
tesy light position selected. This prevents the battery from discharging.Front reading light*Switching on the reading light

Press the corresponding button ⇒fig. 59 to switch on the reading light.
Switching the reading lights off

Press the corresponding button to switch the reading light off.
Luggage compartment light*The light is activated when the tailgate is open, even when the ignition and
lights are turned off. For this reason, ensure that the tailgate is always
closed.VisibilitySun visorsThe sun visors for the driver and the front passenger can be pulled out of their
central supports and turned towards the doors in the direction of the arrow
⇒ fig. 60. Never pull them downwards.
The driver sun visor has compartments for cards, and the passenger sun visor
has a vanity mirror with a cover*.
Fig. 59 Front reading
light
AB
Fig. 60 Sun visor on the
driver side
IbizaSC_EN.book Seite 98 Donnerstag, 2. September 2010 6:10 18
