Unlocking and locking79
Safety First
Operating Instructions
Practical Tips
Technical Specifications

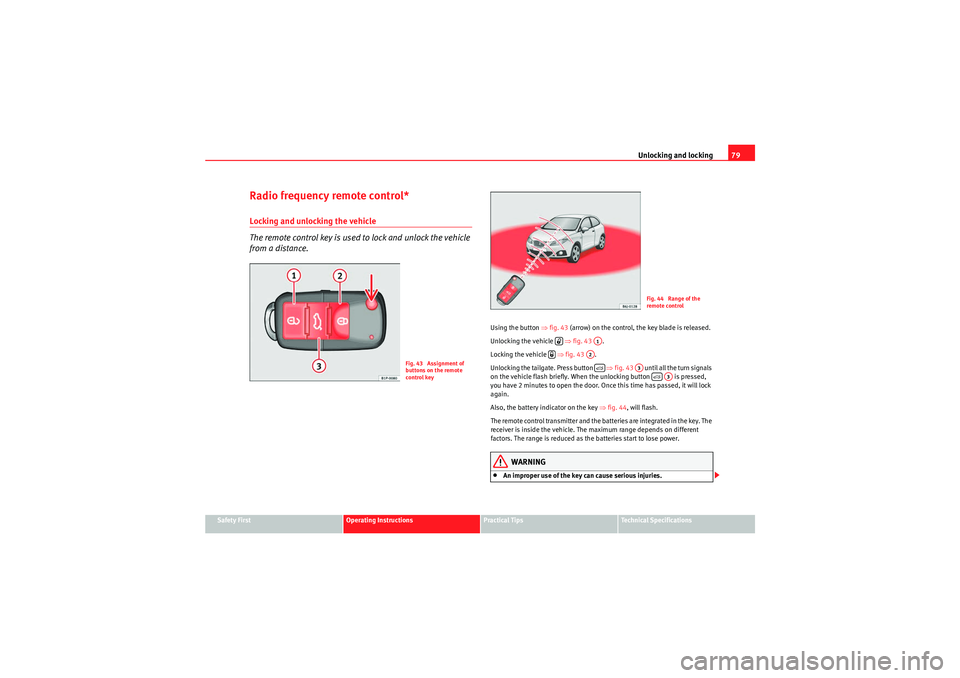

Radio frequency remote control*Locking and unlocking the vehicle
The remote control key is used to lock and unlock the vehicle
from a distance.
Using the button ⇒fig. 43 (arrow) on the control, the key blade is released.
Unlocking the vehicle ⇒fig. 43 .
Locking the vehicle ⇒fig. 43 .
Unlocking the tailgate. Press button ⇒fig. 43 until all the turn signals
on the vehicle flash briefly. When the unlocking button is pressed,
you have 2 minutes to open the door. Once this time has passed, it will lock
again.
Also, the battery indicator on the key ⇒fig. 44 , will flash.
The remote control transmitter and the batteries are integrated in the key. The
receiver is inside the vehicle. The maximum range depends on different
factors. The range is reduced as the batteries start to lose power.
WARNING
•An improper use of the key can cause serious injuries.
Fig. 43 Assignment of
buttons on the remote
control key
Fig. 44 Range of the
remote control

A1

A2
A3
A3
IbizaSC_EN.book Seite 79 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking

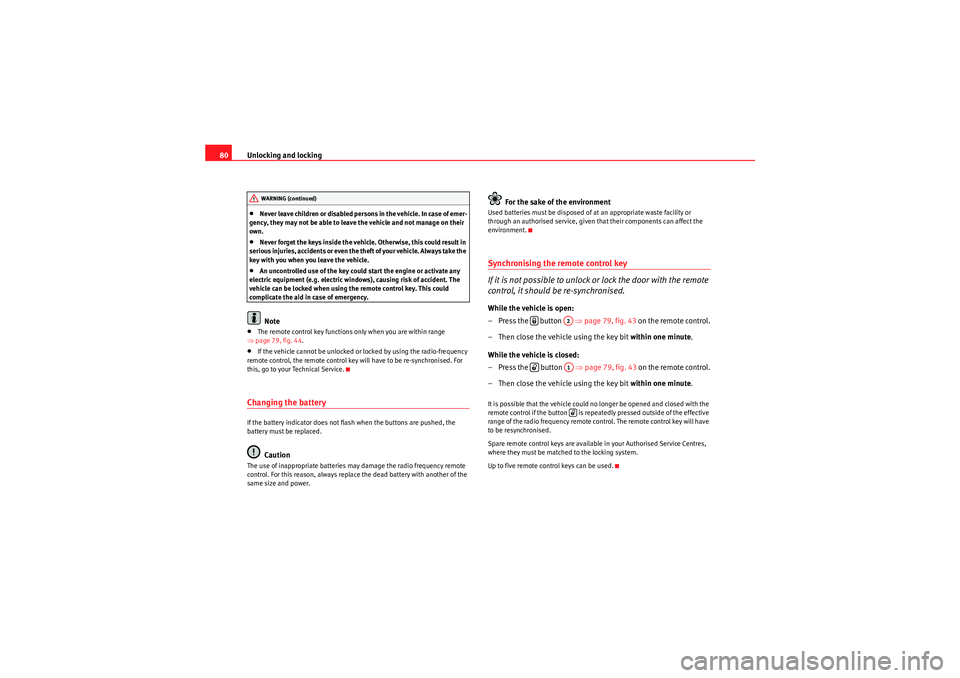

80•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never forget the keys inside the vehicle. Otherwise, this could result in
serious injuries, accidents or even the theft of your vehicle. Always take the
key with you when you leave the vehicle.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
vehicle can be locked when using the remote control key. This could
complicate the aid in case of emergency.Note
•The remote control key functions only when you are within range
⇒ page 79, fig. 44.•If the vehicle cannot be unlocked or locked by using the radio-frequency
remote control, the remote control key will have to be re-synchronised. For
this, go to your Technical Service.Changing the batteryIf the battery indicator does not flash when the buttons are pushed, the
battery must be replaced.
Caution
The use of inappropriate batteries may damage the radio frequency remote
control. For this reason, always replace the dead battery with another of the
same size and power.
For the sake of the environment
Used batteries must be disposed of at an appropriate waste facility or
through an authorised service, given that their components can affect the
environment.Synchronising the remote control key
If it is not possible to unlock or lock the door with the remote
control, it should be re-synchronised.While the vehicle is open:
–Press the button ⇒ page 79, fig. 43 on the remote control.
– Then close the vehicle using the key bit within one minute.
While the vehicle is closed:
–Press the button ⇒page 79, fig. 43 on the remote control.
– Then close the vehicle using the key bit within one minute.It is possible that the vehicle could no longer be opened and closed with the
remote control if the button is repeatedly pressed outside of the effective
range of the radio frequency remote control. The remote control key will have
to be resynchronised.
Spare remote control keys are available in your Authorised Service Centres,
where they must be matched to the locking system.
Up to five remote control keys can be used.
WARNING (continued)

A2

A1
IbizaSC_EN.book Seite 80 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking81
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Anti-theft alarm system*Description of anti-theft alarm system*
The anti-theft alarm triggers if unauthorised movements are
detected around the vehicle.The anti-theft alarm makes it more difficult to break into the vehicle or steal
it. The system will initiate acoustic and optical warning signals when your
vehicle is tried to be forced.
The anti-theft alarm system is automatically connected on locking the
vehicle. For this, either rotate the key in the locking position or press button
on the radio-frequency remote control*. The system is immediately
activated and the turn signal light located on the driver door will flash along
with the turn signals, indicating that the alarm and the locking security
system (double lock) have been turned on.
If any of the doors or the bonnet are open, they will not be included in the
protection zones of the vehicle when the alarm is connected. If the door or the
bonnet are subsequently closed, they will be automatically included in the
protection areas of the vehicle and the turn signals will flash accordingly
when the doors close.•The turn signal light will flash twice on opening and deactivating the
alarm.•The turn signal light will flash once on closing and activating the alarm.
When does the system trigger an alarm?
The system triggers an alarm if the following unauthorised actions are carried
out when the car is locked:•Opening of vehicle with mechanical key without switching ignition on
within the next 15 seconds•Opening a door
•Opening the bonnet•Opening the tailgate•Ignition switched on with a non-validated key.•Movements in the driving compartment (vehicles with a volume sensor)•Towing of the vehicle
8)
•Tilt angle (tow-away protection)
8)
•Undue manipulation of the alarm•Battery handling
The acoustic signals sound and the turn signals flash for approx. 30 seconds.
This may be repeated up to 10 times depending on the country.
How to switch the alarm off
To deactivate the anti-theft alarm, turn the key to the opening direction, open
the door and switch the ignition on, or press the unlocking button on the
remote control.
In vehicles equipped with an anti-theft alarm system, you have 15 seconds to
insert the key in the ignition lock and activate the ignition if the vehicle is
opened using the driver door key.
Otherwise, the alarm will trigger for 30 sec. and the ignition will be blocked.Note
•After 28 days, the indicator light will be switched off to prevent the battery
from exhausting if the vehicle has been left parked for a long period of time.
The alarm system remains activated.•The alarm will trigger again if attempts are made to open another protec-
tion zone.•The alarm system can be activated or deactivated using the remote
control. ⇒page 79.
A2
8)With vehicles fitted with a tow-away protection

IbizaSC_EN.book Seite 81 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking
82Interior monitoring and anti-towing alarm*
Monitoring or control function incorporated in the anti-theft
alarm* which detects unauthorized vehicle entry by means of
ultrasound.Activation
– It is connected automatically when the anti-theft alarm is acti-
vated.
Deactivation
– Open the vehicle with the key, either mechanically
9) or by
pressing the button on the remote control.
– Press the button on the remote control twice. The volumetric sensor and tilt sensors will be deactivated. The alarm system
remains activated.
The interior monitoring and the anti-towing alarm are automatically switched
on again next time the vehicle is locked.
The interior monitoring and anti-towing alarm (tilt sensor) are automatically
switched on when the anti-theft alarm is switched on. In order to activate it,
all the doors and the tailgate must be closed.
If you wish to disconnect the interior monitoring and the anti-towing system,
it must be done each time that the vehicle is locked; if not, they will connect
automatically.
The interior monitoring and the anti-towing system should be disconnected
if animals are left inside the locked vehicle (otherwise, their movements will trigger the alarm) or when, for example, the vehicle is transported or has to
be towed with only one axle on the ground.
False alarms
The interior monitoring only operates correctly if the vehicle is completely
closed. Please observe legal requirements when doing so.
The following cases may cause a false alarm:
•opened windows (partially or fully)•panorama/tilting sunroof open (partially or completely).•movement of objects inside the vehicle, such as loose papers, items
hanging from the rear view mirror (air fresheners), etc.Note
•If the vehicle is relocked and the alarm is activated without the volumetric
sensor function, relocking will activate the alarm with all its functions, except
the volumetric sensor. This function is reactivated when the alarm is switched
on again, unless it is deliberately switched off.•If the alarm has been triggered by the volumetric sensor, this will be indi-
cated by a flashing of the indicator on the driver door. The flash is different to
the flash indicating the alarm is activated.•The vibration of a mobile phone left inside the vehicle may cause the inte-
rior monitoring alarm to trigger, as both sensors react to movements and
shakes inside the vehicle.•If on activating the alarm, any door or the tailgate is open, only the alarm
will be activated. The interior monitoring and the anti-towing system will only
be activated once all the doors are closed (including the tailgate).
9)The time period from when the door is opened until the key is inserted in the contact
should not exceed 15 sec., otherwise the alarm will be triggered.


IbizaSC_EN.book Seite 82 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking83
Safety First
Operating Instructions
Practical Tips
Technical Specifications

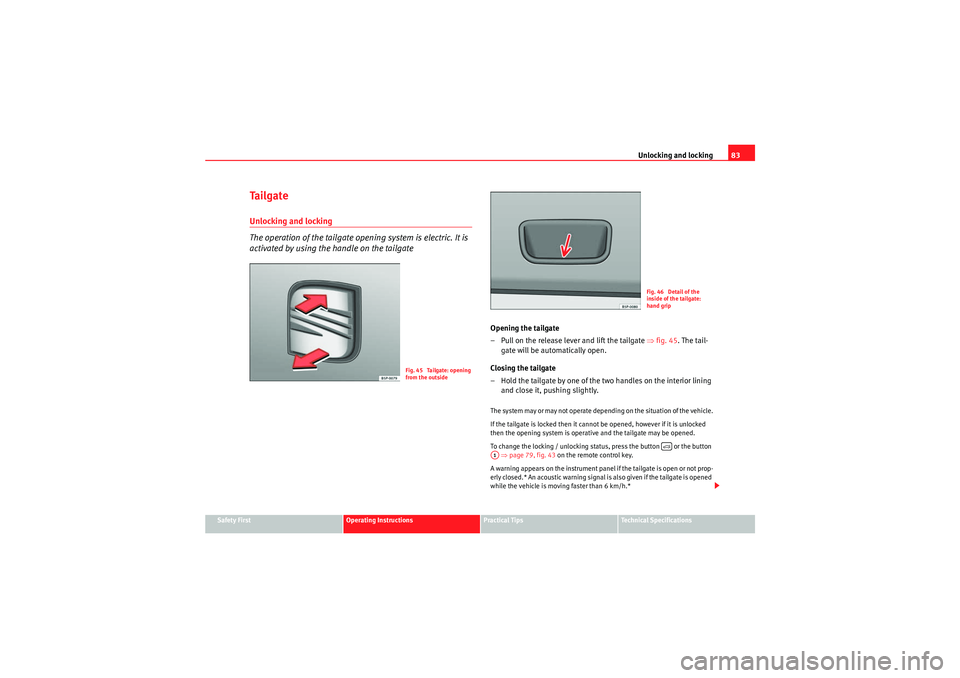

Ta i l g a t eUnlocking and locking
The operation of the tailgate opening system is electric. It is
activated by using the handle on the tailgate
Opening the tailgate
– Pull on the release lever and lift the tailgate ⇒fig. 45 . The tail-
gate will be automatically open.
Closing the tailgate
– Hold the tailgate by one of the two handles on the interior lining and close it, pushing slightly.The system may or may not operate depending on the situation of the vehicle.
If the tailgate is locked then it cannot be opened, however if it is unlocked
then the opening system is operative and the tailgate may be opened.
To change the locking / unlocking status, press the button or the button
⇒ page 79, fig. 43 on the remote control key.
A warning appears on the instrument panel if the tailgate is open or not prop-
erly closed.* An acoustic warning signal is also given if the tailgate is opened
while the vehicle is moving faster than 6 km/h.*
Fig. 45 Tailgate: opening
from the outside
Fig. 46 Detail of the
inside of the tailgate:
hand grip

A1
IbizaSC_EN.book Seite 83 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking
84
WARNING
•Always close the tailgate properly. Risk of accident or injury.•The tailgate must not be opened when the reverse or rear fog lights are
lit. This may damage the tail lights•Do not close the tailgate by pushing it down with your hand on the rear
window. The glass could smash. Risk of injury!•Ensure the tailgate is locked after closing it. If not, it may open unex-
pectedly while driving.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.•Closing the tailgate without observing and ensuring it is clear could
cause serious injury to you and to third parties. Make sure that no one is in
the path of the tailgate.•Never drive with the tailgate open or half-closed, exhaust gases may
penetrate into the interior of the vehicle. Danger of poisoning!•If you only open the tailgate, do not leave the key inside. The vehicle
will not be opened if the key is left inside.

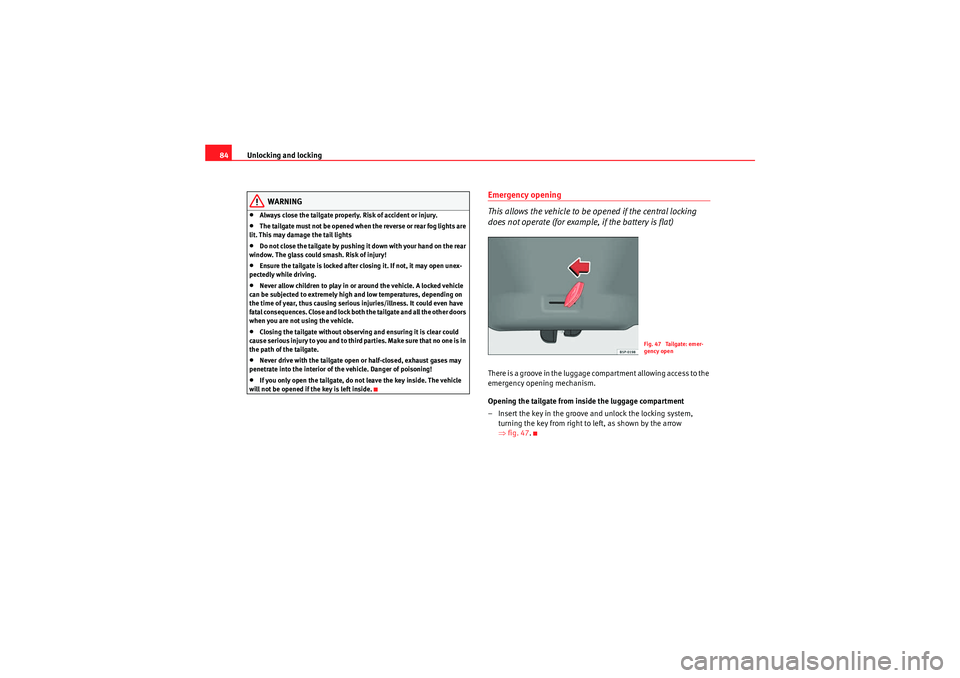

Emergency opening
This allows the vehicle to be opened if the central locking
does not operate (for example, if the battery is flat)There is a groove in the luggage compartment allowing access to the
emergency opening mechanism.
Opening the tailgate from inside the luggage compartment
– Insert the key in the groove and unlock the locking system, turning the key from right to left, as shown by the arrow
⇒fig. 47 .
Fig. 47 Tailgate: emer-
gency open
IbizaSC_EN.book Seite 84 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking85
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Windows Opening or closing the windows electrically*
All electric windows can be operated using the controls on the
driver door.Opening and closing the windows
– Press the button to open the window.
– Pull button to close the window ⇒.Always close the windows fully if you park the vehicle or leave it unattended
⇒.
You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened and the key has not been removed from the ignition. Buttons on the driver door
Button for window in front left door
Button for window in front right door
WARNING
•Incorrect use of the electric windows can result in injury.•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. The misuse of the keys, for example, by chil-
dren, may result in serious injury and accident.•The engine may accidentally be started and be out of control.•If the ignition is switched on, the electric equipment could be activated
with risk of injury, for example, in the electric windows.•The doors can be locked using the remote control key. This could make
the aid difficult in an emergency situation.•Always take the key with you when you leave the vehicle.•The electric windows are only deactivated on switching the ignition off
and opening any of the doors.Note
If the window is not able to close because it is stiff or because of an obstruc-
tion, the window will automatically open again ⇒ page 86. If this happens,
check why the window could not be closed before attempting to close it
again.
Fig. 48 Detail of the
driver door: controls for
the front windows.
p
p
A1A2
IbizaSC_EN.book Seite 85 Donnerstag, 2. September 2010 6:10 18

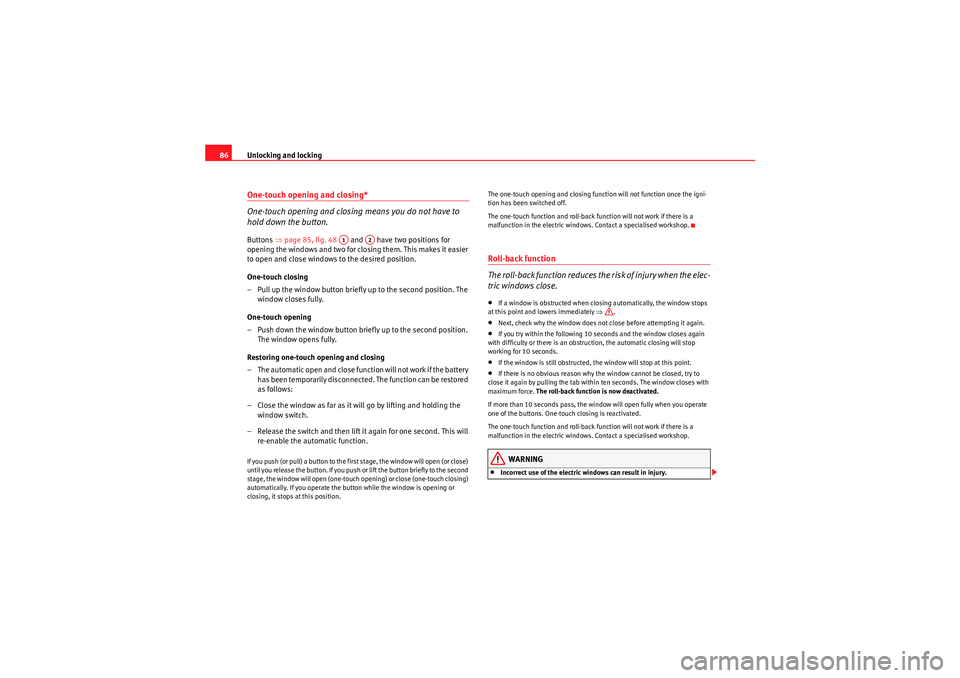

Unlocking and locking
86One-touch opening and closing*
One-touch opening and closing means you do not have to
hold down the button.Buttons ⇒page 85, fig. 48 and have two positions for
opening the windows and two for closing them. This makes it easier
to open and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the second position. The window closes fully.
One-touch opening
– Push down the window button briefly up to the second position. The window opens fully.
Restoring one-touch opening and closing
– The automatic open and close function will not work if the battery has been temporarily disconnected. The function can be restored
as follows:
– Close the window as far as it will go by lifting and holding the window switch.
– Release the switch and then lift it again for one second. This will re-enable the automatic function.If you push (or pull) a button to the first stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
s t a ge , t h e wi n d o w w i ll o p e n ( o n e - t o u ch o p e n i ng ) o r c l o s e ( o n e - t o u ch c l o s i n g )
automatically. If you operate the button while the window is opening or
closing, it stops at this position. The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact a specialised workshop.
Roll-back function
The roll-back function reduces the risk of injury when the elec-
tric windows close.•If a window is obstructed when closing automatically, the window stops
at this point and lowers immediately ⇒.•Next, check why the window does not close before attempting it again.•If you try within the following 10 seconds and the window closes again
with difficulty or there is an obstruction, the automatic closing will stop
working for 10 seconds.•If the window is still obstructed, the window will stop at this point.•If there is no obvious reason why the window cannot be closed, try to
close it again by pulling the tab within ten seconds. The window closes with
maximum force. The roll-back function is now deactivated.
If more than 10 seconds pass, the window will open fully when you operate
one of the buttons. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact a specialised workshop.WARNING
•Incorrect use of the electric windows can result in injury.
A1
A2
IbizaSC_EN.book Seite 86 Donnerstag, 2. September 2010 6:10 18

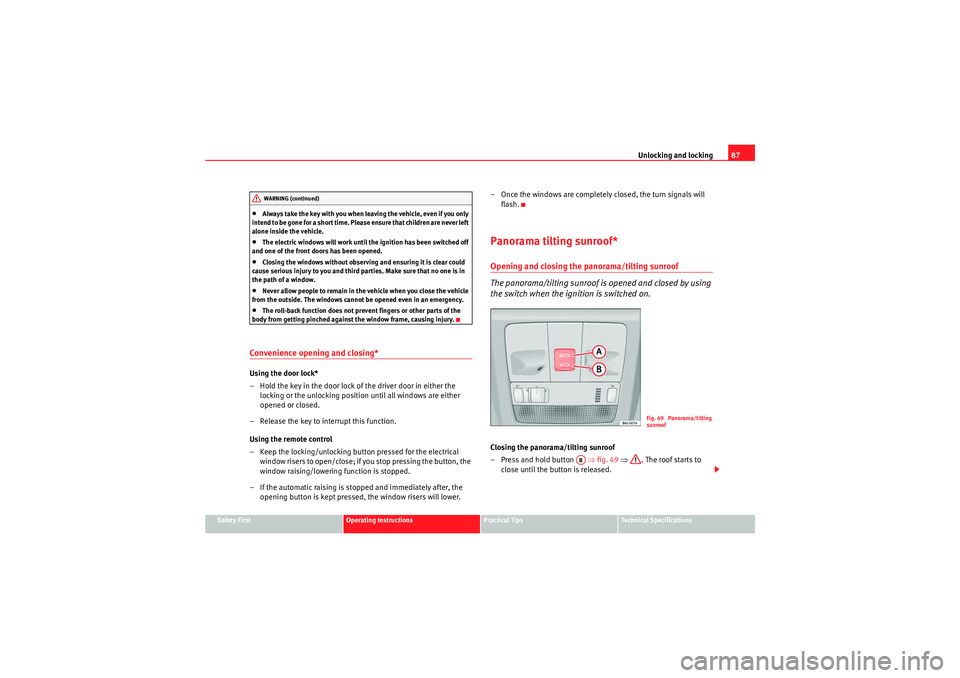

Unlocking and locking87
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
alone inside the vehicle.•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.•Closing the windows without observing and ensuring it is clear could
cause serious injury to you and third parties. Make sure that no one is in
the path of a window.•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.•The roll-back function does not prevent fingers or other parts of the
body from getting pinched against the window frame, causing injury.
Convenience opening and closing* Using the door lock*
– Hold the key in the door lock of the driver door in either the locking or the unlocking position until all windows are either
opened or closed.
– Release the key to interrupt this function.
Using the remote control
– Keep the locking/unlocking button pressed for the electrical window risers to open/close; if you stop pressing the button, the
window raising/lowering function is stopped.
– If the automatic raising is stopped and immediately after, the opening button is kept pressed, the window risers will lower. – Once the windows are completely closed, the turn signals will
flash.
Panorama tilting sunroof*Opening and closing the pa norama/tilting sunroof
The panorama/tilting sunroof is opened and closed by using
the switch when the ignition is switched on.Closing the panorama/tilting sunroof
– Press and hold button ⇒fig. 49 ⇒ . The roof starts to
close until the button is released.
WARNING (continued)
Fig. 49 Panorama/tilting
sunroof
AB
IbizaSC_EN.book Seite 87 Donnerstag, 2. September 2010 6:10 18

Unlocking and locking
88
Opening the panorama/tilting sunroof
– Press and hold down button . The roof starts opening until the button is released.
Automatic closing of the panorama/tilting sunroof
– Press button once only; the sunroof starts closing automati- cally until it is completely closed.
Automatic opening of the panorama/ tilting sunroof
– Press button once only. The sunroof starts opening automat- ically until it is completely open.
Restoring one-touch opening and closing
– Close the sunroof manually until it is completely closed. Release the button
– Press the closing button again, keeping it pressed down, until a complete opening and closing cycle has taken place.Always close the panorama/tilting sunroof fully if you park the vehicle or
leave it unattended ⇒.
The tilting sunroof can be operated for up to about ten minutes after the igni-
tion has been switched off, provided the driver door and the front passenger
door are not opened.
Sun visor
The sun visor is opened and closed manually (independently of the sliding/
tilting sunroof).
WARNING
•Incorrect use of the tilting sunroof can result in injury.
•Never close the tilting sunroof without first checking that there are no
obstructions. Risk of serious injury to you or others. Make sure that no one
is in the path of the tilting sunroof.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
tilting sunroof) with a risk of accident. The doors can be locked using the
remote control key. This could make the aid difficult in an emergency situ-
ation.•The tilting sunroof continues to function until one of the front doors is
opened and the key removed from the ignition.•Ensure that no object and/or end is between the glass and the sunroof
when the one-touch opening/closing function is reset.
Convenience closing* Using the door lock
– Hold the key in the door lock of the driver door in the locking position until the tilting sunroof is closed.
– Release the key to interrupt this function.
Using the remote control
– Push the lock button on the remote control for about 3 seconds. The tilting sunroof closes.
– Press the unlock button to interrupt the function.
AA
ABAA
WARNING (continued)
IbizaSC_EN.book Seite 88 Donnerstag, 2. September 2010 6:10 18
