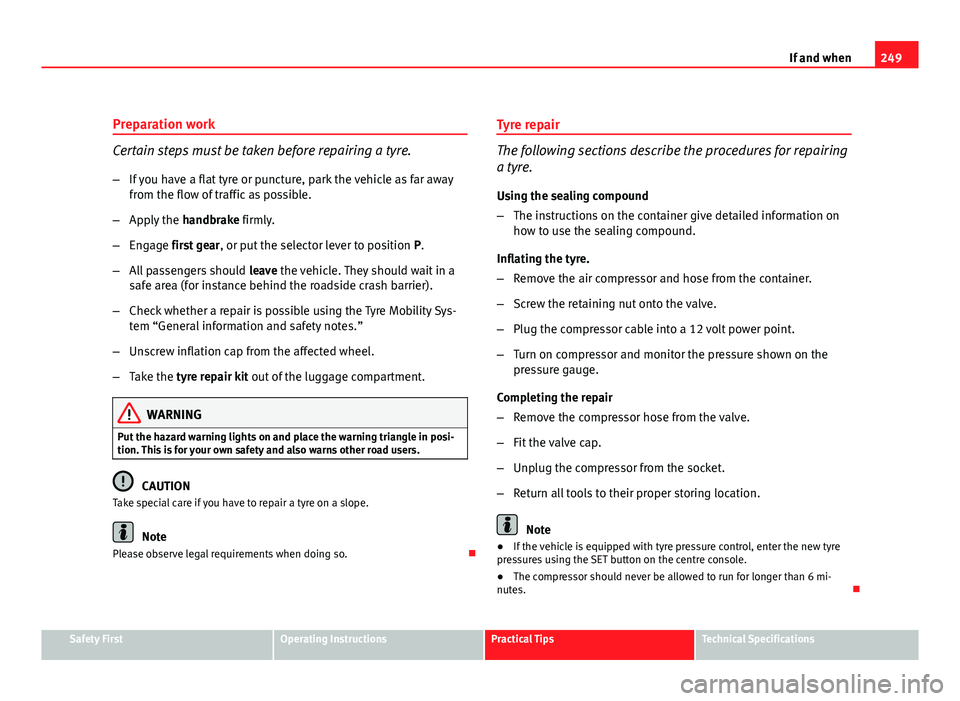

Seat Leon 5D 2011  Owners manual 249
If and when
Preparation work
Certain steps must be taken before repairing a tyre.
– If you have a flat tyre or puncture, park the vehicle as far away
from the flow of traffic as possible.
– Ap

Page 252 of 302

Seat Leon 5D 2011  Owners manual 250If and when
Fuses
Changing a fuse
Blown fuses must be replaced
Fig. 160  Left side of
dash panel: Fuse box cov-
er
Fig. 161  Fuse box cover
in engine compartment Fuse cover underneath the steering

Page 253 of 302

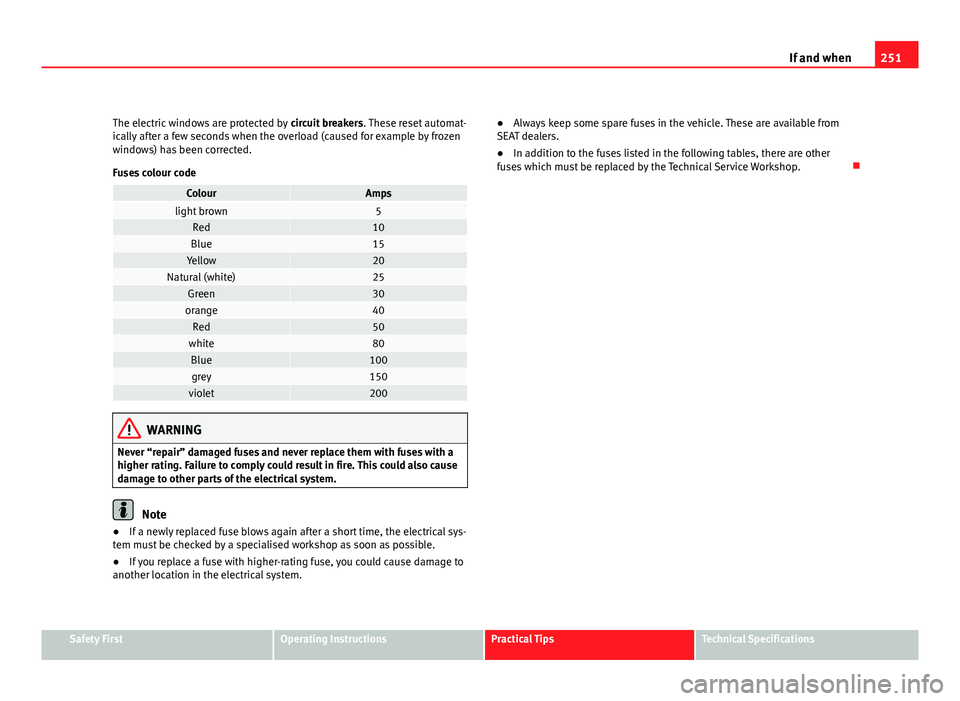

Seat Leon 5D 2011  Owners manual 251
If and when
The electric windows are protected by  circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Fu

Page 254 of 302

Seat Leon 5D 2011  Owners manual 252If and when
Fuses on left side of dash panel
Fuses
NumberConsumerAmps
1Diagnosis Switchboard/ Instrument lighting/
Headlight control switchboard/ Flow meter/ Heat-
ed wipers/ Engine management/ AFS

Page 255 of 302

Seat Leon 5D 2011  Owners manual 253
If and when
NumberConsumerAmps48Engine management1049Vacant
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above l

Page 256 of 302

Seat Leon 5D 2011  Owners manual 254If and when
Bulb change
General notes
Before changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a re-
duction in the bul

Page 257 of 302

Seat Leon 5D 2011  Owners manual 255
If and when
Number plate light
● Number plate light – C5W
Glove compartment lamp
● Glove compartment light – W5W
Note
● Depending on weather conditions (cold or wet), the front lights, t

Page 258 of 302

Seat Leon 5D 2011  Owners manual 256If and when
Turn signal bulbs
Fig. 163  Turn signal
– Raise the bonnet.
– Rotate the bulb holder ⇒ fig. 163  A
 to the left and pull.
– Remove the bulb by pressing on the bulb holder and

Page 259 of 302

Seat Leon 5D 2011  Owners manual 257
If and when
– Remove the connector ⇒ fig. 165  2
 from the bulb.
– Unclip the retainer spring ⇒ fig. 165  3
 pressing inwards to the
right.
– Extract the bulb and fit the replacement

Page 260 of 302

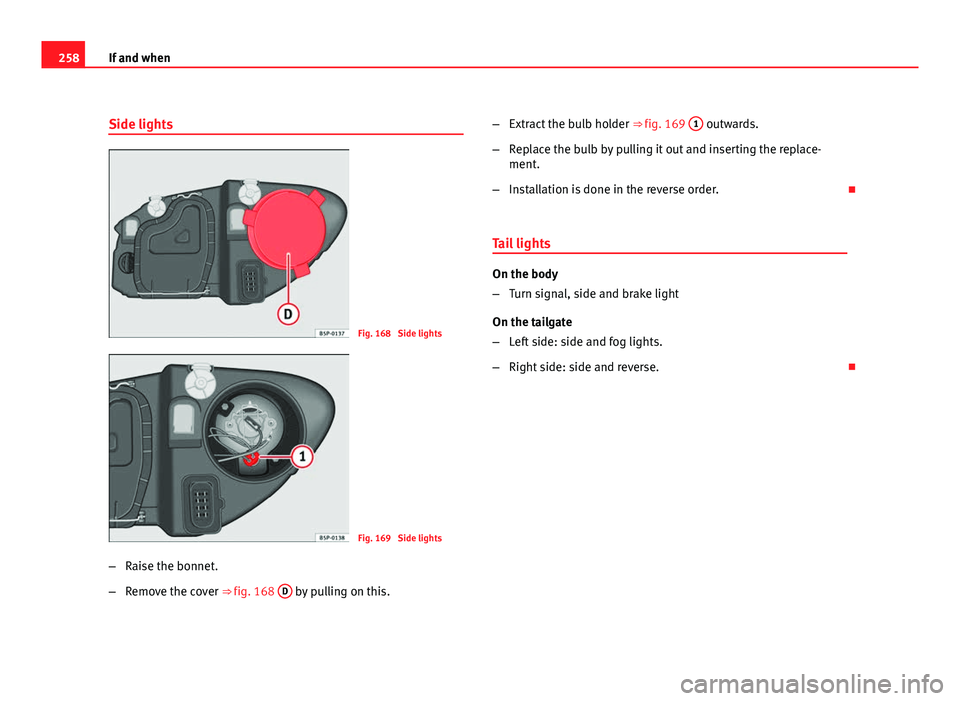

Seat Leon 5D 2011  Owners manual 258If and when
Side lights
Fig. 168  Side lights
Fig. 169  Side lights
– Raise the bonnet.
– Remove the cover ⇒ fig. 168  D
 by pulling on this. –
Extract the bulb holder  ⇒ fig. 169 1
