Checking and refilling levels
Brake fluid Checking the brake fluid level
The brake fluid is checked at the intervals given in the serv-
ice schedule.
Fig. 151 In the engine
compartment: Brake fluid
reservoir cover
– Read off the fluid level at the transparent brake fluid reservoir. It
should always be between the “MIN” and “MAX” marks.
The position of the brake fluid reservoir is shown in the corresponding en-
gine compartment illustration ⇒ page 273. The brake fluid reservoir has a
black and yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
However, if the level goes down noticeably in a short time, or drops below
the “MIN” mark, there may be a leak in the brake system. A display on the
instrument panel will warn you if the brake fluid level is too low ⇒ page 77.
WARNING
Before opening the bonnet to check the brake fluid level, read and ob-
serve the warnings ⇒ page 217.

Changing the brake fluid
The Maintenance Programme indicates the brake fluid
change intervals. We recommend that you have the brake fluid changed by an Authorised
Service Centre.
Before opening the bonnet, please read and follow the warnings ⇒ 
in
Safety instructions on working in the engine compartment on page 217 in
section “Safety notes for working in the engine compartment”.
Brake fluid absorbs moisture. In the course of time, it will absorb water from
the ambient air. If the water content in the brake fluid is too high, the brake
system could corrode. This also considerably reduces the boiling point of
the brake fluid. Heavy use of the brakes may then cause a vapour lock
which could impair the braking effect.
It is important that you use only brake fluid compliant with US standard
FMVSS 116 DOT 4. We recommend the use of Genuine SEAT brake fluid.
WARNING
Brake fluid is poisonous. Old brake fluid impairs the braking effect.
● Before opening the bonnet to check the brake fluid level, read and ob-
serve the warnings ⇒ page 217. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

231
Checking and refilling levels
WARNING (Continued)
● Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alarm will otherwise be triggered.
● When disconnecting the battery from the vehicle electrical system,
disconnect first the negative cable and then the positive cable.
● Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never re-
verse the polarity of the connections. This could cause an electrical fire.
● Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0°C.
● Ensure that the vent hose is always connected to the battery.
● Never use a defective battery. This could cause an explosion. Replace
a damaged battery immediately.
CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponents.
● Do not expose the battery to direct sunlight over a long period of time,
as the intense ultraviolet radiation can damage the battery housing.
● If the vehicle is left standing in cold conditions for a long period, protect
the battery from freezing. If it freezes it will be damaged. Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries.
– Open the engine bonnet and the battery cover ⇒ 
in Safety in-
structions on working in the engine compartment on page 217
⇒ 
in Warnings on handling the battery on page 230.
– Check the colour display in the "magic eye" on the top of the
battery.
– If there are air bubbles in the window, tap the window gently
until they disperse.
The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒ page 273.
The “magic eye” indicator, located on the top of the battery changes colour,
depending on the charge state and electrolyte level of the battery.
There are two different colours:
● Black: correct charge status.
● Transparent/clear yellow: the battery must be replaced. Contact a spe-
cialist workshop. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

234Wheels and tyres
2. The tyre pressures should only be checked when the tyres are
cold. The slightly raised pressures of warm tyres must not be re-
duced.
3. Adjust the tyre pressure to the load you are carrying.
Tyre pressure
The correct tyre pressure is especially important at high speeds. The pres-
sure should therefore be checked at least once a month and before starting
a journey.
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given are for cold tyres. Do not reduce
the slightly raised pressures of warm tyres ⇒ 
.
WARNING
● Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low,
there is an increased danger of accidents - particularly at high speeds.
● A tyre can easily burst if the pressure is too low, causing an accident!
● At continuously high speeds, a tyre with insufficient pressure flexes
more. In this way it becomes too hot, and this can cause tread separation
and tyre blow-out. Always observe the recommended tyre pressures.
● If the tyre pressure is too low or too high, the tyres will wear prema-
turely and the vehicle will not handle well. Risk of accident!
For the sake of the environment
Under-inflated tyres will increase fuel consumption. Tyre pressure monitoring
The tyre pressure monitoring system constantly checks the
pressure of the tyres.
The system uses the speed sensors of the ABS wheels. It operates by analy-
sing the speed and frequency spectrum of each wheel.
For optimum performance, use genuine SEAT tyres. In addition, check and
adjust tyre pressures regularly.
Whenever the tyre pressures are changed or one or more tyres are changed,
the system should be Reset by pressing the SET switch on the centre con-
sole.
The system warns the driver in the event of a loss of pressure by means of
symbols and messages in the instrument panel display. The system uses
ESC (ESP) ⇒ page 184.
Note that tyre pressure also depends on tyre temperature. Tyre pressure in-
creases about 0.1 bar for each 10°C in tyre temperature increase. The tyre
heats up while the vehicle is being driven and the tyre pressure will rise ac-
cordingly. For this reason, you should only adjust the tyre pressures when
they are cold (i.e. approximately at ambient temperature).
To ensure that the tyre pressure monitoring system works reliably, you
should check and, if necessary, adjust the tyre pressures at regular intervals
and store the correct pressures (reference values) in the system.
A tyre pressure information label is attached to the inside of the fuel tank
flap. 

235
Wheels and tyres
WARNING
● Never adjust tyre pressure when the tyres are hot. This may damage
or even burst the tyres. Risk of accident!
● An insufficiently inflated tyre flexes a lot more at high speeds and
causes significant heating of the tyre. Under these conditions, the tyre
bead may be released or the tyre may burst. Risk of accident!
For the sake of the environment
Under-inflated tyres lead to increased fuel consumption and tyre wear. 
Significant tyre pressure loss
The tyre symbol  is displayed and indicates that the tyre pressure
of at least one tyre is insufficient.
– Stop the vehicle.
– Switch the engine off.
– Check the tyre(s).
– Change the wheel if necessary. Tyre service life
The service life of tyres is dependent on tyre pressure, driv-
ing style and fitting.
Fig. 152 Tyre tread wear
indicators
Fig. 153 Diagram for
changing wheels

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

237
Wheels and tyres

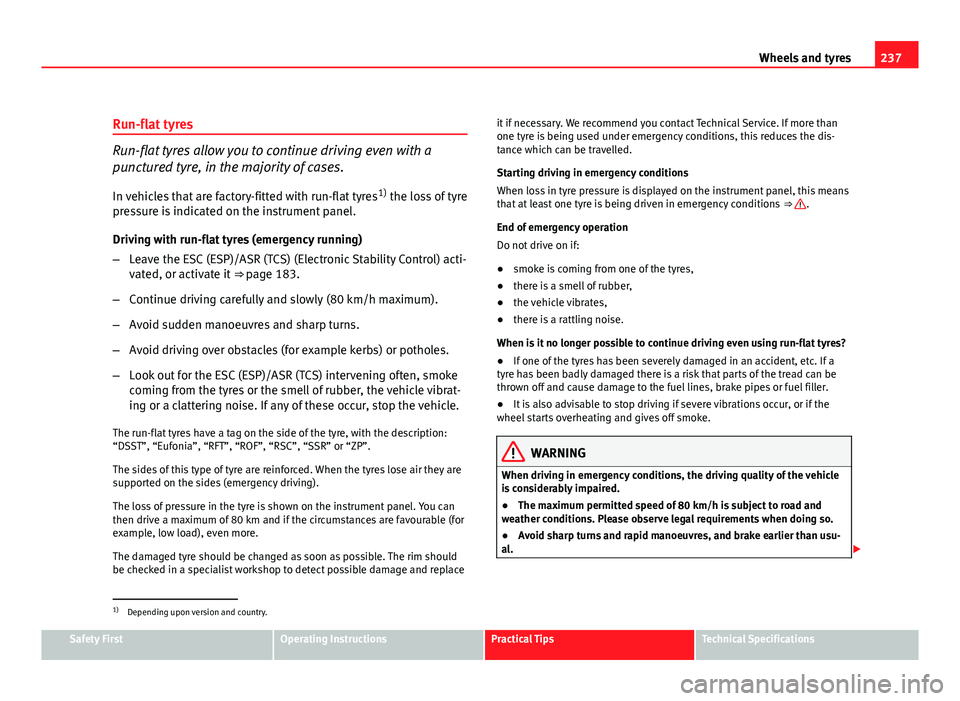

Run-flat tyres
Run-flat tyres allow you to continue driving even with a
punctured tyre, in the majority of cases.
In vehicles that are factory-fitted with run-flat tyres 1)
the loss of tyre
pressure is indicated on the instrument panel.
Driving with run-flat tyres (emergency running)
– Leave the ESC (ESP)/ASR (TCS) (Electronic Stability Control) acti-
vated, or activate it ⇒ page 183.
– Continue driving carefully and slowly (80 km/h maximum).
– Avoid sudden manoeuvres and sharp turns.
– Avoid driving over obstacles (for example kerbs) or potholes.
– Look out for the ESC (ESP)/ASR (TCS) intervening often, smoke
coming from the tyres or the smell of rubber, the vehicle vibrat-
ing or a clattering noise. If any of these occur, stop the vehicle.
The run-flat tyres have a tag on the side of the tyre, with the description:
“DSST”, “Eufonia”, “RFT”, “ROF”, “RSC”, “SSR” or “ZP”.
The sides of this type of tyre are reinforced. When the tyres lose air they are
supported on the sides (emergency driving).
The loss of pressure in the tyre is shown on the instrument panel. You can
then drive a maximum of 80 km and if the circumstances are favourable (for
example, low load), even more.
The damaged tyre should be changed as soon as possible. The rim should
be checked in a specialist workshop to detect possible damage and replace it if necessary. We recommend you contact Technical Service. If more than
one tyre is being used under emergency conditions, this reduces the dis-
tance which can be travelled.
Starting driving in emergency conditions
When loss in tyre pressure is displayed on the instrument panel, this means
that at least one tyre is being driven in emergency conditions
⇒ 
.
End of emergency operation
Do not drive on if:
● smoke is coming from one of the tyres,
● there is a smell of rubber,
● the vehicle vibrates,
● there is a rattling noise.
When is it no longer possible to continue driving even using run-flat tyres?
● If one of the tyres has been severely damaged in an accident, etc. If a
tyre has been badly damaged there is a risk that parts of the tread can be
thrown off and cause damage to the fuel lines, brake pipes or fuel filler.
● It is also advisable to stop driving if severe vibrations occur, or if the
wheel starts overheating and gives off smoke.
WARNING
When driving in emergency conditions, the driving quality of the vehicle
is considerably impaired.
● The maximum permitted speed of 80 km/h is subject to road and
weather conditions. Please observe legal requirements when doing so.
● Avoid sharp turns and rapid manoeuvres, and brake earlier than usu-
al. 
1)
Depending upon version and country.
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

254If and when
Bulb change
General notes
Before changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a re-
duction in the bulb life and condensation on the mirror surface, thus reduc-
ing efficiency.
A bulb should only be replaced by one of the same type. The type is inscri-
bed on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
● Dipped beam – H7
● Main beam – H1
● Side light – W5W
● Turn signal – PY21W Xenon headlights
1)
/adaptive*
● Dipped and main beam – D1S 2)
● DRL – P21W SLL
● Side light – W5W
● Turn signals – PY21W
Fog lights
● Fog light – HB4
Fixed tail light
● Stop/Side light – P21W 3)
or LED module 4)
● Turn signal – P21W
Mobile tailgate light
● Fog light (driver side) – P21W
● Reverse (passenger side) – P21W
● Side light – W5W or LED module 4)
Side turn signal
● Turn signal repeater – W5W 
1)
On this type of headlight, the bulb changes must be made by the SEAT dealer, given that
complex elements must be removed from the vehicle and a reset must be made on the
automatic control system incorporated.
2) The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5 times
more than that of halogen bulbs, this means that, except due to unusual circumstances,
there is no need to change the bulbs for the whole life of the vehicle.
3) Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it will
not work in either position or Stop.
4) Only in the LED light models. The LED modules cannot be replaced. The other lights, turn
signal light, fog light and reverse light can be replaced. If the warning lamp for the brake
light or side light (LED lights) lights up, the tail light assembly should be replaced. The fail-
ure of the lamp is only shown when the LED function goes out completely. Sometimes, a
LED will stop working, without displaying the warning as the function continues to operate.

Correct sitting positionFront passenger . . . . . . . . . . . . . . . . . . . . . . 12
Incorrect sitting position . . . . . . . . . . . . . . . 15
Cruise control warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Cruise control system . . . . . . . . . . . . . . . . . . . . 178
Cruise control* Complete system deactivation . . . . . . . . . 180
Cruise speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 42
D Danger of fitting a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . 205
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . 117
Deactivating front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 45
Deactivating the airbag Front passenger airbag . . . . . . . . . . . . . . . . 44
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . 216
Diesel engine particulate filter . . . . . . . . . . . . 191
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . 185 Differential lock fault (EDL)
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 89
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Dipped beam headlights . . . . . . . . . . . . . . . . . 115
Display (without warning or information texts) 61
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 29
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 203
Door release lever . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . 102
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Driver see Correct sitting position . . . . . . . 10, 11, 12
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Drive wheels traction control system . . . . . . . 183
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . 194
Economically / Environmentally friendly . 191
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . 196
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 194 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 194
Driving programmes . . . . . . . . . . . . . . . . . . . . 168
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automatic gearbox / DSG auto- matic gearbox* . . . . . . . . . . . . . . . . . . . . . . . 169
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . 103
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Dynamic cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120Dynamic headlight range control . . . . . . . . . . 119
E
Economical driving . . . . . . . . . . . . . . . . . . . . . . 191
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 84
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . 141
Electric power steering Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Electronic differential lock . . . . . . . . . . . . . . . . 185 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 84
Electronic immobiliser . . . . . . . . . . . . . . . . 90, 160
Electronic Stability Control . . . . . . . . . . . . . . . 184 Description . . . . . . . . . . . . . . . . . . . . . . . . . 158
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 89
Emergency braking warning . . . . . . . . . . 121, 182
Emergency manual locking . . . . . . . . . . . . . . . 101
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Emission control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 189
Engine compartment Working in the engine compartment . . . . 217
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 83
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 83
293
Index

Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Checking engine oil level . . . . . . . . . . . . . . 221
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 221
Specifications . . . . . . . . . . . . . . . . . . . . . . . 220
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 222
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 221
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . 66, 87
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Environmental friendliness . . . . . . . . . . . . 193
Environmentally friendly driving . . . . . . . . . . . 191
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 211
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . 89, 158, 184 see also Electronic Stability Control . . . . . 158
ESP see ESC . . . . . . . . . . . . . . . . . . . . 89, 158, 184
Example of menu use Program a speed limit warning . . . . . . . . . . 69
To activate and deactivate the speed limitwarning . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Example of the use of the menus Open the Configuration menu with the MFIlever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Open the Configuration menu with the steering wheel controls . . . . . . . . . . . . . . 69
Examples of menu use Open the main menu . . . . . . . . . . . . . . . . . . 68
Open the winter tyres menu . . . . . . . . . . . . 69
To close the winter tyres menu . . . . . . . . . . 69
Exhaust gas purification system . . . . . . . . . . . 190
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 202 F
Fabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 206
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 142
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Flexible service interval display . . . . . . . . . . . . 62
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Fog lights with cornering function . . . . . . . . . 120
Fold down the backrest . . . . . . . . . . . . . . . . . . 137
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front drink holders . . . . . . . . . . . . . . . . . . . . . . 139
Front interior light Switching off . . . . . . . . . . . . . . . . . . . . . . . . 123
Switching on . . . . . . . . . . . . . . . . . . . . . . . . 123
Front passenger airbag deactivation . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . 124
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . 135
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 270
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Warning message . . . . . . . . . . . . . . . . . . . . . 67 Fuel tank
see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 81
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 210
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
G
G 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 167
General overview of the engine compartment 273
Glove compartment . . . . . . . . . . . . . . . . . . . . . 138
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 161 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 83
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 173
Hazard warning lights . . . . . . . . . . . . . . . . . . . 120
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . 122
Headlight range control . . . . . . . . . . . . . . . . . . 119
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . 194
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Headlight washer system* . . . . . . . . . . . . 128
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . 133, 134
294 Index

Adjustment of the head restraint angle . . 134
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Heated front seats . . . . . . . . . . . . . . . . . . . . . . 136
Heated rear window 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 152
Heating element wires . . . . . . . . . . . . . . . . 203
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
High pressure cleaners . . . . . . . . . . . . . . . . . . 201
Hill-start aid . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
How to jump start description . . . . . . . . . . . . . 264
Hydraulic Brake Assist . . . . . . . . . . . . . . . . . . . 182
I
Identification number . . . . . . . . . . . . . . . . . . . 270
Identification plate . . . . . . . . . . . . . . . . . . . . . . 270
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Information in the multifunction display Memory displays . . . . . . . . . . . . . . . . . . . . . 64
Information messages in the display . . . . . . . . 66
Instrument and switch lighting . . . . . . . . . . . . 119
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . 55
Instrument panel menu Lights and visibility menu . . . . . . . . . . . . . . 76
Instrument panel menus Configuration menu . . . . . . . . . . . . . . . . . . . 74
Example of menu use . . . . . . . . . . . . . . . . . . 68
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Vehicle status menu . . . . . . . . . . . . . . . . . . . 74
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Intermittent wipe, windscreen . . . . . . . . . . . . . 126
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
J
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
L
Leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 206
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Load compartment in the luggage compart- ment
see Loading the luggage compartment . . . 16
Loading the luggage compartment . . . . . . . . . . 16
Locker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
LPG . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 163, 212
LPG system Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Filler neck adapter . . . . . . . . . . . . . . . . . . . 214
Level indicator . . . . . . . . . . . . . . . . . . . . . . . 60
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Luggage compartment . . . . . . . . . . . . . . . . . . . 143 see also Loading the luggage compartment . .16 M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . 115, 122
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 83
Main headlight bulbs . . . . . . . . . . . . . . . . . . . . 255
Maintenance Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Maintenance and cleaning . . . . . . . . . . . . . . . 199
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 167
Manual mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 154
MEDIA-IN connector . . . . . . . . . . . . . . . . . . . . . 142
MFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 130
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 129
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . 125
Mobile phones and two-way radios . . . . . . . . 209
Multifunction display . . . . . . . . . . . . . . . . . . . . . 63
N
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 19
O
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 215
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
295
Index

Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . 221
One-touch opening and closingElectric windows . . . . . . . . . . . . . . . . . . . . . 111
Opening and locking . . . . . . . . . . . . . . . . . . . . 108
Outside temperature display . . . . . . . . . . . . 65, 73
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 77
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . 79
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . 57
Warning lamps . . . . . . . . . . . . . . . . . . . . 77, 79
P Paintwork Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Parking system . . . . . . . . . . . . . . . . . . . . . . . . . 175
Parking system plus . . . . . . . . . . . . . . . . . . . . . 176
Passenger see Correct sitting position . . . . . . . 10, 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Driving abroad . . . . . . . . . . . . . . . . . . . . . . 194
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . 216
Physical principles of a frontal collision . . . . . . 21
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 205
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . 187 Products for vehicle maintenance . . . . . . . . . . 199
R Radio frequency remote control . . . . . . . . . . . 104 Changing the battery . . . . . . . . . . . . . . . . . 105
Radio navigation steering wheel controls Audio version . . . . . . . . . . . . . . . . . . . . . . . . 95
Audio + telephone version . . . . . . . . . . . . . . 95
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Rear fog light Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 82
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 115
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 124
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 124
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Rear window automatic wiper/washer . . . . . . 128
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 128
Recommended gear display . . . . . . . . . . . . . . . 62
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Registration light . . . . . . . . . . . . . . . . . . . . . . . 262
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 105
Removing and fitting the wheel . . . . . . . . . . . 247
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacement keys . . . . . . . . . . . . . . . . . . . . . . 103
Replacement of parts . . . . . . . . . . . . . . . . . . . . 208
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Reverse gear
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 167
Roll-back function Sliding/tilting sunroof . . . . . . . . . . . . . . . . 114
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Run-flat tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Running in Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
S Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . 82
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Deactivating front passenger airbag . . . . . . 45
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 37
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 29
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using child seats . . . . . . . . . . . . . . . . . . . . . 46
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 23
Safety system - Safe . . . . . . . . . . . . . . . . . . . . . . 98
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Seat adjustment . . . . . . . . . . . . . . . . . . . . 132, 135
Seat belt cleaning . . . . . . . . . . . . . . . . . . . . . . 207
296 Index
