technical specifications Seat Mii 2013 Owner's manual

277
Practical information

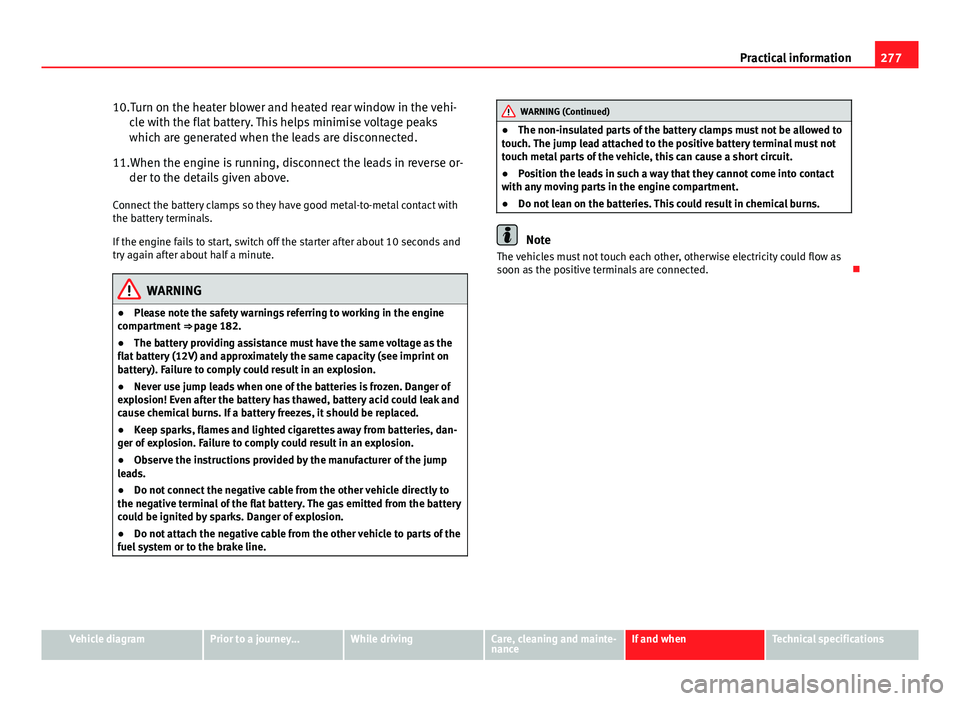

10.Turn on the heater blower and heated rear window in the vehi- cle with the flat battery. This helps minimise voltage peaks
which are generated when the leads are disconnected.
11.When the engine is running, disconnect the leads in reverse or- der to the details given above.
Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
WARNING
● Please note the safety warnings referring to working in the engine
compartment ⇒ page 182.
● The battery providing assistance must have the same voltage as the
flat battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
● Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
● Keep sparks, flames and lighted cigarettes away from batteries, dan-
ger of explosion. Failure to comply could result in an explosion.
● Observe the instructions provided by the manufacturer of the jump
leads.
● Do not connect the negative cable from the other vehicle directly to
the negative terminal of the flat battery. The gas emitted from the battery
could be ignited by sparks. Danger of explosion.
● Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
WARNING (Continued)
● The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
● Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
● Do not lean on the batteries. This could result in chemical burns.
Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

279
Practical information

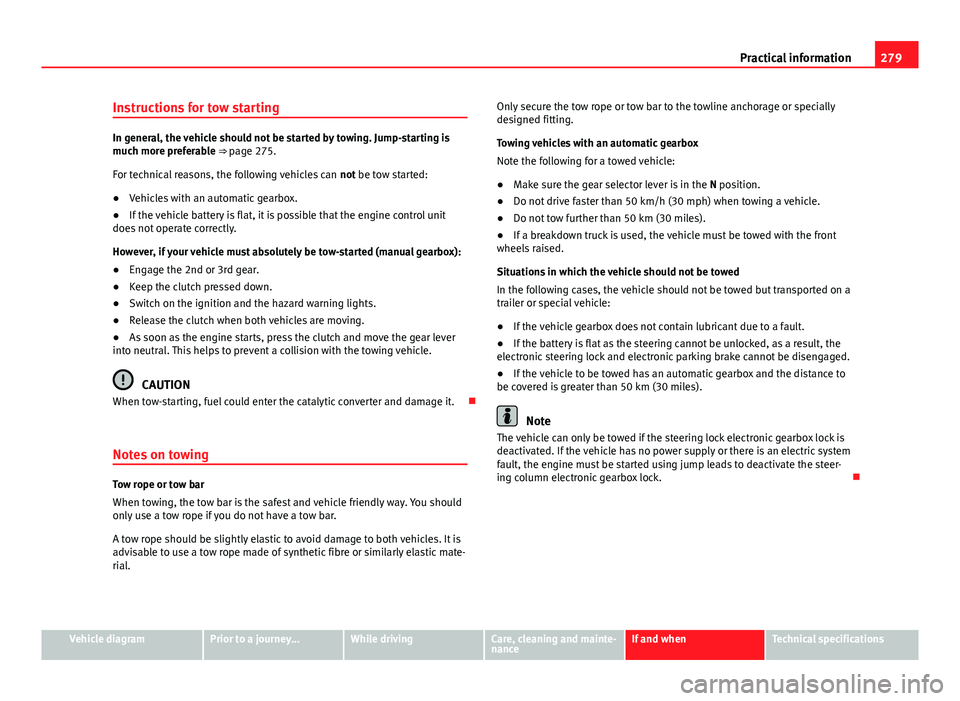

Instructions for tow starting
In general, the vehicle should not be started by towing. Jump-starting is
much more preferable ⇒  page 275.
For technical reasons, the following vehicles can not be tow started:
● Vehicles with an automatic gearbox.
● If the vehicle battery is flat, it is possible that the engine control unit
does not operate correctly.
However, if your vehicle must absolutely be tow-started (manual gearbox):
● Engage the 2nd or 3rd gear.
● Keep the clutch pressed down.
● Switch on the ignition and the hazard warning lights.
● Release the clutch when both vehicles are moving.
● As soon as the engine starts, press the clutch and move the gear lever
into neutral. This helps to prevent a collision with the towing vehicle.
CAUTION
When tow-starting, fuel could enter the catalytic converter and damage it. 
Notes on towing
Tow rope or tow bar
When towing, the tow bar is the safest and vehicle friendly way. You should
only use a tow rope if you do not have a tow bar.
A tow rope should be slightly elastic to avoid damage to both vehicles. It is
advisable to use a tow rope made of synthetic fibre or similarly elastic mate-
rial. Only secure the tow rope or tow bar to the towline anchorage or specially
designed fitting.
Towing vehicles with an automatic gearbox
Note the following for a towed vehicle:
●
Make sure the gear selector lever is in the N position.
● Do not drive faster than 50 km/h (30 mph) when towing a vehicle.
● Do not tow further than 50 km (30 miles).
● If a breakdown truck is used, the vehicle must be towed with the front
wheels raised.
Situations in which the vehicle should not be towed
In the following cases, the vehicle should not be towed but transported on a
trailer or special vehicle:
● If the vehicle gearbox does not contain lubricant due to a fault.
● If the battery is flat as the steering cannot be unlocked, as a result, the
electronic steering lock and electronic parking brake cannot be disengaged.
● If the vehicle to be towed has an automatic gearbox and the distance to
be covered is greater than 50 km (30 miles).
Note
The vehicle can only be towed if the steering lock electronic gearbox lock is
deactivated. If the vehicle has no power supply or there is an electric system
fault, the engine must be started using jump leads to deactivate the steer-
ing column electronic gearbox lock. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

281
Practical information

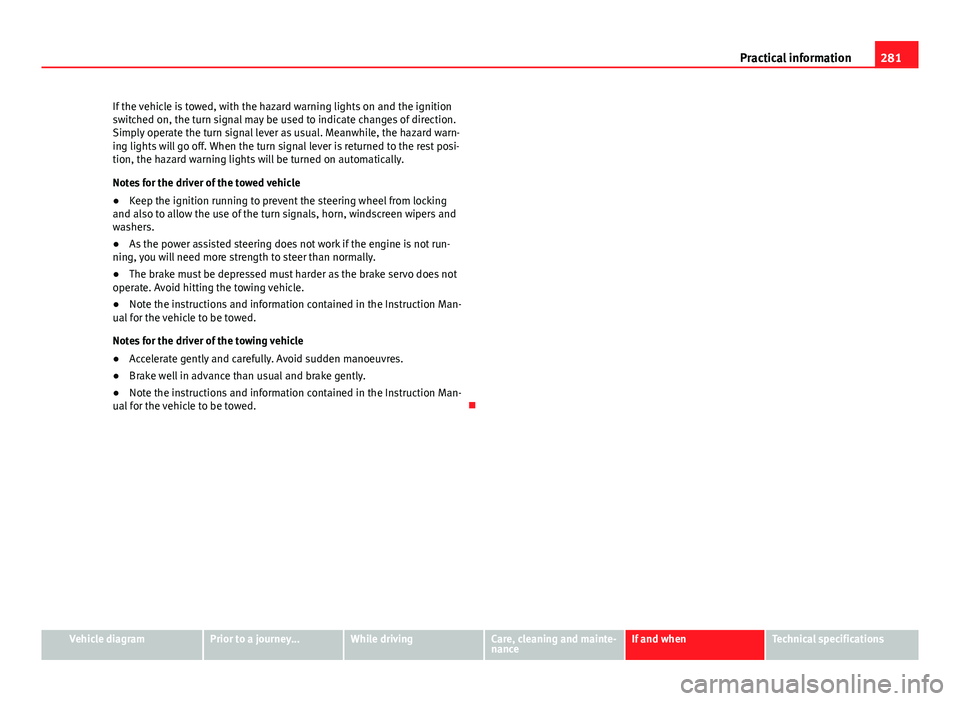

If the vehicle is towed, with the hazard warning lights on and the ignition
switched on, the turn signal may be used to indicate changes of direction.
Simply operate the turn signal lever as usual. Meanwhile, the hazard warn-
ing lights will go off. When the turn signal lever is returned to the rest posi-
tion, the hazard warning lights will be turned on automatically.
Notes for the driver of the towed vehicle
● Keep the ignition running to prevent the steering wheel from locking
and also to allow the use of the turn signals, horn, windscreen wipers and
washers.
● As the power assisted steering does not work if the engine is not run-
ning, you will need more strength to steer than normally.
● The brake must be depressed must harder as the brake servo does not
operate. Avoid hitting the towing vehicle.
● Note the instructions and information contained in the Instruction Man-
ual for the vehicle to be towed.
Notes for the driver of the towing vehicle
● Accelerate gently and carefully. Avoid sudden manoeuvres.
● Brake well in advance than usual and brake gently.
● Note the instructions and information contained in the Instruction Man-
ual for the vehicle to be towed. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

282Description of specifications
Technical specifications
Description of specifications
Technical specifications
Introduction
The information in the vehicle documentation always takes
precedence over the information in this Instruction Manual.
All technical specifications provided in this documentation are valid for the
standard model in Spain. The vehicle data card included in the Mainte-
nance Programme or the vehicle registration documentation shows which
engine is installed in the vehicle.
The figures may be different depending whether additional equipment is fit-
ted, for different models, for special vehicles and for other countries.
Additional information and warnings:
● Transporting ⇒ page 95
● Ecological driving ⇒ page 144
● Fuel ⇒ page 177
● Engine oil ⇒ page 185
● Engine coolant ⇒ page 189
● Wheels and tyres ⇒ page 210
● Notes for the user ⇒ page 233
WARNING
Failure to observe requirements for weight, loads, dimensions and maxi-
mum speed may lead to severe accident.


283
Description of specifications
Vehicle identification data
Fig. 166 Vehicle data la-
bel:
Fig. 167 Vehicle identifi-
cation number
Vehicle identification number
The vehicle identification number (chassis number) can be read from out-
side the vehicle through a viewer in the windscreen ⇒ Fig. 167. This viewer
is located in the lower part of the windscreen. The vehicle identification number (chassis number) is also stamped on the right water drain channel.
The water drain channel is located between the suspension tower and the
wing. Open the bonnet to read the vehicle identification number
.
Vehicle data plate
The vehicle data label ⇒ Fig. 166 is at the front of the spare wheel well. It
contains the following data:
Vehicle identification number (chassis number)
Vehicle type, engine power, gearbox type
Engine and gearbox code, paint number, interior equipment.
Optional extras, PR numbers
These data are also provided in the Maintenance Programme. 
Specific vehicle weight information
The instructions in the official vehicle documents take precedence. All the
technical data provided in this documentation is applicable to the basic
model. The vehicle data label in the Maintenance Programme or the vehicle
documentation shows which engine is installed in your vehicle.
The figures may be different depending whether additional equipment is fit-
ted, for different models and for special vehicles.
Kerb weight values shown in the following table apple for a vehicle with
driver (75 kg), liquids including a fuel tank 90% full, in addition to tools and
a spare wheel ⇒ 
. The kerb weight indicated increases with optional
equipment and retrofitting of accessories, while proportionally reducing car-
rying capacity.
The load is equivalent to the following weights: 
1
234
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

284Description of specifications

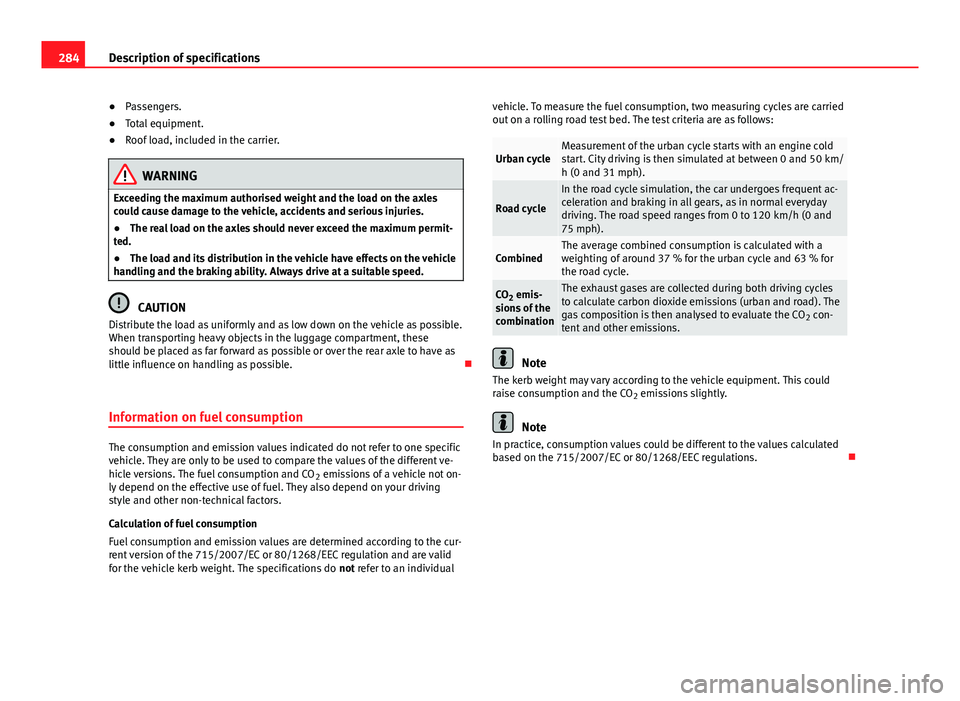

● Passengers.
● Total equipment.
● Roof load, included in the carrier.
WARNING
Exceeding the maximum authorised weight and the load on the axles
could cause damage to the vehicle, accidents and serious injuries.
● The real load on the axles should never exceed the maximum permit-
ted.
● The load and its distribution in the vehicle have effects on the vehicle
handling and the braking ability. Always drive at a suitable speed.
CAUTION
Distribute the load as uniformly and as low down on the vehicle as possible.
When transporting heavy objects in the luggage compartment, these
should be placed as far forward as possible or over the rear axle to have as
little influence on handling as possible. 
Information on fuel consumption
The consumption and emission values indicated do not refer to one specific
vehicle. They are only to be used to compare the values of the different ve-
hicle versions. The fuel consumption and CO 2 emissions of a vehicle not on-
ly depend on the effective use of fuel. They also depend on your driving
style and other non-technical factors.
Calculation of fuel consumption
Fuel consumption and emission values are determined according to the cur-
rent version of the 715/2007/EC or 80/1268/EEC regulation and are valid
for the vehicle kerb weight. The specifications do not refer to an individualvehicle. To measure the fuel consumption, two measuring cycles are carried
out on a rolling road test bed. The test criteria are as follows:
Urban cycleMeasurement of the urban cycle starts with an engine cold
start. City driving is then simulated at between 0 and 50 km/
h (0 and 31 mph).
Road cycle
In the road cycle simulation, the car undergoes frequent ac-
celeration and braking in all gears, as in normal everyday
driving. The road speed ranges from 0 to 120 km/h (0 and
75 mph).
CombinedThe average combined consumption is calculated with a
weighting of around 37 % for the urban cycle and 63 % for
the road cycle.
CO
2 emis-
sions of the
combinationThe exhaust gases are collected during both driving cycles
to calculate carbon dioxide emissions (urban and road). The
gas composition is then analysed to evaluate the CO 2 con-
tent and other emissions.
Note
The kerb weight may vary according to the vehicle equipment. This could
raise consumption and the CO 2 emissions slightly.
Note
In practice, consumption values could be different to the values calculated
based on the 715/2007/EC or 80/1268/EEC regulations. 

285
Description of specifications

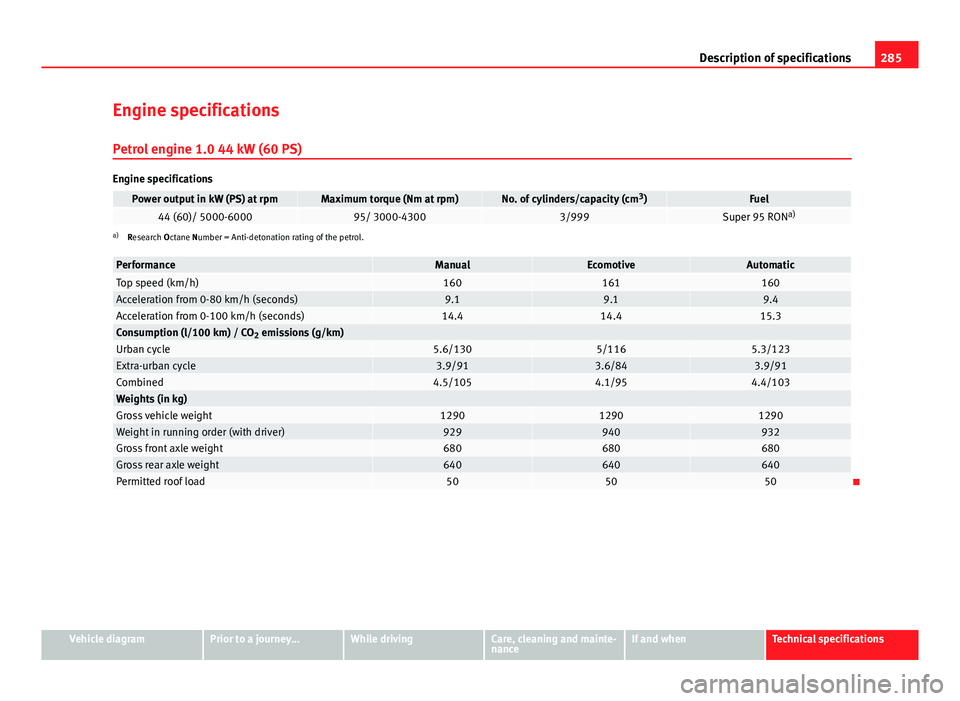

Engine specifications
Petrol engine 1.0 44 kW (60 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel44 (60)/ 5000-600095/ 3000-43003/999Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceManualEcomotiveAutomaticTop speed (km/h)160161160Acceleration from 0-80 km/h (seconds)9.19.19.4Acceleration from 0-100 km/h (seconds)14.414.415.3Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle5.6/1305/1165.3/123Extra-urban cycle3.9/913.6/843.9/91Combined4.5/1054.1/954.4/103Weights (in kg)Gross vehicle weight129012901290Weight in running order (with driver)929940932Gross front axle weight680680680Gross rear axle weight640640640Permitted roof load505050
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

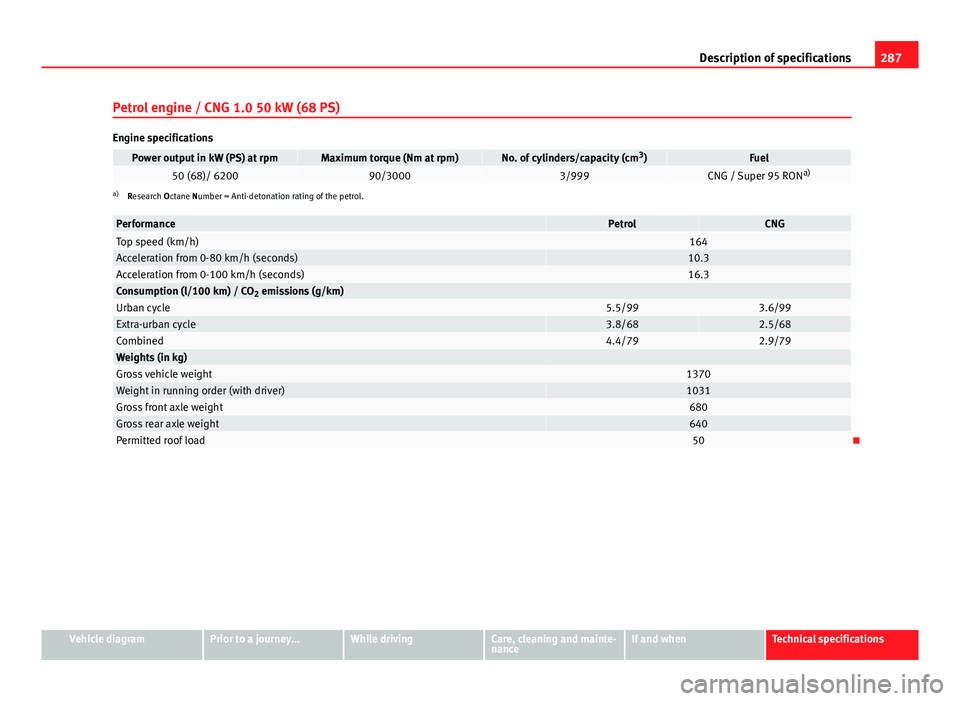

287
Description of specifications
Petrol engine / CNG 1.0 50 kW (68 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel50 (68)/ 620090/30003/999CNG / Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformancePetrolCNGTop speed (km/h)164Acceleration from 0-80 km/h (seconds)10.3Acceleration from 0-100 km/h (seconds)16.3Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle5.5/993.6/99Extra-urban cycle3.8/682.5/68Combined4.4/792.9/79Weights (in kg)Gross vehicle weight1370Weight in running order (with driver)1031Gross front axle weight680Gross rear axle weight640Permitted roof load50
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

Sunglasses storage compartment . . . . . . . . . 110
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Symbolssee warning lamp . . . . . . . . . . . . . . . . . . . . . 15
Systems ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Anti-lock brake system (ABS) . . . . . . . . . . 140
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Brake assist system (BAS) . . . . . . . . . . . . . 140
Cruise control system (CCS) . . . . . . . . . . . . 152
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Electronic differential lock system (EDL) . 140
Electronic Stability Programme (ESP) . . . . 139
Hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Optical parking system (OPS) . . . . . . . . . . 150
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 150
Parking distance warning system . . . . . . . 150
Safety Assist (City Safety Assist function) 155
TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system (ASR) . . . . . . . . . . 140
Traction Control (TC) . . . . . . . . . . . . . . . . . . 140
T Tank flap close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Natural gas . . . . . . . . . . . . . . . . . . . . . . . . . 175
open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
TC see Brake assist systems . . . . . . . . . . . . . . 140 Technical data
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Curb weight . . . . . . . . . . . . . . . . . . . . . . . . 283
Engine oil specifications . . . . . . . . . . . . . . 185
Identification plate . . . . . . . . . . . . . . . . . . . 283
Manufacturer identification plate . . . . . . . 283
Reservoir capacity . . . . . . . . . . . . . . . . . . . . 92
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Total weight . . . . . . . . . . . . . . . . . . . . . . . . 283
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 214
Vehicle data label . . . . . . . . . . . . . . . . . . . . 283
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Technical information Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . 177
Technical modifications . . . . . . . . . . . . . . . . . . 224 Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Lifting platform . . . . . . . . . . . . . . . . . . . . . . 231
Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Technical specifications . . . . . . . . . . . . . . . . . . 282 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 288
Temperature display Liquid coolant temperature . . . . . . . . . . . . . 23
Outside temperature . . . . . . . . . . . . . . . . . . 20
Temporary spare wheel . . . . . . . . . . . . . . . . . . 217 Driving advice . . . . . . . . . . . . . . . . . . . . . . . 217
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 221
Things to note Disconnecting the vehicle's battery . . . . . . 21
parking distance warning system . . . . . . . 150
Removing the key from the vehicle . . . . . . 121
Water underneath the vehicle . . . . . . . . . . 168 Tightening torque
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 254
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Tips for driving . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Before starting out . . . . . . . . . . . . . . . . . . . . 25
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
tire mobility set Components . . . . . . . . . . . . . . . . . . . . . . . . 259
Tire Mobility Set Check after 10 minutes . . . . . . . . . . . . . . . 261
Do not use . . . . . . . . . . . . . . . . . . . . . . . . . 258
Inflating a tyre . . . . . . . . . . . . . . . . . . . . . . 260
preparation . . . . . . . . . . . . . . . . . . . . . . . . . 260
Sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . 260
see Anti-puncture kit . . . . . . . . . . . . . . . . . 258
Tools see Vehicle tool kit . . . . . . . . . . . . . . . . . . . 247
Total weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119, 278 Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . 280
Front towline anchorage . . . . . . . . . . . . . . 280
Special notes . . . . . . . . . . . . . . . . . . . 278, 279
Tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Tow starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Traction control system (ASR) . . . . . . . . . . . . . 140
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . 140
Trailer coupling Towing bracket . . . . . . . . . . . . . . . . . . . . . . 107
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Transporting a load . . . . . . . . . . . . . . . . . . . 96
299
Index
