Seat Toledo 2008 Owner's manual

If and when
250Fuses on left side of dash panelFusesNumber
Consumer
Amperes
1
Vacant
2
Vacant
3
Vacant
4
Vacant
5
Vacant
6
Vacant
7
Vacant
8
Vacant
9
Airbag
5
10
RSE input (roof screen)
10
11
Vacant
11
Vacant
12
Left xenon headlight
10
13
Heating controls / ESP, ASR switch / Reverse / Pre-
installation of telephone / Tomtom Navigator
5
14
ABS/ESP switchboard / Engine / Headlights /
Trailer switchboard / Light switch / Instrument
panel
10
15
Headlight regulation switchboard / Heated wipers
/ Instrument lights / Diagnosis Switchboard
10
16
Right xenon headlight
10
17
Engine management
10
18
Vacant
19
Vacant
20
Park Pilot (Parking assistant) / Gear lever/ ESP
switchboard
10
21
Cable control unit
7,5
22
Volumetric alarm sensor/ Alarm horn
5
23
Diagnosis / Rain sensor / Light switch
10
24
Vacant
25
Switchboard coupling automatic gearbox
20
26
Vacuum pump
20
27
RSE input (roof screen)
10
28
Rear wiper motor / Switchboard wiring
20
29
Vacant
30
Cigarette lighter / socket
20
31
Vacant
32
Vacant
33
Heater
40
34
Vacant
35
Vacant
36
Engine management
10
37
Engine management
10
38
Engine management
10
39
Trailer control unit (coupling)
15
Number
Consumer
Amperes
Toledo_EN.book Seite 250 Dienstag, 20. Januar 2009 12:58 12

If and when251
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras. Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the correct information for your model.
Fuses layout, engine compartment, left partFuses
40
Trailer control unit (indicators, brakes and left
side)
20
41
Trailer control unit (fog light, reversing light and
right side)
20
42
Va can t
43
Trailer pre-installation
40
44
Rear window heater
25
45
Electric windows (front)
30
46
Rear electric windows
30
47
Engine (Fuel control unit, petrol relay)
15
48
Convenience controls
20
49
Heating controls
40
50
Heated seats
30
51
Sunroof
20
52
Headlight washer system
20
53
Va can t
54
Taxi (taximeter power supply)
5
55
Va can t
56
Taxi (taximeter power supply)
15
57
Va can t
58
Central locking control unit
30
Number
Consumer
Amperes
Number
Consumer
Amperes
1
Windscreen wipers
20
2
DQ200 gearbox
30
3
Cable control unit
5
4
ABS
20
5
AQ gearbox
15
6
Instrument panel/Steering column
5
7
Ignition key
40
8
Radio
15
9
Te l e p ho n e/ To m To m Na vi ga to r
5
10
Engine management
5
Engine management
10
11
Vacant
12
Electronic control unit
5
13
Petrol injection module supply
15
Diesel injection module supply
30
14
Coil
20
Toledo_EN.book Seite 251 Dienstag, 20. Januar 2009 12:58 12

If and when
252
Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Indicator - PY21W
Xenon headlights
22)/ self-adjusting*
Dipped and full beam - D1S
23)
Daylight - P21W SLL
Position W5W
Indicators PY21W
15
Engine management
5
Pump relay
10
16
Right li ghting
30
17
Horn
15
18
Vacant
19
Clean
30
20
Water pump
10
Pressure sensor pump for 1.8 engine
20
21a)
Lambda probe
15
22
Brake pedal, speed sensor
5
23a)
Engine management
5
Engine management
10
Engine management
15
24
AKF, gearbox valve
10
25a)
ABS pump
40
26
Left lighting
30
27a)
Engine management
40
Engine management
50
28
Vacant
29a)
Electric windows (front and back)
50
Electric windows (front)
30
30
Ignition key
50
a)Ampere rating according to motorisationNumber
Consumer
Amperes
22)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.23)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Toledo_EN.book Seite 252 Dienstag, 20. Januar 2009 12:58 12

If and when253
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Fog lights
Fog lights - H3
Upper rear light
Stop/Position - P21W
24)
Indicator - R10W
Lower rear light
Fog light - P21W
Reverse light - P21W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Depending on weather conditions (cold
or wet), the front lights, the fog
lights, the rear lights and the indicators may be temporarily misted. This has
no influence on the life expectancy of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.
•
Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the interest
of your own safety, but also in that of all other road users.
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, th e following is a description of how to
change the lamps except for the fog lights* and interior lamps.
Main headlight lamps
Indicator
Dipped headlights
Main beam headlights
Side lights
24)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
Fig. 176 Main headlight
lamps
AAABACAD
Toledo_EN.book Seite 253 Dienstag, 20. Januar 2009 12:58 12

If and when

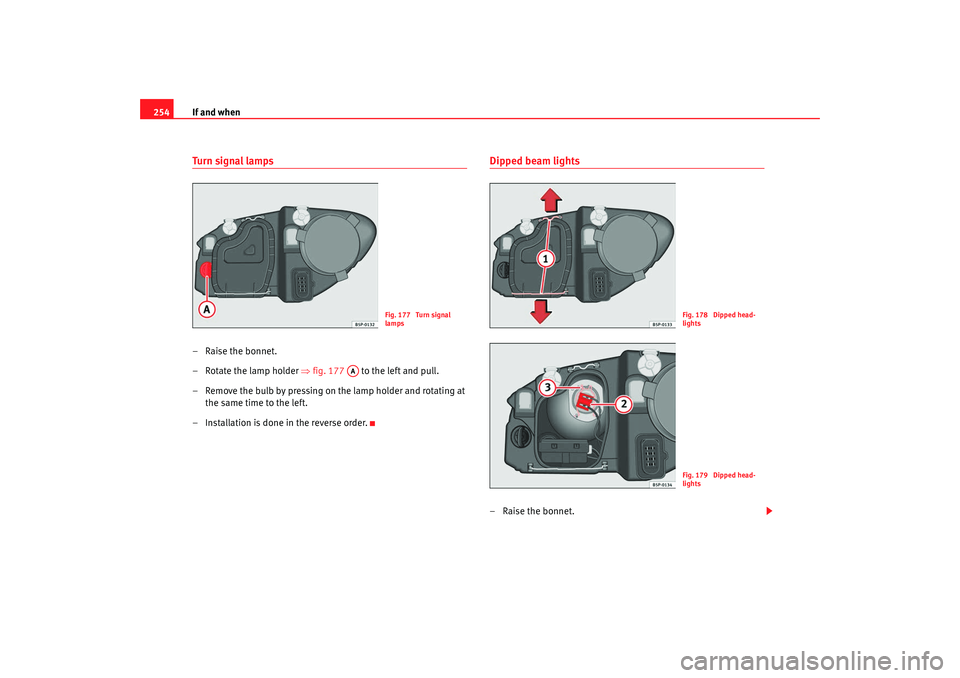

254Tu r n si g nal l a m ps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 177 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights–Raise the bonnet.
Fig. 177 Turn signal
lamps
AA
Fig. 178 Dipped head-
lightsFig. 179 Dipped head-
lights
Toledo_EN.book Seite 254 Dienstag, 20. Januar 2009 12:58 12

If and when255
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

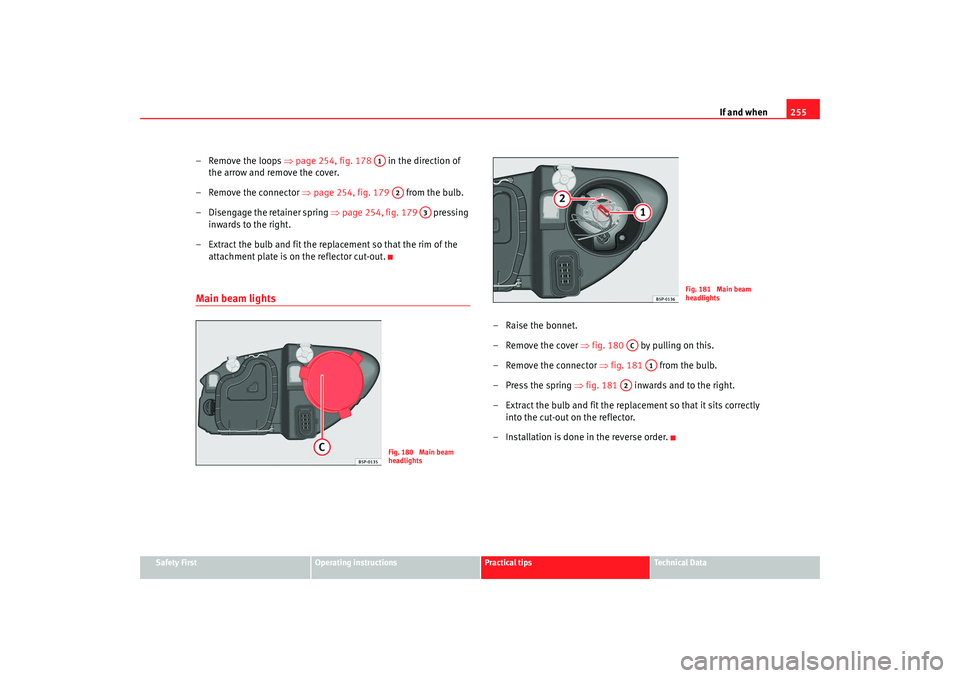

– Remove the loops ⇒page 254, fig. 178 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 254, fig. 179 from the bulb.
– Disengage the retainer spring ⇒ page 254, fig. 179 pressing
inwards to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
– Raise the bonnet.
– Remove the cover ⇒fig. 180 by pulling on this.
– Remove the connector ⇒fig. 181 from the bulb.
– Press the spring ⇒fig. 181 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 180 Main beam
headlights
Fig. 181 Main beam
headlights
AC
A1
A2
Toledo_EN.book Seite 255 Dienstag, 20. Januar 2009 12:58 12

If and when

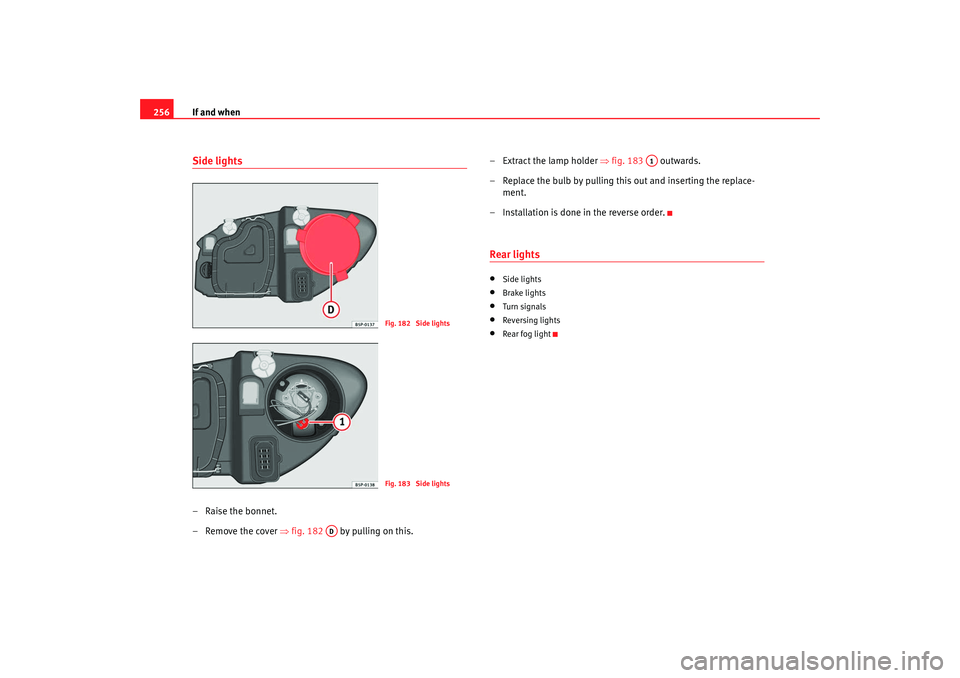

256Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 182 by pulling on this. – Extract the lamp holder
⇒fig. 183 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
Side lights
•
Brake lights
•
Turn signals
•
Reversing lights
•
Rear fog light
Fig. 182 Side lightsFig. 183 Side lights
AD
A1
Toledo_EN.book Seite 256 Dienstag, 20. Januar 2009 12:58 12

If and when257
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Side lights and brake lights– Open the tailgate.
– Remove the bolts ⇒fig. 184 . – Remove the cover of the luggage compartment lateral panel.
– Unscrew the plastic fitting
⇒fig. 185 securing the rear light.
Inserting a screwdriver under the plastic fitting may help to
loosen it.
– Partially remove the rear light from its casing taking care not to pull on the cable.
– Remove the lamp holder connector.
– Unscrew the bolts ⇒page 258, fig. 186 from the lamp holder
and pull on this.
– Press on the lamp and rotate to the left then fit the replacement.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder. The metal contacts of the lamp holder
ends should be correctly fitted with respect to the rear light
contacts.
Fig. 184 Side lights and
brake lightsFig. 185 Side lights and
brake lights
AA
ABAC
Toledo_EN.book Seite 257 Dienstag, 20. Januar 2009 12:58 12

If and when
258Tu r n i n d i ca to rs– Remove the rear light from its casing (see side/brake light). – Unscrew the bolts ⇒
fig. 186 from the lamp holder and pull
on this.
– Pull out the lamp holder from the turn signal using a screw driver in the direction of the arrow (see ⇒fig. 187).
– Fit the replacement lamp by pressing it down and rotating to the left.
– Installation is done in the reverse order.
Fig. 186 Indicator lightFig. 187 Indicator light
AC
Toledo_EN.book Seite 258 Dienstag, 20. Januar 2009 12:58 12

If and when259
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

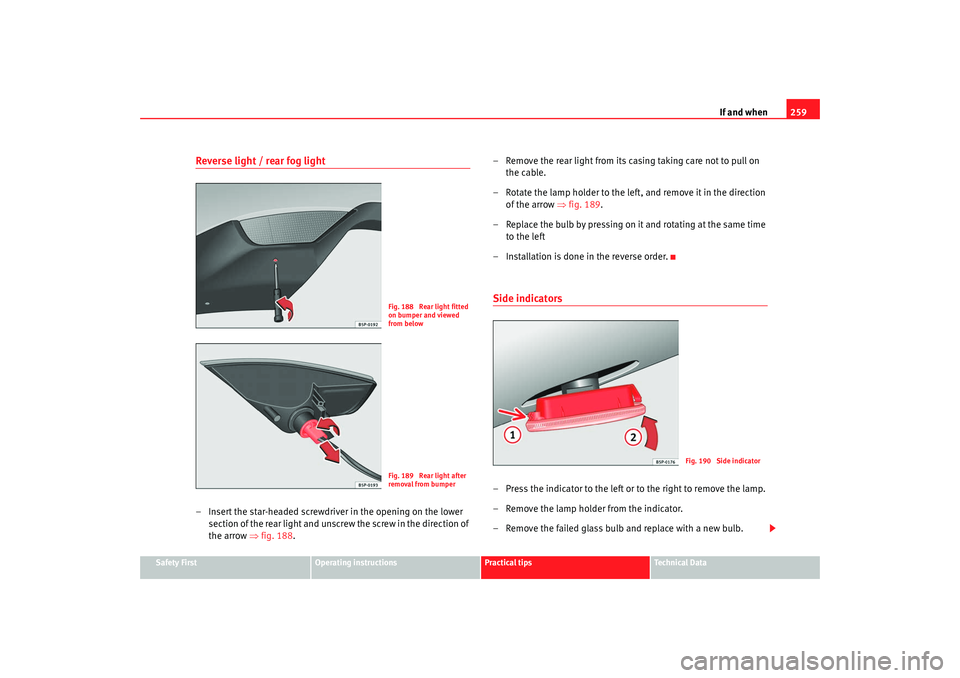

Reverse light / rear fog light– Insert the star-headed screwdrive r in the opening on the lower
section of the rear light and unsc rew the screw in the direction of
the arrow ⇒fig. 188. – Remove the rear light from its casing taking care not to pull on
the cable.
– Rotate the lamp holder to the left, and remove it in the direction of the arrow ⇒fig. 189.
– Replace the bulb by pressing on it and rotating at the same time
to the left
– Installation is done in the reverse order.
Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
Fig. 188 Rear light fitted
on bumper and viewed
from belowFig. 189 Rear light after
removal from bumper
Fig. 190 Side indicator
