Seat Toledo 2012 BLUETOOTH SYSTEM

Bluetooth system
Owner ’s manual
6J0012006FF
Inglés
6J0012006FF
(07.12)
(GT9)

Table of ContentsGeneral information . . . . . . . . . . . . . . . .2
Important information . . . . . . . . . . . . . .
3
Introduction to the Bluetooth
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
General information . . . . . . . . . . . . . . . . . . . . . . .
4
Compatibility with mobile phones . . . . . . . . . .
6
Bluetooth system components . . . . . . . . . . . . .
6
Getting started: Linking . . . . . . . . . . . .
7
Creation of user profile . . . . . . . . . . . . . . . . . . . .
7
Pairing with the mobile phone . . . . . . . . . . . . .
7
Automatic pairing . . . . . . . . . . . . . . . . . . . . . . . . .
8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Operation via controls . . . . . . . . . . . . . . . . . . . . .
9
Operation via voice control . . . . . . . . . . . . . . . . .
9
Telephone display . . . . . . . . . . . . . . . . . . . . . . . . .
12
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
131Table of Contents

2General informationGeneral informationWhat you should know before reading this manual
This manual contains a description of the equipment supplied with the ve-hicle at the time of press. Some of the equipment hereunder described willnot be available until a later date, or is only available in certain markets.
Because this is a general manual, some of the equipment and functionsthat are described in this manual are not included in all types or variants ofthe model or model year; they may vary or be modified depending on thetechnical requirements and on the market or model year; this can not beinterpreted as dishonest advertising.
The illustrations are intended as a general guide and may vary from theequipment fitted in your vehicle in some details.
The texts shown in this manual for describing the Telephone, and the ordersfor the voice control, may vary depending upon the vehicle: they should betaken as descriptions of the function rather than the precise text.
The equipment marked with an asterisk* is fitted as standard only in cer-tain versions, and is only supplied as optional extras for some versions, orare only offered in certain countries.
All registered marks are indicated with ®. Although the copyright sym-bol does not appear, it is a copyrighted mark.
The section is continued on the following page.
Marks the end of a section.
WARNINGTexts preceded by this symbol contain information on safety. They warnyou about possible dangers of accident or injury.®CAUTIONTexts with this symbol draw your attention to potential sources of damageto your vehicle.
For the sake of the environment
Texts preceded by this symbol contain relevant information concerning envi-ronmental protection.
Note
Texts preceded by this symbol contain additional information.


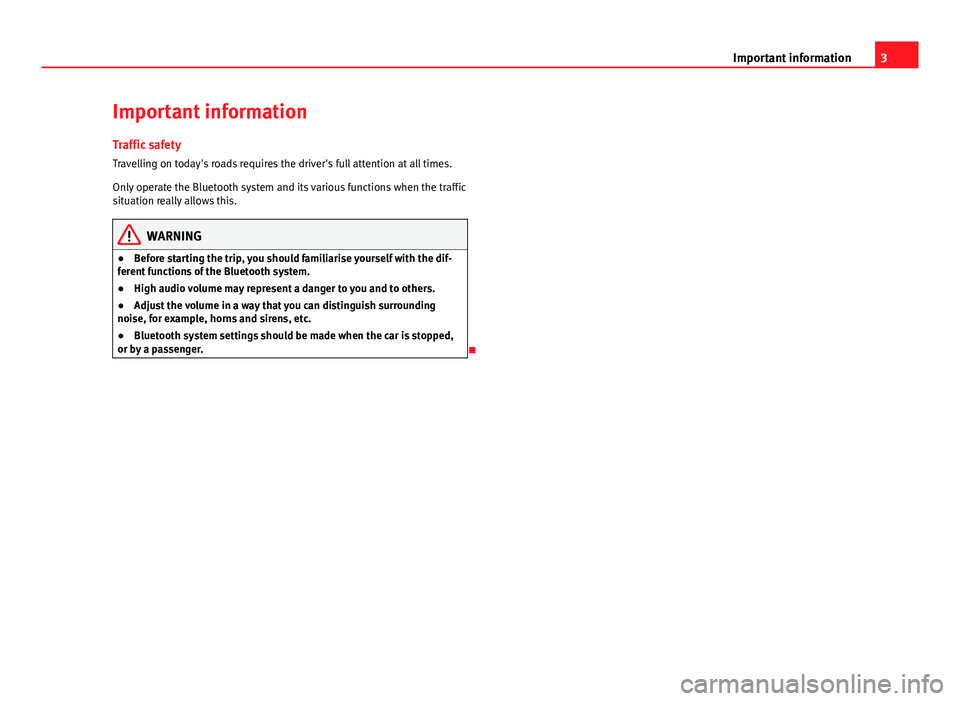

3Important informationImportant informationTraffic safety
Travelling on today's roads requires the driver's full attention at all times.
Only operate the Bluetooth system and its various functions when the trafficsituation really allows this.
WARNING●Before starting the trip, you should familiarise yourself with the dif-ferent functions of the Bluetooth system.●
High audio volume may represent a danger to you and to others.
●
Adjust the volume in a way that you can distinguish surroundingnoise, for example, horns and sirens, etc.
●
Bluetooth system settings should be made when the car is stopped,or by a passenger.


4Introduction to the Bluetooth systemIntroduction to the Bluetooth systemGeneral information
This system allows you to connect your mobile phone via
Bluetooth connection and to use the hands-free mode.
The hands-free device means that the telephone can be used inside the ve-hicle; the driver will not have to remove their hands from the steering wheelnor will be distracted from traffic.
Available functions include making calls in hands-free mode, access to themobile phone address book, access to the call list and control of the voicerecognition system.
Before using the Bluetooth system, the mobile phone should be connectedto the vehicle installation via Bluetooth ⇒ page 7.
Switching on/off
The Bluetooth system is activated when the ignition is turned on and it isdeactivated when the key is removed from the ignition.
With the system activated, if the “PTT” is pressed the voice control activatesand if there is no telephone connected, Bluetooth visible is turned on and asearch for a telephone is begun.
If there is a call in process when the system is deactivated, the active call isnot cancelled, but transferred to the mobile phone.
Bluetooth
Bluetooth technology permits the connection of a mobile phone to the vehi-cle hands free system. In order to use the system with a mobile phone withBluetooth technology, the process of pairing them must be performed in ad-vance.
Use compatible Bluetooth devices only. For more information about compat-ible Bluetooth products, consult your dealership or the SEAT website.
Some Bluetooth mobile phones are detected and connected automaticallywhen the ignition is switched on. For this to take place the telephone mustbe switched on and its Bluetooth function activated, and there must be noactive Bluetooth connection from other devices.
Bluetooth connections are free.
Bluetooth® is a registered trademark of Bluetooth® SIG, Inc.
Declaration of conformity
S1nn GmbH & Co. KG certifies that the UHV High unit complies with the ba-sic requirements and the rest of the relevant provisions of the Directive1999/5/CE. A copy of the declaration of conformity can be found at http://www.s1nn.de/certifications/uhv-high-manual .
Exchange of information between the mobile phone and the Bluetoothsystem
The mobile phone system sends the data and the requests via Bluetooth tothe mobile phone that is connected. If the connected mobile phone is tem-porarily “overloaded”, it may not respond to the requests from the Blue-tooth system. The following message is shown in the instrument panel dis-play: “Mobile phone does not respond”.
In this case, wait for the mobile phone to react or make a new call.

5Introduction to the Bluetooth systemWARNING●Please concentrate on driving. As the driver, you have the responsibil-ity for your safety and that of others. For this reason, you should only usethe functions when the traffic situation allows so and in a manner thatallows you to maintain control of the vehicle. Otherwise, you run the riskof causing an accident.
●
The speech system must not be used in cases of emergency, since thevoice changes in stressful situations. This could result in a failed or de-layed telephone connection. Always dial emergency numbers manually!
●
Always observe applicable legislation.
●
Adjust the volume so that external warning sounds (e.g. emergencyvehicles) are always audible.
Note
●The voice control system is only available in the following languages:Spanish, Mexican Spanish, German, English, French, Canadian French, Ital-ian, Portuguese, Czech, Russian and Dutch. For other languages, the prede-fined language for the voice instructions is English. Please take the vehicleto a Technical Service if you wish to change the language.
●
There may be restrictions on the use of Bluetooth devices in some coun-tries. Information is available from the local authorities.
●
If you connect the mobile phone Bluetooth system to a Bluetooth de-vice, consult the safety warnings in its instruction manual. Use compatibleBluetooth products only.


6Introduction to the Bluetooth systemCompatibility with mobile phones
New models of mobile phones are being released constantly by the differ-ent brands, with different operating systems and different ways of operat-ing. For this reason there are some mobile phones that do not performsome of the functions correctly or are even totally incompatible. At SEAT wewould like to help you choose a mobile phone, so we have published theresults of compatibility tests performed for different mobile phones. Visitthe SEAT website or ask at your dealer.
Depending on your mobile phone model, certain functions may not be avail-able or it may be necessary to change the configuration. Familiarise yourselfwith your phone and read the instruction manual to learn the possibilities itoffers.
Even when the mobile phone appears as compatible in our list, we have no-ticed that occasionally it is possible that the phone presents an abnormalbehaviour with the system due to software errors. In this case we recom-mend updating your mobile phone's software. Mobile phone manufacturersusually have updates available on their websites, which can improve theoperation of your phone.
In the event that you have various applications to make calls, such as inter-net calling, the mobile will ask you from which application you wish to makethe call. Until confirmation is given you will not be able to make the call.
If you try to make a call and it is not processed, check your mobile phone asit is possible that your a pop-up window on your telephone is requestingyou to select the program with which to make the call.

Bluetooth system componentsFig. 1
Display and handling components of the Bluetooth system.
⇒ Fig. 1Necessary componentsSee1Multifunction control⇒ page 92Radio⇒ page 9


7Getting started: LinkingGetting started: LinkingCreation of user profile
Each telephone must be paired to the Bluetooth system be-
fore using it for the first time.
When pairing a mobile phone for the first time, you will be asked to create auser profile. A user profile is necessary for you to connect the mobile phoneto the SEAT system. Once the user profile has been created, your telephonecan be connected automatically or manually . It is not necessary to repeatthe initial connection process each time.
A maximum of four user profiles can be created. If you try to create a fifthprofile, the profile which has been inactive for the most time will automati-cally be deleted.
The pairing process can take several minutes depending on the size of thephone book.
The procedure for pairing your mobile phone to the SEAT system for the firsttime is described below.

Pairing with the mobile phone
Follow the steps below to connect the mobile phone to the vehi-
cle's Bluetooth by searching for devices from the mobile phone:
–
Activate the Bluetooth in the mobile phone.
–Turn on the ignition with the key. The vehicle system will be visi-
ble to the mobile phone via Bluetooth for 3 minutes. If the 3 mi-
nutes have passed you can also switch on Bluetooth visible
again for 3 minutes by pressing the button “PTT”.
–
Search for Bluetooth devices using the mobile phone. Refer to
the mobile phone manual for instructions.
–
A list of devices found is displayed on the mobile phone. From
this list, select the device SEAT_BT.
–
Next, accept the connection instructions on the mobile phone.
–
When requested, follow the steps to confirm/enter the PIN. If
the mobile requests a PIN to be entered this is 1234, which is
the factory setting and can only be changed at the workshop.
Depending on the technology supported by your mobile the
process can vary given that some mobiles only request confir-
mation of a request to link to SEAT_BT, while others require the
PIN 1234 to be entered.
–
The contacts from the mobile phone's memory and/or SIM
card1) are transferred to the vehicle system. Some mobile
phones may display a message asking for confirmation of ac-
cess to the phone book or other options, these messages
should be accepted in order for the hands free system to access
the information contained on the mobile and in order to carry
out the complete functions of the system.
–
The pairing is complete.
1)
Depending on the phone model and configuration.

8Getting started: LinkingNoteThe visibility of the Bluetooth system in the vehicle is activated for 3 mi-nutes when the ignition is turned on with the key. After 3 minutes, if youneed to activate the visibility again, you can do so with the voice control⇒ page 9 or turning the ignition off and on again.
Note
If for any reason you take more than 3 minutes to perform these steps ormore than 30 seconds to enter the PIN, you will have to start the processover again.

Automatic pairing
When the telephone has been paired and the corresponding user profilecreated, your telephone will automatically pair with the SEAT telephone sys-tem under the following conditions:
●
The mobile phone is switched on with the Bluetooth function activatedand the visibility activated. The mobile phone must be close to the vehicle.
●
The vehicle system has switched on Bluetooth visible (during the 3 mi-nutes following activation of the contact or after pressing the button “PTT”).
●
The automatic connection was accepted during the questions of the firstconnection.
●
The connection to the system has not been deleted in the mobile.
With the ignition switched on, the system searches in the memorised Blue-tooth devices (user profiles), and if one of these devices is found a connec-tion attempt is made to connect to the last linked profile that meets the pre-viously mentioned requirements. The system will continue connection at-tempts while there is no connected device.
When a Bluetooth device is connected or when the automatic connectionconditions are met, in order to connect another Bluetooth device, an exist-ing connection or one that is in the process being connected must be deac-tivated in advance. In order to do this, deactivate the Bluetooth on the un-wanted device.


9OperationOperationOperation via controls
Multifunction control
The mobile phone system can be controlled from the multi-
function control or by using the voice control system.
Fig. 2
Multifunction con-trol buttons.
Controls on the multifunction control
ButtonFunction“Push to talk button” or “PTT” button.Short press: start or cancel the speech control system, interruptmessage in process in order to talk promptly, turn on Bluetoothvisible for 3 minutes.
 /Short press: adjust volume of telephone function.Short press: Answer, Start, End a call.Long press: Decline an incoming call, transfer active call to pri-vate mode.

Operation via voice control
Introduction
The voice control system can be activated with the “Push to
talk” or “PTT” button .
Thanks to the voice control you can use many telephone functions withouthaving to take your eyes off the road or your hands off the steering wheel.
Dialogue is the time during which the voice control system transmits mes-sages and can receive spoken orders (commands).
If a call is received, then the dialogue is immediately interrupted.
You can use the HELP in any part of the menu. If you have any doubts orcannot decide the Command to use, the system will provide you with theavailable options.
You can CANCEL in any part of the menu.

