Foreword
This Instruction Manual and its corresponding supplements should be read carefully to familiarise yourself
with your vehicle.
Besides the regular care and maintenance of the vehicle, its correct handling will help preserve its value.
For safety reasons, always note the information concerning accessories, modifications and part replace-
ments.
If selling the vehicle, give all of the on-board documentation to the new owner, as it should be kept with the
vehicle.
Page 3 of 249
Page 4 of 249
Table of Contents
Manual structure . . . . . . . . . . . . . . . . . . . . 5
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sitting position for vehicle occupants . . . . . . . . . 10
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 20
Why wear seat belts? . . . . . . . . . . . . . . . . . . . . . . 22
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 31
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing child seats . . . . . . . . . . . . . . . . . . . . . . . 50 Operating instructions
. . . . . . . . . . . . . 53
Controls and displays . . . . . . . . . . . . . . . . . . . . . . 53
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Instruments and warning lamps . . . . . . . . . . . . . 55
Multi-function display* (on board computer) . . . 59
MAXI DOT* (Informative display) . . . . . . . . . . . . . 62
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 74
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 81
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Central locking system . . . . . . . . . . . . . . . . . . . . . 83
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 88
Vehicle interior monitoring and tow-away
protection system . . . . . . . . . . . . . . . . . . . . . . . . . 89
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Opening and closing electric windows . . . . . . . . 92
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 94
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Windscreen wipers and windscreen washers . . . 103
Rear vision mirrors . . . . . . . . . . . . . . . . . . . . . . . . 106
Seats and storage . . . . . . . . . . . . . . . . . . . . . . . . . 107
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 112
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Drink holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Cigarette lighter, 12V power socket . . . . . . . . . . . 118 Storage compartment . . . . . . . . . . . . . . . . . . . . . . 120
Coat hooks* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Heating and air conditioning . . . . . . . . . . . . . . . 125
Heating and air conditioning . . . . . . . . . . . . . . . . 125
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Air conditioning (manual)* . . . . . . . . . . . . . . . . . . 129
Climatronic* (automatic air conditioning) . . . . . . 132
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Starting and stopping the engine . . . . . . . . . . . . 136
Brakes and brake servo systems . . . . . . . . . . . . . 139
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 143
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
START-STOP* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Practical Tips . . . . . . . . . . . . . . . . . . . . . . . . . 153
Driving and the environment . . . . . . . . . . . . . . . 153
The first 1500 km (900 miles) . . . . . . . . . . . . . . . 153
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 154
Economical and ecological driving . . . . . . . . . . . 154
Environmental compatibility . . . . . . . . . . . . . . . . 158
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Preventing damage to the vehicle . . . . . . . . . . . . 159
Driving through water . . . . . . . . . . . . . . . . . . . . . . 159
Driving the vehicle with a trailer . . . . . . . . . . . . 161
Driving the vehicle with a trailer . . . . . . . . . . . . . 161
Care of the vehicle and cleaning . . . . . . . . . . . . 164
Care of the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 164
3
Table of Contents
Page 5 of 249
Checking and refilling levels . . . . . . . . . . . . . . . 171
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Engine compartment . . . . . . . . . . . . . . . . . . . . . . 173
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Windscreen washer . . . . . . . . . . . . . . . . . . . . . . . . 182
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Accessories, modifications and spare parts . 195
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Modifications and effects of the airbag system . 196
Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
First-aid kit and warning triangle . . . . . . . . . . . . . 197
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Vehicle tool kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 198
Tyre repair kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 207
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing front fog light bulbs . . . . . . . . . . . . . . . 219
Changing bulbs for rear lights (in side panel) . . 220
Changing rear lights (in rear lid) . . . . . . . . . . . . . 223
Changing bulb for the number plate light . . . . . . 225
Technical specifications . . . . . . . . . . . . 226
Description of the data . . . . . . . . . . . . . . . . . . . . 226
Important information . . . . . . . . . . . . . . . . . . . . . 226
Information on fuel consumption . . . . . . . . . . . . 228 Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . 231
Petrol engine 1.2 55 kW (75 PS) . . . . . . . . . . . . . 232
Petrol engine 1.2 TSI 63 kW (85 PS) . . . . . . . . . . 233
Petrol engine 1.2 77 kW (105 PS) with/without
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Petrol engine 1.4 90 kW (122 PS) Automatic . . . 235
Diesel engine 1.6 CR 77 kW (105 PS) with/
without Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . 236
Dimensions and capacities . . . . . . . . . . . . . . . . . 237
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
4Table of Contents
Page 6 of 249
5

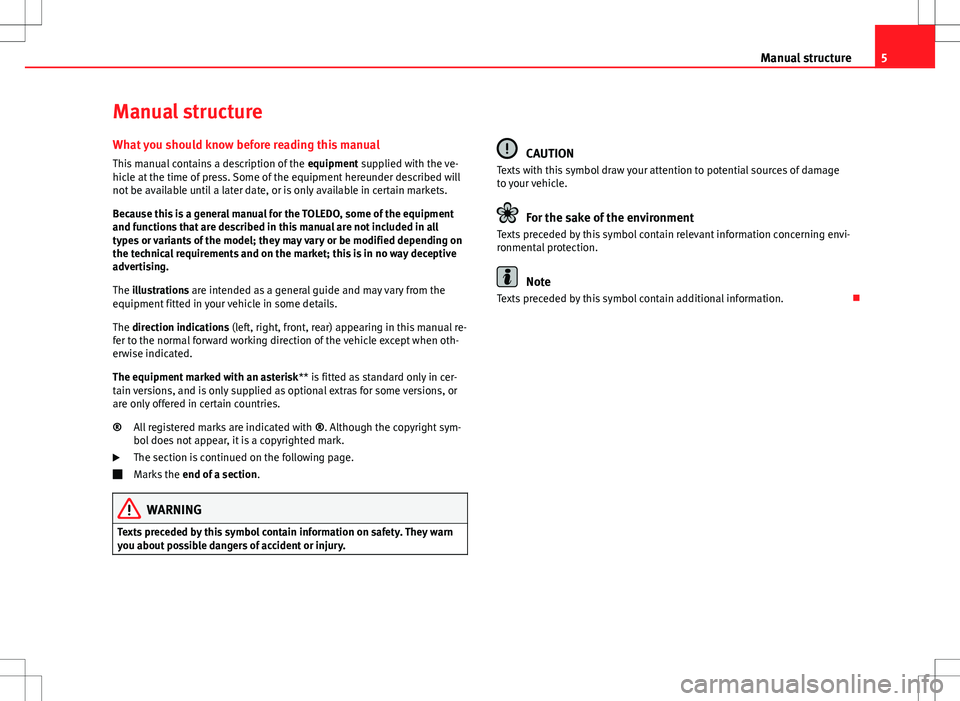

Manual structure
Manual structure
What you should know before reading this manual This manual contains a description of the equipment supplied with the ve-
hicle at the time of press. Some of the equipment hereunder described will
not be available until a later date, or is only available in certain markets.
Because this is a general manual for the TOLEDO, some of the equipment
and functions that are described in this manual are not included in all
types or variants of the model; they may vary or be modified depending on
the technical requirements and on the market; this is in no way deceptive
advertising.
The illustrations are intended as a general guide and may vary from the
equipment fitted in your vehicle in some details.
The direction indications (left, right, front, rear) appearing in this manual re-
fer to the normal forward working direction of the vehicle except when oth-
erwise indicated.
The equipment marked with an asterisk ** is fitted as standard only in cer-
tain versions, and is only supplied as optional extras for some versions, or
are only offered in certain countries.
All registered marks are indicated with ®. Although the copyright sym-
bol does not appear, it is a copyrighted mark.
The section is continued on the following page.
Marks the end of a section .
WARNING
Texts preceded by this symbol contain information on safety. They warn
you about possible dangers of accident or injury.
®
CAUTION
Texts with this symbol draw your attention to potential sources of damage
to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain relevant information concerning envi-
ronmental protection.
Note
Texts preceded by this symbol contain additional information.
Page 7 of 249
6Content
Content
This manual is structured to provide the information you need in an organ-
ised way. The content of this Manual is divided into sections which belong
to chapters (e.g. “Air conditioning”). The entire manual is divided into five
large parts which are:
1. Safety First Information about the vehicle equipment relating to passive safety such as
seat belts, airbags, seats, etc.
2. Operating instructions
Information about the distribution of controls in the driver position of your
vehicle, about the seat adjustment possibilities, about how to create a suit-
able climate in the vehicle interior, etc.
3. Practical Tips Advice relating to the driving, caring and maintenance of your vehicle and
certain problems you can solve yourself.
4. Technical specifications
Figures, values and the dimensions of your vehicle.
5. Alphabetic index
At the end of this manual there is a detailed alphabetical index, this will
help you to quickly find the information you require.
Page 8 of 249
7
Safe driving
Safety First
Safe driving
Brief introduction
Dear SEAT Driver
Safety first! This chapter contains important information, tips, suggestions and
warnings that you should read and consider for both your own
safety and for your passengers' safety.
WARNING
● This manual contains important information about the operation of
the vehicle, both for the driver and the passengers. The other sections of
the on-board documentation also contain further information that you
should be aware of for your own safety and for the safety of your passen-
gers.
● Ensure that the on-board documentation is kept in the vehicle at all
times. This is especially important when lending or selling the vehicle to
another person.
Safety equipment
The safety equipment is a part of the occupant protection
system and can reduce the risk of injury in the event of acci-
dent.
Never put your safety or the safety of your passengers in danger. In the
event of an accident, the safety equipment may reduce the risk of injury.
The following list includes most of the safety equipment in your SEAT:
● Three-point seat belts
● Belt tension limiters for the front and rear side seats
● Belt tensioners for the front seats
● Belt height adjustment for the front seats
● Front airbags
● Side airbags in the front seat backrests
● Side airbags in the rear seat backrests*
● Curtain airbags
● Active front head restraints*
● ISOFIX anchor points for child seats in the rear side seats with the ISOFIX
system
● Height-adjustable front head restraints
● Head restraints with in-use position and non-use position
● Adjustable steering column
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 9 of 249

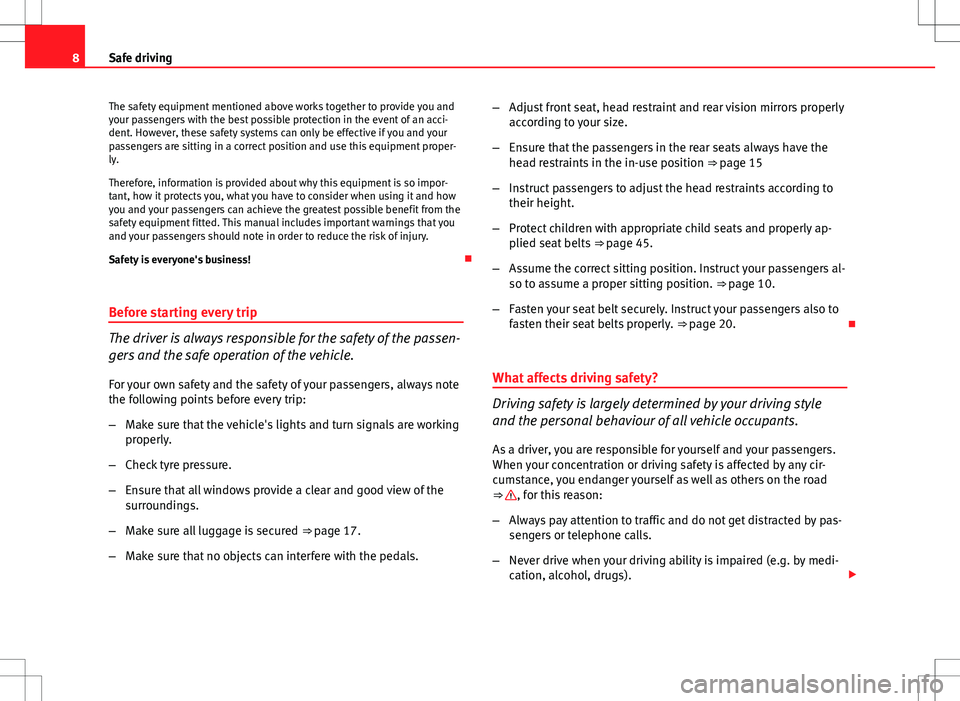

8Safe driving
The safety equipment mentioned above works together to provide you and
your passengers with the best possible protection in the event of an acci-
dent. However, these safety systems can only be effective if you and your
passengers are sitting in a correct position and use this equipment proper-
ly.
Therefore, information is provided about why this equipment is so impor-
tant, how it protects you, what you have to consider when using it and how
you and your passengers can achieve the greatest possible benefit from the
safety equipment fitted. This manual includes important warnings that you
and your passengers should note in order to reduce the risk of injury.
Safety is everyone's business!
Before starting every trip
The driver is always responsible for the safety of the passen-
gers and the safe operation of the vehicle.
For your own safety and the safety of your passengers, always note
the following points before every trip:
– Make sure that the vehicle's lights and turn signals are working
properly.
– Check tyre pressure.
– Ensure that all windows provide a clear and good view of the
surroundings.
– Make sure all luggage is secured ⇒ page 17.
– Make sure that no objects can interfere with the pedals. –
Adjust front seat, head restraint and rear vision mirrors properly
according to your size.
– Ensure that the passengers in the rear seats always have the
head restraints in the in-use position ⇒ page 15
– Instruct passengers to adjust the head restraints according to
their height.
– Protect children with appropriate child seats and properly ap-
plied seat belts ⇒ page 45.
– Assume the correct sitting position. Instruct your passengers al-
so to assume a proper sitting position. ⇒ page 10.
– Fasten your seat belt securely. Instruct your passengers also to
fasten their seat belts properly. ⇒ page 20.
What affects driving safety?
Driving safety is largely determined by your driving style
and the personal behaviour of all vehicle occupants.
As a driver, you are responsible for yourself and your passengers.
When your concentration or driving safety is affected by any cir-
cumstance, you endanger yourself as well as others on the road
⇒
, for this reason:
– Always pay attention to traffic and do not get distracted by pas-
sengers or telephone calls.
– Never drive when your driving ability is impaired (e.g. by medi-
cation, alcohol, drugs).
Page 10 of 249
9
Safe driving
– Observe traffic laws and speed limits.
– Always reduce your speed as appropriate for road, traffic and
weather conditions.
– When travelling long distances, take breaks regularly - at least
every two hours.
– If possible, avoid driving when you are tired or stressed.
WARNING
When driving safety is impaired during a trip, the risk of injury and acci-
dents increases.
Safety FirstOperating instructionsPractical TipsTechnical specifications
